battery replacement FORD E SERIES 2004 4.G Owners Manual

Press to play the tape.
8.REWbutton
Press to rewind the tape.
9.FFbutton
Press to fast forward the tape.
10.STOPbutton
Press to stop the tape.
Battery replacement
Batteries are supplied with the remote control unit. However, they are
simply for operation check and will only work for a short time.
Slide battery cover off as shown on remote control to access the
batteries.
The remote control unit uses two AAA batteries.
The need for battery replacement is usually indicated if the remote
control only functions at extremely close distances to the entertainment
center or not at all.
When replacing batteries, use two new batteries (alkaline recommended)
and install with correct orientation (+ and polarities). Ensure that you
use only new batteries of the same brand.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
34

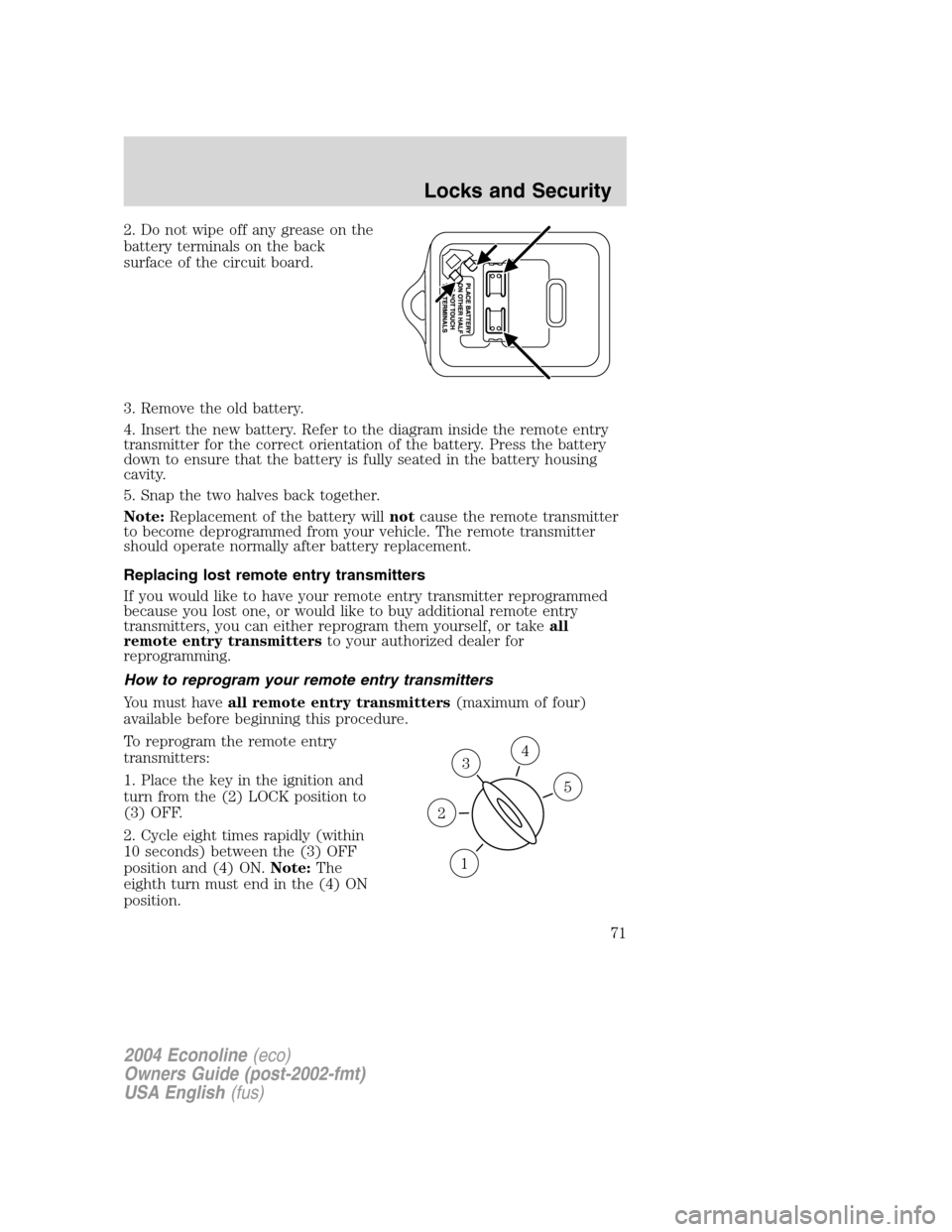

2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing
cavity.
5. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
Replacing lost remote entry transmitters
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or takeall
remote entry transmittersto your authorized dealer for
reprogramming.
How to reprogram your remote entry transmitters
You must haveall remote entry transmitters(maximum of four)
available before beginning this procedure.
To reprogram the remote entry
transmitters:
1. Place the key in the ignition and
turn from the (2) LOCK position to
(3) OFF.
2. Cycle eight times rapidly (within
10 seconds) between the (3) OFF
position and (4) ON.Note:The
eighth turn must end in the (4) ON
position.
3
1
2
5
4
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
71

A
Accessory delay ..........................63
Air bag supplemental restraint
system ..........................................89
and child safety seats ..............91
description ................................89
disposal ......................................93
driver air bag ............................91
indicator light ...........................93
operation ...................................91
passenger air bag .....................91
Air cleaner filter .......202–203, 217
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................184
Anti-lock brake system
(see Brakes) ..............................112
Audio system
(see Radio) ................15, 17, 19, 22
Automatic transmission
driving an automatic
overdrive .................................116
fluid, adding ............................200
fluid, checking ........................200
fluid, refill capacities ..............218
fluid, specification ..................225
Auxiliary power point .................62
Axle
lubricant specifications ..222, 225
refill capacities ........................218
traction lok ..............................113
B
Battery .......................................178
acid, treating emergencies .....178
disconnecting ..........................180
jumping a disabled battery ....151maintenance-free ....................178
replacement, specifications ...217
servicing ..................................178
BeltMinder ...................................84
Brakes ........................................111
anti-lock ...................................112
anti-lock brake system (ABS)
warning light ...........................112
fluid, checking and adding ....200
fluid, refill capacities ..............218
fluid, specifications .........222, 225
lubricant specifications ..222, 225
parking ....................................112
shift interlock ..........................115
Break-in period .............................5
Bulbs ............................................53
C
Calculating load ........................123
Capacities for refilling fluids ....218
Cassette tape player ...................22
CD-single premium .....................15
Cell phone use ............................62
Child safety restraints ................94
child safety belts ......................94
Child safety seats ........................97
in front seat ..............................98
in rear seat ................................98
tether anchorage hardware ...101
Cleaning your vehicle
engine compartment ..............167
exterior ....................................170
instrument panel ....................169
interior .....................................169
interior trim ............................169
plastic parts ............................168
safety belts ..............................169
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
234
