spark plugs FORD E SERIES 2004 4.G Owners Manual

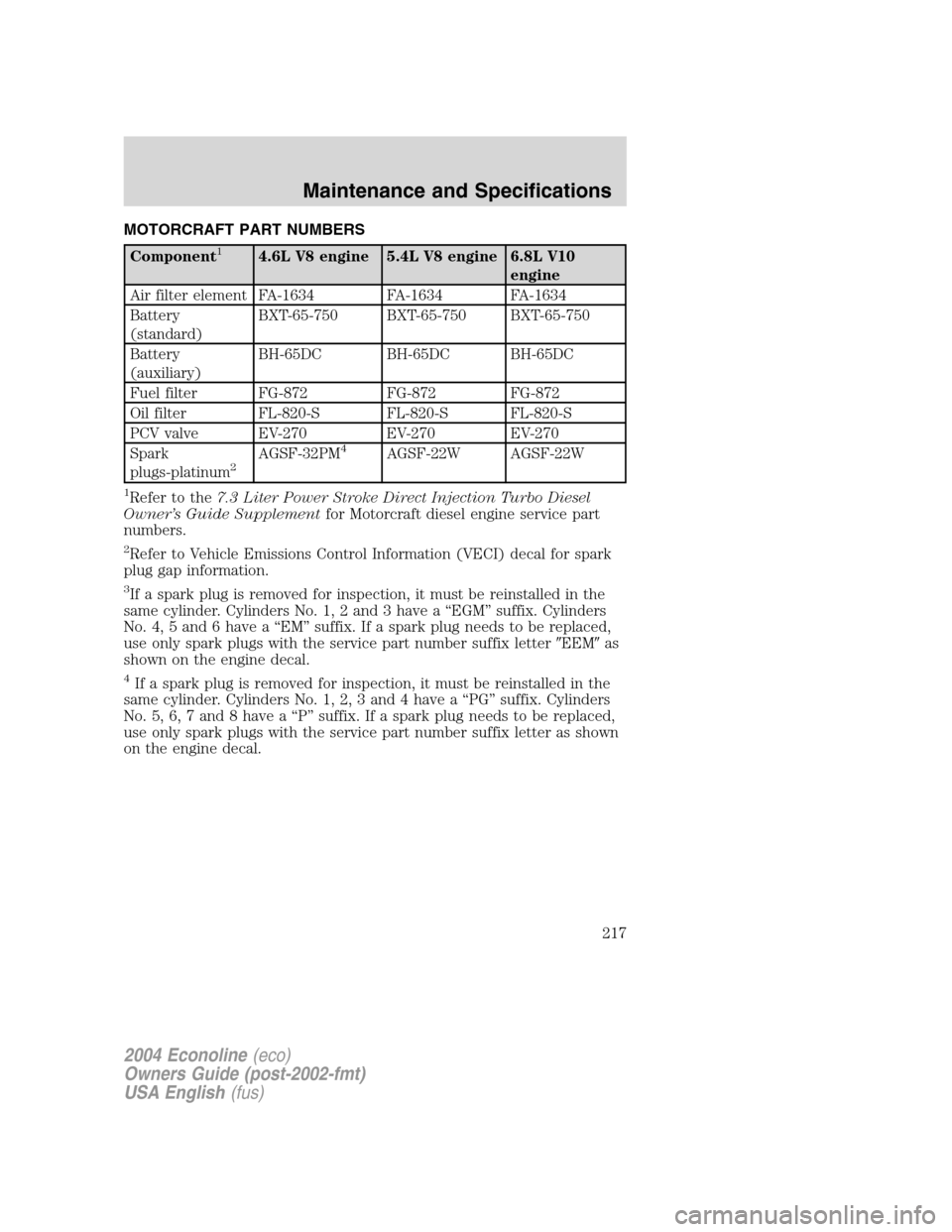

MOTORCRAFT PART NUMBERS
Component14.6L V8 engine 5.4L V8 engine 6.8L V10
engine
Air filter element FA-1634 FA-1634 FA-1634
Battery
(standard)BXT-65-750 BXT-65-750 BXT-65-750
Battery
(auxiliary)BH-65DC BH-65DC BH-65DC
Fuel filter FG-872 FG-872 FG-872
Oil filter FL-820-S FL-820-S FL-820-S
PCV valve EV-270 EV-270 EV-270
Spark
plugs-platinum
2AGSF-32PM4AGSF-22W AGSF-22W
1Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor Motorcraft diesel engine service part
numbers.
2Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
3If a spark plug is removed for inspection, it must be reinstalled in the
same cylinder. Cylinders No. 1, 2 and 3 have a“EGM”suffix. Cylinders
No. 4, 5 and 6 have a“EM”suffix. If a spark plug needs to be replaced,
use only spark plugs with the service part number suffix letterEEMas
shown on the engine decal.
4If a spark plug is removed for inspection, it must be reinstalled in the
same cylinder. Cylinders No. 1, 2, 3 and 4 have a“PG”suffix. Cylinders
No. 5, 6, 7 and 8 have a“P”suffix. If a spark plug needs to be replaced,
use only spark plugs with the service part number suffix letter as shown
on the engine decal.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
217

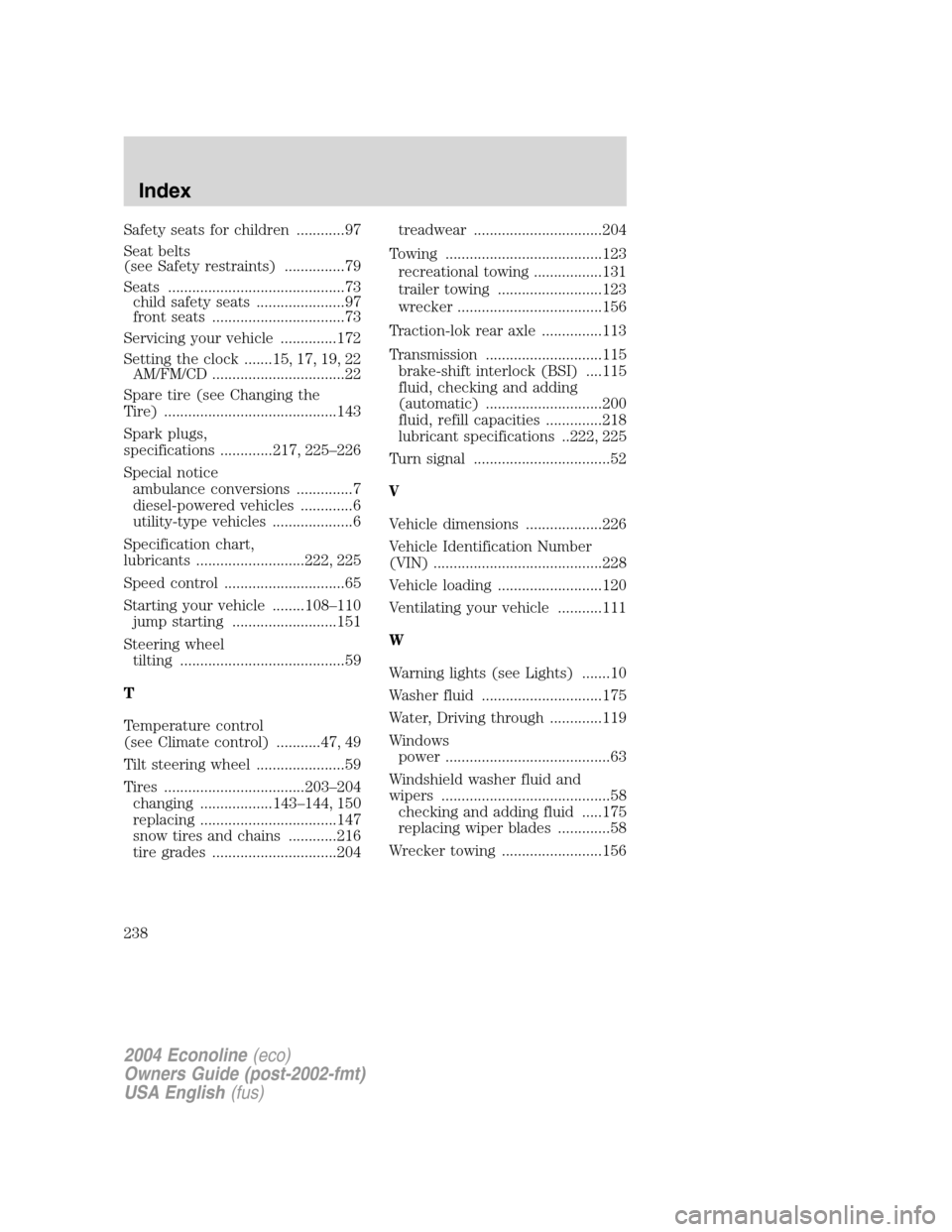

Safety seats for children ............97
Seat belts
(see Safety restraints) ...............79
Seats ............................................73
child safety seats ......................97
front seats .................................73
Servicing your vehicle ..............172
Setting the clock .......15, 17, 19, 22
AM/FM/CD .................................22
Spare tire (see Changing the
Tire) ...........................................143
Spark plugs,
specifications .............217, 225–226
Special notice
ambulance conversions ..............7
diesel-powered vehicles .............6
utility-type vehicles ....................6
Specification chart,
lubricants ...........................222, 225
Speed control ..............................65
Starting your vehicle ........108–110
jump starting ..........................151
Steering wheel
tilting .........................................59
T
Temperature control
(see Climate control) ...........47, 49
Tilt steering wheel ......................59
Tires ...................................203–204
changing ..................143–144, 150
replacing ..................................147
snow tires and chains ............216
tire grades ...............................204treadwear ................................204
Towing .......................................123
recreational towing .................131
trailer towing ..........................123
wrecker ....................................156
Traction-lok rear axle ...............113
Transmission .............................115
brake-shift interlock (BSI) ....115
fluid, checking and adding
(automatic) .............................200
fluid, refill capacities ..............218
lubricant specifications ..222, 225
Turn signal ..................................52
V
Vehicle dimensions ...................226
Vehicle Identification Number
(VIN) ..........................................228
Vehicle loading ..........................120
Ventilating your vehicle ...........111
W
Warning lights (see Lights) .......10
Washer fluid ..............................175
Water, Driving through .............119
Windows
power .........................................63
Windshield washer fluid and
wipers ..........................................58
checking and adding fluid .....175
replacing wiper blades .............58
Wrecker towing .........................156
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
238
