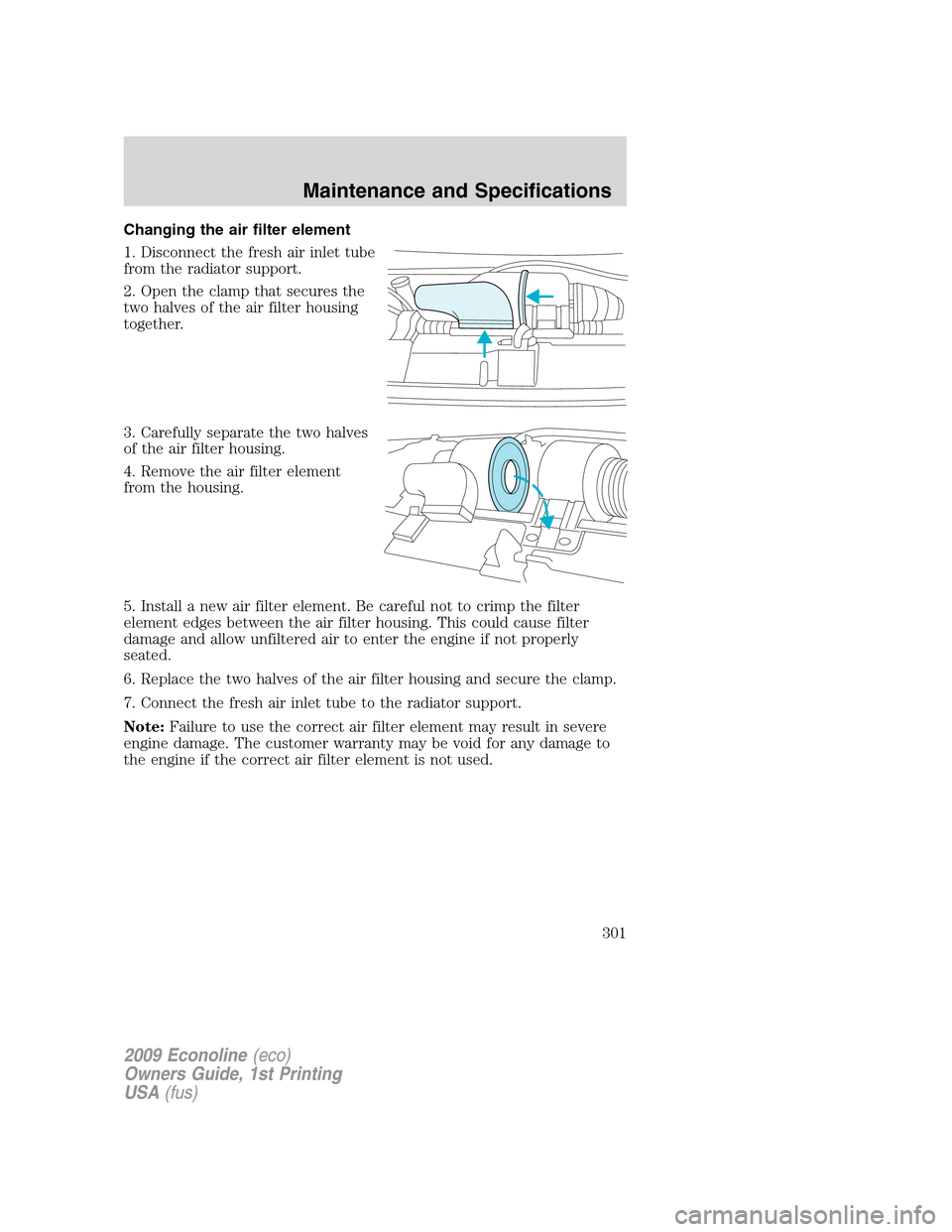

Changing the air filter element
1. Disconnect the fresh air inlet tube
from the radiator support.
2. Open the clamp that secures the
two halves of the air filter housing
together.
3. Carefully separate the two halves
of the air filter housing.
4. Remove the air filter element
from the housing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing. This could cause filter
damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the two halves of the air filter housing and secure the clamp.
7. Connect the fresh air inlet tube to the radiator support.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
301

MOTORCRAFT PART NUMBERS
Component14.6L V8 engine5.4L V8
engine6.8L V10
engine
Air filter element FA-1632 FA-1632 FA-1632
Battery- standard /
(auxiliary)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)
Oil filter FL-820-S FL-820-S FL-820-S
PCV valve
2
Spark plugs3
Torqshift automatic
transmission
internal bottom–pan
filter
4
— FT-180 FT-180
1Refer to the6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplementfor Motorcraft diesel engine service
part numbers.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
4Also available with 6.0L Diesel engine/TorqShift transmission.
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
302

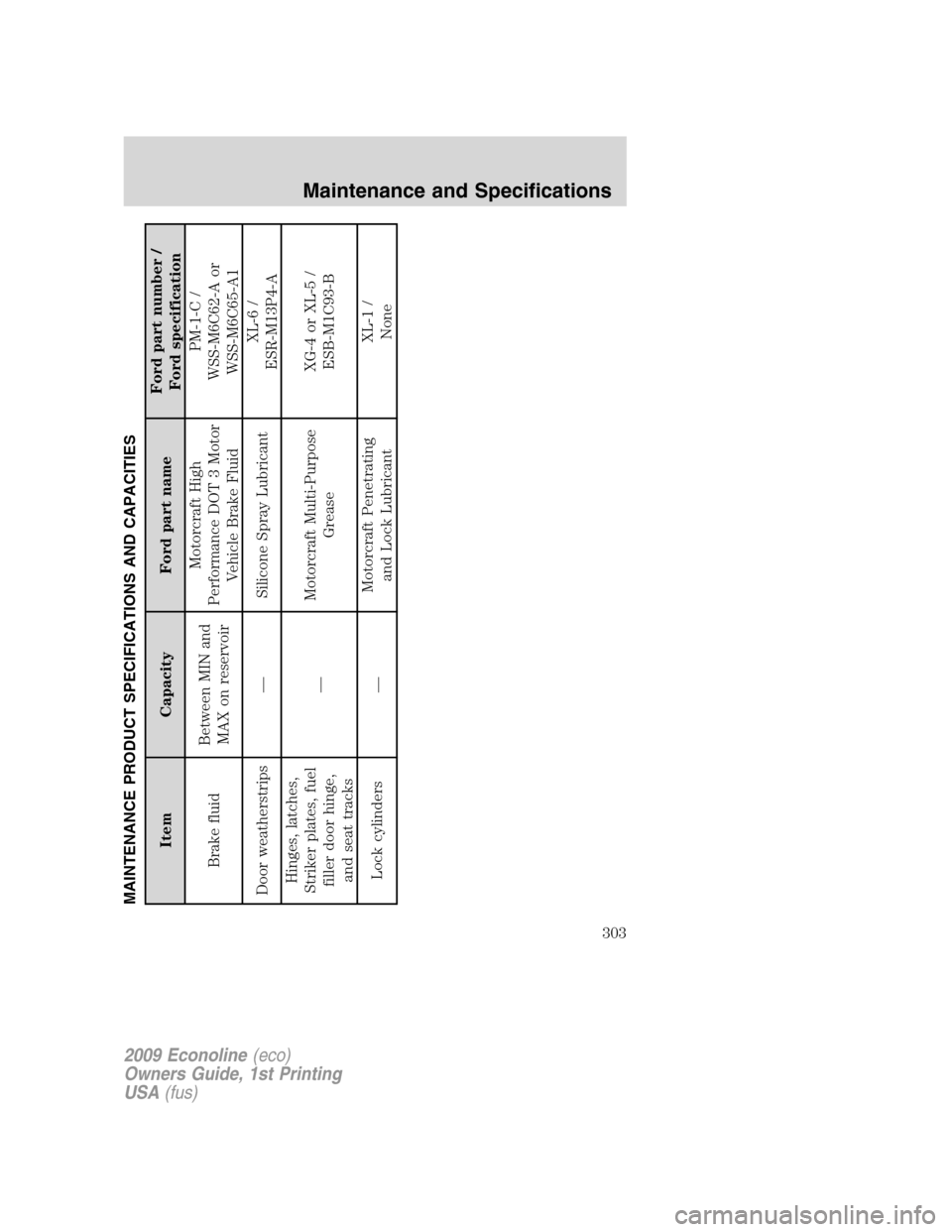

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Hinges, latches,
Striker plates, fuel
filler door hinge,
and seat tracks—Motorcraft Multi-Purpose
GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
303

Item Capacity Ford part nameFord part number /
Ford specification

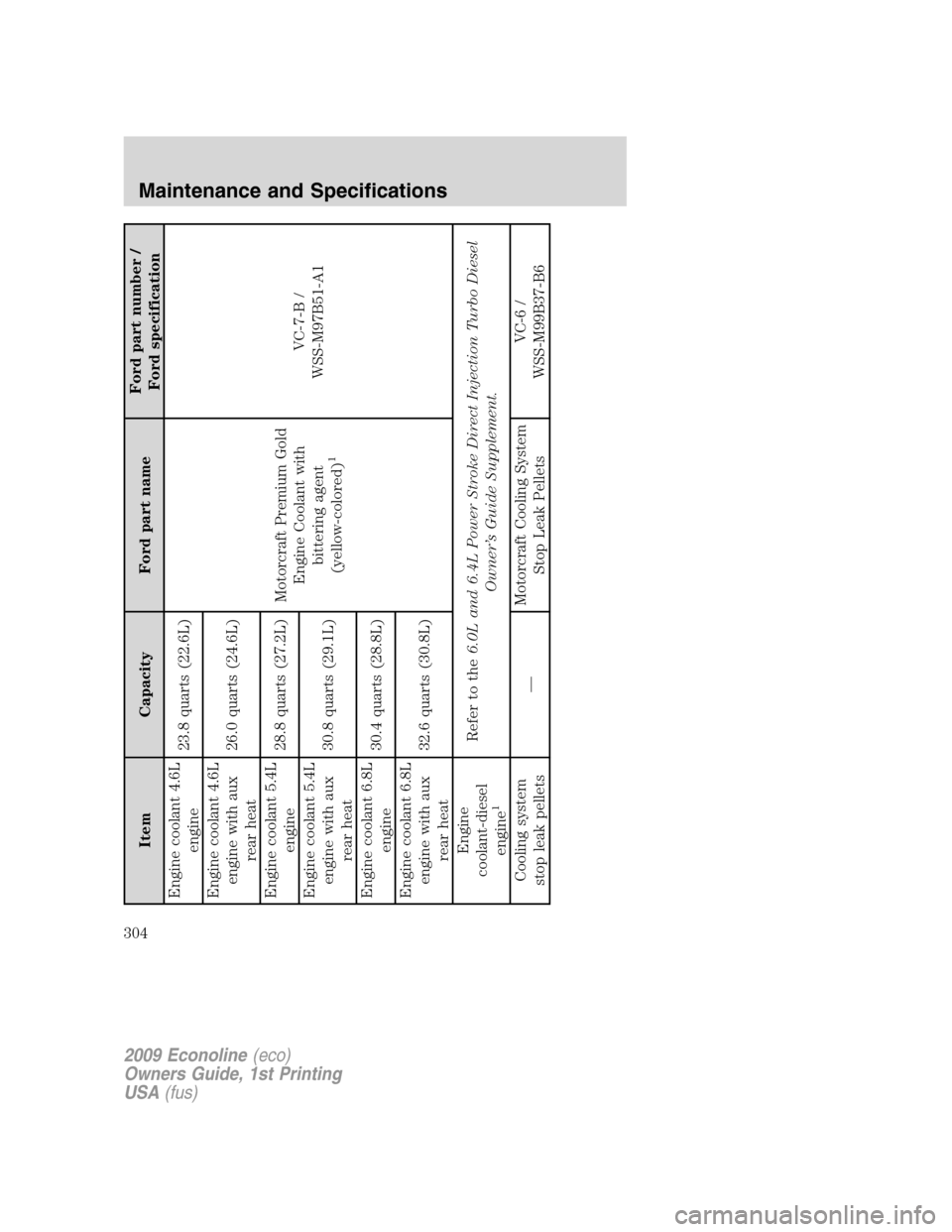

Engine coolant 4.6L
engine23.8 quarts (22.6L)
Motorcraft Premium Gold
Engine Coolant with
bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant 4.6L
engine with aux
rear heat26.0 quarts (24.6L)
Engine coolant 5.4L
engine28.8 quarts (27.2L)
Engine coolant 5.4L
engine with aux
rear heat30.8 quarts (29.1L)
Engine coolant 6.8L
engine30.4 quarts (28.8L)
Engine coolant 6.8L
engine with aux
rear heat32.6 quarts (30.8L)
Engine
coolant-diesel
engine
1
Refer to the6.0L and 6.4L Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplement.
Cooling system
stop leak pellets—Motorcraft Cooling System
Stop Leak PelletsVC-6 /
WSS-M99B37-B6
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
304

Item Capacity Ford part nameFord part number /
Ford specification
Engine oil 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor Oil
(Canada)
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Engine oil-diesel
engineRefer to the6.0L and 6.4L Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplement.
Power steering
fluidKeep in FULL
range on dipstickMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic
transmission fluid
(4R75E)13.9 quarts
(13.1L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Automatic
transmission fluid
TorqShift
(5–speed)18.8 quarts
(17.7L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Limited Slip axle
fluid
M60 (M248)
E-350 with 4.10
axle ratio5.9 pints (2.8L)
5,7
SAE 75W-140 Synthetic
Rear Axle Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
305

Item Capacity Ford part nameFord part number /
Ford specification

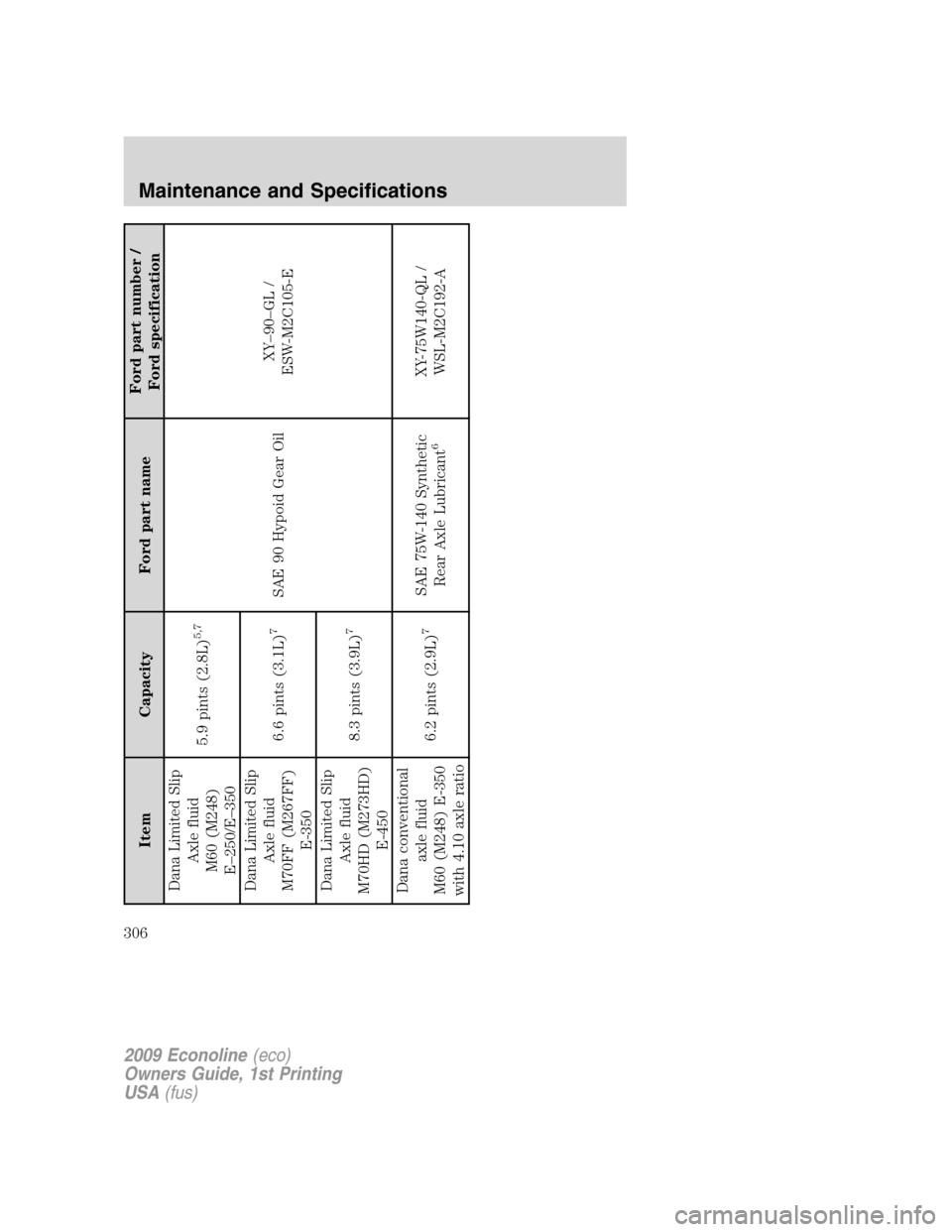

Dana Limited Slip
Axle fluid
M60 (M248)
E–250/E–3505.9 pints (2.8L)
5,7
SAE 90 Hypoid Gear OilXY–90–GL /
ESW-M2C105-E Dana Limited Slip
Axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana Limited Slip
Axle fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
Dana conventional
axle fluid
M60 (M248) E-350
with 4.10 axle ratio6.2 pints (2.9L)
7
SAE 75W-140 Synthetic
Rear Axle Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
306

Item Capacity Ford part nameFord part number /
Ford specification

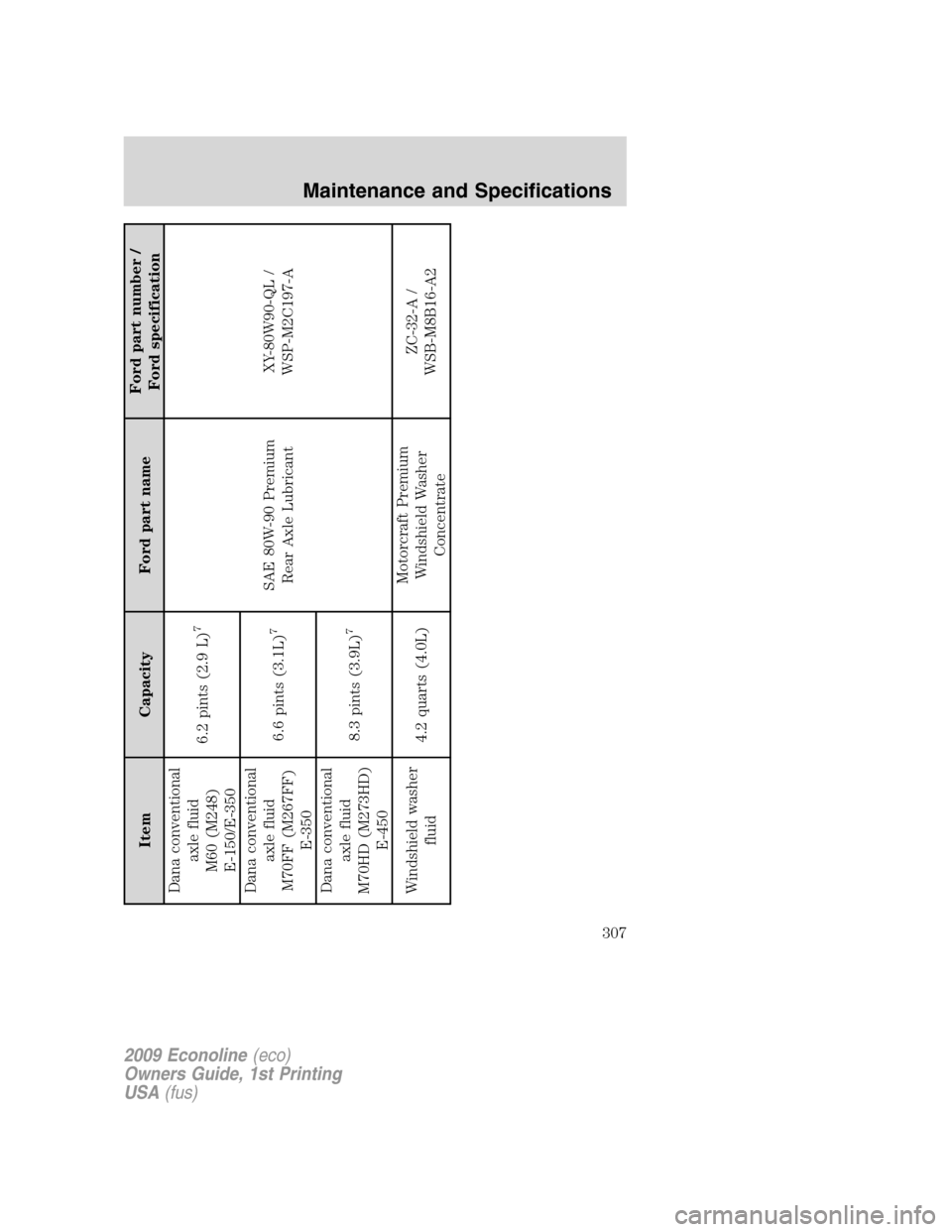

Dana conventional
axle fluid
M60 (M248)
E-150/E-3506.2 pints (2.9 L)
7
SAE 80W-90 Premium
Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A Dana conventional
axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana conventional
axle fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
Windshield washer
fluid4.2 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
307

Item Capacity Ford part nameFord part number /
Ford specification

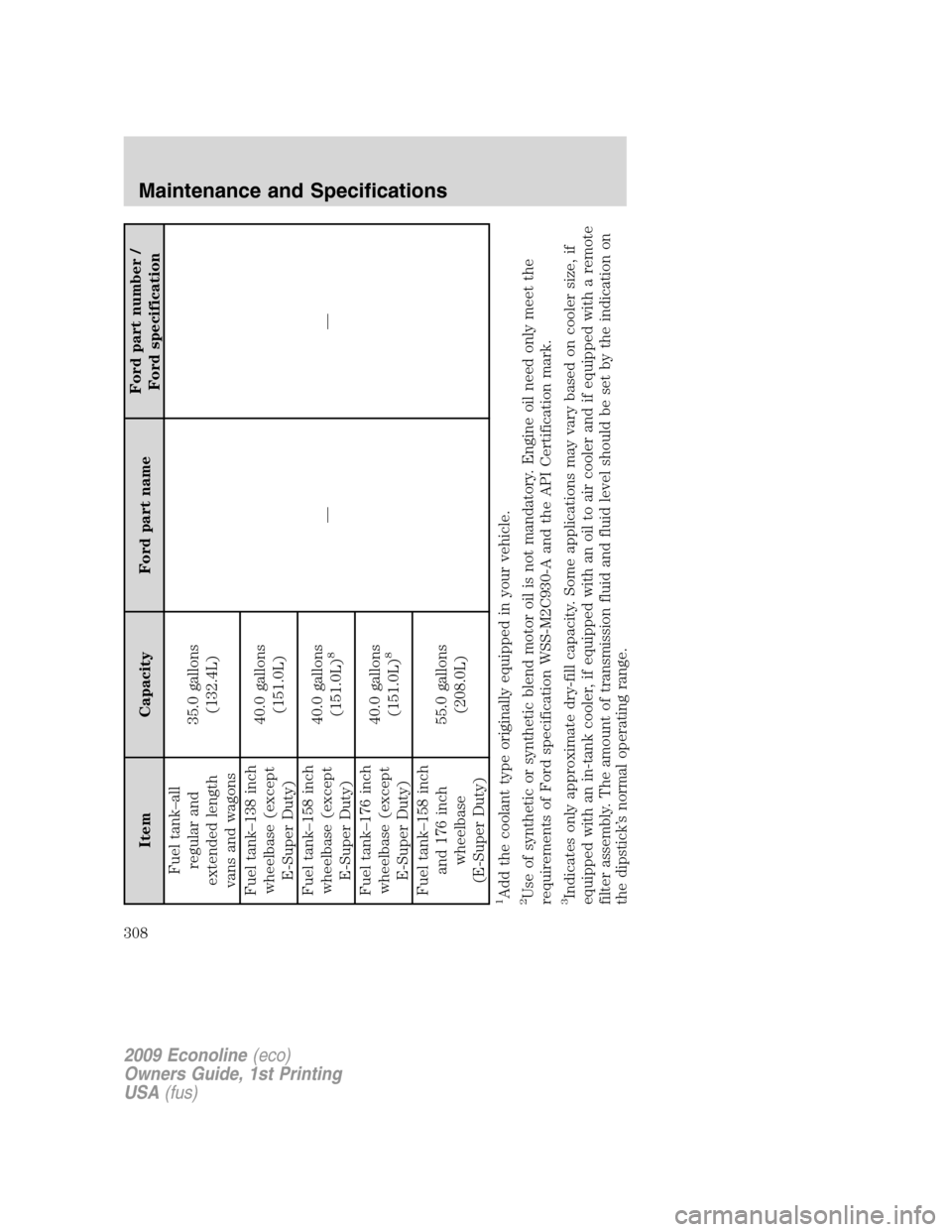

Fuel tank–all
regular and
extended length
vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch
wheelbase (except
E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch
wheelbase (except
E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch
wheelbase (except
E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch
and 176 inch
wheelbase
(E-Super Duty)55.0 gallons
(208.0L)1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
308

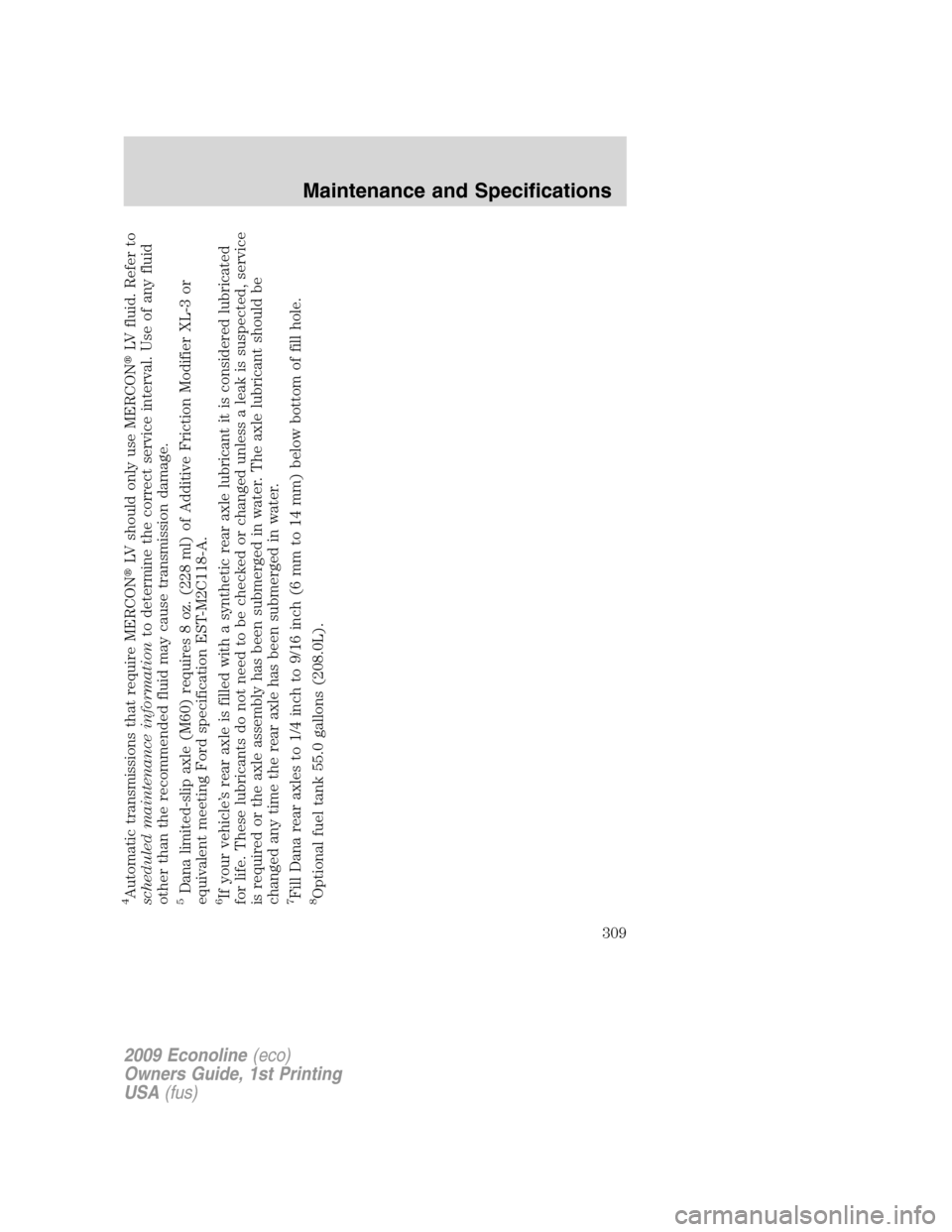

4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 8 oz. (228 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
309

ENGINE DATA
Engine14.6L V8 engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 281 330 415
Required fuel87 octane or
(E-85)
287 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42mm)0.051–0.057 inch
(1.29–1.45mm)0.052–0.056 inch
(1.32–1.42mm)
Compression
ratio9.4:1 9.0:1 9.0:1
1Refer to the6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplementfor diesel engine information.
24.6L V8 FFV engines only.
Engine drivebelt routing
•4.6L V8, 5.4L V8 and 6.8L V10 engines without A/C
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
310
