FORD E SERIES 2009 4.G Owners Manual

•4.6L V8, 5.4L V8 and 6.8L V10 engines with A/C

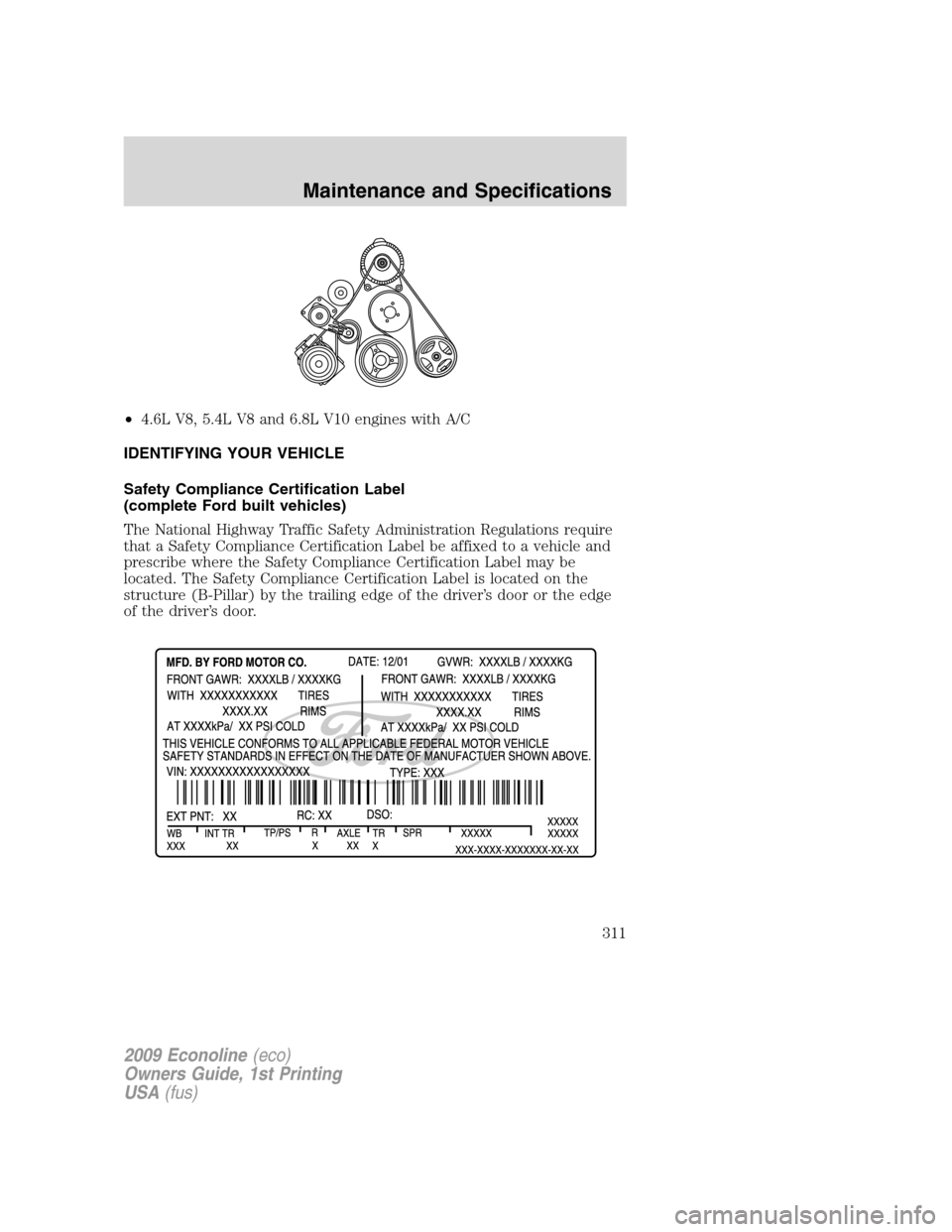

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
(complete Ford built vehicles)
The National Highway Traffic Safety Administration Regulations require
that a Safety Compliance Certification Label be affixed to a vehicle and
prescribe where the Safety Compliance Certification Label may be
located. The Safety Compliance Certification Label is located on the
structure (B-Pillar) by the trailing edge of the driver’s door or the edge
of the driver’s door.
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
311

Vehicle identification number (VIN)
The VIN is located on the driver side instrument panel or on the
certification label. It contains the following information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
312

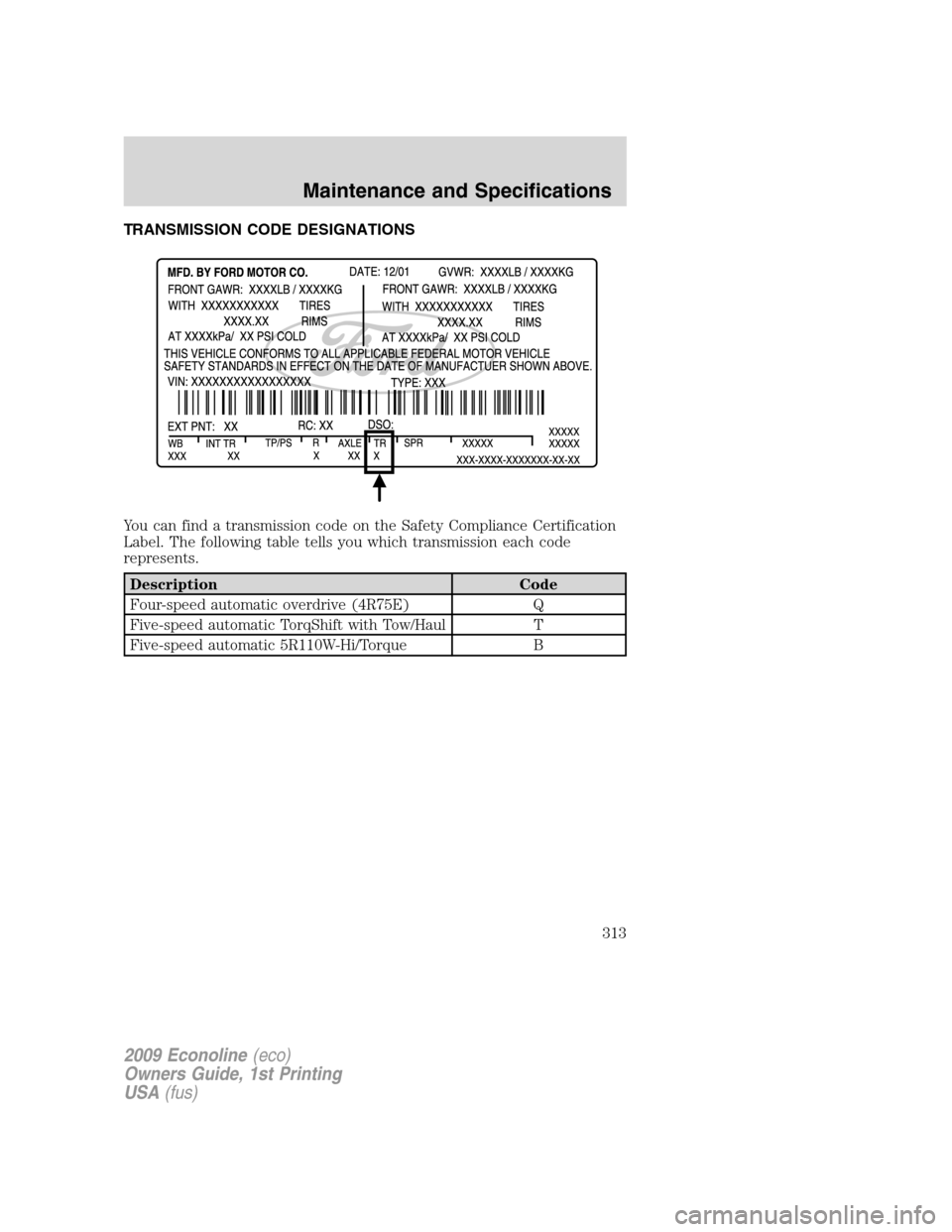

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on the Safety Compliance Certification
Label. The following table tells you which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
Five-speed automatic TorqShift with Tow/Haul T
Five-speed automatic 5R110W-Hi/Torque B
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
313

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Deflectors
Running boards
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Accessories
314

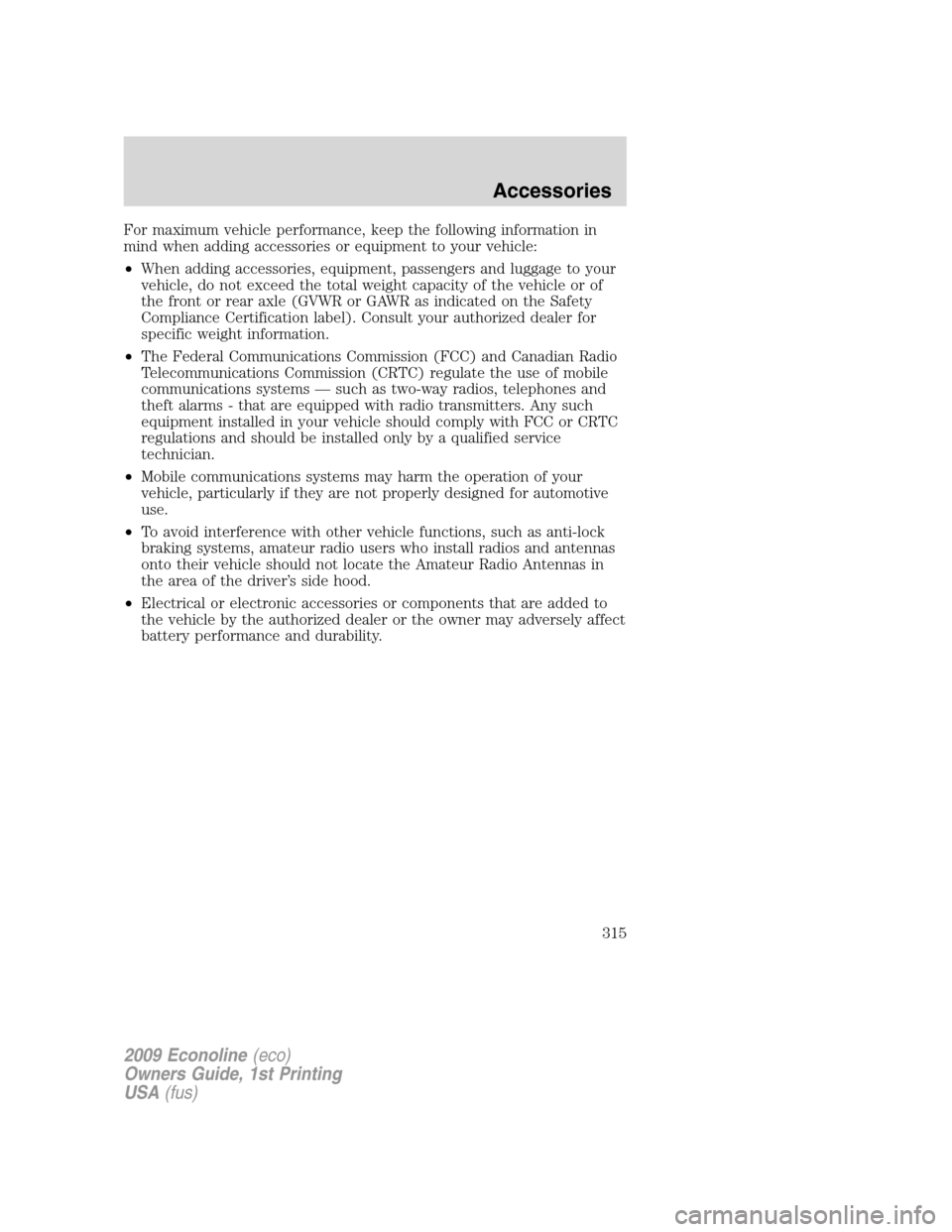

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Accessories
315

A
Accessory delay ..........................63
AdvanceTrac ..............................198
Air cleaner filter ...............300–302
Airbag supplemental restraint
system ................................107–108
and child safety seats ............109
description ..............................108
disposal ....................................112
driver airbag ............................110
indicator light .........................112
operation .................................110
passenger airbag .....................110
passenger deactivation
switch ......................................113
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................275
Anti-lock brake system
(see Brakes) ......................195–196
Anti-theft system ........................86
arming the system ....................87
Audio system
(see Radio) ......................20, 22, 27
Automatic transmission
driving an automatic
overdrive .................207, 209, 212
fluid, adding ............................296
fluid, checking ........................296
fluid, refill capacities ..............303
fluid, specification ..................303
Auxiliary Input Jack ...................34
Auxiliary power point .................61
Axle
lubricant specifications ..........303
refill capacities ........................303
traction lok ..............................203B
Battery .......................................272
acid, treating emergencies .....272
jumping a disabled battery ....242
maintenance-free ....................272
replacement, specifications ...302
servicing ..................................272
Belt-Minder.............................103
Booster seats .............................132
Brakes ........................................195
anti-lock ...........................195–196
anti-lock brake system (ABS)
warning light ...........................196
fluid, checking and adding ....295
fluid, refill capacities ..............303
fluid, specifications .................303
lubricant specifications ..........303
parking ....................................196
shift interlock ..........................205
trailer .......................................184
Bulbs ............................................50
C
Capacities for refilling fluids ....303
Cell phone use ..............................9
Changing a tire .........................232
Child safety seats ......................121
in front seat ............................121
in rear seat ..............................121
LATCH .....................................124
recommendations ...................119
tether anchorage hardware ...127
Child safety seats - booster
seats ...........................................132
Cleaning your vehicle
engine compartment ..............260
exterior ....................................263
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Index
316

instrument panel ....................262
interior .....................................262
plastic parts ............................261
safety belts ..............................262
washing ....................................258
waxing .....................................259
wheels ......................................259
wiper blades ............................261
Climate control (see Air
conditioning or Heating) ......42–44
Clock adjust
6-CD in dash .............................28
AM/FM Stereo ...........................21
AM/FM/CD .................................23
Compass, electronic ....................60
calibration .................................61
set zone adjustment .................60
Console
overhead ..............................58–59
Controls
power seat .................................92
Coolant
checking and adding ..............275
refill capacities ................279, 303
specifications ..........................303
Cruise control
(see Speed control) ....................66
Customer Assistance ................221
Ford Extended Service
Plan ..........................................255
Getting assistance outside the
U.S. and Canada .....................255
Getting roadside assistance ...221
Getting the service you
need .........................................250
Ordering additional owner’s
literature .................................256
Utilizing the
Mediation/Arbitration
Program ...................................254D
Daytime running lamps
(see Lamps) ................................45
Dipstick
automatic transmission
fluid ..........................................296
engine oil .................................269
Driveline universal joint and
slip yoke ....................................296
Driving under special
conditions
through water .........................220
E
Electronic message center .........69
Emergencies, roadside
jump-starting ..........................242
Emergency Flashers .................222
Emission control system ..........291
Engine ........................................310
cleaning ...................................260
coolant .....................................275
diesel ...........................................7
fail-safe cooling .......................280
idle speed control ...................272
lubrication specifications .......303
refill capacities ........................303
service points ..........................267
starting after a collision .........223
Engine block heater .................193
Engine oil ..................................269
checking and adding ..............269
dipstick ....................................269
filter, specifications ........271, 302
recommendations ...................271
refill capacities ........................303
specifications ..........................303
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Index
317

Event data recording ....................6
Exhaust fumes ..........................193
F
Fail safe cooling ........................280
Flexible Fuel Vehicle (FFV) ....281
Fluid capacities .........................303
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................203
Fuel ............................................281
calculating fuel economy .......288
cap ...........................................284
capacity ...................................303
choosing the right fuel ...........286
comparisons with EPA fuel
economy estimates .................291
detergent in fuel .....................286
filling your vehicle with
fuel ...........................281, 284, 288
filter, specifications ........281, 302
fuel pump shut-off switch .....223
improving fuel economy ........288
octane rating ...................286, 310
quality ......................................287
running out of fuel .................287
safety information relating to
automotive fuels .....................281
Fuel - flex fuel vehicle
(FFV) .................................281, 286
Fuses ..........................................225
G
Garage door opener ....................59
Gas cap (see Fuel cap) ............284
Gas mileage
(see Fuel economy) .................288Gauges .........................................17
H
Hazard flashers .........................222
Head restraints ...........................90
Headlamps ...................................45
aiming ........................................48
bulb specifications ....................51
daytime running lights .............45
flash to pass ..............................46
high beam .................................45
replacing bulbs .........................52
turning on and off ....................45
Heating
heater only system .............42, 44
heating and air conditioning
system .......................................43
Hood ..........................................266
I
Ignition ...............................190, 310
Illuminated visor mirror .............58
Infant seats
(see Safety seats) .....................121
Inspection/maintenance (I/M)
testing ........................................293
Instrument panel
cleaning ...................................262
cluster ........................................12
lighting up panel and
interior .......................................46
J
Jack ............................................232
positioning ...............................232
storage .....................................232
Jump-starting your vehicle ......242
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Index
318

K
Keyless entry system
autolock .....................................78
Keys .............................................88
positions of the ignition .........190
L
Lamps
bulb replacement
specifications chart ..................51
daytime running light ...............45
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....46
interior lamps ...........................49
replacing bulbs .........................52
LATCH anchors .........................124
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........196
Load limits .................................167
Loading instructions .................173
Locks
autolock .....................................78
doors ..........................................78
Lubricant specifications ...........303
Lug nuts ....................................241
Lumbar support, seats ...............92
M
Message center ...........................69
warning messages .....................74
Mirrors ...................................63–64
automatic dimming rearview
mirror ........................................63
fold away ...................................65
side view mirrors (power) .......64Motorcraft parts ........264, 281, 302
N
Navigation system .......................41
O
Octane rating ............................286
Oil (see Engine oil) ..................269
P
Parking brake ............................196
Parts (see Motorcraft parts) ....302
Power distribution box
(see Fuses) ...............................228
Power door locks ........................78
Power mirrors .............................64
Power point .................................61
Power steering ..........................203
fluid, checking and adding ....294
fluid, refill capacity ................303
fluid, specifications .................303
Power Windows ...........................62
Preparing to drive your
vehicle ........................................203
R
Radio ................................20, 22, 27
Recommendations for
attaching safety restraints for
children ......................................119
Relays ........................................225
Remote entry system .................82
illuminated entry ......................86
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Index
319

locking/unlocking
doors ..............................78, 83–84
panic alarm ...............................84
replacement/additional
transmitters ...............................85
replacing the batteries .............84
Reverse camera .........................217
Reverse sensing system ...........214
Roadside assistance ..................221
Roll stability control .................198
S
Safety belts
(see Safety restraints) .......98–102
Safety defects, reporting ..........257
Safety restraints ..................98–102
Belt-Minder...........................103
extension assembly ................107
for adults ...........................99–101
for children .............................117
warning light and chime ........103
Safety restraints - LATCH
anchors ......................................124
Safety seats for children ..........121
Safety Compliance
Certification Label ....................311
Satellite Radio Information ........38
Seats ............................................90
child safety seats ....................121
front seats .................................91
SecuriLock passive anti-theft
system ....................................86, 88
Servicing your vehicle ..............265
Setting the clock
AM/FM single CD .....................23
AM/FM stereo ...........................21AM/FM/In-dash 6 CD ................28
Spare tire
(see Changing the Tire) ...........235
Spark plugs,
specifications .....................302, 310
Special notice ................................8
ambulance conversions ..............8
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................303
Speed control ..............................66
Stability system .........................198
Starting a flex fuel vehicle .......192
Starting your vehicle ........190–192
jump starting ..........................242
Steering wheel
tilting .........................................58
T
Temperature control
(see Climate control) ...........42, 44
Tilt steering wheel ......................58
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....156
Tires ...........................138–139, 232
alignment ................................148
care ..........................................144
changing ..................232, 235–237
checking the pressure ............143
inflating ...................................140
label .........................................155
replacing ..........................146, 237
rotating ....................................148
safety practices .......................147
sidewall information ...............150
2009 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
Index
320
