3. Turn the jack handle clockwise until the tire is raised to its stowed
position underneath the vehicle. The effort to turn the jack handle
increases significantly and the spare tire carrier ratchets or slips when
the tire is raised to the maximum tightness. Tighten to the best of your
ability, to the point where the ratchet/slip occurs, if possible. The spare
tire carrier will not allow you to overtighten. If the spare tire carrier
ratchets or slips with little effort, take the vehicle to your authorized
dealer for assistance at your earliest convenience.
4. Check that the tire lies flat against the frame and is properly
tightened. Try to push or pull, then turn the tire to be sure it will not
move. Loosen and retighten, if necessary. Failure to properly stow the
spare tire may result in failure of the winch cable and loss of the tire.
5. Repeat this tightness check procedure when servicing the spare tire
pressure (every six months, as per yourscheduled maintenance
information),or at any time that the spare tire is disturbed through
service of other components.
6. If removed, install the spare tire lock (if equipped) into the bumper
drive tube with the spare tire lock key (if equipped) and jack handle.
WHEEL LUG NUT TORQUE SPECIFICATIONS
On vehicles equipped with single rear wheels, retighten the lug nuts to
the specified torque at 100 miles (160 km) after any wheel disturbance
(tire rotation, changing a flat tire, wheel removal, etc.).
On vehicles equipped with dual rear wheels, retighten the wheel lug nuts
to the specified torque at 100 miles (160 km), and again at 500 miles
(800 km) of new vehicle operation and after any wheel disturbance (tire
rotation, changing a flat tire, wheel removal, etc.).
Bolt size and wheel
lug nut typeWheel lug nut torque*
lb.ft. N•m
9/16 x 18 conical lug
nut150 200
9/16 x 18 two-piece
lug nut140 190
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Roadside Emergencies
244
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

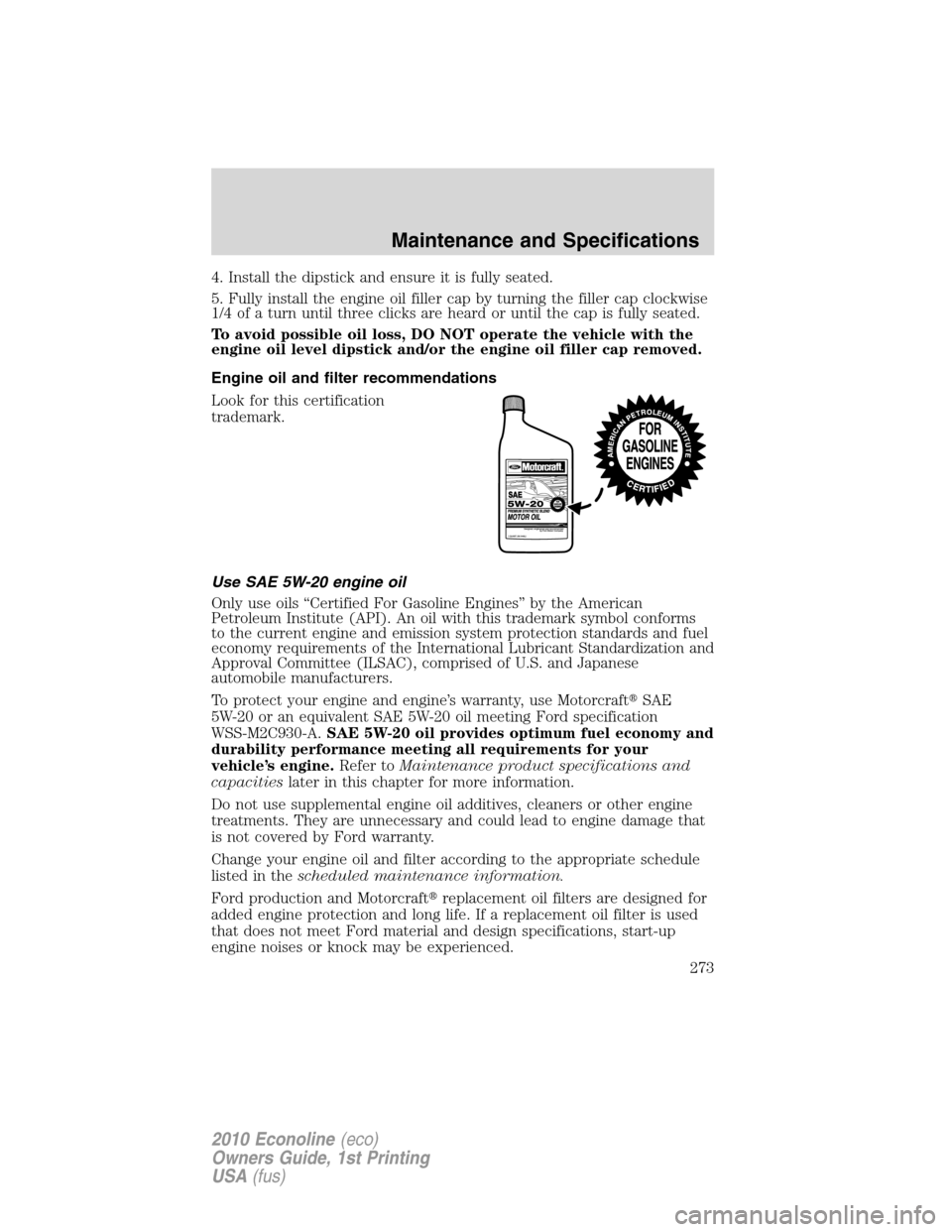

4. Install the dipstick and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until three clicks are heard or until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level dipstick and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use Motorcraft
SAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this chapter for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraft
replacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
Maintenance and Specifications
273
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Battery relearn
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. Flexible fuel vehicles (FFV) must also relearn the ethanol
content of the fuel for optimum driveability and performance. To begin
this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy along with the ethanol content
for flexible fuel vehicles.
•If you do not allow the engine to relearn its idle trim, the idle quality
of your vehicle may be adversely affected until the idle trim is
eventually relearned.
•For flexible fuel vehicles, if you are operating on E85, you may
experience poor starts or an inability to start the engine and
driveability problems until the fuel trim and ethanol content have been
relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
Maintenance and Specifications
276
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

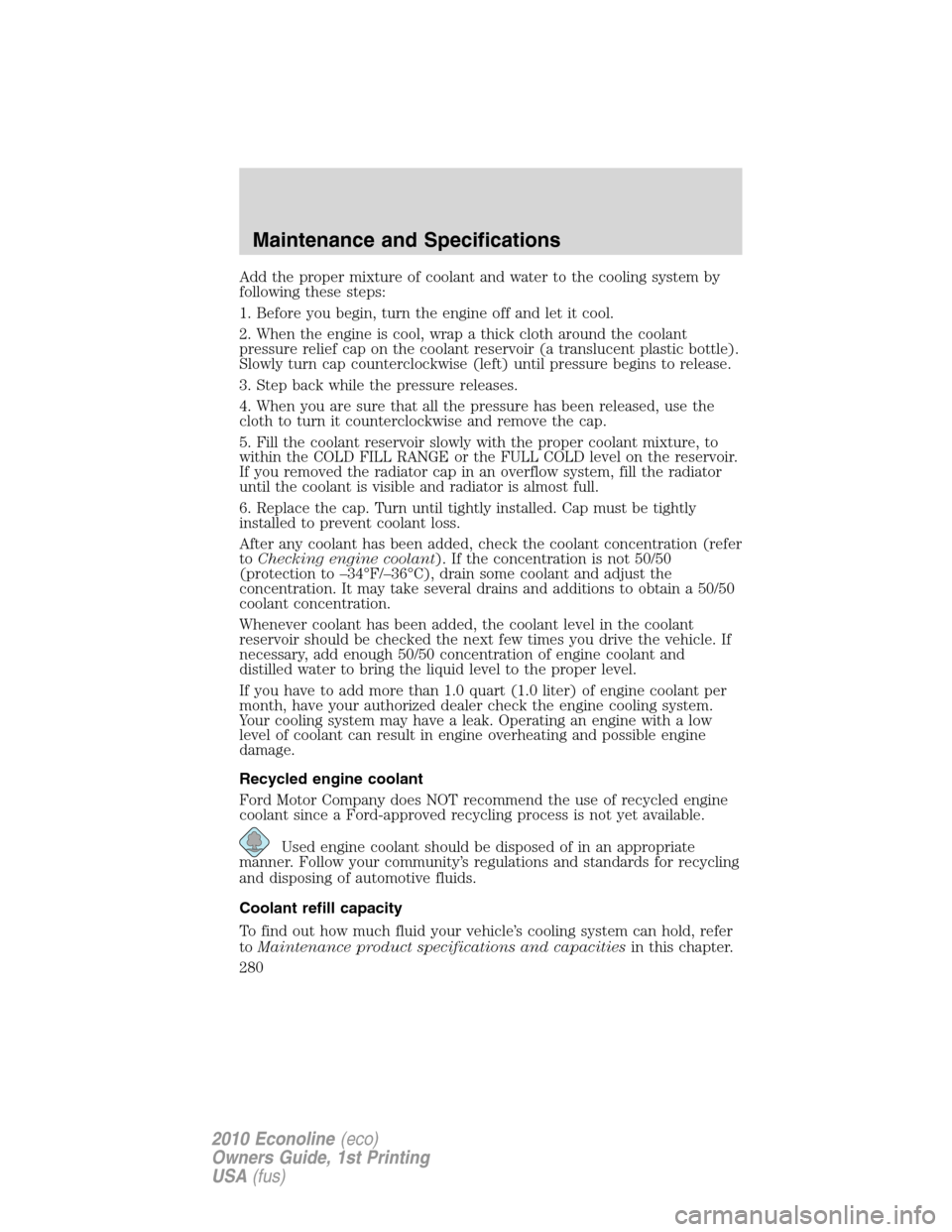

Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the COLD FILL RANGE or the FULL COLD level on the reservoir.
If you removed the radiator cap in an overflow system, fill the radiator
until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Maintenance and Specifications
280
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Refueling
WARNING:Fuel vapor burns violently and a fuel fire can cause
severe injuries. To help avoid injuries to you and others:
•Read and follow all the instructions on the pump island;
•Turn off your engine when you are refueling;
•Do not smoke if you are near fuel or refueling your vehicle;
•Keep sparks, flames and smoking materials away from fuel;
•Stay outside your vehicle and do not leave the fuel pump unattended
when refueling your vehicle — this is against the law in some places;
•Keep children away from the fuel pump; never let children pump
fuel.
Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel filler cap
Your fuel tank filler cap has an indexed design with a 1/4 turn on/off
feature.
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise 1/4 of a turn until it clicks at least once.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
Maintenance and Specifications
286
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

exterior ....................................265
instrument panel ....................264
interior .....................................265
plastic parts ............................263
safety belts ..............................265
washing ....................................260
waxing .....................................261
wheels ......................................261
wiper blades ............................263
Climate control (see Air
conditioning or Heating) ......47–49
Clock adjust
AM/FM Stereo ...........................30
AM/FM/CD .................................32
Compass, electronic ....................24
calibration .................................24
set zone adjustment .................24
Controls
power seat .................................87
steering column ........................69
Coolant
checking and adding ..............277
refill capacities ................280, 306
specifications ..........................306
Cruise control (see Speed
control) ........................................67
Customer Assistance ................224
Ford Extended Service
Plan ..........................................316
Getting assistance outside the
U.S. and Canada .....................258
Getting roadside assistance ...224
Getting the service you
need .........................................253
Ordering additional owner’s
literature .................................258
Utilizing the
Mediation/Arbitration
Program ...................................257D
Daytime running lamps (see
Lamps) .........................................50
Dipstick
automatic transmission
fluid ..........................................298
engine oil .................................271
Driveline universal joint and
slip yoke ....................................297
Driving under special
conditions
through water .........................223
E
Electronic message center .........21
Emergencies, roadside
jump-starting ..........................245
Emergency Flashers .................225
Emission control system ..........293
Engine ........................................310
cleaning ...................................262
coolant .....................................277
diesel ...........................................7
fail-safe cooling .......................281
idle speed control ...................274
lubrication specifications .......306
refill capacities ........................306
service points ..................269–270
starting after a collision .........226
Engine block heater .................195
Engine oil ..................................271
checking and adding ..............271
dipstick ....................................271
filter, specifications ........273, 305
recommendations ...................273
refill capacities ........................306
specifications ..........................306
Index
320
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Remote entry system .................77
illuminated entry ......................81
locking/unlocking
doors ..............................72, 78–79
panic alarm ...............................79
replacement/additional
transmitters ...............................80
replacing the batteries .............79
Reverse sensing system ...........217
Roadside assistance ..................224
Roll stability control .................200
S
Safety belts (see Safety
restraints) ..............................93–97
Safety defects, reporting ..........259
Safety restraints ....................93–97
Belt-Minder
.............................98
extension assembly ................102
for adults .............................94–96
for children .............................112
warning light and chime ..........98
Safety restraints - LATCH
anchors ......................................121
Safety seats for children ..........117
Safety Compliance
Certification Label ....................311
Satellite Radio Information ........43
Seats ............................................85
child safety seats ....................117
front seats .................................86
SecuriLock passive anti-theft
system ....................................81, 83
Servicing your vehicle ..............267
Setting the clock
AM/FM single CD .....................32
AM/FM stereo ...........................30SOS Post Crash Alert ...............106
Spare tire (see Changing the
Tire) ...........................................238
Spark plugs,
specifications .....................305, 310
Special notice ................................8
ambulance conversions ..............7
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................306
Speed control ..............................67
Stability system .........................200
Starting a flex fuel vehicle .......194
Starting your vehicle ........192–194
jump starting ..........................245
Steering wheel
controls ......................................69
tilting .........................................63
SYNC
..........................................46
T
Temperature control (see
Climate control) ....................47, 49
Tilt steering wheel ......................63
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....154
Tires ...........................136–137, 236
alignment ................................146
care ..........................................142
changing ..........236, 238–239, 241
checking the pressure ............141
inflating ...................................138
label .........................................153
replacing ..........................144, 241
rotating ....................................146
Index
323
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
