clock setting FORD E SERIES 2011 4.G Owners Manual

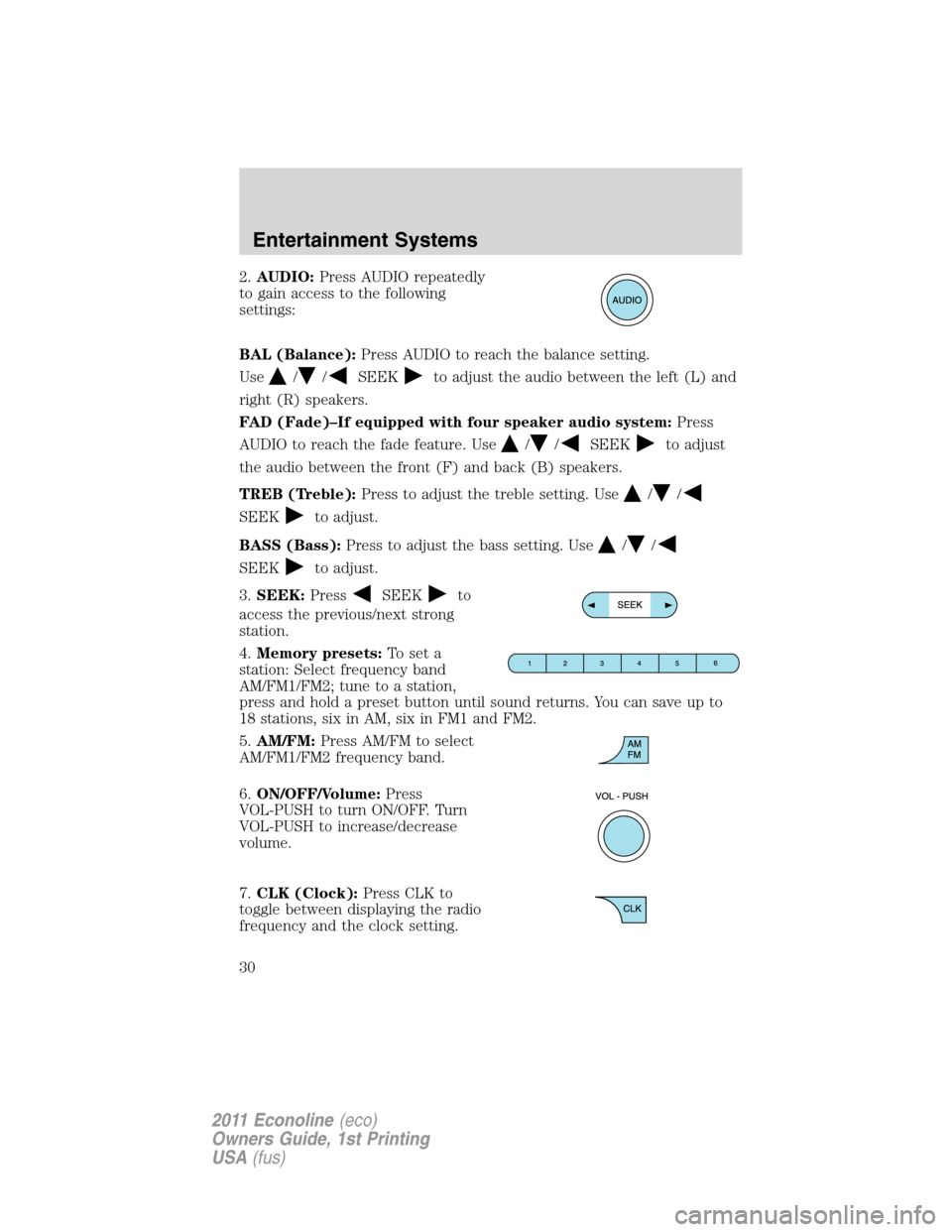

2.AUDIO:Press AUDIO repeatedly
to gain access to the following
settings:
BAL (Balance):Press AUDIO to reach the balance setting.
Use
//SEEKto adjust the audio between the left (L) and
right (R) speakers.
FAD (Fade)–If equipped with four speaker audio system:Press
AUDIO to reach the fade feature. Use
//SEEKto adjust
the audio between the front (F) and back (B) speakers.
TREB (Treble):Press to adjust the treble setting. Use
//
SEEKto adjust.
BASS (Bass):Press to adjust the bass setting. Use
//
SEEKto adjust.
3.SEEK:Press
SEEKto
access the previous/next strong
station.
4.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You can save up to
18 stations, six in AM, six in FM1 and FM2.
5.AM/FM:Press AM/FM to select
AM/FM1/FM2 frequency band.
6.ON/OFF/Volume:Press
VOL-PUSH to turn ON/OFF. Turn
VOL-PUSH to increase/decrease
volume.
7.CLK (Clock):Press CLK to
toggle between displaying the radio
frequency and the clock setting.
Entertainment Systems
30
2011 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Setting the clock:Press and hold CLK until the hours begin to flash.
Press
//SEEKto manually increase/decrease the hours.
Press CLK again to set the minutes using
//SEEKto
manually increase/decrease the minutes. Allow 10 seconds to pass to
confirm that the time has been set.
AM/FM Single CD/MP3 satellite compatible sound system
(if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the radio and other electrical devices may be used for up to
ten minutes after the ignition is turned off or until either front door is
opened.
Entertainment Systems
31
2011 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

1./(Tuner):Press to
manually go up or down the radio
frequency. Also use in menu mode
to select various settings.
In satellite radio mode (if equipped),press
/to tune to the
next/previous channel.
In CATEGORY MODE,press
/to scroll through the list of
available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to
CategoryunderMenufor further information.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
2.
(Phone):If your vehicle is
equipped with SYNC, press to
access SYNC PHONE features. For
further information, please refer to theSYNCsupplement.
If your vehicle is not equipped with SYNC, the display will read NO
PHONE.
3.MENU:Press repeatedly to
access the following settings:
Setting the clock:Press MENU until SET HOURS or SET MINUTES is
displayed. Use
/to manually increase/decrease. Press MENU again
to disengage clock mode.
SATELLITE RADIO MENU (if equipped):Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/to cycle through the following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUS channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS categories and channels.
•SAVE SONG:Press OK to save the currently playing song in the
system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
playing on any satellite radio channel, the system will alert you with
Entertainment Systems
32
2011 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

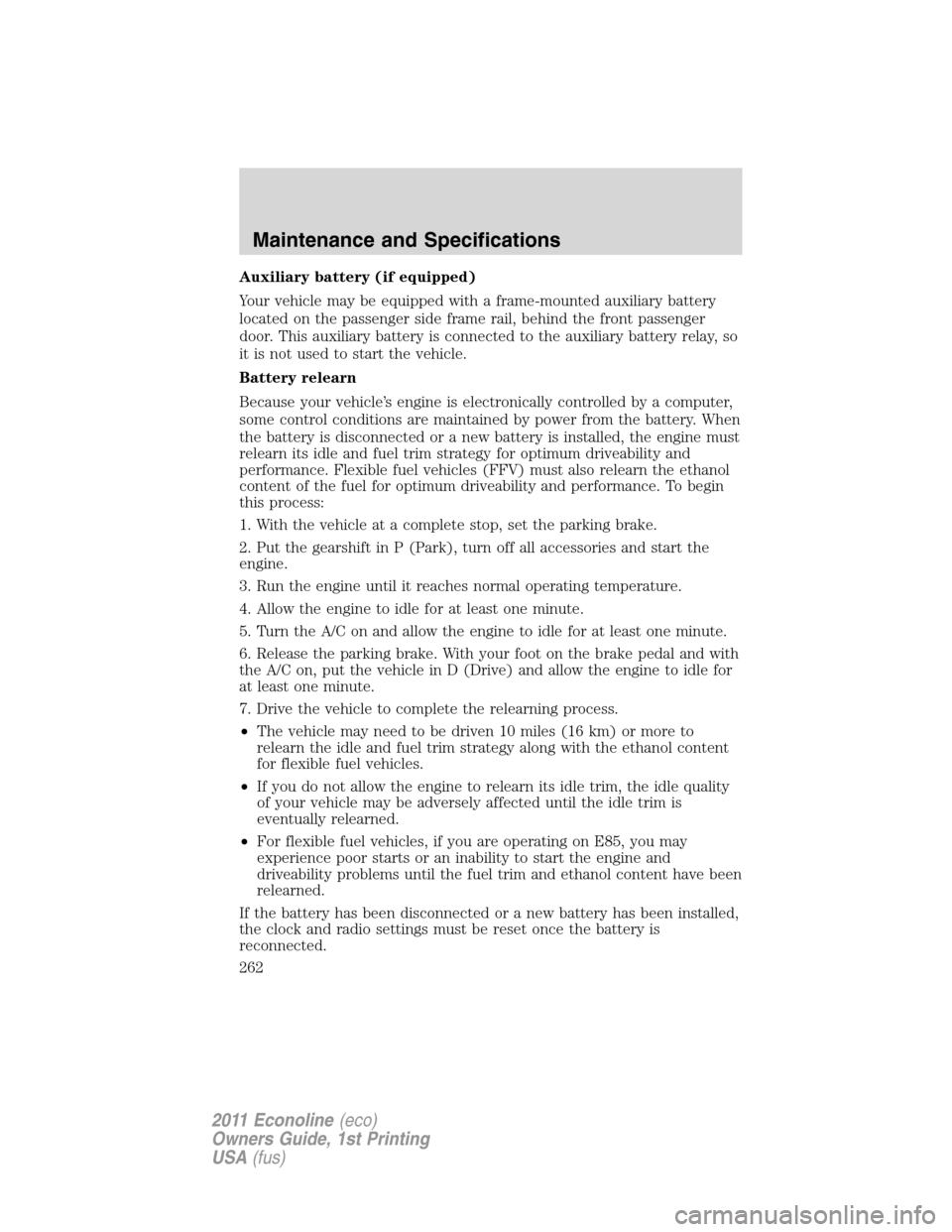

Auxiliary battery (if equipped)
Your vehicle may be equipped with a frame-mounted auxiliary battery
located on the passenger side frame rail, behind the front passenger
door. This auxiliary battery is connected to the auxiliary battery relay, so
it is not used to start the vehicle.
Battery relearn
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. Flexible fuel vehicles (FFV) must also relearn the ethanol
content of the fuel for optimum driveability and performance. To begin
this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy along with the ethanol content
for flexible fuel vehicles.
•If you do not allow the engine to relearn its idle trim, the idle quality
of your vehicle may be adversely affected until the idle trim is
eventually relearned.
•For flexible fuel vehicles, if you are operating on E85, you may
experience poor starts or an inability to start the engine and
driveability problems until the fuel trim and ethanol content have been
relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
Maintenance and Specifications
262
2011 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

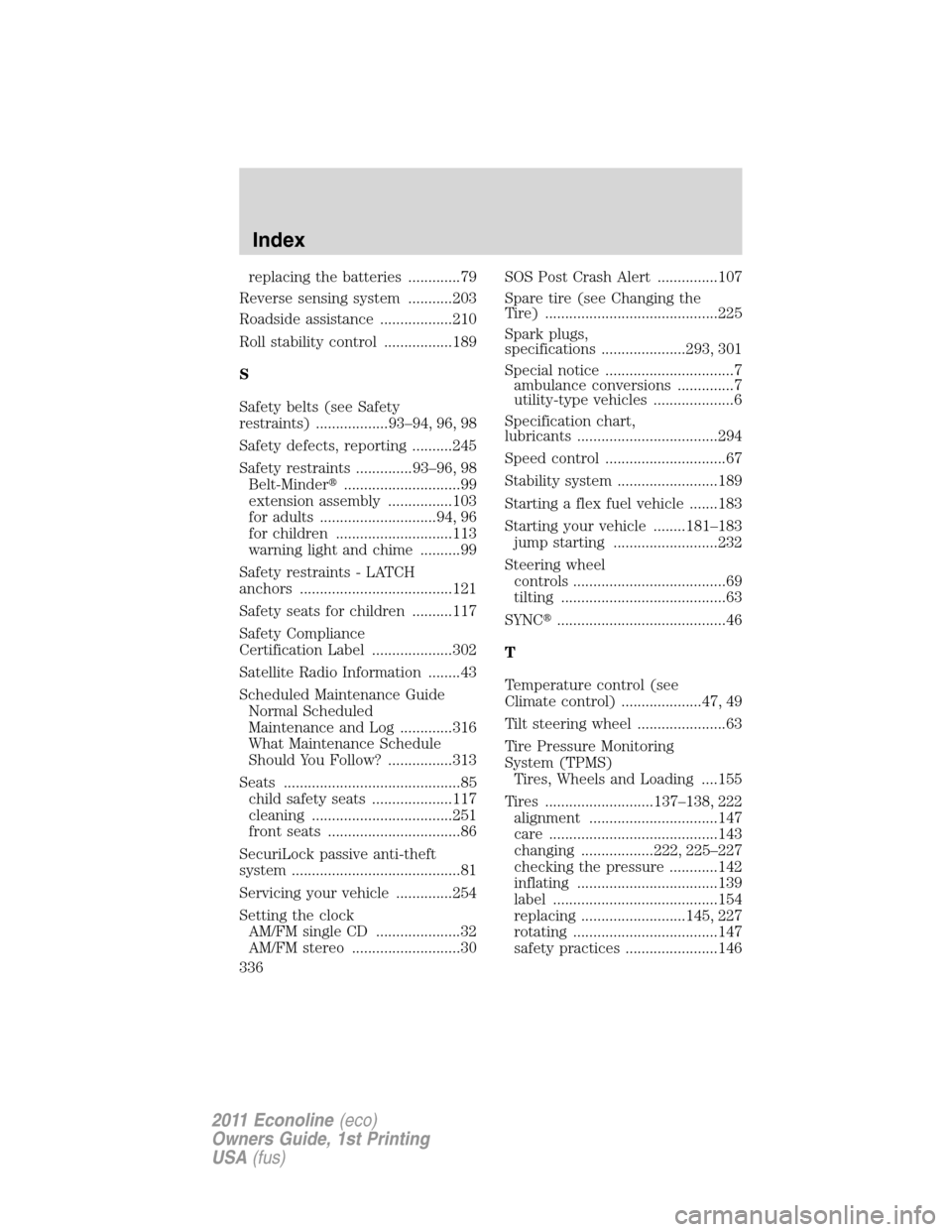

replacing the batteries .............79
Reverse sensing system ...........203
Roadside assistance ..................210
Roll stability control .................189
S
Safety belts (see Safety
restraints) ..................93–94, 96, 98
Safety defects, reporting ..........245
Safety restraints ..............93–96, 98
Belt-Minder.............................99
extension assembly ................103
for adults .............................94, 96
for children .............................113
warning light and chime ..........99
Safety restraints - LATCH
anchors ......................................121
Safety seats for children ..........117
Safety Compliance
Certification Label ....................302
Satellite Radio Information ........43
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............316
What Maintenance Schedule
Should You Follow? ................313
Seats ............................................85
child safety seats ....................117
cleaning ...................................251
front seats .................................86
SecuriLock passive anti-theft
system ..........................................81
Servicing your vehicle ..............254
Setting the clock
AM/FM single CD .....................32
AM/FM stereo ...........................30SOS Post Crash Alert ...............107
Spare tire (see Changing the
Tire) ...........................................225
Spark plugs,
specifications .....................293, 301
Special notice ................................7
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...................................294
Speed control ..............................67
Stability system .........................189
Starting a flex fuel vehicle .......183
Starting your vehicle ........181–183
jump starting ..........................232
Steering wheel
controls ......................................69
tilting .........................................63
SYNC..........................................46
T
Temperature control (see
Climate control) ....................47, 49
Tilt steering wheel ......................63
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....155
Tires ...........................137–138, 222
alignment ................................147
care ..........................................143
changing ..................222, 225–227
checking the pressure ............142
inflating ...................................139
label .........................................154
replacing ..........................145, 227
rotating ....................................147
safety practices .......................146
Index
336
2011 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
