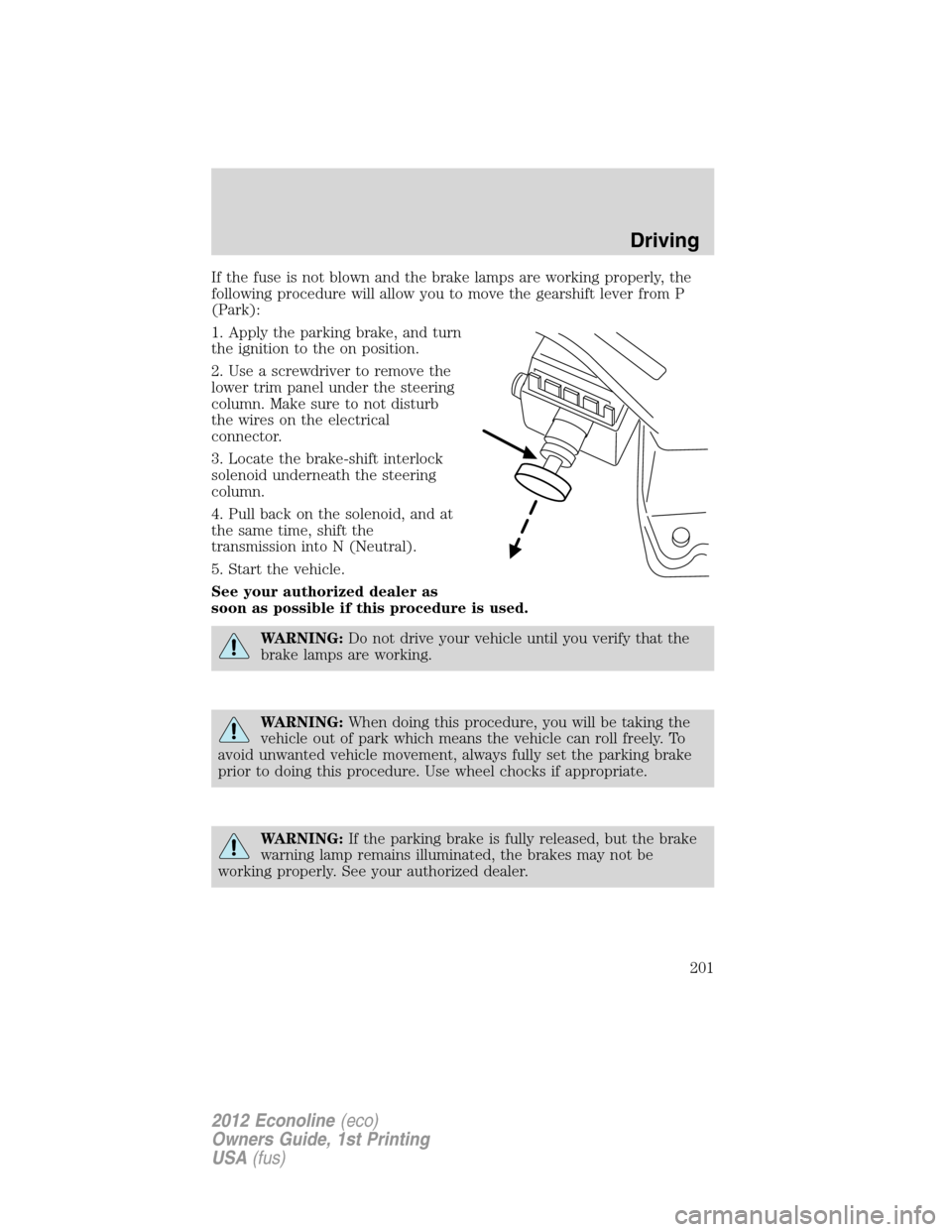

Page 201 of 335

FORD E SERIES 2012 4.G Owners Manual If the fuse is not blown and the brake lamps are working properly, the
following procedure will allow you to move the gearshift lever from P
(Park):
1. Apply the parking brake, and turn
the ignition t

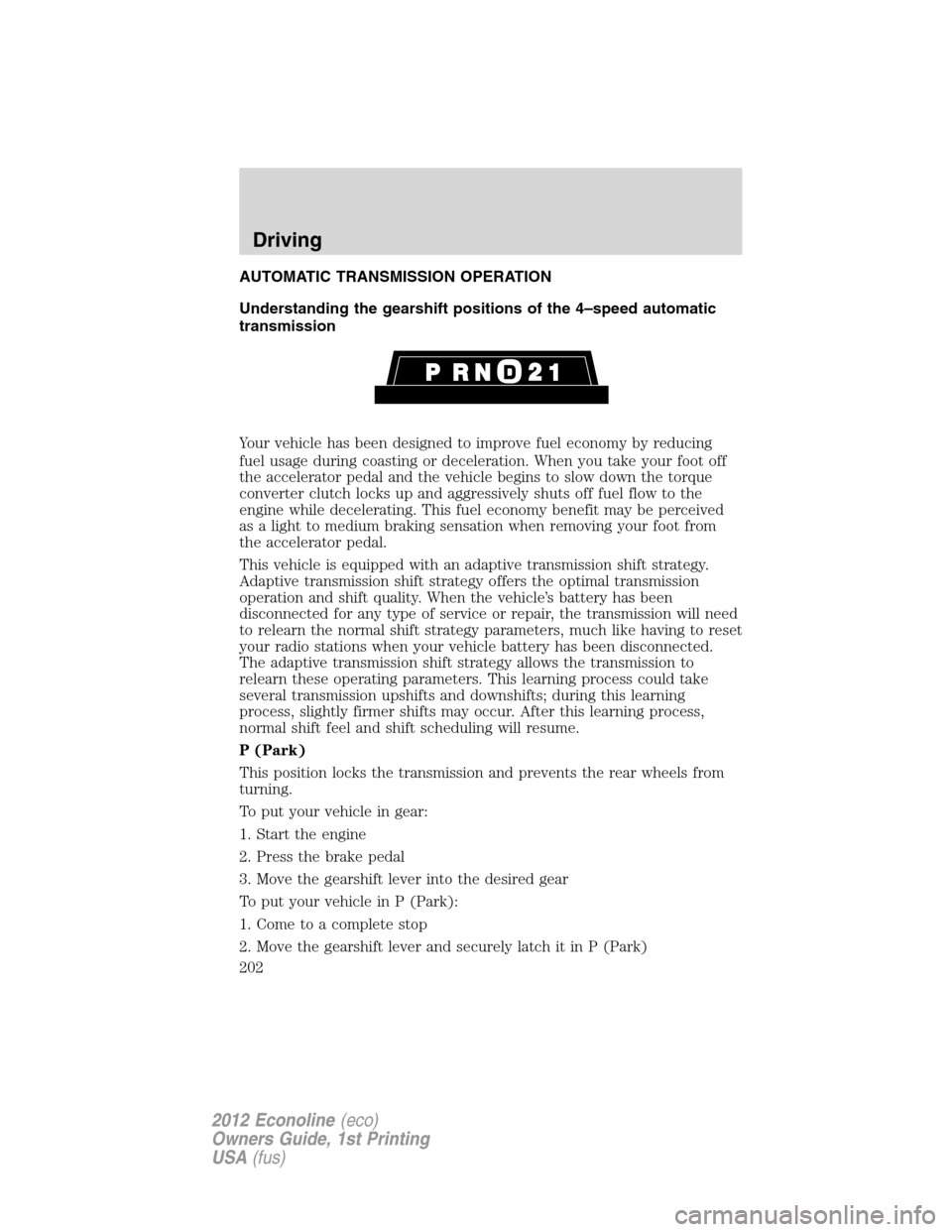

Page 202 of 335

FORD E SERIES 2012 4.G Owners Manual AUTOMATIC TRANSMISSION OPERATION
Understanding the gearshift positions of the 4–speed automatic
transmission
Your vehicle has been designed to improve fuel economy by reducing
fuel usage during coas

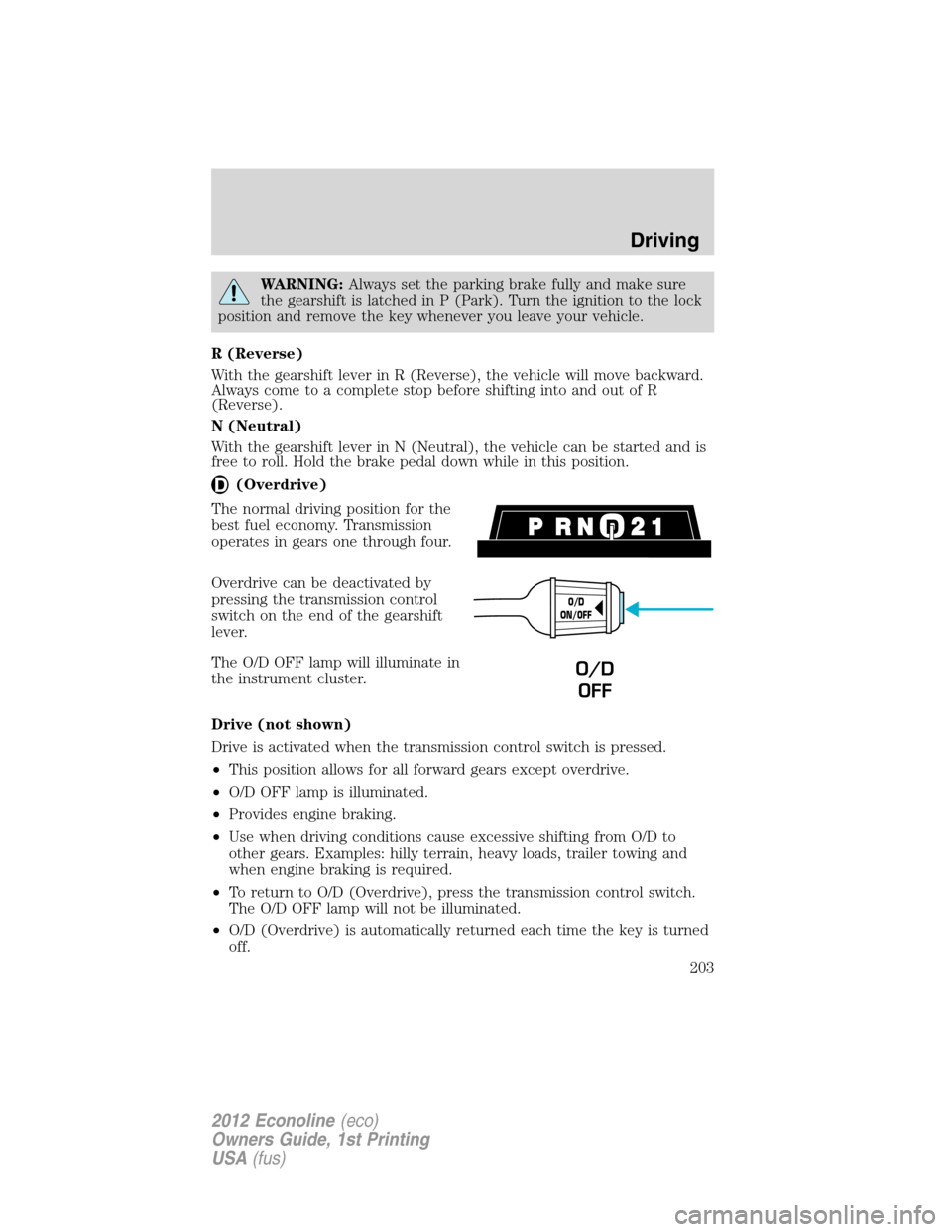

Page 203 of 335

FORD E SERIES 2012 4.G Owners Manual WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the lock
position and remove the key whenever you leave your vehicle.
R (Reverse)
Wi

Page 204 of 335

FORD E SERIES 2012 4.G Owners Manual 2 (Second)
This position allows for second gear only.
•Provides engine braking.
•Use to start-up on slippery roads.
•To return to
(Overdrive), move the gearshift lever into the
(Overdrive) posit

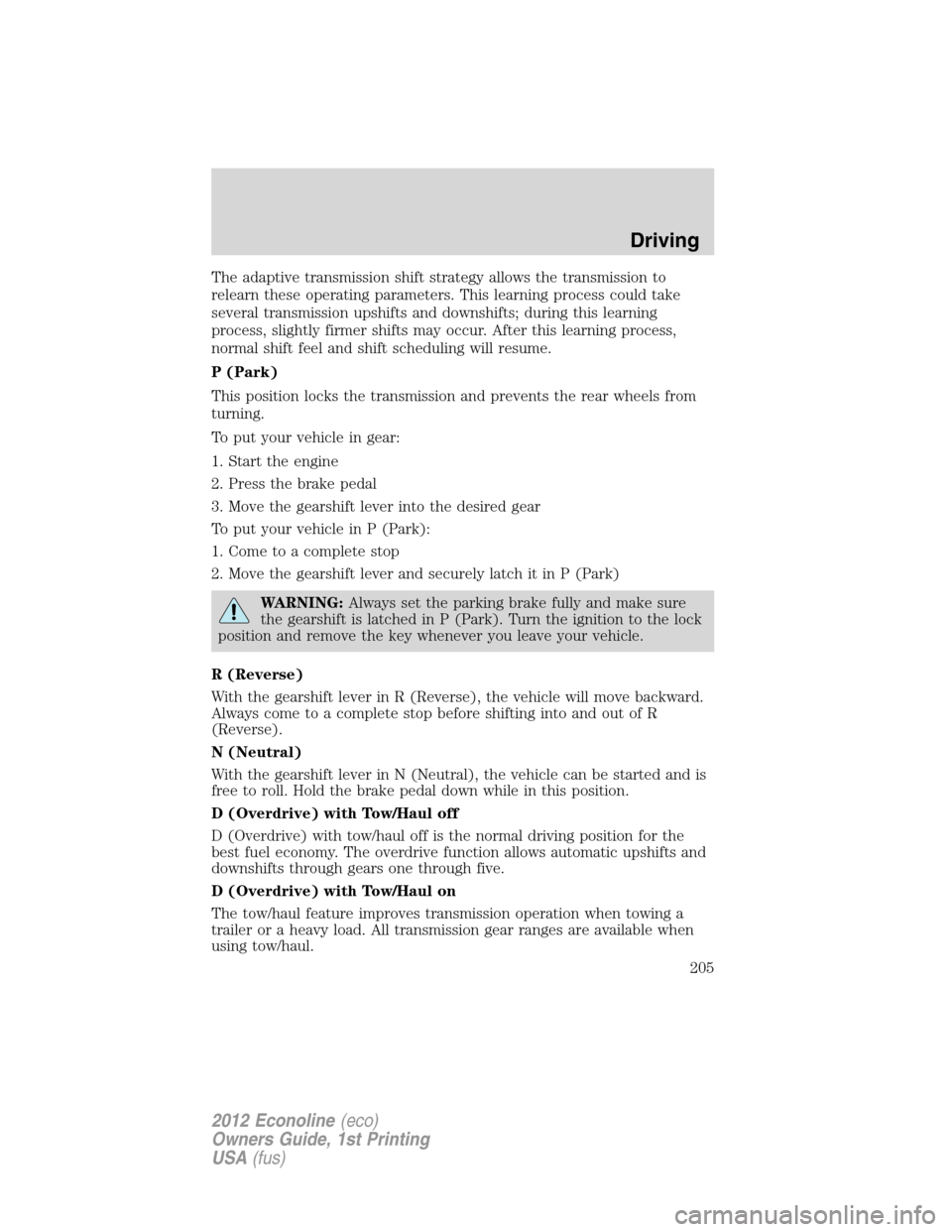

Page 205 of 335

FORD E SERIES 2012 4.G Owners Manual The adaptive transmission shift strategy allows the transmission to
relearn these operating parameters. This learning process could take
several transmission upshifts and downshifts; during this learn

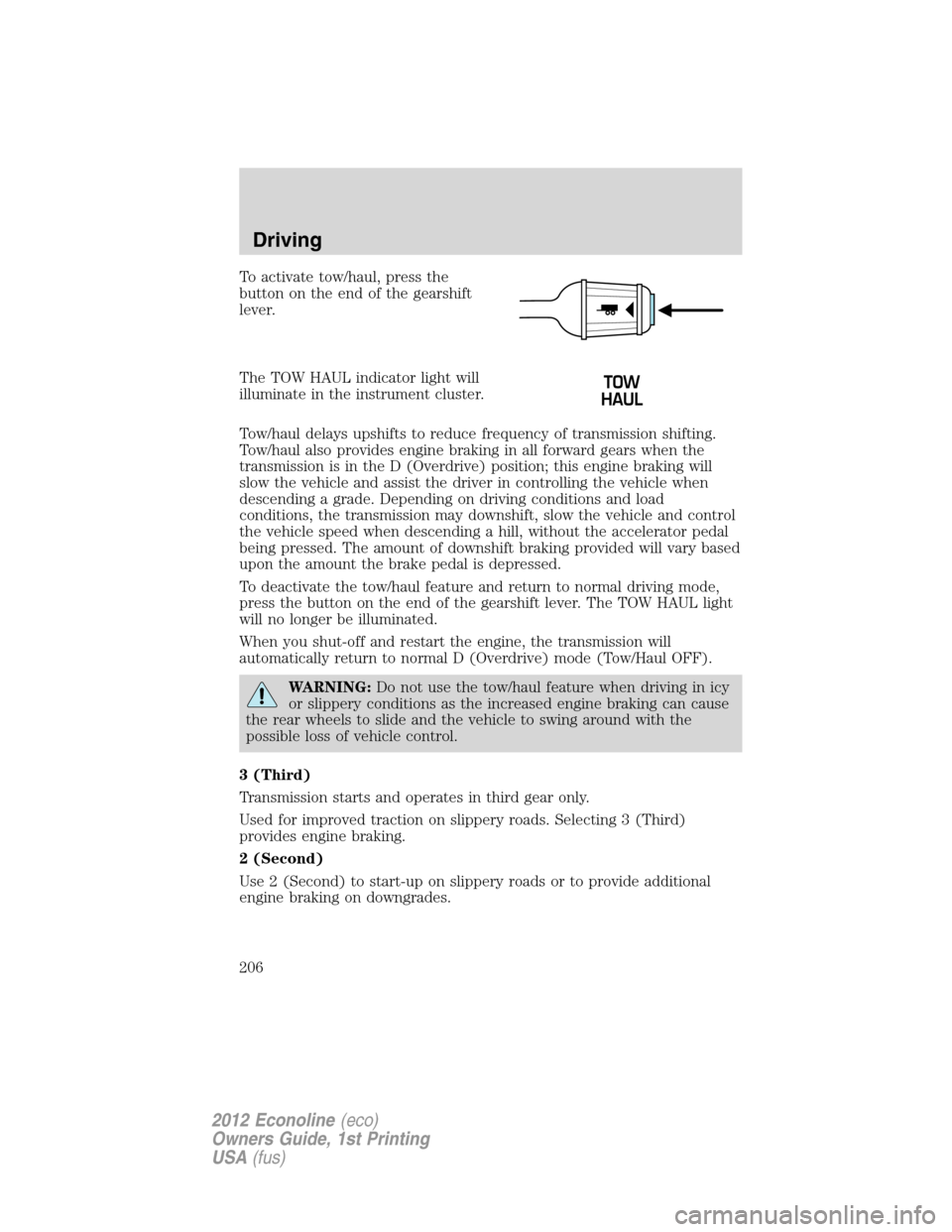

Page 206 of 335

FORD E SERIES 2012 4.G Owners Manual To activate tow/haul, press the
button on the end of the gearshift
lever.
The TOW HAUL indicator light will
illuminate in the instrument cluster.
Tow/haul delays upshifts to reduce frequency of transm

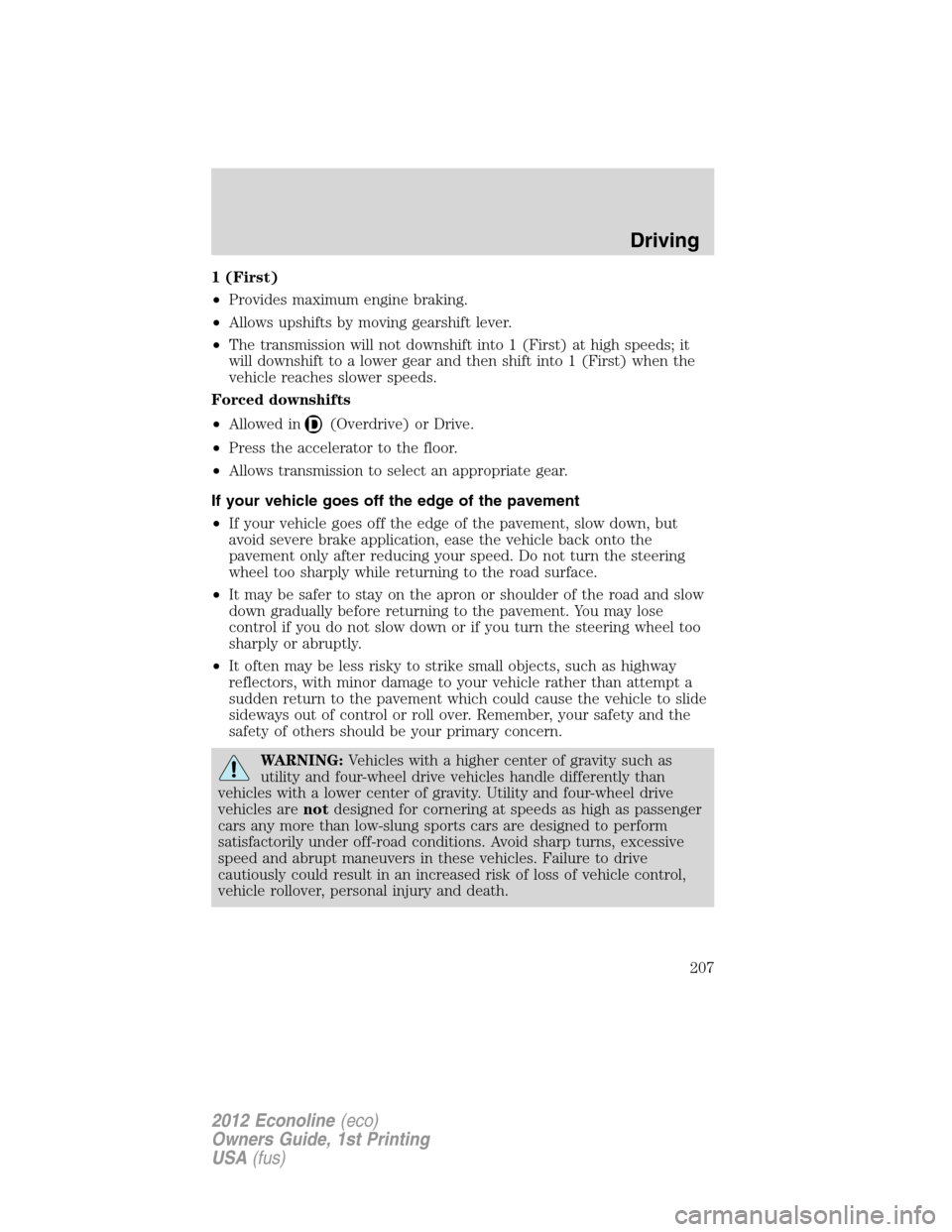

Page 207 of 335

FORD E SERIES 2012 4.G Owners Manual 1 (First)
•Provides maximum engine braking.
•Allows upshifts by moving gearshift lever.
•The transmission will not downshift into 1 (First) at high speeds; it
will downshift to a lower gear and

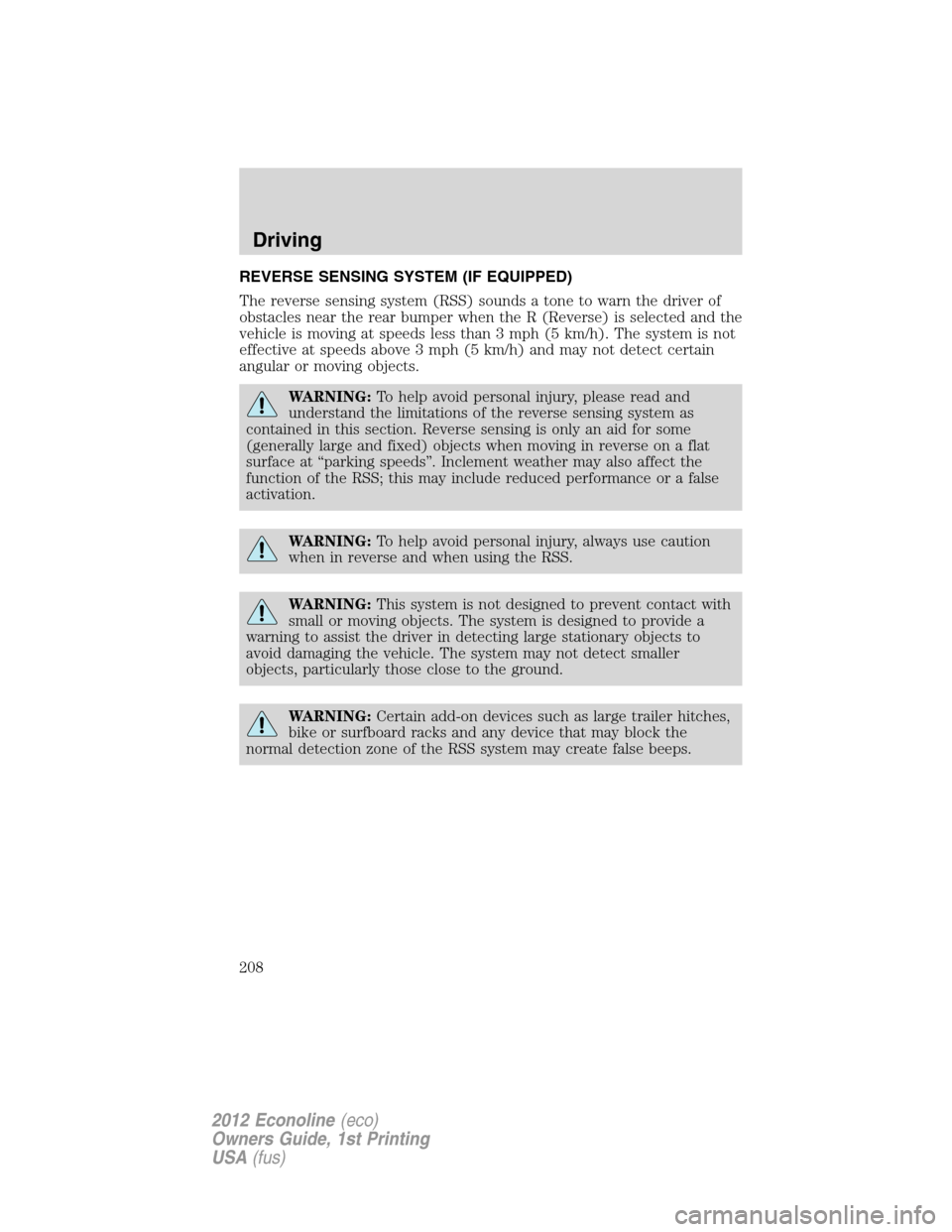

Page 208 of 335

FORD E SERIES 2012 4.G Owners Manual REVERSE SENSING SYSTEM (IF EQUIPPED)
The reverse sensing system (RSS) sounds a tone to warn the driver of
obstacles near the rear bumper when the R (Reverse) is selected and the
vehicle is moving at s

Page 209 of 335

FORD E SERIES 2012 4.G Owners Manual The RSS detects obstacles up to
6 feet (2 meters) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the figures for
approximate zone coverage areas).
As

Page 210 of 335

FORD E SERIES 2012 4.G Owners Manual REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system located
on the back door provides a video
image, which appears in the
rearview mirror or navigation screen
(if equipped), of the area be
