FORD E SERIES 2013 4.G Owners Manual

AM/FM
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
A.CLK:Switch between clock and radio frequency. To set the time:
1. Press and hold CLK until the hours start to flash.
2. Press the up, down, left or right arrow buttons to adjust the hours.
Repeat Steps 1 and 2 to set the minutes.
3. Press CLK again to exit clock-setting mode.
B.Tune:Manually search the frequency band. Press and hold for a fast
search. In AUDIO mode, press to adjust various settings.
C.AUDIO:Adjust the sound settings for Bass, Treble, Balance and Fade.
D.SEEK:Access the previous or next strong station on the frequency band.
E.Memory presets:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
F.AM/FM:Select a frequency band and access the auxiliary input jack.
G.VOL-PUSH:Press the power control to turn the system on and off.
Turn to adjust the volume.
CLK
AUDIOC
EG
F
BA
D
Audio System91
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

AM/FM/CD WITH SYNC
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
A.Eject:Eject a CD.
B.CD slot:Insert a CD.
C.Tune:Manually search the frequency band. Press and hold for a fast
search.
D.Phone:Access the phone features of the SYNCsystem. See the
SYNCchapter for more information.
E.MENU:Access audio system functions, such as adjusting the sound
settings for Bass, Treble, Balance and Fade.
•Set the time by pressing MENU until SET HOURS or SET MINUTES
appears and using the arrow buttons to adjust the time.
•Set the strongest stations on the radio frequency by pressing MENU
until AUTOSET appears. AUTOSET does not override your original
presets.
92Audio System
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

•SPEEDVOL (speed compensated volume) allows you to adjust radio
volume to compensate for noise levels when vehicle speed increases.
•Track/Folder is only available on MP3 files when in CD mode. In track
mode, pressing the SEEK arrows allows you to scroll through all the
tracks on the disc. In folder mode, pressing the SEEK arrows allows
you to scroll through all the tracks within the selected folder. Press
FOLDER arrow buttons to access other folders.
•COMPRESS (compression) is only available in CD/MP3 mode. Use the
SEEK buttons and up and down arrow buttons to switch it on and
off. Switching compression on brings the soft and loud passages
together for a more consistent listening level.
F.AUX:Access the media features of the SYNCsystem. See theSYNC
chapter for more information.
G.SEEK:
•In radio mode, select a frequency band and press the SEEK button.
The system stops at the first station it finds up the band.
•In CD/MP3 mode, press to select the next track or press and hold to
advance within the same track.
H.Play/Pause/OK:
•
Play/Pause allows you to play or pause a track when listening to a CD.
•OK allows you to confirm commands with phone and media features of
the SYNC system. See theSYNCchapter for more information.
I.SHUFFLE:Play music on the selected CD or MP3 folder in random order.
J.Folder:Access the next folder on an MP3 disc.
K.Folder:Access the previous folder on an MP3 disc.
L.FF:Manually fast forward in a CD track or MP3 file.
M.REW:Manually rewind in a CD track or MP3 file.
N.Memory presets:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
O.TEXT/SCAN:
•In radio and CD/MP3 mode, press and hold to hear a brief sampling
of radio stations, CD tracks or MP3 files.
•In CD/MP3 mode, press and release to display track title, artist name
and disc title.
Note:In text mode, sometimes the display requires additional text to be
displayed. When the > or < indicator is present, press the SEEK arrows
to view the additional text.
Audio System93
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

P.AM/FM:Select a frequency band.
Q.VOL-PUSH:Press the power control to turn the system on and off.
Turn to adjust the volume.
R.CD:Enter CD/MP3 mode.
AUXILIARY INPUT JACK
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
WARNING:For safety reasons, do not connect or adjust the
settings on your portable music player while the vehicle is moving.
WARNING:Store the portable music player in a secure location,
such as the center console or the glove box, when the vehicle is
in motion. Hard objects may become projectiles in a collision or sudden
stop, which may increase the risk of serious injury. The audio extension
cable must be long enough to allow the portable music player to be
safely stored while the vehicle is in motion.
The auxiliary input jack (AIJ) allows
you to connect and play music from
your portable music player through
the vehicle speakers. You can use
any portable music player designed
for use with headphones. Your audio
extension cable must have male
18-inch (3.5 millimeter) connectors
at each end.
1. Make sure the vehicle, radio and portable music player are turned off
and the transmission is in positionP.
2. Plug the extension cable from the portable music player into the AIJ.
94Audio System
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

3. Turn on the radio. Select either a tuned FM station or a CD.
4. Adjust the volume as desired.
5. Turn on your portable music player and adjust its volume to
12the
maximum.
6. Press AUX until LINE or LINE IN appears in the display. You should
hear music from your device even if it is low.
7. Adjust the volume on your portable music player until it reaches the
volume level of the FM station or CD. Do this by switching back and
forth between the AUX and FM or CD controls.
USB PORT (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
The USB port allows you to plug in
media playing devices, memory
sticks and charge devices (if
supported). See theSYNCchapter
for more information.
Audio System95
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

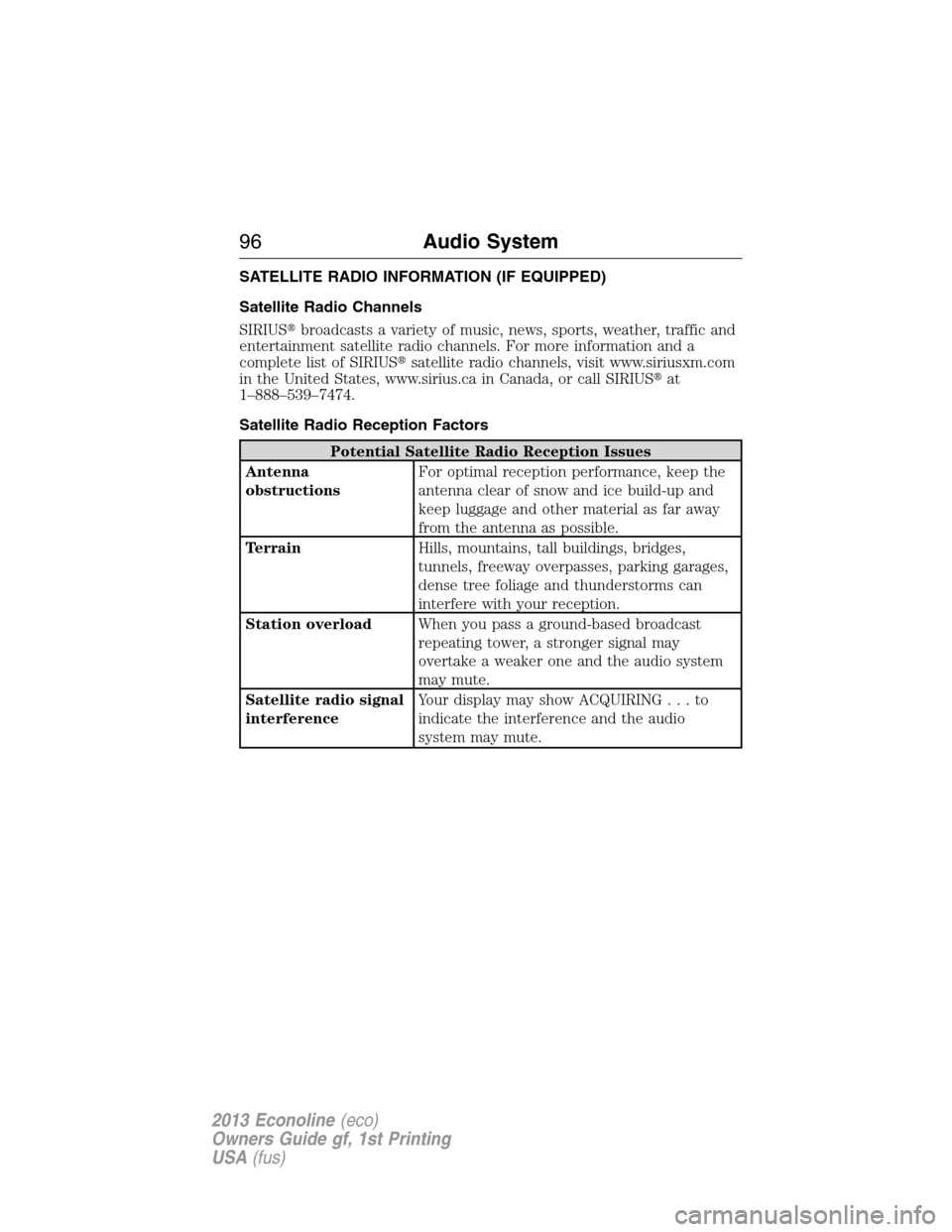

SATELLITE RADIO INFORMATION (IF EQUIPPED)
Satellite Radio Channels
SIRIUSbroadcasts a variety of music, news, sports, weather, traffic and
entertainment satellite radio channels. For more information and a
complete list of SIRIUSsatellite radio channels, visit www.siriusxm.com
in the United States, www.sirius.ca in Canada, or call SIRIUSat
1–888–539–7474.
Satellite Radio Reception Factors
Potential Satellite Radio Reception Issues
Antenna
obstructionsFor optimal reception performance, keep the
antenna clear of snow and ice build-up and
keep luggage and other material as far away
from the antenna as possible.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with your reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and the audio system
may mute.
Satellite radio signal
interferenceYour display may show ACQUIRING...to
indicate the interference and the audio
system may mute.
96Audio System
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

SIRIUSSatellite Radio Service
Note:SIRIUSreserves the unrestricted right to change, rearrange, add or
delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming changes.
SIRIUSsatellite radio is a
subscription-based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory-installed SIRIUS
satellite radio system includes
hardware and a limited subscription term which begins on the date of
sale or lease of the vehicle. See your authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit
www.siriusxm.com in the United States, www.sirius.ca in Canada, or call
SIRIUSat 1–888–539–7474.
Satellite Radio Electronic Serial Number (ESN)
You need your ESN to activate, modify or track your satellite radio
account. When in satellite radio mode, you can view this number by
pressing SIRIUS and memory preset 1 at the same time.
Troubleshooting
SIRIUSTroubleshooting Tips
Radio Display Condition Possible Action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
Sat Fault/SIRIUS
system failureInternal module or
system failure present.If this message does
not clear shortly, or
with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Audio System97
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

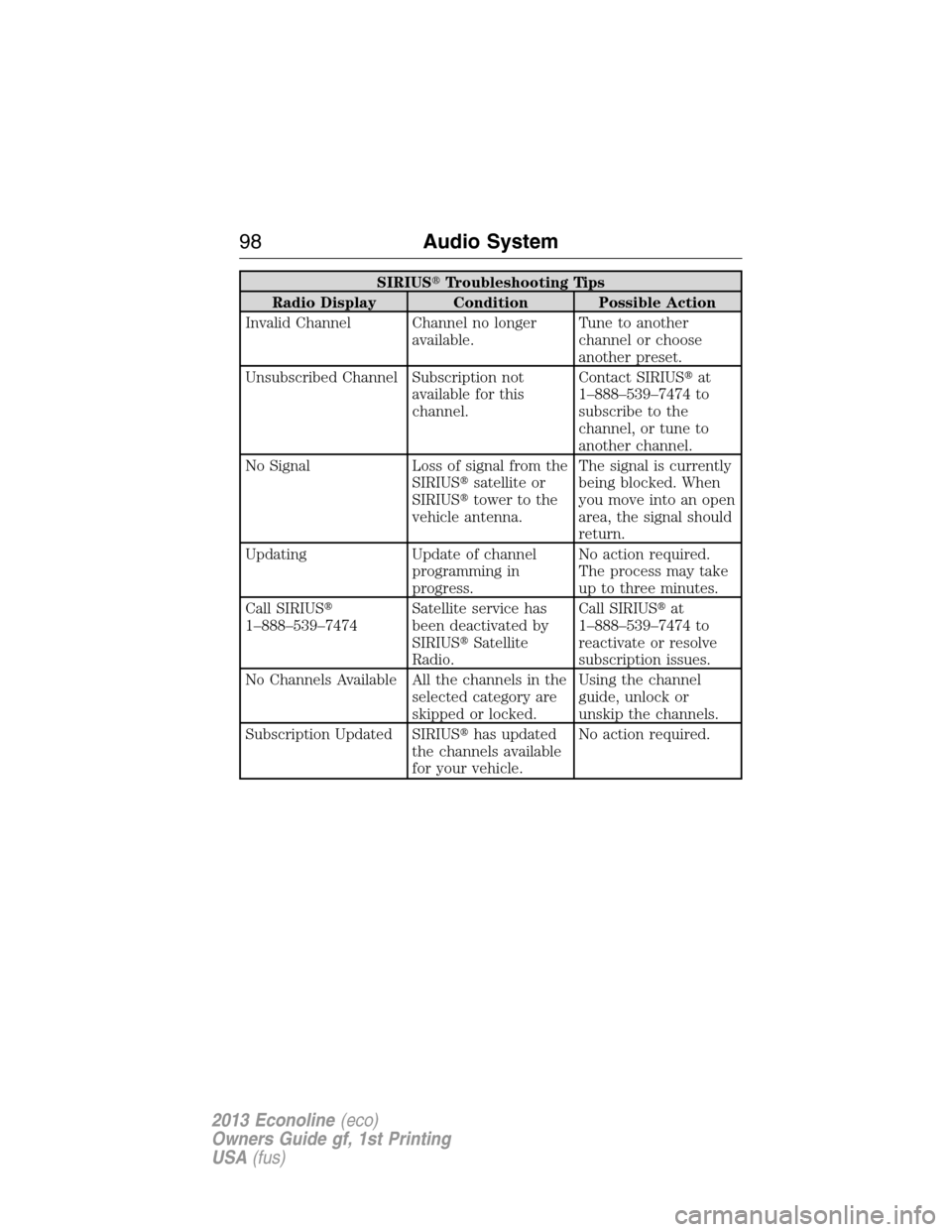

SIRIUSTroubleshooting Tips
Radio Display Condition Possible Action
Invalid Channel Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal Loss of signal from the
SIRIUSsatellite or
SIRIUStower to the
vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress.No action required.
The process may take
up to three minutes.
Call SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels Available All the channels in the
selected category are
skipped or locked.Using the channel
guide, unlock or
unskip the channels.
Subscription Updated SIRIUShas updated
the channels available
for your vehicle.No action required.
98Audio System
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

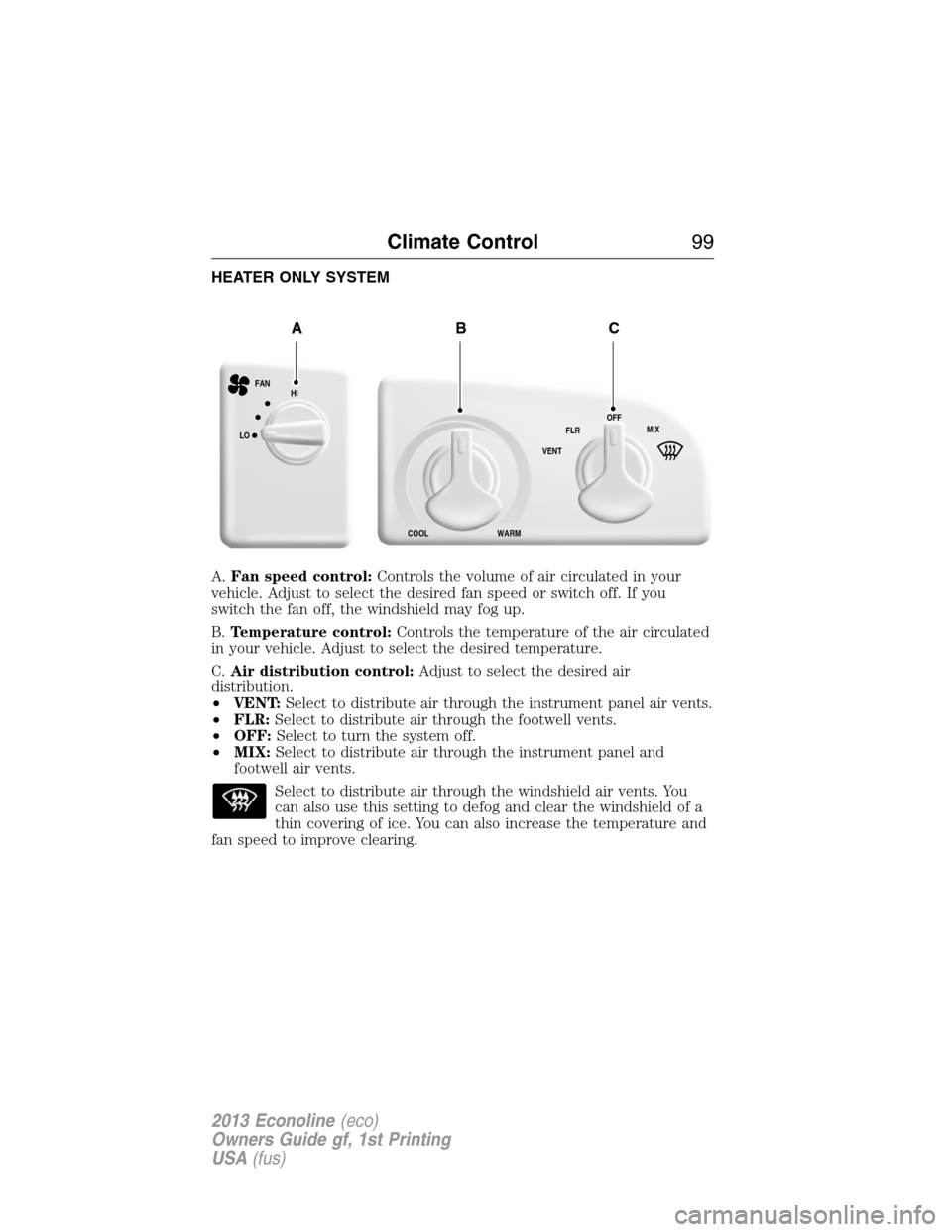

HEATER ONLY SYSTEM
A.Fan speed control:Controls the volume of air circulated in your
vehicle. Adjust to select the desired fan speed or switch off. If you
switch the fan off, the windshield may fog up.
B.Temperature control:Controls the temperature of the air circulated
in your vehicle. Adjust to select the desired temperature.
C.Air distribution control:Adjust to select the desired air
distribution.
•VENT:Select to distribute air through the instrument panel air vents.
•FLR:Select to distribute air through the footwell vents.
•OFF:Select to turn the system off.
•MIX:Select to distribute air through the instrument panel and
footwell air vents.
Select to distribute air through the windshield air vents. You
can also use this setting to defog and clear the windshield of a
thin covering of ice. You can also increase the temperature and
fan speed to improve clearing.
HI
LO
COOL WARMVENTFLROFF
MIX FAN
ABC
Climate Control99
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

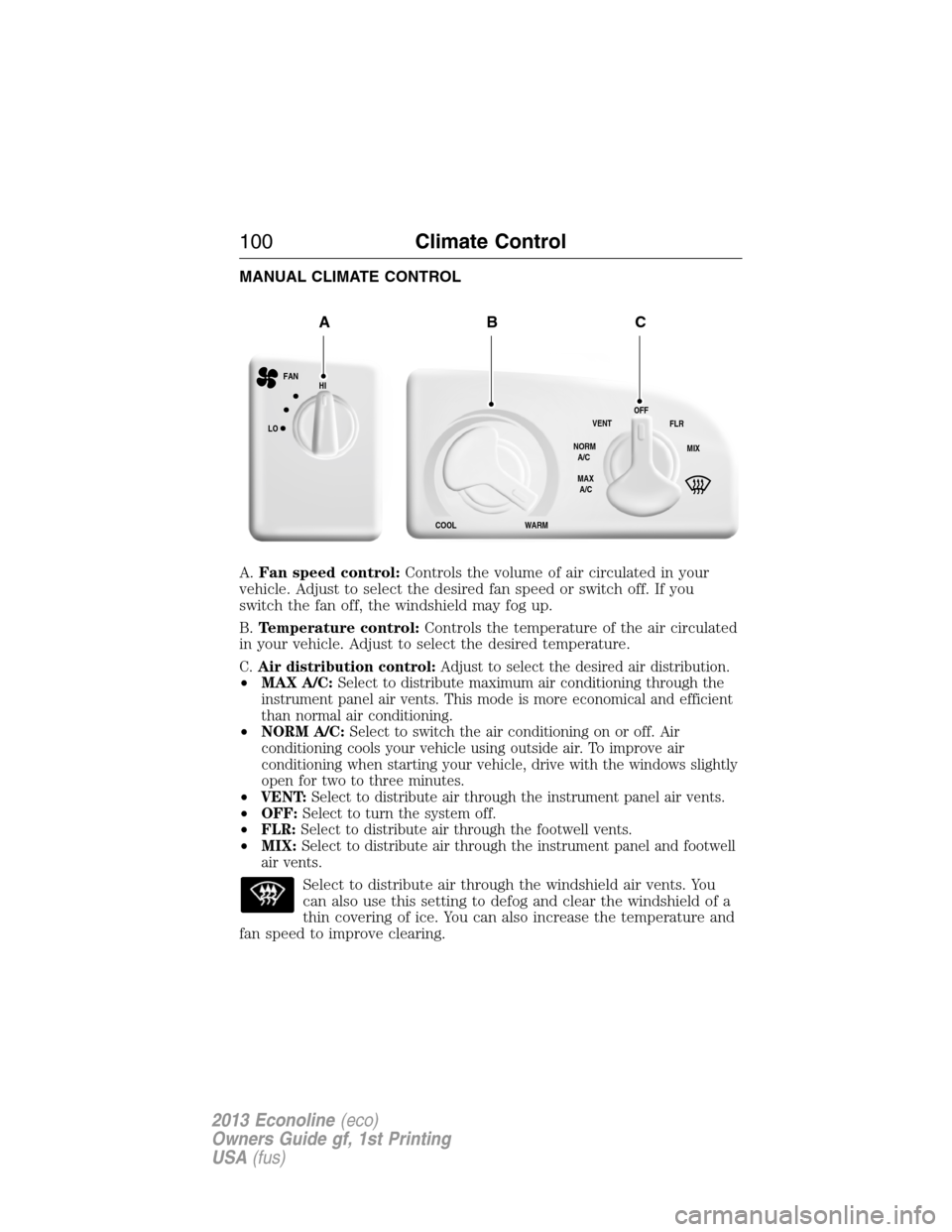

MANUAL CLIMATE CONTROL
A.Fan speed control:Controls the volume of air circulated in your
vehicle. Adjust to select the desired fan speed or switch off. If you
switch the fan off, the windshield may fog up.
B.Temperature control:Controls the temperature of the air circulated
in your vehicle. Adjust to select the desired temperature.
C.Air distribution control:Adjust to select the desired air distribution.
•MAX A/C:Select to distribute maximum air conditioning through the
instrument panel air vents. This mode is more economical and efficient
than normal air conditioning.
•NORM A/C:Select to switch the air conditioning on or off. Air
conditioning cools your vehicle using outside air. To improve air
conditioning when starting your vehicle, drive with the windows slightly
open for two to three minutes.
•VENT:Select to distribute air through the instrument panel air vents.
•OFF:Select to turn the system off.
•FLR:Select to distribute air through the footwell vents.
•MIX:Select to distribute air through the instrument panel and footwell
air vents.
Select to distribute air through the windshield air vents. You
can also use this setting to defog and clear the windshield of a
thin covering of ice. You can also increase the temperature and
fan speed to improve clearing.
HI
LO
COOL WARMVENT
NORM
A/C
MAX
A/COFF
MIX FLR FAN
ABC
100Climate Control
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
