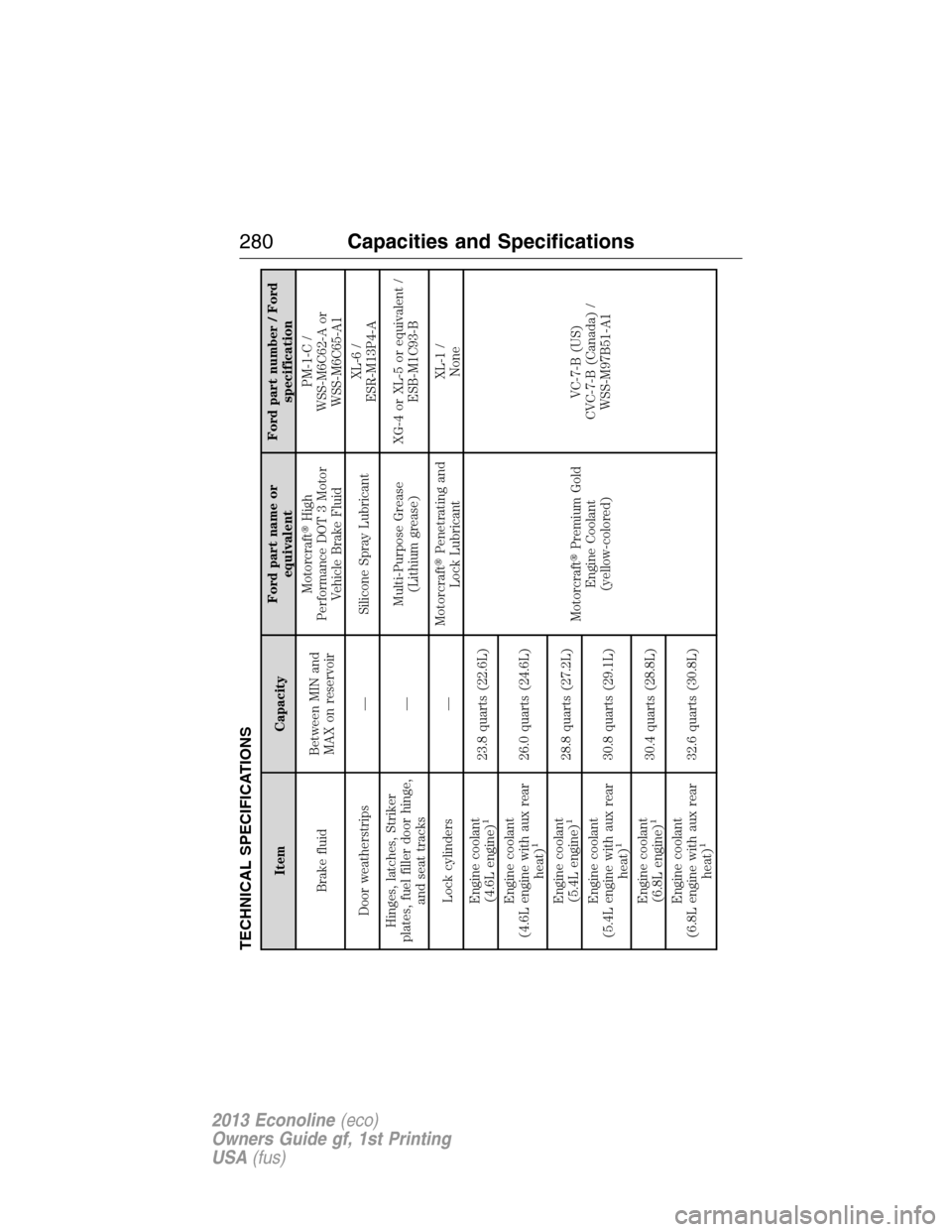

TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number / Ford
specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraftHigh
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Hinges, latches, Striker
plates, fuel filler door hinge,
and seat tracks—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Lock cylinders —MotorcraftPenetrating and
Lock LubricantXL-1 /
None
Engine coolant
(4.6L engine)
1
23.8 quarts (22.6L)
MotorcraftPremium Gold
Engine Coolant
(yellow-colored)VC-7-B (US)
CVC-7-B (Canada) /
WSS-M97B51-A1 Engine coolant
(4.6L engine with aux rear
heat)
1
26.0 quarts (24.6L)
Engine coolant
(5.4L engine)
1
28.8 quarts (27.2L)
Engine coolant
(5.4L engine with aux rear
heat)
1
30.8 quarts (29.1L)
Engine coolant
(6.8L engine)
1
30.4 quarts (28.8L)
Engine coolant
(6.8L engine with aux rear
heat)
1
32.6 quarts (30.8L)
280Capacities and Specifications
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

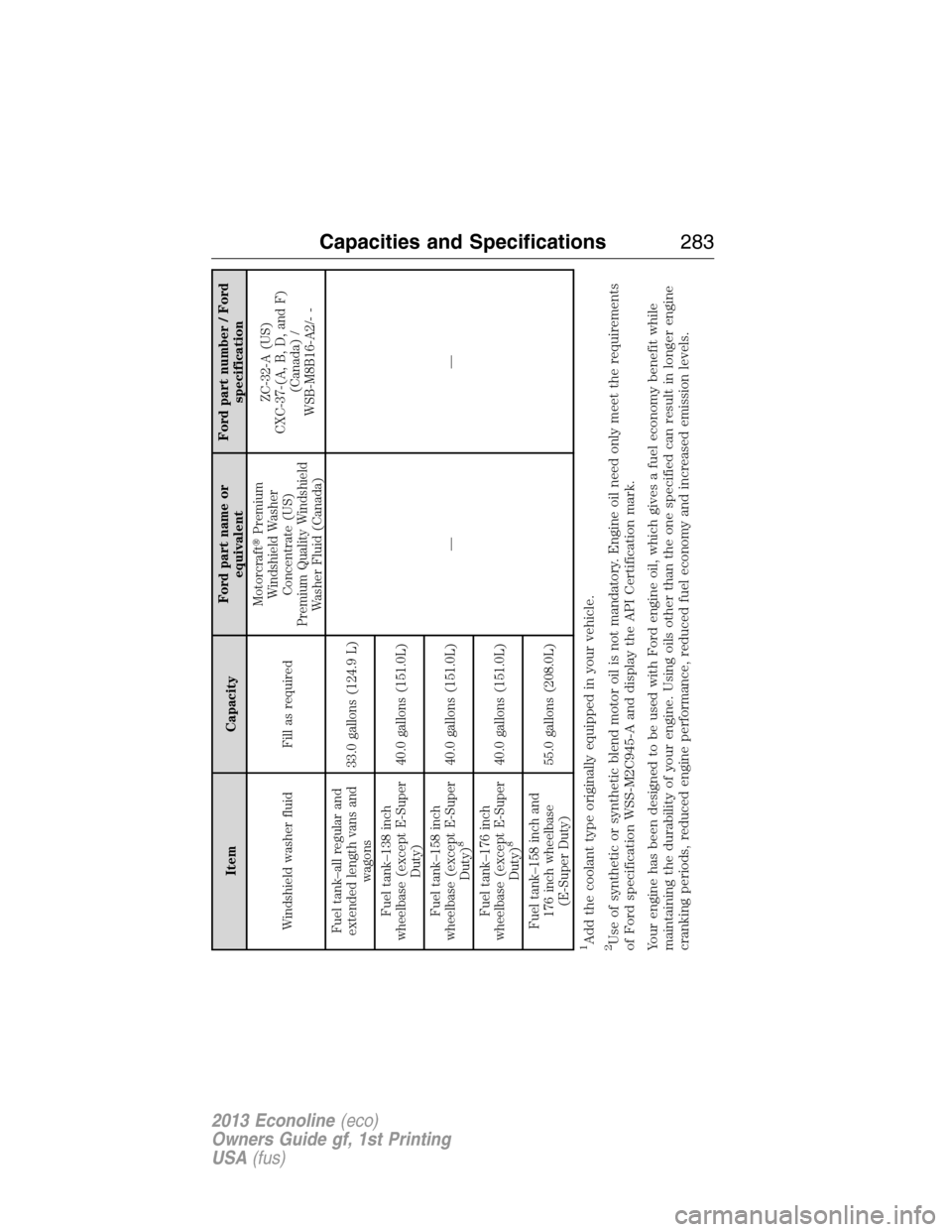

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank–all regular and
extended length vans and
wagons33.0 gallons (124.9 L)
—— Fuel tank–138 inch
wheelbase (except E-Super
Duty)40.0 gallons (151.0L)
Fuel tank–158 inch
wheelbase (except E-Super
Duty)
8
40.0 gallons (151.0L)
Fuel tank–176 inch
wheelbase (except E-Super
Duty)
8
40.0 gallons (151.0L)
Fuel tank–158 inch and
176 inch wheelbase
(E-Super Duty)55.0 gallons (208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the requirements
of Ford specification WSS-M2C945-A and display the API Certification mark.
Your engine has been designed to be used with Ford engine oil, which gives a fuel economy benefit while
maintaining the durability of your engine. Using oils other than the one specified can result in longer engine
cranking periods, reduced engine performance, reduced fuel economy and increased emission levels.
Capacities and Specifications283
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

E
Electronic message center .........82
Electronic stability control ......141
Emergencies, roadside
jump-starting ..........................181
running out of fuel .................122
Emergency Flashers .................180
Emission control system ..........125
End user license agreement ....398
Engine ................................278–279
cleaning ...................................235
coolant .....................................205
fail-safe cooling .......................208
lubrication specifications .......280
refill capacities ........................280
service points ..........................204
Engine block heater .................117
Engine oil
checking and adding ..............204
dipstick ....................................204
filter, specifications ................285
refill capacities ........................280
specifications ..........................280
Event data recording ..................11
Exhaust fumes ..........................117
F
Fail safe cooling ........................208
Flexible Fuel Vehicle (FFV) ....119
Floor mats .................................176
Fluid capacities .........................280
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................172Fuel
cap ...........................................123
capacity ...................................280
choosing the right fuel ...........121
filler funnel .............................122
filling your vehicle with
fuel ...........................................123
filter, specifications ................217
fuel pump shut-off ..................180
octane rating ...........122, 278–279
quality ......................................121
running out of fuel .................122
safety information relating to
automotive fuels .....................119
Fuel - flex fuel vehicle
(FFV) .................................119, 121
Fuses ..........................192–193, 197
G
Gas cap (see Fuel cap) ............123
Gauges .........................................76
H
Hazard flashers .........................180
HD Radio™ ...............................369
Headlamps ...................................68
aiming ..............................223–224
bulb specifications ..................232
checking alignment ........223–224
daytime running lights .............69
flash to pass ..............................68
high beam .................................68
replacing bulbs .......................226
turning on and off ....................68
Head restraints .........................104
Heating ................................99–100
Hood ..........................................202
412Index
