ENGINE SPECIFICATIONS
Engine 4.6L V8 engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 281 330 415
Required fuelMinimum
87 octane or
E85
1
Minimum
87 octane or
E85
1
Minimum
87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition
systemCoilonplug Coilonplug Coilonplug
Spark plug
gap0.041–0.047 inch
(1.04–1.20 mm)0.051–0.057 inch
(1.29–1.45 mm)0.052–0.056 inch
(1.32–1.42 mm)
Compression
ratio9.38:1 9.0:1 9.0:1
14.6L V8 and 5.4L V8 FFV engines only.
270Capacities and Specifications
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

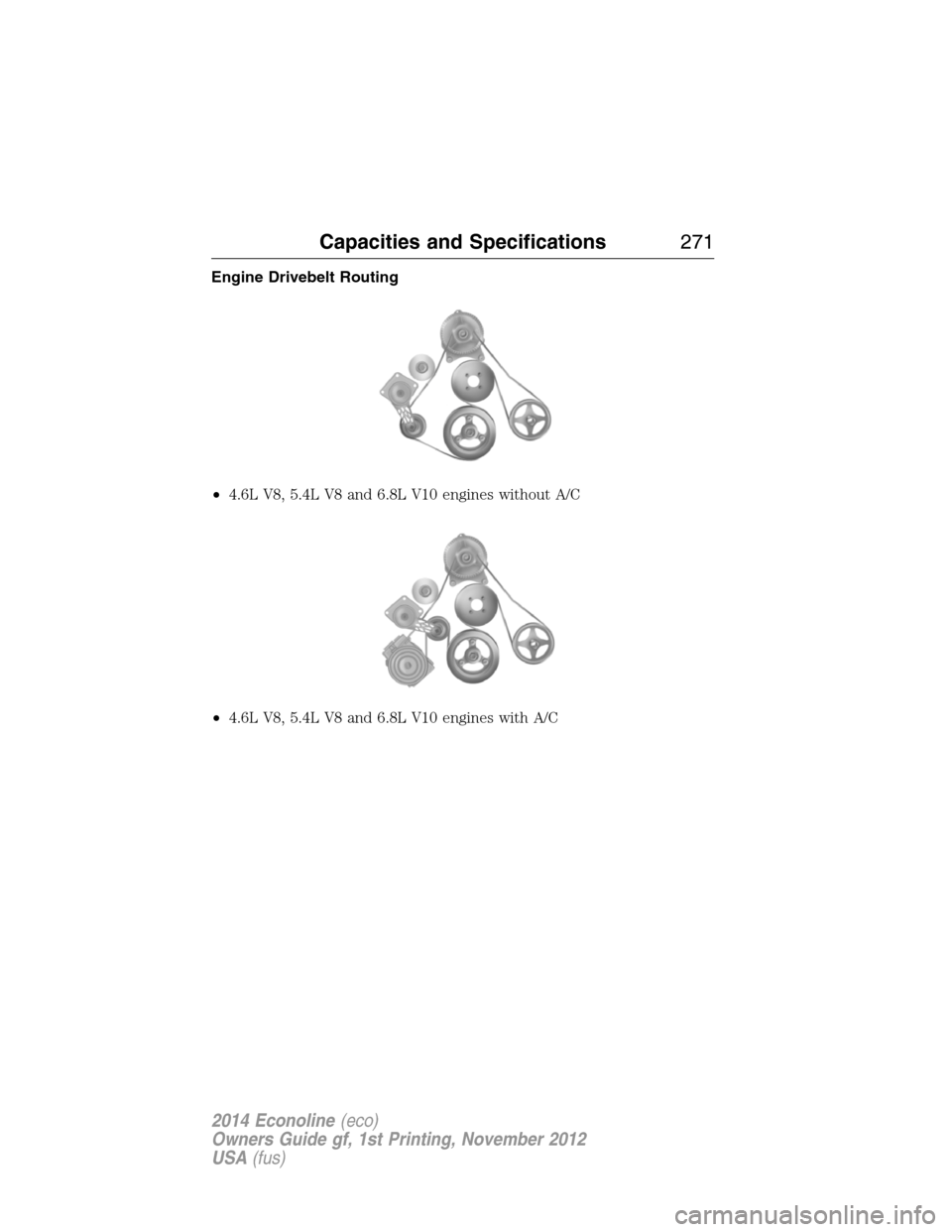

Engine Drivebelt Routing
•4.6L V8, 5.4L V8 and 6.8L V10 engines without A/C
•4.6L V8, 5.4L V8 and 6.8L V10 engines with A/C
Capacities and Specifications271
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

TECHNICAL SPECIFICATIONS1Add the coolant type originally equipped in your vehicle.
Do not use supplemental engine oil additives in your engine. They are unnecessary and could lead
to engine damage that is not covered by your Ford warranty.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.5Dana limited-slip axle (M60) requires 6 fl oz. (177 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).9Warning:The A/C refrigerant system contains refrigerant R–134a under high pressure. Opening
the A/C refrigerant system can cause personal injury. A/C refrigerant system is to be serviced only
by qualified personnel.
Item CapacityFord part name or
equivalentFord part number / Ford
specification
Brake fluid
1
Between MIN and MAX
on reservoirMotorcraft High
Performance DOT 4 LV
Motor Vehicle Brake FluidPM-20 / WSS-M6C65-A2
and ISO4925 Class 6
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
272Capacities and Specifications
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

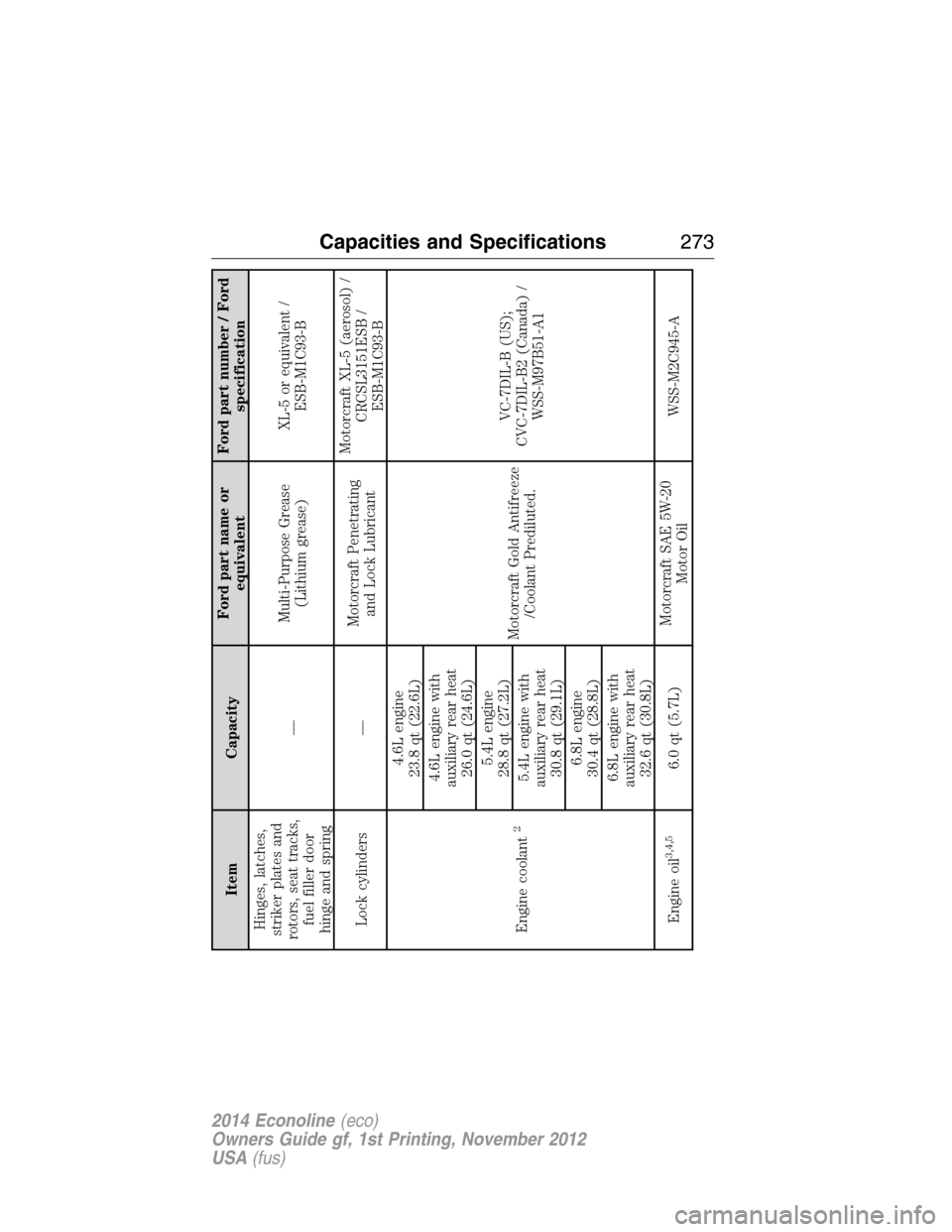

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Hinges, latches,
striker plates and
rotors, seat tracks,
fuel filler door
hinge and spring—Multi-Purpose Grease
(Lithium grease)XL-5 or equivalent /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantMotorcraft XL-5 (aerosol) /
CRCSL3151ESB /
ESB-M1C93-B
Engine coolant
2
4.6L engine
23.8 qt (22.6L)
Motorcraft Gold Antifreeze
/Coolant Prediluted.VC-7DIL-B (US);
CVC-7DIL-B2 (Canada) /
WSS-M97B51-A1 4.6L engine with
auxiliary rear heat
26.0 qt (24.6L)
5.4L engine
28.8 qt (27.2L)
5.4L engine with
auxiliary rear heat
30.8 qt (29.1L)
6.8L engine
30.4 qt (28.8L)
6.8L engine with
auxiliary rear heat
32.6 qt (30.8L)
Engine oil
3,4,5
6.0 qt (5.7L)Motorcraft SAE 5W-20
Motor OilWSS-M2C945-A
Capacities and Specifications273
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

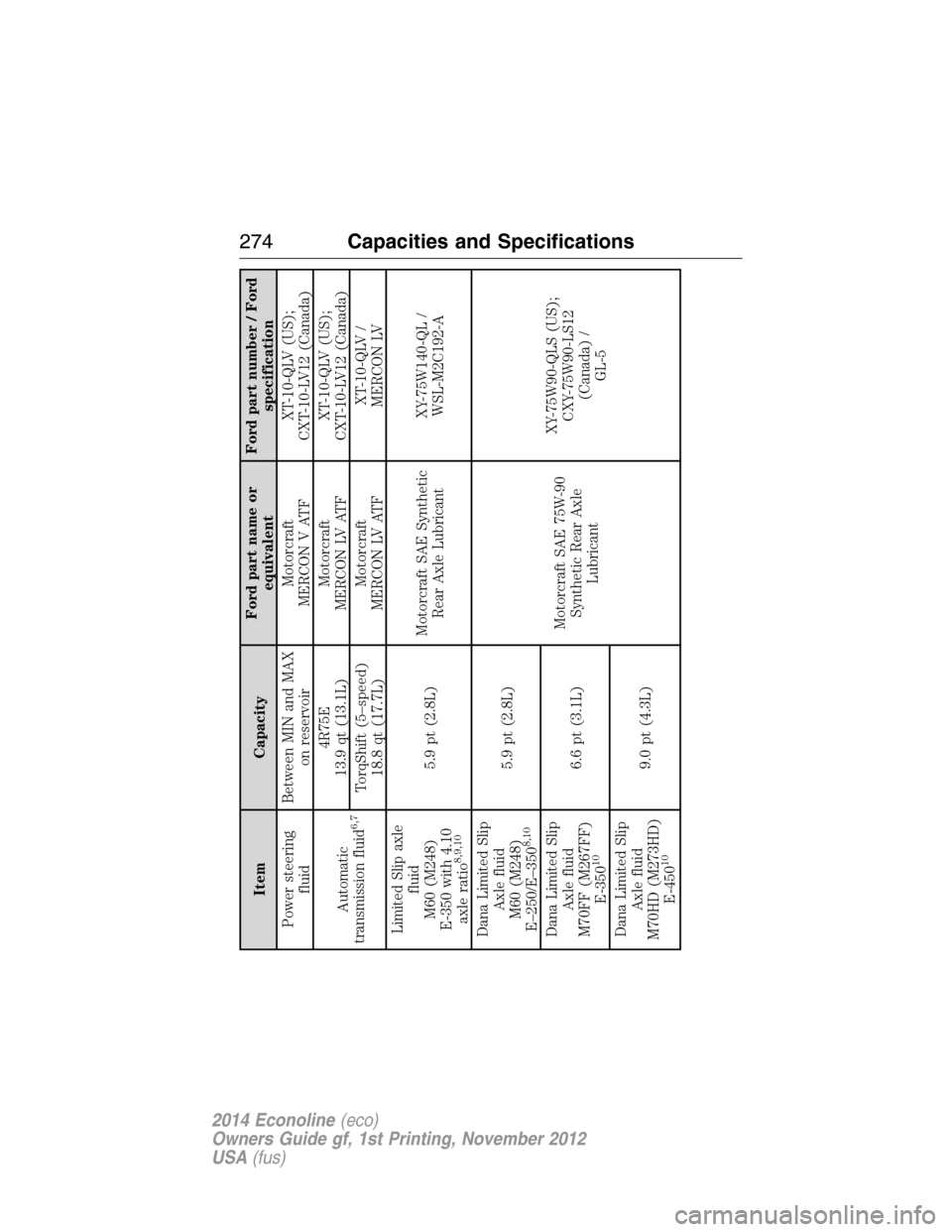

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Power steering
fluidBetween MIN and MAX
on reservoirMotorcraft
MERCON V ATFXT-10-QLV (US);
CXT-10-LV12 (Canada)
Automatic
transmission fluid
6,7
4R75E
13.9 qt (13.1L)Motorcraft
MERCON LV ATFXT-10-QLV (US);
CXT-10-LV12 (Canada)
TorqShift (5–speed)
18.8 qt (17.7L)Motorcraft
MERCON LV ATFXT-10-QLV /
MERCON LV
Limited Slip axle
fluid
M60 (M248)
E-350 with 4.10
axle ratio
8,9,10
5.9 pt (2.8L)Motorcraft SAE Synthetic
Rear Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Dana Limited Slip
Axle fluid
M60 (M248)
E–250/E–350
8,10
5.9 pt (2.8L)
Motorcraft SAE 75W-90
Synthetic Rear Axle
LubricantXY-75W90-QLS (US);
CXY-75W90-LS12
(Canada) /
GL-5 Dana Limited Slip
Axle fluid
M70FF (M267FF)
E-350
10
6.6 pt (3.1L)
Dana Limited Slip
Axle fluid
M70HD (M273HD)
E-450
10
9.0 pt (4.3L)
274Capacities and Specifications
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

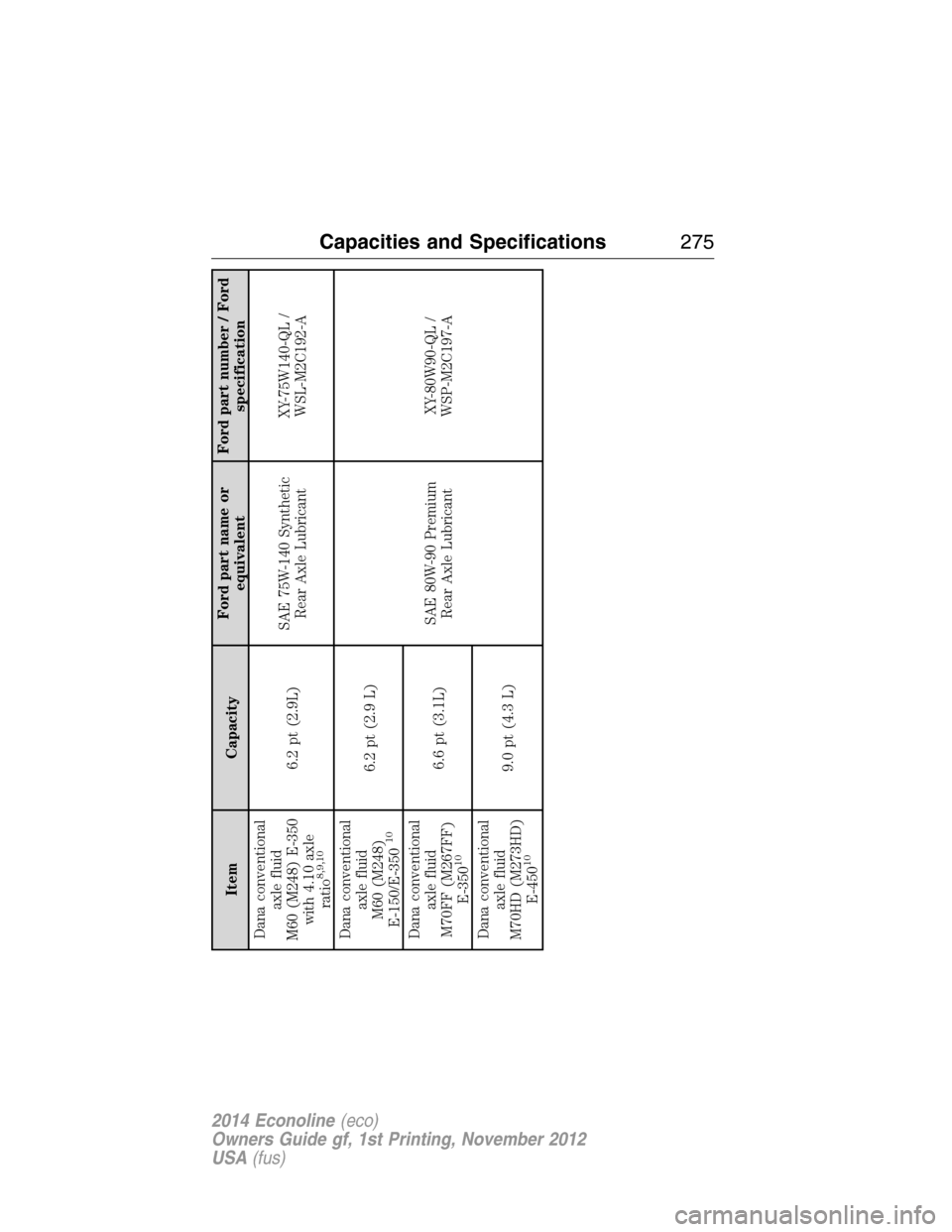

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Dana conventional
axle fluid
M60 (M248) E-350
with 4.10 axle
ratio
8,9,10
6.2 pt (2.9L)SAE 75W-140 Synthetic
Rear Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Dana conventional
axle fluid
M60 (M248)
E-150/E-350
10
6.2 pt (2.9 L)
SAE 80W-90 Premium
Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A Dana conventional
axle fluid
M70FF (M267FF)
E-350
10
6.6 pt (3.1L)
Dana conventional
axle fluid
M70HD (M273HD)
E-450
10
9.0 pt (4.3 L)
Capacities and Specifications275
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

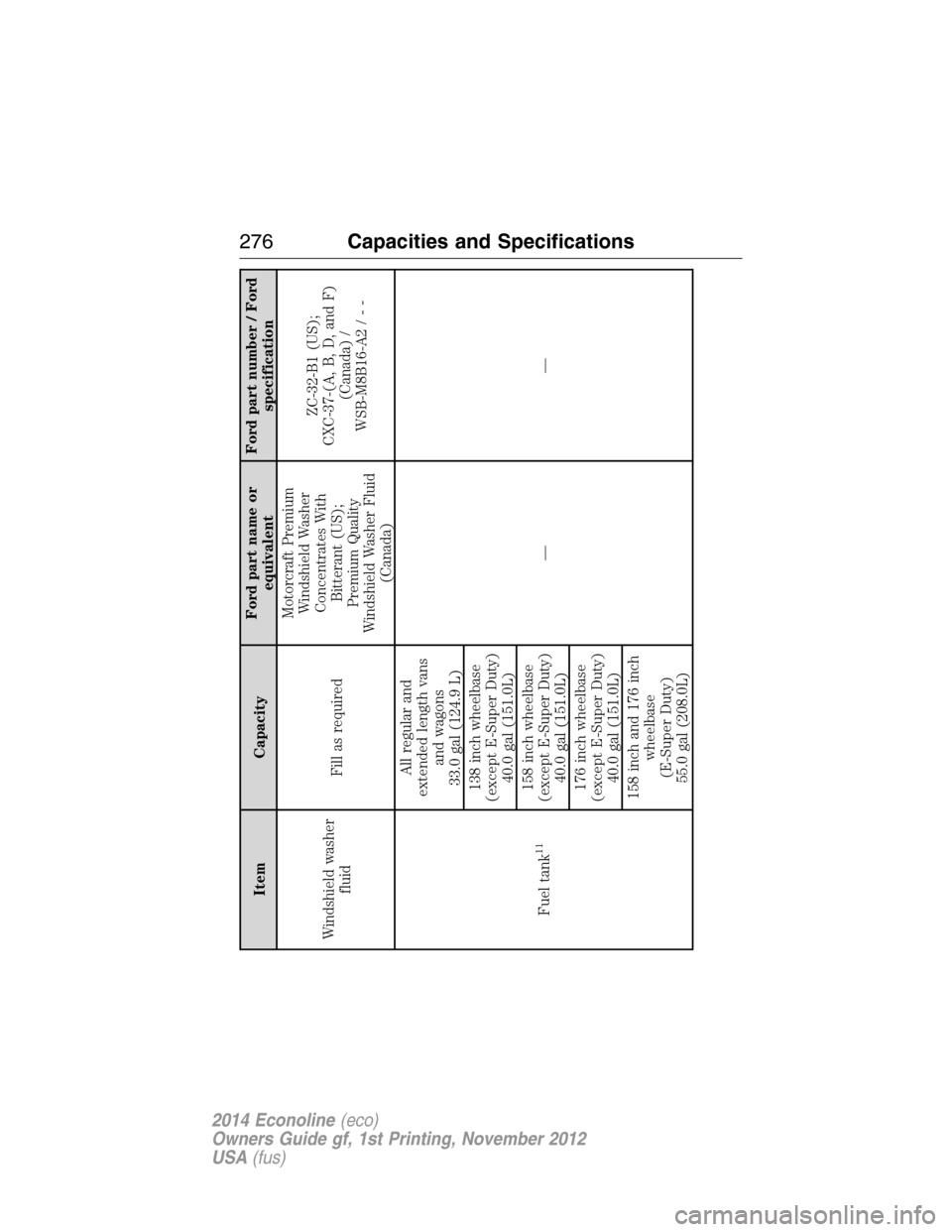

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrates With
Bitterant (US);
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-B1 (US);
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/--
Fuel tank
11
All regular and
extended length vans
and wagons
33.0 gal (124.9 L)
—— 138 inch wheelbase
(except E-Super Duty)
40.0 gal (151.0L)
158 inch wheelbase
(except E-Super Duty)
40.0 gal (151.0L)
176 inch wheelbase
(except E-Super Duty)
40.0 gal (151.0L)
158 inch and 176 inch
wheelbase
(E-Super Duty)
55.0 gal (208.0L)
276Capacities and Specifications
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

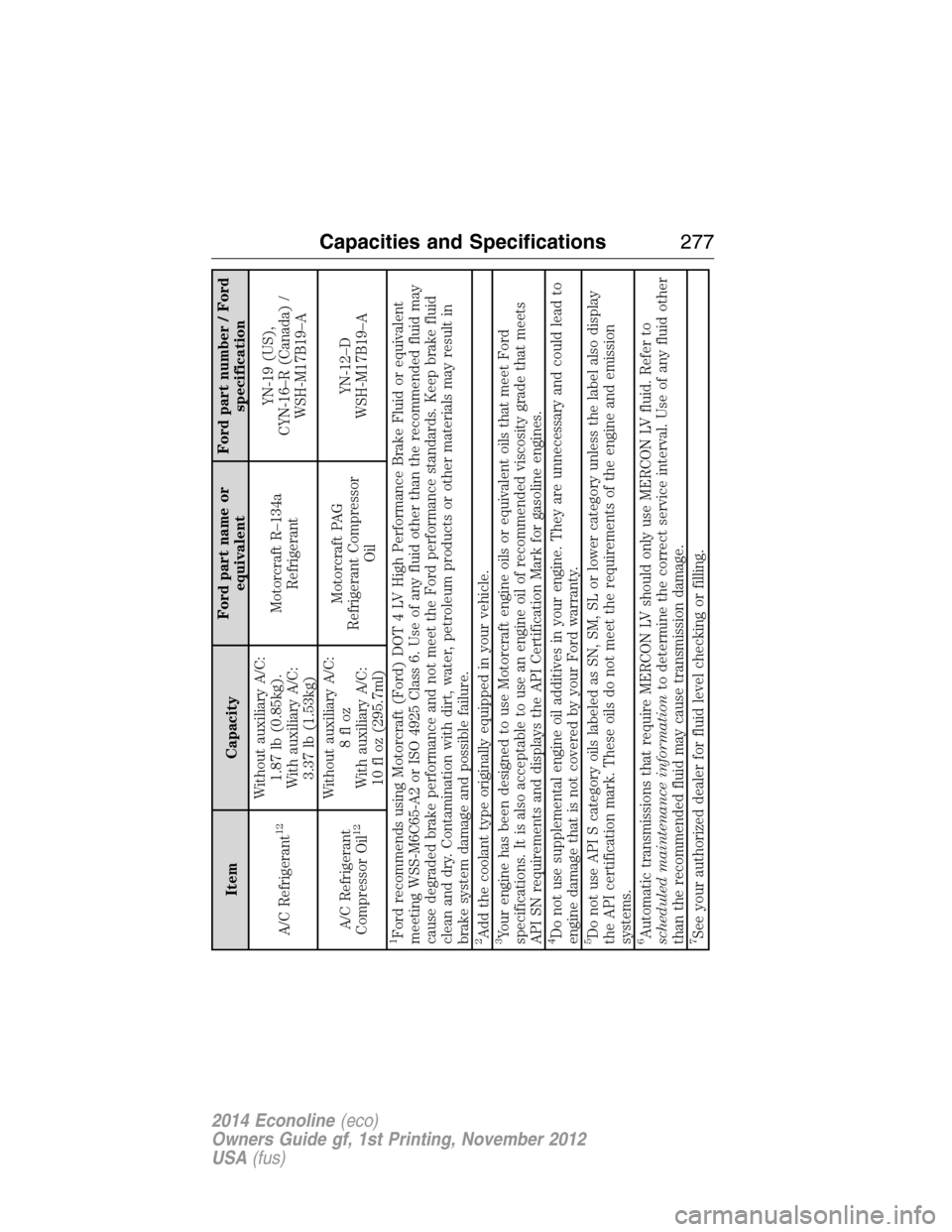

Item CapacityFord part name or
equivalentFord part number / Ford
specification
A/C Refrigerant
12
Without auxiliary A/C:
1.87 lb (0.85kg).
With auxiliary A/C:
3.37 lb (1.53kg)Motorcraft R–134a
RefrigerantYN-19 (US),
CYN-16–R (Canada) /
WSH-M17B19–A
A/C Refrigerant
Compressor Oil
12
Without auxiliary A/C:
8floz
With auxiliary A/C:
10 fl oz (295.7ml)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D
WSH-M17B19–A
1Ford recommends using Motorcraft (Ford) DOT 4 LV High Performance Brake Fluid or equivalent
meeting WSS-M6C65-A2 or ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid
clean and dry. Contamination with dirt, water, petroleum products or other materials may result in
brake system damage and possible failure.2Add the coolant type originally equipped in your vehicle.3Your engine has been designed to use Motorcraft engine oils or equivalent oils that meet Ford
specifications. It is also acceptable to use an engine oil of recommended viscosity grade that meets
API SN requirements and displays the API Certification Mark for gasoline engines.4Do not use supplemental engine oil additives in your engine. They are unnecessary and could lead to
engine damage that is not covered by your Ford warranty.5Do not use API S category oils labeled as SN, SM, SL or lower category unless the label also display
the API certification mark. These oils do not meet the requirements of the engine and emission
systems.6Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid other
than the recommended fluid may cause transmission damage.7See your authorized dealer for fluid level checking or filling.
Capacities and Specifications277
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

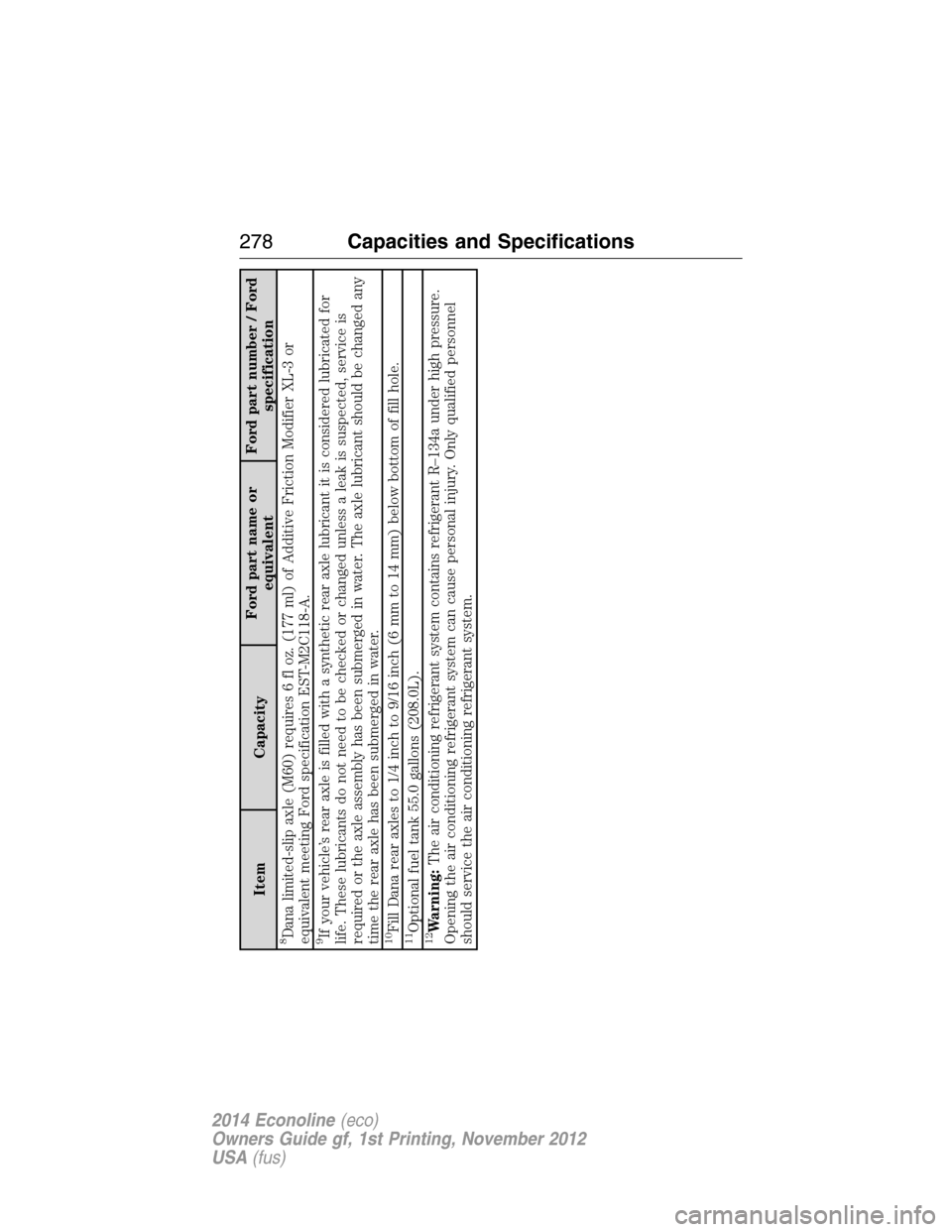

Item CapacityFord part name or
equivalentFord part number / Ford
specification
8Dana limited-slip axle (M60) requires 6 fl oz. (177 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.9If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated for
life. These lubricants do not need to be checked or changed unless a leak is suspected, service is
required or the axle assembly has been submerged in water. The axle lubricant should be changed any
time the rear axle has been submerged in water.10Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.11Optional fuel tank 55.0 gallons (208.0L).12Warning:The air conditioning refrigerant system contains refrigerant R–134a under high pressure.
Opening the air conditioning refrigerant system can cause personal injury. Only qualified personnel
should service the air conditioning refrigerant system.
278Capacities and Specifications
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

MOTORCRAFT® PART NUMBERS
Component 4.6L V8 engine 5.4L V8 engine6.8L V10
engine
Air filter element FA-1632 FA-1632 FA-1632
Battery-
standard /
(auxiliary)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)
Oil filter FL-820-S FL-820-S FL-820-S
Spark plugs
1
Torqshift
automatic
transmission
internal
bottom–pan filter— FT-180 FT-180
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
