Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and
solvents.
Engine
• Change the engine oil and filter prior to
storage because used engine oil
contains contaminates which may
cause engine damage.
• Start the engine every 15 days for a
minimum of 15 minutes. Run at fast
idle with the climate controls set to
defrost until the engine reaches normal
operating temperature.
• With your foot on the brake, shift
through all the gears while the engine
is running.
• We recommend that you change the
engine oil before you use your vehicle
again.
Fuel system
• Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle.
Cooling system
• Protect against freezing temperatures.
• When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at the
recommended level.
Disconnecting Your 12 Volt Battery
• Check and recharge as necessary. Keep
connections clean.
• If storing your vehicle for more than 30
days without recharging the battery,
we recommend that you disconnect
the battery cables to maintain battery
charge for quick starting. Note:
It is necessary to reset memory
features if you disconnect the battery
cables.
Brakes
• Make sure the brakes and parking brake
release fully.
Tires
• Maintain recommended air pressure.
Miscellaneous
• Make sure all linkages, cables, levers
and pins under your vehicle are covered
with grease to prevent rust.
• Move vehicles at least 25 ft (7.5 m)
every 15 days to lubricate working parts
and prevent corrosion.
Removing Vehicle From Storage
When your vehicle is ready to come out of
storage, do the following:
• Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood for any foreign
material that may have collected
during storage such as mice or squirrel
nests.
• Check the exhaust for any foreign
material that may have collected
during storage.
• Check tire pressures and set tire
inflation per the Tire Label.
• Check brake pedal operation. Drive
your vehicle
15 ft (4.5 m) back and
forth to remove rust build-up.
186
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Vehicle Care

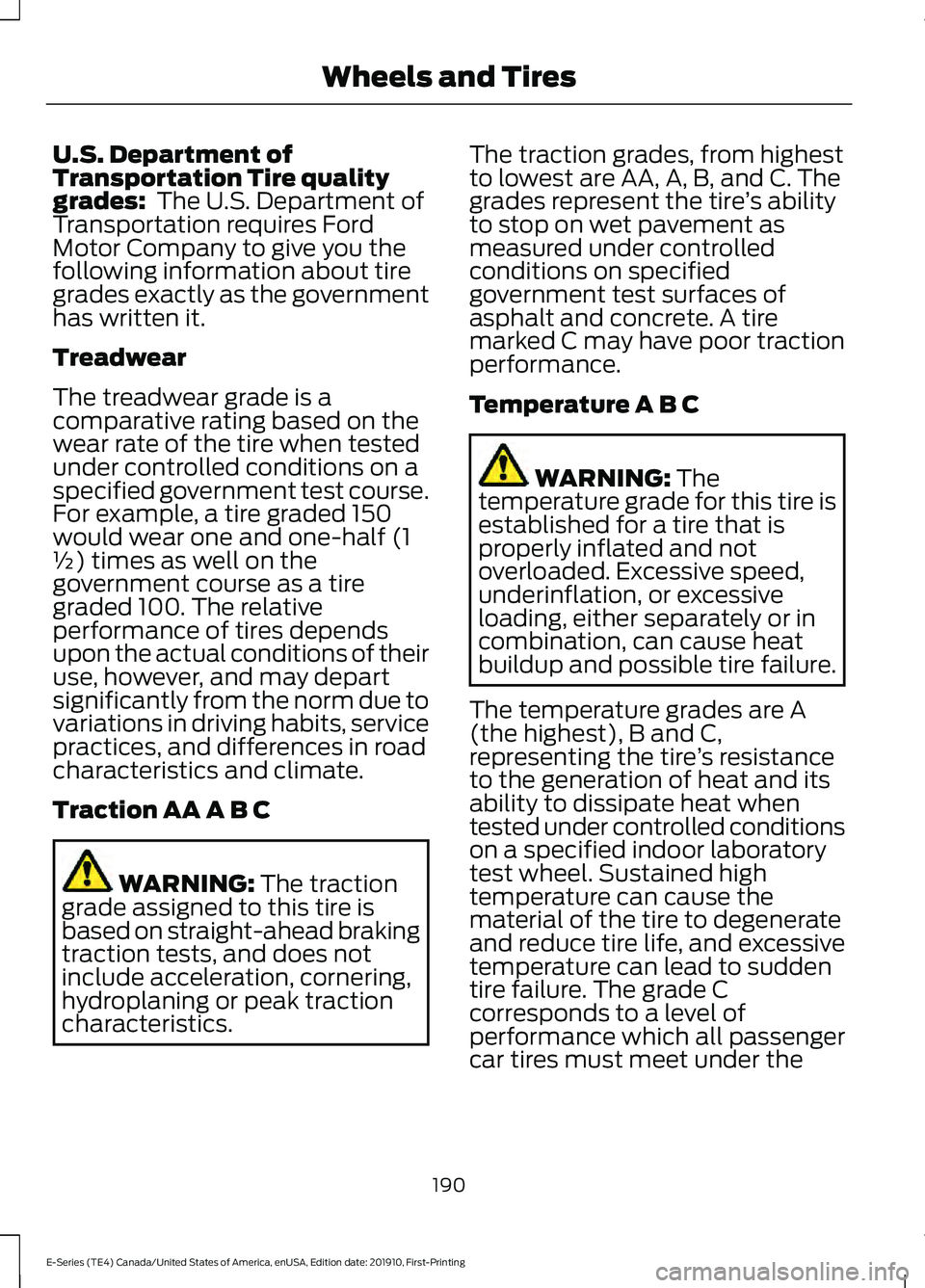

U.S. Department of
Transportation Tire quality
grades: The U.S. Department of
Transportation requires Ford
Motor Company to give you the
following information about tire
grades exactly as the government
has written it.
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded 150
would wear one and one-half (1
½) times as well on the
government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of their
use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices, and differences in road
characteristics and climate.
Traction AA A B C WARNING:
The traction
grade assigned to this tire is
based on straight-ahead braking
traction tests, and does not
include acceleration, cornering,
hydroplaning or peak traction
characteristics. The traction grades, from highest
to lowest are AA, A, B, and C. The
grades represent the tire
’s ability
to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.
Temperature A B C WARNING:
The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
The temperature grades are A
(the highest), B and C,
representing the tire ’s resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled conditions
on a specified indoor laboratory
test wheel. Sustained high
temperature can cause the
material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden
tire failure. The grade C
corresponds to a level of
performance which all passenger
car tires must meet under the
190
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Wheels and Tires

Dual rear wheel drive vehicle - six
tire rotation (front tires at top of
diagram).
If your vehicle is equipped with
dual rear wheels it is
recommended that the front and
rear tires (in pairs) be rotated only
side to side. We do not
recommend splitting up the dual
rear wheels. Rotate them side to
side as a set. After tire rotation,
inflation pressures must be
adjusted for the tires new
positions in accordance with
vehicle requirements. USING SNOW CHAINS WARNING: Snow tires must be the
same size, load index, and speed rating
as those originally provided by Ford. Use
of any tire or wheel not recommended
by Ford can affect the safety and
performance of your vehicle, which could
result in an increased risk of loss of
vehicle control, vehicle rollover, personal
injury, and death. Additionally, the use
of non-recommended tires and wheels
could cause steering, suspension, axle,
transfer case, or power transfer unit
failure. It is also strongly advised to
follow the Ford recommended tire
inflation pressure found on the Safety
Compliance Certification Label (affixed
to either the door hinge pillar, door-latch
post, or the door edge that meets the
door-latch post, next to the driver ’s
seating position), or Tire Label which is
located on the B-Pillar or the edge of the
driver door. Failure to follow the tire
pressure recommendations can cause
uneven treadwear patterns and
adversely affect the way your vehicle
handles.
The tires on your vehicle have all-weather
treads to provide traction in rain and snow.
However, in some climates, you may need
to use snow tires and cables. If you need
to use cables, it is recommended that steel
wheels (of the same size and
specifications) be used, as cables may chip
aluminum wheels.
Note: The suspension insulation and
bumpers help prevent vehicle damage. Do
not remove these components from your
vehicle when using snow tires and chains.
Follow these guidelines when using snow
tires and chains:
207
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Wheels and TiresE166988

A
A/C
See: Climate Control........................................... 70
About This Manual...........................................5
ABS See: Brakes............................................................. 97
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................. 97
Accessories....................................................245
Accessories See: Replacement Parts
Recommendation............................................ 12
ACC See: Using Adaptive Cruise Control............104
Adjusting the Headlamps..........................175 Vertical Aim Adjustment Procedure............175
Adjusting the Steering Wheel....................47
Airbag Disposal...............................................38
Air Conditioning See: Climate Control........................................... 70
Air Filter See: Changing the Engine Air Filter..............178
Appendices....................................................267
At a Glance........................................................16
Audible Warnings and Indicators.............62 Headlamps On Warning Chime...................... 62
Key in Ignition Warning Chime........................ 62
Parking Brake On Warning Chime.................. 62
Audio System
................................................235
General Information......................................... 235
Audio Unit.......................................................235 Accessing the Sound Settings...................... 236
Accessing the System Settings.................... 236
Adjusting the Volume....................................... 236
Changing Radio Stations................................ 236
Pausing or Playing Media............................... 236
Returning to the Previous Screen................236
Scrolling Through the Menu Options.........236
Selecting a Menu Option................................. 237
Selecting Media.................................................. 236
Selecting the Radio........................................... 237
Setting a Memory Preset................................. 237
Switching the Audio Unit On and Off.........237
Using a Cell Phone............................................. 237
Using Seek, Fast Forward and Reverse.............................................................. 237Autolamps.........................................................51
Windshield Wiper Activated
Headlamps......................................................... 51
Automatic High Beam Control
..................53
Automatic High Beam Control Indicators........................................................53
Automatic Transmission
.............................92
Brake-Shift Interlock.......................................... 94
If Your Vehicle Gets Stuck in Mud or Snow.................................................................... 95
Progressive Range Selection - PRS..............94
Putting your vehicle in or out of gear:...........92
Understanding Your SelectShift Automatic ™ Transmission.......................... 93
Automatic Transmission Fluid Check.............................................................169
Automatic Transmission Fluid Filter.............171
Checking Automatic Transmission Fluid.................................................................... 169
Auxiliary Power Points
..................................76
110 Volt AC Power Point..................................... 76
12 Volt DC Power Point....................................... 76
Locations................................................................. 76
Auxiliary Switches.......................................246 Upfitter Interface Module................................ 247
B
Battery See: Changing the 12V Battery....................... 173
Bonnet Lock See: Opening and Closing the Hood............161
Booster Seats
..................................................23
Types of Booster Seats...................................... 23
Brake Fluid Check...........................................171 Brake Fluid Service Interval............................. 172
Brakes.................................................................97 General Information............................................ 97
Breaking-In......................................................137
Bulb Specification Chart...........................232
C
Canceling the Set Speed...........................103
Capacities and Specifications................223 Air Conditioning System.................................. 223
Alternative Engine Oil for Extremely Cold Climates........................................................... 226
291
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Index

Automatic Transmission.................................
223
Dana Conventional Axle M70FF (M267FF)......................................................... 230
Dana Conventional Axle M70HD (M273HD)......................................................... 231
Dana Limited Slip Axle M70FF (M267FF)......................................................... 229
Dana Limited Slip Axle M70HD (M273HD)........................................................ 230
Door Weatherstrips........................................... 229
Engine Coolant................................................... 224
Engine Oil.............................................................. 225
Fuel Tank............................................................... 226
Grease.................................................................... 226
Hydroboost Brake System............................. 228
Locks....................................................................... 229
Power Steering System................................... 228
Vacuum Brake System..................................... 227
Washer Reservoir................................................ 231
Car Wash See: Cleaning the Exterior............................... 180
Catalytic Converter.......................................89
On-Board Diagnostics (OBD-II)..................... 90
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 90
Changing a Bulb
.............................................177
Lamp Assembly Condensation...................... 177
Replacing Brake/Tail/Turn/Reverse Lamp Bulbs (Cut-Away Only)............................... 178
Replacing Front Parking Lamp and Direction Indicator Bulbs................................................ 178
Replacing Headlamp Bulbs............................. 177
Replacing Side Marker Bulbs.......................... 178
Changing a Fuse...........................................159 Fuses....................................................................... 159
Changing a Road Wheel
.............................213
Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 214
Tire Change Procedure..................................... 215
Changing the 12V Battery...........................173 Dual Batteries....................................................... 174
Reconnecting the Battery................................ 174
Changing the Engine Air Filter..................178
Changing the Wiper Blades
......................175
Checking the Wiper Blades.......................174
Child Restraint and Seatbelt Maintenance..................................................31
Child Restraint Positioning.........................25 Child Safety
........................................................17
General Information............................................. 17
Cleaning Leather Seats
..............................184
Cleaning Products.......................................180 Materials................................................................ 180
Cleaning the Engine.....................................182
Cleaning the Exterior..................................180 Cleaning the Headlamps.................................. 181
Exterior Chrome Parts....................................... 181
Exterior Plastic Parts.......................................... 181
Stripes or Graphics..............................................181
Underbody............................................................. 181
Under Hood........................................................... 181
Cleaning the Instrument Panel and Instrument Cluster Lens.........................183
Cleaning the Interior....................................183 Mirrors..................................................................... 183
Cleaning the Wheels...................................185
Cleaning the Windows and Wiper Blades............................................................182
Climate Control...............................................70
Connected Vehicle
......................................234
Connecting the Vehicle to a Mobile
Network............................................................ 234
Connected Vehicle Limitations..............234
Connected Vehicle Requirements.........234
Connected Vehicle – Troubleshooting........................................234
Connecting a Bluetooth Device.............240 Pairing a Device.................................................. 240
Connecting the Vehicle to a Mobile Network........................................................234
Connecting FordPass to the Connectivity Device................................................................ 234
Disabling the Connectivity Device...............234
What Is the Connectivity Device.................. 234
Coolant Check See: Engine Coolant Check............................ 165
Crash Sensors and Airbag Indicator........37
Cruise Control................................................103
Cruise Control Indicators...........................104
Cruise Control - Vehicles With: Adaptive Cruise Control
...............................................47
Cruise Control - Vehicles With: Cruise Control............................................................48
Customer Assistance
..................................145
292
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Index

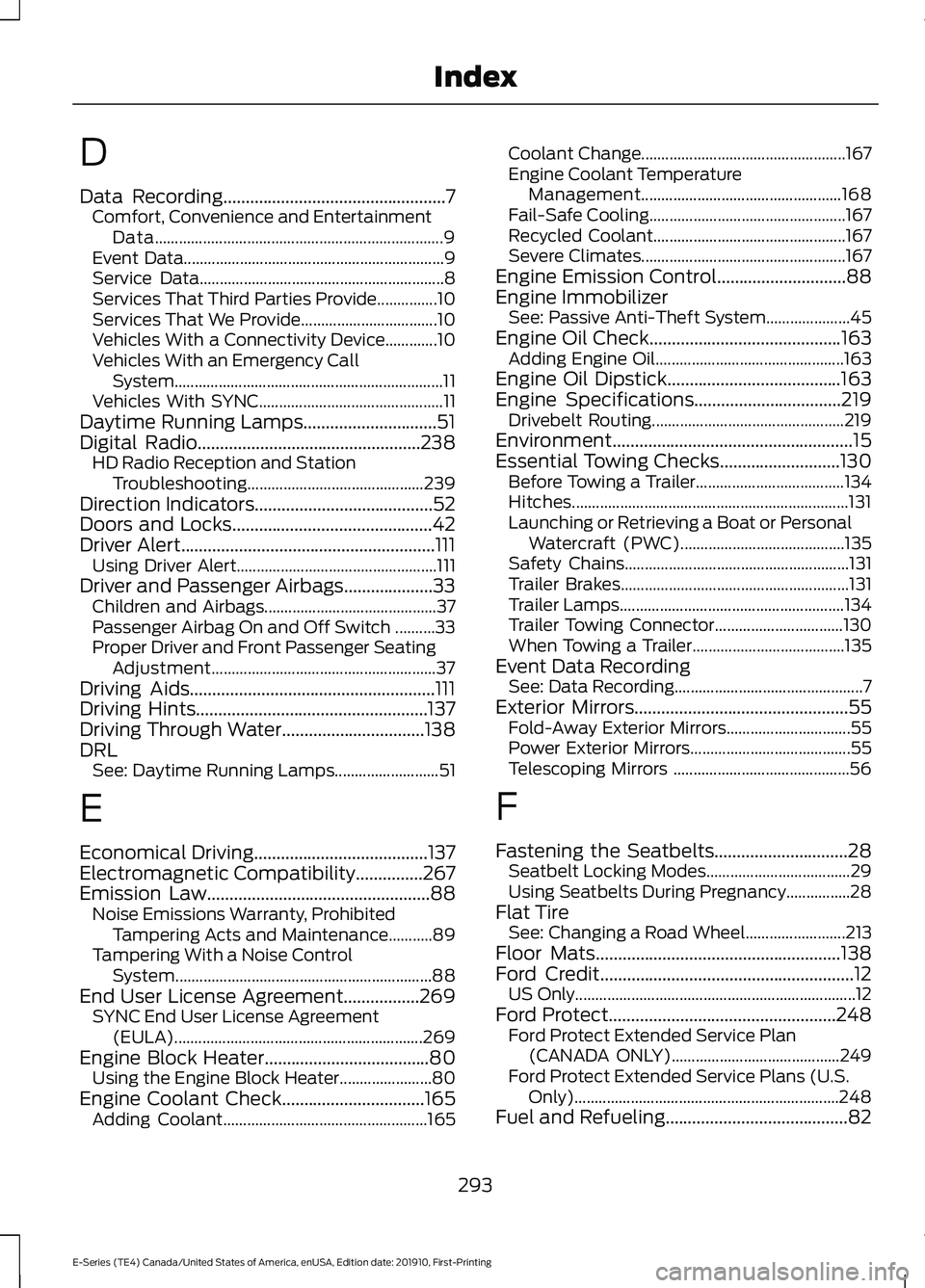

D
Data Recording..................................................7
Comfort, Convenience and Entertainment
Data........................................................................\
9
Event Data................................................................. 9
Service Data............................................................. 8
Services That Third Parties Provide...............10
Services That We Provide.................................. 10
Vehicles With a Connectivity Device.............10
Vehicles With an Emergency Call System................................................................... 11
Vehicles With SYNC.............................................. 11
Daytime Running Lamps..............................51
Digital Radio
..................................................238
HD Radio Reception and Station
Troubleshooting............................................ 239
Direction Indicators
........................................52
Doors and Locks.............................................42
Driver Alert.........................................................111 Using Driver Alert.................................................. 111
Driver and Passenger Airbags....................33 Children and Airbags........................................... 37
Passenger Airbag On and Off Switch ..........33
Proper Driver and Front Passenger Seating Adjustment........................................................ 37
Driving Aids.......................................................111
Driving Hints....................................................137
Driving Through Water................................138
DRL See: Daytime Running Lamps.......................... 51
E
Economical Driving
.......................................137
Electromagnetic Compatibility...............267
Emission Law..................................................88
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance...........89
Tampering With a Noise Control System................................................................ 88
End User License Agreement.................269 SYNC End User License Agreement
(EULA).............................................................. 269
Engine Block Heater
.....................................80
Using the Engine Block Heater....................... 80
Engine Coolant Check................................165 Adding Coolant................................................... 165Coolant Change...................................................
167
Engine Coolant Temperature Management.................................................. 168
Fail-Safe Cooling................................................. 167
Recycled Coolant................................................ 167
Severe Climates................................................... 167
Engine Emission Control
.............................88
Engine Immobilizer See: Passive Anti-Theft System..................... 45
Engine Oil Check
...........................................163
Adding Engine Oil............................................... 163
Engine Oil Dipstick.......................................163
Engine Specifications.................................219 Drivebelt Routing................................................ 219
Environment
......................................................15
Essential Towing Checks...........................130 Before Towing a Trailer..................................... 134
Hitches..................................................................... 131
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 135
Safety Chains........................................................ 131
Trailer Brakes......................................................... 131
Trailer Lamps........................................................ 134
Trailer Towing Connector................................ 130
When Towing a Trailer...................................... 135
Event Data Recording See: Data Recording............................................... 7
Exterior Mirrors
................................................55
Fold-Away Exterior Mirrors............................... 55
Power Exterior Mirrors........................................ 55
Telescoping Mirrors ............................................ 56
F
Fastening the Seatbelts..............................28 Seatbelt Locking Modes.................................... 29
Using Seatbelts During Pregnancy................28
Flat Tire See: Changing a Road Wheel......................... 213
Floor Mats
.......................................................138
Ford Credit.........................................................12
US Only...................................................................... 12
Ford Protect
...................................................248
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 249
Ford Protect Extended Service Plans (U.S. Only).................................................................. 248
Fuel and Refueling
.........................................82
293
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Index

Fuel Consumption.........................................86
Advertised Capacity........................................... 86
Fuel Economy....................................................... 86
Fuel Filter..........................................................173
Fuel Quality - E85..........................................82 Choosing the Right Fuel - Flex Fuel
Vehicles............................................................... 82
Switching Between E85 and Gasoline.........83
Fuel Quality - Gasoline................................84 Choosing the Right Fuel.................................... 84
Fuel Shutoff
.....................................................141
Fuses..................................................................151
Fuse Specification Chart............................151 Engine Compartment Fuse Box..................... 151
Passenger Compartment Fuse Box............156
G
Gauges................................................................57 2.3 Inch Display...................................................... 57
8 Inch Display........................................................ 58
Engine Coolant Temperature Gauge............59
Engine Oil Pressure Gauge............................... 59
Fuel Gauge.............................................................. 59
Transmission Fluid Temperature Gauge.................................................................. 59
Gearbox See: Transmission................................................ 92
General Information on Radio Frequencies
...................................................39
General Maintenance Information.......250 Multi-point Inspection...................................... 252
Owner Checks and Services........................... 251
Protecting Your Investment........................... 250
Why Maintain Your Vehicle?......................... 250
Why Maintain Your Vehicle at Your Dealership?..................................................... 250
Getting Assistance Outside the U.S. and Canada..........................................................148
Getting the Services You Need................145 Away From Home............................................... 145
H
Handbrake See: Parking Brake............................................... 98
Hazard Flashers
..............................................141 Headlamp Adjusting
See: Adjusting the Headlamps...................... 175
Headlamp Removal See: Removing a Headlamp........................... 176
Headrest See: Head Restraints........................................... 73
Head Restraints...............................................73
Heating See: Climate Control........................................... 70
Hill Start Assist...............................................98 Switching the System On and Off.................99
Using Hill Start Assist......................................... 99
Hints on Controlling the Interior Climate.............................................................71
Defogging the Side Windows in Cold Weather............................................................... 72
General Hints........................................................... 71
Quickly Cooling the Interior............................... 72
Quickly Heating the Interior............................... 71
Recommended Settings for Cooling.............72
Recommended Settings for Heating.............71
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures.................................................... 72
Hints on Driving With Anti-Lock Brakes..............................................................97
Hood Lock See: Opening and Closing the Hood............161
Horn....................................................................48
I
Ignition Switch.................................................78
In California (U.S. Only).............................146
Information Display Control......................48
Information Displays
.....................................63
General Information............................................ 63
Information Messages
.................................66
AdvanceTrac and Traction Control...............66
Battery and Charging System.......................... 67
Doors and Locks................................................... 67
Engine....................................................................... 67
Fuel........................................................................\
.... 68
Maintenance.......................................................... 68
Power Steering..................................................... 69
Transmission......................................................... 69
Installing Child Restraints............................19 Child Seats............................................................... 19
294
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Index

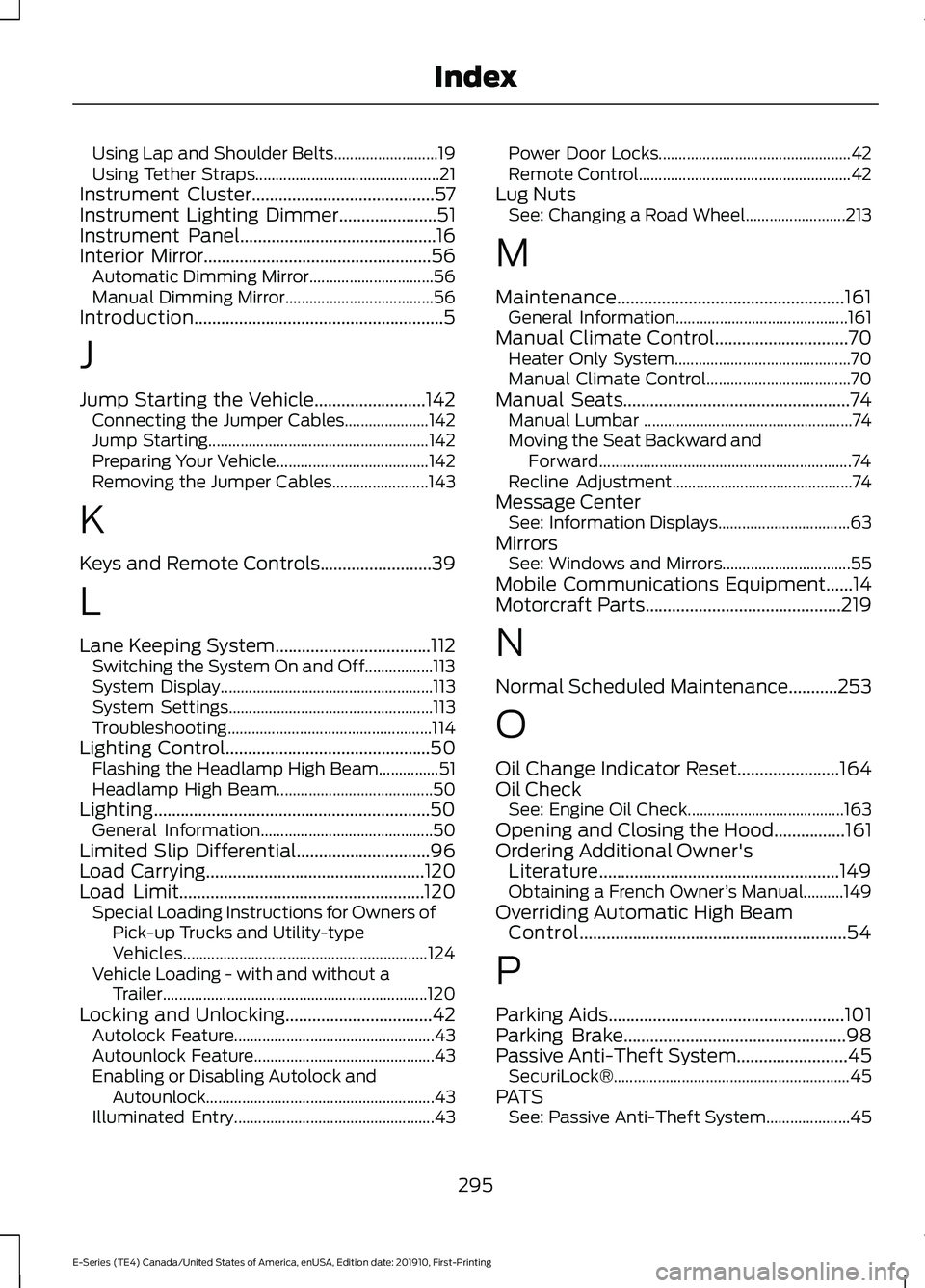

Using Lap and Shoulder Belts..........................
19
Using Tether Straps.............................................. 21
Instrument Cluster.........................................57
Instrument Lighting Dimmer......................51
Instrument Panel............................................16
Interior Mirror...................................................56
Automatic Dimming Mirror............................... 56
Manual Dimming Mirror..................................... 56
Introduction........................................................5
J
Jump Starting the Vehicle.........................142 Connecting the Jumper Cables..................... 142
Jump Starting....................................................... 142
Preparing Your Vehicle...................................... 142
Removing the Jumper Cables........................ 143
K
Keys and Remote Controls.........................39
L
Lane Keeping System
...................................112
Switching the System On and Off.................113
System Display..................................................... 113
System Settings................................................... 113
Troubleshooting................................................... 114
Lighting Control
..............................................50
Flashing the Headlamp High Beam...............51
Headlamp High Beam....................................... 50
Lighting..............................................................50 General Information........................................... 50
Limited Slip Differential..............................96
Load Carrying
.................................................120
Load Limit.......................................................120 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 124
Vehicle Loading - with and without a Trailer.................................................................. 120
Locking and Unlocking
.................................42
Autolock Feature.................................................. 43
Autounlock Feature............................................. 43
Enabling or Disabling Autolock and Autounlock......................................................... 43
Illuminated Entry.................................................. 43Power Door Locks................................................
42
Remote Control..................................................... 42
Lug Nuts See: Changing a Road Wheel......................... 213
M
Maintenance...................................................161 General Information........................................... 161
Manual Climate Control..............................70 Heater Only System............................................ 70
Manual Climate Control.................................... 70
Manual Seats...................................................74 Manual Lumbar .................................................... 74
Moving the Seat Backward and Forward............................................................... 74
Recline Adjustment............................................. 74
Message Center See: Information Displays................................. 63
Mirrors See: Windows and Mirrors................................ 55
Mobile Communications Equipment......14
Motorcraft Parts
............................................219
N
Normal Scheduled Maintenance
...........253
O
Oil Change Indicator Reset.......................164
Oil Check See: Engine Oil Check....................................... 163
Opening and Closing the Hood................161
Ordering Additional Owner's Literature......................................................149
Obtaining a French Owner ’s Manual..........149
Overriding Automatic High Beam Control............................................................54
P
Parking Aids
.....................................................101
Parking Brake..................................................98
Passive Anti-Theft System.........................45
SecuriLock®........................................................... 45
PATS See: Passive Anti-Theft System..................... 45
295
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Index

Perchlorate.........................................................11
Playing Media From a USB Device........243
Selecting the USB Device............................... 243
Supported Audio File Formats...................... 243
Power Door Locks See: Locking and Unlocking............................. 42
Power Seats......................................................75
Recline Adjustment............................................. 75
Power Steering Fluid Check......................172
Power Windows
..............................................55
Accessory Delay.................................................... 55
One-Touch Down................................................. 55
Pre-Collision Assist
.......................................116
Adjusting the Pre-Collision Assist
Settings............................................................... 117
Blocked Sensors.................................................. 118
Distance Indication and Alert.......................... 117
Using the Pre-Collision Assist System........116
Protecting the Environment........................15
Puncture See: Changing a Road Wheel......................... 213
R
Rear Axle
...........................................................96
Rear Passenger Climate Controls.............72
Setting the Blower Motor Speed.................... 72
Switching the Rear Climate Control On and Off........................................................................\
.. 72
Rear View Camera........................................101 Using the Rear View Camera System..........101
Rear View Camera See: Rear View Camera.................................... 101
Recommended Towing Weights............126 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle............................... 129
Reduced Engine Performance.................137
Refueling...........................................................85 Fuel Filler Cap....................................................... 86
Remote Control
..............................................39
Car Finder................................................................. 41
Changing the Remote Control Battery........40
Reprogramming the Remote Control..........40
Sounding the Panic Alarm................................. 41
Removing a Headlamp...............................176
Repairing Minor Paint Damage...............185 Replacement Parts
Recommendation........................................12
Collision Repairs.................................................... 12
Scheduled Maintenance and Mechanical Repairs.................................................................. 12
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control..............................................................41
Reporting Safety Defects (Canada Only)..............................................................150
Reporting Safety Defects (U.S. Only)...............................................................149
Resuming the Set Speed..........................104
Roadside Assistance
..................................140
Vehicles Sold in Canada: Getting Roadside
Assistance......................................................... 141
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 140
Vehicles Sold in the United States: Using Roadside Assistance.................................... 140
Roadside Emergencies..............................140
Running-In See: Breaking-In................................................... 137
Running Out of Fuel......................................84 Filling a Portable Fuel Container.................... 85
S
Safety Precautions
........................................82
Satellite Radio...............................................241
Satellite Radio Electronic Serial Number
(ESN)................................................................. 242
Satellite Radio Reception Factors................241
SiriusXM Satellite Radio Service................... 241
Troubleshooting................................................. 242
Scheduled Maintenance Record............257
Scheduled Maintenance
..........................250
Seatbelt Extensions.......................................31
Seatbelt Height Adjustment.....................30
Seatbelts............................................................27 Principle of Operation......................................... 27
Seatbelt Warning Lamp and Indicator Chime..............................................................30
Conditions of operation..................................... 30
Seats....................................................................73
Security..............................................................45
Setting the Cruise Control Speed..........103 Changing the Set Speed.................................. 103
296
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Index

Following a Vehicle............................................
105
Hilly Condition and Trailer Tow Usage.................................................................. 107
Overriding the Set Speed................................ 107
Resuming the Set Speed................................. 107
Setting the Adaptive Cruise Speed.............105
Setting the Gap Distance................................ 106
Switching Adaptive Cruise Control Off....................................................................... 108
Switching Adaptive Cruise Control On........................................................................\
105
Switching to Normal Cruise Control............110
System Not Available....................................... 109
Using Snow Chains.....................................207
Using Traction Control...............................100 Switching the System Off .............................. 100
System Indicator Lights and Messages......................................................... 100
Using Voice Recognition...........................244 Phone Voice Service......................................... 244
V
Vehicle Care...................................................180 General Information.......................................... 180
Vehicle Identification Number
.................221
Vehicle Storage.............................................185
Body........................................................................\
185
Brakes..................................................................... 186
Cooling system.................................................... 186
Disconnecting Your 12 Volt Battery..............186
Engine..................................................................... 186
Fuel system.......................................................... 186
General................................................................... 185
Miscellaneous...................................................... 186
Removing Vehicle From Storage.................. 186
Tires........................................................................\
. 186
Ventilation See: Climate Control........................................... 70
VIN See: Vehicle Identification Number.............221
W
Warning Lamps and Indicators................60 Airbag Warning Lamp........................................ 60
Anti-Lock Brake System Warning Lamp
................................................................... 60Battery.....................................................................
60
Brake System Warning Lamp......................... 60
Cruise Control Indicator.................................... 60
Direction Indicator............................................... 60
Engine Coolant Temperature Warning Lamp..................................................................... 61
Engine Oil................................................................. 61
Fasten Seatbelt Warning Lamp....................... 61
Headlamp High Beam Indicator...................... 61
Low Fuel Level Warning Lamp......................... 61
Low Tire Pressure Warning Lamp................... 61
Powertrain Malfunction/Electronic Throttle Control.................................................................. 61
Service Engine Soon............................................ 61
Tow Haul Indicator............................................... 62
Traction Control Indicator................................. 62
Traction Control System Off............................ 62
Washer Fluid Check
......................................173
Washers See: Cleaning the Exterior............................... 180
See: Wipers and Washers................................. 49
Waxing..............................................................182
What Is Automatic High Beam Control.............................................................53
What Is Cruise Control
...............................103
Wheel Nuts See: Changing a Road Wheel......................... 213
Wheels and Tires..........................................188 General Information.......................................... 188
Technical Specifications................................... 217
Windows and Mirrors....................................55
Windshield Washers.....................................49
Windshield Wipers
........................................49
Speed Dependent Wipers................................ 49
Wiper Blades See: Checking the Wiper Blades................... 174
Wipers and Washers.....................................49
298
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Index
