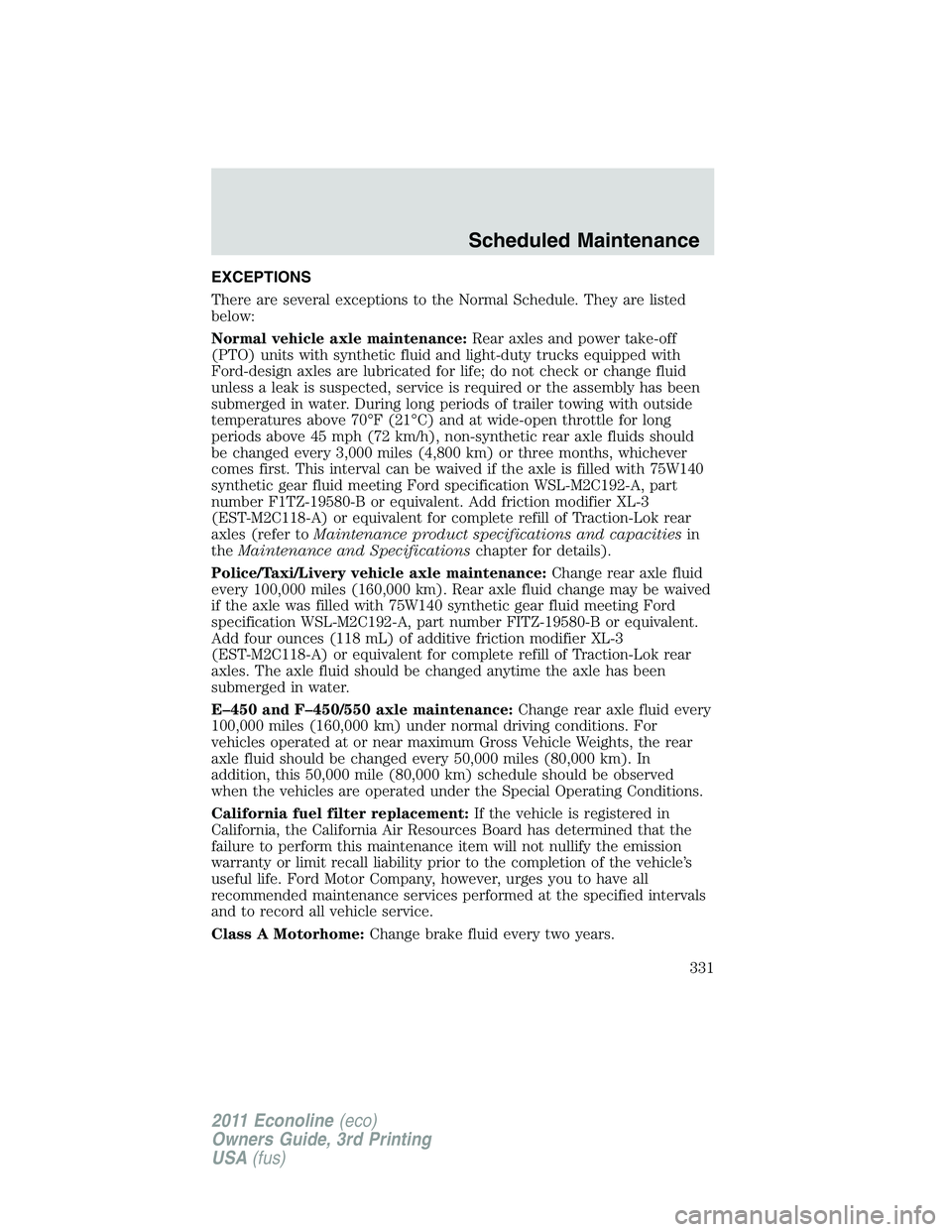

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water.
E–450 and F–450/550 axle maintenance:Change rear axle fluid every
100,000 miles (160,000 km) under normal driving conditions. For
vehicles operated at or near maximum Gross Vehicle Weights, the rear
axle fluid should be changed every 50,000 miles (80,000 km). In
addition, this 50,000 mile (80,000 km) schedule should be observed
when the vehicles are operated under the Special Operating Conditions.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Scheduled Maintenance
331
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

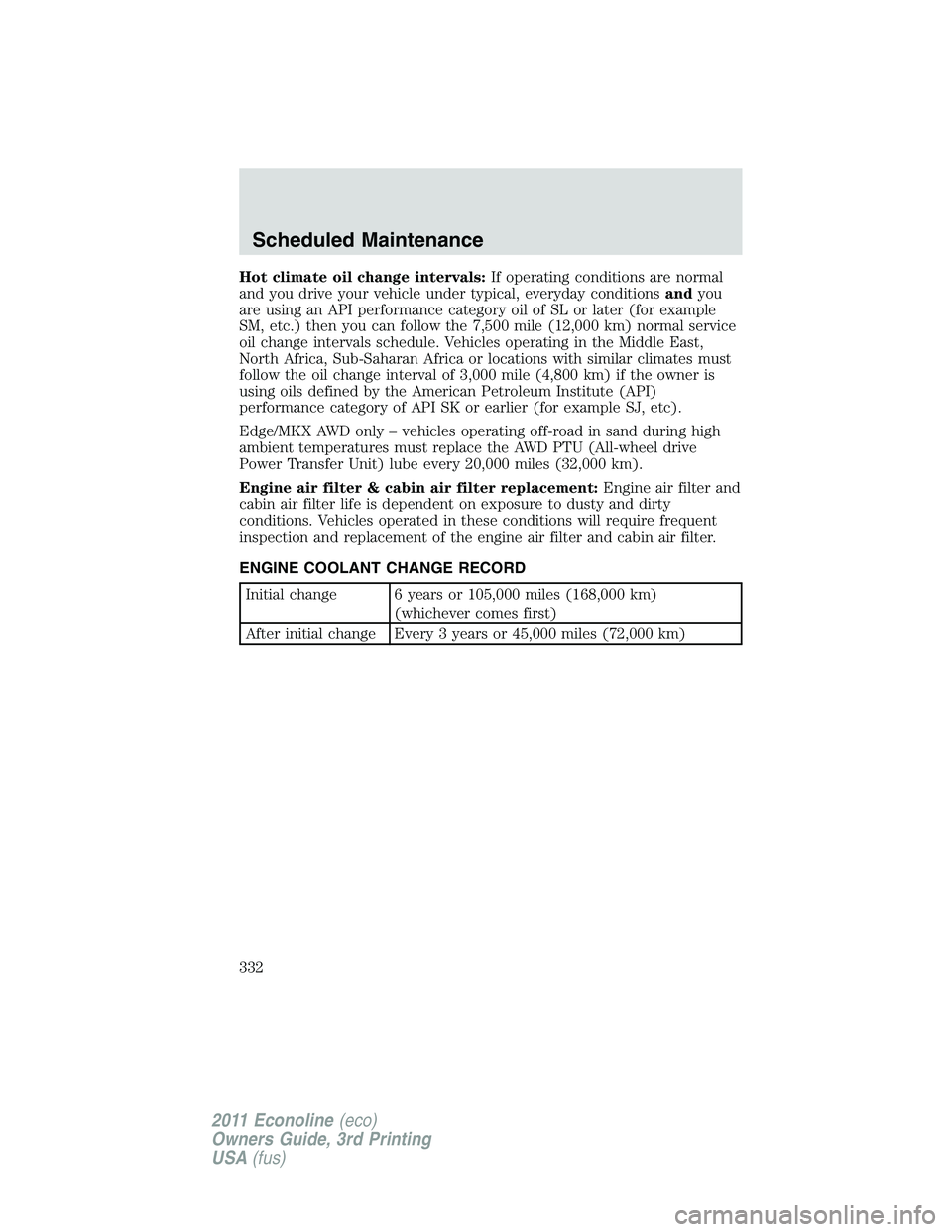

Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc).
Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 105,000 miles (168,000 km)
(whichever comes first)
After initial change Every 3 years or 45,000 miles (72,000 km)
Scheduled Maintenance
332
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

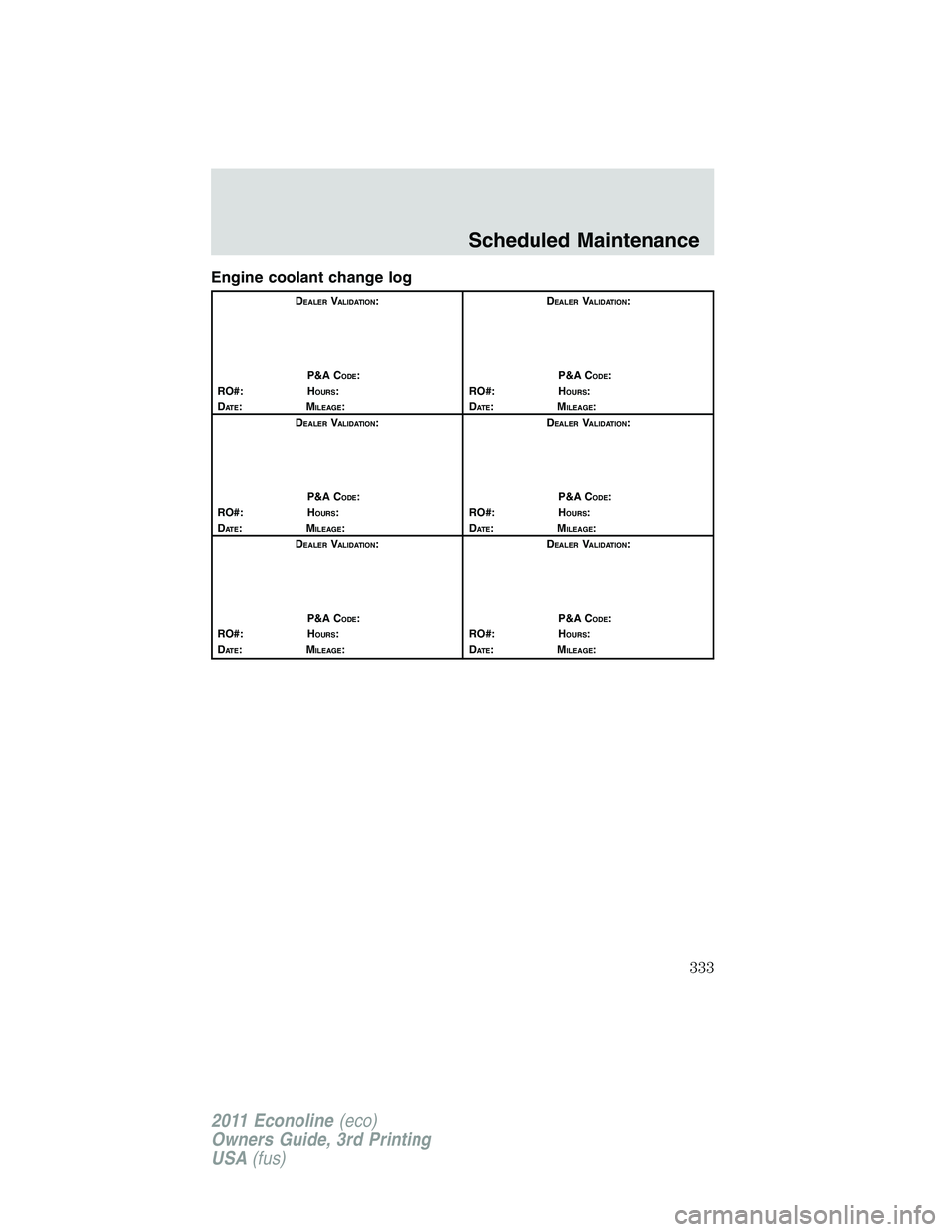

Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
333
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

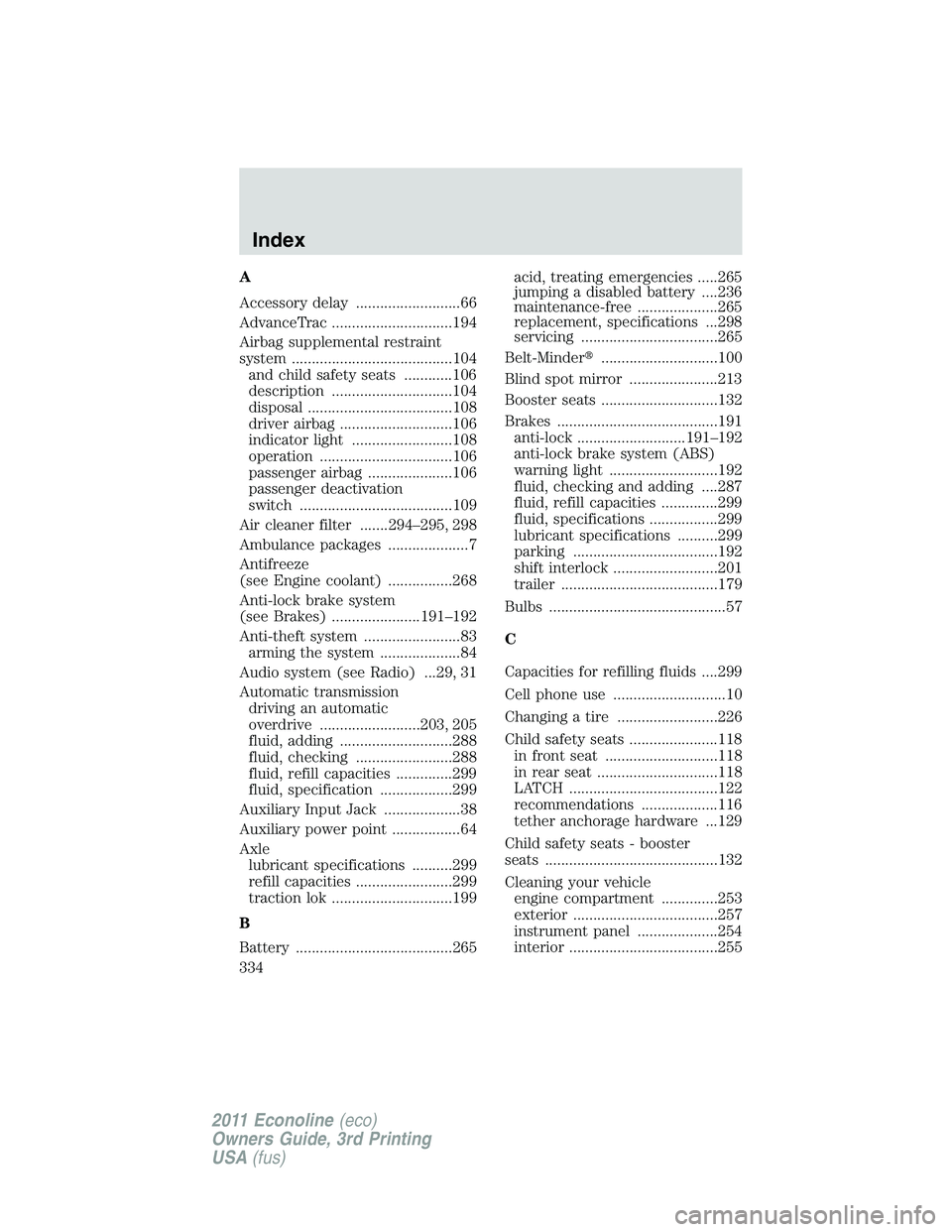

A
Accessory delay ..........................66
AdvanceTrac ..............................194
Airbag supplemental restraint
system ........................................104
and child safety seats ............106
description ..............................104
disposal ....................................108
driver airbag ............................106
indicator light .........................108
operation .................................106
passenger airbag .....................106
passenger deactivation
switch ......................................109
Air cleaner filter .......294–295, 298
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................268
Anti-lock brake system
(see Brakes) ......................191–192
Anti-theft system ........................83
arming the system ....................84
Audio system (see Radio) ...29, 31
Automatic transmission
driving an automatic
overdrive .........................203, 205
fluid, adding ............................288
fluid, checking ........................288
fluid, refill capacities ..............299
fluid, specification ..................299
Auxiliary Input Jack ...................38
Auxiliary power point .................64
Axle
lubricant specifications ..........299
refill capacities ........................299
traction lok ..............................199
B
Battery .......................................265acid, treating emergencies .....265
jumping a disabled battery ....236
maintenance-free ....................265
replacement, specifications ...298
servicing ..................................265
Belt-Minder.............................100
Blind spot mirror ......................213
Booster seats .............................132
Brakes ........................................191
anti-lock ...........................191–192
anti-lock brake system (ABS)
warning light ...........................192
fluid, checking and adding ....287
fluid, refill capacities ..............299
fluid, specifications .................299
lubricant specifications ..........299
parking ....................................192
shift interlock ..........................201
trailer .......................................179
Bulbs ............................................57
C
Capacities for refilling fluids ....299
Cell phone use ............................10
Changing a tire .........................226
Child safety seats ......................118
in front seat ............................118
in rear seat ..............................118
LATCH .....................................122
recommendations ...................116
tether anchorage hardware ...129
Child safety seats - booster
seats ...........................................132
Cleaning your vehicle
engine compartment ..............253
exterior ....................................257
instrument panel ....................254
interior .....................................255
Index
334
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

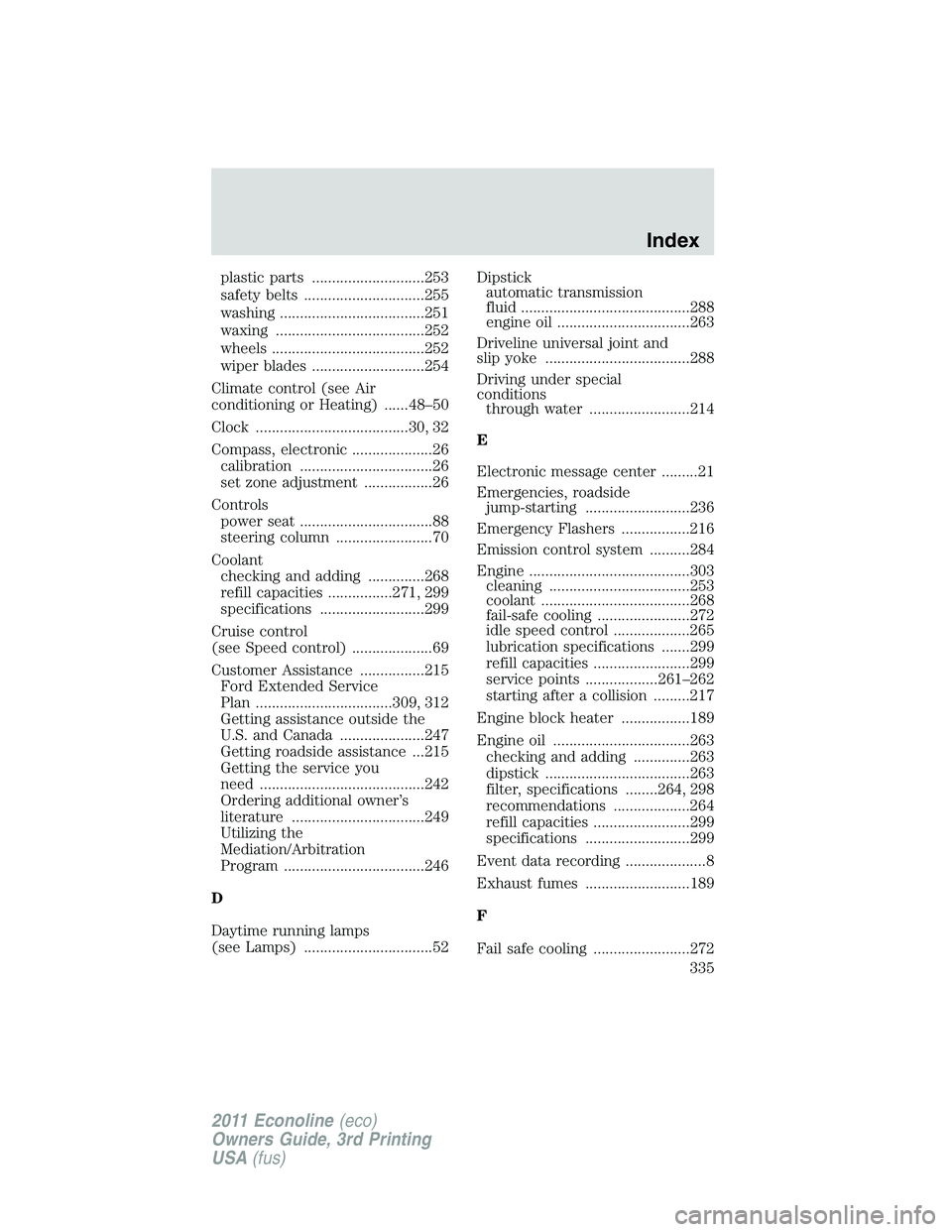

plastic parts ............................253
safety belts ..............................255
washing ....................................251
waxing .....................................252
wheels ......................................252
wiper blades ............................254
Climate control (see Air
conditioning or Heating) ......48–50
Clock ......................................30, 32
Compass, electronic ....................26
calibration .................................26
set zone adjustment .................26
Controls
power seat .................................88
steering column ........................70
Coolant
checking and adding ..............268
refill capacities ................271, 299
specifications ..........................299
Cruise control
(see Speed control) ....................69
Customer Assistance ................215
Ford Extended Service
Plan ..................................309, 312
Getting assistance outside the
U.S. and Canada .....................247
Getting roadside assistance ...215
Getting the service you
need .........................................242
Ordering additional owner’s
literature .................................249
Utilizing the
Mediation/Arbitration
Program ...................................246
D
Daytime running lamps
(see Lamps) ................................52Dipstick
automatic transmission
fluid ..........................................288
engine oil .................................263
Driveline universal joint and
slip yoke ....................................288
Driving under special
conditions
through water .........................214
E
Electronic message center .........21
Emergencies, roadside
jump-starting ..........................236
Emergency Flashers .................216
Emission control system ..........284
Engine ........................................303
cleaning ...................................253
coolant .....................................268
fail-safe cooling .......................272
idle speed control ...................265
lubrication specifications .......299
refill capacities ........................299
service points ..................261–262
starting after a collision .........217
Engine block heater .................189
Engine oil ..................................263
checking and adding ..............263
dipstick ....................................263
filter, specifications ........264, 298
recommendations ...................264
refill capacities ........................299
specifications ..........................299
Event data recording ....................8
Exhaust fumes ..........................189
F
Fail safe cooling ........................272
Index
335
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

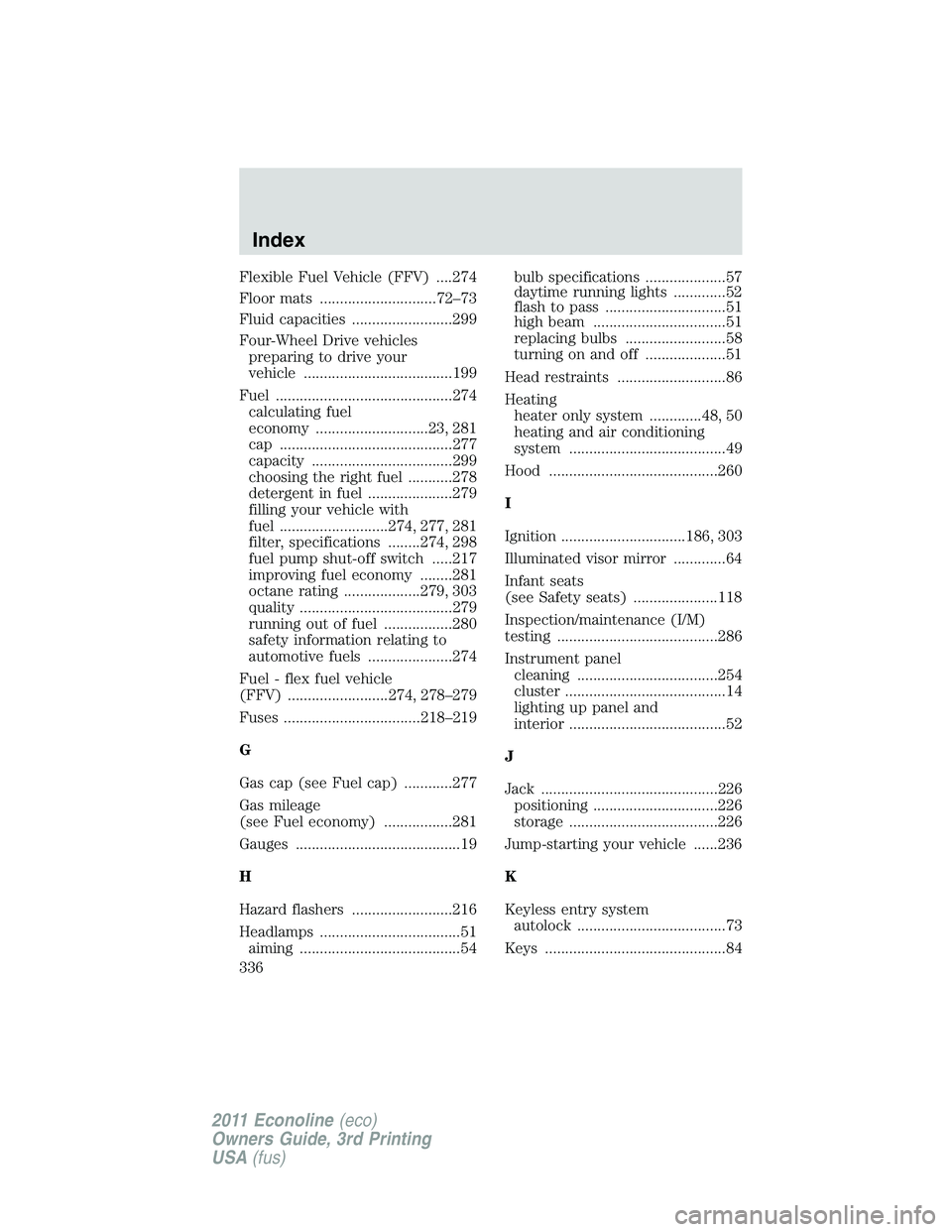

Flexible Fuel Vehicle (FFV) ....274
Floor mats .............................72–73
Fluid capacities .........................299
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................199
Fuel ............................................274
calculating fuel
economy ............................23, 281
cap ...........................................277
capacity ...................................299
choosing the right fuel ...........278
detergent in fuel .....................279
filling your vehicle with
fuel ...........................274, 277, 281
filter, specifications ........274, 298
fuel pump shut-off switch .....217
improving fuel economy ........281
octane rating ...................279, 303
quality ......................................279
running out of fuel .................280
safety information relating to
automotive fuels .....................274
Fuel - flex fuel vehicle
(FFV) .........................274, 278–279
Fuses ..................................218–219
G
Gas cap (see Fuel cap) ............277
Gas mileage
(see Fuel economy) .................281
Gauges .........................................19
H
Hazard flashers .........................216
Headlamps ...................................51
aiming ........................................54bulb specifications ....................57
daytime running lights .............52
flash to pass ..............................51
high beam .................................51
replacing bulbs .........................58
turning on and off ....................51
Head restraints ...........................86
Heating
heater only system .............48, 50
heating and air conditioning
system .......................................49
Hood ..........................................260
I
Ignition ...............................186, 303
Illuminated visor mirror .............64
Infant seats
(see Safety seats) .....................118
Inspection/maintenance (I/M)
testing ........................................286
Instrument panel
cleaning ...................................254
cluster ........................................14
lighting up panel and
interior .......................................52
J
Jack ............................................226
positioning ...............................226
storage .....................................226
Jump-starting your vehicle ......236
K
Keyless entry system
autolock .....................................73
Keys .............................................84
Index
336
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

positions of the ignition .........186
L
Lamps
bulb replacement
specifications chart ..................57
daytime running light ...............52
headlamps .................................51
headlamps, flash to pass ..........51
instrument panel, dimming .....52
interior lamps ...........................56
replacing bulbs .........................58
LATCH anchors .........................122
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........192
Loading instructions .................171
Load limits .................................164
Locks
autolock .....................................73
doors ..........................................73
Lubricant specifications ...........299
Lug nuts ....................................235
Lumbar support, seats ...............88
M
Message center ...........................21
english/metric button ...............26
warning messages .....................26
Mirrors ...................................66–67
automatic dimming rearview
mirror ........................................66
fold away ...................................68
side view mirrors (power) .......67
Motorcraftparts ..............258, 298
N
Navigation system .......................47O
Octane rating ............................279
Oil (see Engine oil) ..................263
P
Parking brake ............................192
Parts
(see Motorcraftparts) ...........298
Power distribution box
(see Fuses) ...............................222
Power door locks ........................73
Power mirrors .............................67
Power point .................................64
Power steering ..........................198
fluid, checking and adding ....286
fluid, refill capacity ................299
fluid, specifications .................299
Power Windows ...........................65
Preparing to drive your
vehicle ........................................199
R
Radio ......................................29, 31
Rear-view camera system .........211
Recommendations for
attaching safety restraints for
children ......................................116
Relays ........................................218
Remote entry system .................78
illuminated entry ......................82
locking/unlocking
doors ..............................73, 79–80
panic alarm ...............................80
replacement/additional
transmitters ...............................81
Index
337
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

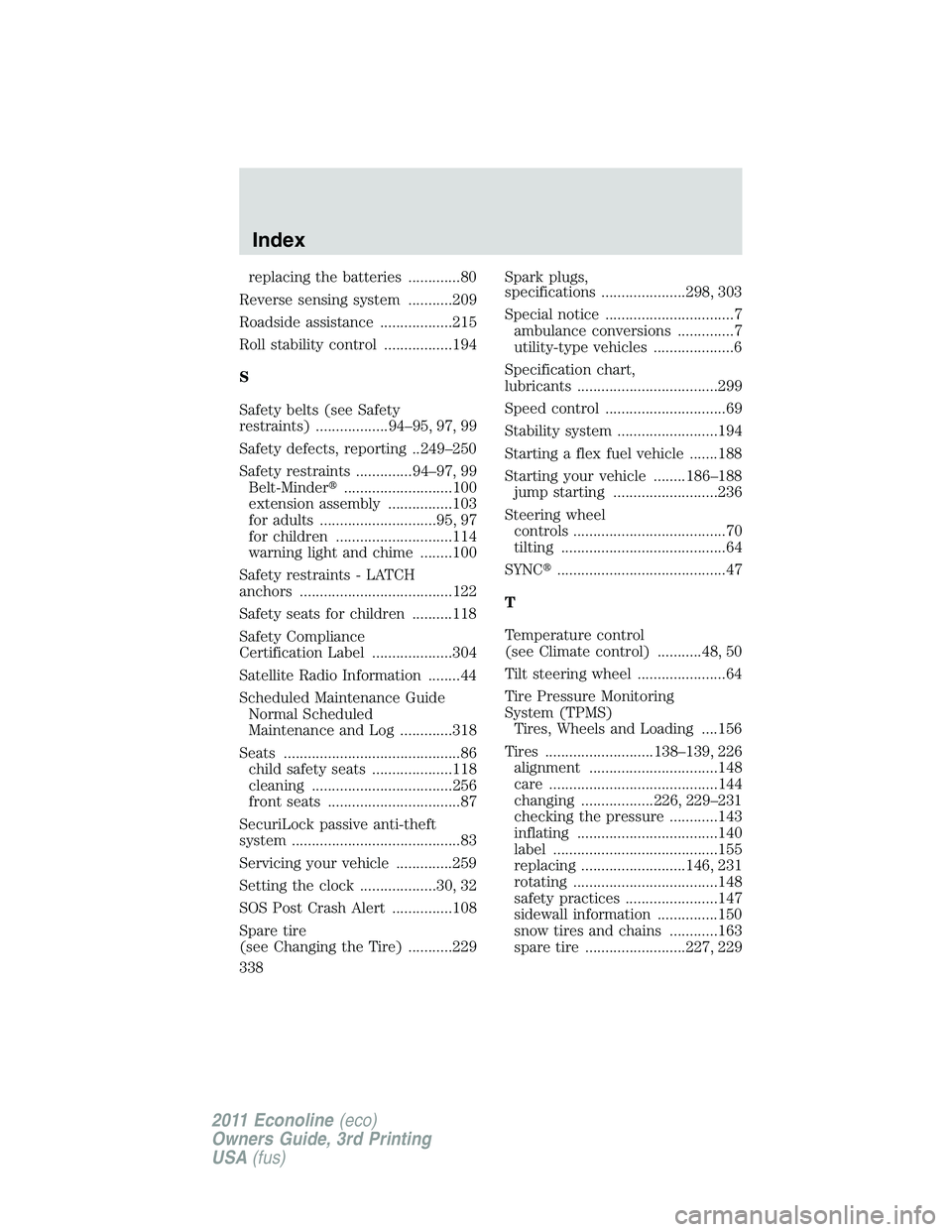

replacing the batteries .............80
Reverse sensing system ...........209
Roadside assistance ..................215
Roll stability control .................194
S
Safety belts (see Safety
restraints) ..................94–95, 97, 99
Safety defects, reporting ..249–250
Safety restraints ..............94–97, 99
Belt-Minder...........................100
extension assembly ................103
for adults .............................95, 97
for children .............................114
warning light and chime ........100
Safety restraints - LATCH
anchors ......................................122
Safety seats for children ..........118
Safety Compliance
Certification Label ....................304
Satellite Radio Information ........44
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............318
Seats ............................................86
child safety seats ....................118
cleaning ...................................256
front seats .................................87
SecuriLock passive anti-theft
system ..........................................83
Servicing your vehicle ..............259
Setting the clock ...................30, 32
SOS Post Crash Alert ...............108
Spare tire
(see Changing the Tire) ...........229Spark plugs,
specifications .....................298, 303
Special notice ................................7
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...................................299
Speed control ..............................69
Stability system .........................194
Starting a flex fuel vehicle .......188
Starting your vehicle ........186–188
jump starting ..........................236
Steering wheel
controls ......................................70
tilting .........................................64
SYNC..........................................47
T
Temperature control
(see Climate control) ...........48, 50
Tilt steering wheel ......................64
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....156
Tires ...........................138–139, 226
alignment ................................148
care ..........................................144
changing ..................226, 229–231
checking the pressure ............143
inflating ...................................140
label .........................................155
replacing ..........................146, 231
rotating ....................................148
safety practices .......................147
sidewall information ...............150
snow tires and chains ............163
spare tire .........................227, 229
Index
338
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

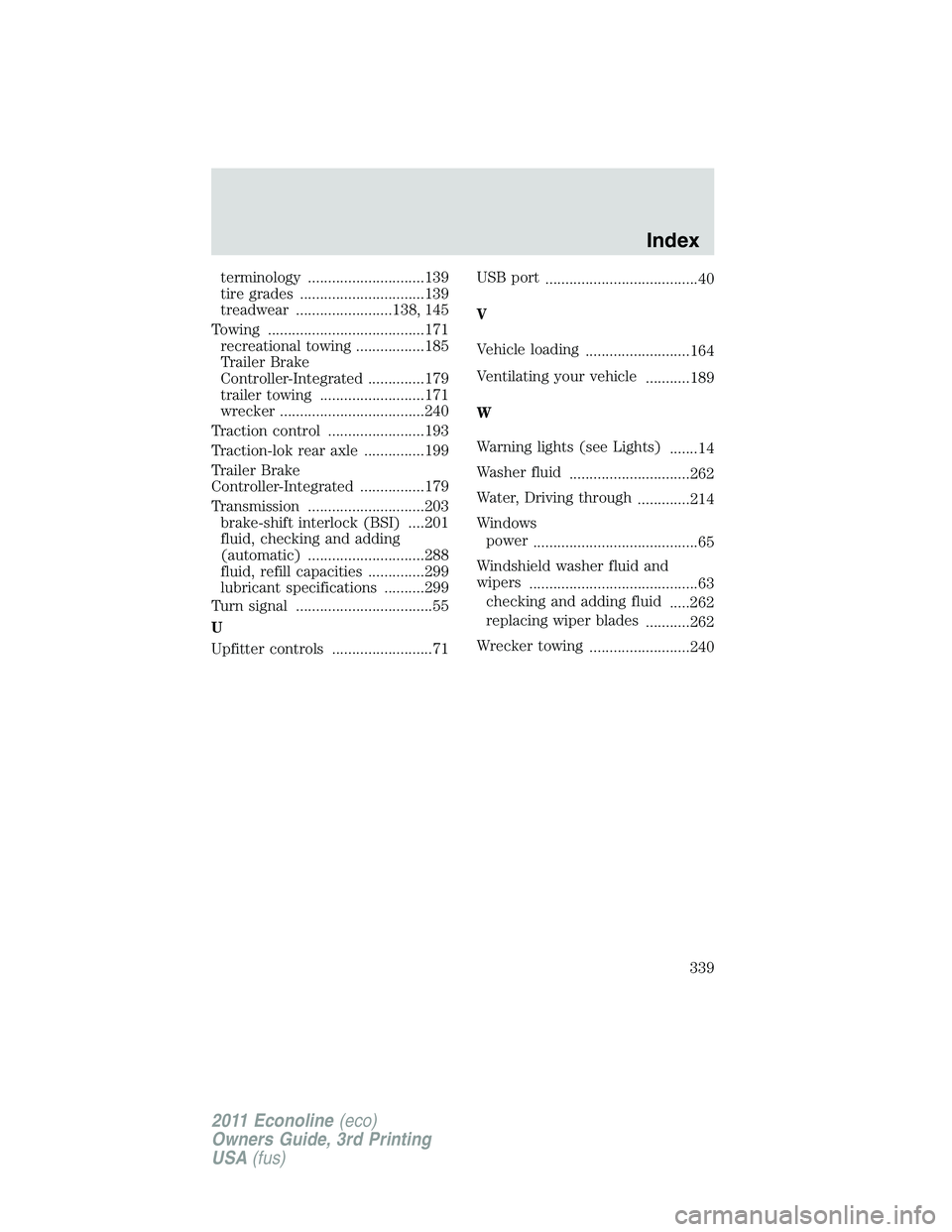

terminology .............................139
tire grades ...............................139
treadwear ........................138, 145
Towing .......................................171
recreational towing .................185
Trailer Brake
Controller-Integrated ..............179
trailer towing ..........................171
wrecker ....................................240
Traction control ........................193
Traction-lok rear axle ...............199
Trailer Brake
Controller-Integrated ................179
Transmission .............................203
brake-shift interlock (BSI) ....201
fluid, checking and adding
(automatic) .............................288
fluid, refill capacities ..............299
lubricant specifications ..........299
Turn signal ..................................55
U
Upfitter controls .........................71USB port
......................................40
V
Vehicle loading
..........................164
Ventilating your vehicle
...........189
W
Warning lights (see Lights)
.......14
Washer fluid
..............................262
Water, Driving through
.............214
Windows
power
.........................................65
Windshield washer fluid and
wipers
..........................................63
checking and adding fluid
.....262
replacing wiper blades
...........262
Wrecker towing
.........................240
Index
339
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
