oil capacity FORD ECONOLINE 2007 Owners Manual

Item Capacity Ford part nameFord part number /
Ford specification
Engine oil-gasoline
engine6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Engine oil-diesel engineRefer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplement.
Power steering fluidKeep in FULL
range on dipstickMotorcraft MERCON
V
AT FXT-5-QM /
MERCON
V
Automatic transmission
fluid (4R75E)13.9 quarts
(13.1L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
Automatic transmission
fluid TorqShift
(5–speed)17.5 quarts
(16.6L)
3
Motorcraft MERCON
SP
AT F
4
XT-6-QSP /
MERCON
SP
Parking brake assembly
(E-450 Super Duty)—Motorcraft MERCON

AT FXT-2-QDX /
MERCON

Dana conventional and
Limited Slip axle fluid
M60 (M248)
E-350 w/ 4.10 axle ratio5.9 pints (2.8L)
5,7
SAE 75W-140 Synthetic
Rear Axle Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246
ProCarManuals.com

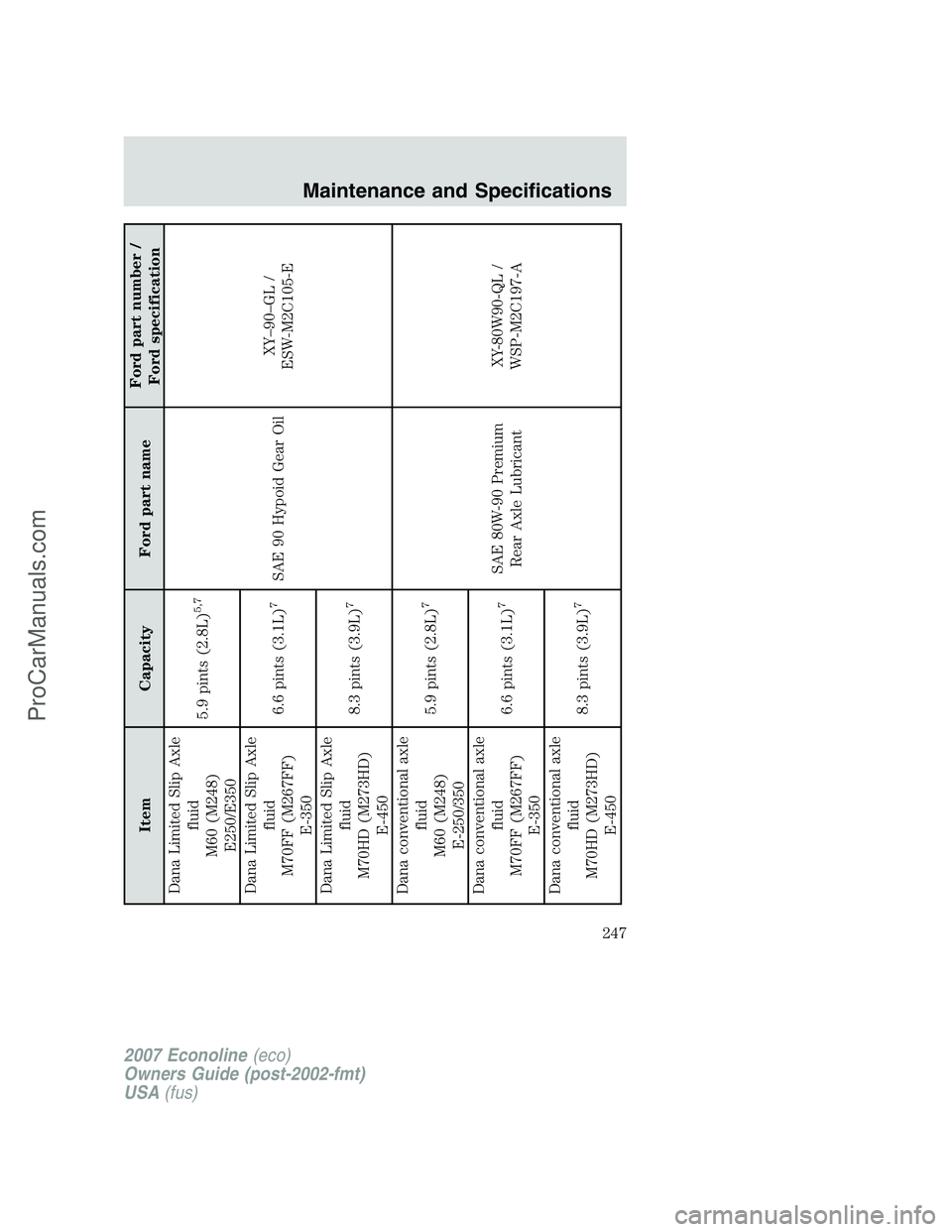

Item Capacity Ford part nameFord part number /
Ford specification
Dana Limited Slip Axle
fluid
M60 (M248)
E250/E3505.9 pints (2.8L)
5,7
SAE 90 Hypoid Gear OilXY–90–GL /
ESW-M2C105-E Dana Limited Slip Axle
fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana Limited Slip Axle
fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
Dana conventional axle
fluid
M60 (M248)
E-250/3505.9 pints (2.8L)
7
SAE 80W-90 Premium
Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A Dana conventional axle
fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana conventional axle
fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
247
ProCarManuals.com

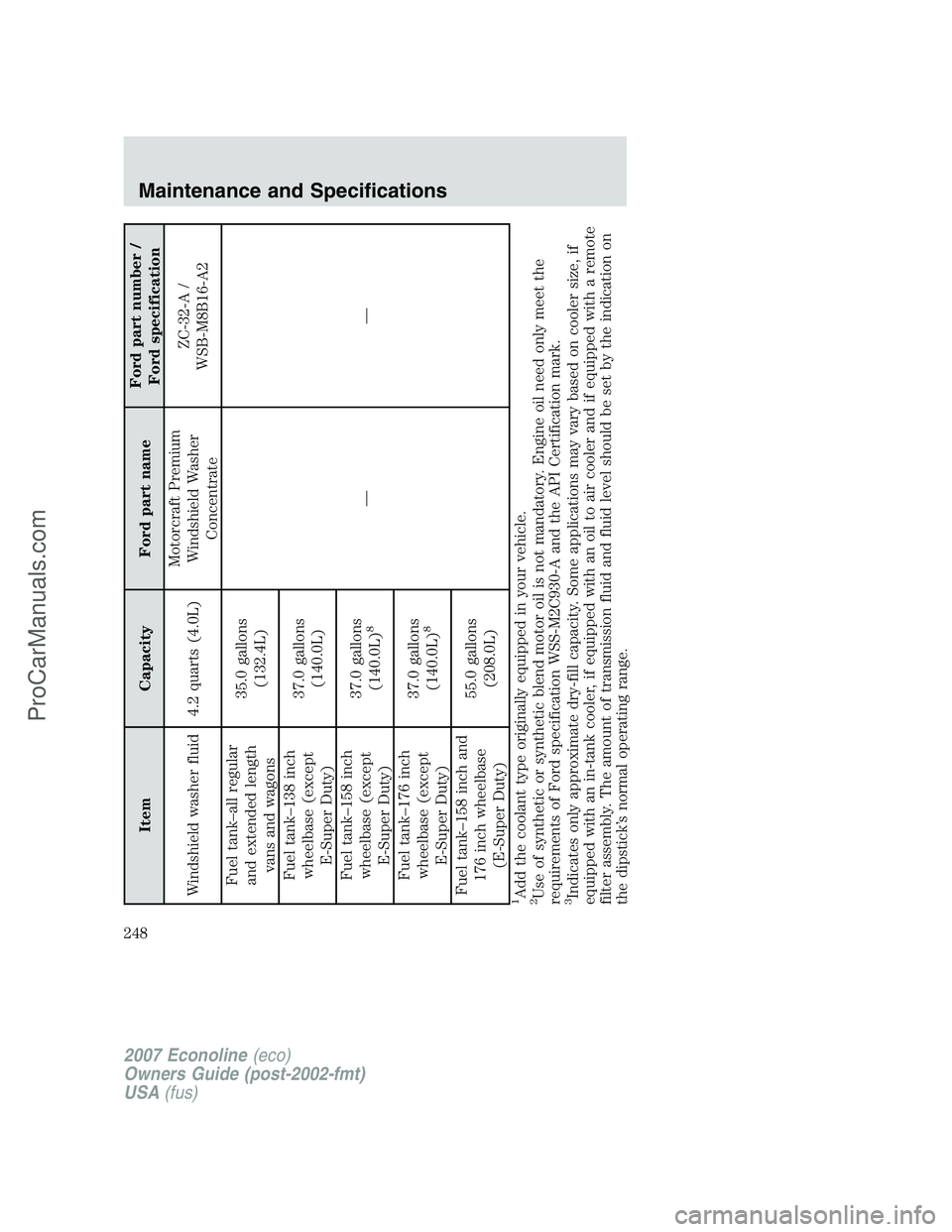

Item Capacity Ford part nameFord part number /
Ford specification
Windshield washer fluid 4.2 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank–all regular
and extended length
vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
Fuel tank–158 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
8
Fuel tank–176 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
8
Fuel tank–158 inch and
176 inch wheelbase
(E-Super Duty)55.0 gallons
(208.0L)1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
248
ProCarManuals.com

L
Lamps
bulb replacement
specifications chart ..................39
daytime running light ...............35
headlamps .................................34
headlamps, flash to pass ..........35
instrument panel, dimming .....36
interior lamps ...........................38
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........147
Load limits .................................124
Loading instructions .................130
Locks ............................................55
autolock .....................................55
doors ..........................................55
Lubricant specifications ...........244
Lug nuts ....................................187
Lumbar support, seats ...............63
M
Mirrors
fold away ...................................51
side view mirrors (power) .......50
Motorcraft parts ........208, 224, 242
O
Octane rating ............................228
Oil (see Engine oil) ..................213
P
Parking brake ............................148Parts (see Motorcraft parts) ....242
Power distribution box
(see Fuses) ...............................174
Power door locks ........................55
Power mirrors .............................50
Power point .................................48
Power steering ..........................151
fluid, checking and adding ....236
fluid, refill capacity ................244
fluid, specifications .................244
Power Windows ...........................49
Preparing to drive your
vehicle ........................................152
R
Radio ................................19, 21, 25
Relays ................................170, 177
Remote entry system .................57
illuminated entry ......................61
locking/unlocking doors ...........58
panic alarm ...............................58
replacement/additional
transmitters ...............................60
replacing the batteries .............59
Reverse sensing system ...........163
Roadside assistance ..................166
S
Safety Belt Maintenance ............78
Safety belts (see Safety
restraints) ........................68, 70–72
Safety defects, reporting ..200–201
Safety restraints ..............68, 70–72
Belt-Minder
.............................74
extension assembly ..................77
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
259
