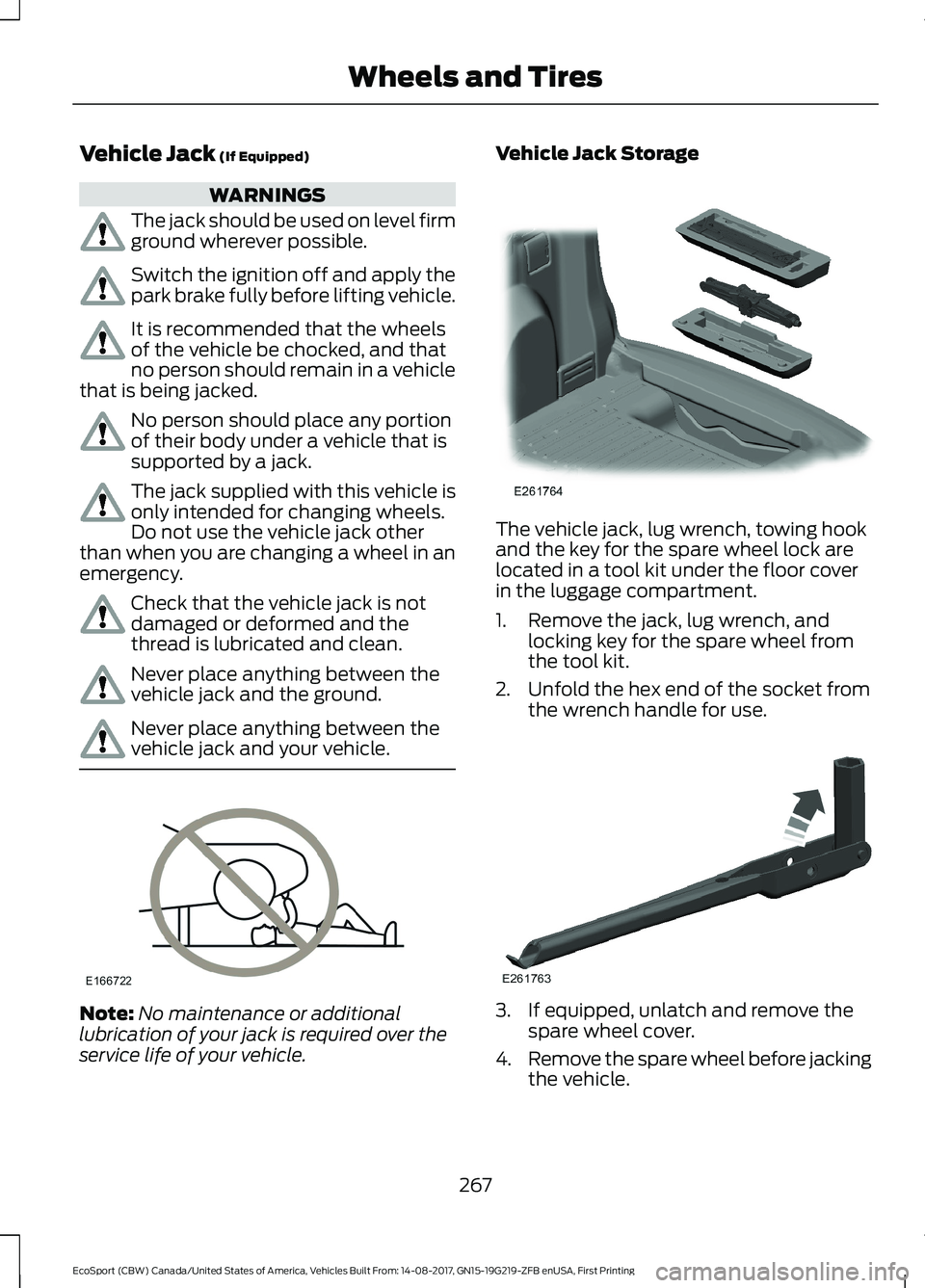

Vehicle Jack (If Equipped)
WARNINGS
The jack should be used on level firmground wherever possible.
Switch the ignition off and apply thepark brake fully before lifting vehicle.
It is recommended that the wheelsof the vehicle be chocked, and thatno person should remain in a vehiclethat is being jacked.
No person should place any portionof their body under a vehicle that issupported by a jack.
The jack supplied with this vehicle isonly intended for changing wheels.Do not use the vehicle jack otherthan when you are changing a wheel in anemergency.
Check that the vehicle jack is notdamaged or deformed and thethread is lubricated and clean.
Never place anything between thevehicle jack and the ground.
Never place anything between thevehicle jack and your vehicle.
Note:No maintenance or additionallubrication of your jack is required over theservice life of your vehicle.
Vehicle Jack Storage
The vehicle jack, lug wrench, towing hookand the key for the spare wheel lock arelocated in a tool kit under the floor coverin the luggage compartment.
1.Remove the jack, lug wrench, andlocking key for the spare wheel fromthe tool kit.
2.Unfold the hex end of the socket fromthe wrench handle for use.
3.If equipped, unlatch and remove thespare wheel cover.
4.Remove the spare wheel before jackingthe vehicle.
267EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingWheels and Tires

Note:The spare wheel is located on thetailgate.
To remove the spare wheel, loosen andremove the locking nut using the lugwrench and the spare wheel lock key.Loosen and remove the remaining lug nutssecuring the spare wheel to the tailgate.

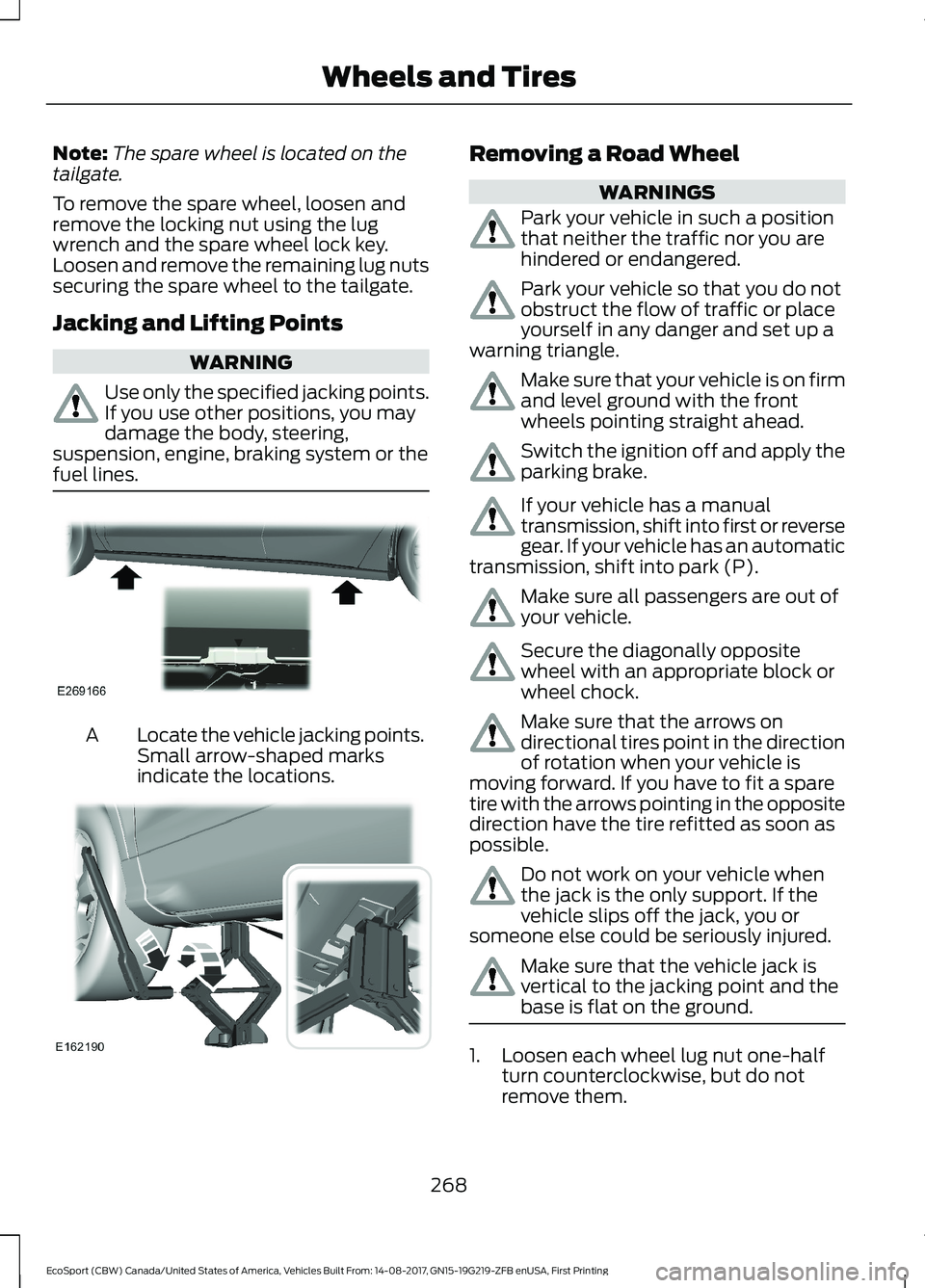

Jacking and Lifting Points
WARNING
Use only the specified jacking points.If you use other positions, you maydamage the body, steering,suspension, engine, braking system or thefuel lines.
Locate the vehicle jacking points.Small arrow-shaped marksindicate the locations.
A
Removing a Road Wheel
WARNINGS
Park your vehicle in such a positionthat neither the traffic nor you arehindered or endangered.
Park your vehicle so that you do notobstruct the flow of traffic or placeyourself in any danger and set up awarning triangle.
Make sure that your vehicle is on firmand level ground with the frontwheels pointing straight ahead.
Switch the ignition off and apply theparking brake.
If your vehicle has a manualtransmission, shift into first or reversegear. If your vehicle has an automatictransmission, shift into park (P).
Make sure all passengers are out ofyour vehicle.
Secure the diagonally oppositewheel with an appropriate block orwheel chock.
Make sure that the arrows ondirectional tires point in the directionof rotation when your vehicle ismoving forward. If you have to fit a sparetire with the arrows pointing in the oppositedirection have the tire refitted as soon aspossible.
Do not work on your vehicle whenthe jack is the only support. If thevehicle slips off the jack, you orsomeone else could be seriously injured.
Make sure that the vehicle jack isvertical to the jacking point and thebase is flat on the ground.
1.Loosen each wheel lug nut one-halfturn counterclockwise, but do notremove them.
268EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingWheels and Tires

2.Jack up your vehicle until the tire isclear of the ground.
3.Remove the lug nuts and the wheel.
Note:Do not lay alloy wheels face downon the ground, this may damage the paint.

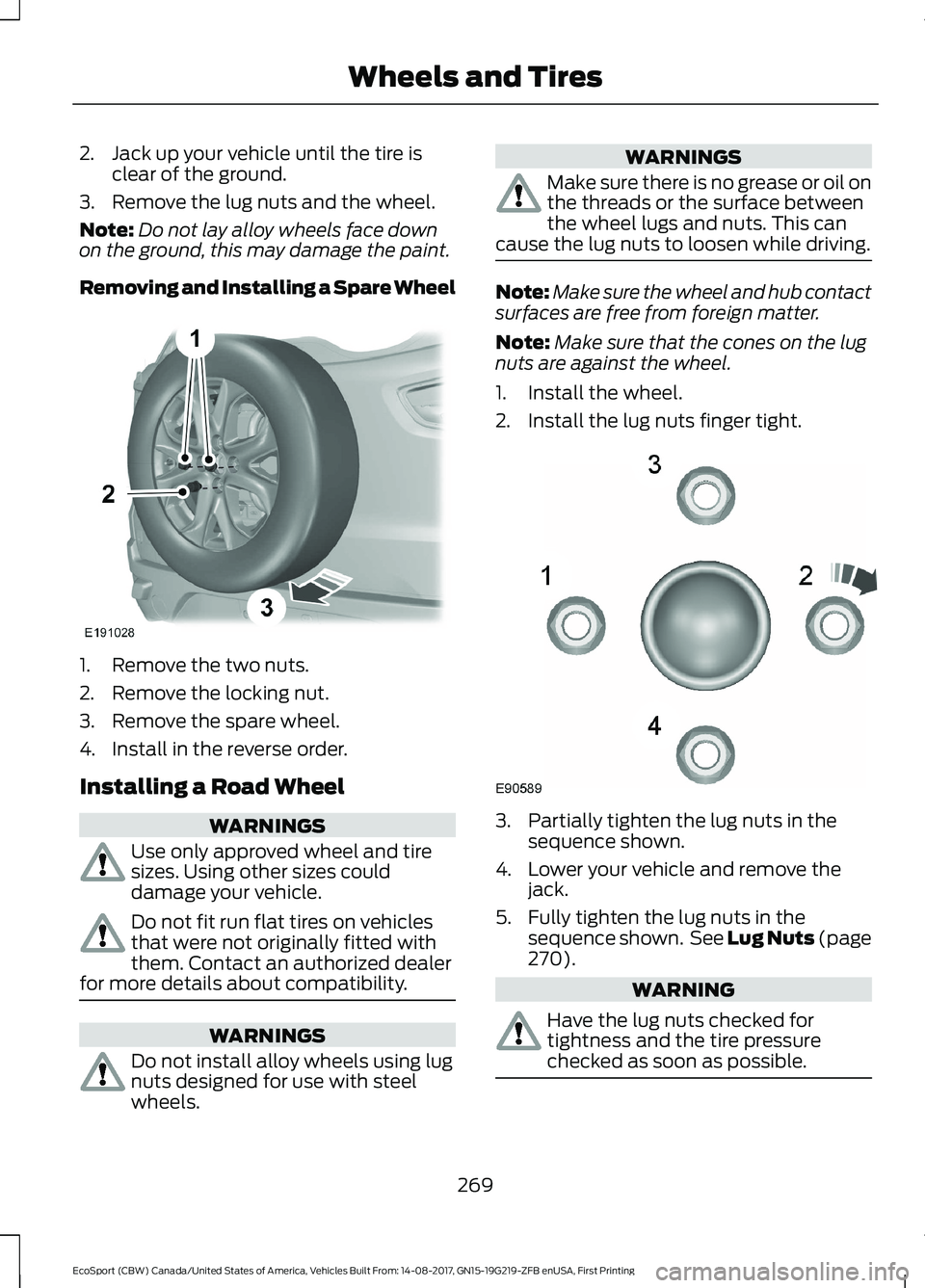

Removing and Installing a Spare Wheel
1.Remove the two nuts.
2.Remove the locking nut.
3.Remove the spare wheel.
4.Install in the reverse order.
Installing a Road Wheel
WARNINGS
Use only approved wheel and tiresizes. Using other sizes coulddamage your vehicle.
Do not fit run flat tires on vehiclesthat were not originally fitted withthem. Contact an authorized dealerfor more details about compatibility.
WARNINGS
Do not install alloy wheels using lugnuts designed for use with steelwheels.
WARNINGS
Make sure there is no grease or oil onthe threads or the surface betweenthe wheel lugs and nuts. This cancause the lug nuts to loosen while driving.
Note:Make sure the wheel and hub contactsurfaces are free from foreign matter.
Note:Make sure that the cones on the lugnuts are against the wheel.
1.Install the wheel.
2.Install the lug nuts finger tight.
3.Partially tighten the lug nuts in thesequence shown.
4.Lower your vehicle and remove thejack.
5.Fully tighten the lug nuts in thesequence shown. See Lug Nuts (page270).
WARNING
Have the lug nuts checked fortightness and the tire pressurechecked as soon as possible.
269EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingWheels and Tires

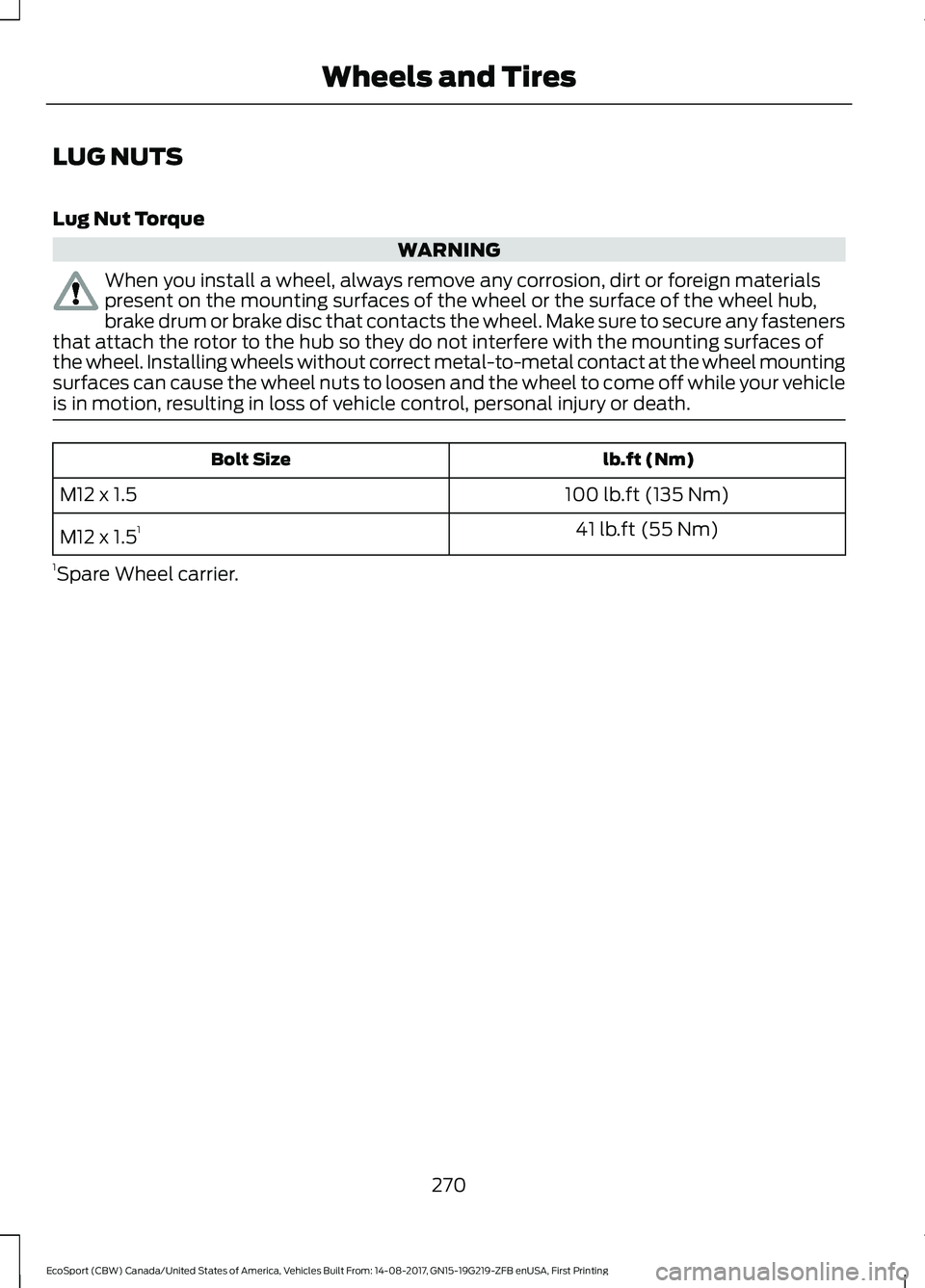

LUG NUTS
Lug Nut Torque
WARNING
When you install a wheel, always remove any corrosion, dirt or foreign materialspresent on the mounting surfaces of the wheel or the surface of the wheel hub,brake drum or brake disc that contacts the wheel. Make sure to secure any fastenersthat attach the rotor to the hub so they do not interfere with the mounting surfaces ofthe wheel. Installing wheels without correct metal-to-metal contact at the wheel mountingsurfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicleis in motion, resulting in loss of vehicle control, personal injury or death.
lb.ft (Nm)Bolt Size
100 lb.ft (135 Nm)M12 x 1.5
41 lb.ft (55 Nm)M12 x 1.51
1Spare Wheel carrier.
270EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingWheels and Tires

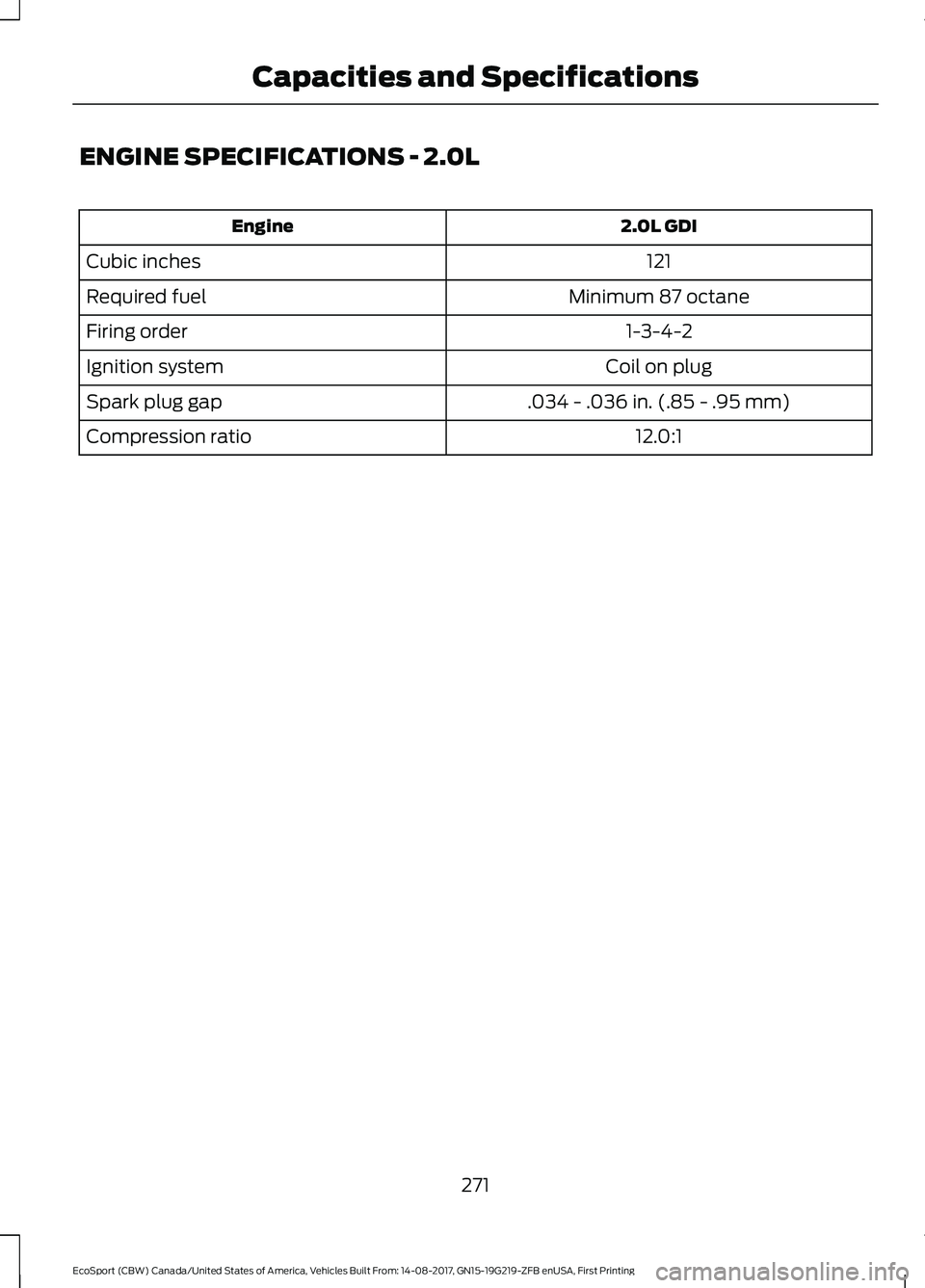

ENGINE SPECIFICATIONS - 2.0L
2.0L GDIEngine
121Cubic inches
Minimum 87 octaneRequired fuel
1-3-4-2Firing order
Coil on plugIgnition system
.034 - .036 in. (.85 - .95 mm)Spark plug gap
12.0:1Compression ratio
271EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingCapacities and Specifications

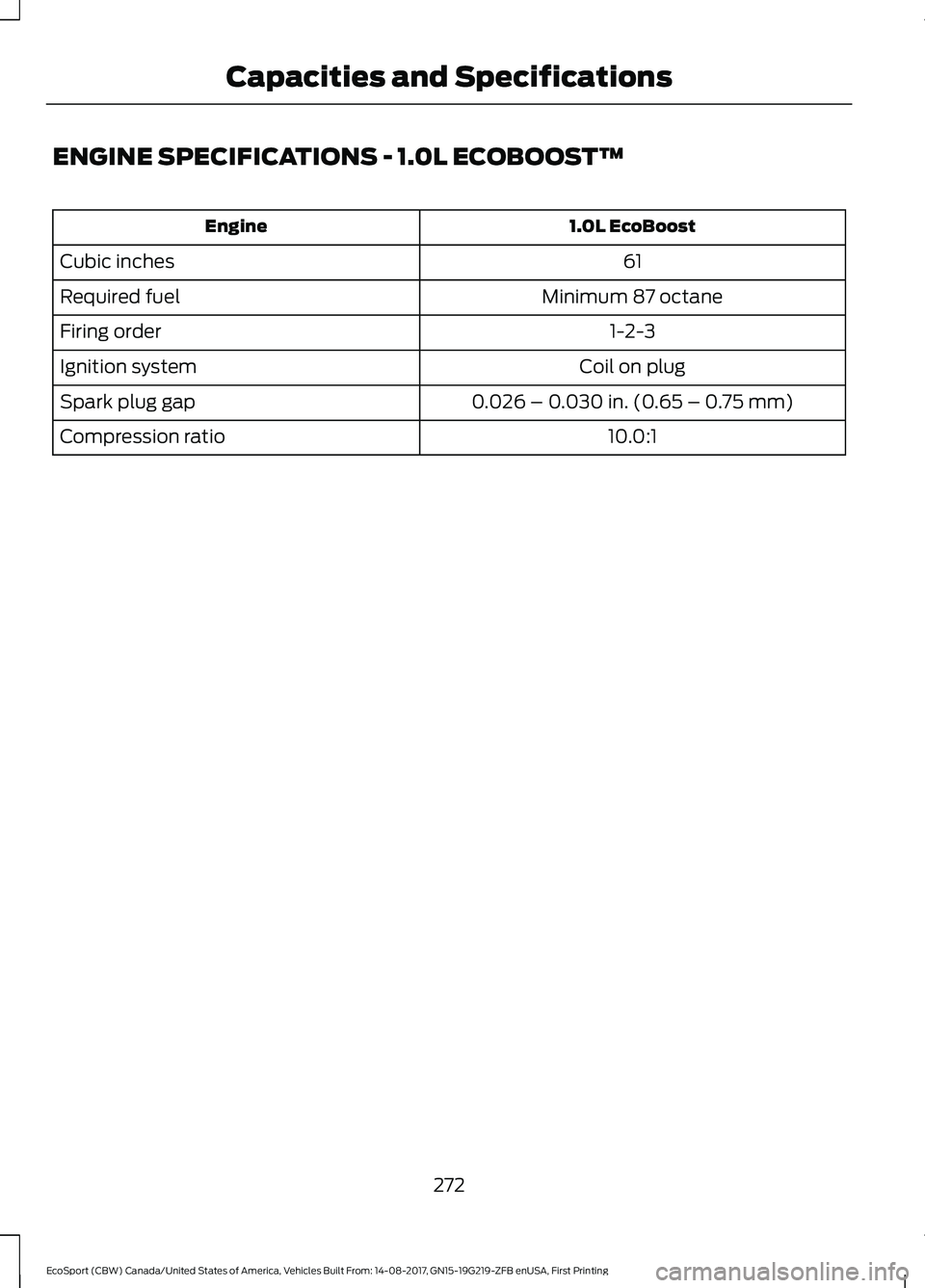

ENGINE SPECIFICATIONS - 1.0L ECOBOOST™
1.0L EcoBoostEngine
61Cubic inches
Minimum 87 octaneRequired fuel
1-2-3Firing order
Coil on plugIgnition system
0.026 – 0.030 in. (0.65 – 0.75 mm)Spark plug gap
10.0:1Compression ratio
272EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingCapacities and Specifications

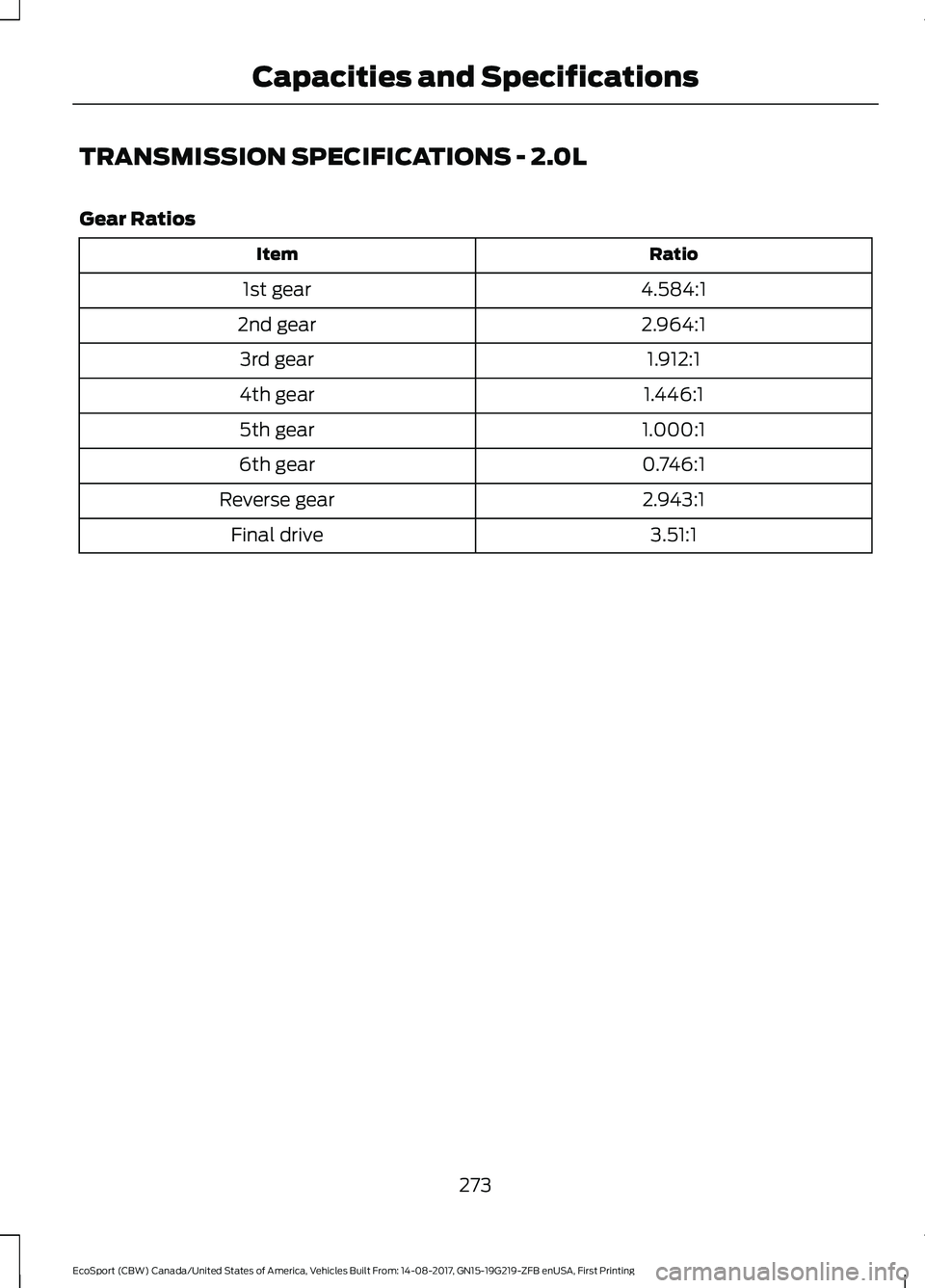

TRANSMISSION SPECIFICATIONS - 2.0L
Gear Ratios
RatioItem
4.584:11st gear
2.964:12nd gear
1.912:13rd gear
1.446:14th gear
1.000:15th gear
0.746:16th gear
2.943:1Reverse gear
3.51:1Final drive
273EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingCapacities and Specifications

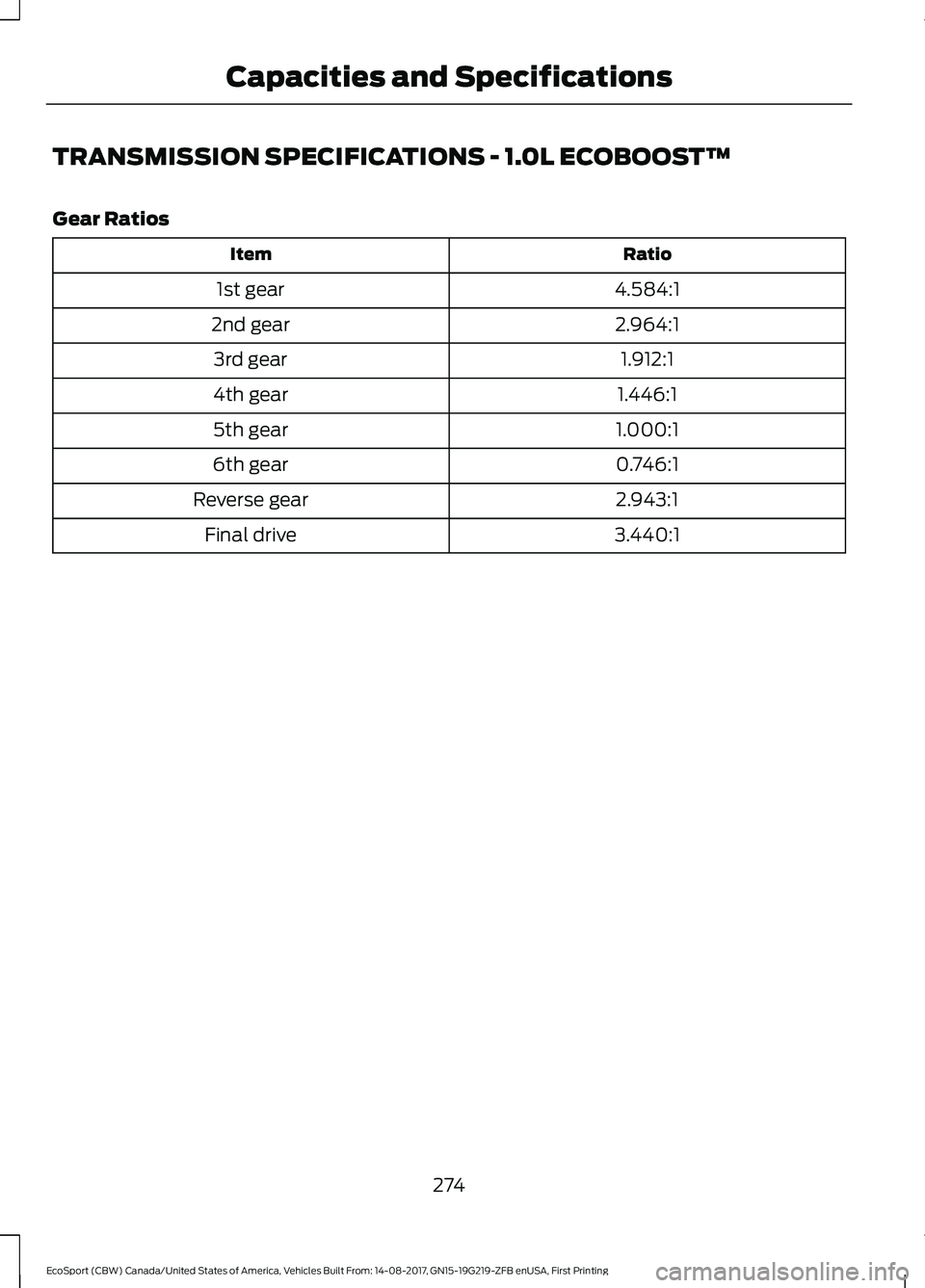

TRANSMISSION SPECIFICATIONS - 1.0L ECOBOOST™
Gear Ratios
RatioItem
4.584:11st gear
2.964:12nd gear
1.912:13rd gear
1.446:14th gear
1.000:15th gear
0.746:16th gear
2.943:1Reverse gear
3.440:1Final drive
274EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingCapacities and Specifications

MOTORCRAFT PARTS - 1.0L ECOBOOST™
Part NumberComponent
FA-1935Air filter element
FL-910-SOil filter
BAGM-48H6-760Battery
SP-538ASpark plugs
FP-69Cabin air filter
WW-2963 (driver side)Windshield wiper bladeWW-2964 (passenger side)
WW-1108Rear window wiper blade
We recommend Motorcraft replacement parts available at your Ford dealer or atfordparts.com for scheduled maintenance. These parts meet or exceed Ford MotorCompany’s specifications and are engineered for your vehicle. Use of other parts mayimpact vehicle performance, emissions and durability. Your warranty may be void for anydamage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at theappropriate intervals. See Scheduled Maintenance (page 383).
275EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingCapacities and Specifications

MOTORCRAFT PARTS - 2.0L
Part NumberComponent
FA-1935Air filter element
FL-910-SOil filter
BAGM-48H6-760Battery
SP-538ASpark plugs
FP-69Cabin air filter
WW-2963 (driver side)Windshield wiper bladeWW-2964 (passenger side)
WW-1108Rear window wiper blade
We recommend Motorcraft replacement parts available at your Ford dealer or atfordparts.com for scheduled maintenance. These parts meet or exceed Ford MotorCompany’s specifications and are engineered for your vehicle. Use of other parts mayimpact vehicle performance, emissions and durability. Your warranty may be void for anydamage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at theappropriate intervals. See Scheduled Maintenance (page 383).
276EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingCapacities and Specifications
