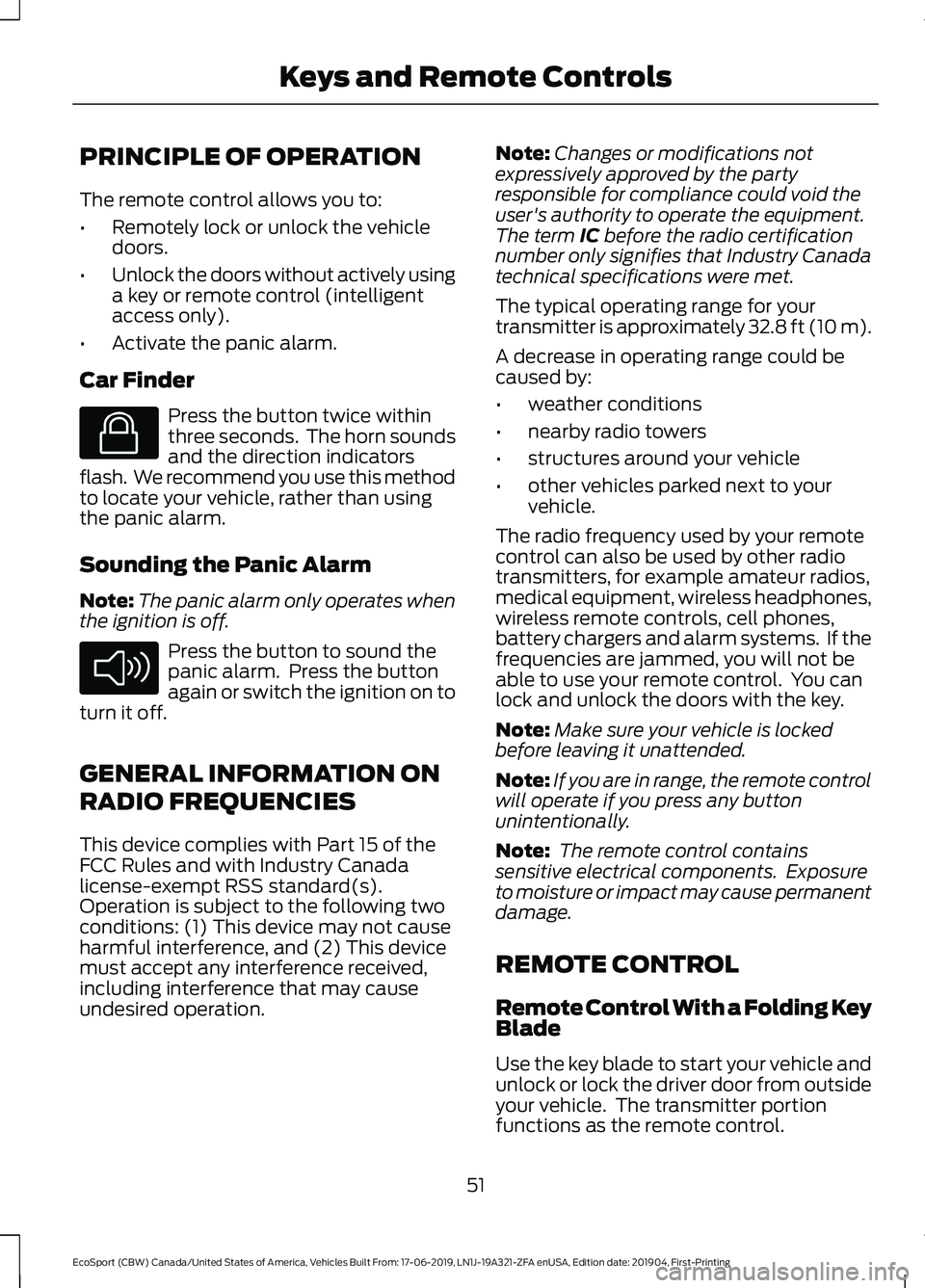

PRINCIPLE OF OPERATION
The remote control allows you to:
•Remotely lock or unlock the vehicledoors.
•Unlock the doors without actively usinga key or remote control (intelligentaccess only).
•Activate the panic alarm.
Car Finder
Press the button twice withinthree seconds. The horn soundsand the direction indicatorsflash. We recommend you use this methodto locate your vehicle, rather than usingthe panic alarm.
Sounding the Panic Alarm
Note:The panic alarm only operates whenthe ignition is off.
Press the button to sound thepanic alarm. Press the buttonagain or switch the ignition on toturn it off.
GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of theFCC Rules and with Industry Canadalicense-exempt RSS standard(s).Operation is subject to the following twoconditions: (1) This device may not causeharmful interference, and (2) This devicemust accept any interference received,including interference that may causeundesired operation.
Note:Changes or modifications notexpressively approved by the partyresponsible for compliance could void theuser's authority to operate the equipment.The term IC before the radio certificationnumber only signifies that Industry Canadatechnical specifications were met.
The typical operating range for yourtransmitter is approximately 32.8 ft (10 m).
A decrease in operating range could becaused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to yourvehicle.
The radio frequency used by your remotecontrol can also be used by other radiotransmitters, for example amateur radios,medical equipment, wireless headphones,wireless remote controls, cell phones,battery chargers and alarm systems. If thefrequencies are jammed, you will not beable to use your remote control. You canlock and unlock the doors with the key.
Note:Make sure your vehicle is lockedbefore leaving it unattended.
Note:If you are in range, the remote controlwill operate if you press any buttonunintentionally.
Note: The remote control containssensitive electrical components. Exposureto moisture or impact may cause permanentdamage.
REMOTE CONTROL
Remote Control With a Folding KeyBlade
Use the key blade to start your vehicle andunlock or lock the driver door from outsideyour vehicle. The transmitter portionfunctions as the remote control.
51
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingKeys and Remote Controls

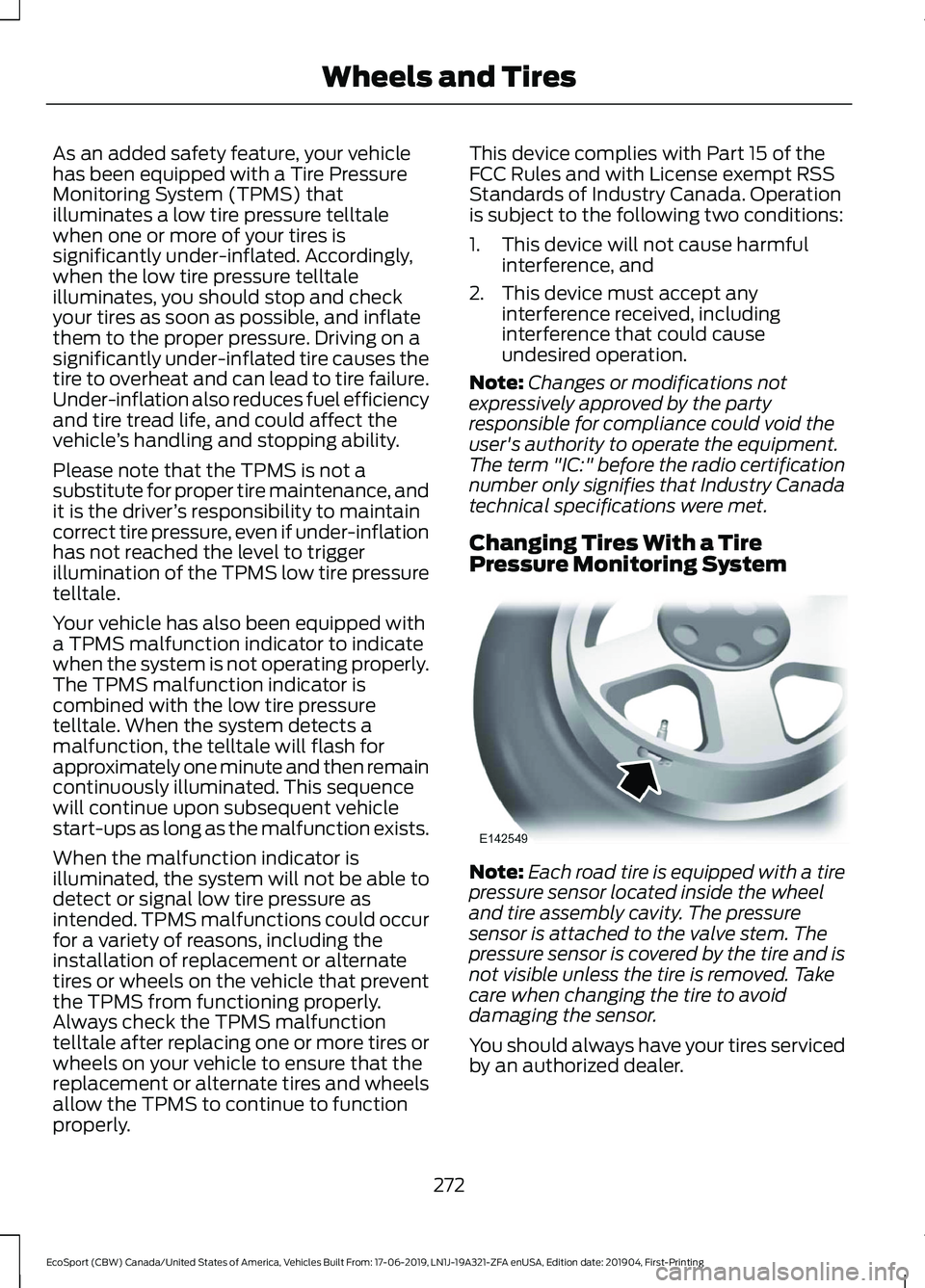

As an added safety feature, your vehiclehas been equipped with a Tire PressureMonitoring System (TPMS) thatilluminates a low tire pressure telltalewhen one or more of your tires issignificantly under-inflated. Accordingly,when the low tire pressure telltaleilluminates, you should stop and checkyour tires as soon as possible, and inflatethem to the proper pressure. Driving on asignificantly under-inflated tire causes thetire to overheat and can lead to tire failure.Under-inflation also reduces fuel efficiencyand tire tread life, and could affect thevehicle’s handling and stopping ability.
Please note that the TPMS is not asubstitute for proper tire maintenance, andit is the driver’s responsibility to maintaincorrect tire pressure, even if under-inflationhas not reached the level to triggerillumination of the TPMS low tire pressuretelltale.
Your vehicle has also been equipped witha TPMS malfunction indicator to indicatewhen the system is not operating properly.The TPMS malfunction indicator iscombined with the low tire pressuretelltale. When the system detects amalfunction, the telltale will flash forapproximately one minute and then remaincontinuously illuminated. This sequencewill continue upon subsequent vehiclestart-ups as long as the malfunction exists.
When the malfunction indicator isilluminated, the system will not be able todetect or signal low tire pressure asintended. TPMS malfunctions could occurfor a variety of reasons, including theinstallation of replacement or alternatetires or wheels on the vehicle that preventthe TPMS from functioning properly.Always check the TPMS malfunctiontelltale after replacing one or more tires orwheels on your vehicle to ensure that thereplacement or alternate tires and wheelsallow the TPMS to continue to functionproperly.
This device complies with Part 15 of theFCC Rules and with License exempt RSSStandards of Industry Canada. Operationis subject to the following two conditions:
1.This device will not cause harmfulinterference, and
2.This device must accept anyinterference received, includinginterference that could causeundesired operation.
Note:Changes or modifications notexpressively approved by the partyresponsible for compliance could void theuser's authority to operate the equipment.The term "IC:" before the radio certificationnumber only signifies that Industry Canadatechnical specifications were met.
Changing Tires With a TirePressure Monitoring System
Note:Each road tire is equipped with a tirepressure sensor located inside the wheeland tire assembly cavity. The pressuresensor is attached to the valve stem. Thepressure sensor is covered by the tire and isnot visible unless the tire is removed. Takecare when changing the tire to avoiddamaging the sensor.
You should always have your tires servicedby an authorized dealer.
272
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingWheels and Tires

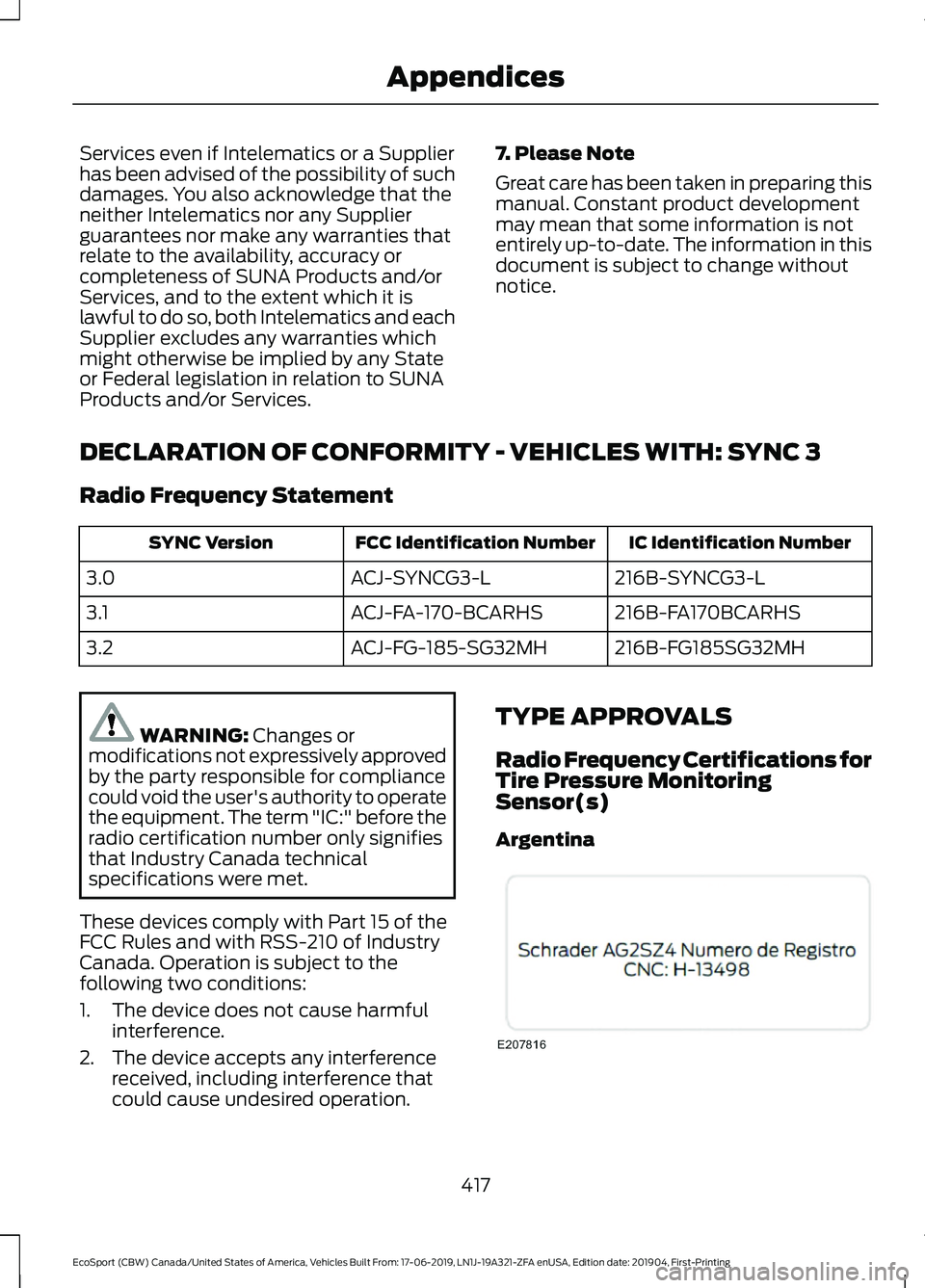

Services even if Intelematics or a Supplierhas been advised of the possibility of suchdamages. You also acknowledge that theneither Intelematics nor any Supplierguarantees nor make any warranties thatrelate to the availability, accuracy orcompleteness of SUNA Products and/orServices, and to the extent which it islawful to do so, both Intelematics and eachSupplier excludes any warranties whichmight otherwise be implied by any Stateor Federal legislation in relation to SUNAProducts and/or Services.
7. Please Note
Great care has been taken in preparing thismanual. Constant product developmentmay mean that some information is notentirely up-to-date. The information in thisdocument is subject to change withoutnotice.
DECLARATION OF CONFORMITY - VEHICLES WITH: SYNC 3
Radio Frequency Statement
IC Identification NumberFCC Identification NumberSYNC Version
216B-SYNCG3-LACJ-SYNCG3-L3.0
216B-FA170BCARHSACJ-FA-170-BCARHS3.1
216B-FG185SG32MHACJ-FG-185-SG32MH3.2
WARNING: Changes ormodifications not expressively approvedby the party responsible for compliancecould void the user's authority to operatethe equipment. The term "IC:" before theradio certification number only signifiesthat Industry Canada technicalspecifications were met.
These devices comply with Part 15 of theFCC Rules and with RSS-210 of IndustryCanada. Operation is subject to thefollowing two conditions:
1.The device does not cause harmfulinterference.
2.The device accepts any interferencereceived, including interference thatcould cause undesired operation.
TYPE APPROVALS
Radio Frequency Certifications forTire Pressure MonitoringSensor(s)
Argentina
417
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingAppendices

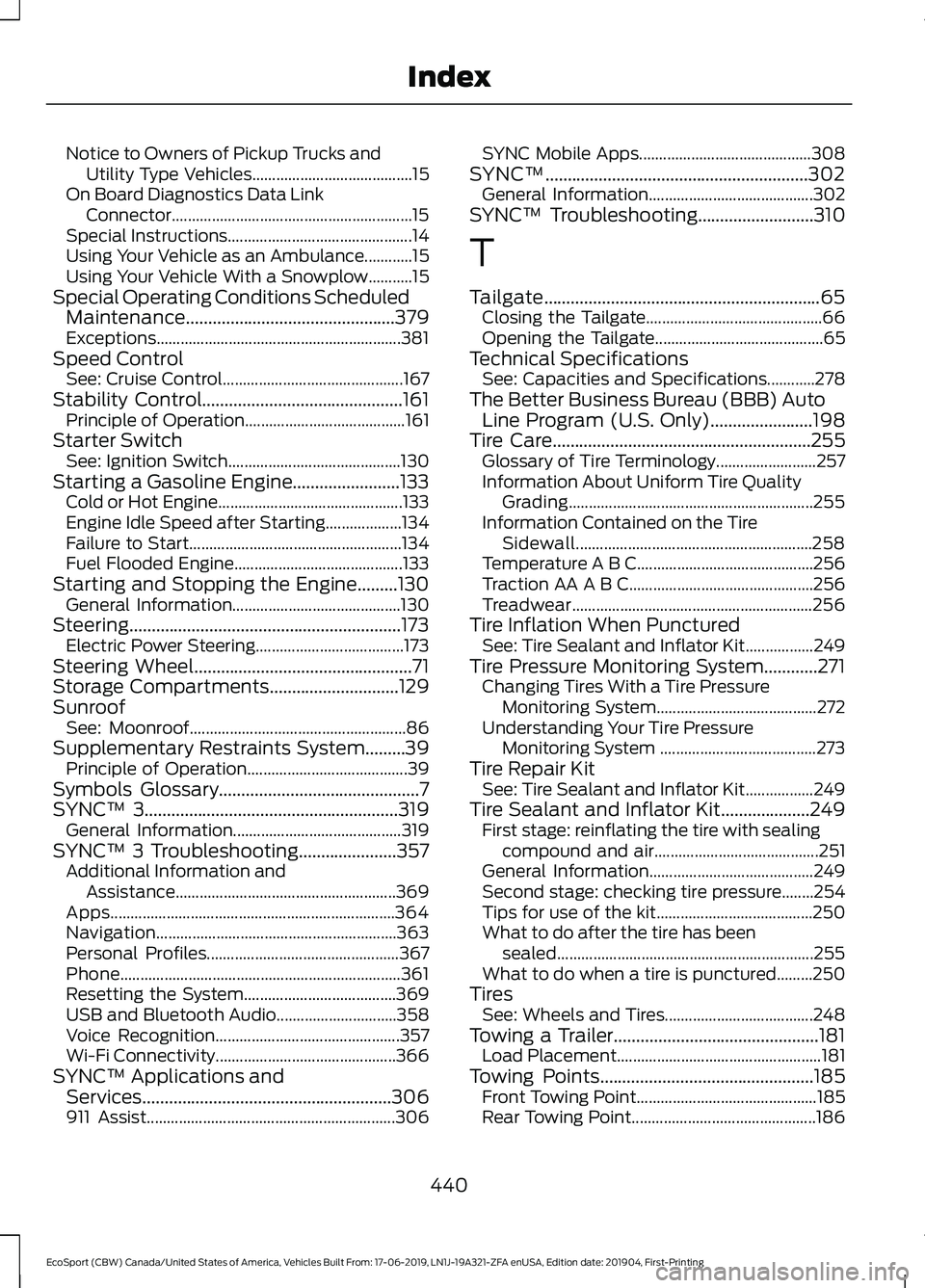

Notice to Owners of Pickup Trucks andUtility Type Vehicles........................................15On Board Diagnostics Data LinkConnector............................................................15Special Instructions..............................................14Using Your Vehicle as an Ambulance............15Using Your Vehicle With a Snowplow...........15Special Operating Conditions ScheduledMaintenance...............................................379Exceptions.............................................................381Speed ControlSee: Cruise Control.............................................167Stability Control.............................................161Principle of Operation........................................161Starter SwitchSee: Ignition Switch...........................................130Starting a Gasoline Engine........................133Cold or Hot Engine..............................................133Engine Idle Speed after Starting...................134Failure to Start.....................................................134Fuel Flooded Engine..........................................133Starting and Stopping the Engine.........130General Information..........................................130Steering.............................................................173Electric Power Steering.....................................173Steering Wheel.................................................71Storage Compartments.............................129SunroofSee: Moonroof......................................................86Supplementary Restraints System.........39Principle of Operation........................................39Symbols Glossary.............................................7SYNC™ 3.........................................................319General Information..........................................319SYNC™ 3 Troubleshooting......................357Additional Information andAssistance.......................................................369Apps.......................................................................364Navigation............................................................363Personal Profiles................................................367Phone......................................................................361Resetting the System......................................369USB and Bluetooth Audio..............................358Voice Recognition..............................................357Wi-Fi Connectivity.............................................366SYNC™ Applications andServices........................................................306911 Assist..............................................................306
SYNC Mobile Apps...........................................308SYNC™...........................................................302General Information.........................................302SYNC™ Troubleshooting..........................310
T
Tailgate..............................................................65Closing the Tailgate............................................66Opening the Tailgate..........................................65Technical SpecificationsSee: Capacities and Specifications............278The Better Business Bureau (BBB) AutoLine Program (U.S. Only).......................198Tire Care..........................................................255Glossary of Tire Terminology.........................257Information About Uniform Tire QualityGrading.............................................................255Information Contained on the TireSidewall...........................................................258Temperature A B C............................................256Traction AA A B C..............................................256Treadwear............................................................256Tire Inflation When PuncturedSee: Tire Sealant and Inflator Kit.................249Tire Pressure Monitoring System............271Changing Tires With a Tire PressureMonitoring System........................................272Understanding Your Tire PressureMonitoring System .......................................273Tire Repair KitSee: Tire Sealant and Inflator Kit.................249Tire Sealant and Inflator Kit....................249First stage: reinflating the tire with sealingcompound and air.........................................251General Information.........................................249Second stage: checking tire pressure........254Tips for use of the kit.......................................250What to do after the tire has beensealed................................................................255What to do when a tire is punctured.........250TiresSee: Wheels and Tires.....................................248Towing a Trailer..............................................181Load Placement...................................................181Towing Points................................................185Front Towing Point.............................................185Rear Towing Point..............................................186
440
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingIndex
