engine FORD ECOSPORT 2022 Owners Manual

It is your responsibility to make sure that all of the scheduled
maintenance is performed and that the materials used meet Ford
engineering specifications. Failure to perform scheduled
maintenance as specified in the Owner’s Manual will invalidate
warranty coverage on parts affected by the lack of maintenance.
Make sure that receipts for completed maintenance work are
retained with the vehicle.
Your Ford or Lincoln dealership, or Ford or Lincoln Quality Care
Service Center, has factory-trained technicians who can perform
the required maintenance using genuine Ford parts. The
dealership looks forward to meeting your every service need to
maximize your satisfaction with your vehicle.
WHO PAYS FOR WARRANTY REPAIRS?
You will not be charged for repairs covered by any applicable
warranty during the stated coverage periods, unless specifically
stated elsewhere in this guide.
Some states have mandated alternate time coverage periods for
parts of your vehicle (e.g. seatbelts).
Some states and/or local governments may require a tax on a
portion of warranty repairs. Where applicable law allows, the tax
must be paid by you, the owner of the vehicle.
During the Bumper to Bumper Warranty period, dealers may
receive instructions to provide no-cost, service-type
improvements - not originally included in your Owner’s Manual -
intended to increase your overall satisfaction with your vehicle.
Sometimes Ford may offer a special adjustment program to pay
all or part of the cost of certain repairs beyond the terms of the
applicable warranty. Check with your dealer or call
1-800-392-3673 to learn whether any adjustment program is
applicable to your vehicle. Please have your vehicle identification
number available.3

than Ford dealer facilities. Tire replacements under warranty will
be made with the same brand and model as originally equipped
with the vehicle unless the same brand and model is no longer
available, in which case a tire of the same brand, size, load, speed
and tread type will be used. In some circumstances, Ford may
authorize another brand and/or model to substitute for the
original brand and model, even if still available.
Normal tire wear or damage is not reimbursable. See page 18 for
details of what is not covered.
Extended warranty coverage periods are available for certain
vehicle parts and conditions. Specifically,
(1) Your vehicle's Powertrain components are covered for five
years or 60,000 miles, whichever occurs first. The extended
coverage applies to theEngine:all internal lubricated parts,
cylinder block, cylinder heads, electrical fuel pump, powertrain
control module, engine mounts, flywheel, injection pump,
manifold (exhaust and intake), manifold bolts, oil pan, oil pump,
seals and gaskets, engine thermostat, engine thermostat
housing, timing chain cover, timing chain (gears or belt),
turbocharger/supercharger unit, valve covers, water pump;
Transmission: all internal parts, clutch cover, seals and gaskets,
torque converter, transfer case (including all internal parts),
transmission case, transmission mounts (front and rear);
Front-Wheel Drive: axle shafts, support bracket, front bearings,
seals and gaskets, universal and constant velocity joints;
Rear-Wheel Drive:axle shafts, rear bearings, center support
bearing, drive axle housing (including all internal parts), drive
shaft, retainers, supports, seals and gaskets, universal and
constant velocity joints. Four-Wheel/All-Wheel Drive: axle
shafts, support bracket, bearings (front and rear), center support
bearing, drive shafts, final drive housing (including all internal
parts), hubs-automatic front locking (four-wheel drive), locking
rings (four-wheel drive), seals and gaskets, universal and
constant velocity joints.
11

(2) Your vehicle's safety belts and air bag Supplemental
Restraint System (SRS) are covered for an extended Safety
Restraint Coverage Period, which lasts for five years or 60,000
miles, whichever occurs first.
(3) Your vehicle’s body sheet metal panels are covered for an
extended Corrosion Coverage Period, which lasts for five years,
regardless of miles driven. The extended warranty coverage only
applies if a body sheet metal panel becomes perforated due to
corrosion during normal use due to a manufacturing defect in
factory-supplied materials or factory workmanship. If aluminum
body panels have corrosion or rust damage, and the damage is
not the result of abnormal usage, vehicle accident, customer
actions and/or extreme environmental conditions, the corrosion
or rust damage repairs are covered for 5 years, unlimited miles.
For damage caused by airborne material (environmental fallout)
where there is no factory-related defect involved and therefore
no warranty − our policy is to provide free repair of paint damage
due to the airborne material for 12 months or 12,000 miles,
whichever occurs first.
(4) Your vehicle's direct injection diesel engine and certain engine
components are covered during the Diesel Engine Coverage
Period, which lasts for five years or 100,000 miles, whichever
occurs first. The following parts are covered during this extended
coverage period: the engine, cylinder block, heads and all internal
parts, intake and exhaust manifolds, timing gear, harmonic
balancer, valve covers, oil pan and pump, water pump, fuel
system (excluding fuel lines, fuel tank and frame mounted fuel
conditioning module sometimes referred to as the frame
mounted pump/filter/water separator or frame mounted fuel
filter/water separator), high pressure lines, gaskets and seals,
glow plugs, turbocharger, two-stage turbocharger assembly,
turbocharger actuator, powertrain control module, high pressure
fuel injection pump assembly, injectors, injection pressure sensor,
fuel rail pressure sensor, exhaust back pressure regulator and
sensor, exhaust pressure sensor, manifold pressure sensor,
intake air temperature sensor, crankshaft position sensor,
camshaft position sensor, accelerator switch.
12

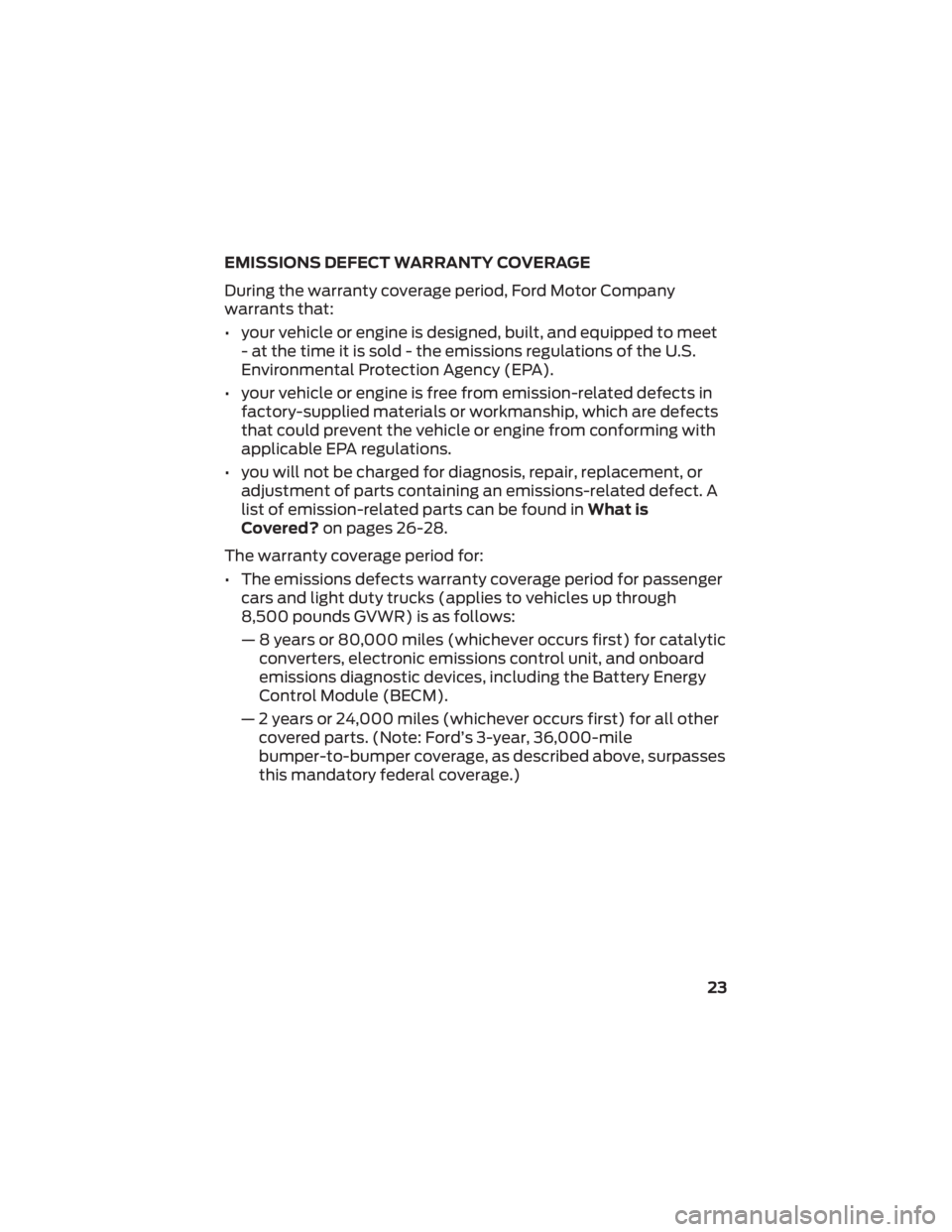

EMISSIONS DEFECT WARRANTY COVERAGE
During the warranty coverage period, Ford Motor Company
warrants that:
• your vehicle or engine is designed, built, and equipped to meet- at the time it is sold - the emissions regulations of the U.S.
Environmental Protection Agency (EPA).
• your vehicle or engine is free from emission-related defects in factory-supplied materials or workmanship, which are defects
that could prevent the vehicle or engine from conforming with
applicable EPA regulations.
• you will not be charged for diagnosis, repair, replacement, or adjustment of parts containing an emissions-related defect. A
list of emission-related parts can be found in What is
Covered? on pages 26-28.
The warranty coverage period for:
• The emissions defects warranty coverage period for passenger cars and light duty trucks (applies to vehicles up through
8,500 pounds GVWR) is as follows:
— 8 years or 80,000 miles (whichever occurs first) for catalytic converters, electronic emissions control unit, and onboard
emissions diagnostic devices, including the Battery Energy
Control Module (BECM).
— 2 years or 24,000 miles (whichever occurs first) for all other covered parts. (Note: Ford’s 3-year, 36,000-mile
bumper-to-bumper coverage, as described above, surpasses
this mandatory federal coverage.)
23

WHAT IS COVERED?
For your vehicle if these parts contain an emissions-related
defect, they are covered by both the Emissions Defect Warranty
and the Emissions Performance Warranty.
• Active Air Dam (3.0L dieselF-150 only)
• Active Grill Shutters (3.0L diesel F-150 only)
• Air Flow Sensor
• Air/Fuel Feedback Control System and Sensors
• Air Induction System
• Battery Energy Control Module (BECM)
• Brake Hydraulic/Electric Control Assembly (Plug-in
Hybrid vehicles only)
• Brake Vacuum Pump (Plug-in Hybrid vehicles
only)
• Catalytic Converters (including Selective Catalytic
Reduction and Diesel
Oxidation Catalysts)
•
Charger and Bracket
Assembly High Voltage
Battery (Hybrid and Plug-in
Hybrid vehicles only)
• Cold Start Enrichment System (diesel only)
• Controls for Deceleration (diesel only)
• Converter and Bracket Assembly High Voltage to Low Voltage (Hybrid and
Plug-in Hybrid vehicles only)
• Diesel Exhaust Fluid System
• Diesel Particulate Filter
• Electronic Ignition System (diesel only)
• Electronic Engine Control Sensors and Switches
• Powertrain Control Module (PCM)/ Engine Control
Module (ECM)*
• Evaporative Emission Control System
• Exhaust Gas Recirculation (EGR) System
• Exhaust Manifold
• Exhaust Pipe (Manifold to Catalyst)
• Fuel Filler Door Sensor (Hybrid and Plug-in Hybrid
vehicles only)
• Fuel Filler Tube and Seal (non-diesel only)
• Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank (non-diesel only)
• Fuel Tank Pressure Control Valve
26

• Heating Element of BackWindow (3.0L diesel F-150
only)
• High Voltage Battery (Hybrid and Plug-in Hybrid vehicles
only)
• HVAC Controller (Plug-in Hybrid vehicles only)
• Ignition Coil and/or Control Module
• Intake Manifold
• Intercooler Assembly - Engine Charger
• Inverter System Controller (Plug-in Hybrid vehicles
only)
• Jumper Assembly Charge Inlet to Charger (Hybrid and
Plug-in Hybrid vehicles only)
• Jumper Assembly DC/DC Converter to High Voltage
Panel (Hybrid and Plug-in
Hybrid vehicles only)
• Malfunction Indicator Lamp (MIL)/On-Board Diagnostic
(OBD) System
• Module and Bracket Assembly Transmission
Inverter Control (Hybrid and
Plug-in Hybrid vehicles only) • Motor Electronics Coolant
Pump (Plug-in Hybrid
vehicles only)
• PCV system and Oil Filler Cap
• Onboard Charger (Plug-in Hybrid vehicles only)
• Secondary Air Injection System
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Assembly (Plug-in Hybrid vehicles
only)
• Transmission Auxiliary Oil Pump (Plug-in Hybrid
vehicles only)
• Transmission Fluid Temperature Sensor (Plug-in
Hybrid vehicles only)
• Transmission Control Module (TCM) and
Solenoids
• Turbocharger Assembly
• Vacuum Distribution System
* Includes hardware and emissions related software changes only
27

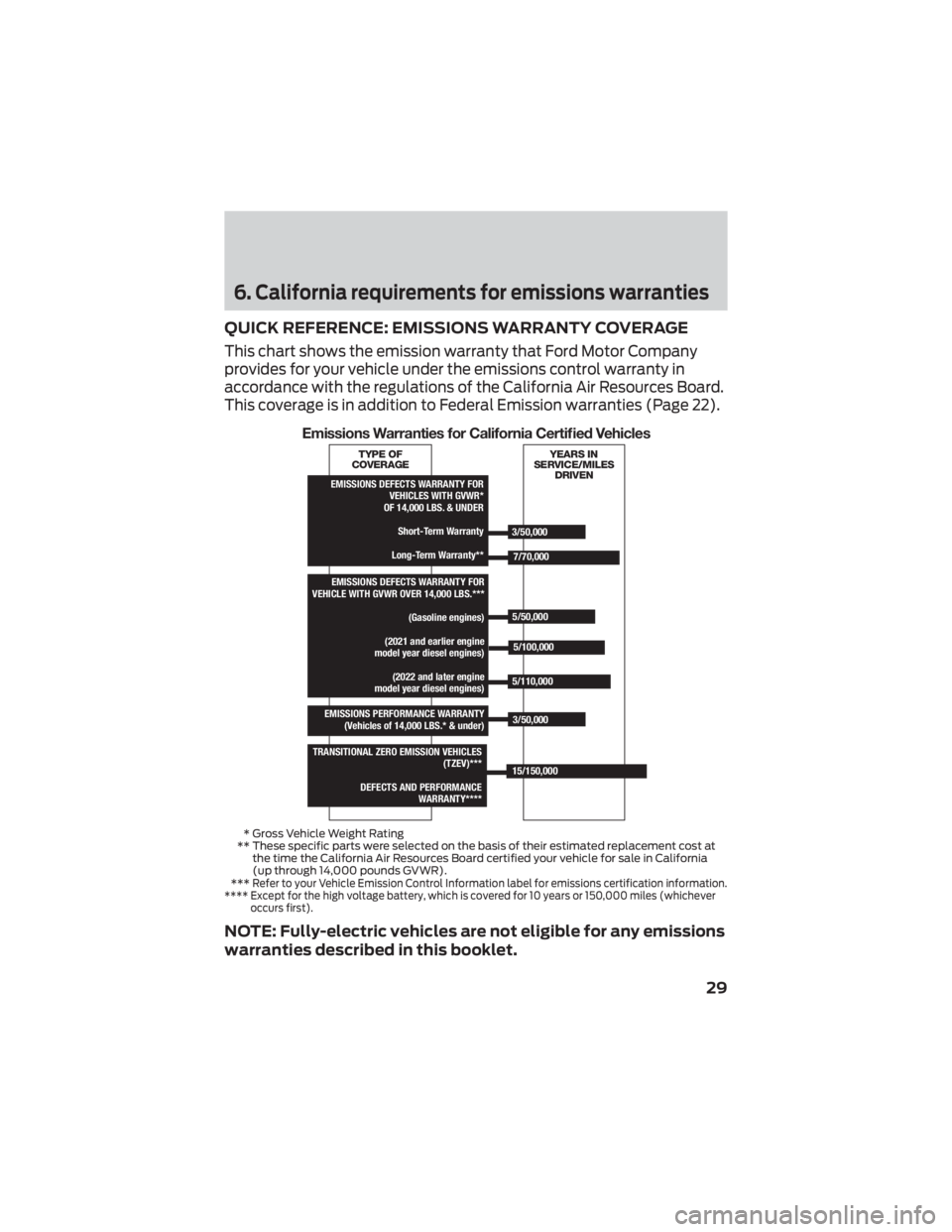

6. California requirements for emissions warranties
QUICK REFERENCE: EMISSIONS WARRANTY COVERAGE
This chart shows the emission warranty that Ford Motor Company
provides for your vehicle under the emissions control warranty in
accordance with the regulations of the California Air Resources Board.
This coverage is in addition to Federal Emission warranties (Page 22).
* Gross Vehicle Weight Rating
** These specific parts were selected on the basis of their estimated replacement cost at the time the California Air Resources Board certified your vehicle for sale in California
(up through 14,000 pounds GVWR).
***
Refer to your Vehicle Emission Control Information label for emissions certification information.
**** Except for the high voltage battery, which is covered for 10 years or 150,000 miles (whichever occurs first).
NOTE: Fully-electric vehicles are not eligible for any emissions
warranties described in this booklet.
TRANSITIONAL ZERO EMISSION VEHICLES (TZEV)***
DEFECTS AND PERFORMANCE WARRANTY**** 15/150,000
EMISSIONS DEFECTS WARRANTY FOR
VEHICLE WITH GVWR OVER 14,000 LBS.***
(Gasoline engines)
(2021 and earlier engine
model year diesel engines)
(2022 and later engine
model year diesel engines)
EMISSIONS PERFORMANCE WARRANTY (Vehicles of 14,000 LBS.* & under)
EMISSIONS DEFECTS WARRANTY FOR
VEHICLES WITH GVWR*
OF 14,000 LBS. & UNDER
Short-Term Warranty
Long-Term Warranty**
3/50,000
3/50,000
7/70,000
5/50,000 5/100,000
5/110,000
Emissions Warranties for California Certified Vehicles
TYPE OF
COVERAGE YEARS IN
SERVICE/MILES DRIVEN
29

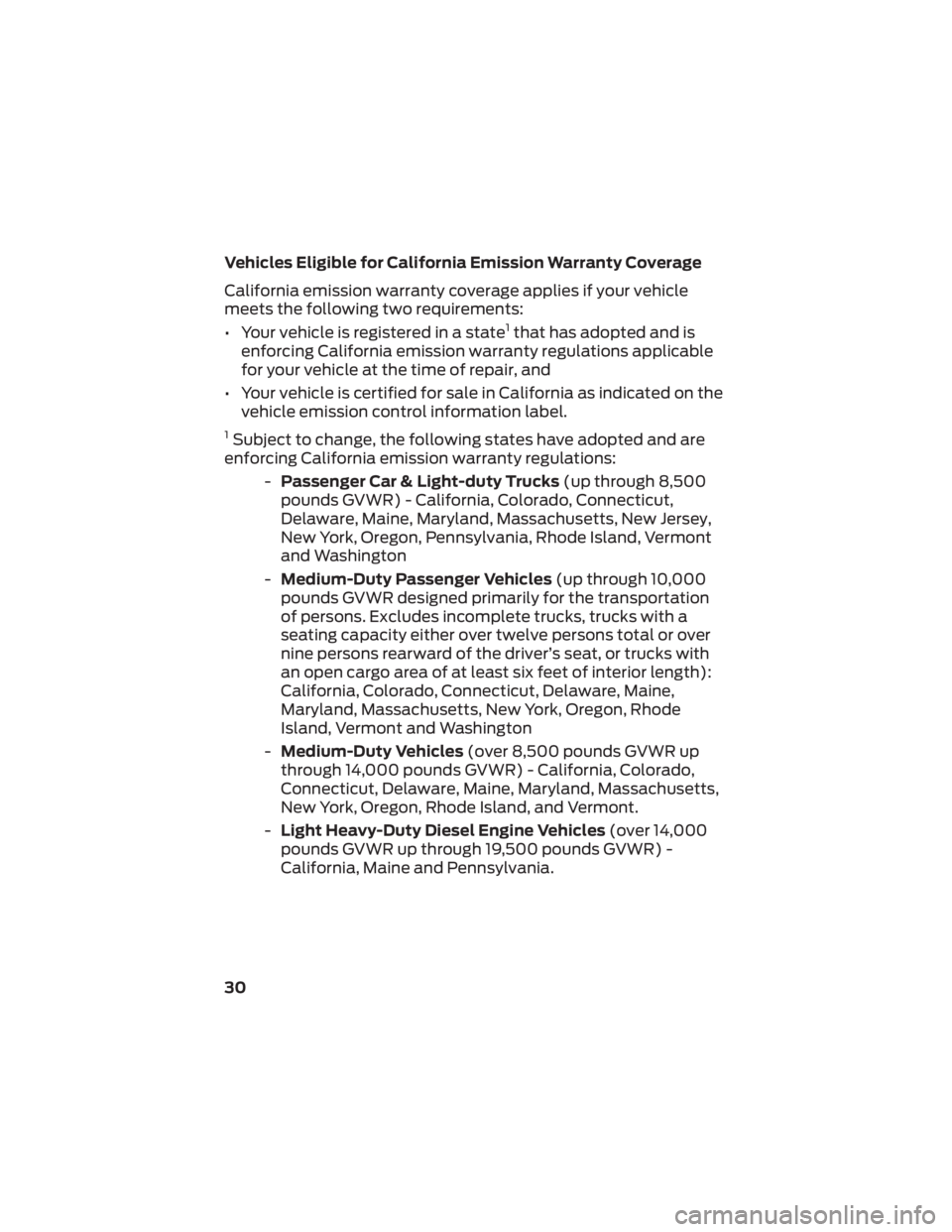

Vehicles Eligible for California Emission Warranty Coverage
California emission warranty coverage applies if your vehicle
meets the following two requirements:
• Your vehicle is registered in a state
1that has adopted and is
enforcing California emission warranty regulations applicable
for your vehicle at the time of repair, and
• Your vehicle is certified for sale in California as indicated on the vehicle emission control information label.
1Subject to change, the following states have adopted and are
enforcing California emission warranty regulations:
-Passenger Car & Light-duty Trucks (up through 8,500
pounds GVWR) - California, Colorado, Connecticut,
Delaware, Maine, Maryland, Massachusetts, New Jersey,
New York, Oregon, Pennsylvania, Rhode Island, Vermont
and Washington
- Medium-Duty Passenger Vehicles (up through 10,000
pounds GVWR designed primarily for the transportation
of persons. Excludes incomplete trucks, trucks with a
seating capacity either over twelve persons total or over
nine persons rearward of the driver’s seat, or trucks with
an open cargo area of at least six feet of interior length):
California, Colorado, Connecticut, Delaware, Maine,
Maryland, Massachusetts, New York, Oregon, Rhode
Island, Vermont and Washington
- Medium-Duty Vehicles (over 8,500 pounds GVWR up
through 14,000 pounds GVWR) - California, Colorado,
Connecticut, Delaware, Maine, Maryland, Massachusetts,
New York, Oregon, Rhode Island, and Vermont.
- Light Heavy-Duty Diesel Engine Vehicles (over 14,000
pounds GVWR up through 19,500 pounds GVWR) -
California, Maine and Pennsylvania.
30

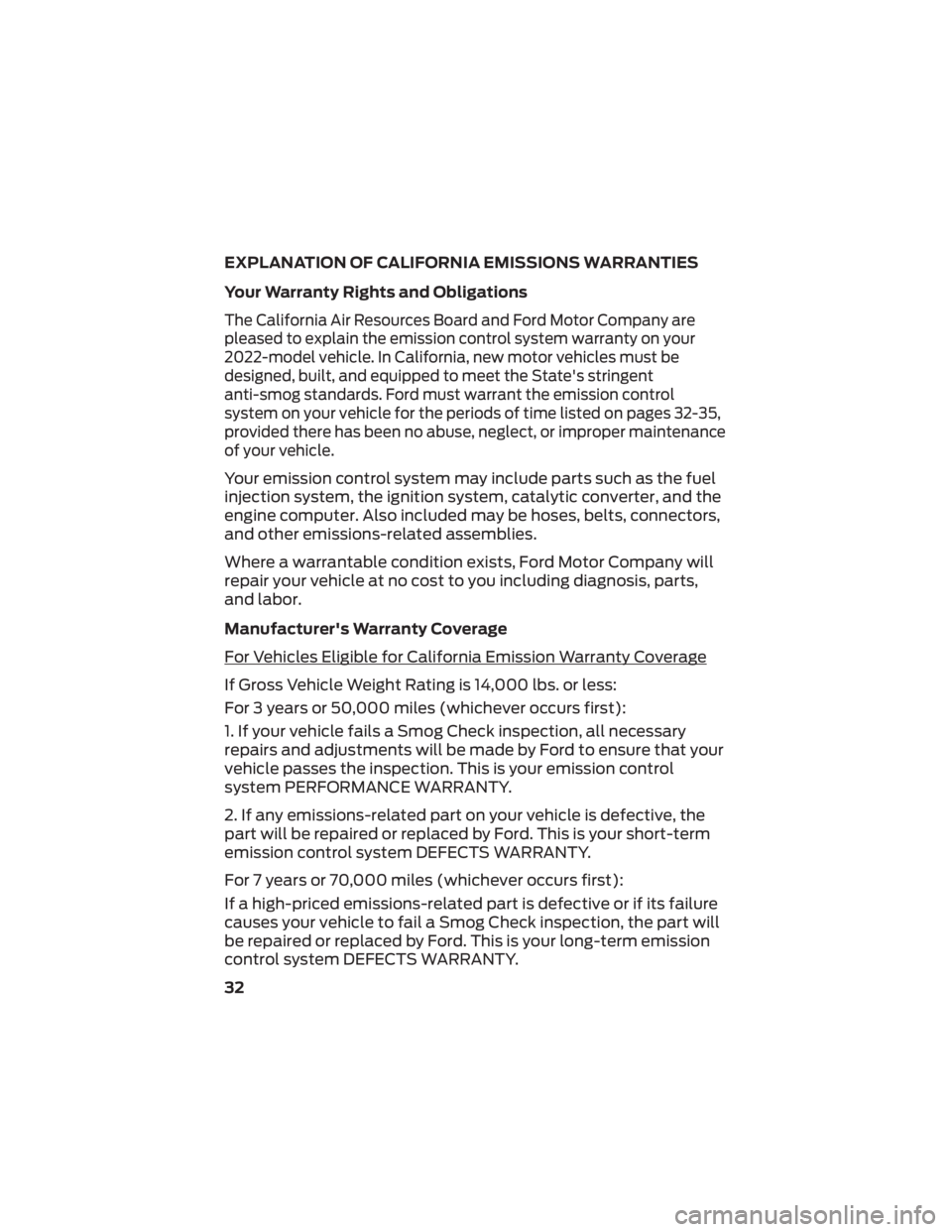

EXPLANATION OF CALIFORNIA EMISSIONS WARRANTIES
Your Warranty Rights and Obligations
The California Air Resources Board and Ford Motor Company are
pleased to explain the emission control system warranty on your
2022-model vehicle. In California, new motor vehicles must be
designed, built, and equipped to meet the State's stringent
anti-smog standards. Ford must warrant the emission control
system on your vehicle for the periods of time listed on pages 32-35,
provided there has been no abuse, neglect, or improper maintenance
of your vehicle.
Your emission control system may include parts such as the fuel
injection system, the ignition system, catalytic converter, and the
engine computer. Also included may be hoses, belts, connectors,
and other emissions-related assemblies.
Where a warrantable condition exists, Ford Motor Company will
repair your vehicle at no cost to you including diagnosis, parts,
and labor.
Manufacturer's Warranty Coverage
For Vehicles Eligible for California Emission Warranty Coverage
If Gross Vehicle Weight Rating is 14,000 lbs. or less:
For 3 years or 50,000 miles (whichever occurs first):
1. If your vehicle fails a Smog Check inspection, all necessary
repairs and adjustments will be made by Ford to ensure that your
vehicle passes the inspection. This is your emission control
system PERFORMANCE WARRANTY.
2. If any emissions-related part on your vehicle is defective, the
part will be repaired or replaced by Ford. This is your short-term
emission control system DEFECTS WARRANTY.
For 7 years or 70,000 miles (whichever occurs first):
If a high-priced emissions-related part is defective or if its failure
causes your vehicle to fail a Smog Check inspection, the part will
be repaired or replaced by Ford. This is your long-term emission
control system DEFECTS WARRANTY.
32

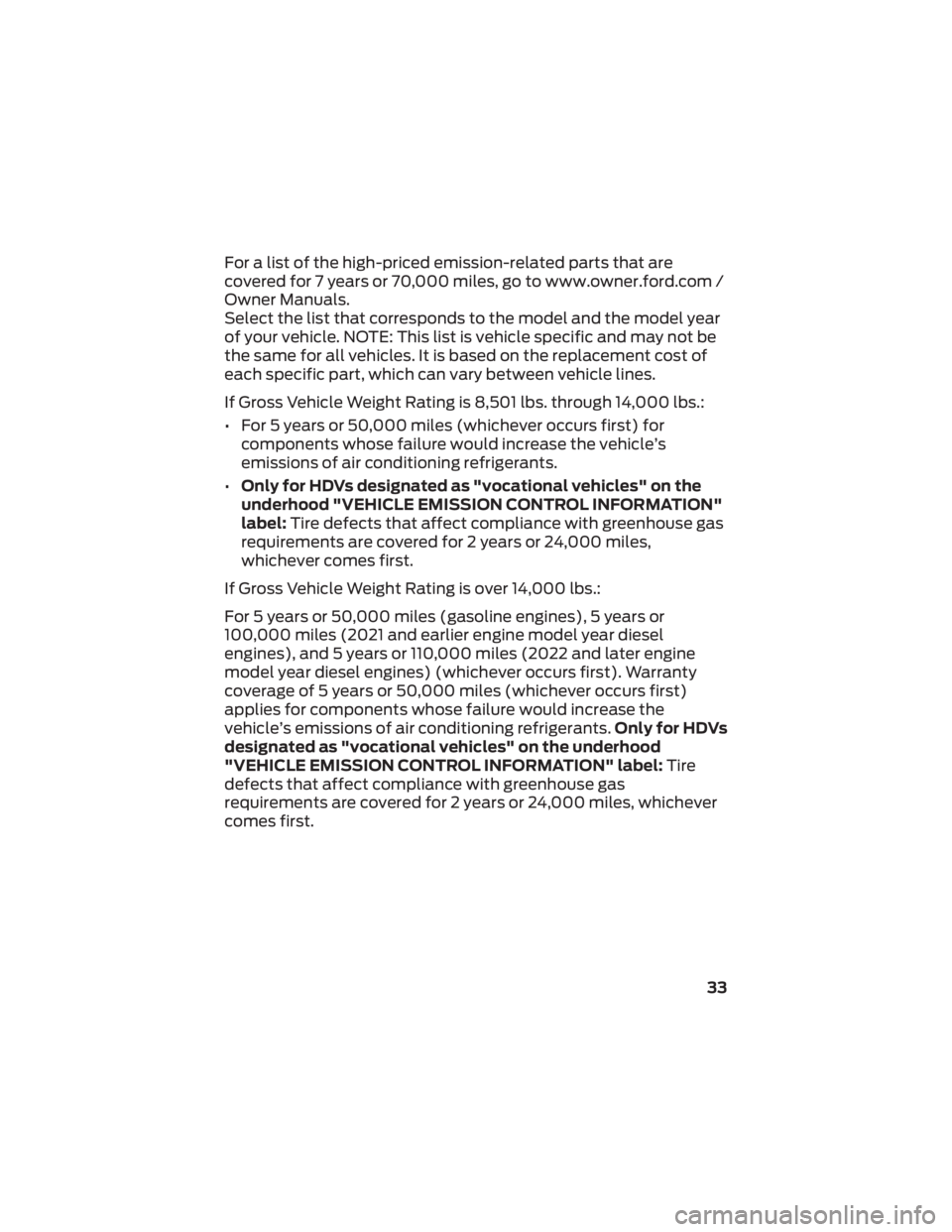

For a list of the high-priced emission-related parts that are
covered for 7 years or 70,000 miles, go to www.owner.ford.com /
Owner Manuals.
Select the list that corresponds to the model and the model year
of your vehicle. NOTE: This list is vehicle specific and may not be
the same for all vehicles. It is based on the replacement cost of
each specific part, which can vary between vehicle lines.
If Gross Vehicle Weight Rating is 8,501 lbs. through 14,000 lbs.:
• For 5 years or 50,000 miles (whichever occurs first) forcomponents whose failure would increase the vehicle’s
emissions of air conditioning refrigerants.
• Only for HDVs designated as "vocational vehicles" on the
underhood "VEHICLE EMISSION CONTROL INFORMATION"
label: Tire defects that affect compliance with greenhouse gas
requirements are covered for 2 years or 24,000 miles,
whichever comes first.
If Gross Vehicle Weight Rating is over 14,000 lbs.:
For 5 years or 50,000 miles (gasoline engines), 5 years or
100,000 miles (2021 and earlier engine model year diesel
engines), and 5 years or 110,000 miles (2022 and later engine
model year diesel engines) (whichever occurs first). Warranty
coverage of 5 years or 50,000 miles (whichever occurs first)
applies for components whose failure would increase the
vehicle’s emissions of air conditioning refrigerants. Only for HDVs
designated as "vocational vehicles" on the underhood
"VEHICLE EMISSION CONTROL INFORMATION" label: Tire
defects that affect compliance with greenhouse gas
requirements are covered for 2 years or 24,000 miles, whichever
comes first.
33
