Many lights will illuminate when you start your vehicle to make sure the
indicators work. If any light remains on after starting the vehicle, refer to
the respective system warning light for additional information.
Note:Some warning lights are reconfigurable telltale (RTT) indicators.
These indicators display in the message center and function the same as
a warning light but does not display on startup.
Service engine soon:The service
engine soon indicator light
illuminates when the ignition is first
turned on to check the bulb and to
indicate whether the vehicle is ready for Inspection/Maintenance (I/M)
testing. Normally, the service engine soon light will stay on until the
engine is cranked, then turn itself off if no malfunctions are present.
However, if after 15 seconds the service engine soon light blinks eight
times, it means that the vehicle is not ready for I/M testing. See the
Readiness for Inspection/Maintenance (I/M) testingin the
Maintenance and Specificationschapter.
Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and contact your authorized dealer
as soon as possible.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Powertrain malfunction/reduced
power (RTT):Illuminates when a
powertrain or an AWD fault has
been detected. Contact your
authorized dealer as soon as possible.
Instrument Cluster
13
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Charging system (RTT):
Illuminates when the battery is not
charging properly. If it stays on
while the engine is running, there
may be a malfunction with the charging system. Contact your authorized
dealer as soon as possible. This indicates a problem with the electrical
system or a related component.
Engine oil pressure (RTT):
Illuminates when the oil pressure
falls below the normal range, refer
toEngine oilin theMaintenance
and Specificationschapter.
AdvanceTrac:Displays when the
AdvanceTrac/Traction control is
active. If the light remains on, have
the system serviced immediately,
refer to theDrivingchapter for more information.
AdvanceTracoff light:
Illuminates when
AdvanceTrac/Traction control has
been disabled by the driver. Refer to
theDrivingchapter for more
information.
Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTires, Wheels and Loadingchapter. When
the ignition is first turned to on, the light will illuminate for 3 seconds to
ensure the bulb is working. If the light does not turn on or begins to
flash, contact your authorized dealer as soon as possible. For more
information on this system, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter.
Low fuel (RTT):Illuminates when
the fuel level in the fuel tank is at
or near empty. Refer toFuel gauge
in this chapter.
OFF
Instrument Cluster
15
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

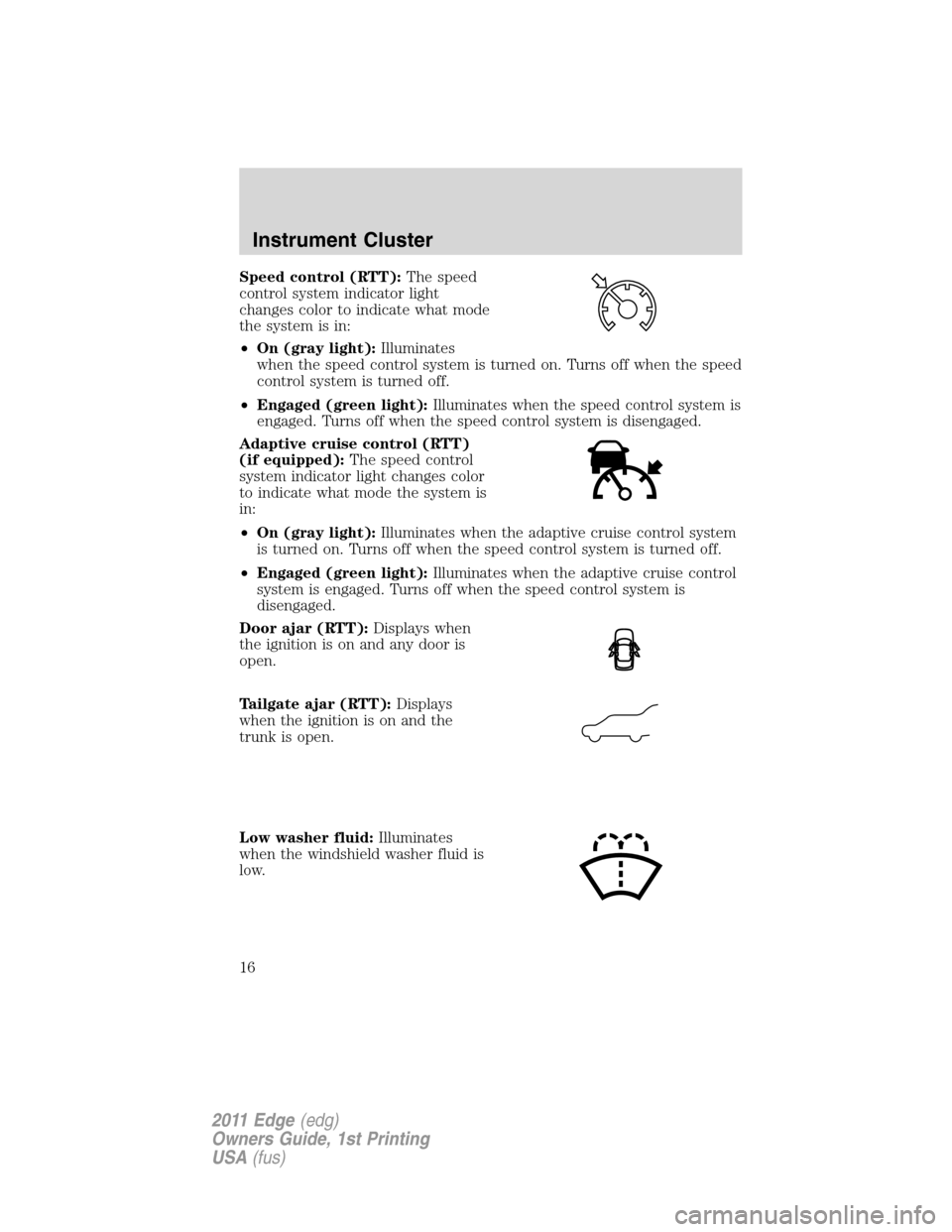

Speed control (RTT):The speed
control system indicator light
changes color to indicate what mode
the system is in:
•On (gray light):Illuminates
when the speed control system is turned on. Turns off when the speed
control system is turned off.
•Engaged (green light):Illuminates when the speed control system is
engaged. Turns off when the speed control system is disengaged.
Adaptive cruise control (RTT)
(if equipped):The speed control
system indicator light changes color
to indicate what mode the system is
in:
•On (gray light):Illuminates when the adaptive cruise control system
is turned on. Turns off when the speed control system is turned off.
•Engaged (green light):Illuminates when the adaptive cruise control
system is engaged. Turns off when the speed control system is
disengaged.
Door ajar (RTT):Displays when
the ignition is on and any door is
open.
Tailgate ajar (RTT):Displays
when the ignition is on and the
trunk is open.
Low washer fluid:Illuminates
when the windshield washer fluid is
low.
Instrument Cluster
16
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

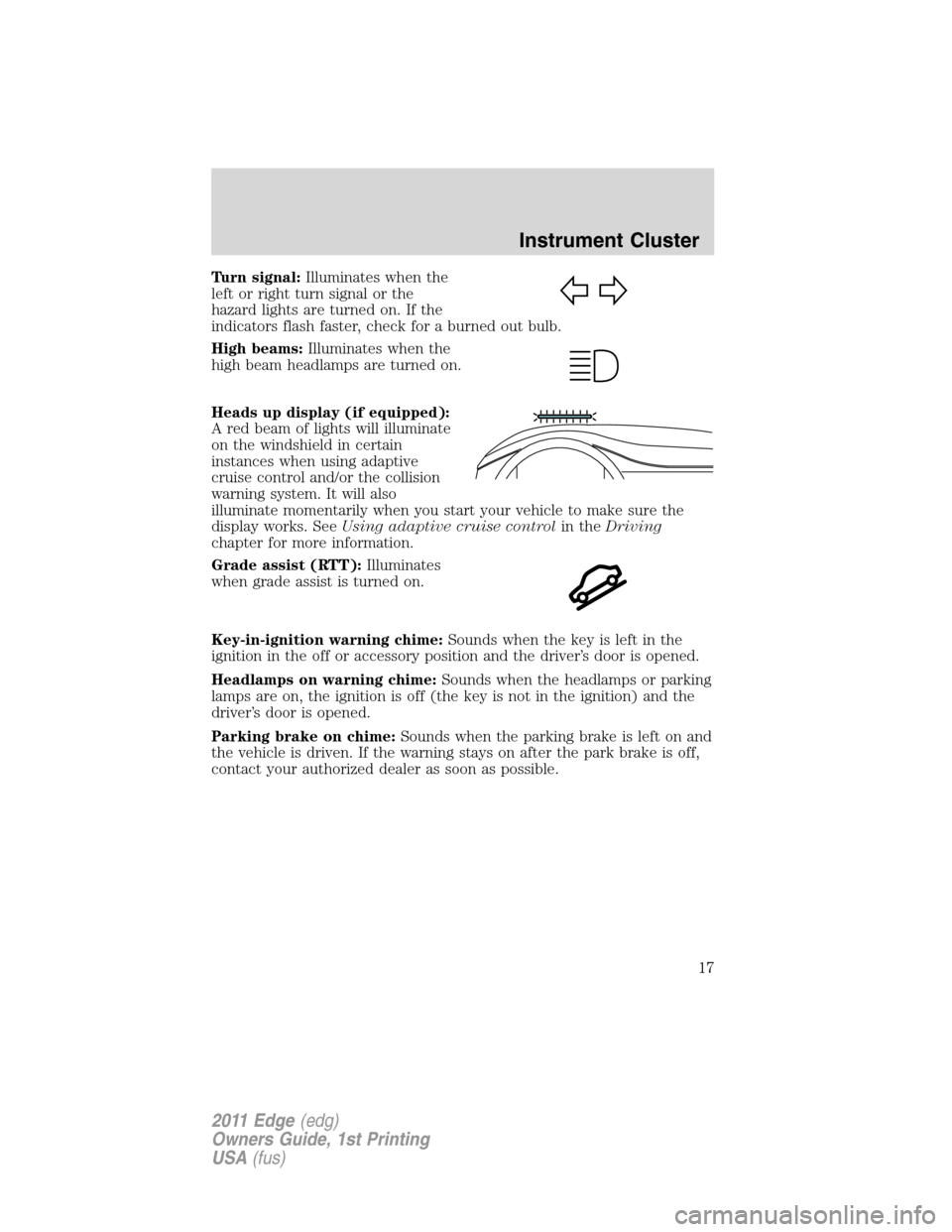

Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Heads up display (if equipped):
A red beam of lights will illuminate
on the windshield in certain
instances when using adaptive
cruise control and/or the collision
warning system. It will also
illuminate momentarily when you start your vehicle to make sure the
display works. SeeUsing adaptive cruise controlin theDriving
chapter for more information.
Grade assist (RTT):Illuminates
when grade assist is turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on chime:Sounds when the parking brake is left on and
the vehicle is driven. If the warning stays on after the park brake is off,
contact your authorized dealer as soon as possible.
Instrument Cluster
17
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

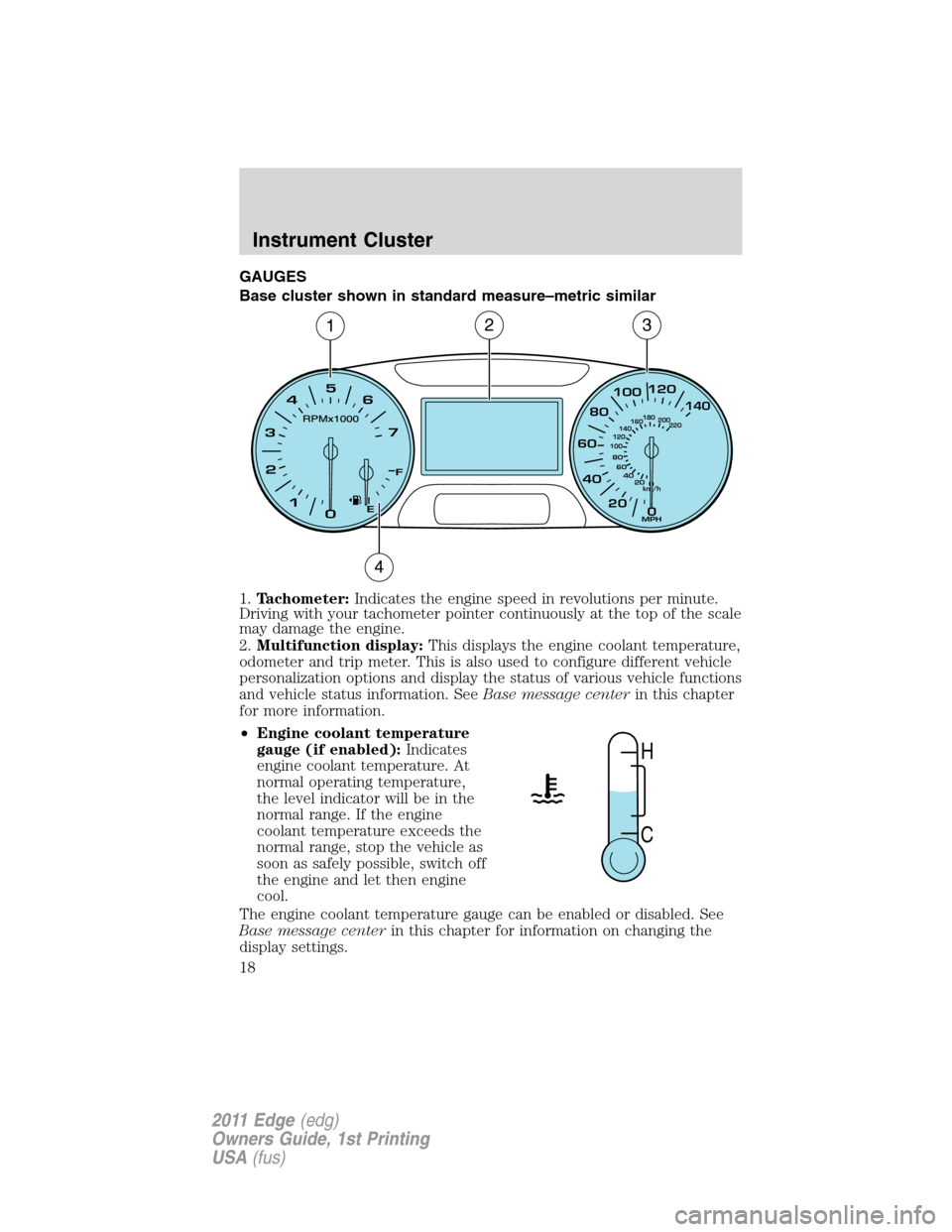

GAUGES
Base cluster shown in standard measure–metric similar
1.Tachometer:Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
2.Multifunction display:This displays the engine coolant temperature,
odometer and trip meter. This is also used to configure different vehicle
personalization options and display the status of various vehicle functions
and vehicle status information. SeeBase message centerin this chapter
for more information.
•Engine coolant temperature
gauge (if enabled):Indicates
engine coolant temperature. At
normal operating temperature,
the level indicator will be in the
normal range. If the engine
coolant temperature exceeds the
normal range, stop the vehicle as
soon as safely possible, switch off
the engine and let then engine
cool.
The engine coolant temperature gauge can be enabled or disabled. See
Base message centerin this chapter for information on changing the
display settings.
km/h
5
4
3
2
1
07
F
E
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
1001201406
MPH
132
4
H
C
Instrument Cluster
18
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

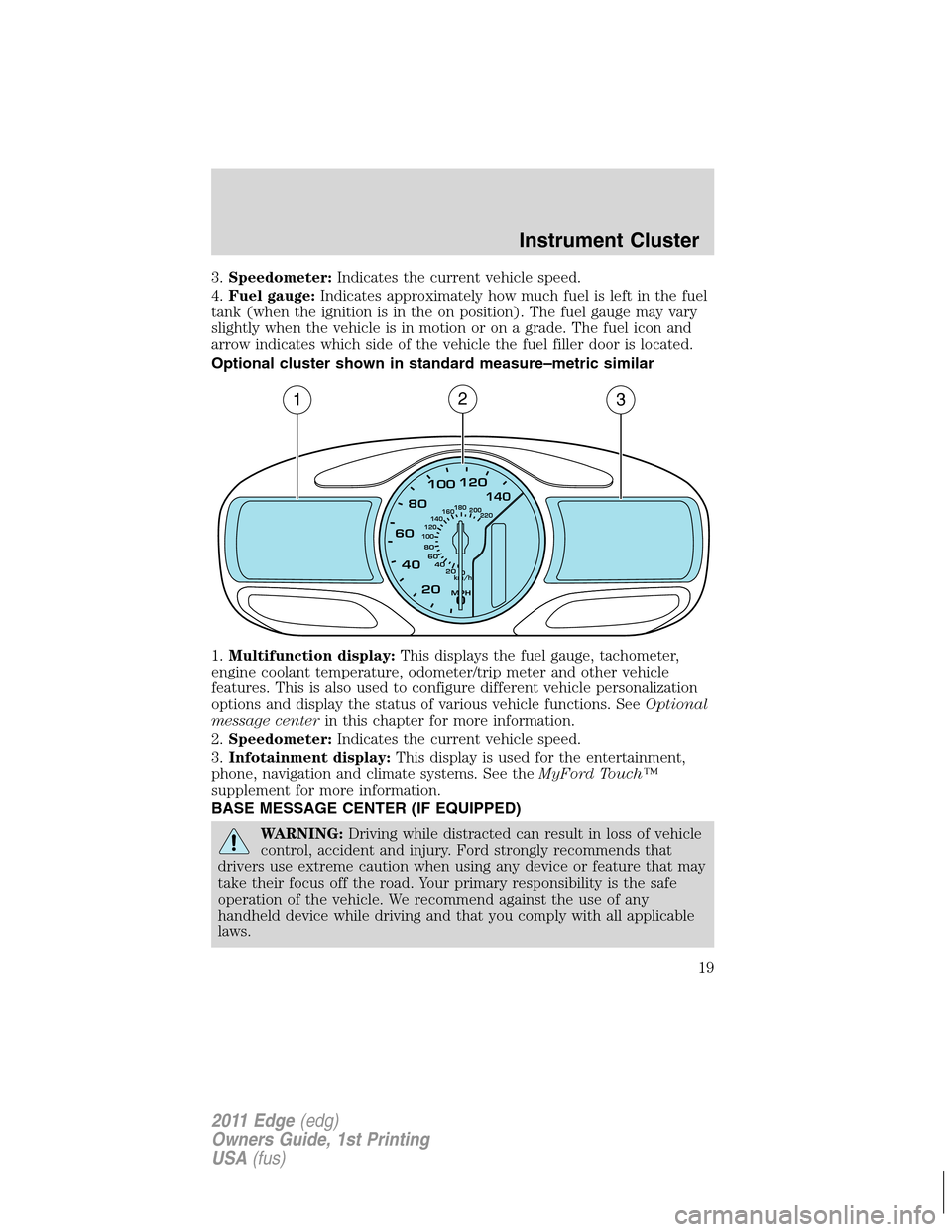

3.Speedometer:Indicates the current vehicle speed.
4.Fuel gauge:Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge may vary
slightly when the vehicle is in motion or on a grade. The fuel icon and
arrow indicates which side of the vehicle the fuel filler door is located.
Optional cluster shown in standard measure–metric similar
1.Multifunction display:This displays the fuel gauge, tachometer,
engine coolant temperature, odometer/trip meter and other vehicle
features. This is also used to configure different vehicle personalization
options and display the status of various vehicle functions. SeeOptional
message centerin this chapter for more information.
2.Speedometer:Indicates the current vehicle speed.
3.Infotainment display:This display is used for the entertainment,
phone, navigation and climate systems. See theMyFord Touch™
supplement for more information.
BASE MESSAGE CENTER (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
132
Instrument Cluster
19
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

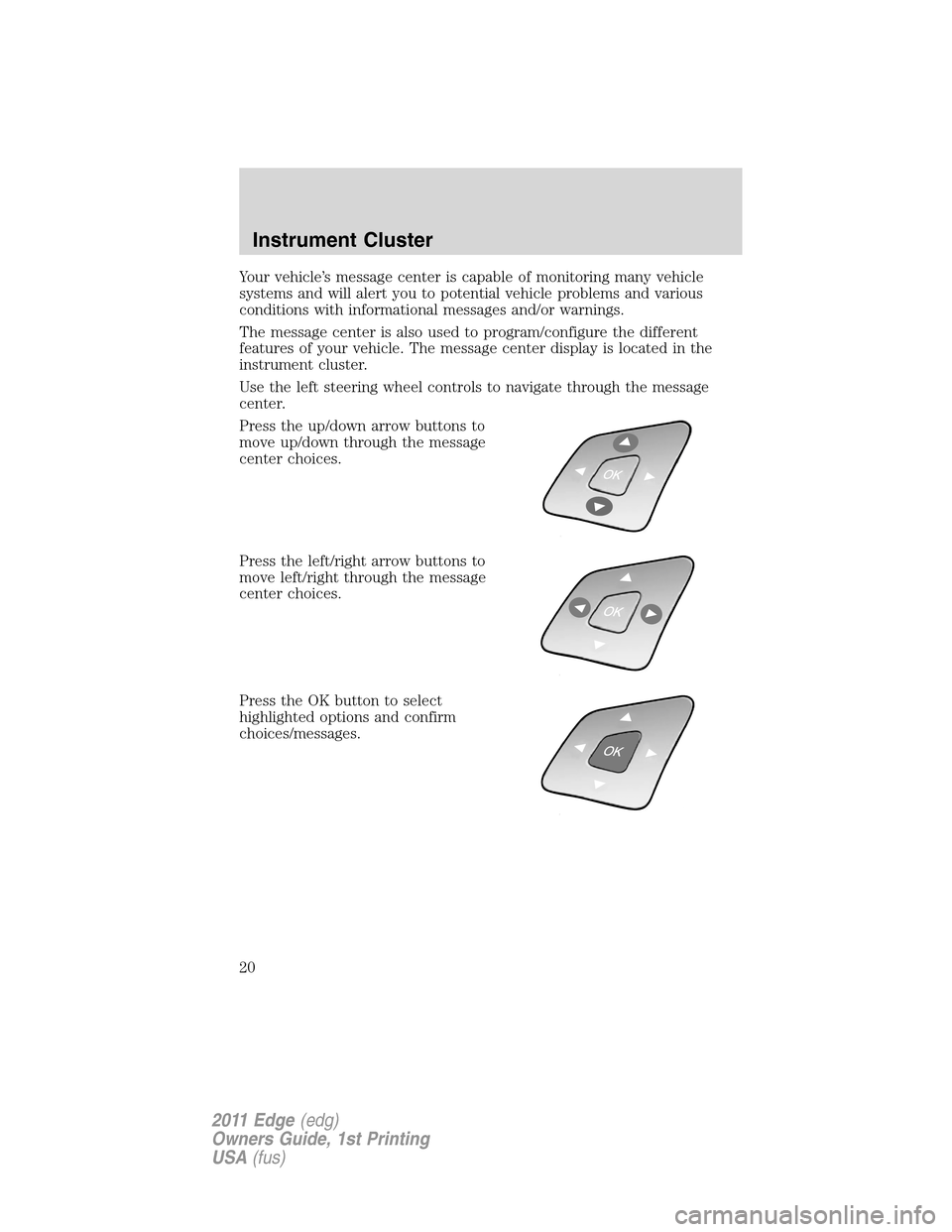

Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle. The message center display is located in the
instrument cluster.
Use the left steering wheel controls to navigate through the message
center.
Press the up/down arrow buttons to
move up/down through the message
center choices.
Press the left/right arrow buttons to
move left/right through the message
center choices.
Press the OK button to select
highlighted options and confirm
choices/messages.
Instrument Cluster
20
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

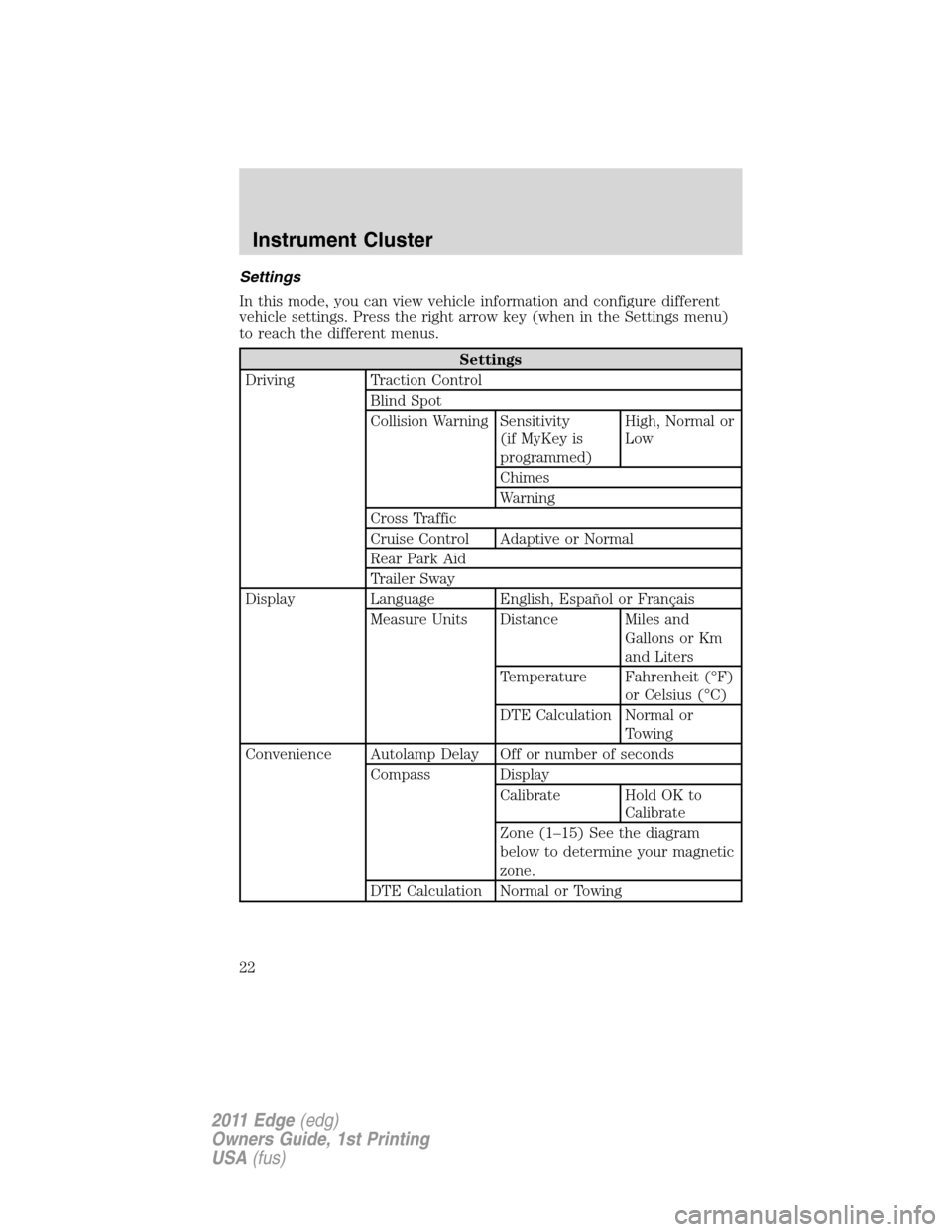

Settings
In this mode, you can view vehicle information and configure different
vehicle settings. Press the right arrow key (when in the Settings menu)
to reach the different menus.
Settings
Driving Traction Control
Blind Spot
Collision Warning Sensitivity
(if MyKey is
programmed)High, Normal or
Low
Chimes
Warning
Cross Traffic
Cruise Control Adaptive or Normal
Rear Park Aid
Trailer Sway
Display Language English, Español or Français
Measure Units Distance Miles and
Gallons or Km
and Liters
Temperature Fahrenheit (°F)
or Celsius (°C)
DTE Calculation Normal or
Towing
Convenience Autolamp Delay Off or number of seconds
Compass Display
Calibrate Hold OK to
Calibrate
Zone (1–15) See the diagram
below to determine your magnetic
zone.
DTE Calculation Normal or Towing
Instrument Cluster
22
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

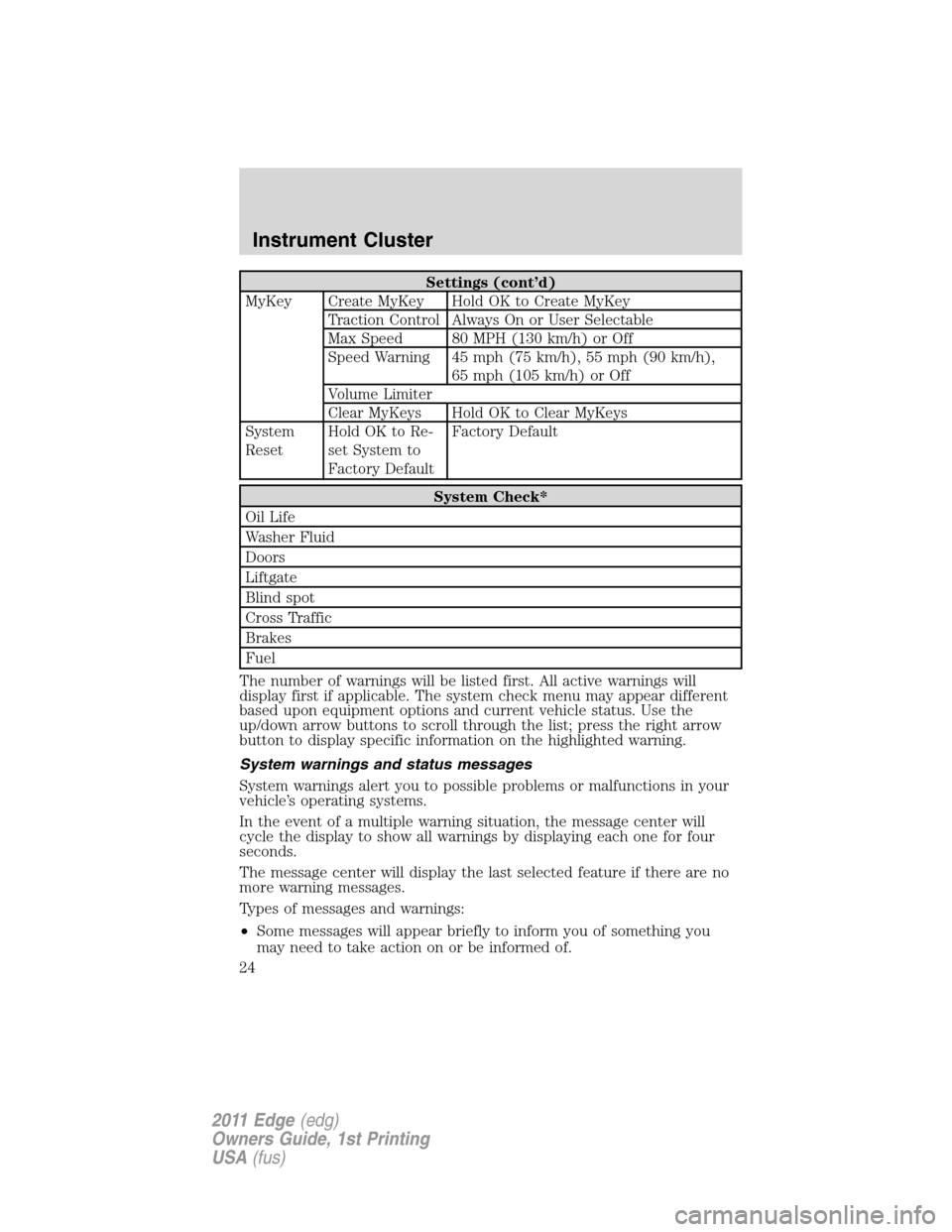

Settings (cont’d)
MyKey Create MyKey Hold OK to Create MyKey
Traction Control Always On or User Selectable
Max Speed 80 MPH (130 km/h) or Off
Speed Warning 45 mph (75 km/h), 55 mph (90 km/h),
65 mph (105 km/h) or Off
Volume Limiter
Clear MyKeys Hold OK to Clear MyKeys
System
ResetHold OK to Re-
set System to
Factory DefaultFactory Default
System Check*
Oil Life
Washer Fluid
Doors
Liftgate
Blind spot
Cross Traffic
Brakes
Fuel
The number of warnings will be listed first. All active warnings will
display first if applicable. The system check menu may appear different
based upon equipment options and current vehicle status. Use the
up/down arrow buttons to scroll through the list; press the right arrow
button to display specific information on the highlighted warning.
System warnings and status messages
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Types of messages and warnings:
•Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
Instrument Cluster
24
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

•Some messages will appear once and then again when the vehicle is
restarted.
•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
•Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
DRIVER DOOR AJAR— Displayed when the driver door is not
completely closed.
LIFTGATE AJAR— Displayed when the liftgate is not completely
closed.
PASSENGER DOOR AJAR— Displayed when the passenger door is
not completely closed.
REAR LEFT DOOR AJAR— Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR— Displayed when the rear right door is
not completely closed.
CHECK FUEL FILL INLET— Displayed when the fuel fill inlet may
not be properly closed. Refer toEasy Fuel™ “no cap” fuel systemin
theMaintenance and Specificationschapter.
FUEL LEVEL LOW XXX KM TO E— Displayed as an early reminder
of a low fuel condition.
FUEL LEVEL LOW XXX MI TO E— Displayed as an early reminder
of a low fuel condition.
BRAKE FLUID LEVEL LOW— Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer toBrake
fluidin theMaintenance and Specificationschapter.
CHECK BRAKE SYSTEM— Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
PARK BRAKE ENGAGED— Displayed when the parking brake is set,
the engine is running and the vehicle is driven more than 3mph
(5 km/h). If the warning stays on after the parking brake is released,
contact your authorized dealer as soon as possible.
SERVICE ADVANCETRAC— Displayed when the AdvanceTrac
system has detected a condition that requires service. Contact your
authorized dealer as soon as possible.
Instrument Cluster
25
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
