Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

GAUGES
Base cluster shown in standard measure–metric similar
1.Tachometer:Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
2.Multifunction display:This displays the engine coolant temperature,
odometer and trip meter. This is also used to configure different vehicle
personalization options and display the status of various vehicle functions
and vehicle status information. SeeBase message centerin this chapter
for more information.
•Engine coolant temperature
gauge (if enabled):Indicates
engine coolant temperature. At
normal operating temperature,
the level indicator will be in the
normal range. If the engine
coolant temperature exceeds the
normal range, stop the vehicle as
soon as safely possible, switch off
the engine and let then engine
cool.
The engine coolant temperature gauge can be enabled or disabled. See
Base message centerin this chapter for information on changing the
display settings.
km/h
5
4
3
2
1
07
F
E
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
1001201406
MPH
132
4
H
C
Instrument Cluster
18
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

3.Speedometer:Indicates the current vehicle speed.
4.Fuel gauge:Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge may vary
slightly when the vehicle is in motion or on a grade. The fuel icon and
arrow indicates which side of the vehicle the fuel filler door is located.
Optional cluster shown in standard measure–metric similar
1.Multifunction display:This displays the fuel gauge, tachometer,
engine coolant temperature, odometer/trip meter and other vehicle
features. This is also used to configure different vehicle personalization
options and display the status of various vehicle functions. SeeOptional
message centerin this chapter for more information.
2.Speedometer:Indicates the current vehicle speed.
3.Infotainment display:This display is used for the entertainment,
phone, navigation and climate systems. See theMyFord Touch™
supplement for more information.
BASE MESSAGE CENTER (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
132
Instrument Cluster
19
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

CHECK CHARGING SYSTEM— Displayed when the charging system
needs servicing. If the warning stays on or continues to come on, contact
your authorized dealer as soon as possible.
SHIFT TO PARK— Displayed when the start/stop button is pressed to
shut off the engine with the shift select lever in any position other than
P (Park). Refer toFast restart featureinPush button start systemin
theDrivingchapter for more information.
LOW ENGINE OIL PRESSURE— Stop the vehicle as soon as safely
possible, turn off the engine. Check the oil level. SeeChecking the
engine oilin theMaintenance and Specificationschapter. If the
warning stays on or continues to come on, contact your authorized
dealer as soon as possible.
CHANGE ENGINE OIL SOON— Displayed when the engine oil life
remaining is 10% or less.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%.
ENGINE COOLANT OVER TEMP— Displayed when the engine
coolant temperature is excessively high.
WASHER FLUID LEVEL LOW— Indicates the washer fluid reservoir
is less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluidin theMaintenance and Specifications
chapter.
LOW TIRE PRESSURE— Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInflating Your Tiresin the
Tires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT— Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT— Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS)in the
Tires, Wheels and Loadingchapter. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
BUCKLE UP TO UNMUTE AUDIO— Displayed when a MyKey™ is in
use and Belt-Minderis activated. Refer toMyKey™in theLocks and
Securitychapter for more information.
Instrument Cluster
26
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

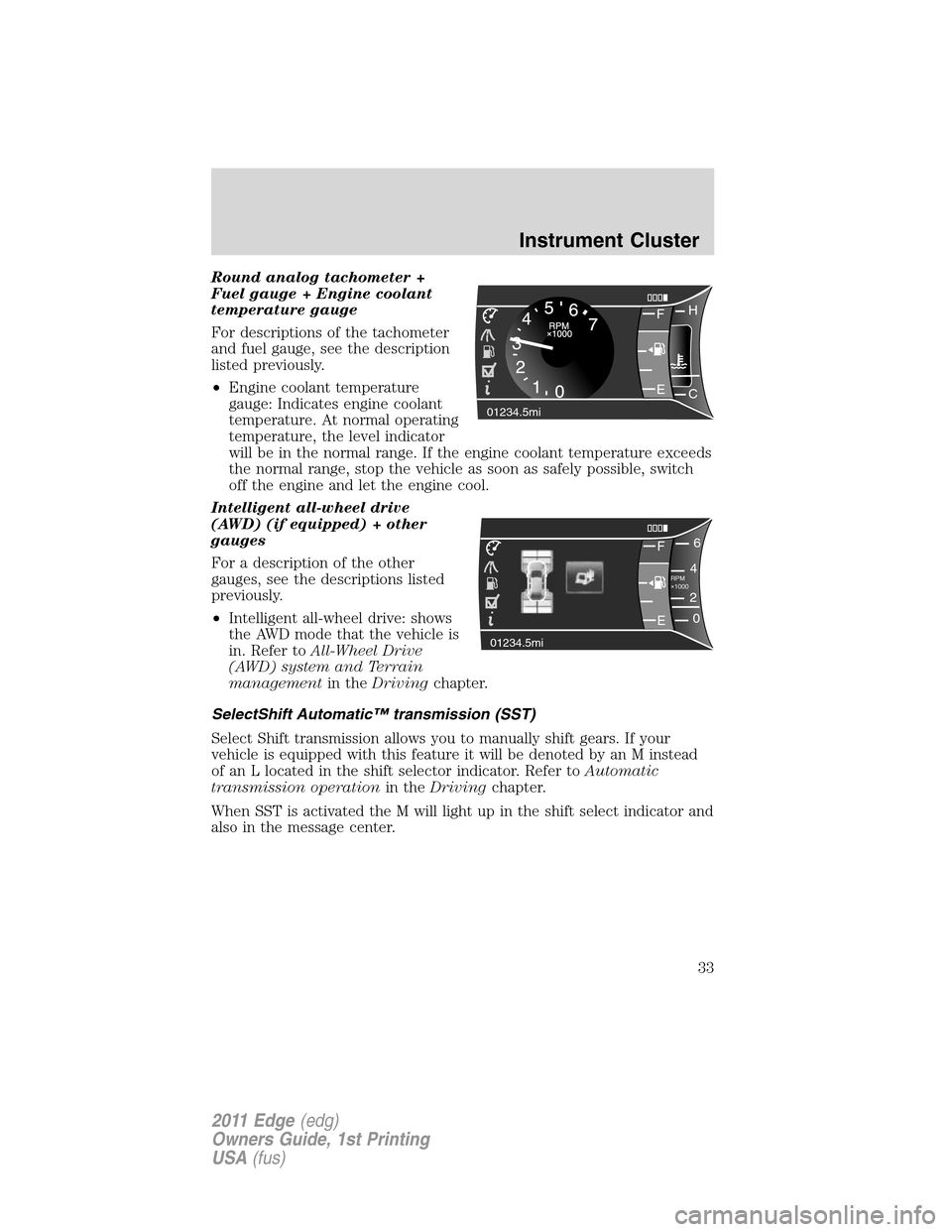

Round analog tachometer +
Fuel gauge + Engine coolant
temperature gauge
For descriptions of the tachometer
and fuel gauge, see the description
listed previously.
•Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the level indicator
will be in the normal range. If the engine coolant temperature exceeds
the normal range, stop the vehicle as soon as safely possible, switch
off the engine and let the engine cool.
Intelligent all-wheel drive
(AWD) (if equipped) + other
gauges
For a description of the other
gauges, see the descriptions listed
previously.
•Intelligent all-wheel drive: shows
the AWD mode that the vehicle is
in. Refer toAll-Wheel Drive
(AWD) system and Terrain
managementin theDrivingchapter.
SelectShift Automatic™ transmission (SST)
Select Shift transmission allows you to manually shift gears. If your
vehicle is equipped with this feature it will be denoted by an M instead
of an L located in the shift selector indicator. Refer toAutomatic
transmission operationin theDrivingchapter.
When SST is activated the M will light up in the shift select indicator and
also in the message center.
01234.5mi
FH
C E
F6
4
RPM
1000+2
0
01234.5mi
E
Instrument Cluster
33
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

CHANGE ENGINE OIL SOON— Displayed when the engine oil life
remaining is 10% or less.
ENGINE COOLANT OVER TEMP— Displayed when the engine
coolant temperature is excessively high.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%.
WASHER FLUID LEVEL LOW— Indicates the washer fluid reservoir
is less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluidin theMaintenance and Specifications
chapter.
LOW TIRE PRESSURE— Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInflating Your Tiresin the
Tires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT— Displayed when the tire
pressure monitoring system is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT— Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS)in the
Tires, Wheels and Loadingchapter. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
POWER STEERING ASSIST FAULT— The power steering system
has disabled power steering assist due to a system error; service is
required.
CHECK ADAPTIVE HEADLAMPS (if equipped)— Displayed when
an error is detected in the adaptive headlamps system.
BUCKLE UP TO UNMUTE AUDIO— Displayed when a MyKey™ is in
use and Belt-Minderis activated. Refer toMyKey™in theLocks and
Securitychapter for more information.
REMOVE OBJECTS NEAR PASS SEAT— Displayed when objects
are by the passenger seat. After the objects are moved away from the
seat, if the warning stays on or continues to come on contact your
authorized dealer as soon as possible.
AWD OFF (if equipped)— Displayed when the AWD system has been
automatically disabled to protect itself. This is caused by operating the
Instrument Cluster
42
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Whenever a door is opened and then closed while the vehicle is running,
the system will search for an IA key inside the vehicle and the message
center will display NO KEY DETECTED if the IA key is no longer
present. This message is a reminder that someone else in the vehicle
may have taken the IA key when exiting the vehicle. If the IA key is no
longer present in the vehicle, you will not be able to re-start your vehicle
outside of the Fast Restart time (seeFast Restart Featureabove).
Note:It is important to be aware of where your IA key is located in the
vehicle, to avoid becoming stranded without an IA key.
Your vehicle may have remote start capability. Refer toRemote entry
systemin theLocks and Securitychapter.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least 1 inch (2.5 cm) or adjust the heating or
air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and allows the heater/defroster system to respond quickly. If your vehicle
is equipped with this system, your equipment includes a heater element
which is installed in your engine block and a wire harness which allows
the user to connect the system to a grounded 120 volt A/C electrical
source. The block heater system is most effective when outdoor
temperatures reach below 0°F (-18°C).
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:To reduce the risk of electrical shock, do not use
your heater with ungrounded electrical systems or two-pronged
(cheater) adapters.
Driving
248
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

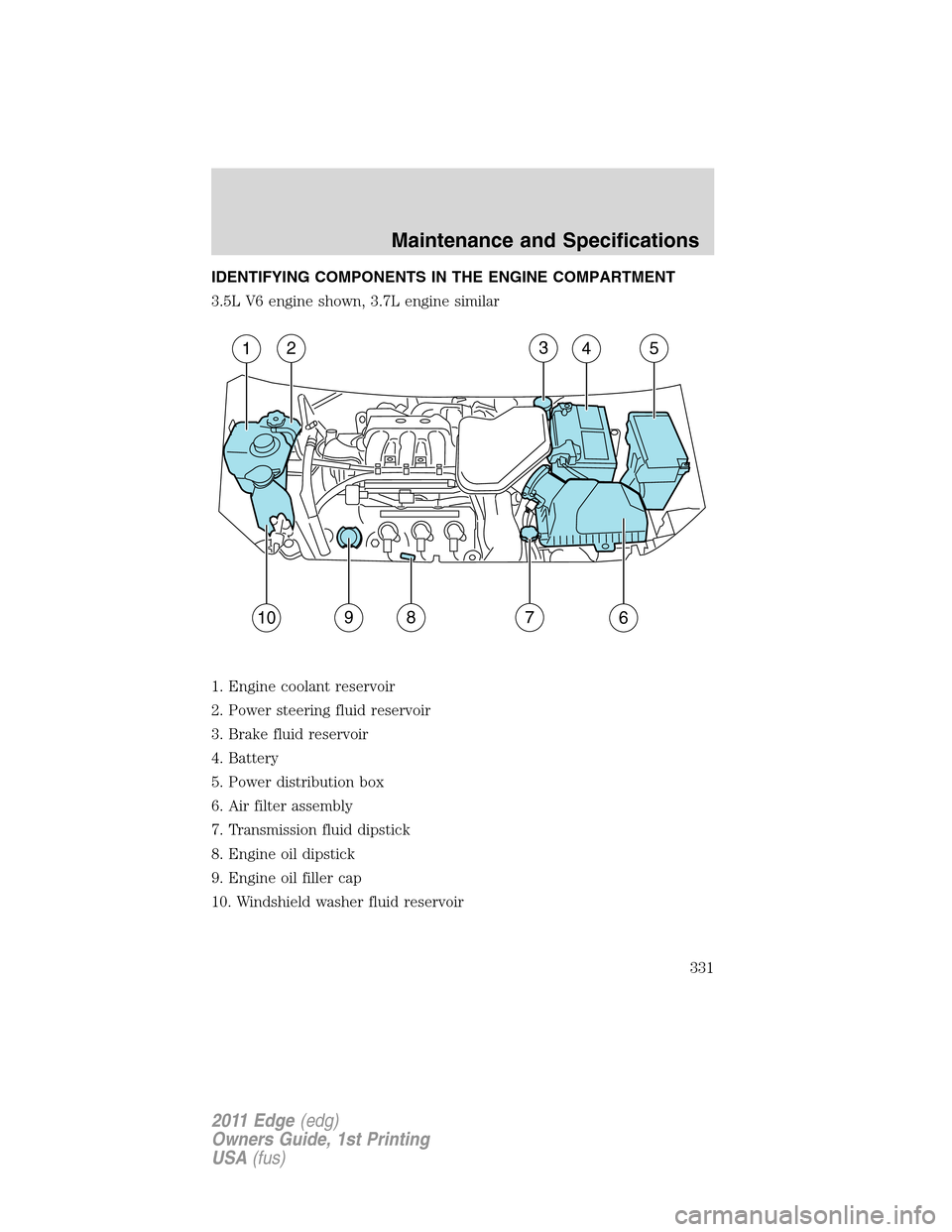

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.5L V6 engine shown, 3.7L engine similar
1. Engine coolant reservoir
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Battery
5. Power distribution box
6. Air filter assembly
7. Transmission fluid dipstick
8. Engine oil dipstick
9. Engine oil filler cap
10. Windshield washer fluid reservoir
1
8
2345
67910
Maintenance and Specifications
331
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
338
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
