CD player FORD EDGE 2011 1.G Owners Manual

Satellite radio information (if activated)
SIRIUSsatellite radio service:
SIRIUSsatellite radio is a
subscription based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory installed SIRIUS
satellite radio system includes: hardware and a limited subscription term
which begins on the date of sale or lease of the vehicle. Refer to your
authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit www.sirius.com in
the United States, www.sirius-canada.ca in Canada, or call SIRIUSat
1–888–539–7474.
Satellite radio reception factors
•Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
You will hear an audio mute when there is a satellite radio signal
interference. Your display may showAcquiring...to indicate the
interference.
Satellite radio electronic serial number (ESN):You will need your
ESN to activate, modify or track your satellite radio account. The ESN is
found on the System Information Screen (SR ESN:XXXXXXXXXXXX).
To access your ESN, press MENU > SIRIUS >Show ESN or tune to
channel 0.
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Entertainment Systems
54
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

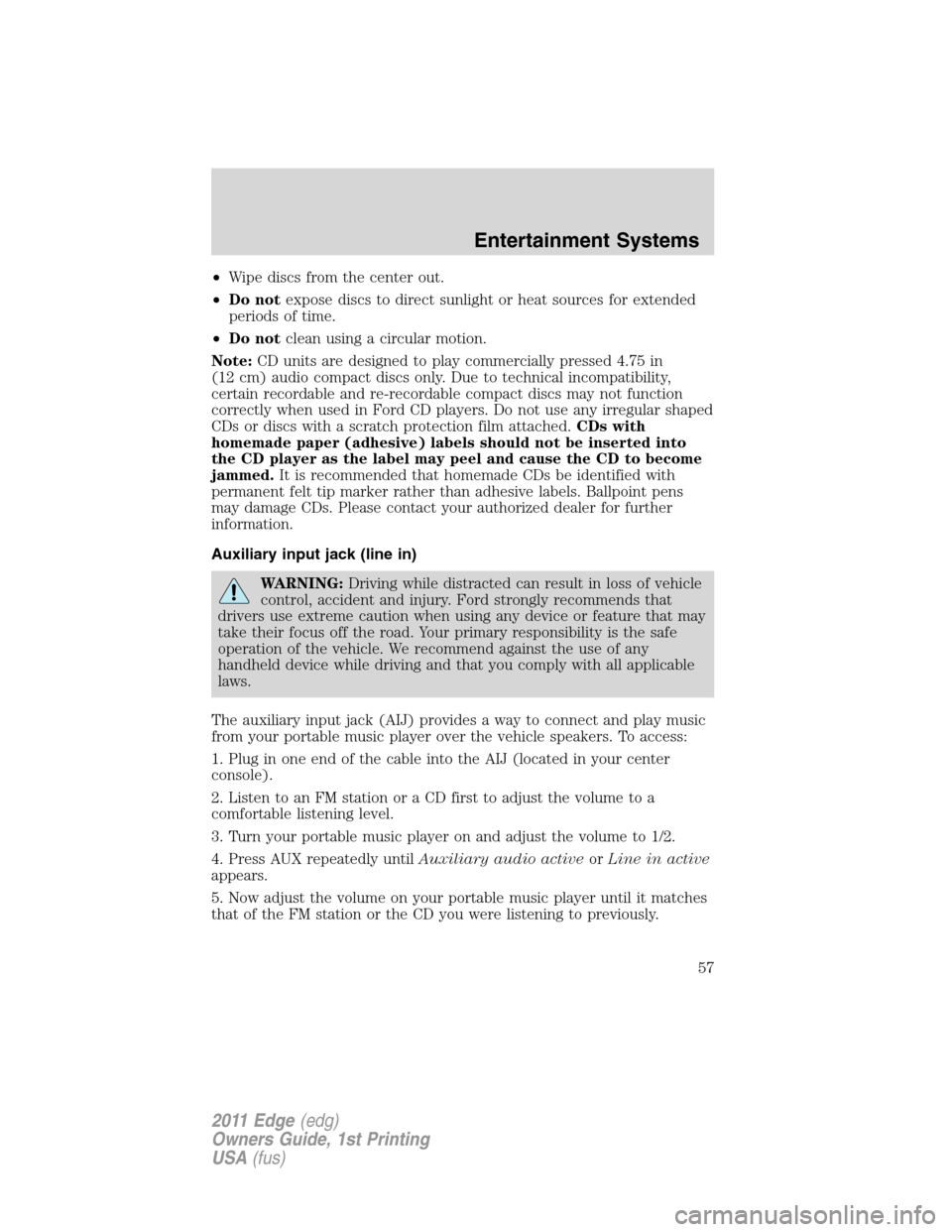

•Wipe discs from the center out.
•Do notexpose discs to direct sunlight or heat sources for extended
periods of time.
•Do notclean using a circular motion.
Note:CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not function
correctly when used in Ford CD players. Do not use any irregular shaped
CDs or discs with a scratch protection film attached.CDs with
homemade paper (adhesive) labels should not be inserted into
the CD player as the label may peel and cause the CD to become
jammed.It is recommended that homemade CDs be identified with
permanent felt tip marker rather than adhesive labels. Ballpoint pens
may damage CDs. Please contact your authorized dealer for further
information.
Auxiliary input jack (line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
The auxiliary input jack (AIJ) provides a way to connect and play music
from your portable music player over the vehicle speakers. To access:
1. Plug in one end of the cable into the AIJ (located in your center
console).
2. Listen to an FM station or a CD first to adjust the volume to a
comfortable listening level.
3. Turn your portable music player on and adjust the volume to 1/2.
4. Press AUX repeatedly untilAuxiliary audio activeorLine in active
appears.
5. Now adjust the volume on your portable music player until it matches
that of the FM station or the CD you were listening to previously.
Entertainment Systems
57
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

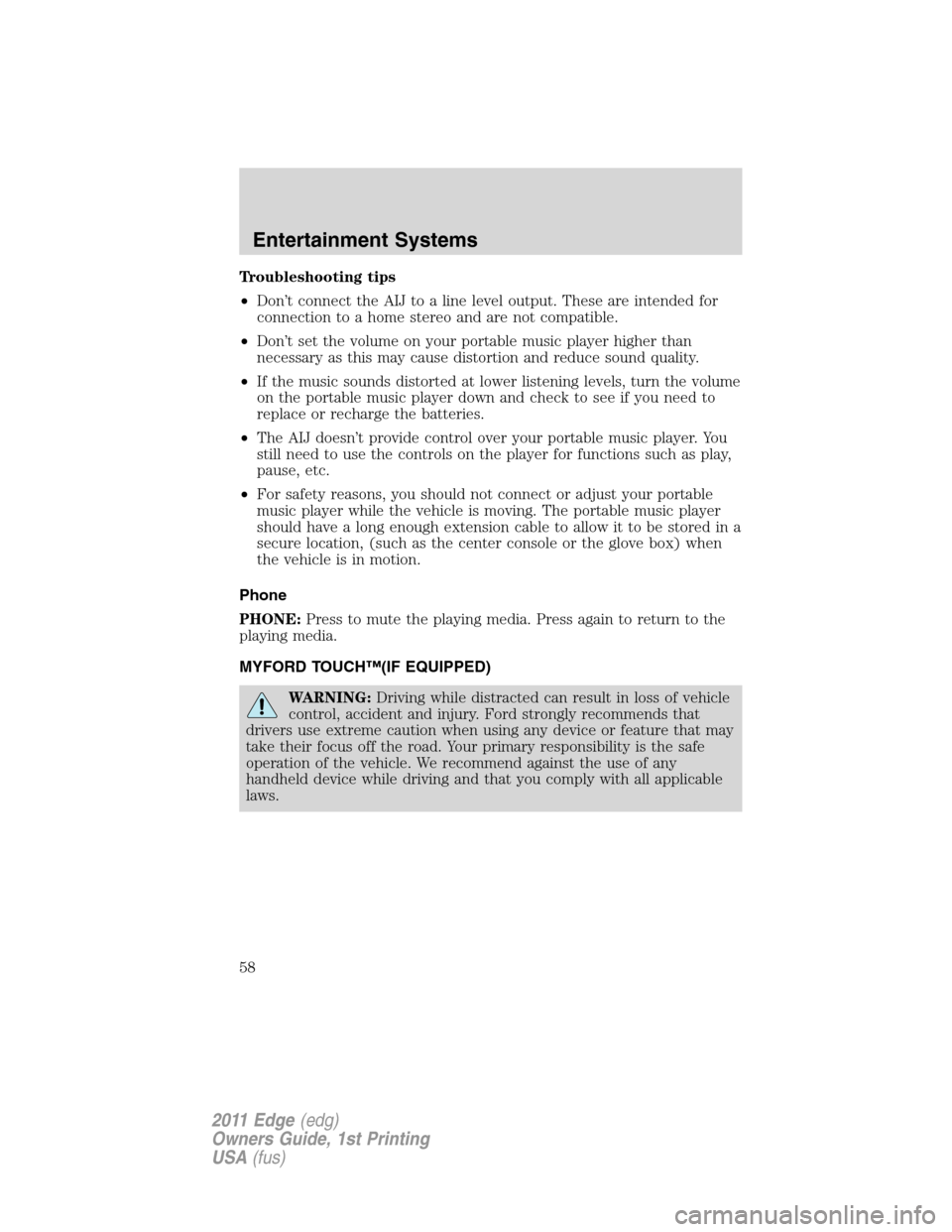

Troubleshooting tips
•Don’t connect the AIJ to a line level output. These are intended for
connection to a home stereo and are not compatible.
•Don’t set the volume on your portable music player higher than
necessary as this may cause distortion and reduce sound quality.
•If the music sounds distorted at lower listening levels, turn the volume
on the portable music player down and check to see if you need to
replace or recharge the batteries.
•The AIJ doesn’t provide control over your portable music player. You
still need to use the controls on the player for functions such as play,
pause, etc.
•For safety reasons, you should not connect or adjust your portable
music player while the vehicle is moving. The portable music player
should have a long enough extension cable to allow it to be stored in a
secure location, (such as the center console or the glove box) when
the vehicle is in motion.
Phone
PHONE:Press to mute the playing media. Press again to return to the
playing media.
MYFORD TOUCH™(IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Entertainment Systems
58
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
