keyless FORD EDGE 2012 1.G User Guide

Disarming the system
To disarm the system, do any of the following:
•Pressing the power door unlock control within the 20-second,
pre-armed mode will disarm the system.
•Unlock the doors by pressing unlock
on the remote entry
transmitter.
•Unlock the doors by using your keyless entry pad.
•Enter the vehicle using intelligent access (if equipped).
•Turn the ignition on with a valid key (if equipped with IKT only).
•Press the panic control
on the remote entry transmitter. The alarm
system will still be armed, but this shuts off the horn and turn lamps
when the alarm is sounding.
•Unlock the doors using a key. If you use this method the system will
not disarm, but you will have an opportunity to disarm the vehicle
once entered. See the Note following.
Note:If the driver’s door is unlocked with a key, a chime will sound
when you open the door and the message center will displayTO STOP
ALARM START VEHICLE. When this occurs, you will have 12 seconds
to disarm the alarm using any of the actions above, otherwise the alarm
will trigger.
Perimeter alarm issues
If there seems to be a potential perimeter alarm system problem with
your vehicle, ensureALLkeys/remote entry transmitters are brought to
your authorized dealer to aid in troubleshooting.
Locks and Security
141
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

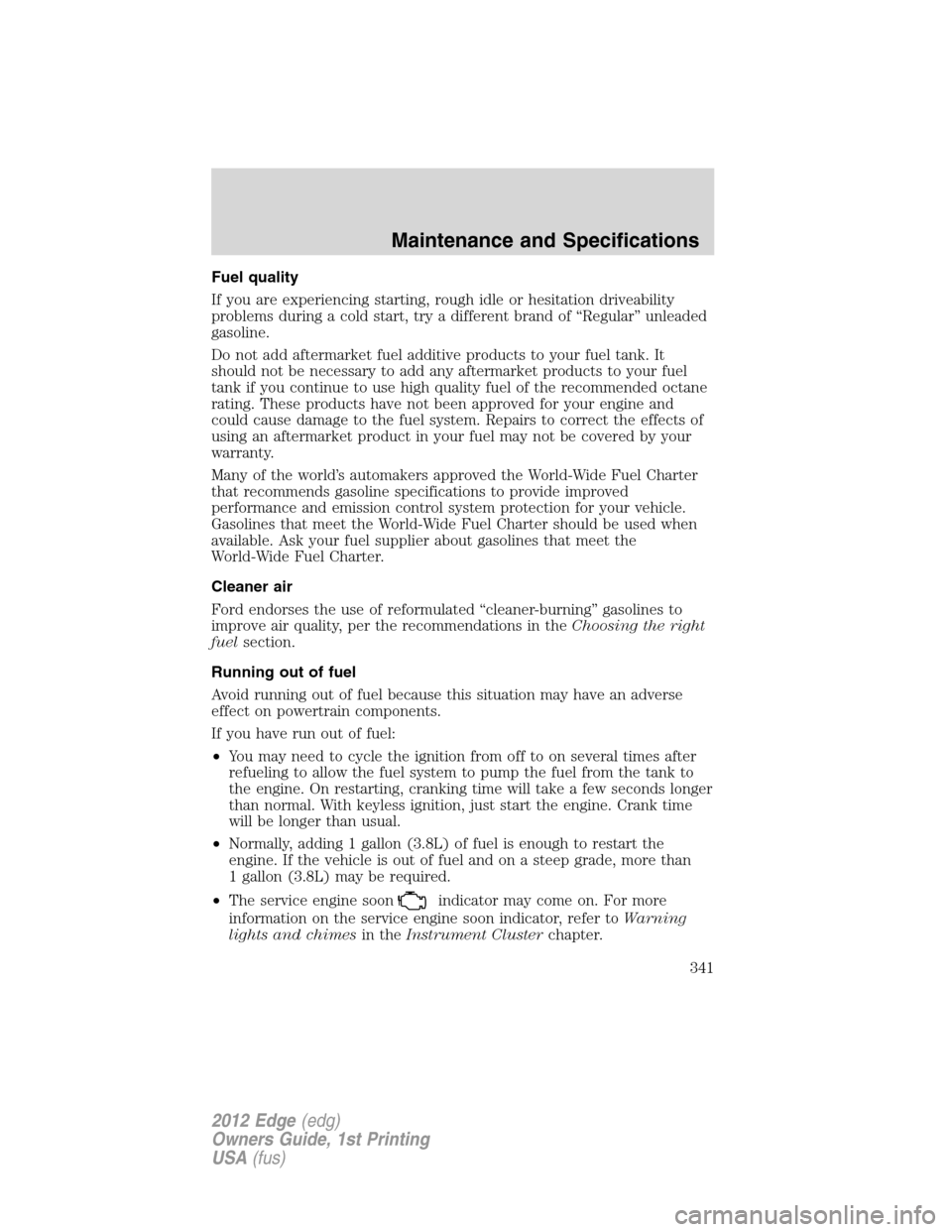

Fuel quality
If you are experiencing starting, rough idle or hesitation driveability
problems during a cold start, try a different brand of “Regular” unleaded
gasoline.
Do not add aftermarket fuel additive products to your fuel tank. It
should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
rating. These products have not been approved for your engine and
could cause damage to the fuel system. Repairs to correct the effects of
using an aftermarket product in your fuel may not be covered by your
warranty.
Many of the world’s automakers approved the World-Wide Fuel Charter
that recommends gasoline specifications to provide improved
performance and emission control system protection for your vehicle.
Gasolines that meet the World-Wide Fuel Charter should be used when
available. Ask your fuel supplier about gasolines that meet the
World-Wide Fuel Charter.
Cleaner air
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the right
fuelsection.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal. With keyless ignition, just start the engine. Crank time
will be longer than usual.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than
1 gallon (3.8L) may be required.
•The service engine soon
indicator may come on. For more
information on the service engine soon indicator, refer toWarning
lights and chimesin theInstrument Clusterchapter.
Maintenance and Specifications
341
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Peace of mind
•Remote start•Wheel locks
•Keyless entry keypad•Vehicle tracking and recovery*
•Cargo security shade•Locking fuel plug
•Vehicle security•Cargo area protector
•Bumper protector
•Bumper and hitch mounted parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
Accessories
365
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

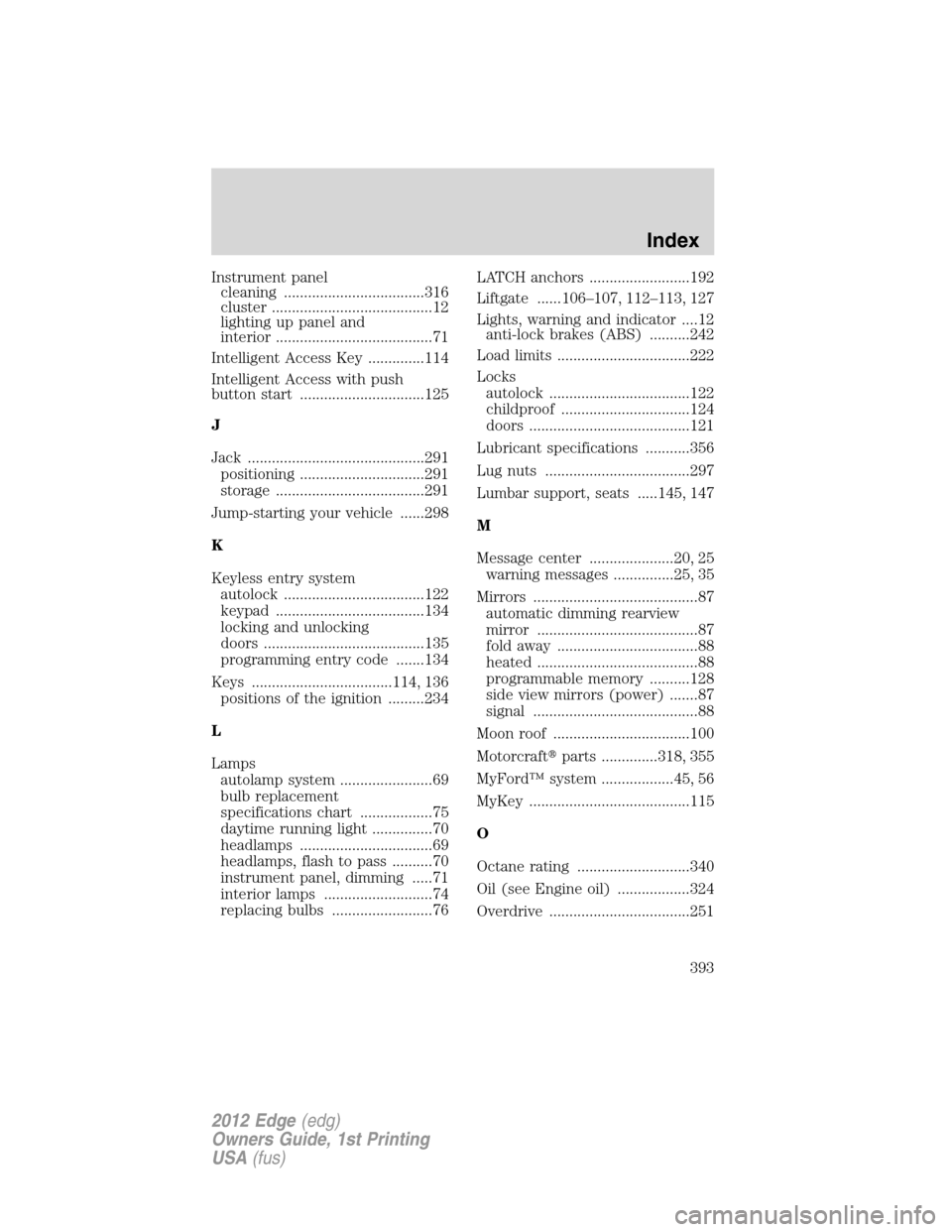

Instrument panel
cleaning ...................................316
cluster ........................................12
lighting up panel and
interior .......................................71
Intelligent Access Key ..............114
Intelligent Access with push
button start ...............................125
J
Jack ............................................291
positioning ...............................291
storage .....................................291
Jump-starting your vehicle ......298
K
Keyless entry system
autolock ...................................122
keypad .....................................134
locking and unlocking
doors ........................................135
programming entry code .......134
Keys ...................................114, 136
positions of the ignition .........234
L
Lamps
autolamp system .......................69
bulb replacement
specifications chart ..................75
daytime running light ...............70
headlamps .................................69
headlamps, flash to pass ..........70
instrument panel, dimming .....71
interior lamps ...........................74
replacing bulbs .........................76LATCH anchors .........................192
Liftgate ......106–107, 112–113, 127
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........242
Load limits .................................222
Locks
autolock ...................................122
childproof ................................124
doors ........................................121
Lubricant specifications ...........356
Lug nuts ....................................297
Lumbar support, seats .....145, 147
M
Message center .....................20, 25
warning messages ...............25, 35
Mirrors .........................................87
automatic dimming rearview
mirror ........................................87
fold away ...................................88
heated ........................................88
programmable memory ..........128
side view mirrors (power) .......87
signal .........................................88
Moon roof ..................................100
Motorcraftparts ..............318, 355
MyFord™ system ..................45, 56
MyKey ........................................115
O
Octane rating ............................340
Oil (see Engine oil) ..................324
Overdrive ...................................251
Index
393
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

front seats .......................144, 147
memory seat ...................128, 148
Second-row power fold seat ....151
SecuriCode keyless entry
system ........................................134
SecuriLock passive anti-theft
system ........................................136
Servicing your vehicle ..............319
Setting the clock .........................46
SOS Post Crash Alert ...............183
Spare tire (see Changing
the Tire) ....................................294
Spark plugs,
specifications .....................355, 360
Specification chart,
lubricants ...................................356
Speed control ..............................89
Starting your vehicle ........234–236
jump starting ..........................298
push button start system .......237
Steering wheel
controls ......................................98
tilting .........................................82
T
Tilt steering wheel ......................82
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....218
Tires ...........................203–205, 291
alignment ................................212
care ..........................................208
changing ..........................291, 294
checking the pressure ............208
inflating ...................................206
label .........................................217replacing ..................................209
rotating ....................................212
safety practices .......................211
sidewall information ...............213
snow tires and chains ............222
spare tire .........................292, 294
terminology .............................205
tire grades ...............................204
treadwear ........................204, 208
Towing .......................................229
recreational towing .................232
trailer towing ..........................229
wrecker ....................................302
Transmission .............................251
brake-shift interlock (BSI) ....250
fluid, checking and adding
(automatic) .....................349, 352
fluid, refill capacities ..............356
lubricant specifications ..........356
Turn signal ..................................73
U
Universal garage door
opener ........................................101
USB port ......................................55
V
Vehicle Identification Number
(VIN) ..........................................362
Vehicle loading ..........................222
Ventilating your vehicle ...........239
W
Warning lights (see Lights) .......12
Washer fluid ..............................323
Water, Driving through .............279
Index
395
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
