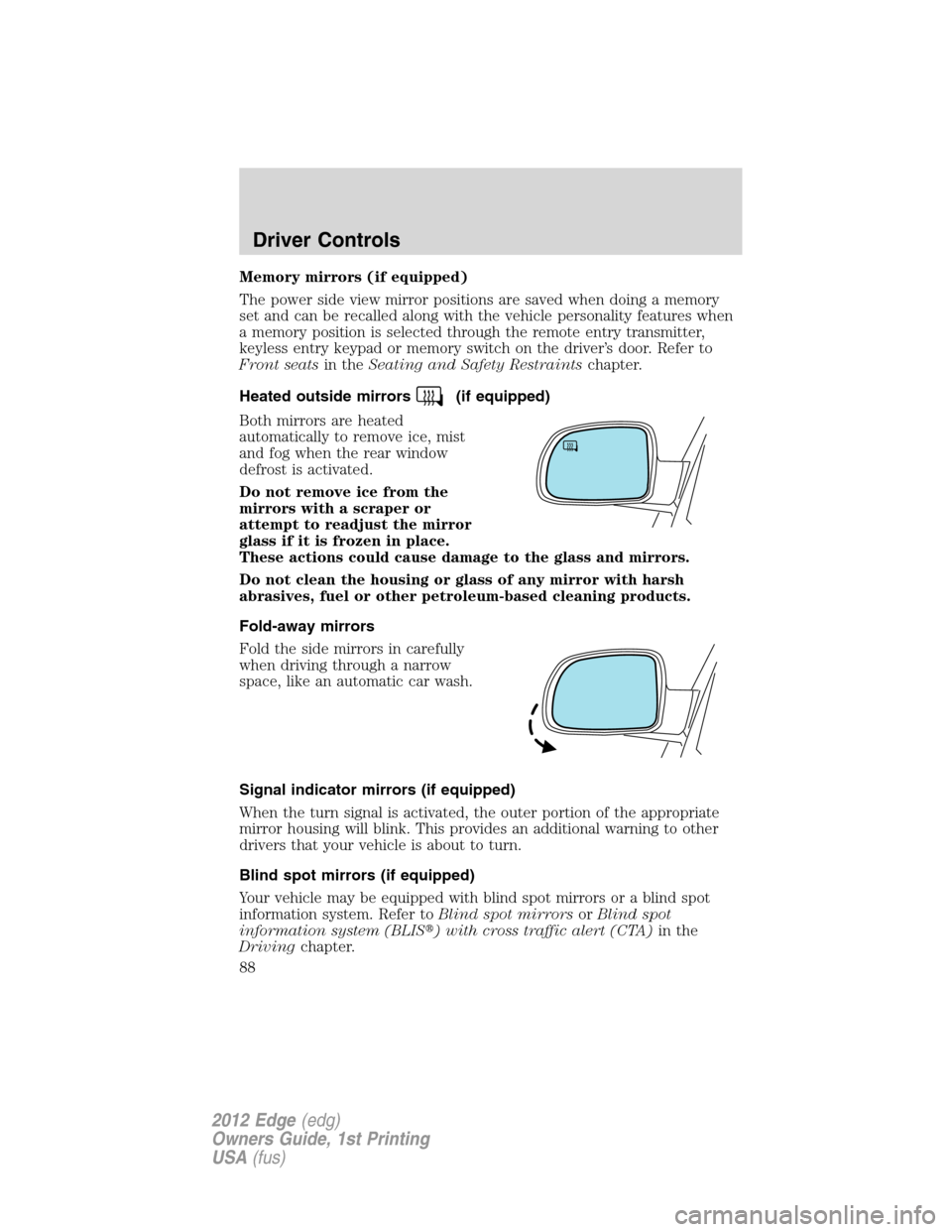

Memory mirrors (if equipped)
The power side view mirror positions are saved when doing a memory
set and can be recalled along with the vehicle personality features when
a memory position is selected through the remote entry transmitter,
keyless entry keypad or memory switch on the driver’s door. Refer to
Front seatsin theSeating and Safety Restraintschapter.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Fold-away mirrors
Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Signal indicator mirrors (if equipped)
When the turn signal is activated, the outer portion of the appropriate
mirror housing will blink. This provides an additional warning to other
drivers that your vehicle is about to turn.
Blind spot mirrors (if equipped)
Your vehicle may be equipped with blind spot mirrors or a blind spot
information system. Refer toBlind spot mirrorsorBlind spot
information system (BLIS) with cross traffic alert (CTA)in the
Drivingchapter.
Driver Controls
88
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

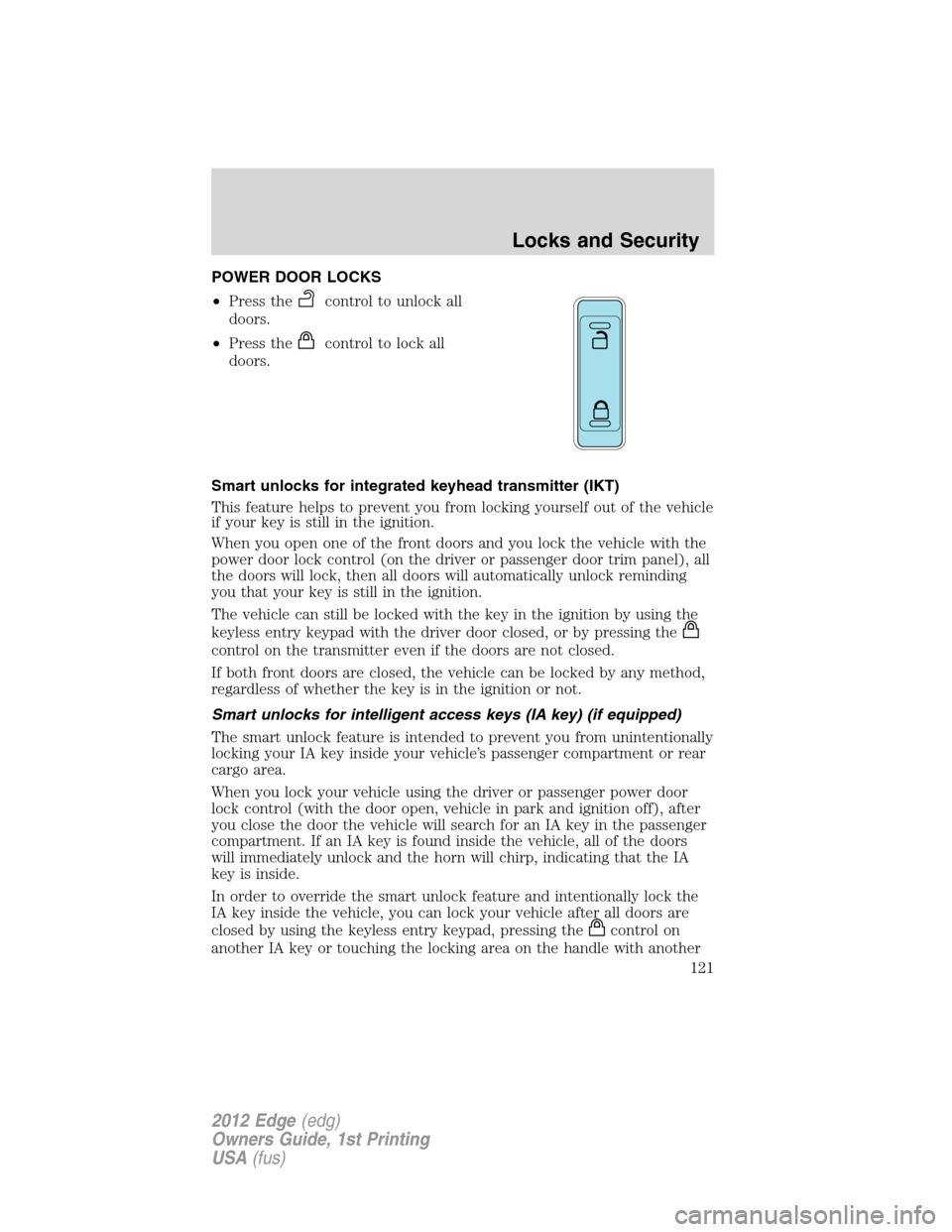

POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Smart unlocks for integrated keyhead transmitter (IKT)
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
The vehicle can still be locked with the key in the ignition by using the
keyless entry keypad with the driver door closed, or by pressing the
control on the transmitter even if the doors are not closed.
If both front doors are closed, the vehicle can be locked by any method,
regardless of whether the key is in the ignition or not.
Smart unlocks for intelligent access keys (IA key) (if equipped)
The smart unlock feature is intended to prevent you from unintentionally
locking your IA key inside your vehicle’s passenger compartment or rear
cargo area.
When you lock your vehicle using the driver or passenger power door
lock control (with the door open, vehicle in park and ignition off), after
you close the door the vehicle will search for an IA key in the passenger
compartment. If an IA key is found inside the vehicle, all of the doors
will immediately unlock and the horn will chirp, indicating that the IA
key is inside.
In order to override the smart unlock feature and intentionally lock the
IA key inside the vehicle, you can lock your vehicle after all doors are
closed by using the keyless entry keypad, pressing the
control on
another IA key or touching the locking area on the handle with another
Locks and Security
121
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

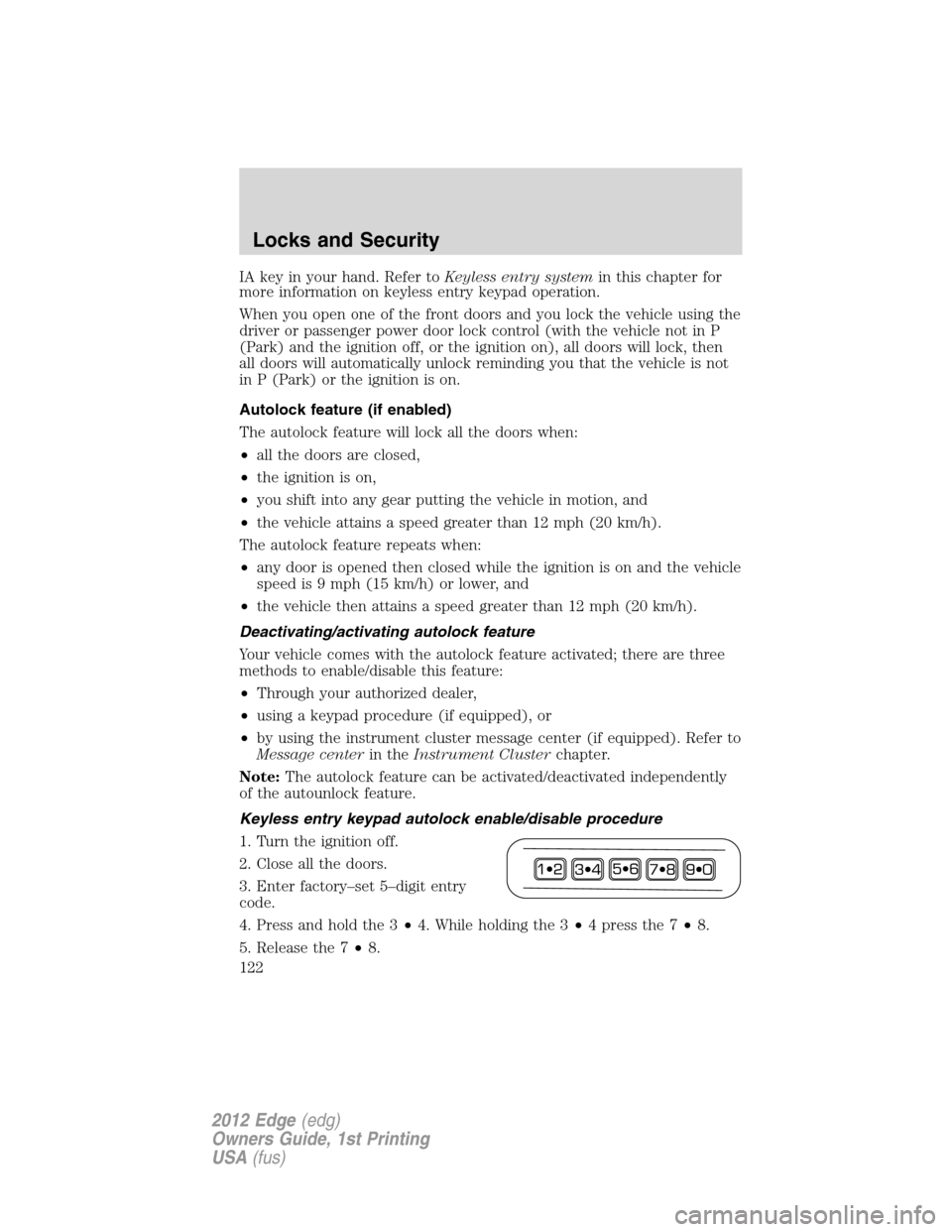

IA key in your hand. Refer toKeyless entry systemin this chapter for
more information on keyless entry keypad operation.
When you open one of the front doors and you lock the vehicle using the
driver or passenger power door lock control (with the vehicle not in P
(Park) and the ignition off, or the ignition on), all doors will lock, then
all doors will automatically unlock reminding you that the vehicle is not
in P (Park) or the ignition is on.
Autolock feature (if enabled)
The autolock feature will lock all the doors when:
•all the doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is on and the vehicle
speed is 9 mph (15 km/h) or lower, and
•the vehicle then attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock feature
Your vehicle comes with the autolock feature activated; there are three
methods to enable/disable this feature:
•Through your authorized dealer,
•using a keypad procedure (if equipped), or
•by using the instrument cluster message center (if equipped). Refer to
Message centerin theInstrument Clusterchapter.
Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Keyless entry keypad autolock enable/disable procedure
1. Turn the ignition off.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Press and hold the 3•4. While holding the 3•4pressthe7•8.
5. Release the 7•8.
Locks and Security
122
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

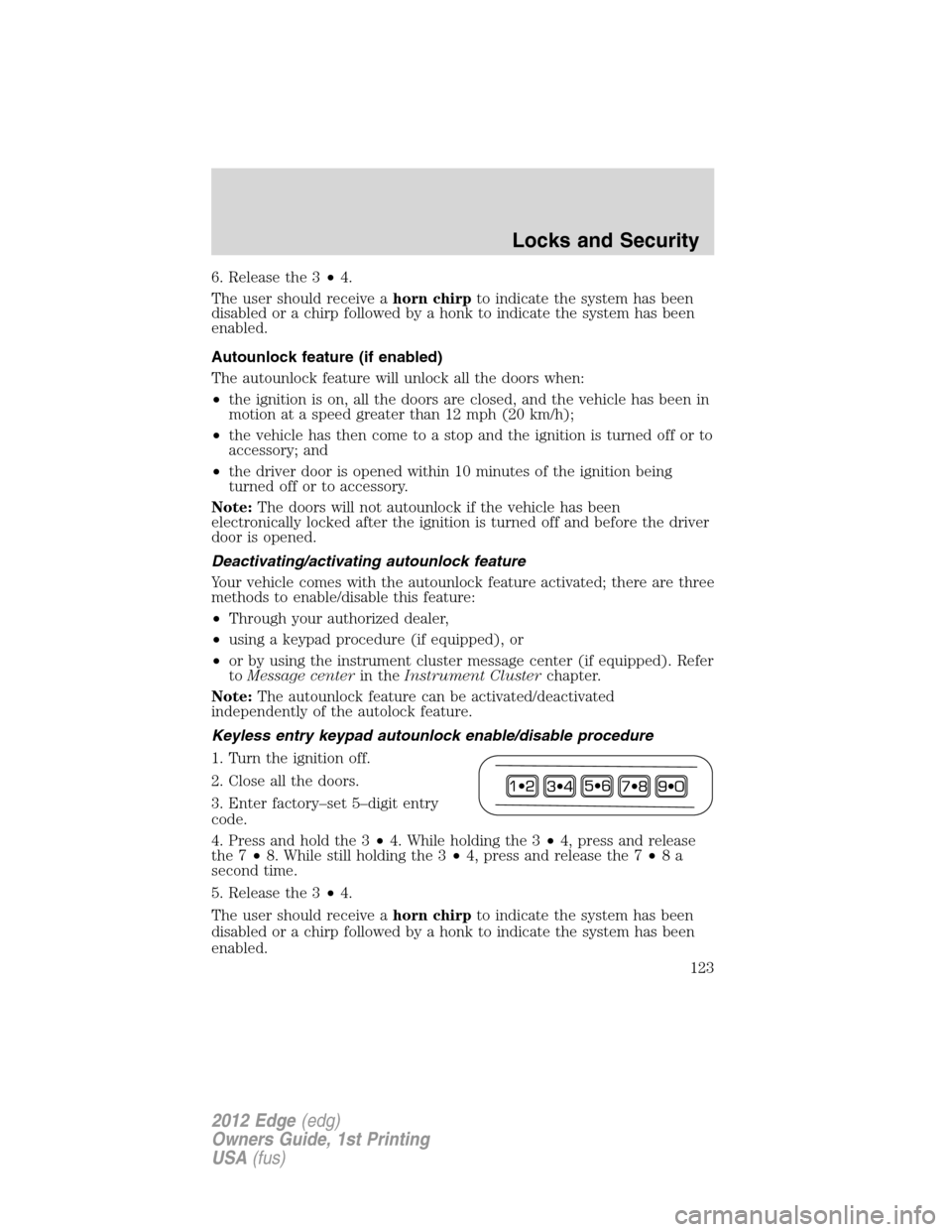

6. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Autounlock feature (if enabled)
The autounlock feature will unlock all the doors when:
•the ignition is on, all the doors are closed, and the vehicle has been in
motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned off or to
accessory; and
•the driver door is opened within 10 minutes of the ignition being
turned off or to accessory.
Note:The doors will not autounlock if the vehicle has been
electronically locked after the ignition is turned off and before the driver
door is opened.
Deactivating/activating autounlock feature
Your vehicle comes with the autounlock feature activated; there are three
methods to enable/disable this feature:
•Through your authorized dealer,
•using a keypad procedure (if equipped), or
•or by using the instrument cluster message center (if equipped). Refer
toMessage centerin theInstrument Clusterchapter.
Note:The autounlock feature can be activated/deactivated
independently of the autolock feature.
Keyless entry keypad autounlock enable/disable procedure
1. Turn the ignition off.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Press and hold the 3•4. While holding the 3•4, press and release
the 7•8. While still holding the 3•4, press and release the 7•8a
second time.
5. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Locks and Security
123
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

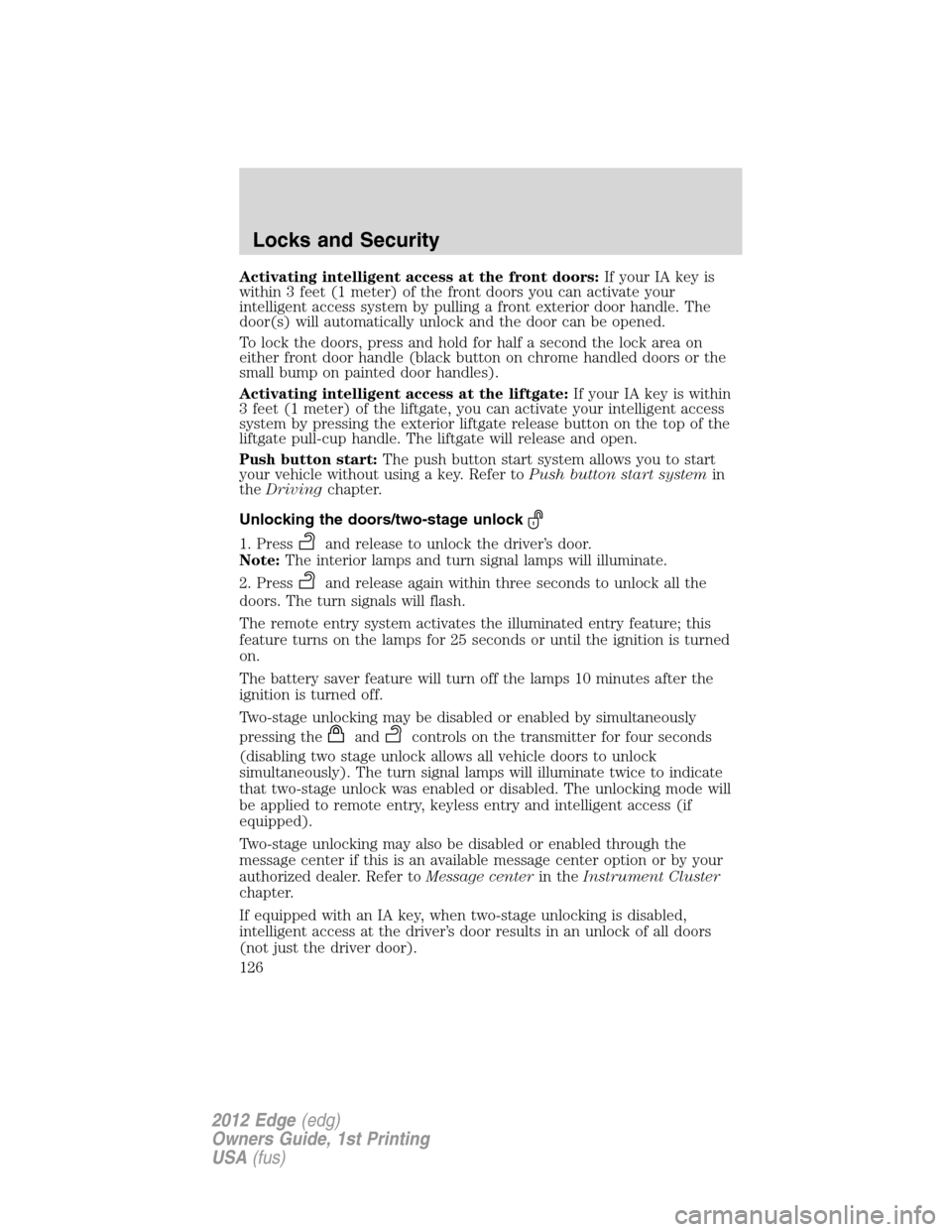

Activating intelligent access at the front doors:If your IA key is
within 3 feet (1 meter) of the front doors you can activate your
intelligent access system by pulling a front exterior door handle. The
door(s) will automatically unlock and the door can be opened.
To lock the doors, press and hold for half a second the lock area on
either front door handle (black button on chrome handled doors or the
small bump on painted door handles).
Activating intelligent access at the liftgate:If your IA key is within
3 feet (1 meter) of the liftgate, you can activate your intelligent access
system by pressing the exterior liftgate release button on the top of the
liftgate pull-cup handle. The liftgate will release and open.
Push button start:The push button start system allows you to start
your vehicle without using a key. Refer toPush button start systemin
theDrivingchapter.
Unlocking the doors/two-stage unlock
1. Pressand release to unlock the driver’s door.
Note:The interior lamps and turn signal lamps will illuminate.
2. Press
and release again within three seconds to unlock all the
doors. The turn signals will flash.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
on.
The battery saver feature will turn off the lamps 10 minutes after the
ignition is turned off.
Two-stage unlocking may be disabled or enabled by simultaneously
pressing the
andcontrols on the transmitter for four seconds
(disabling two stage unlock allows all vehicle doors to unlock
simultaneously). The turn signal lamps will illuminate twice to indicate
that two-stage unlock was enabled or disabled. The unlocking mode will
be applied to remote entry, keyless entry and intelligent access (if
equipped).
Two-stage unlocking may also be disabled or enabled through the
message center if this is an available message center option or by your
authorized dealer. Refer toMessage centerin theInstrument Cluster
chapter.
If equipped with an IA key, when two-stage unlocking is disabled,
intelligent access at the driver’s door results in an unlock of all doors
(not just the driver door).
Locks and Security
126
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

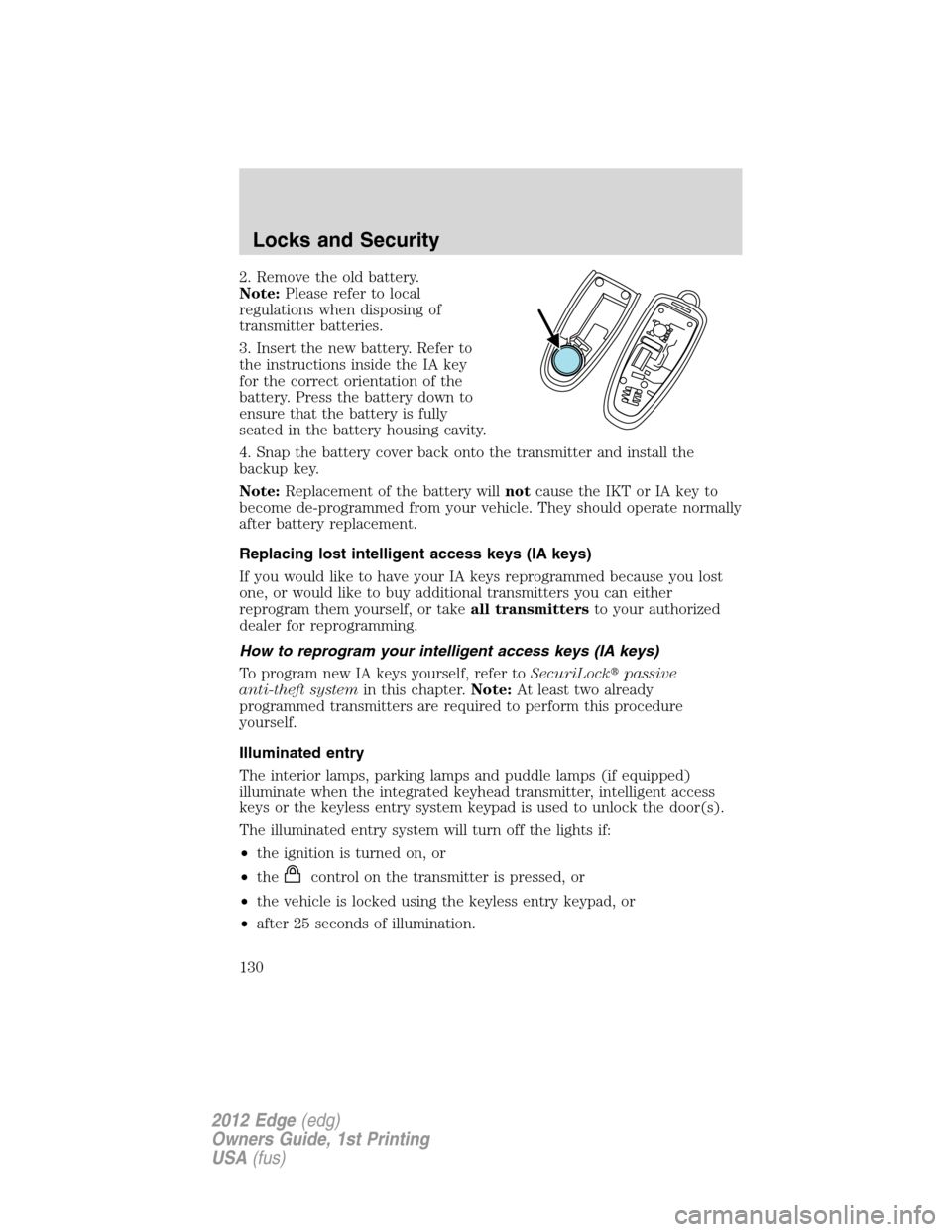

2. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
3. Insert the new battery. Refer to
the instructions inside the IA key
for the correct orientation of the
battery. Press the battery down to
ensure that the battery is fully
seated in the battery housing cavity.
4. Snap the battery cover back onto the transmitter and install the
backup key.
Note:Replacement of the battery willnotcause the IKT or IA key to
become de-programmed from your vehicle. They should operate normally
after battery replacement.
Replacing lost intelligent access keys (IA keys)
If you would like to have your IA keys reprogrammed because you lost
one, or would like to buy additional transmitters you can either
reprogram them yourself, or takeall transmittersto your authorized
dealer for reprogramming.
How to reprogram your intelligent access keys (IA keys)
To program new IA keys yourself, refer toSecuriLockpassive
anti-theft systemin this chapter.Note:At least two already
programmed transmitters are required to perform this procedure
yourself.
Illuminated entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the integrated keyhead transmitter, intelligent access
keys or the keyless entry system keypad is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is turned on, or
•the
control on the transmitter is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•after 25 seconds of illumination.
Locks and Security
130
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

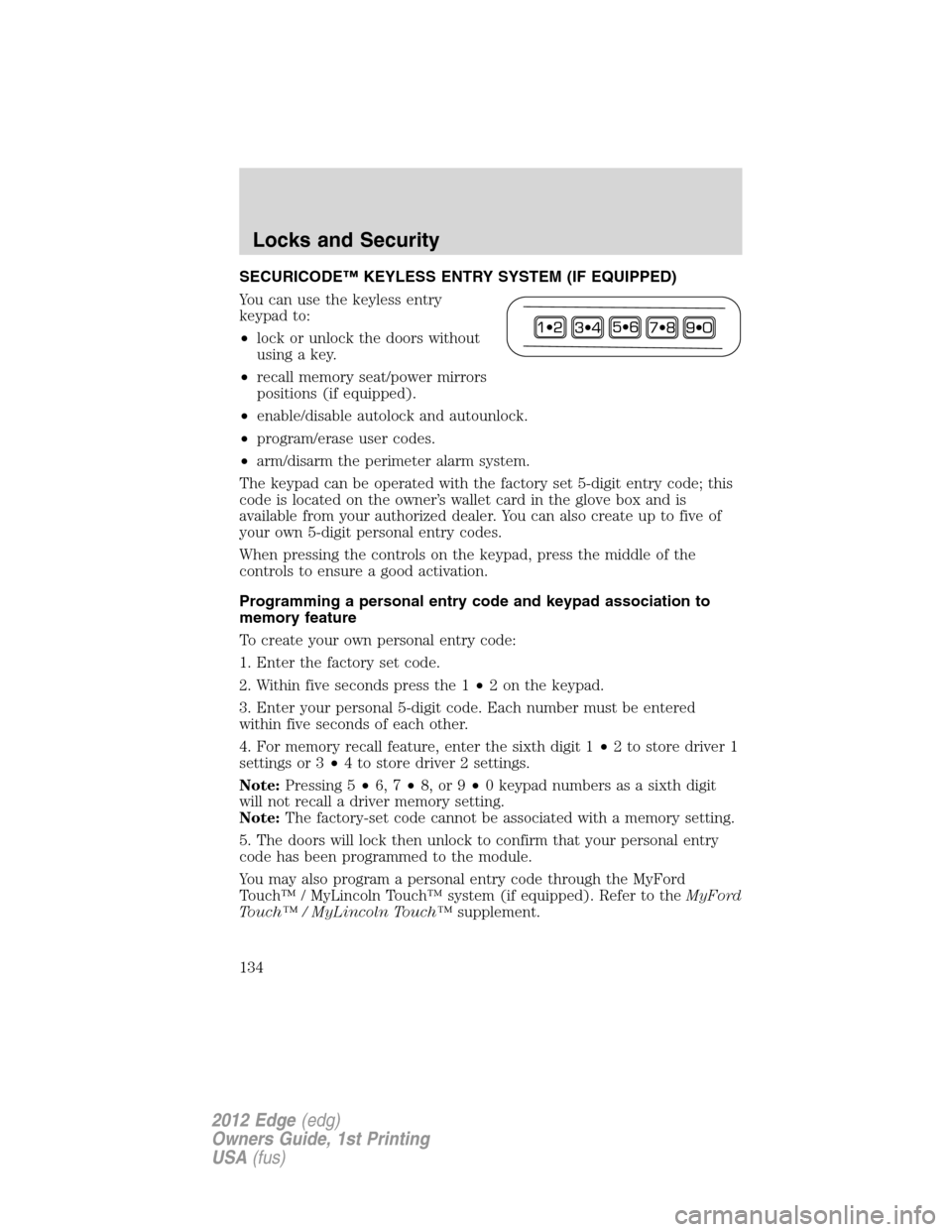

SECURICODE™ KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•recall memory seat/power mirrors
positions (if equipped).
•enable/disable autolock and autounlock.
•program/erase user codes.
•arm/disarm the perimeter alarm system.
The keypad can be operated with the factory set 5-digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to five of
your own 5-digit personal entry codes.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory feature
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Note:Pressing 5•6, 7•8, or 9•0 keypad numbers as a sixth digit
will not recall a driver memory setting.
Note:The factory-set code cannot be associated with a memory setting.
5. The doors will lock then unlock to confirm that your personal entry
code has been programmed to the module.
You may also program a personal entry code through the MyFord
Touch™ / MyLincoln Touch™ system (if equipped). Refer to theMyFord
Touch™ / MyLincoln Touch™supplement.
Locks and Security
134
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1•2 on the keypad and release.
3. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
All personal codes are now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If the wrong code has been entered seven times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the transmitter.
•the ignition is turned on.
•unlocking the vehicle using intelligent access (if equipped).
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.Note:If the two-stage unlocking
feature is disabled, all doors will unlock; for more information regarding
two-stage unlocking, refer to theUnlocking the doors/Two stage unlock
section earlier in this chapter.
To unlock all doors,enter the factory set code or your personal code,
then press the 3•4 control within five seconds.
To lock all doors,press and hold the 7•8 and the 9•0 at the same
time (with the driver’s door closed). Youdo notneed to enter the
keypad code first.
To enable/disable autolock/autounlock, refer toAutolock featureor
Autounlock featureearlier in this chapter.
Locks and Security
135
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

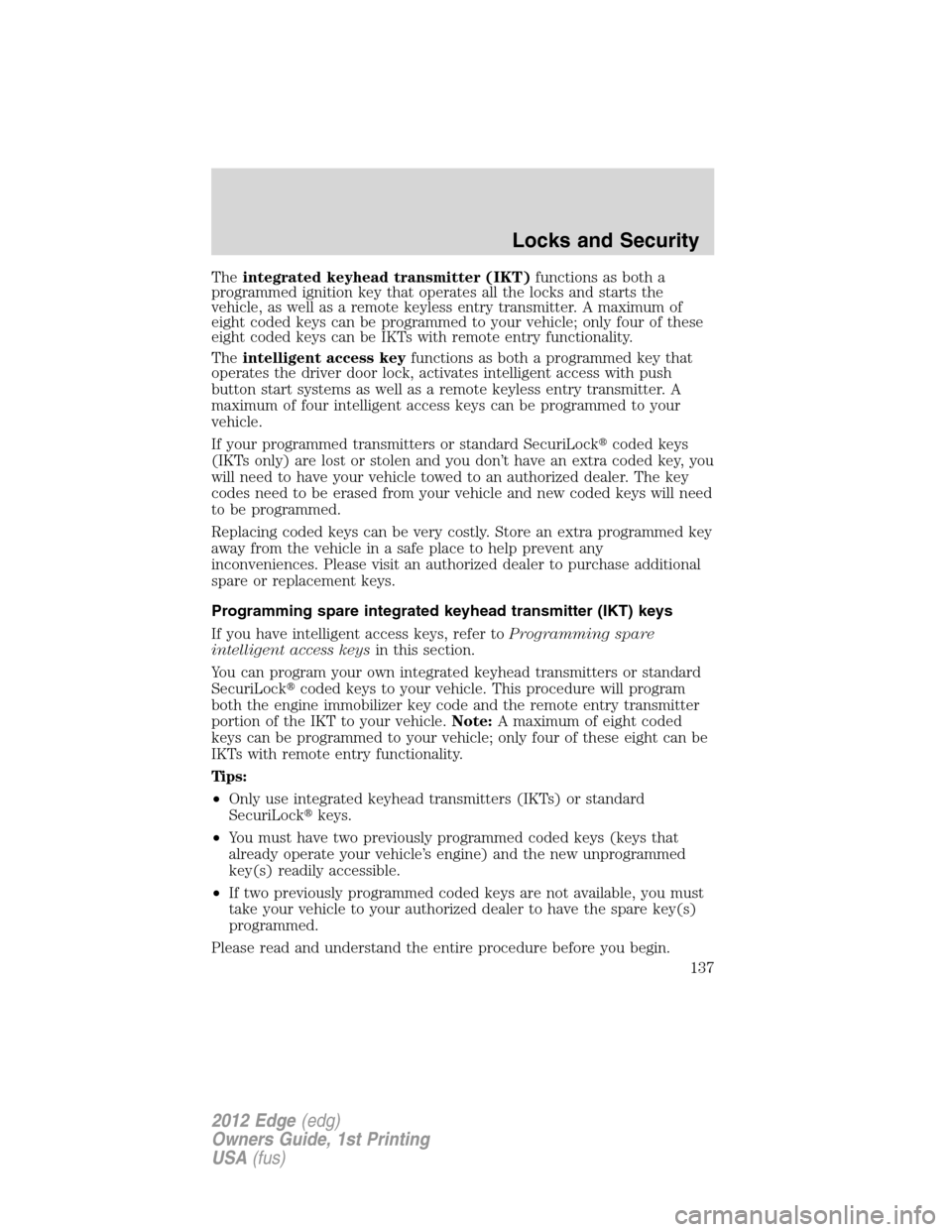

Theintegrated keyhead transmitter (IKT)functions as both a
programmed ignition key that operates all the locks and starts the
vehicle, as well as a remote keyless entry transmitter. A maximum of
eight coded keys can be programmed to your vehicle; only four of these
eight coded keys can be IKTs with remote entry functionality.
Theintelligent access keyfunctions as both a programmed key that
operates the driver door lock, activates intelligent access with push
button start systems as well as a remote keyless entry transmitter. A
maximum of four intelligent access keys can be programmed to your
vehicle.
If your programmed transmitters or standard SecuriLockcoded keys
(IKTs only) are lost or stolen and you don’t have an extra coded key, you
will need to have your vehicle towed to an authorized dealer. The key
codes need to be erased from your vehicle and new coded keys will need
to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare integrated keyhead transmitter (IKT) keys
If you have intelligent access keys, refer toProgramming spare
intelligent access keysin this section.
You can program your own integrated keyhead transmitters or standard
SecuriLockcoded keys to your vehicle. This procedure will program
both the engine immobilizer key code and the remote entry transmitter
portion of the IKT to your vehicle.Note:A maximum of eight coded
keys can be programmed to your vehicle; only four of these eight can be
IKTs with remote entry functionality.
Tips:
•Only use integrated keyhead transmitters (IKTs) or standard
SecuriLockkeys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the entire procedure before you begin.
Locks and Security
137
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

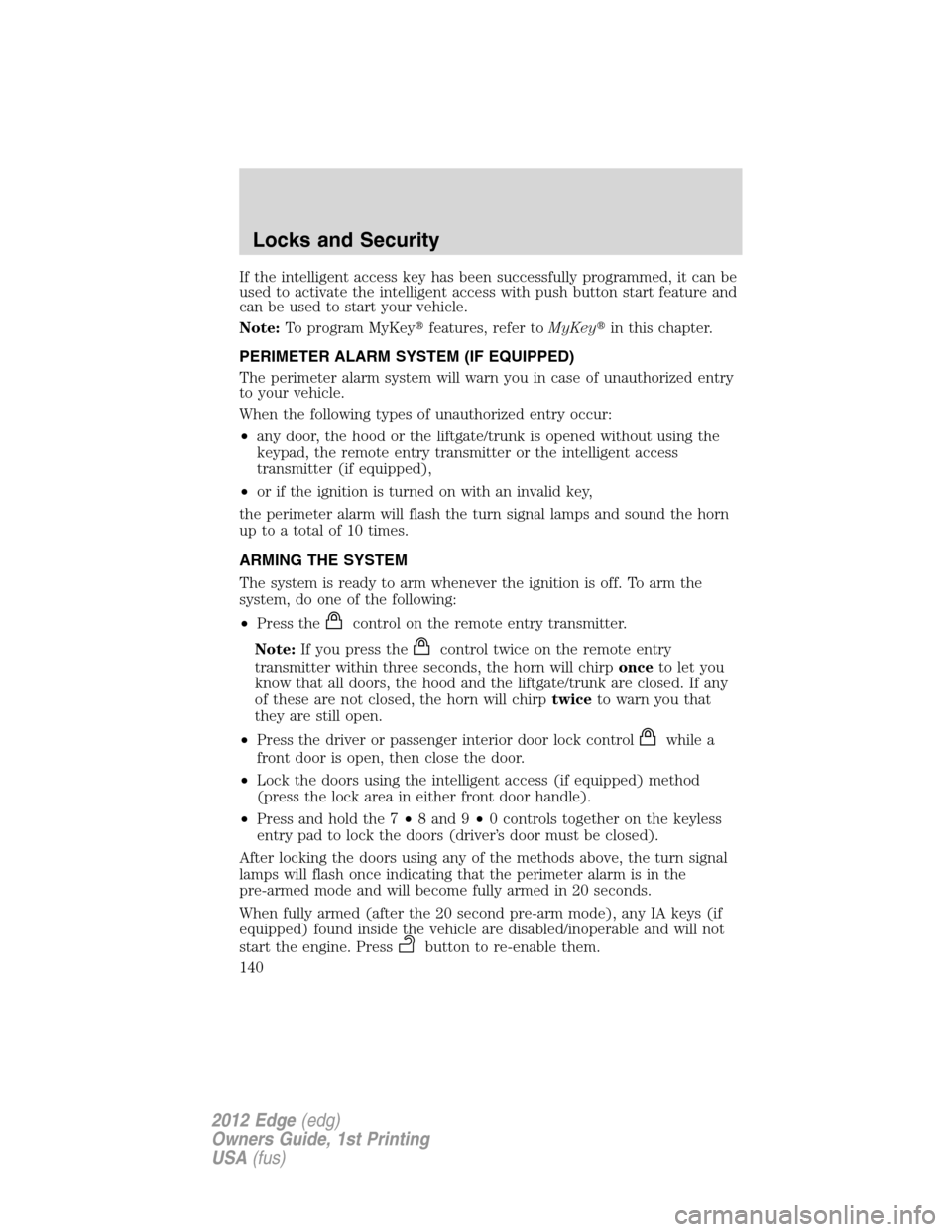

If the intelligent access key has been successfully programmed, it can be
used to activate the intelligent access with push button start feature and
can be used to start your vehicle.
Note:To program MyKeyfeatures, refer toMyKeyin this chapter.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter alarm system will warn you in case of unauthorized entry
to your vehicle.
When the following types of unauthorized entry occur:
•any door, the hood or the liftgate/trunk is opened without using the
keypad, the remote entry transmitter or the intelligent access
transmitter (if equipped),
•or if the ignition is turned on with an invalid key,
the perimeter alarm will flash the turn signal lamps and sound the horn
up to a total of 10 times.
ARMING THE SYSTEM
The system is ready to arm whenever the ignition is off. To arm the
system, do one of the following:
•Press the
control on the remote entry transmitter.
Note:If you press the
control twice on the remote entry
transmitter within three seconds, the horn will chirponceto let you
know that all doors, the hood and the liftgate/trunk are closed. If any
of these are not closed, the horn will chirptwiceto warn you that
they are still open.
•Press the driver or passenger interior door lock control
while a
front door is open, then close the door.
•Lock the doors using the intelligent access (if equipped) method
(press the lock area in either front door handle).
•Press and hold the 7•8 and 9•0 controls together on the keyless
entry pad to lock the doors (driver’s door must be closed).
After locking the doors using any of the methods above, the turn signal
lamps will flash once indicating that the perimeter alarm is in the
pre-armed mode and will become fully armed in 20 seconds.
When fully armed (after the 20 second pre-arm mode), any IA keys (if
equipped) found inside the vehicle are disabled/inoperable and will not
start the engine. Press
button to re-enable them.
Locks and Security
140
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
