FORD EDGE 2013 1.G Owners Manual

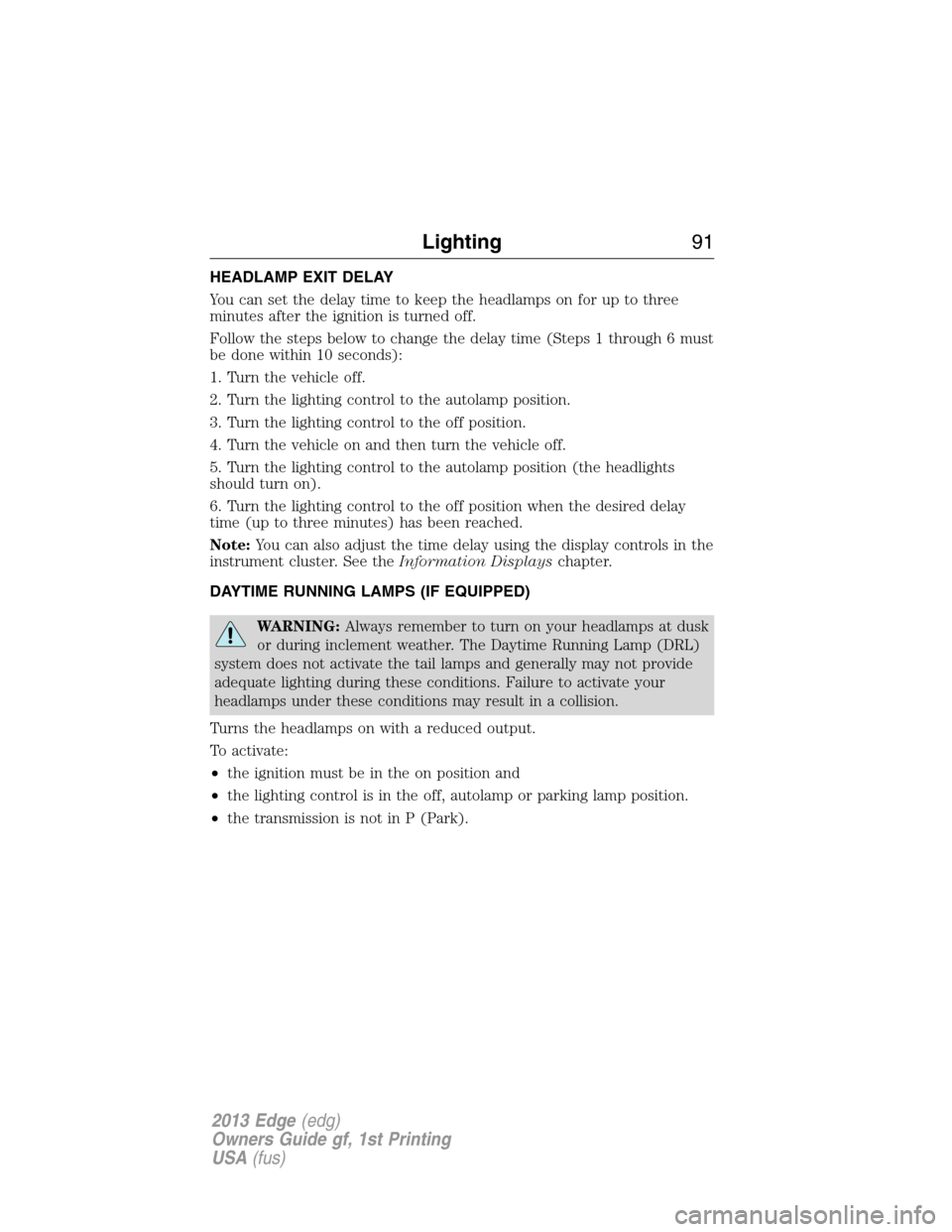

HEADLAMP EXIT DELAY
You can set the delay time to keep the headlamps on for up to three
minutes after the ignition is turned off.
Follow the steps below to change the delay time (Steps 1 through 6 must
be done within 10 seconds):
1. Turn the vehicle off.
2. Turn the lighting control to the autolamp position.
3. Turn the lighting control to the off position.
4. Turn the vehicle on and then turn the vehicle off.
5. Turn the lighting control to the autolamp position (the headlights
should turn on).
6. Turn the lighting control to the off position when the desired delay
time (up to three minutes) has been reached.
Note:You can also adjust the time delay using the display controls in the
instrument cluster. See theInformation Displayschapter.
DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at dusk
or during inclement weather. The Daytime Running Lamp (DRL)
system does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the lighting control is in the off, autolamp or parking lamp position.
•the transmission is not in P (Park).
Lighting91
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

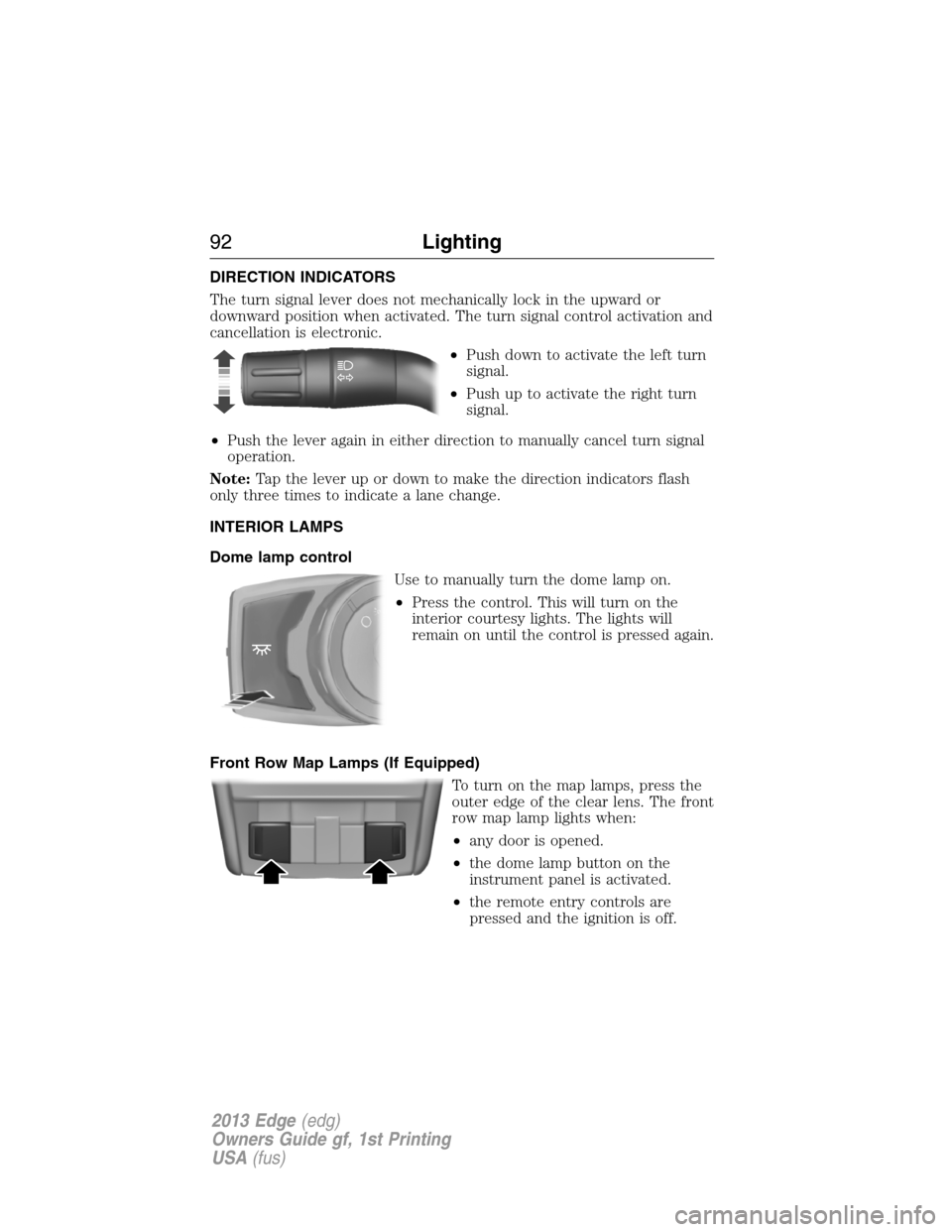

DIRECTION INDICATORS
The turn signal lever does not mechanically lock in the upward or
downward position when activated. The turn signal control activation and
cancellation is electronic.
•Push down to activate the left turn
signal.
•Push up to activate the right turn
signal.
•Push the lever again in either direction to manually cancel turn signal
operation.
Note:Tap the lever up or down to make the direction indicators flash
only three times to indicate a lane change.
INTERIOR LAMPS
Dome lamp control
Use to manually turn the dome lamp on.
•Press the control. This will turn on the
interior courtesy lights. The lights will
remain on until the control is pressed again.
Front Row Map Lamps (If Equipped)
To turn on the map lamps, press the
outer edge of the clear lens. The front
row map lamp lights when:
•any door is opened.
•the dome lamp button on the
instrument panel is activated.
•the remote entry controls are
pressed and the ignition is off.
92Lighting
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

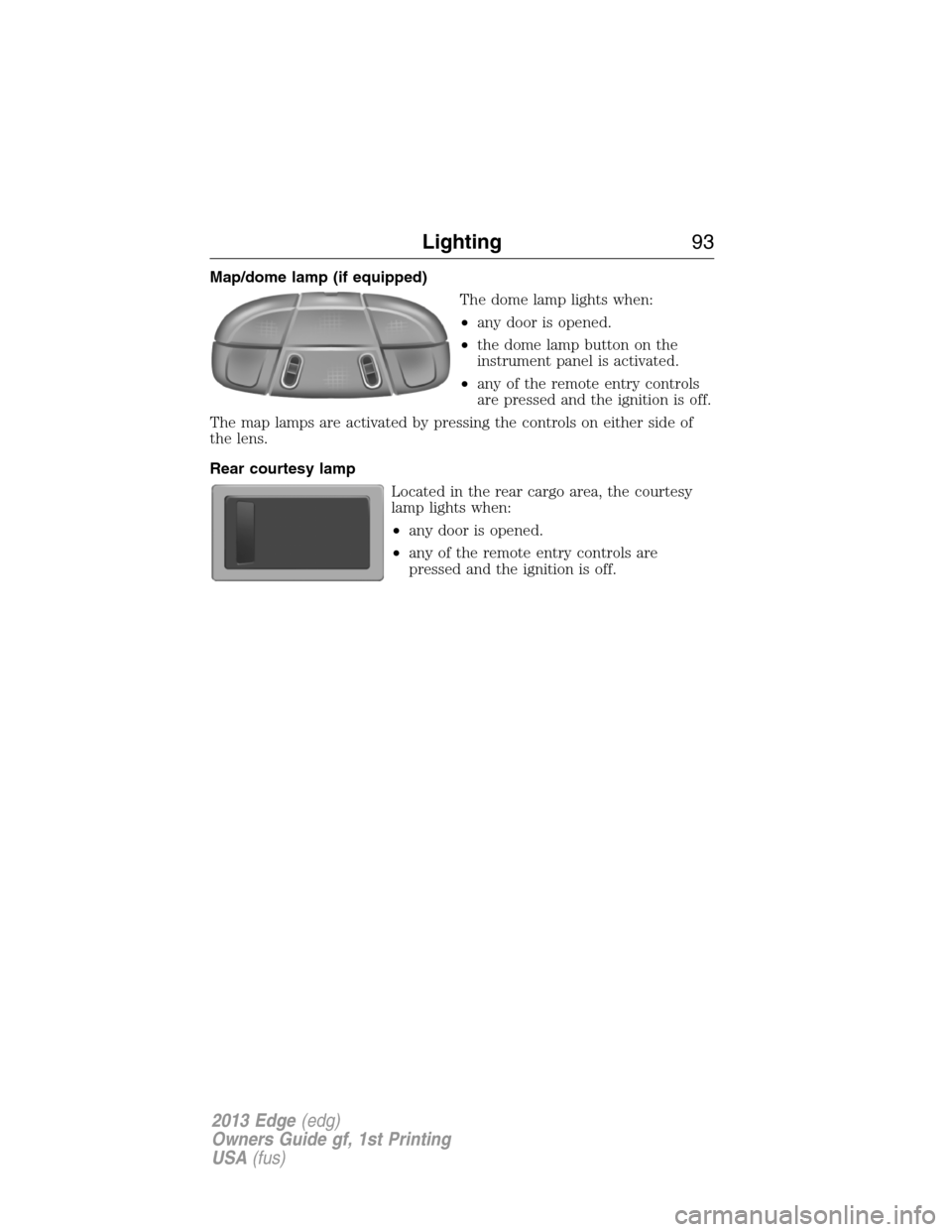

Map/dome lamp (if equipped)
The dome lamp lights when:
•any door is opened.
•the dome lamp button on the
instrument panel is activated.
•any of the remote entry controls
are pressed and the ignition is off.
The map lamps are activated by pressing the controls on either side of
the lens.
Rear courtesy lamp
Located in the rear cargo area, the courtesy
lamp lights when:
•any door is opened.
•any of the remote entry controls are
pressed and the ignition is off.
Lighting93
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

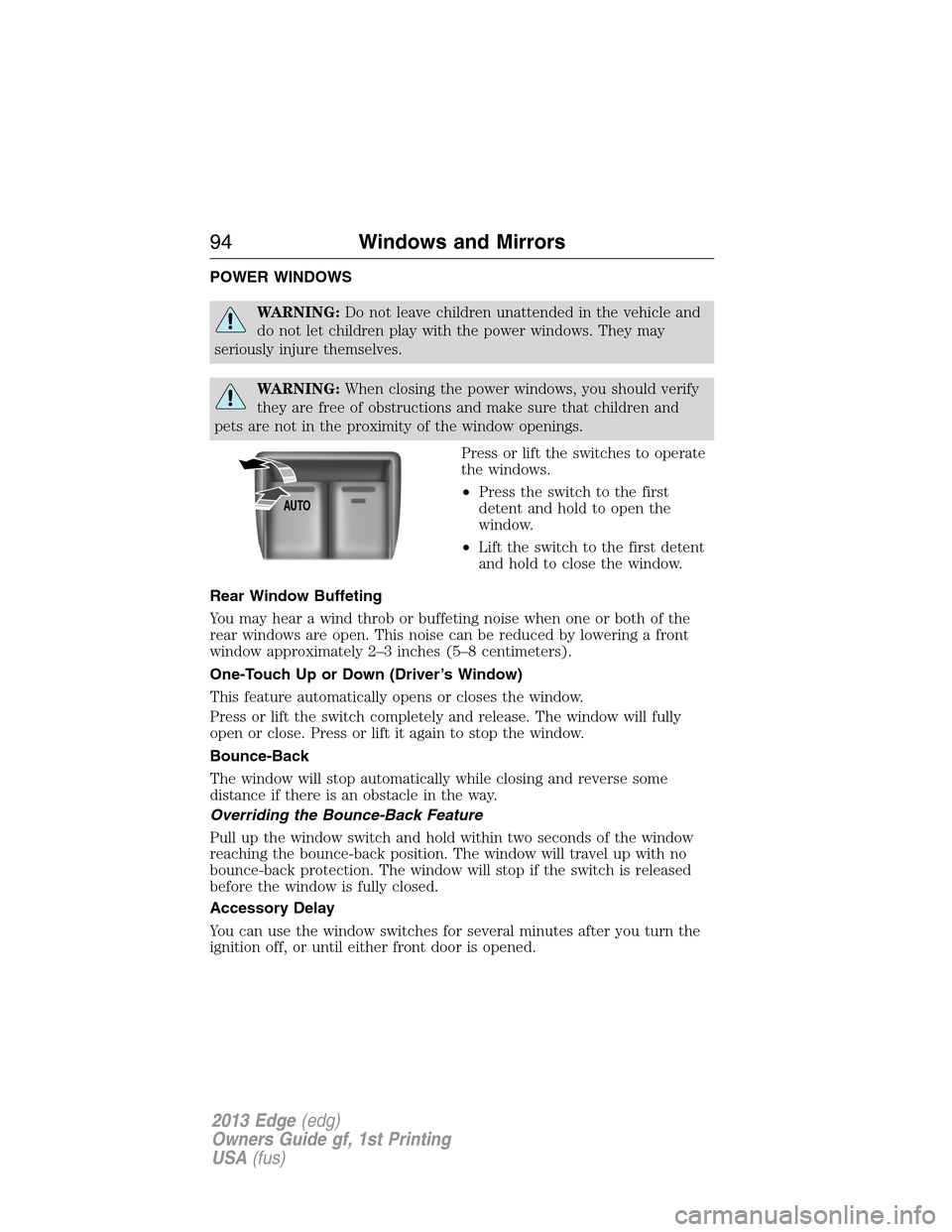

POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and make sure that children and
pets are not in the proximity of the window openings.
Press or lift the switches to operate
the windows.
•Press the switch to the first
detent and hold to open the
window.
•Lift the switch to the first detent
and hold to close the window.
Rear Window Buffeting
You may hear a wind throb or buffeting noise when one or both of the
rear windows are open. This noise can be reduced by lowering a front
window approximately 2–3 inches (5–8 centimeters).
One-Touch Up or Down (Driver’s Window)
This feature automatically opens or closes the window.
Press or lift the switch completely and release. The window will fully
open or close. Press or lift it again to stop the window.
Bounce-Back
The window will stop automatically while closing and reverse some
distance if there is an obstacle in the way.
Overriding the Bounce-Back Feature
Pull up the window switch and hold within two seconds of the window
reaching the bounce-back position. The window will travel up with no
bounce-back protection. The window will stop if the switch is released
before the window is fully closed.
Accessory Delay
You can use the window switches for several minutes after you turn the
ignition off, or until either front door is opened.
AUTO
94Windows and Mirrors
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

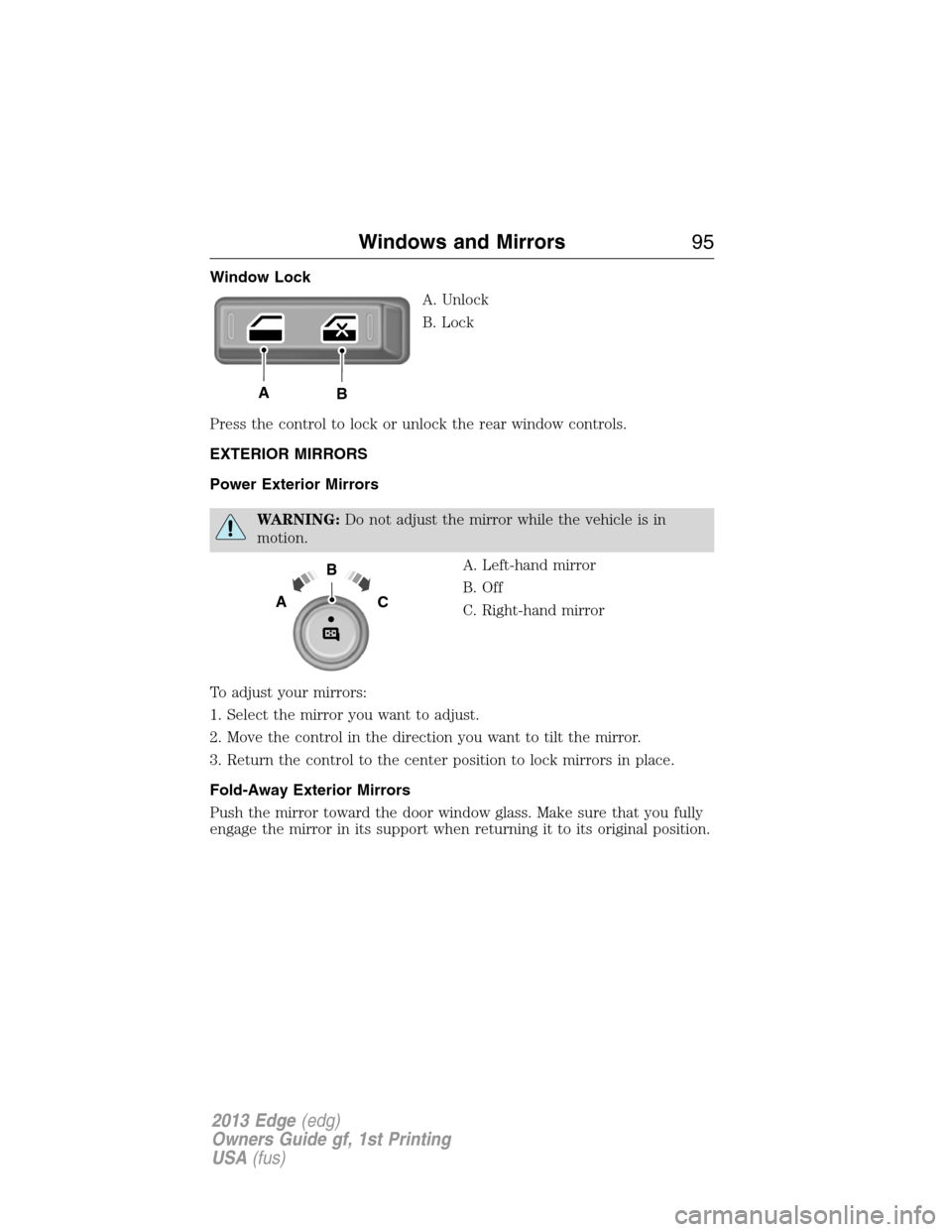

Window Lock
A. Unlock
B. Lock
Press the control to lock or unlock the rear window controls.
EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
A. Left-hand mirror
B. Off
C. Right-hand mirror
To adjust your mirrors:
1. Select the mirror you want to adjust.
2. Move the control in the direction you want to tilt the mirror.
3. Return the control to the center position to lock mirrors in place.
Fold-Away Exterior Mirrors
Push the mirror toward the door window glass. Make sure that you fully
engage the mirror in its support when returning it to its original position.
AB
B
AC
Windows and Mirrors95
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

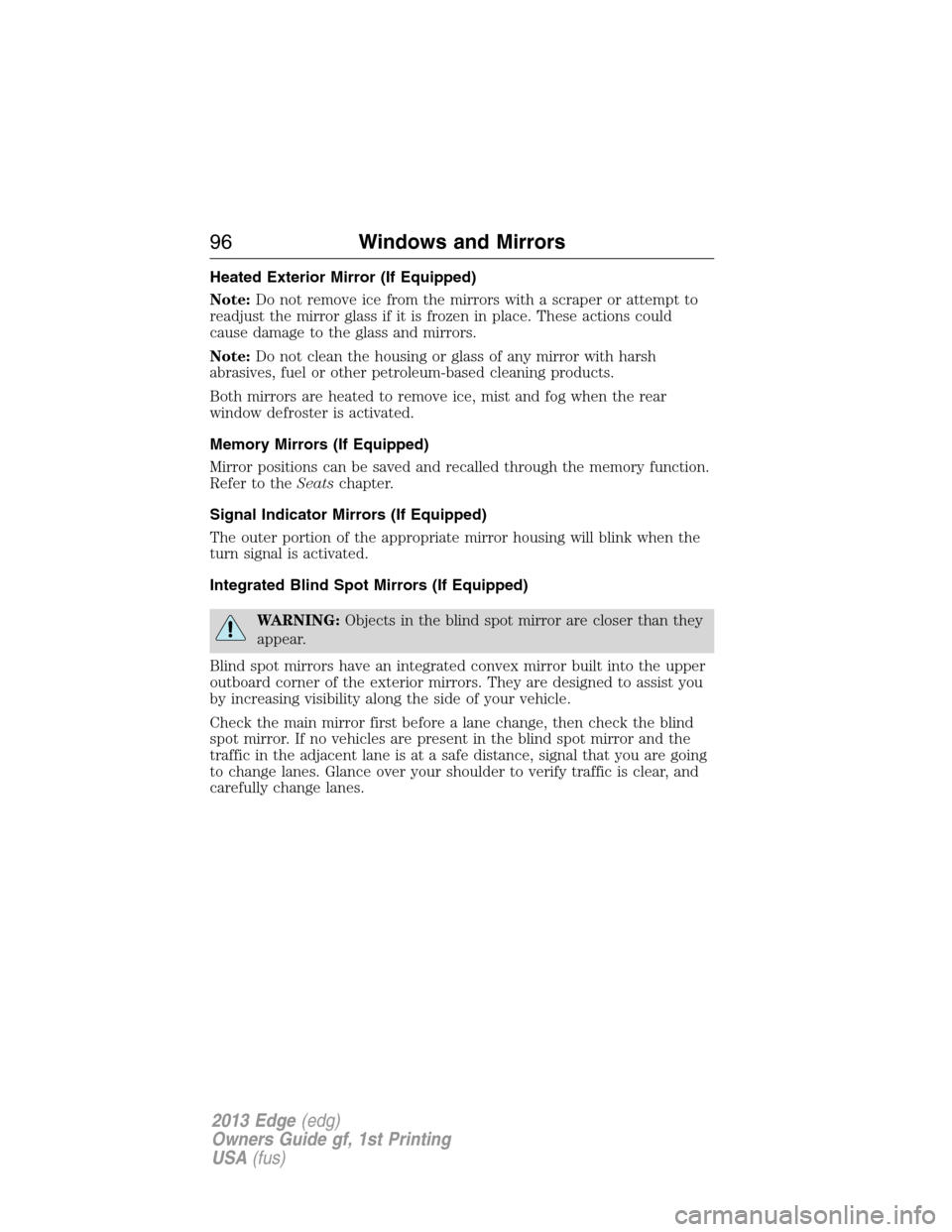

Heated Exterior Mirror (If Equipped)
Note:Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions could
cause damage to the glass and mirrors.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Both mirrors are heated to remove ice, mist and fog when the rear
window defroster is activated.
Memory Mirrors (If Equipped)
Mirror positions can be saved and recalled through the memory function.
Refer to theSeatschapter.
Signal Indicator Mirrors (If Equipped)
The outer portion of the appropriate mirror housing will blink when the
turn signal is activated.
Integrated Blind Spot Mirrors (If Equipped)
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind
spot mirror. If no vehicles are present in the blind spot mirror and the
traffic in the adjacent lane is at a safe distance, signal that you are going
to change lanes. Glance over your shoulder to verify traffic is clear, and
carefully change lanes.
96Windows and Mirrors
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

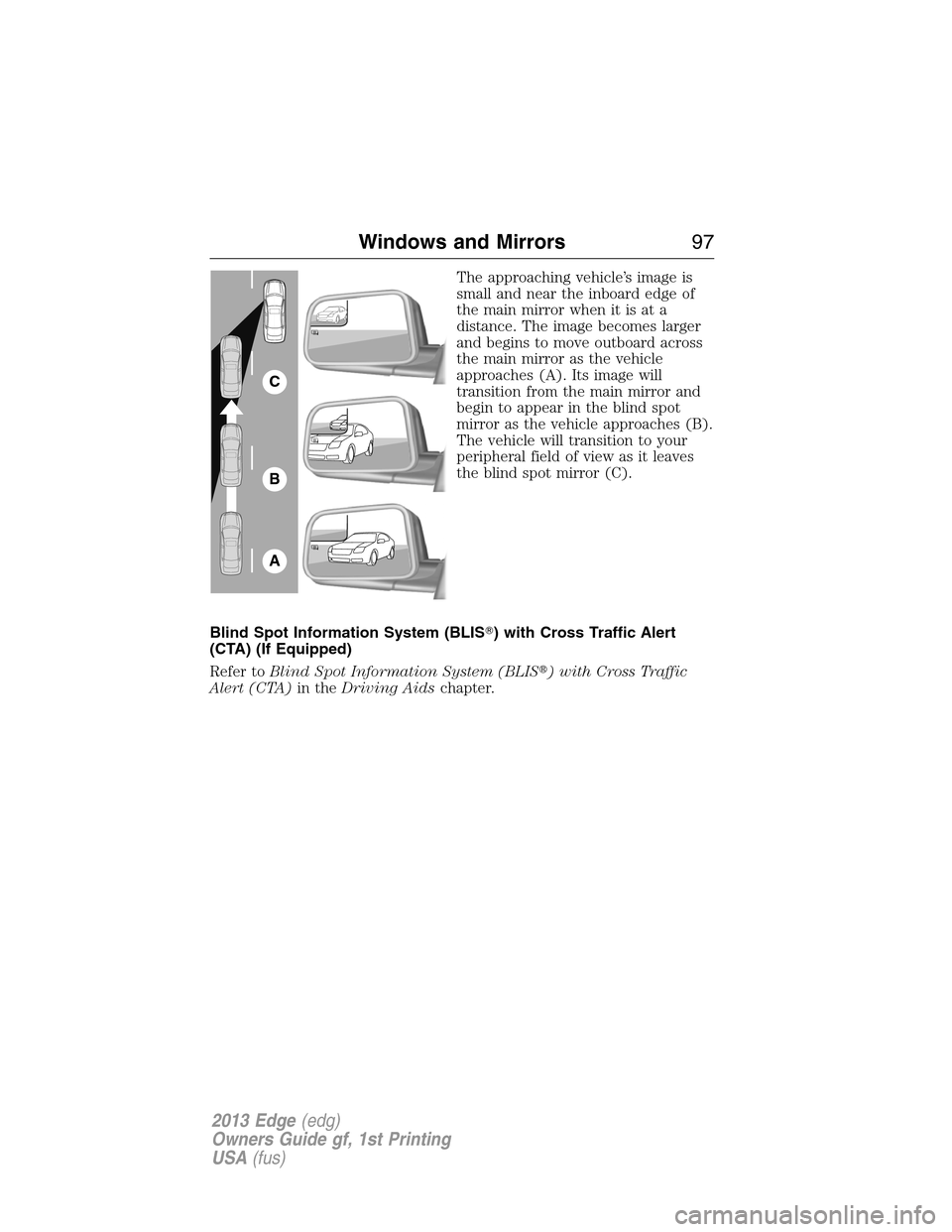

The approaching vehicle’s image is
small and near the inboard edge of
the main mirror when it is at a
distance. The image becomes larger
and begins to move outboard across
the main mirror as the vehicle
approaches (A). Its image will
transition from the main mirror and
begin to appear in the blind spot
mirror as the vehicle approaches (B).
The vehicle will transition to your
peripheral field of view as it leaves
the blind spot mirror (C).
Blind Spot Information System (BLIS) with Cross Traffic Alert
(CTA) (If Equipped)
Refer toBlind Spot Information System (BLIS) with Cross Traffic
Alert (CTA)in theDriving Aidschapter.
A
B
C
Windows and Mirrors97
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

INTERIOR MIRROR
WARNING:Do not adjust the mirror when your vehicle is
moving.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum or ammonia based cleaning products.
You can adjust the interior mirror to your preference. Some mirrors also
have a second pivot point. This lets you move the mirror head up or
down and from side to side.
Pull the tab below the mirror toward you to reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note:Do not block the sensors on the front and back of the mirror.
Mirror performance may be affected. A rear center passenger or raised
rear center head restraint may also block light from reaching the sensor.
The mirror will dim automatically to reduce glare when bright lights are
detected from behind your vehicle. It will automatically return to normal
reflection when you select reverse gear to make sure you have a clear
view when backing up.
SUN VISORS
Slide-On-Rod
Rotate the visor toward the side
window and extend it rearward for
extra sunlight coverage.
Retract the visor before moving it
back toward the windshield and
storing it.
98Windows and Mirrors
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

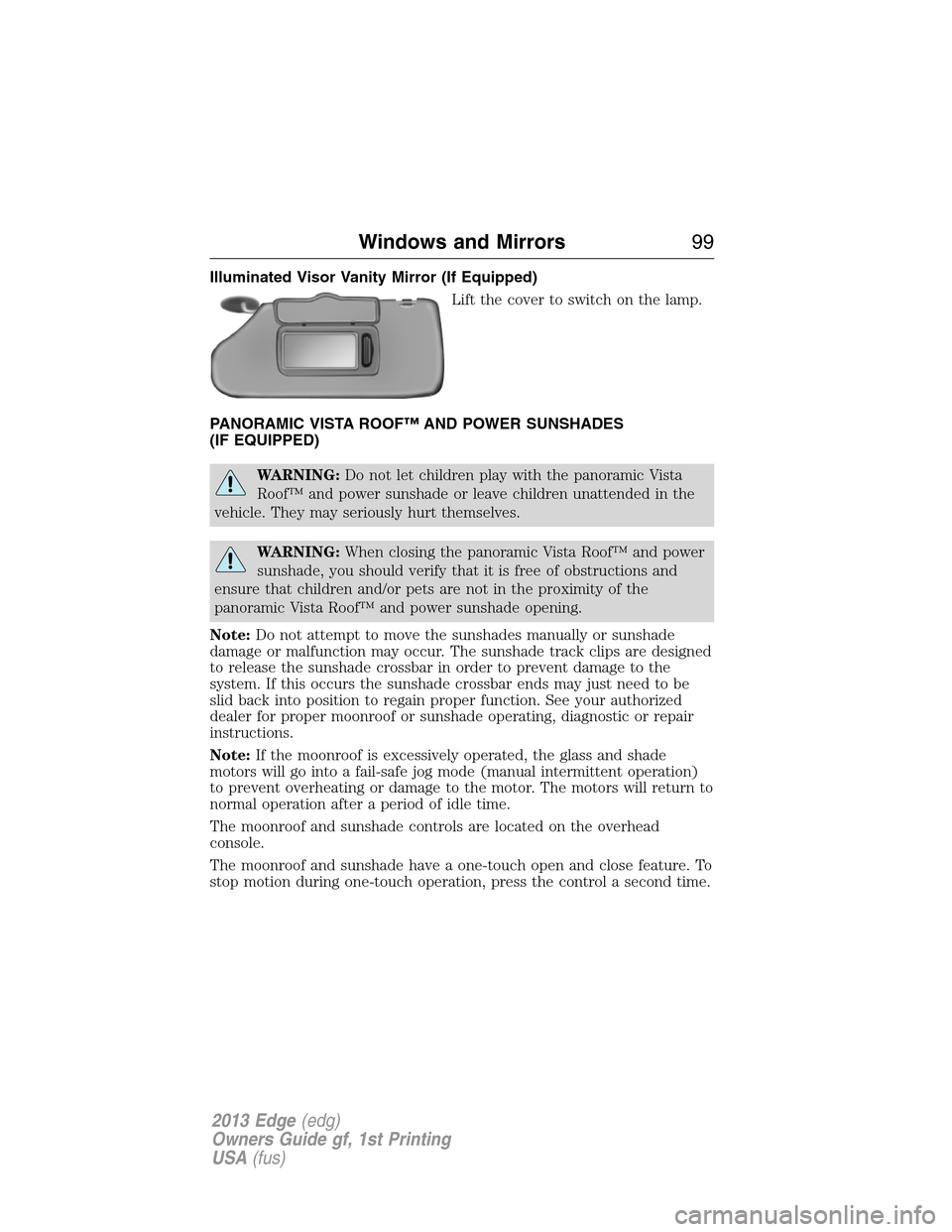

Illuminated Visor Vanity Mirror (If Equipped)
Lift the cover to switch on the lamp.
PANORAMIC VISTA ROOF™ AND POWER SUNSHADES
(IF EQUIPPED)
WARNING:Do not let children play with the panoramic Vista
Roof™ and power sunshade or leave children unattended in the
vehicle. They may seriously hurt themselves.
WARNING:When closing the panoramic Vista Roof™ and power
sunshade, you should verify that it is free of obstructions and
ensure that children and/or pets are not in the proximity of the
panoramic Vista Roof™ and power sunshade opening.
Note:Do not attempt to move the sunshades manually or sunshade
damage or malfunction may occur. The sunshade track clips are designed
to release the sunshade crossbar in order to prevent damage to the
system. If this occurs the sunshade crossbar ends may just need to be
slid back into position to regain proper function. See your authorized
dealer for proper moonroof or sunshade operating, diagnostic or repair
instructions.
Note:If the moonroof is excessively operated, the glass and shade
motors will go into a fail-safe jog mode (manual intermittent operation)
to prevent overheating or damage to the motor. The motors will return to
normal operation after a period of idle time.
The moonroof and sunshade controls are located on the overhead
console.
The moonroof and sunshade have a one-touch open and close feature. To
stop motion during one-touch operation, press the control a second time.
Windows and Mirrors99
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

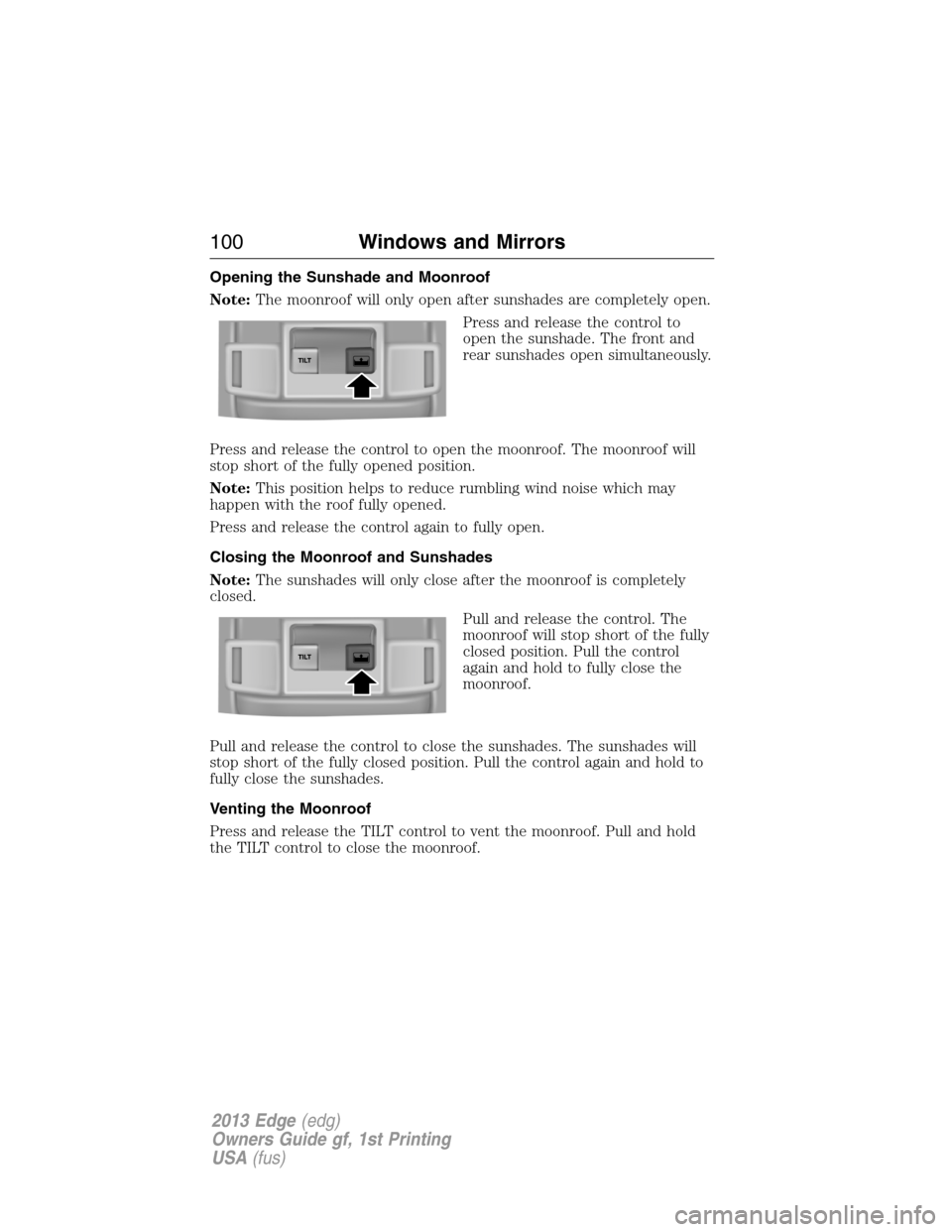

Opening the Sunshade and Moonroof
Note:The moonroof will only open after sunshades are completely open.
Press and release the control to
open the sunshade. The front and
rear sunshades open simultaneously.
Press and release the control to open the moonroof. The moonroof will
stop short of the fully opened position.
Note:This position helps to reduce rumbling wind noise which may
happen with the roof fully opened.
Press and release the control again to fully open.
Closing the Moonroof and Sunshades
Note:The sunshades will only close after the moonroof is completely
closed.
Pull and release the control. The
moonroof will stop short of the fully
closed position. Pull the control
again and hold to fully close the
moonroof.
Pull and release the control to close the sunshades. The sunshades will
stop short of the fully closed position. Pull the control again and hold to
fully close the sunshades.
Venting the Moonroof
Press and release the TILT control to vent the moonroof. Pull and hold
the TILT control to close the moonroof.
100Windows and Mirrors
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)
