Remote Starting the Engine
Note:Each button press must be done within three seconds of each
other. The vehicle will not remote start if this sequence is not followed
and the horn will not chirp.
The label on your transmitter details
the starting procedure. To remote
start the engine:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash
twice.
The horn will chirp if the system fails to start (unless quiet start is on).
Quiet start will run the blower fan at a slower speed to reduce noise. It
can be switched on or off. Refer to theInformation Displayschapter.
Note:If the vehicle has been remote started and is equipped with an
integrated keyhead transmitter, you must turn the ignition on before
driving the vehicle. If equipped with an intelligent access transmitter, you
must press the START/STOP button on the instrument panel once while
applying the brake pedal before driving the vehicle.
The power windows will be inhibited during the remote start and the
radio will not turn on automatically.
The parking lamps will remain on and the engine will run for 5, 10, or
15 minutes, depending on the setting. Refer to theInformation Displays
chapter to select the duration of the remote start system.
Extending the Engine Run Time
Repeat Steps 1 and 2 with the engine still running to extend the run
time for another remote start duration. If you programmed the duration
to last 10 minutes, the second 10 minutes will begin after what is left of
the first activation time. For example, if the vehicle had been running
from the first remote start for five minutes, the engine will continue to
run now for a total of 15 minutes. You can only extend the remote start
once.
Wait at least five seconds before remote starting after an engine
shutdown. Only two remote starts are allowed.
Keys and Remote Control61
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

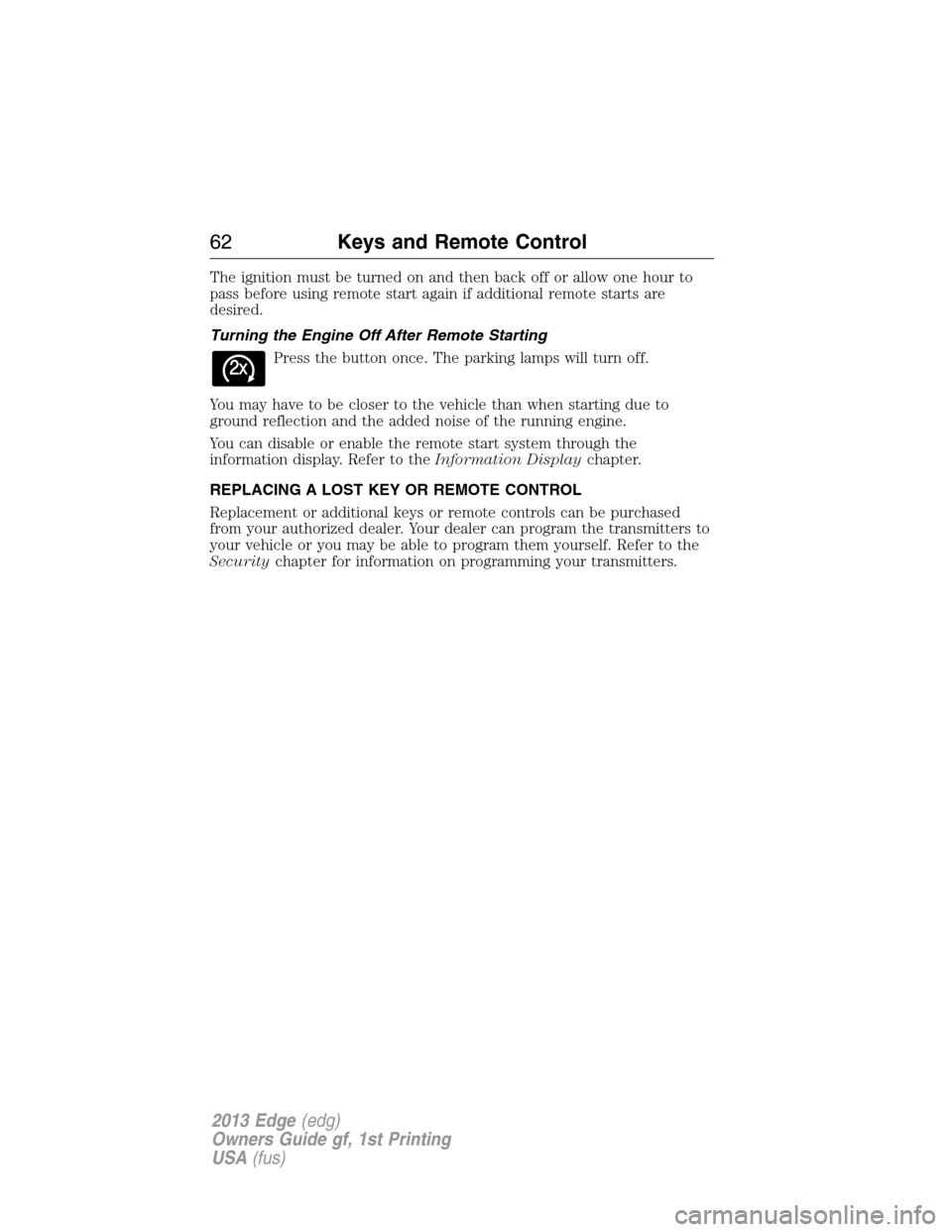

The ignition must be turned on and then back off or allow one hour to
pass before using remote start again if additional remote starts are
desired.
Turning the Engine Off After Remote Starting
Press the button once. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running engine.
You can disable or enable the remote start system through the
information display. Refer to theInformation Displaychapter.
REPLACING A LOST KEY OR REMOTE CONTROL
Replacement or additional keys or remote controls can be purchased
from your authorized dealer. Your dealer can program the transmitters to
your vehicle or you may be able to program them yourself. Refer to the
Securitychapter for information on programming your transmitters.
62Keys and Remote Control
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

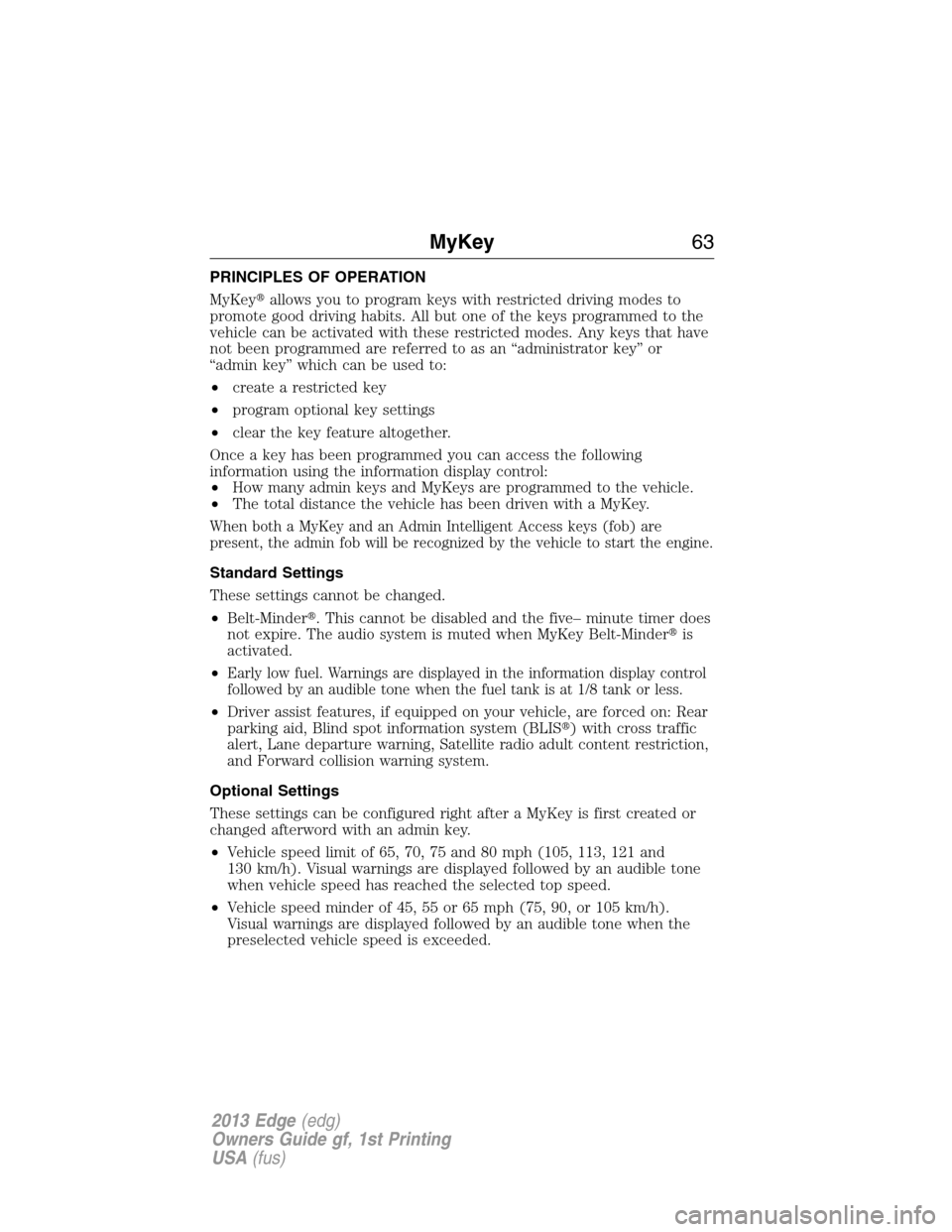

PRINCIPLES OF OPERATION
MyKeyallows you to program keys with restricted driving modes to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated with these restricted modes. Any keys that have
not been programmed are referred to as an “administrator key” or
“admin key” which can be used to:
•create a restricted key
•program optional key settings
•clear the key feature altogether.
Once a key has been programmed you can access the following
information using the information display control:
•How many admin keys and MyKeys are programmed to the vehicle.
•The total distance the vehicle has been driven with a MyKey.
When both a MyKey and an Admin Intelligent Access keys (fob) are
present, the admin fob will be recognized by the vehicle to start the engine.
Standard Settings
These settings cannot be changed.
•Belt-Minder. This cannot be disabled and the five– minute timer does
not expire. The audio system is muted when MyKey Belt-Minderis
activated.
•
Early low fuel. Warnings are displayed in the information display control
followed by an audible tone when the fuel tank is at 1/8 tank or less.
•Driver assist features, if equipped on your vehicle, are forced on: Rear
parking aid, Blind spot information system (BLIS) with cross traffic
alert, Lane departure warning, Satellite radio adult content restriction,
and Forward collision warning system.
Optional Settings
These settings can be configured right after a MyKey is first created or
changed afterword with an admin key.
•Vehicle speed limit of 65, 70, 75 and 80 mph (105, 113, 121 and
130 km/h). Visual warnings are displayed followed by an audible tone
when vehicle speed has reached the selected top speed.
•Vehicle speed minder of 45, 55 or 65 mph (75, 90, or 105 km/h).
Visual warnings are displayed followed by an audible tone when the
preselected vehicle speed is exceeded.
MyKey63
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

•Audio system maximum volume of 45%. A message in the audio
system is displayed when attempting to exceed the limited volume.
Also, Speed sensitive compensated volume (sscv) feature will be
disabled.
•Always on setting. When this is selected you will not be able to disable
911 Assist, AdvanceTracor Do not disturb feature.
CREATING A MYKEY
Use the information display control to create a MyKey
1. Insert the key you want to program into the ignition or, if the vehicle
is equipped with push button start, put the intelligent access key in
the backup slot; refer toStarting and Stopping the Enginechapter.
2. Turn the ignition on.
3. Access the main menu on the information display controls and select
Settings, then MyKeyby pressing OK or the > button.
4. Press OK to select Create.
5. When prompted hold the OK button until you see a message
informing you to label this key as a MyKey. The key will be
restricted at the next start.
The key is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.
To program optional settings for the key(s), refer to
Programming/Changing optional settings.If your vehicle is equipped
with remote start, refer toUsing MyKeywith remote start systems.
Programming/Changing Optional Settings
Note:All programmed keys can be cleared within the same key cycle in
which a key was programmed, otherwise an admin key is required to
clear the keys. To clear all keys, refer toClear all MyKeys.
You can access the optional settings through the information display
control.
1. Turn the ignition on using an admin key.
2. Access the main menu and select Settings, then MyKey.
3. Use the arrow buttons to get to an optional feature.
4. Press OK or > to scroll through settings.
5. Press OK or > to make a selection.
64MyKey
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

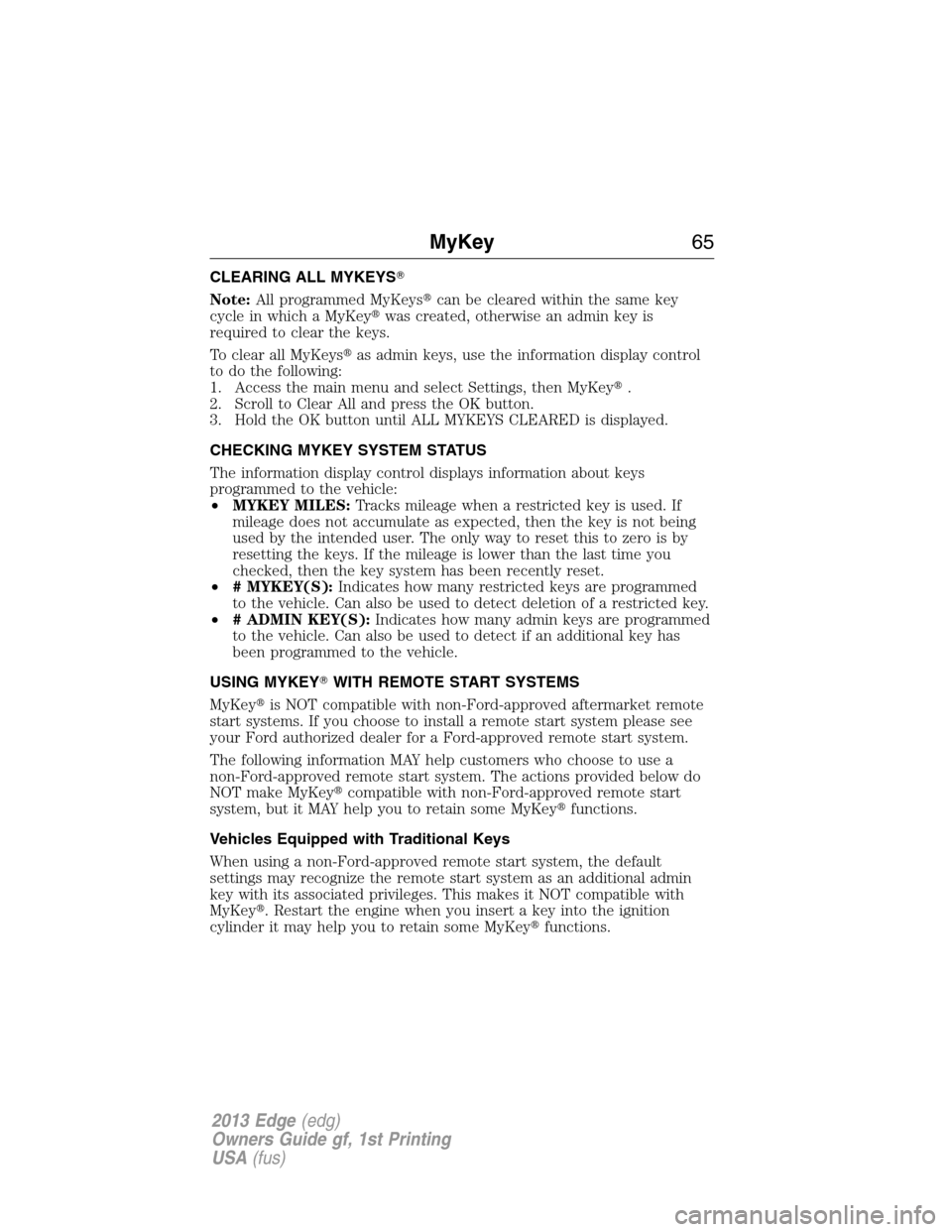

CLEARING ALL MYKEYS
Note:All programmed MyKeyscan be cleared within the same key
cycle in which a MyKeywas created, otherwise an admin key is
required to clear the keys.
To clear all MyKeysas admin keys, use the information display control
to do the following:
1. Access the main menu and select Settings, then MyKey.
2. Scroll to Clear All and press the OK button.
3. Hold the OK button until ALL MYKEYS CLEARED is displayed.
CHECKING MYKEY SYSTEM STATUS
The information display control displays information about keys
programmed to the vehicle:
•MYKEY MILES:Tracks mileage when a restricted key is used. If
mileage does not accumulate as expected, then the key is not being
used by the intended user. The only way to reset this to zero is by
resetting the keys. If the mileage is lower than the last time you
checked, then the key system has been recently reset.
•# MYKEY(S):Indicates how many restricted keys are programmed
to the vehicle. Can also be used to detect deletion of a restricted key.
•# ADMIN KEY(S):Indicates how many admin keys are programmed
to the vehicle. Can also be used to detect if an additional key has
been programmed to the vehicle.
USING MYKEYWITH REMOTE START SYSTEMS
MyKeyis NOT compatible with non-Ford-approved aftermarket remote
start systems. If you choose to install a remote start system please see
your Ford authorized dealer for a Ford-approved remote start system.
The following information MAY help customers who choose to use a
non-Ford-approved remote start system. The actions provided below do
NOT make MyKeycompatible with non-Ford-approved remote start
system, but it MAY help you to retain some MyKeyfunctions.
Vehicles Equipped with Traditional Keys
When using a non-Ford-approved remote start system, the default
settings may recognize the remote start system as an additional admin
key with its associated privileges. This makes it NOT compatible with
MyKey. Restart the engine when you insert a key into the ignition
cylinder it may help you to retain some MyKeyfunctions.
MyKey65
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

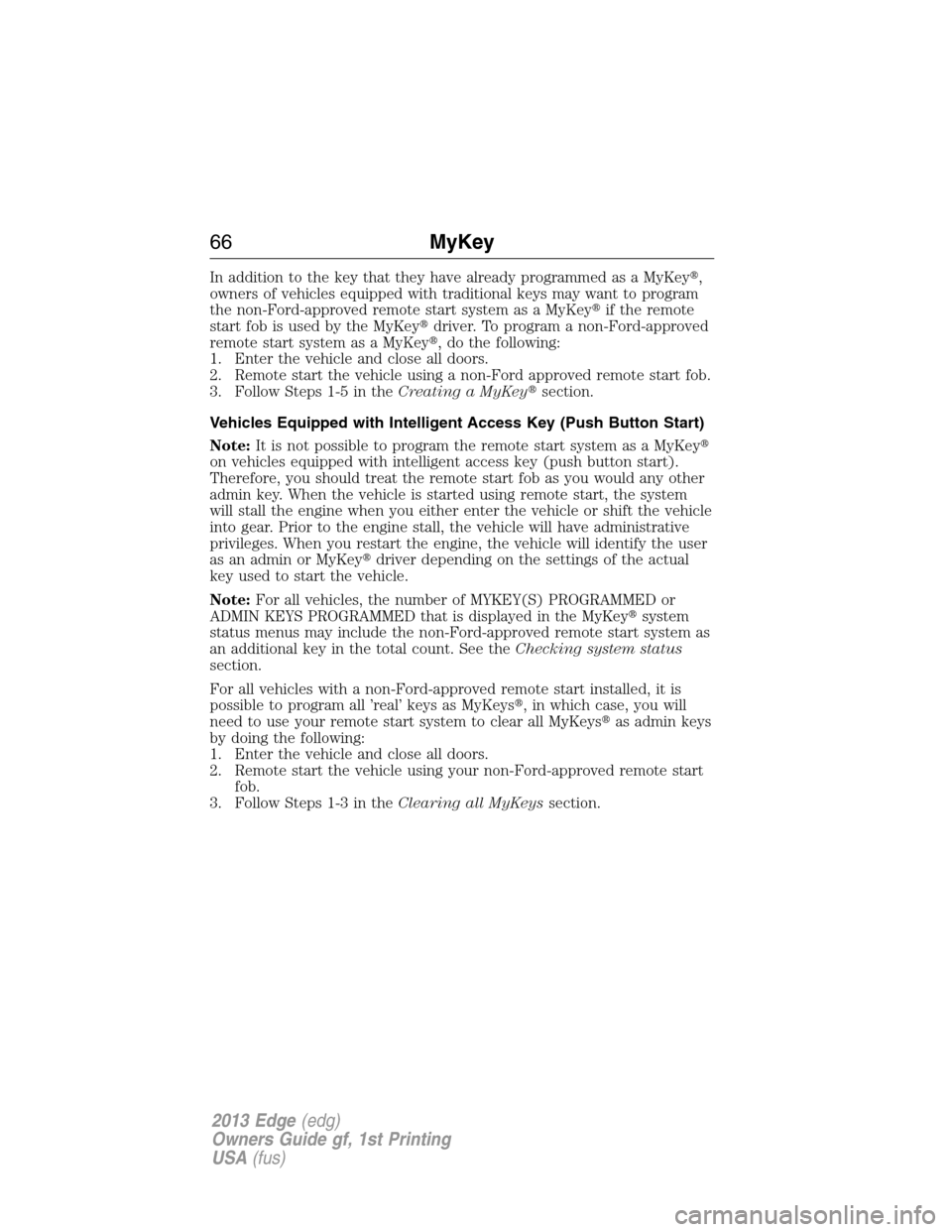

In addition to the key that they have already programmed as a MyKey,
owners of vehicles equipped with traditional keys may want to program
the non-Ford-approved remote start system as a MyKeyif the remote
start fob is used by the MyKeydriver. To program a non-Ford-approved
remote start system as a MyKey, do the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a non-Ford approved remote start fob.
3. Follow Steps 1-5 in theCreating a MyKeysection.
Vehicles Equipped with Intelligent Access Key (Push Button Start)
Note:It is not possible to program the remote start system as a MyKey
on vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any other
admin key. When the vehicle is started using remote start, the system
will stall the engine when you either enter the vehicle or shift the vehicle
into gear. Prior to the engine stall, the vehicle will have administrative
privileges. When you restart the engine, the vehicle will identify the user
as an admin or MyKeydriver depending on the settings of the actual
key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus may include the non-Ford-approved remote start system as
an additional key in the total count. See theChecking system status
section.
For all vehicles with a non-Ford-approved remote start installed, it is
possible to program all ’real’ keys as MyKeys, in which case, you will
need to use your remote start system to clear all MyKeysas admin keys
by doing the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using your non-Ford-approved remote start
fob.
3. Follow Steps 1-3 in theClearing all MyKeyssection.
66MyKey
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

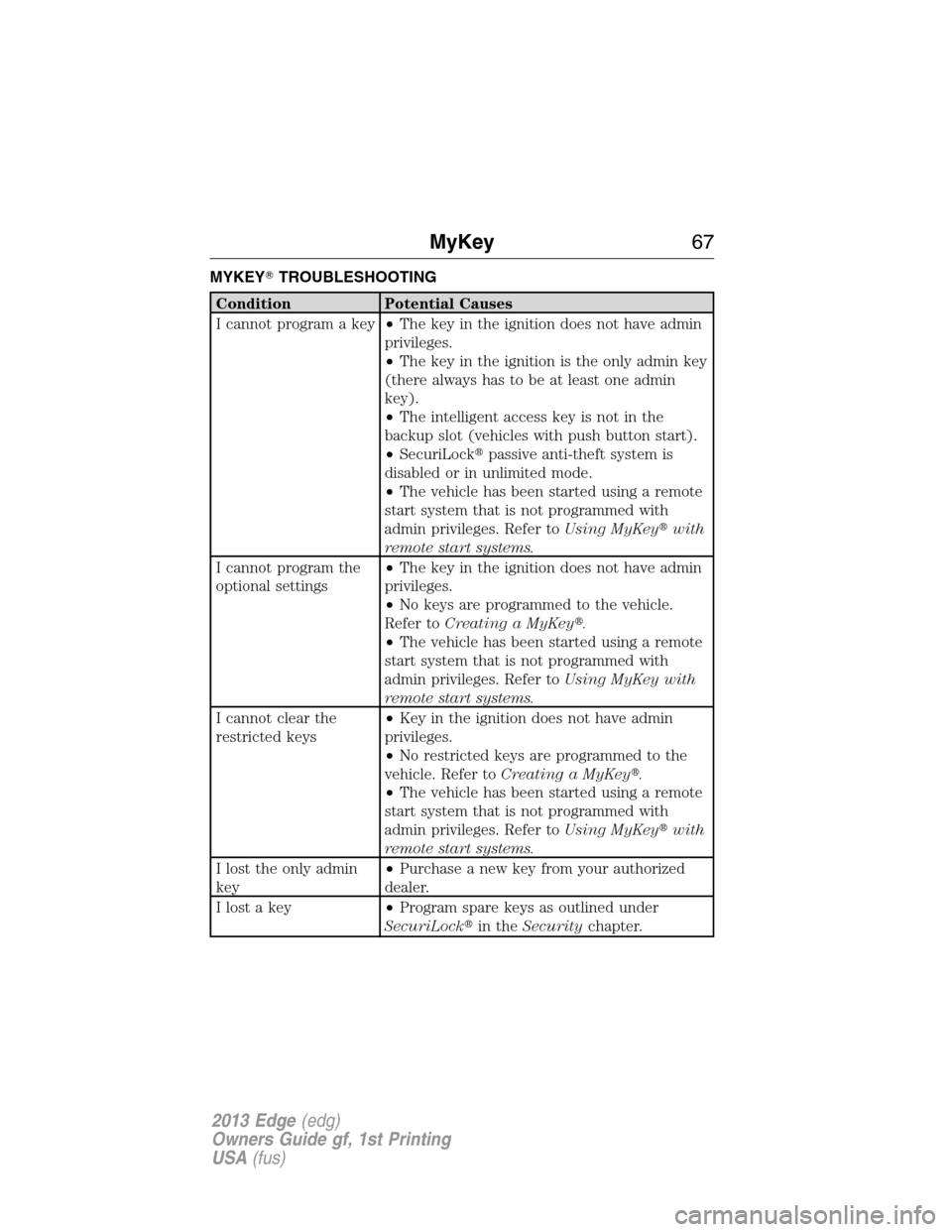

MYKEYTROUBLESHOOTING
Condition Potential Causes
I cannot program a key•The key in the ignition does not have admin
privileges.
•The key in the ignition is the only admin key
(there always has to be at least one admin
key).
•The intelligent access key is not in the
backup slot (vehicles with push button start).
•SecuriLockpassive anti-theft system is
disabled or in unlimited mode.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer toUsing MyKeywith
remote start systems.
I cannot program the
optional settings•The key in the ignition does not have admin
privileges.
•No keys are programmed to the vehicle.
Refer toCreating a MyKey.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer toUsing MyKey with
remote start systems.
I cannot clear the
restricted keys•Key in the ignition does not have admin
privileges.
•No restricted keys are programmed to the
vehicle. Refer toCreating a MyKey.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer toUsing MyKeywith
remote start systems.
I lost the only admin
key•Purchase a new key from your authorized
dealer.
I lost a key•Program spare keys as outlined under
SecuriLockin theSecuritychapter.
MyKey67
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

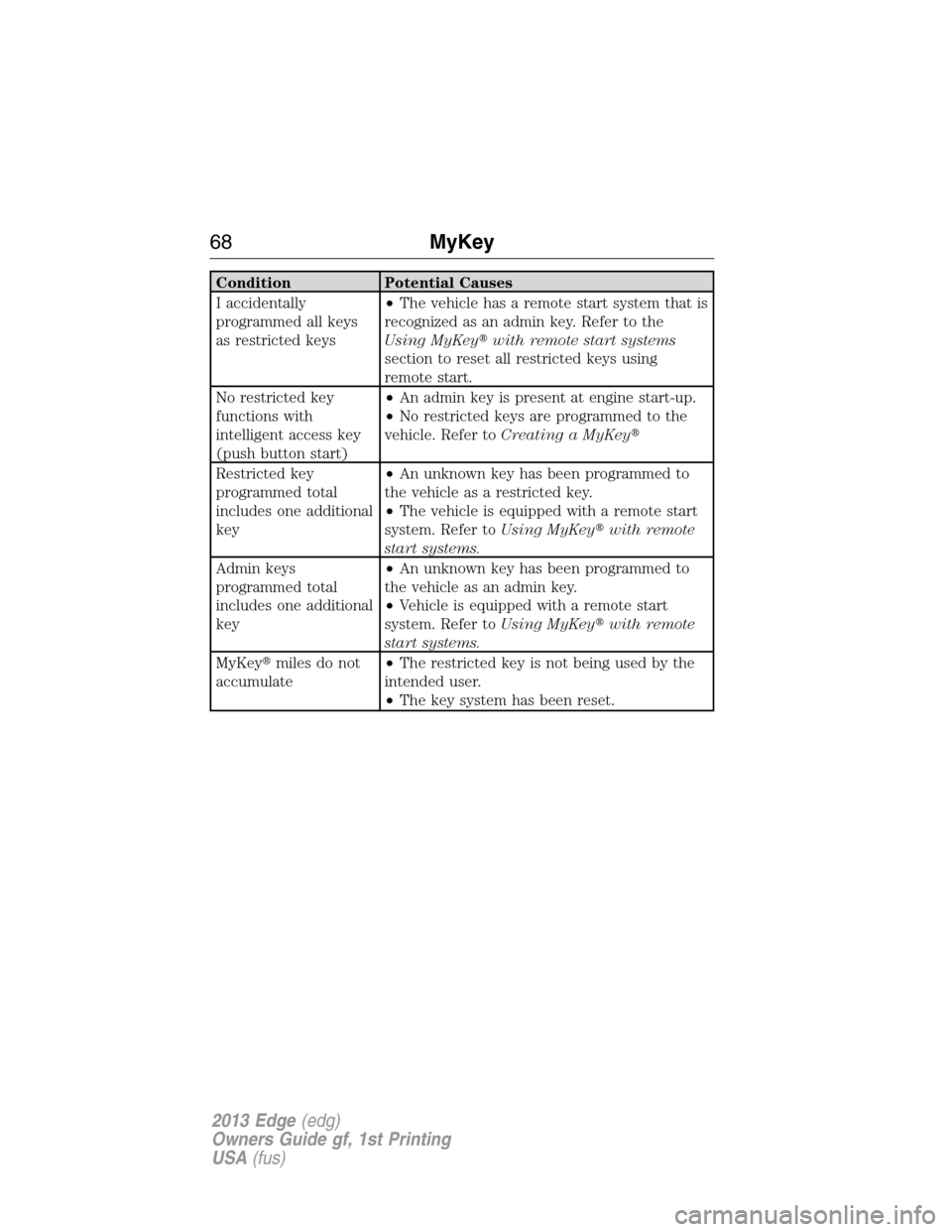

Condition Potential Causes
I accidentally
programmed all keys
as restricted keys•The vehicle has a remote start system that is
recognized as an admin key. Refer to the
Using MyKeywith remote start systems
section to reset all restricted keys using
remote start.
No restricted key
functions with
intelligent access key
(push button start)•An admin key is present at engine start-up.
•No restricted keys are programmed to the
vehicle. Refer toCreating a MyKey
Restricted key
programmed total
includes one additional
key•An unknown key has been programmed to
the vehicle as a restricted key.
•The vehicle is equipped with a remote start
system. Refer toUsing MyKeywith remote
start systems.
Admin keys
programmed total
includes one additional
key•An unknown key has been programmed to
the vehicle as an admin key.
•Vehicle is equipped with a remote start
system. Refer toUsing MyKeywith remote
start systems.
MyKeymiles do not
accumulate•The restricted key is not being used by the
intended user.
•The key system has been reset.
68MyKey
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

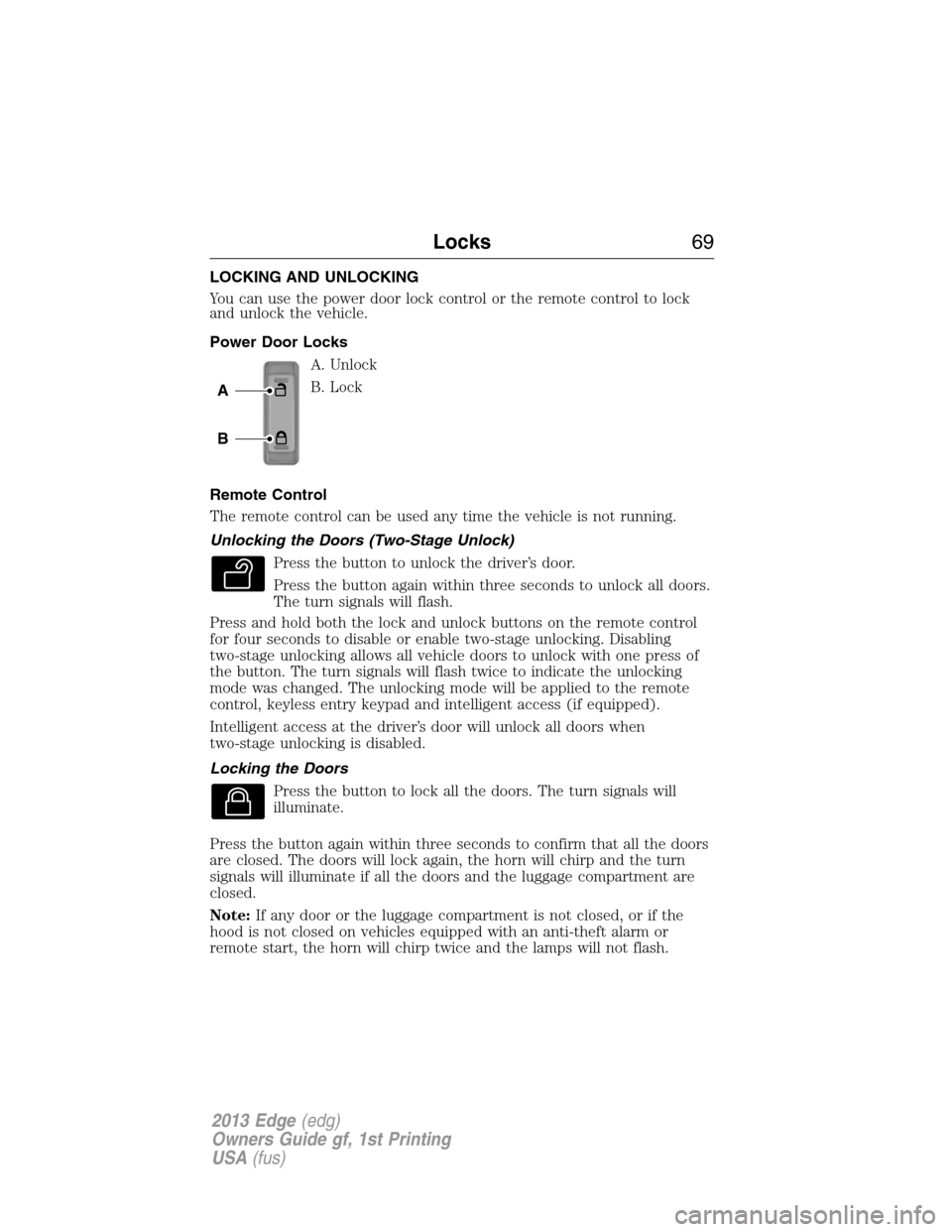

LOCKING AND UNLOCKING
You can use the power door lock control or the remote control to lock
and unlock the vehicle.
Power Door Locks
A. Unlock
B. Lock
Remote Control
The remote control can be used any time the vehicle is not running.
Unlocking the Doors (Two-Stage Unlock)
Press the button to unlock the driver’s door.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signals will flash twice to indicate the unlocking
mode was changed. The unlocking mode will be applied to the remote
control, keyless entry keypad and intelligent access (if equipped).
Intelligent access at the driver’s door will unlock all doors when
two-stage unlocking is disabled.
Locking the Doors
Press the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the luggage compartment are
closed.
Note:If any door or the luggage compartment is not closed, or if the
hood is not closed on vehicles equipped with an anti-theft alarm or
remote start, the horn will chirp twice and the lamps will not flash.
A
B
Locks69
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

Power Liftgate (If Equipped)
WARNING:Make sure all persons are clear of the liftgate area
before using power liftgate control.
WARNING:Make sure the liftgate is closed to prevent exhaust
fumes from being drawn into the vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents open so outside air comes into the vehicle.
Note:Be careful when opening or closing the liftgate in a garage or
other enclosed area to avoid damaging the liftgate.
Press twice within three seconds to open or close the liftgate,
or to reverse the movement.
Activating Intelligent Access (If Equipped)
The intelligent access key must be within 3 feet (1 meter) of the vehicle.
At the Front Doors
Pull a front exterior door handle. The door will unlock and can be
opened.
Press and hold the door handle lock
sensor to lock the vehicle. To avoid
unlocking the door inadvertently, be
sure to only touch the lock sensor
and not other areas of the door
handle.
At the Liftgate
Press the exterior liftgate release button on the top of the liftgate
pull-cup handle.
70Locks
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)
