NORMAL SCHEDULED MAINTENANCE AND LOG
Intelligent Oil-Life Monitor®
Your vehicle is equipped with an Intelligent Oil-Life Monitor that
determines when the engine oil needs to be changed based on how your
vehicle is used. By using several important factors in its calculations,
the monitor helps reduce the cost of owning your vehicle and reduce
environmental waste at the same time. This means you won’t have to
remember to change the oil on a mileage-based schedule; the vehicle
lets you know when an oil change is due by displaying ENGINE OIL
CHANGE DUE or OIL CHANGE REQUIRED in the information display.
The following table is intended to provide examples of vehicle use and
its impact on engine oil change intervals; it is provided as a guideline
only. Actual engine oil change intervals depend on several factors and
generally decrease with severity of use.
When to expect the OIL CHANGE REQUIRED message
Interval Vehicle use and examples
7500-10000 miles
(12000-16000 km)Normal
– Normal commuting with highway driving
– No, or moderate, load or towing
– Flat to moderately hilly roads
– No extended idling
5000-7499 miles
(8000-11999 km)Severe
– Moderate to heavy load or towing
– Mountainous or off-road conditions
– Extended idling
– Extended hot or cold operation
3000-4999 miles
(4800-7999 km)Extreme
– Maximum load or towing
– Extreme hot or cold operation
520Scheduled Maintenance
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Normal scheduled maintenance*
At every oil change
interval as indicated by
the information displayChange engine oil and filter.**
Rotate tires, inspect tire wear and measure
tread depth.
Perform multi-point inspection
(recommended).
Inspect automatic transmission fluid level
(if equipped with dipstick). Consult dealer for
requirements.
Inspect brake pads, shoes, rotors, drums,
brake linings, hoses and parking brake.
Inspect engine cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect rear axle and U-joints. Lubricate if
equipped with grease fittings (All-wheel drive
vehicles).
Inspect half-shaft boots.
Inspect steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and
U-joints. Lubricate if equipped with grease
fittings.
Inspect wheels and related components for
abnormal noise, wear, looseness or drag.
*Do not exceed one year or 10000 miles (16000 kilometers) between
service intervals.
**Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
Scheduled Maintenance521
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Other maintenance items1
Every 20000 miles
(32000 km)Replace cabin air filter, or clean screen.
Every 30000 miles
(48000 km)Replace engine air filter.
At 100000 miles
(160000 km)Change engine coolant.
2
Every 100000 miles
(160000 km)Replace spark plugs.
Inspect accessory drive belt(s).3
Every 150000 miles
(240000 km)Change automatic transmission fluid
Replace accessory drive belt(s) if not replaced
within the last 100000 miles (160000 km).
1These maintenance items can be performed within 3000 miles
(4800 kilometers) of the last oil change. Do not exceed the designated
distance for the interval.
2Initial replacement at six years or 100000 miles (160000 kilometers),
then every three years or 50000 miles (80000 kilometers).
3After initial inspection, inspect every other oil change until replaced.
522Scheduled Maintenance
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Perform the services shown in the following tables when specified or
within 3000 miles (4800 kilometers) of the OIL CHANGE REQUIRED
message appearing in the information display.
Example #1:The OIL CHANGE REQUIRED message comes on
at 28751 miles (46270 kilometers); perform the 30000 mile
(48000 kilometer) automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on,
but the odometer reads 30000 miles (48000 kilometers); perform the
engine air filter replacement. (For example, the Intelligent Oil-Life
Monitor was reset at 25000 miles [40000 kilometers].)
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredInspect and lubricate U-joints.
See axle maintenance items under
Exceptions.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
526Scheduled Maintenance
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Extensive idling or low-speed driving for long distances as in
heavy commercial use (such as delivery, taxi, patrol car or
livery)
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
Every 60000 miles
(96000 km)Replace spark plugs.
Operating in dusty or sandy conditions such as unpaved or
dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Every 5000 miles
(8000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
Rotate tires, inspect tires for wear and
measure tread depth.
Every 5000 miles
(8000 km) or six
monthsChange engine oil and filter.
*
Perform multi-point inspection.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
*Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
Scheduled Maintenance527
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (seeTechnical specificationsin theCapacities
and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100000 miles (160000 kilometers). Rear axle fluid change may be
waived if the axle was filled with 75W140 synthetic gear fluid meeting
Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API SM or SN oils are not available, then the oil change
service interval is 3000 miles (4800 kilometers).
530Scheduled Maintenance
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

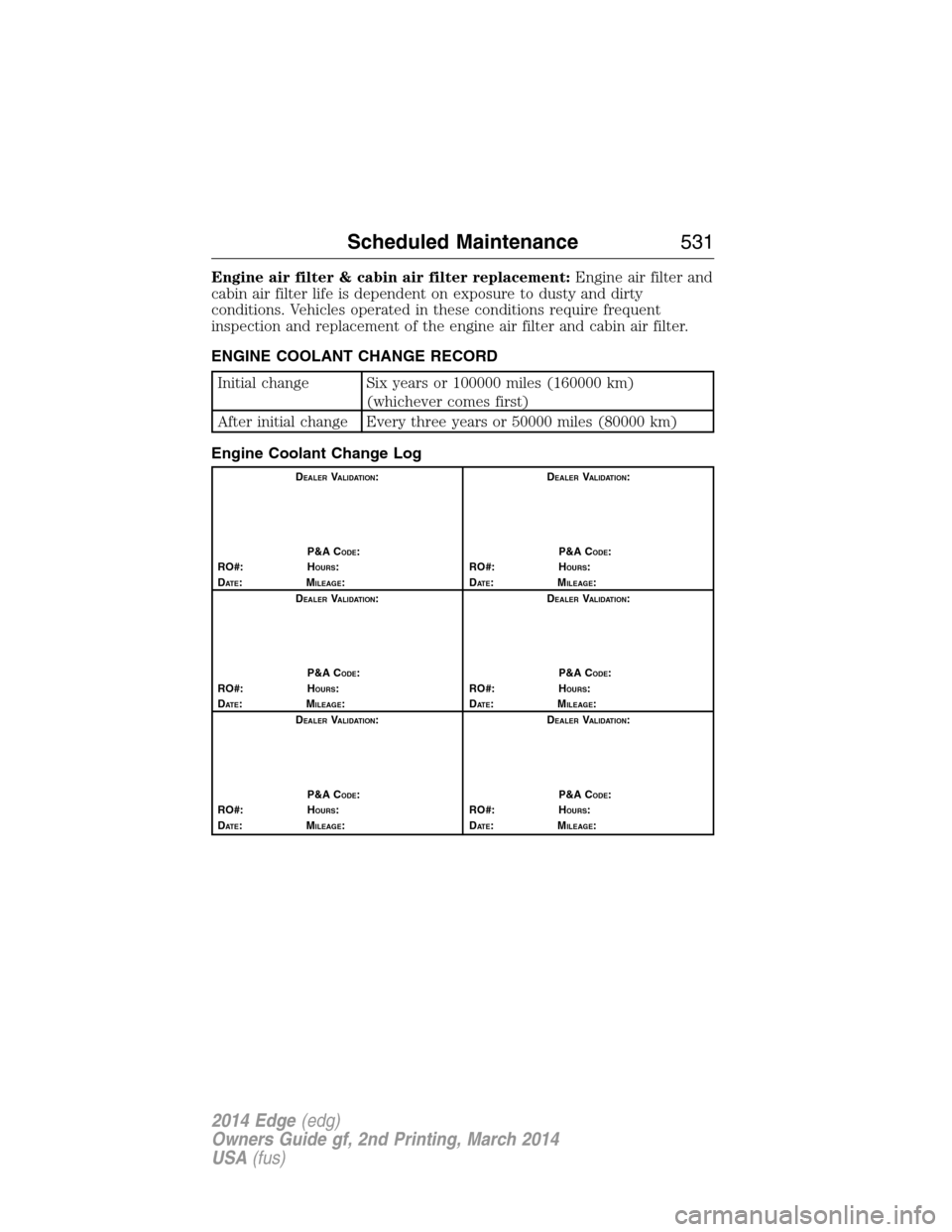

Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change Six years or 100000 miles (160000 km)
(whichever comes first)
After initial change Every three years or 50000 miles (80000 km)
Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance531
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

911 Assist™ ......................388, 466
A
ABS (see Brakes) .....................192
Accessing and using your
USB port ....................................444
Accessing call history/phone
book during active call .............376
Accessing your calendar ..........465
Accessing your media menu
features ......................................401
Accessing your phone menu
features ......................................378
Accessory delay ..........................98
Active call menu options .........376
Adaptive Cruise Control ...........205
Adding (pairing) a phone ........452
Advanced menu options ...386, 408
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................386
Airbag supplemental restraint
system ..........................................46
and child safety seats ..............47
description ................................46
disposal ......................................57
driver airbag ..............................46
passenger airbag .......................46
side airbag ...........................46, 52
Air cleaner filter .......288–289, 340
Air conditioning ........................131
manual heating and air
conditioning system ...............131
Air filter, cabin ..........................141All Wheel Drive (AWD),
driving off road .........................185
Ambient mood/lighting .............472
AM/FM .......................................432
Antifreeze (see Engine
coolant) .....................................275
Anti-lock brake system
(see Brakes) ..............................192
Anti-theft system ..................81, 84
arming the system ..............81, 84
disarming a triggered system...84
AppLink™ .................................396
Armrests ....................................154
Audio system
Single CD ................351, 356–357
Audio system
(see Radio) ................351, 356–357
Automatic transmission ............179
fluid, adding ....................280, 283
fluid, checking ................280, 283
fluid, refill capacities ..............336
fluid, specification ..................336
Selectshift (SST) ....................181
Auxiliary Input Jack .................441
Auxiliary input jack
(Line in) ....................................365
Auxiliary powerpoint ................160
A/V inputs ..........................366, 449
Axle
lubricant specifications ..........336
B
Battery .......................................284
acid, treating emergencies .....284
jumping a disabled battery ....249
maintenance-free ....................284
532Index
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

replacement, specifications ...340
servicing ..................................284
Blind Spot Information
System .......................................214
Booster seats ...............................22
Brakes ........................................192
anti-lock ...................................192
anti-lock brake system (ABS)
warning light ...........................192
brake warning light ................192
fluid, checking and adding ....283
fluid, refill capacities ..............336
fluid, specifications .................336
lubricant specifications ..........336
parking ....................................193
shift interlock ..........................183
trailer .......................................238
C
Capacities for refilling fluids ....336
Cargo management system ......225
Cargo net ...................................224
CD ..............................351, 356–357
CD player ..........................349, 443
CD voice commands .................444
Cell phone use ............................16
Changing a tire .........................328
Child safety restraints ..........28, 30
Child safety seats
attaching with tether straps ....30
automatic locking mode
(retractor) .................................36
LATCH .......................................28
Child safety seats - booster
seats .............................................22
Cleaning the touchscreen ........421Cleaning your vehicle ...............296
engine compartment ..............298
instrument panel ....................300
interior .....................................300
plastic parts ............................297
washing ....................................296
waxing .....................................298
wheels ......................................302
wiper blades ............................299
Climate control (see Air
conditioning or Heating) ..........131
Climate voice commands .........484
Clock ..................................351, 470
Collision Warning System .........219
Compass Display .......................115
Console ......................................161
overhead ..................................161
Coolant ......................................275
checking and adding ..............275
refill capacities ........................336
specifications ..........................336
Cross Traffic Alert ....................214
Cruise control ...........................204
Customer Assistance ................246
Ford Extended Service Plan...346
Getting roadside assistance ...246
Getting the service
you need .................................252
Ordering additional
owner’s literature ...................258
Utilizing the
Mediation/Arbitration
Program ...................................256
D
Defrost ...............131–132, 134, 136
rear window ............................140
Index533
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Dipstick
automatic transmission
fluid ..................................280, 283
engine oil .................................274
Display settings .........................471
Driving under special
conditions ..................184, 186, 189
sand .........................................187
snow and ice ...........................190
through water .................188, 244
Dual automatic temperature
control (DATC) .........132, 134, 136
E
Electronic message center .......111
Electronic stability control ......197
Emergencies, roadside
jump-starting ..........................249
running out of fuel .................172
Emergency brake
(see Parking brake) ..................193
Emission control system ..........176
End user license agreement ....496
Engine ........................................335
cleaning ...................................298
coolant .....................................275
fail-safe cooling .......................279
idle speed control ...................284
lubrication specifications .......336
refill capacities ........................336
service points ..................272–273
Engine block heater .................167
Engine oil
checking and adding ..............274
dipstick ....................................274
filter, specifications ................340refill capacities ........................336
specifications ..........................336
Event data recording ..................12
Exhaust fumes ..........................167
F
Fail safe cooling ........................279
Fleet MyKey programming ........66
Floor mats .................................245
Fluid capacities .........................336
Four-Wheel Drive vehicles
driving off road .......................186
Fuel
cap ...........................................174
capacity ...................................336
choosing the right fuel ...170–171
filler funnel .............................172
filling your vehicle with fuel...174
filter, specifications ................284
fuel pump shut-off ..................248
octane rating ...................171, 335
quality ......................................170
running out of fuel .................172
safety information relating to
automotive fuels .....................169
Fuel and distance computer ....115
outside temperature
indicator ..................................115
to empty indicator ..................115
trip distance ............................115
trip/reset button .....................115
Fuel - flex fuel vehicle (FFV)...171
Fuses ..........................260–261, 266
G
Garage door opener ..................155
Gas cap (see Fuel cap) ............174
534Index
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)
