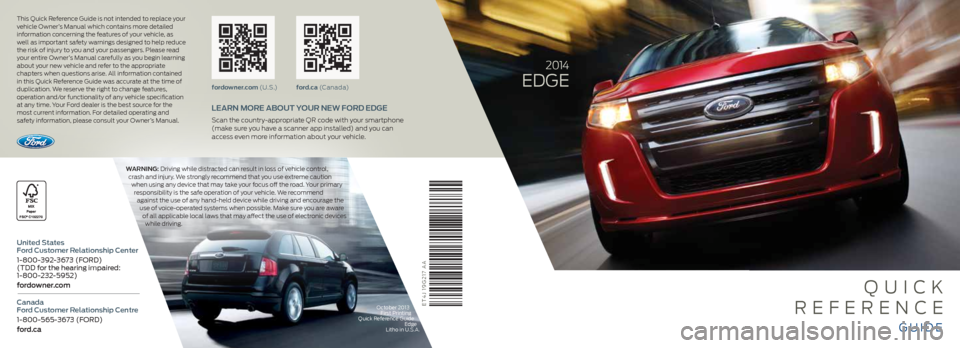

FORD EDGE 2014 1.G Quick Reference Guide

October 2013First Printing
Quick Reference Guide Edge
Litho in U.S.A.ET4J 19G217 AA
2 014
EdGE
Q Uick
R EFEREnc E
GUid E
Warning: driving while distracted can result in loss of vehicle control,
crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend
against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware
of all applicable local laws that may affect the use of electronic devices while driving.
Learn more about your ne W Ford edge
Scan the country-appropriate QR code with your smartphone
(make sure you have a scanner app installed) and you can
access even more information about your vehicle.
fordowner.com (U . S .)ford.ca (ca n a d a)
This Quick Reference Guide is not intended to replace your
vehicle Owner’s Manual which contains more detailed
information concerning the features of your vehicle, as
well as important safety warnings designed to help reduce
the risk of injury to you and your passengers. Please read
your entire Owner’s Manual carefully as you begin learning
about your new vehicle and refer to the appropriate
chapters when questions arise. All information contained
in this Quick Reference Guide was accurate at the time of
duplication. We reserve the right to change features,
operation and/or functionality of any vehicle specification
at any time. Your Ford dealer is the best source for the
most current information. For detailed operating and
safety information, please consult your Owner’s Manual.
United States
Ford Customer Relationship Center
1-800-392-3673 (FORD)
(TDD for the hearing impaired:
1-800-232-5952)
fordowner.com
Canada
Ford Customer Relationship Centre
1-800-565-3673 (FORD)
ford.ca

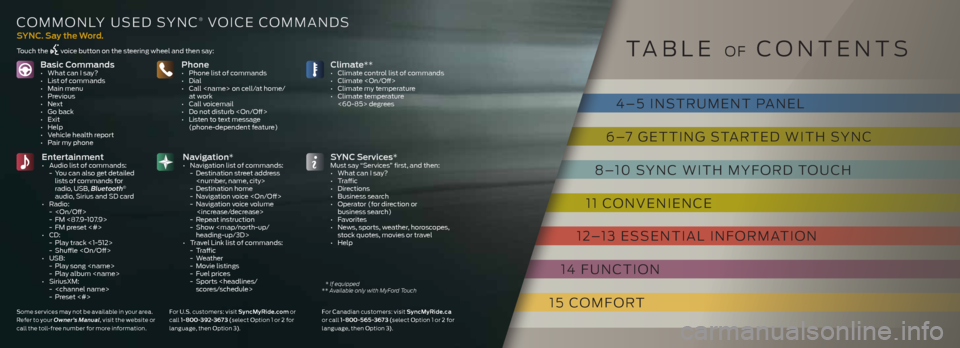

basic Commands• What can I say?
• List of commands
• Main menu
• Previous
• Next
• Go back
• Exit
• Help
• Vehicle health report
• Pair my phonePhone• Phone list of commands
• Dial
• Call on cell/at home/at work
• Call voicemail
• Do not disturb
• Listen to text message (phone-dependent feature)
entertainment • Audio list of commands:
- You can also get detailed
lists of commands for
radio, USB, Bluetooth
®
audio, Sirius and SD card
• Radio:
-
- FM <87.9-107.9>
- FM preset <#>
• CD:
- Play track <1-512>
- Shuffle
• USB:
- Play song
- Play album
• SiriusXM:
-
- Preset <#>
S ynC Services*Must say “Services” first, and then:
• What can I say?
• Traffic
• Directions
• Business search
• Operator (for direction or business search)
• Favorites
• News, sports, weather, horoscopes,
stock quotes, movies or travel
• Help
Climate**• Climate control list of commands
• Climate
• Climate my temperature
• Climate temperature <60-85> degrees
navigation* • Navigation list of commands:
- Destination street address

- Destination home
- Navigation voice
- Navigation voice volume
- Repeat instruction
- Show

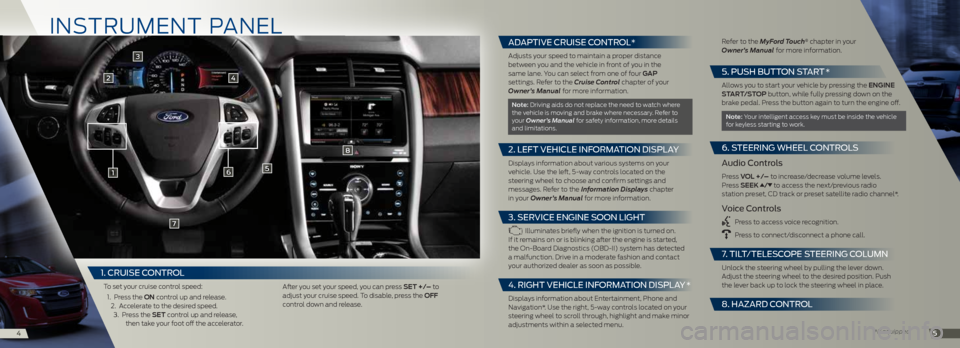

in STRUME nT PAn EL
1
2
6
8
7
5
45
3
4
*if equipped
1. CRUISE C ONTROL
To set your cruise control speed:
1. Press the on control up and release.
2. Accelerate to the desired speed. 3. Press the Set control up and release,
then take your foot off the accelerator. After you set your speed, you can press Set +/– to
adjust your cruise speed. To disable, press the oFF

control down and release.
ADAPTIVE CRUISE CONTROL*
Adjusts your speed to maintain a proper distance
between you and the vehicle in front of you in the
same lane. You can select from one of four ga P
settings. Refer to the Cruise Control chapter of your
Owner’s Manual for more information.
note: driving aids do not replace the need to watch where
the vehicle is moving and brake where necessary. Refer to
your Owner’s Manual for safety information, more details
and limitations.
2. LEFT VEHICLE INFORMATION DISPLAY
displays information about various systems on your
vehicle. Use the left, 5-way controls located on the
steering wheel to choose and confirm settings and
messages. Refer to the Information Displays chapter
in your Owner’s Manual for more information.
3. SERVICE ENGINE SOON LIGHT
illuminates briefly when the ignition is turned on.
if it remains on or is blinking after the engine is started,
the On-board diagnostics (Obd-ii) system has detected
a malfunction. drive in a moderate fashion and contact
your authorized dealer as soon as possible.
4. RIGHT VEHICLE INFORMATION DISPLAY *
displays information about Entertainment, Phone and
navigation*. Use the right, 5-way controls located on your
steering wheel to scroll through, highlight and make minor
adjustments within a selected menu. Refer to the MyFord Touch
® chapter in your
Owner’s Manual for more information.
5. P USH BUTTON START *
Allows you to start your vehicle by pressing the engine
Start/StoP button, while fully pressing down on the
brake pedal. Press the button again to turn the engine off.
note: Your intelligent access key must be inside the vehicle
for keyless starting to work.
6. S TEERING WHEEL CONTROLS
Audio Controls
Press V oL +/– to increase/decrease volume levels.
Press SeeK / to access the next/previous radio
station preset, cd track or preset satellite radio channel*.
Voice Controls
Press to access voice recognition.
Press to connect/disconnect a phone call.
7. TILT /TELESCOPE STEERING COLUMN
Unlock the steering wheel by pulling the lever down.
Adjust the steering wheel to the desired position. Push
the lever back up to lock the steering wheel in place.
8. HA zARD CONTROL

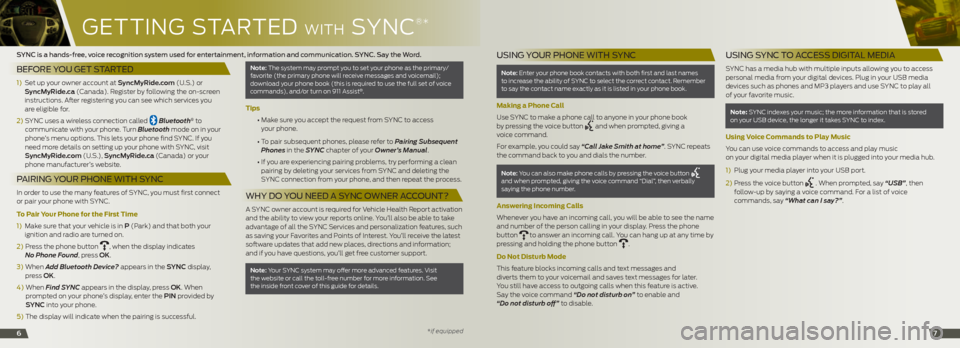

GETTinG STARTE d WiTh SYnc
®*
67
SYNC is a hands-free, voice recognition system used for entertainment, information and communication. SYNC. Say the Word.
BEFORE YOU GET STARTED
1) Set up your owner account at Syncmyride.com (U.S.) or
Syncmyride.ca ( canada). Register by following the on-screen
instructions. After registering you can see which services you
are eligible for.
2) SYnc uses a wireless connection called
Bluetooth® to
communicate with your phone. Turn Bluetooth mode on in your
phone’s menu options. This lets your phone find SYnc . if you
need more details on setting up your phone with SYnc , visit
Syncmyride.com (U.S.), Syncmyride.ca ( canada) or your
phone manufacturer’s website.
P AIRING Y OUR PHONE WITH SYNC
in order to use the many features of SYnc , you must first connect
or pair your phone with SYnc .
To Pair Your Phone for the First Time
1) Make sure that your vehicle is in P (Park) and that both your
ignition and radio are turned on.
2) Press the phone button
, when the display indicates
No Phone Found, press oK.
3) When Add Bluetooth Device? appears in the S ynC display,
press oK.
4) When Find SYNC appears in the display, press oK. When
prompted on your phone’s display, enter the Pin provided by
SynC into your phone.
5) The display will indicate when the pairing is successful.
note: The system may prompt you to set your phone as the primary/
favorite (the primary phone will receive messages and voicemail);
download your phone book (this is required to use the full set of voice
commands), and/or turn on 911 Assist
®.
Tips
• Make sure you accept the request from SYnc to access
your phone.
• To pair subsequent phones, please refer to Pairing Subsequent
Phones in the SYNC chapter of your Owner’s Manual.
• if you are experiencing pairing problems, try performing a clean
pairing by deleting your services from SYnc and deleting the
SYnc connection from your phone, and then repeat the process.
WHY DO YOU NEED A SYNC O WNER ACCOUNT?
A SYnc owner account is required for Vehicle health Report activation
and the ability to view your reports online. You’ll also be able to take
advantage of all the SYnc Services and personalization features, such
as saving your Favorites and Points of interest. You’ll receive the latest
software updates that add new places, directions and information;
and if you have questions, you’ll get free customer support.
note: Your SYnc system may offer more advanced features. Visit
the website or call the toll-free number for more information. See
the inside front cover of this guide for details.
*if equipped
U SING Y OUR PHONE WITH SYNC
note: Enter your phone book contacts with both first and last names
to increase the ability of SYnc to select the correct contact. Remember
to say the contact name exactly as it is listed in your phone book.
Making a Phone Call
Use SYnc to make a phone call to anyone in your phone book
by pressing the voice button
and when prompted, giving a
voice command.
For example, you could say “Call Jake Smith at home”. SYnc repeats
the command back to you and dials the number.
note: You can also make phone calls by pressing the voice button
and when prompted, giving the voice command “dial”, then verbally
saying the phone number.
Answering Incoming Calls
Whenever you have an incoming call, you will be able to see the name
and number of the person calling in your display. Press the phone
button
to answer an incoming call. You can hang up at any time by
pressing and holding the phone button .
Do Not Disturb Mode
This feature blocks incoming calls and text messages and
diverts them to your voicemail and saves text messages for later.
You still have access to outgoing calls when this feature is active.
Say the voice command “Do not disturb on” to enable and
“Do not disturb off” to disable.
U SING SYNC TO A CCESS DIGITAL MEDIA
SYnc has a media hub with multiple inputs allowing you to access
personal media from your digital devices. Plug in your USb media
devices such as phones and MP3 players and use SYnc to play all
of your favorite music.
Note: SYnc indexes your music; the more information that is stored
on your USb device, the longer it takes SYnc to index.
Using Voice Commands to Play Music
You can use voice commands to access and play music
on your digital media player when it is plugged into your media hub.
1) Plug your media player into your USb port.
2) Press the voice button
. When prompted, say “USB”, then
follow-up by saying a voice command. For a list of voice
commands, say “What can I say?”.

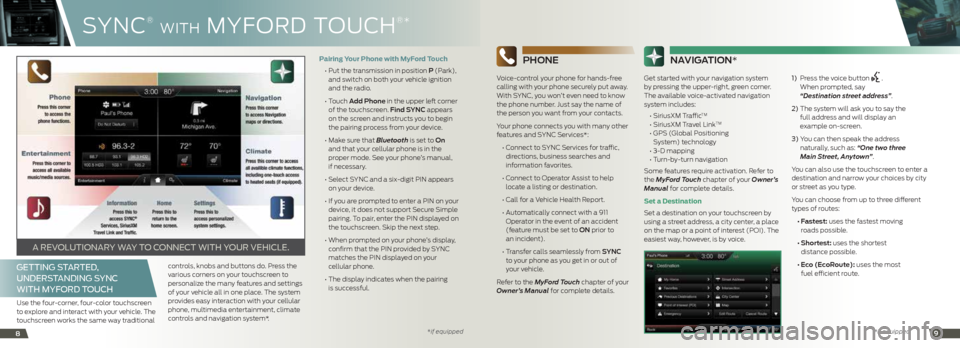

SYnc
®
WiTh M YFOR d TOU ch
®*
89
Phone
Voice-control your phone for hands-free
calling with your phone securely put away.
With SYnc , you won’t even need to know
the phone number. Just say the name of
the person you want from your contacts.
Your phone connects you with many other
features and SYnc Services*:
• Connect to SYNC Services for traffic,
directions, business searches and
information favorites.
• Connect to Operator Assist to help
locate a listing or destination.
• Call for a Vehicle Health Report.
• Automatically connect with a 911
Operator in the event of an accident
(feature must be set to on prior to
an incident).
• Transfer calls seamlessly from S ynC
to your phone as you get in or out of
your vehicle.
Refer to the MyFord Touch chapter of your
Owner’s Manual for complete details.
na Vigation*
Get started with your navigation system
by pressing the upper-right, green corner.
The available voice-activated navigation
system includes:
• SiriusXM Traffic
TM
• SiriusXM Travel LinkTM
• GPS (Global Positioning
System) technology
• 3-D mapping
• Turn-by-turn navigation
Some features require activation. Refer to
the MyFord Touch chapter of your Owner’s
Manual for complete details.
Set a Destination
Set a destination on your touchscreen by
using a street address, a city center, a place
on the map or a point of interest (POi). The
easiest way, however, is by voice. 1)
Press the voice button
.
When prompted, say
“Destination street address”.
2) The system will ask you to say the
full address and will display an
example on-screen.
3) You can then speak the address
naturally, such as: “One two three
Main Street, Anytown”.
You can also use the touchscreen to enter a
destination and narrow your choices by city
or street as you type.
You can choose from up to three different
types of routes:
• Fastest: uses the fastest moving
roads possible.
• Shortest: uses the shortest
distance possible.
• Eco (EcoRoute): uses the most
fuel efficient route.

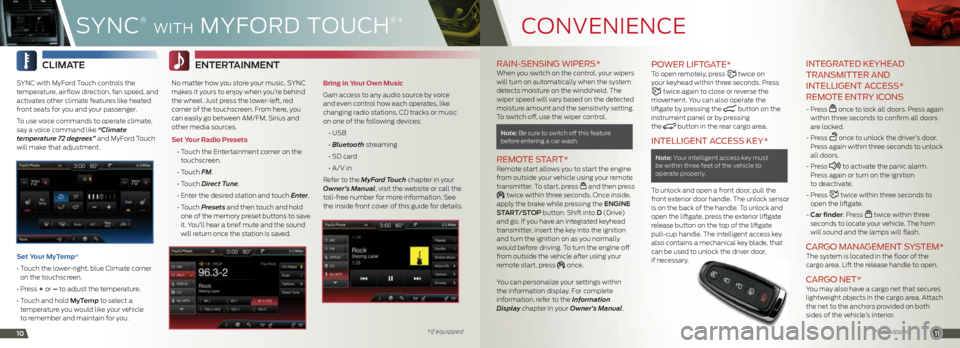

GETTING STARTED ,
UNDERSTANDING SYNC
WITH MYF ORD TOUCH
Use the four-corner, four-color touchscreen
to explore and interact with your vehicle. The
touchscreen works the same way traditional controls, knobs and buttons do. Press the
various corners on your touchscreen to
personalize the many features and settings
of your vehicle all in one place. The system
provides easy interaction with your cellular
phone, multimedia entertainment, climate
controls and navigation system*.Pairing Your Phone with MyFord Touch
•
Put the transmission in position P (Park),
and switch on both your vehicle ignition
and the radio.
• Touch a dd Phone in the upper left corner
of the touchscreen. Find S ynC appears
on the screen and instructs you to begin
the pairing process from your device.
• Make sure that Bluetooth is set to on
and that your cellular phone is in the
proper mode. See your phone’s manual,
if necessary.
• Select SYNC and a six-digit PIN appears
on your device.
• If you are prompted to enter a PIN on your
device, it does not support Secure Simple
pairing. To pair, enter the Pin displayed on
the touchscreen. Skip the next step.
• When prompted on your phone’s display,
confirm that the Pin provided by SYnc
matches the Pin displayed on your
cellular phone.
• The display indicates when the pairing
is successful.
A REVOLUTIONARY WAY TO CONNECT WITH YOUR VEHICLE.
*if equipped*if equipped

cOnVEni EncE
1011
RAIN- SENSING WIPERS* When you switch on the control, your wipers
will turn on automatically when the system
detects moisture on the windshield. The
wiper speed will vary based on the detected
moisture amount and the sensitivity setting.
To switch off, use the wiper control.

note: be sure to switch off this feature
before entering a car wash.
REMOTE S TART* Remote start allows you to start the engine
from outside your vehicle using your remote
transmitter. To start, press
and then press twice within three seconds. Once inside,
apply the brake while pressing the engine
Start /StoP button. Shift into d (drive)
and go. if you have an integrated keyhead
transmitter, insert the key into the ignition
and turn the ignition on as you normally
would before driving. To turn the engine off
from outside the vehicle after using your
remote start, press
once.
You can personalize your settings within
the information display. For complete
information, refer to the Information
Display chapter in your Owner’s Manual.
P OWER LIFTGATE*To open remotely, press twice on
your keyhead within three seconds. Press
twice again to close or reverse the
movement. You can also operate the
liftgate by pressing the
button on the
instrument panel or by pressing
the
button in the rear cargo area.
INTELLIGENT A CCESS KEY*
note: Your intelligent access key must
be within three feet of the vehicle to
operate properly.
To unlock and open a front door, pull the
front exterior door handle. The unlock sensor
is on the back of the handle. To unlock and
open the liftgate, press the exterior liftgate
release button on the top of the liftgate
pull-cup handle. The intelligent access key
also contains a mechanical key blade, that
can be used to unlock the driver door,
if necessary.
INTEGRATED KEYHEAD
TRANSMITTER AND
INTELLIGENT A CCESS*
REMOTE ENTRY ICONS
- Press once to lock all doors. Press again
within three seconds to confirm all doors
are locked.
- Press
once to unlock the driver’s door.
Press again within three seconds to unlock
all doors.
- Press
to activate the panic alarm.
Press again or turn on the ignition
to deactivate.
- Press
twice within three seconds to
open the liftgate.
- Car finder: Press
twice within three
seconds to locate your vehicle. The horn
will sound and the lamps will flash.
C ARGO MANAGEMENT SYSTEM* The system is located in the floor of the
cargo area. Lift the release handle to open.
CARGO NET* You may also have a cargo net that secures
lightweight objects in the cargo area. Attach
the net to the anchors provided on both
sides of the vehicle’s interior.
CLimate
SYnc with MyFord Touch controls the
temperature, airflow direction, fan speed, and
activates other climate features like heated
front seats for you and your passenger.
To use voice commands to operate climate,
say a voice command like “Climate
temperature 72 degrees” and MyFord Touch
will make that adjustment.
Set Your MyTemp*
• Touch the lower-right, blue Climate corner
on the touchscreen.
• Press + or – to adjust the temperature.
• Touch and hold myt emp to select a
temperature you would like your vehicle
to remember and maintain for you.
SYnc
®
Wi Th M YFOR d TOU ch
®*
*if equipped
* if equipped
entertainment
no matter how you store your music, SYnc
makes it yours to enjoy when you’re behind
the wheel. Just press the lower-left, red
corner of the touchscreen. From here, you
can easily go between AM/FM, Sirius and
other media sources.

Set Your Radio Presets
• Touch the Entertainment corner on the
touchscreen.
• Touch FM.
• Touch Direct Tune.
• Enter the desired station and touch Enter.
• Touch Presets and then touch and hold
one of the memory preset buttons to save
it. You’ll hear a brief mute and the sound
will return once the station is saved.

Bring in Your Own Music
Gain access to any audio source by voice
and even control how each operates, like
changing radio stations, cd tracks or music
on one of the following devices:
• USB
• Bluetooth streaming
• SD card
• A/V in
Refer to the MyFord Touch chapter in your
Owner’s Manual, visit the website or call the
toll-free number for more information. See
the inside front cover of this guide for details.

12

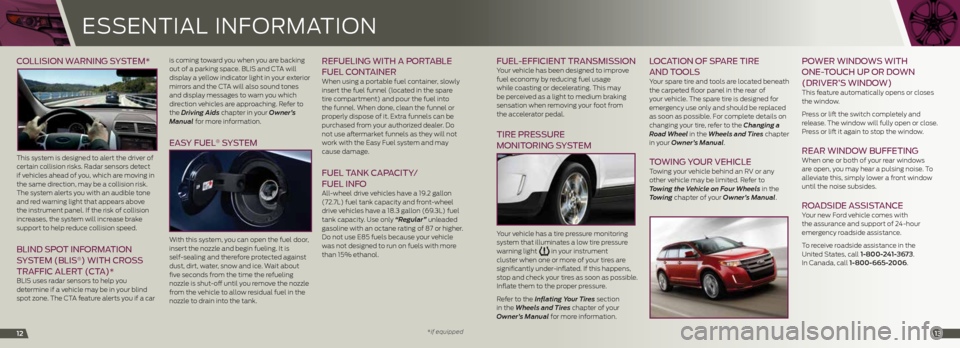

COLLISION W ARNING SYSTEM*
This system is designed to alert the driver of
certain collision risks. Radar sensors detect
if vehicles ahead of you, which are moving in
the same direction, may be a collision risk.
The system alerts you with an audible tone
and red warning light that appears above
the instrument panel. if the risk of collision
increases, the system will increase brake
support to help reduce collision speed.
BLIND SPOT INFORMATION
SYSTEM (BLIS®) WITH CROSS
TRAFFIC ALERT (CTA)*
bLiS uses radar sensors to help you
determine if a vehicle may be in your blind
spot zone. The c TA feature alerts you if a car is coming toward you when you are backing
out of a parking space. bLiS and c
TA will
display a yellow indicator light in your exterior
mirrors and the c TA will also sound tones
and display messages to warn you which
direction vehicles are approaching. Refer to
the Driving Aids chapter in your Owner’s
Manual for more information.
EASY FUEL® SYSTEM
With this system, you can open the fuel door,
insert the nozzle and begin fueling. it is
self-sealing and therefore protected against
dust, dirt, water, snow and ice. Wait about
five seconds from the time the refueling
nozzle is shut-off until you remove the nozzle
from the vehicle to allow residual fuel in the
nozzle to drain into the tank.
REFUELING WITH A P ORTABLE
FUEL CONTAINER
When using a portable fuel container, slowly
insert the fuel funnel (located in the spare
tire compartment) and pour the fuel into
the funnel. When done, clean the funnel or
properly dispose of it. Extra funnels can be
purchased from your authorized dealer. do
not use aftermarket funnels as they will not
work with the Easy Fuel system and may
cause damage.
FUEL T ANK CAPACITY /
FUEL INFO
All-wheel drive vehicles have a 19.2 gallon
(72.7L) fuel tank capacity and front-wheel
drive vehicles have a 18.3 gallon (69.3L) fuel
tank capacity. Use only “Regular” unleaded
gasoline with an octane rating of 87 or higher.
do not use E85 fuels because your vehicle
was not designed to run on fuels with more
than 15% ethanol.
E SSE nTiAL inFORMAT iO n
**if equipped
FUEL -EFFICIENT TRANSMISSION Your vehicle has been designed to improve
fuel economy by reducing fuel usage
while coasting or decelerating. This may
be perceived as a light to medium braking
sensation when removing your foot from
the accelerator pedal.
TIRE PRESSURE
MONITORING SYSTEM
Your vehicle has a tire pressure monitoring
system that illuminates a low tire pressure
warning light
in your instrument
cluster when one or more of your tires are
significantly under-inflated. if this happens,
stop and check your tires as soon as possible.
inflate them to the proper pressure.
Refer to the Inflating Your Tires section
in the Wheels and Tires chapter of your
Owner’s Manual for more information.
L OCATION OF SPARE TIRE
AND T OOLS
Your spare tire and tools are located beneath
the carpeted floor panel in the rear of
your vehicle. The spare tire is designed for
emergency use only and should be replaced
as soon as possible. For complete details on
changing your tire, refer to the Changing a
Road Wheel in the Wheels and Tires chapter
in your Owner’s Manual.
TOWING YOUR VEHICLE Towing your vehicle behind an RV or any
other vehicle may be limited. Refer to
Towing the Vehicle on Four Wheels in the
Towing chapter of your Owner’s Manual.
P OWER WINDOWS WITH
ONE- TOUCH UP OR DOWN
(DRIVER’ S WINDOW)
This feature automatically opens or closes
the window.
Press or lift the switch completely and
release. The window will fully open or close.
Press or lift it again to stop the window.
REAR WINDOW BUFFETING When one or both of your rear windows
are open, you may hear a pulsing noise. To
alleviate this, simply lower a front window
until the noise subsides.
ROADSIDE A SSISTANCE Your new Ford vehicle comes with
the assurance and support of 24-hour
emergency roadside assistance.
To receive roadside assistance in the
United States, call 1-800-241-3673.
in canada, call 1-800-665-2006.
13

FU nc TiOn
* if equipped14
cOMFORT
*if equipped15

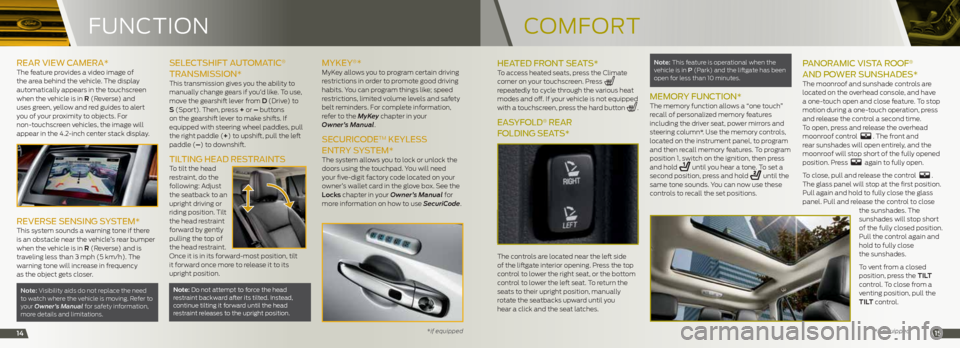

REAR VIEW CAMERA* The feature provides a video image of
the area behind the vehicle. The display
automatically appears in the touchscreen
when the vehicle is in r (Reverse) and
uses green, yellow and red guides to alert
you of your proximity to objects. For
non-touchscreen vehicles, the image will
appear in the 4.2-inch center stack display.
REVERSE SENSING SYSTEM*This system sounds a warning tone if there
is an obstacle near the vehicle’s rear bumper
when the vehicle is in r (Reverse) and is
traveling less than 3 mph (5 km/h). The
warning tone will increase in frequency
as the object gets closer.
note: Visibility aids do not replace the need
to watch where the vehicle is moving. Refer to
your Owner’s Manual for safety information,
more details and limitations.
SELECT SHIFT A UTOMATIC®
TRANSMISSION*
This transmission gives you the ability to
manually change gears if you’d like. To use,
move the gearshift lever from d (drive) to
S (Sport). Then, press + or – buttons
on the gearshift lever to make shifts. if
equipped with steering wheel paddles, pull
the right paddle (+) to upshift, pull the left
paddle (–) to downshift.
TILTING HEAD RESTRAINTSTo tilt the head
restraint, do the
following: Adjust
the seatback to an
upright driving or
riding position. Tilt
the head restraint
forward by gently
pulling the top of
the head restraint.
Once it is in its forward-most position, tilt
it forward once more to release it to its
upright position.
note: do not attempt to force the head restraint backward after its tilted. instead,
continue tilting it forward until the head
restraint releases to the upright position.
MYKEY®*Myk ey allows you to program certain driving
restrictions in order to promote good driving
habits. You can program things like; speed
restrictions, limited volume levels and safety
belt reminders. For complete information,
refer to the MyKey chapter in your
Owner’s Manual.
SECURICODETM KEYLESS
ENTRY SYSTEM*
The system allows you to lock or unlock the
doors using the touchpad. You will need
your five-digit factory code located on your
owner’s wallet card in the glove box. See the
Locks chapter in your Owner’s Manual for
more information on how to use SecuriCode.
HEATED FRONT SEATS*To access heated seats, press the climate
corner on your touchscreen. Press
repeatedly to cycle through the various heat
modes and off. if your vehicle is not equipped
with a touchscreen, press the hard button
.
EASYF OLD® REAR
FOLDING SEATS*

The controls are located near the left side
of the liftgate interior opening. Press the top
control to lower the right seat, or the bottom
control to lower the left seat. To return the
seats to their upright position, manually
rotate the seatbacks upward until you
hear a click and the seat latches.
note: This feature is operational when the
vehicle is in P (Park) and the liftgate has been
open for less than 10 minutes.
MEMORY FUNCTION*The memory function allows a “one touch”
recall of personalized memory features
including the driver seat, power mirrors and
steering column*. Use the memory controls,
located on the instrument panel, to program
and then recall memory features. To program
position 1, switch on the ignition, then press
and hold
until you hear a tone. To set a
second position, press and hold until the
same tone sounds. You can now use these
controls to recall the set positions.
P ANORAMIC VISTA R OOF®
AND P OWER S UNSHADES*
The moonroof and sunshade controls are
located on the overhead console, and have
a one-touch open and close feature. To stop
motion during a one-touch operation, press
and release the control a second time.
To open, press and release the overhead
moonroof control
. The front and
rear sunshades will open entirely, and the
moonroof will stop short of the fully opened
position. Press
again to fully open.
To close, pull and release the control
.
The glass panel will stop at the first position.
Pull again and hold to fully close the glass
panel. Pull and release the control to close the sunshades. The
sunshades will stop short
of the fully closed position.
Pull the control again and
hold to fully close
the sunshades.
To vent from a closed
position, press the tiL t
control. To close from a
venting position, pull the
tiL t control.
