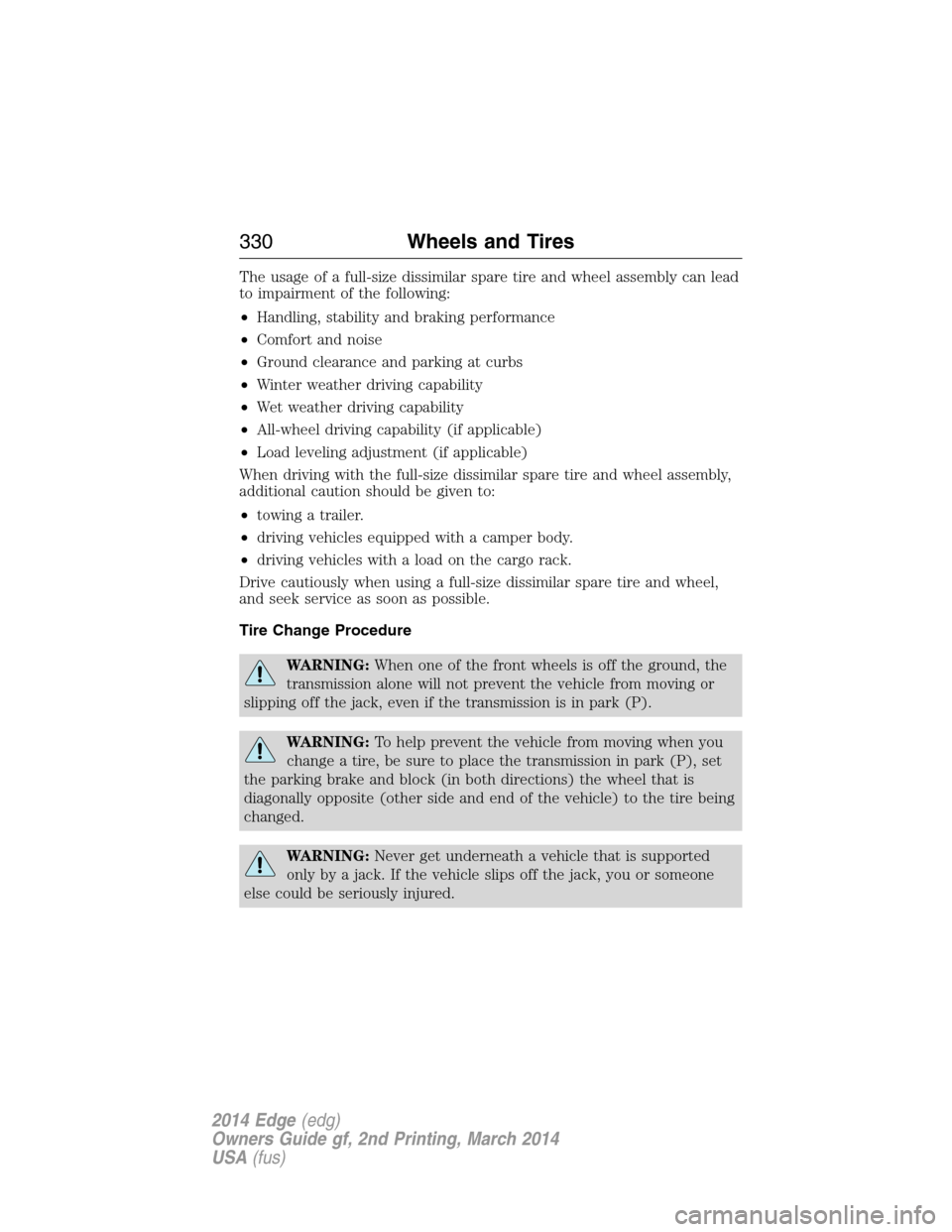

The usage of a full-size dissimilar spare tire and wheel assembly can lead
to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire and wheel assembly,
additional caution should be given to:
•towing a trailer.
•driving vehicles equipped with a camper body.
•driving vehicles with a load on the cargo rack.
Drive cautiously when using a full-size dissimilar spare tire and wheel,
and seek service as soon as possible.
Tire Change Procedure
WARNING:When one of the front wheels is off the ground, the
transmission alone will not prevent the vehicle from moving or
slipping off the jack, even if the transmission is in park (P).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure to place the transmission in park (P), set
the parking brake and block (in both directions) the wheel that is
diagonally opposite (other side and end of the vehicle) to the tire being
changed.
WARNING:Never get underneath a vehicle that is supported
only by a jack. If the vehicle slips off the jack, you or someone
else could be seriously injured.
330Wheels and Tires
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
WARNING:Always use the jack provided as original equipment
with your vehicle. If using a jack other than the one provided as
original equipment with your vehicle, make sure the jack capacity is
adequate for the vehicle weight, including any vehicle cargo or
modifications.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
1. Park on a level surface, set the parking brake and activate the hazard
flashers.
2. Place the transmission in park (P) and turn the engine off.
3. Lift the carpeted load floor panel
located in the rear of the vehicle.
4. Remove the spare tire cover and
foam spacer (if equipped).
5. Remove the wing nut securing
the spare tire by turning it
counterclockwise.
6. Remove the washer, temporary
spare and jack assembly from the
cargo area
Wheels and Tires331
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

7. Block the diagonally opposite
wheel.
8. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
9. The vehicle jacking points are shown here, and are depicted on the
yellow warning label on the jack.
Note:Jack at the specified locations to avoid damage to the vehicle.
10. Small arrow-shaped marks on the sills show the location of the
jacking points.
11. Remove the lug nuts with the lug wrench.
12. Replace the flat tire with the spare tire, making sure the valve stem
is facing outward. Reinstall the lug nuts until the wheel is snug against
the hub. Do not fully tighten the lug nuts until the wheel has been
lowered.
13. Lower the wheel by turning the jack handle counterclockwise.
332Wheels and Tires
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

14. Remove the jack and fully tighten the
lug nuts in the order shown. SeeWheel Lug
Nut Torque Specificationslater in this
chapter for the proper lug nut torque
specification.
Stowing the Flat/Spare Tire and Jack
Note:If you are stowing a flat 22 inch tire and wheel assembly,
temporarily remove the load floor, plastic stowage bins, and the foam
load floor supports to make space. Place the 22 inch tire and wheel
assembly in the spare tire well with the valve stem facing down. Rotate
the tire until the jack assembly is able to protrude through a wheel
opening. Replace the plastic stowage bins and foam load floor supports
around the 22 inch tire and wheel assembly.
Note:If you are stowing a flat tire, place the tire in the spare tire well
with the valve stem facing down. Rotate the tire until the jack assembly
is able to protrude through a wheel opening.
Note:If you are stowing the spare tire, place the spare in the spare tire
well in its original position.
1. Put the flat tire, jack and lug wrench away. Make sure the jack kit is
secured in its original location and orientation in the jack kit recess
under the flat or spare tire. Unblock the wheels.
2. Secure the wheel by replacing the washer and the wing nut and
turning the wing nut clockwise.
Wheels and Tires333
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while your vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque within 100 miles
(160 kilometers) after any wheel disturbance (such as rotation, flat tire,
wheel removal).
Lug nut socket
size/Bolt sizeWheel lug nut torque*
ft-lb N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Note:Inspect the wheel pilot hole
and mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
334Wheels and Tires
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

ENGINE SPECIFICATIONS
Engine 3.5L V6 engine 3.7L V6 engine 2.0L
EcoBoost
engine
Cubic inches 214 227 122
Required fuel Minimum
87 octaneMinimum
87 octaneMinimum
87 octane
Firing order 1–4–2–5–3–6 1–4–2–5–3–6 1–3–4–2
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.049–0.053 inch
(1.25–1.35 mm).029 inch +/-
.001 inch
(0.75 mm +/-
.05 mm)
Compression ratio 10.8:1 10.5:1 9.3:1
Engine drivebelt routing
3.5L/3.7L V6 engine
1. Short drivebelt is on first pulley
groove closest to engine.
2. Long drivebelt is on second pulley
groove farthest from engine.
2.0L EcoBoost engine
Capacities and Specifications335
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

TECHNICAL SPECIFICATIONS
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraft High
Performance DOT 4 LV
Motor Vehicle Brake
FluidPM-20 /
WSS-M6C65-A2
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Hinges, latches,
striker plates and
rotors, seat tracks,
fuel filler door hinge
and spring—Multi-Purpose Grease
(Lithium grease)Motorcraft XL-5
(aerosol) /
CRCSL3151ESB /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Engine oil
2,3,4
3.5L/3.7L engines
6.0 quarts (5.7L)Motorcraft SAE 5W-20
Motor OilWSS-M2C945-A
2.0L EcoBoost
engine
5.7 quarts (5.4L)Motorcraft SAE 5W-30
Motor OilWSS-M2C946-A
336Capacities and Specifications
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Engine coolant
5,6,7
(3.5L/3.7L engines)
11.7 quarts
(11.1L)
4,5
Motorcraft Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US);
CVC-3DIL-B (Canada) /
WSS-M97B44-D2 2.0L EcoBoost
engine
8.9 quarts
(8.4L)
4
Power steering fluidBetween MIN and
MAX on reservoirMotorcraft MERCON LVXT-10-QLV /
MERCON LV
Automatic
transmission fluid
8,9
11.0 quarts (10.4L)
(6F50)
Motorcraft
MERCON LVXT-10-QLV /
MERCON LV
9.0 quarts (8.5L)
(6F35)
Rear differential
(All Wheel Drive)
fluid2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid
(All Wheel Drive)
10
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Capacities and Specifications337
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrates with
Bitterant (US);
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-B2 (US);
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/--
Fuel tank (Front
Wheel Drive)18.3 gallons
(69.3L)——
Fuel tank
(All Wheel Drive)19.2 gallons
(72.7L)——
Air conditioning
refrigerant
11
2.0L EcoBoost
engine
1.06 lb (0.48kg)
(3.5L/3.7L engines)
1.27 lb (0.58kg)Motorcraft R-134a
RefrigerantYN-19 (US); CYN-16- R
(Canada) /
WSH-M17B19-A
Air conditioning
compressor oil
11
4.0 oz (118.3ml)Motorcraft PAG
Refrigerant Compressor
OilYN-12-D /
WSH-M1C231-B
1Ford recommends using Motorcraft (Ford) DOT 4 LV High Performance Motor Vehicle Brake
Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid
may cause degraded brake performance and not meet the Ford performance standards. Keep
brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials
may result in brake system damage and possible failure.
338Capacities and Specifications
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
2The design of your engine allows for the use of Motorcraft engine oils or equivalent oils that
meet Ford specifications. It is also acceptable to use an engine oil of recommended viscosity
grade that meets API SN requirements and displays the API Certification Mark for gasoline
engines.3Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage not covered by your Ford warranty.4Do not use API S category oils labeled as SN, SM, SL or lower category unless the label also
displays the API certification mark. These oils do not meet the requirements of the engine and
emission systems.5Add the coolant type originally equipped in your vehicle.6Indicates only approximate dry fill capacity. Some applications may vary.7Engine coolant with trailer tow package - 11.9 quarts (11.3L)8Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size
and if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
set by the indication on the dipstick’s normal operating range.9Use of any fluid other than the recommended fluid may cause transmission damage. Refer to
scheduled maintenance informationto determine the correct service interval.10See your authorized dealer for fluid level checking or filling.11See the warning below:
Warning:
The air conditioning refrigerant system contains refrigerant R-134a under high pressure.
Opening the air conditioning refrigerant system can cause personal injury. Only qualified personnel
should service the air conditioning refrigerant system.
