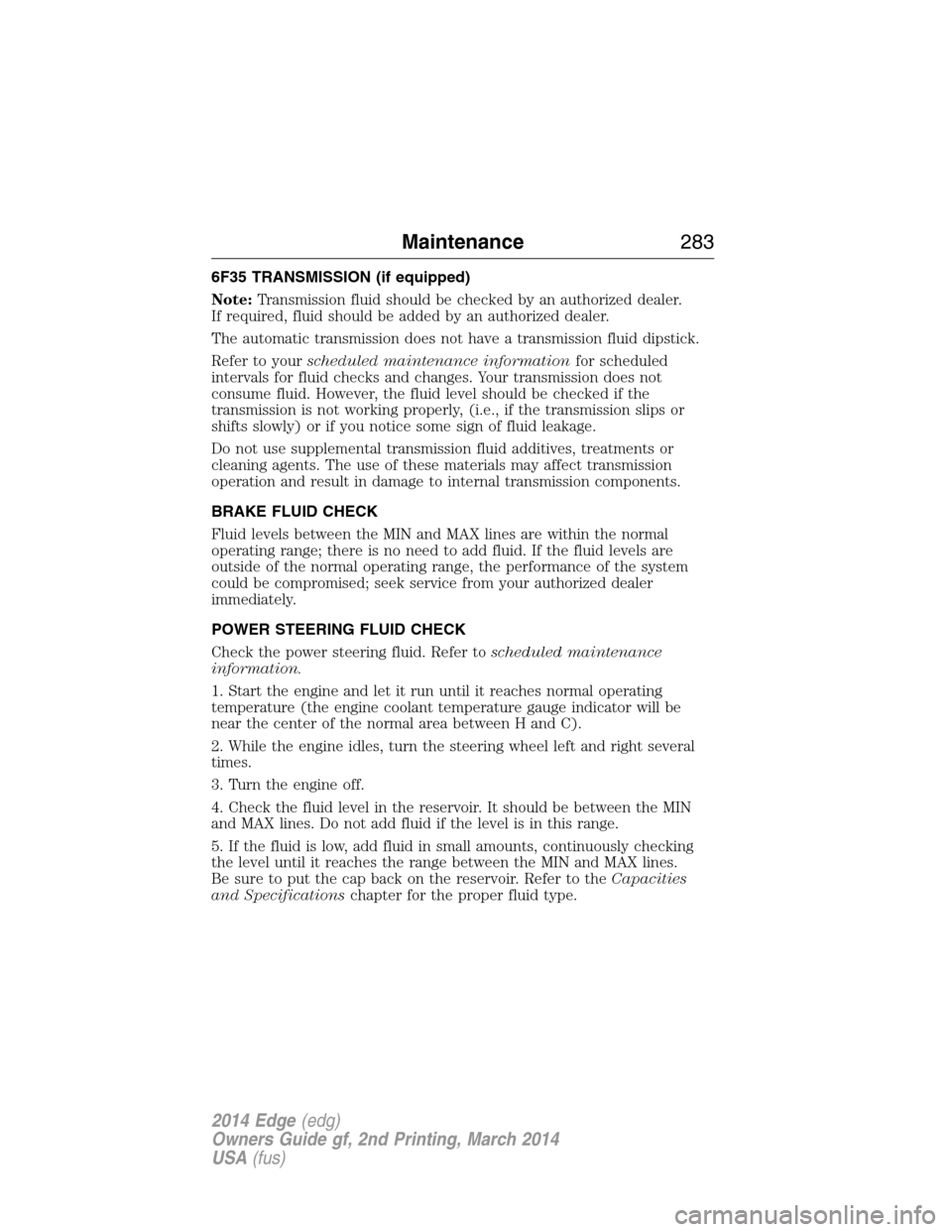

6F35 TRANSMISSION (if equipped)
Note:Transmission fluid should be checked by an authorized dealer.
If required, fluid should be added by an authorized dealer.
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, (i.e., if the transmission slips or
shifts slowly) or if you notice some sign of fluid leakage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
BRAKE FLUID CHECK
Fluid levels between the MIN and MAX lines are within the normal
operating range; there is no need to add fluid. If the fluid levels are
outside of the normal operating range, the performance of the system
could be compromised; seek service from your authorized dealer
immediately.
POWER STEERING FLUID CHECK
Check the power steering fluid. Refer toscheduled maintenance
information.
1. Start the engine and let it run until it reaches normal operating
temperature (the engine coolant temperature gauge indicator will be
near the center of the normal area between H and C).
2. While the engine idles, turn the steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines.
Be sure to put the cap back on the reservoir. Refer to theCapacities
and Specificationschapter for the proper fluid type.
Maintenance283
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

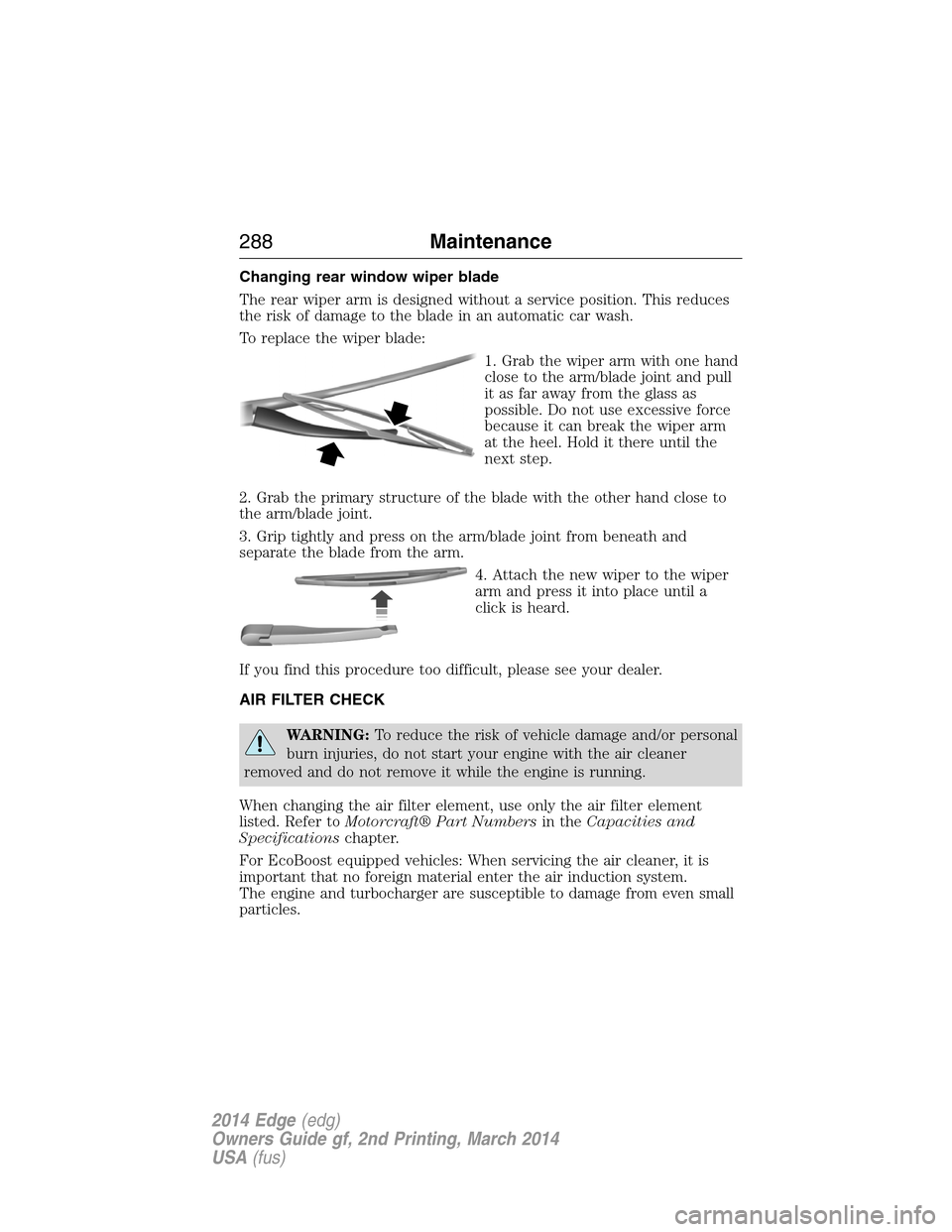

Changing rear window wiper blade
The rear wiper arm is designed without a service position. This reduces
the risk of damage to the blade in an automatic car wash.
To replace the wiper blade:
1. Grab the wiper arm with one hand
close to the arm/blade joint and pull
it as far away from the glass as
possible. Do not use excessive force
because it can break the wiper arm
at the heel. Hold it there until the
next step.
2. Grab the primary structure of the blade with the other hand close to
the arm/blade joint.
3. Grip tightly and press on the arm/blade joint from beneath and
separate the blade from the arm.
4. Attach the new wiper to the wiper
arm and press it into place until a
click is heard.
If you find this procedure too difficult, please see your dealer.
AIR FILTER CHECK
WARNING:To reduce the risk of vehicle damage and/or personal
burn injuries, do not start your engine with the air cleaner
removed and do not remove it while the engine is running.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraft® Part Numbersin theCapacities and
Specificationschapter.
For EcoBoost equipped vehicles: When servicing the air cleaner, it is
important that no foreign material enter the air induction system.
The engine and turbocharger are susceptible to damage from even small
particles.
288Maintenance
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

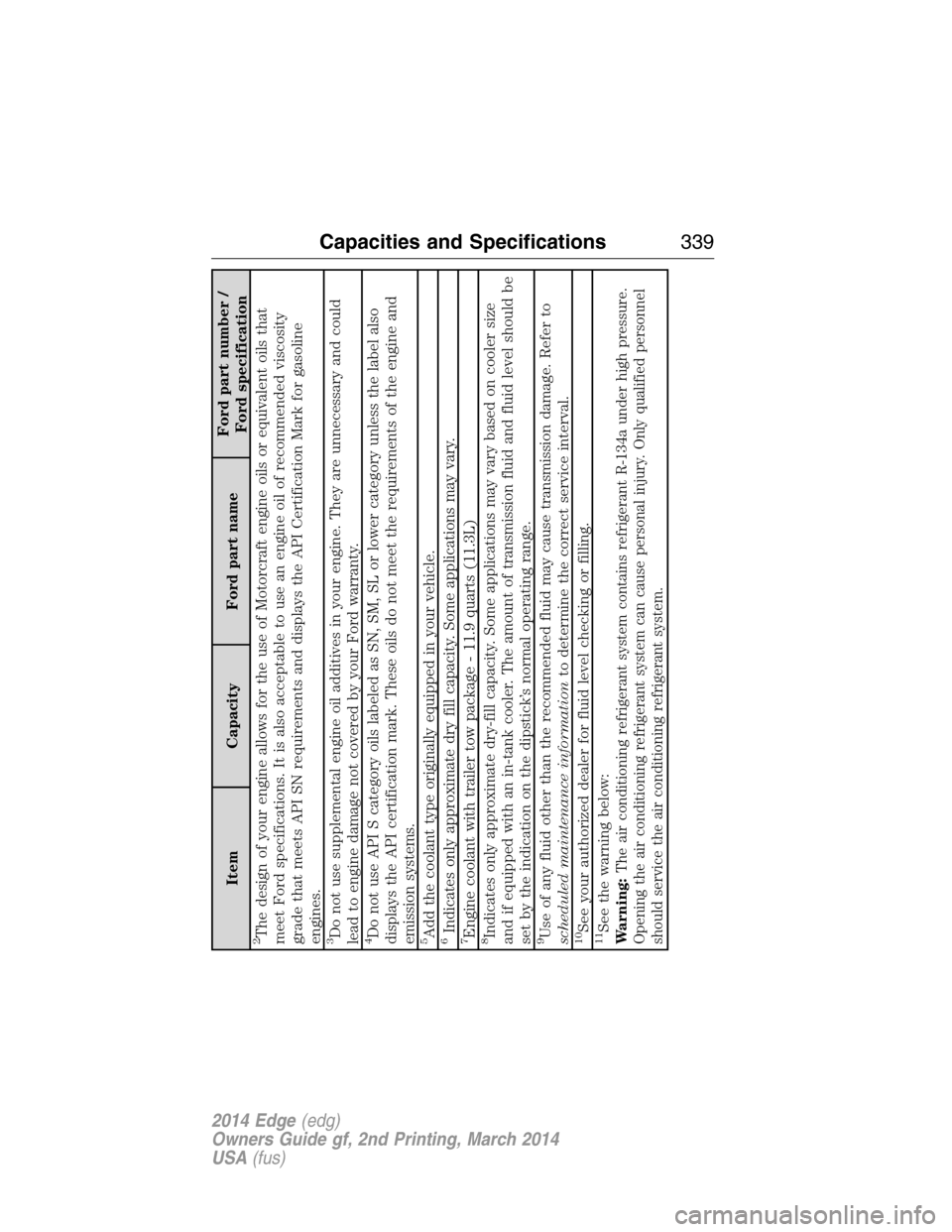

Item Capacity Ford part nameFord part number /
Ford specification
2The design of your engine allows for the use of Motorcraft engine oils or equivalent oils that
meet Ford specifications. It is also acceptable to use an engine oil of recommended viscosity
grade that meets API SN requirements and displays the API Certification Mark for gasoline
engines.3Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage not covered by your Ford warranty.4Do not use API S category oils labeled as SN, SM, SL or lower category unless the label also
displays the API certification mark. These oils do not meet the requirements of the engine and
emission systems.5Add the coolant type originally equipped in your vehicle.6Indicates only approximate dry fill capacity. Some applications may vary.7Engine coolant with trailer tow package - 11.9 quarts (11.3L)8Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size
and if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
set by the indication on the dipstick’s normal operating range.9Use of any fluid other than the recommended fluid may cause transmission damage. Refer to
scheduled maintenance informationto determine the correct service interval.10See your authorized dealer for fluid level checking or filling.11See the warning below:
Warning:
The air conditioning refrigerant system contains refrigerant R-134a under high pressure.
Opening the air conditioning refrigerant system can cause personal injury. Only qualified personnel
should service the air conditioning refrigerant system.
Capacities and Specifications339
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

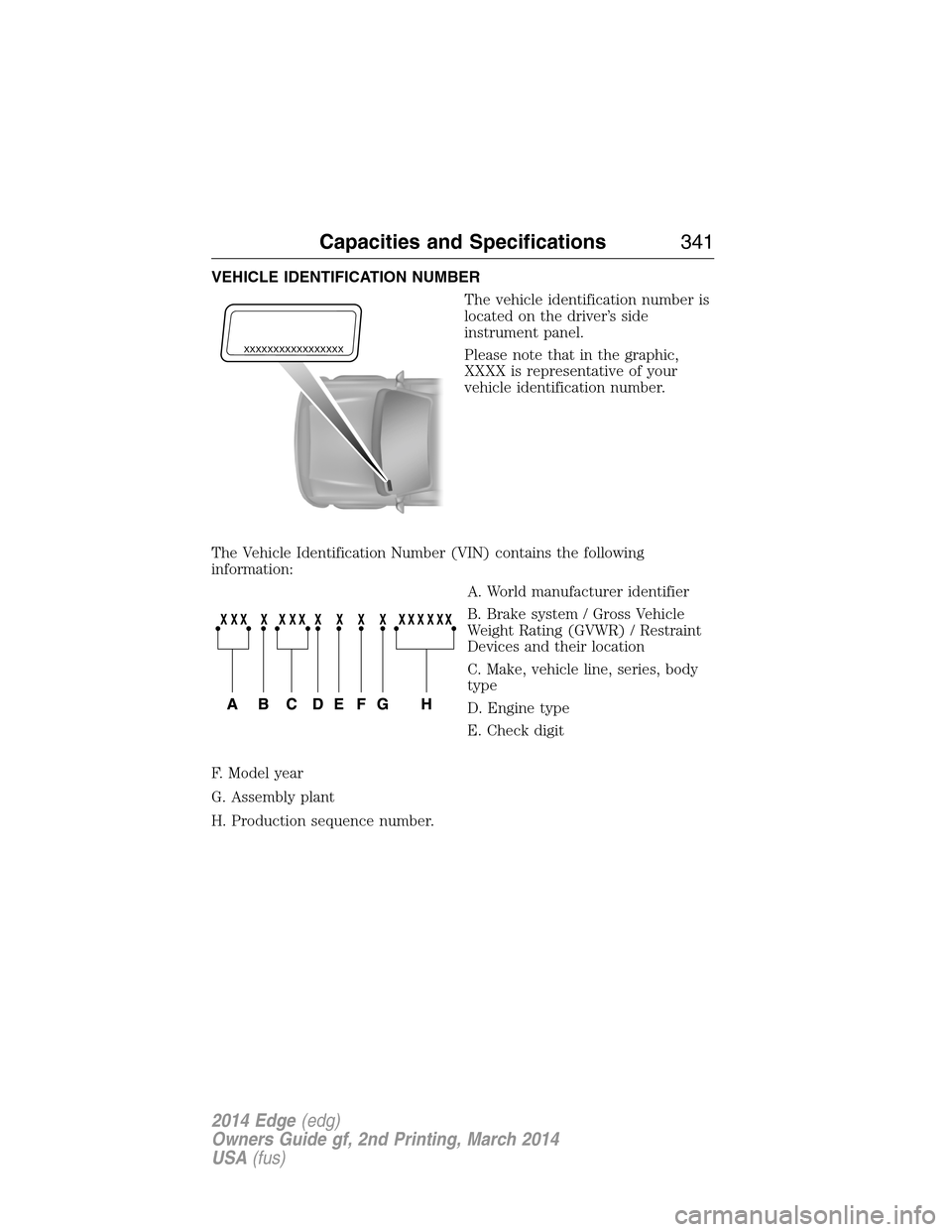

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
Capacities and Specifications341
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

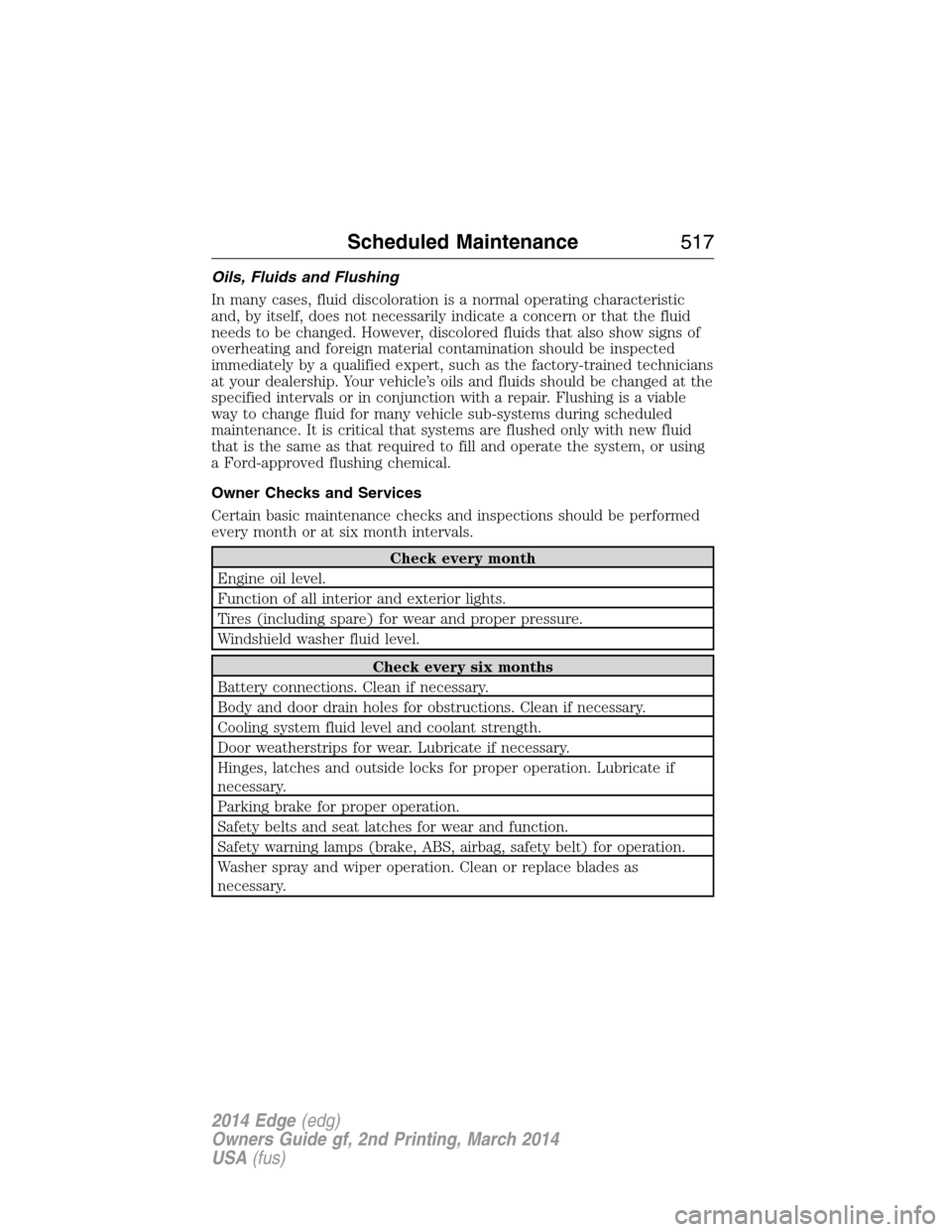

Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and foreign material contamination should be inspected
immediately by a qualified expert, such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance517
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

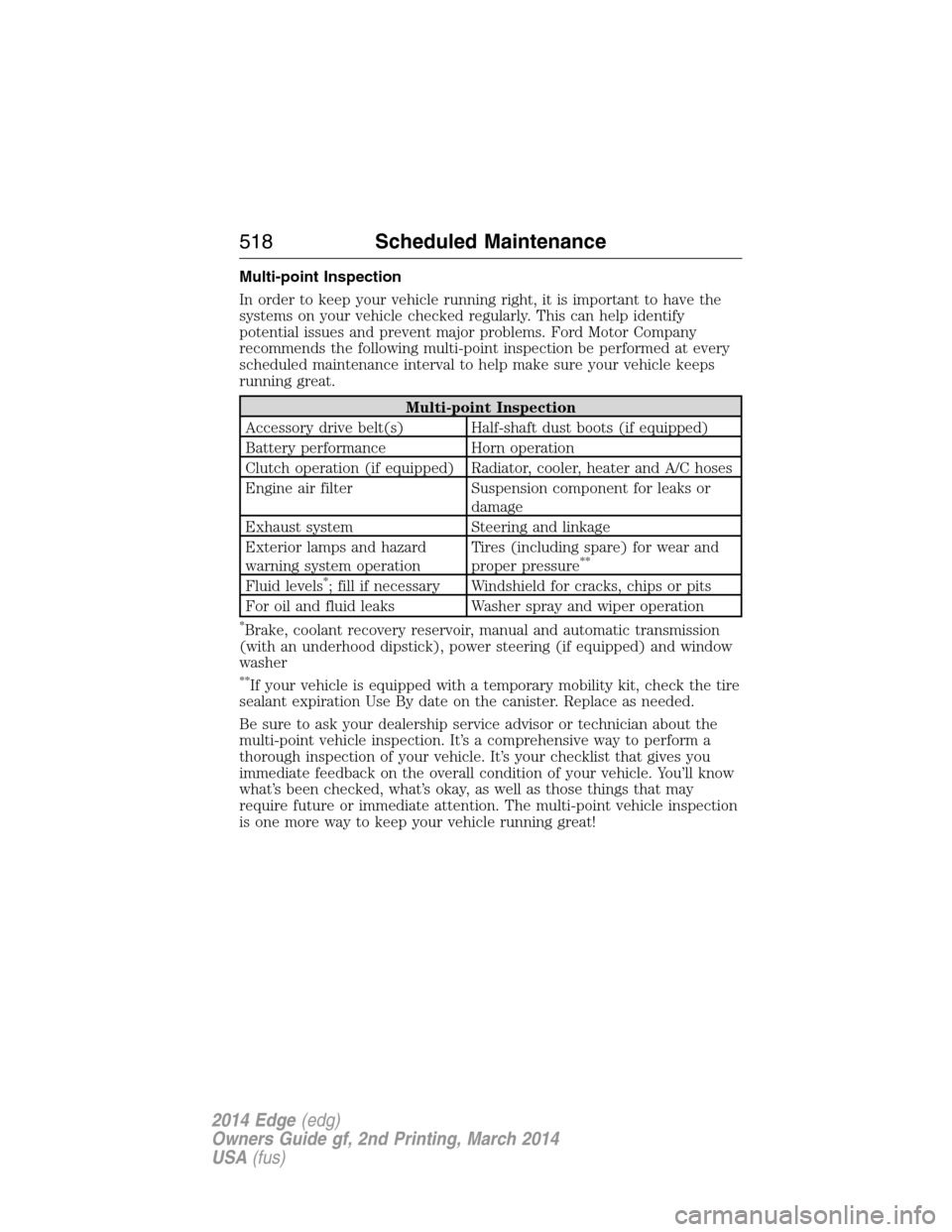

Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point Inspection
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires (including spare) for wear and
proper pressure
**
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and window
washer
**If your vehicle is equipped with a temporary mobility kit, check the tire
sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
518Scheduled Maintenance
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (seeTechnical specificationsin theCapacities
and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100000 miles (160000 kilometers). Rear axle fluid change may be
waived if the axle was filled with 75W140 synthetic gear fluid meeting
Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API SM or SN oils are not available, then the oil change
service interval is 3000 miles (4800 kilometers).
530Scheduled Maintenance
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

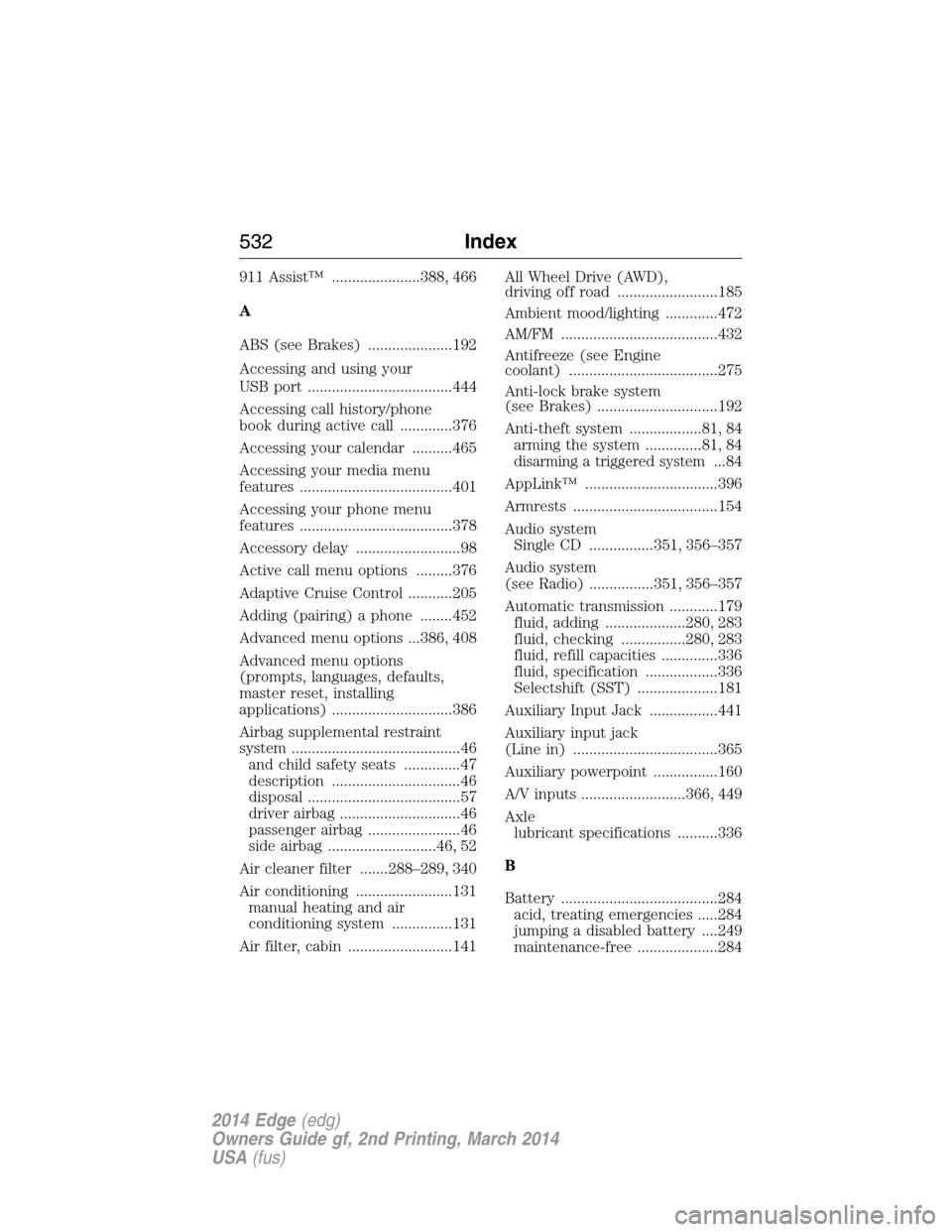

911 Assist™ ......................388, 466
A
ABS (see Brakes) .....................192
Accessing and using your
USB port ....................................444
Accessing call history/phone
book during active call .............376
Accessing your calendar ..........465
Accessing your media menu
features ......................................401
Accessing your phone menu
features ......................................378
Accessory delay ..........................98
Active call menu options .........376
Adaptive Cruise Control ...........205
Adding (pairing) a phone ........452
Advanced menu options ...386, 408
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................386
Airbag supplemental restraint
system ..........................................46
and child safety seats ..............47
description ................................46
disposal ......................................57
driver airbag ..............................46
passenger airbag .......................46
side airbag ...........................46, 52
Air cleaner filter .......288–289, 340
Air conditioning ........................131
manual heating and air
conditioning system ...............131
Air filter, cabin ..........................141All Wheel Drive (AWD),
driving off road .........................185
Ambient mood/lighting .............472
AM/FM .......................................432
Antifreeze (see Engine
coolant) .....................................275
Anti-lock brake system
(see Brakes) ..............................192
Anti-theft system ..................81, 84
arming the system ..............81, 84
disarming a triggered system...84
AppLink™ .................................396
Armrests ....................................154
Audio system
Single CD ................351, 356–357
Audio system
(see Radio) ................351, 356–357
Automatic transmission ............179
fluid, adding ....................280, 283
fluid, checking ................280, 283
fluid, refill capacities ..............336
fluid, specification ..................336
Selectshift (SST) ....................181
Auxiliary Input Jack .................441
Auxiliary input jack
(Line in) ....................................365
Auxiliary powerpoint ................160
A/V inputs ..........................366, 449
Axle
lubricant specifications ..........336
B
Battery .......................................284
acid, treating emergencies .....284
jumping a disabled battery ....249
maintenance-free ....................284
532Index
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

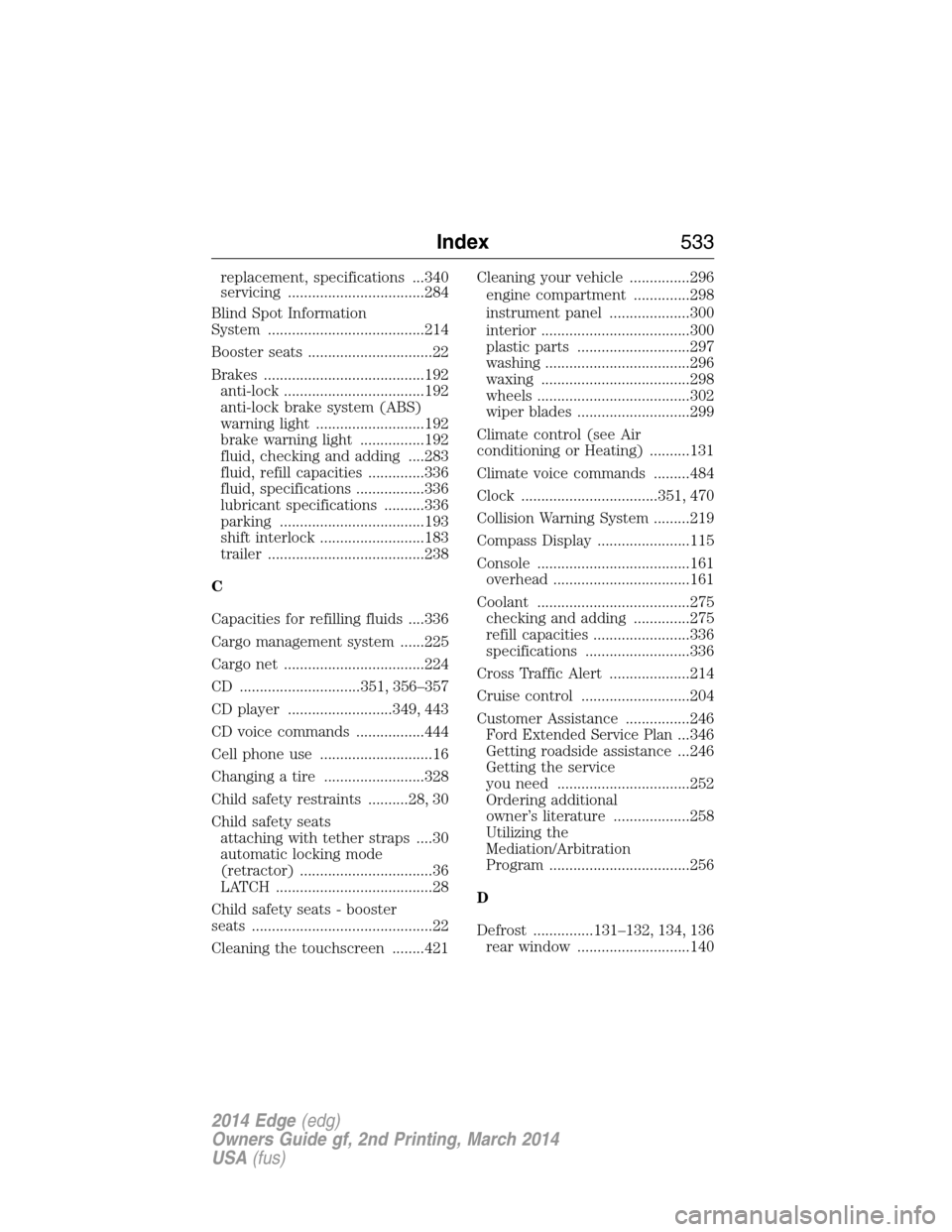

replacement, specifications ...340
servicing ..................................284
Blind Spot Information
System .......................................214
Booster seats ...............................22
Brakes ........................................192
anti-lock ...................................192
anti-lock brake system (ABS)
warning light ...........................192
brake warning light ................192
fluid, checking and adding ....283
fluid, refill capacities ..............336
fluid, specifications .................336
lubricant specifications ..........336
parking ....................................193
shift interlock ..........................183
trailer .......................................238
C
Capacities for refilling fluids ....336
Cargo management system ......225
Cargo net ...................................224
CD ..............................351, 356–357
CD player ..........................349, 443
CD voice commands .................444
Cell phone use ............................16
Changing a tire .........................328
Child safety restraints ..........28, 30
Child safety seats
attaching with tether straps ....30
automatic locking mode
(retractor) .................................36
LATCH .......................................28
Child safety seats - booster
seats .............................................22
Cleaning the touchscreen ........421Cleaning your vehicle ...............296
engine compartment ..............298
instrument panel ....................300
interior .....................................300
plastic parts ............................297
washing ....................................296
waxing .....................................298
wheels ......................................302
wiper blades ............................299
Climate control (see Air
conditioning or Heating) ..........131
Climate voice commands .........484
Clock ..................................351, 470
Collision Warning System .........219
Compass Display .......................115
Console ......................................161
overhead ..................................161
Coolant ......................................275
checking and adding ..............275
refill capacities ........................336
specifications ..........................336
Cross Traffic Alert ....................214
Cruise control ...........................204
Customer Assistance ................246
Ford Extended Service Plan...346
Getting roadside assistance ...246
Getting the service
you need .................................252
Ordering additional
owner’s literature ...................258
Utilizing the
Mediation/Arbitration
Program ...................................256
D
Defrost ...............131–132, 134, 136
rear window ............................140
Index533
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

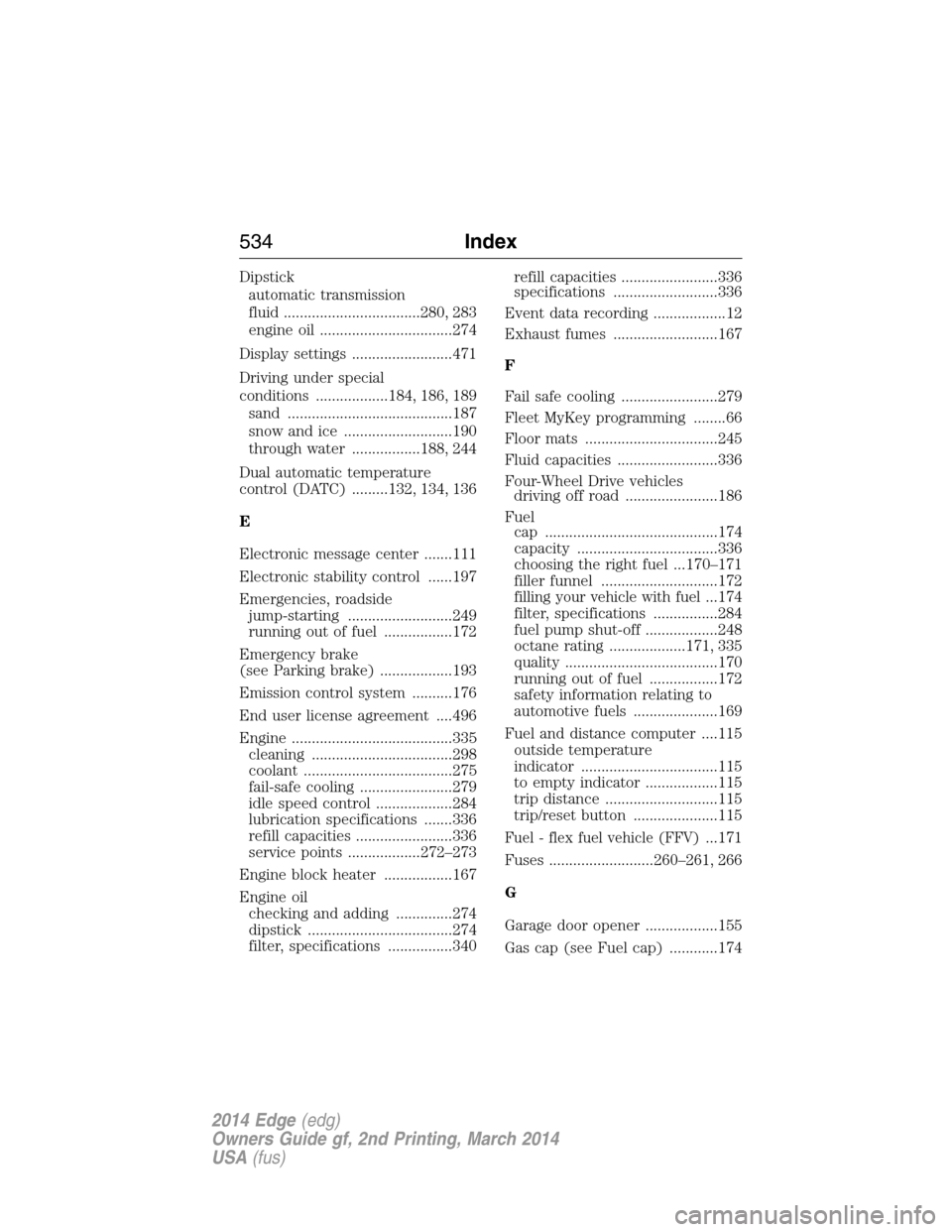

Dipstick
automatic transmission
fluid ..................................280, 283
engine oil .................................274
Display settings .........................471
Driving under special
conditions ..................184, 186, 189
sand .........................................187
snow and ice ...........................190
through water .................188, 244
Dual automatic temperature
control (DATC) .........132, 134, 136
E
Electronic message center .......111
Electronic stability control ......197
Emergencies, roadside
jump-starting ..........................249
running out of fuel .................172
Emergency brake
(see Parking brake) ..................193
Emission control system ..........176
End user license agreement ....496
Engine ........................................335
cleaning ...................................298
coolant .....................................275
fail-safe cooling .......................279
idle speed control ...................284
lubrication specifications .......336
refill capacities ........................336
service points ..................272–273
Engine block heater .................167
Engine oil
checking and adding ..............274
dipstick ....................................274
filter, specifications ................340refill capacities ........................336
specifications ..........................336
Event data recording ..................12
Exhaust fumes ..........................167
F
Fail safe cooling ........................279
Fleet MyKey programming ........66
Floor mats .................................245
Fluid capacities .........................336
Four-Wheel Drive vehicles
driving off road .......................186
Fuel
cap ...........................................174
capacity ...................................336
choosing the right fuel ...170–171
filler funnel .............................172
filling your vehicle with fuel...174
filter, specifications ................284
fuel pump shut-off ..................248
octane rating ...................171, 335
quality ......................................170
running out of fuel .................172
safety information relating to
automotive fuels .....................169
Fuel and distance computer ....115
outside temperature
indicator ..................................115
to empty indicator ..................115
trip distance ............................115
trip/reset button .....................115
Fuel - flex fuel vehicle (FFV)...171
Fuses ..........................260–261, 266
G
Garage door opener ..................155
Gas cap (see Fuel cap) ............174
534Index
2014 Edge(edg)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)
