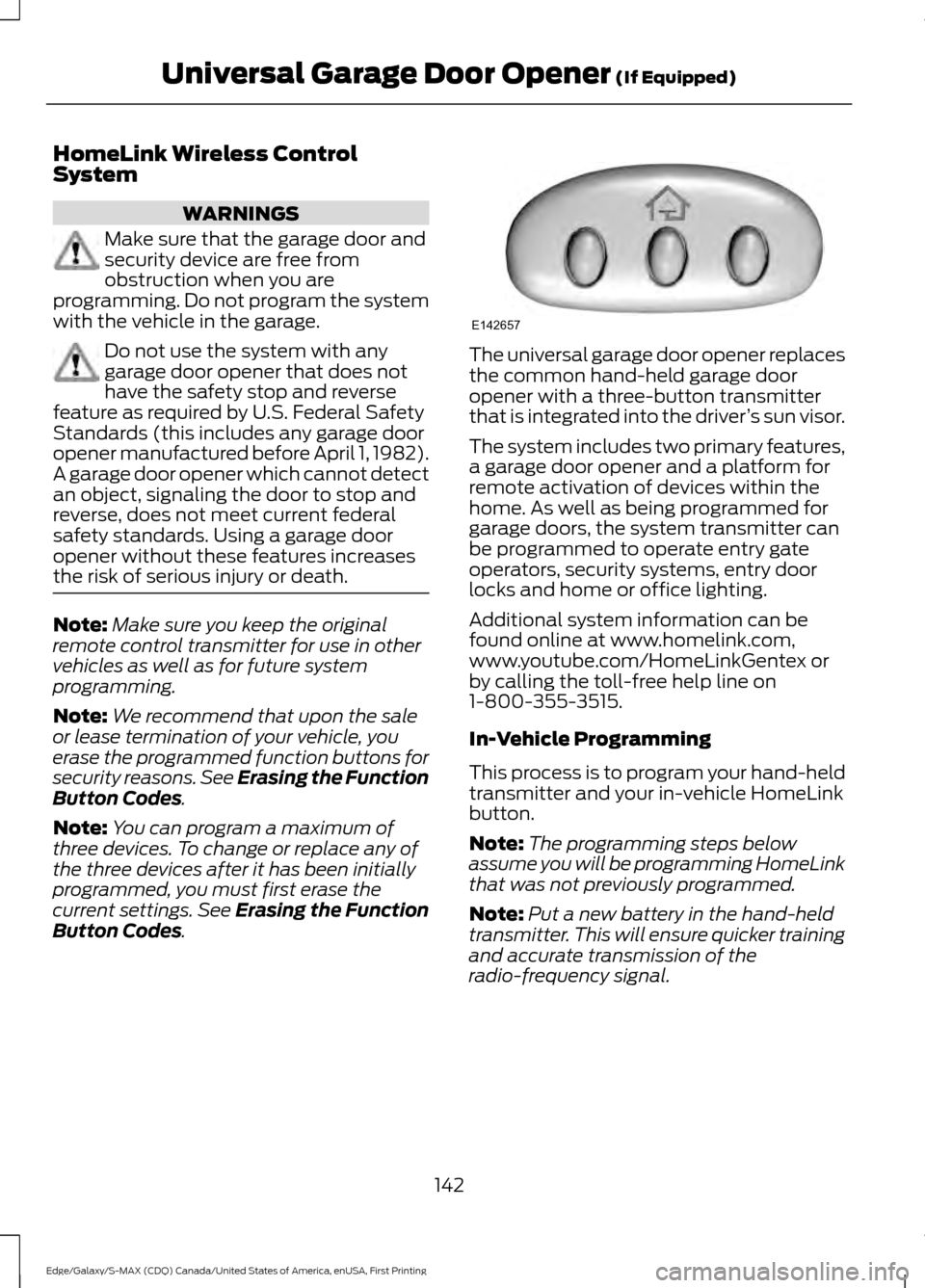

HomeLink Wireless Control
System
WARNINGS
Make sure that the garage door and
security device are free from
obstruction when you are
programming. Do not program the system
with the vehicle in the garage. Do not use the system with any
garage door opener that does not
have the safety stop and reverse
feature as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death. Note:
Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.
Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the Function
Button Codes.
Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the Function
Button Codes
. The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
that is integrated into the driver
’s sun visor.
The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. As well as being programmed for
garage doors, the system transmitter can
be programmed to operate entry gate
operators, security systems, entry door
locks and home or office lighting.
Additional system information can be
found online at www.homelink.com,
www.youtube.com/HomeLinkGentex or
by calling the toll-free help line on
1-800-355-3515.
In-Vehicle Programming
This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.
Note: The programming steps below
assume you will be programming HomeLink
that was not previously programmed.
Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal.
142
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener
(If Equipped)E142657

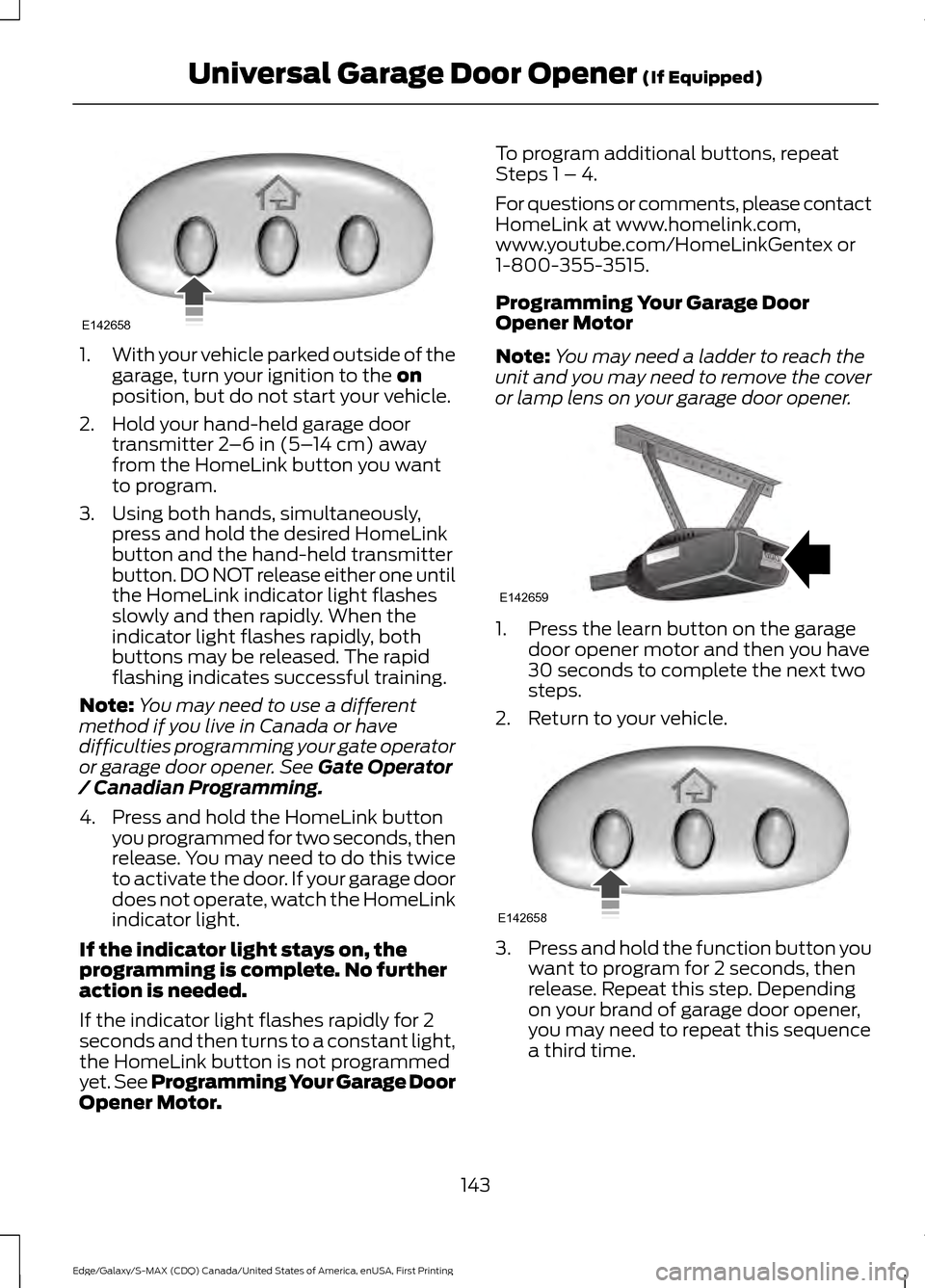

1.
With your vehicle parked outside of the
garage, turn your ignition to the on
position, but do not start your vehicle.
2. Hold your hand-held garage door transmitter
2–6 in (5– 14 cm) away
from the HomeLink button you want
to program.
3. Using both hands, simultaneously, press and hold the desired HomeLink
button and the hand-held transmitter
button. DO NOT release either one until
the HomeLink indicator light flashes
slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. The rapid
flashing indicates successful training.
Note: You may need to use a different
method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See
Gate Operator
/ Canadian Programming.
4. Press and hold the HomeLink button you programmed for two seconds, then
release. You may need to do this twice
to activate the door. If your garage door
does not operate, watch the HomeLink
indicator light.
If the indicator light stays on, the
programming is complete. No further
action is needed.
If the indicator light flashes rapidly for 2
seconds and then turns to a constant light,
the HomeLink button is not programmed
yet. See Programming Your Garage Door
Opener Motor. To program additional buttons, repeat
Steps 1 – 4.
For questions or comments, please contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.
Programming Your Garage Door
Opener Motor
Note:
You may need a ladder to reach the
unit and you may need to remove the cover
or lamp lens on your garage door opener. 1. Press the learn button on the garage
door opener motor and then you have
30 seconds to complete the next two
steps.
2. Return to your vehicle. 3.
Press and hold the function button you
want to program for 2 seconds, then
release. Repeat this step. Depending
on your brand of garage door opener,
you may need to repeat this sequence
a third time.
143
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener
(If Equipped)E142658 E142659 E142658

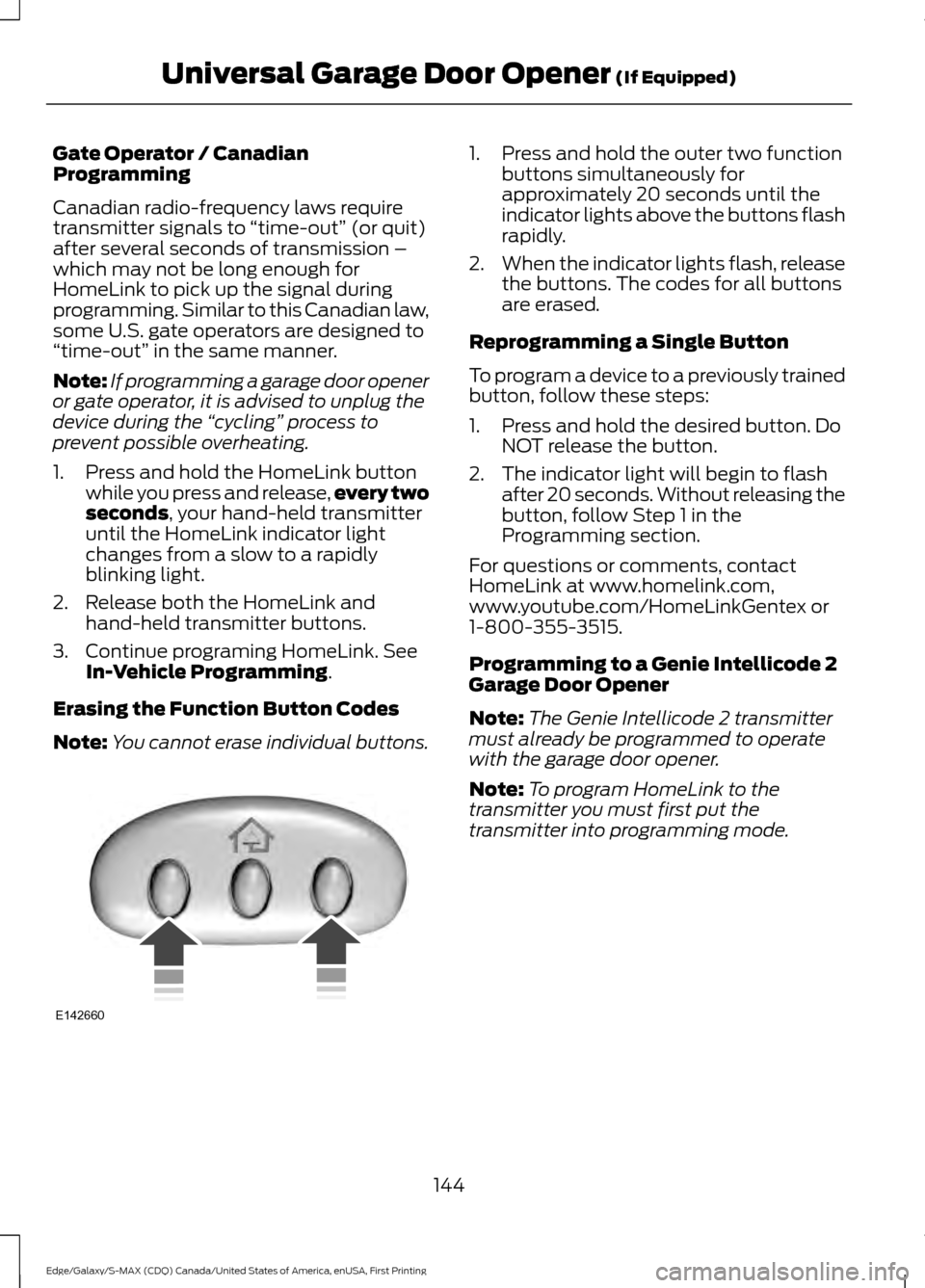

Gate Operator / Canadian
Programming
Canadian radio-frequency laws require
transmitter signals to
“time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian law,
some U.S. gate operators are designed to
“time-out” in the same manner.
Note: If programming a garage door opener
or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.
1. Press and hold the HomeLink button while you press and release, every two
seconds, your hand-held transmitter
until the HomeLink indicator light
changes from a slow to a rapidly
blinking light.
2. Release both the HomeLink and hand-held transmitter buttons.
3. Continue programing HomeLink. See In-Vehicle Programming
.
Erasing the Function Button Codes
Note: You cannot erase individual buttons. 1. Press and hold the outer two function
buttons simultaneously for
approximately 20 seconds until the
indicator lights above the buttons flash
rapidly.
2. When the indicator lights flash, release
the buttons. The codes for all buttons
are erased.
Reprogramming a Single Button
To program a device to a previously trained
button, follow these steps:
1. Press and hold the desired button. Do NOT release the button.
2. The indicator light will begin to flash after 20 seconds. Without releasing the
button, follow Step 1 in the
Programming section.
For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.
Programming to a Genie Intellicode 2
Garage Door Opener
Note: The Genie Intellicode 2 transmitter
must already be programmed to operate
with the garage door opener.
Note: To program HomeLink to the
transmitter you must first put the
transmitter into programming mode.
144
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener
(If Equipped)E142660

Red indicator light
A.
Green indicator light
B.
1. Press and hold one of the buttons on the hand-held transmitter for 10
seconds. The indicator light will change
from green to red and green.
2. Press the same button twice to confirm
the change to programming mode. If
done properly the indicator light will
appear red.
3. Hold the transmitter within 1– 3 inches
(2 –8 centimeters) of the button on the
visor you want to program.
4. Press and hold both the programmed Genie button on the hand-held
transmitter and the button you want
to program. The indicator light on the
visor will flash rapidly when the
programming is successful.
Note: The Genie transmitter will transmit
for up to 30 seconds. If HomeLink does not
program within 30 seconds the Genie
transmitter will need to be pressed again. If
the Genie transmitter indicator light displays
green and red, release the button until the
indicator light turns off before pressing the
button again.
Once HomeLink has been programmed
successfully, the Genie transmitter must
be changed out of program mode. To do
this: 1. Press and hold the previously
programmed Genie button on the
hand-held transmitter for 10 seconds.
The indicator light will change from red
to red and green.
2. Press the same button twice to confirm
the change. If done correctly the
indicator light will turn green.
Programming HomeLink to the Genie
Intellicode Garage Door Opener Motor
Note: You may need a ladder to access the
garage door opener motor. 1. Press and hold the program button on
the garage door opener motor until
both blue indicator lights turn on.
2. Release the program button. Only the smaller round indicator light should be
on.
3. Press and release the program button.
The larger purple indicator light will
flash.
Note: The next two steps must be
completed in 30 seconds.
4. Press and release the Genie Intellicode
2 hand-held transmitter ’s previously
programmed button. Both indicator
lights on the garage door opener motor
unit should now flash purple.
145
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener (If Equipped)BAE142661 E142662

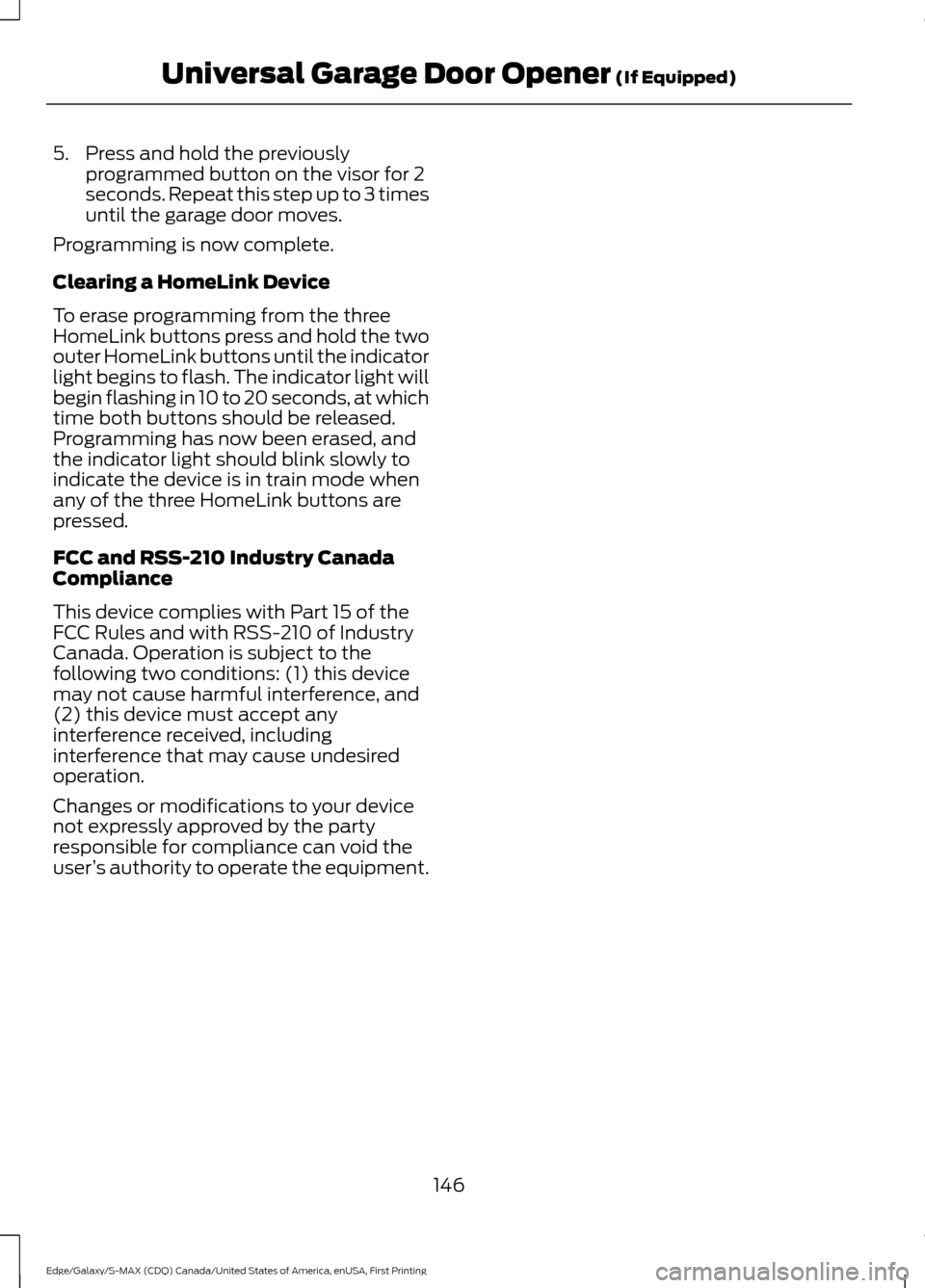

5. Press and hold the previously
programmed button on the visor for 2
seconds. Repeat this step up to 3 times
until the garage door moves.
Programming is now complete.
Clearing a HomeLink Device
To erase programming from the three
HomeLink buttons press and hold the two
outer HomeLink buttons until the indicator
light begins to flash. The indicator light will
begin flashing in 10 to 20 seconds, at which
time both buttons should be released.
Programming has now been erased, and
the indicator light should blink slowly to
indicate the device is in train mode when
any of the three HomeLink buttons are
pressed.
FCC and RSS-210 Industry Canada
Compliance
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications to your device
not expressly approved by the party
responsible for compliance can void the
user ’s authority to operate the equipment.
146
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener (If Equipped)

Engine Oil Check..........................................266
Adding Engine Oil.............................................. 266
Engine Oil Dipstick - 2.0L EcoBoost™.................................................266
Engine Oil Dipstick - 2.7L EcoBoost™/ 3.5L................................................................266
Engine Specifications - 2.0L EcoBoost™.................................................325
Drivebelt Routing............................................... 325
Engine Specifications - 2.7L EcoBoost™.................................................325
Drivebelt Routing............................................... 326
Engine Specifications - 3.5L....................326 Drivebelt Routing............................................... 326
Environment......................................................14
EPB See: Electric Parking Brake.............................. 176
Essential Towing Checks..........................230 Before Towing a Trailer.................................... 230
Hitches................................................................... 230
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 231
Safety Chains...................................................... 230
Trailer Brakes....................................................... 230
Trailer Lamps...................................................... 230
When Towing a Trailer....................................... 231
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP).................397 EXTENDED SERVICE PLAN (CANADA
ONLY)............................................................... 398
EXTENDED SERVICE PLAN (U.S. Only).................................................................. 397
Exterior Mirrors................................................87
Auto-dimming Feature...................................... 88
Blind Spot Information System...................... 88
Direction Indicator Mirrors ............................... 88
Fold-Away Exterior Mirrors............................... 87
Heated Exterior Mirrors ......................................87
Integrated Blind Spot Mirror............................ 88
Memory Mirrors .................................................... 87
Power Exterior Mirrors........................................ 87
Puddle Lamps....................................................... 88F
Fastening the Seatbelts..............................30
Rear Inflatable Safety Belt................................ 32
Safety Belt Extension Assembly..................... 33
Safety Belt Locking Modes................................ 31
Using Safety Belts During Pregnancy............31
Using the Sliding Clip......................................... 30
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................292
Floor Mats.......................................................236
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Parking Aid
..........................................184
Obstacle Distance Indicator........................... 185
Front Passenger Sensing System............40
Fuel and Refueling.......................................158
Fuel Consumption
........................................162
Calculating Fuel Economy.............................. 163
Filling the Tank..................................................... 162
Fuel Filler Funnel Location........................159
Fuel Filter
.........................................................273
Fuel Quality....................................................159
Choosing the Right Fuel................................... 159
Fuel Shutoff...................................................239
Fuses................................................................250
Fuse Specification Chart..........................250 Passenger Compartment Fuse
Panel................................................................. 256
Power Distribution Box.................................... 250
G
Garage Door Opener See: Universal Garage Door Opener............142
Gauges................................................................91 Engine Coolant Temperature Gauge............92
Fuel Gauge.............................................................. 92
Information Display.............................................. 91
Left Information Display.................................... 93
Type 1........................................................................\
. 91
Type 2....................................................................... 93
General Information on Radio Frequencies...................................................47
Intelligent Access.................................................. 47
440
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Index

Symbols Glossary.............................................7
SYNC™ Applications and Services.......373 911 Assist............................................................... 373
SYNC Mobile Apps............................................ 375
SYNC™............................................................357 General Information.......................................... 357
SYNC™ Troubleshooting
..........................387
T
Tailgate See: Manual Liftgate........................................... 62
See: Power Liftgate............................................. 63
Technical Specifications See: Capacities and Specifications............325
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................245
Tire Care
..........................................................298
Glossary of Tire Terminology......................... 301
Important Information About Low-Profile Tires................................................................... 298
Important Information About Sport Tires and Wheels..................................................... 298
Information About Uniform Tire Quality Grading............................................................ 300
Information Contained on the Tire Sidewall........................................................... 302
Notice to Crossover Vehicle Owners..........299
Temperature A B C............................................. 301
Tire Rotation......................................................... 314
Traction AA A B C............................................... 301
Treadwear............................................................ 300
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................292
Tire Pressure Monitoring System
...........316
Changing Tires With a Tire Pressure
Monitoring System......................................... 317
Understanding Your Tire Pressure Monitoring System ........................................ 317
Tire Repair Kit See: Tire Sealant and Inflator Kit.................292 Tire Sealant and Inflator Kit.....................292
First Stage: Inflating the Tire with Sealing
Compound and Air....................................... 294
General Information......................................... 293
Second Stage: Checking Tire Pressure........................................................... 296
Tips for Use of the Kit...................................... 293
What to Do After the Tire has Been Sealed............................................................... 296
What to do When a Tire Is Punctured........................................................ 294
Tires See: Wheels and Tires..................................... 290
Towing a Trailer.............................................227 Load Placement................................................. 227
Towing the Vehicle on Four Wheels - 6-Speed Automatic Transmission -
6F35...............................................................232
Emergency Towing............................................ 232
Recreational Towing......................................... 233
Towing the Vehicle on Four Wheels - 6-Speed Automatic Transmission -
6F50/6F55..................................................233
Emergency Towing............................................ 233
Recreational Towing......................................... 233
Towing..............................................................227
Traction Control............................................180 Principle of Operation...................................... 180
Trailer Sway Control...................................228
Transmission Code Designation.............331
Transmission..................................................166
Transmission See: Transmission.............................................. 166
Transporting the Vehicle...........................232
Type Approvals............................................434 RF Certification Logos for Tire Pressure
Monitoring Sensor(s).................................. 434
U
Under Hood Overview - 2.0L EcoBoost™.................................................263
Under Hood Overview - 2.7L EcoBoost™.................................................264
Under Hood Overview - 3.5L...................265
Unique Driving Characteristics................156
Universal Garage Door Opener................142 HomeLink Wireless Control System............142
445
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Index
