headlamp FORD EDGE 2017 2.G Owner's Manual

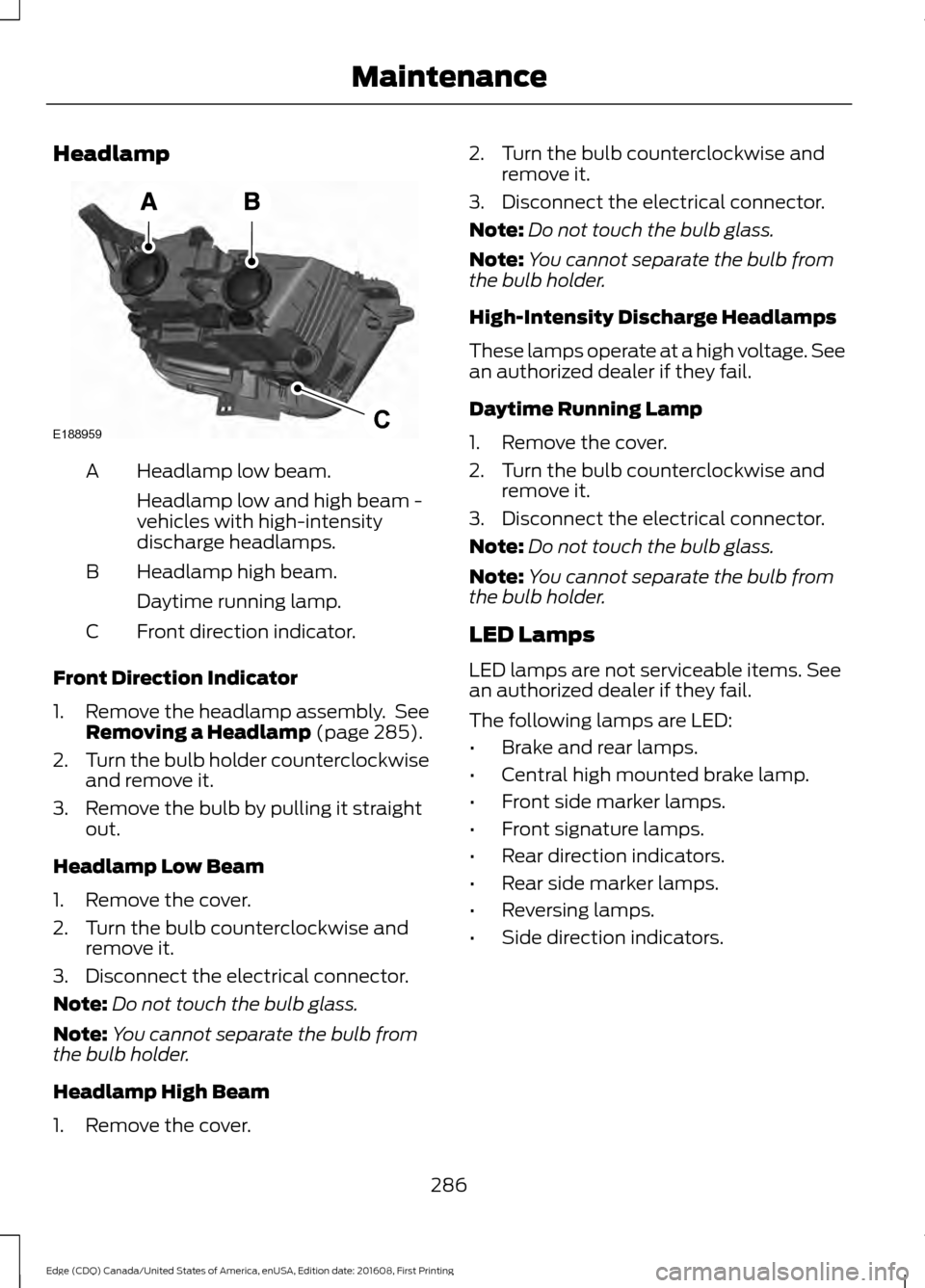

Headlamp
Headlamp low beam.
A
Headlamp low and high beam -
vehicles with high-intensity
discharge headlamps.
Headlamp high beam.
B
Daytime running lamp.
Front direction indicator.
C
Front Direction Indicator
1. Remove the headlamp assembly. See
Removing a Headlamp (page 285).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
Headlamp Low Beam
1. Remove the cover.
2. Turn the bulb counterclockwise and remove it.
3. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
Headlamp High Beam
1. Remove the cover. 2. Turn the bulb counterclockwise and
remove it.
3. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
High-Intensity Discharge Headlamps
These lamps operate at a high voltage. See
an authorized dealer if they fail.
Daytime Running Lamp
1. Remove the cover.
2. Turn the bulb counterclockwise and remove it.
3. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
LED Lamps
LED lamps are not serviceable items. See
an authorized dealer if they fail.
The following lamps are LED:
• Brake and rear lamps.
• Central high mounted brake lamp.
• Front side marker lamps.
• Front signature lamps.
• Rear direction indicators.
• Rear side marker lamps.
• Reversing lamps.
• Side direction indicators.
286
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing MaintenanceE188959C

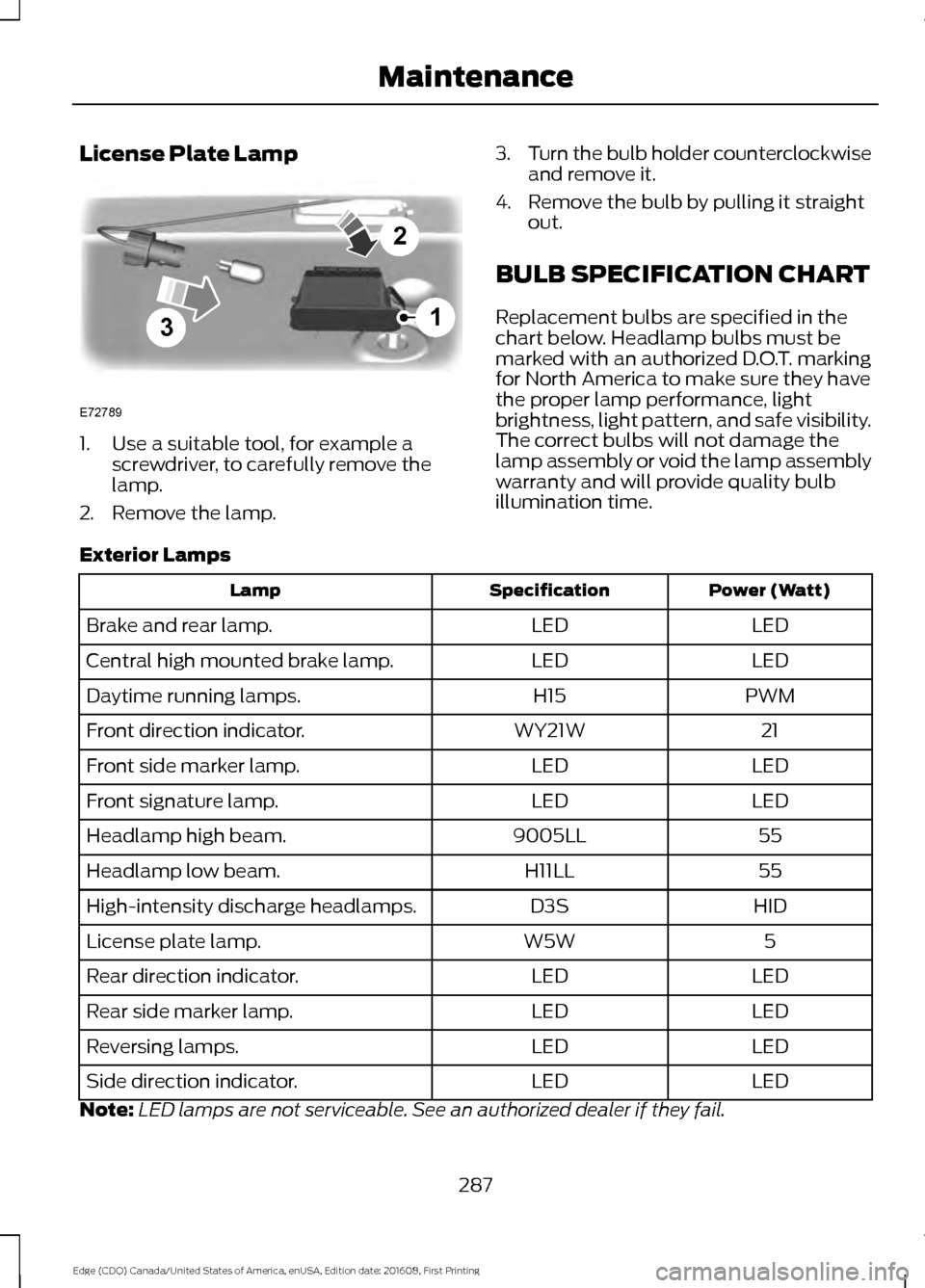

License Plate Lamp
1. Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.
2. Remove the lamp. 3.
Turn the bulb holder counterclockwise
and remove it.
4. Remove the bulb by pulling it straight out.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern, and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.
Exterior Lamps Power (Watt)
Specification
Lamp
LED
LED
Brake and rear lamp.
LED
LED
Central high mounted brake lamp.
PWM
H15
Daytime running lamps.
21
WY21W
Front direction indicator.
LED
LED
Front side marker lamp.
LED
LED
Front signature lamp.
55
9005LL
Headlamp high beam.
55
H11LL
Headlamp low beam.
HID
D3S
High-intensity discharge headlamps.
5
W5W
License plate lamp.
LED
LED
Rear direction indicator.
LED
LED
Rear side marker lamp.
LED
LED
Reversing lamps.
LED
LED
Side direction indicator.
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
287
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Maintenance3
2
1
E72789

1

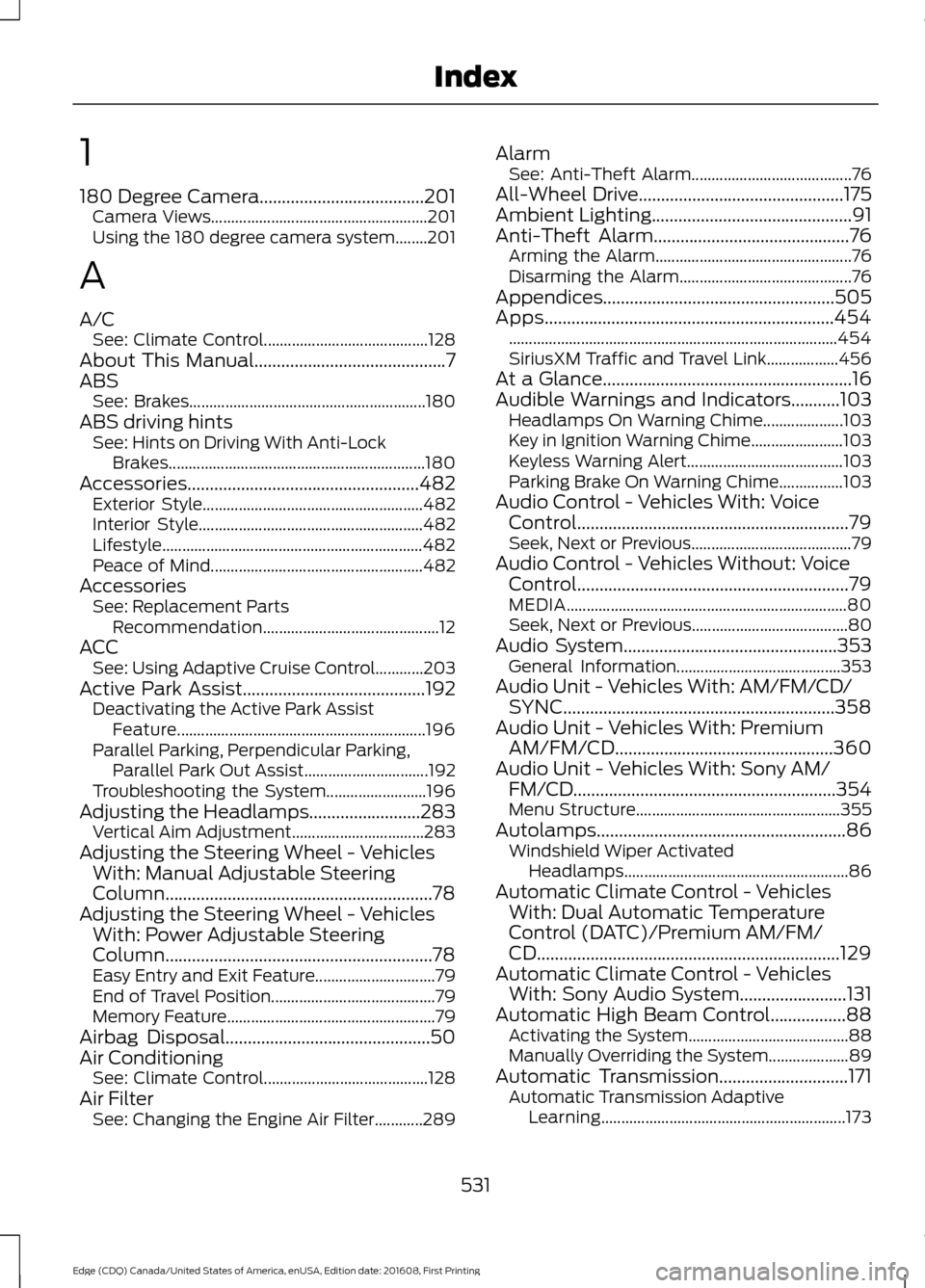

180 Degree Camera.....................................201
Camera Views...................................................... 201
Using the 180 degree camera system........201
A
A/C See: Climate Control......................................... 128
About This Manual...........................................7
ABS See: Brakes........................................................... 180
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 180
Accessories
....................................................482
Exterior Style....................................................... 482
Interior Style........................................................ 482
Lifestyle................................................................. 482
Peace of Mind..................................................... 482
Accessories See: Replacement Parts
Recommendation............................................ 12
ACC See: Using Adaptive Cruise Control............203
Active Park Assist.........................................192 Deactivating the Active Park Assist
Feature.............................................................. 196
Parallel Parking, Perpendicular Parking, Parallel Park Out Assist............................... 192
Troubleshooting the System......................... 196
Adjusting the Headlamps.........................283 Vertical Aim Adjustment................................. 283
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column............................................................78
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column............................................................78
Easy Entry and Exit Feature.............................. 79
End of Travel Position......................................... 79
Memory Feature.................................................... 79
Airbag Disposal..............................................50
Air Conditioning See: Climate Control......................................... 128
Air Filter See: Changing the Engine Air Filter............289 Alarm
See: Anti-Theft Alarm........................................ 76
All-Wheel Drive
..............................................175
Ambient Lighting.............................................91
Anti-Theft Alarm............................................76
Arming the Alarm................................................. 76
Disarming the Alarm........................................... 76
Appendices....................................................505
Apps.................................................................454 ........................................................................\
.......... 454
SiriusXM Traffic and Travel Link..................456
At a Glance........................................................16
Audible Warnings and Indicators...........103 Headlamps On Warning Chime....................103
Key in Ignition Warning Chime.......................103
Keyless Warning Alert....................................... 103
Parking Brake On Warning Chime................103
Audio Control - Vehicles With: Voice Control.............................................................79
Seek, Next or Previous........................................ 79
Audio Control - Vehicles Without: Voice Control.............................................................79
MEDIA...................................................................... 80
Seek, Next or Previous....................................... 80
Audio System................................................353 General Information......................................... 353
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................358
Audio Unit - Vehicles With: Premium AM/FM/CD.................................................360
Audio Unit - Vehicles With: Sony AM/ FM/CD...........................................................354
Menu Structure................................................... 355
Autolamps
........................................................86
Windshield Wiper Activated
Headlamps........................................................ 86
Automatic Climate Control - Vehicles With: Dual Automatic Temperature
Control (DATC)/Premium AM/FM/
CD....................................................................129
Automatic Climate Control - Vehicles With: Sony Audio System
........................131
Automatic High Beam Control.................88 Activating the System........................................ 88
Manually Overriding the System.................... 89
Automatic Transmission
.............................171
Automatic Transmission Adaptive
Learning............................................................. 173
531
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index

Brake-Shift Interlock..........................................
172
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 173
SelectShift Automatic ™
Transmission..................................................... 171
Understanding the Positions of Your Automatic Transmission.............................. 171
Automatic Transmission Fluid Check - 2.0L EcoBoost™........................................277
Automatic Transmission Fluid Check - 2.7L EcoBoost™/3.5L
..............................277
Adding Transmission Fluid ............................ 278
Checking the Transmission Fluid Level ........................................................................\
...... 278
Auto-Start-Stop...........................................160 Disabling Auto StartStop................................. 161
Enabling Auto StartStop................................. 160
Autowipers.......................................................82 Autowipers Settings............................................ 83
Auxiliary Power Points.................................151 110 Volt AC Power Point.................................... 151
12 Volt DC Power Point...................................... 151
Locations................................................................ 151
AWD See: All-Wheel Drive.......................................... 175
B
Battery See: Changing the 12V Battery..................... 280
Blind Spot Information System...............214 Switching the System Off and On...............216
System Errors....................................................... 216
Using the System................................................ 215
Body Styling Kits
..........................................297
Bonnet Lock See: Opening and Closing the Hood..........266
Booster Seats
...................................................27
Types of Booster Seats...................................... 28
Brake Fluid Check........................................279
Brakes...............................................................180 General Information.......................................... 180
Breaking-In.....................................................238
Bulb Specification Chart...........................287
C
Cabin Air Filter................................................135 California Proposition 65..............................11
Capacities and Specifications - 2.0L
EcoBoost™................................................340
Alternative Engine Oil for Extremely Cold Climates........................................................... 343
Specifications...................................................... 341
Capacities and Specifications - 2.7L EcoBoost™.................................................344
Alternative Engine Oil for Extremely Cold Climates........................................................... 348
Specifications..................................................... 345
Capacities and Specifications - 3.5L................................................................348
Alternative Engine Oil for Extreme Cold Climates........................................................... 352
Specifications..................................................... 349
Capacities and Specifications................333
Cargo Nets
......................................................224
Car Wash See: Cleaning the Exterior.............................. 290
Center Console
..............................................153
Changing a Bulb...........................................285 Headlamp............................................................ 286
LED Lamps........................................................... 286
License Plate Lamp........................................... 287
Changing a Fuse..........................................264 Fuses...................................................................... 264
Changing a Road Wheel............................327 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 327
Stowing the flat tire ......................................... 330
Tire Change Procedure.................................... 329
Changing the 12V Battery.........................280
Changing the Engine Air Filter
................289
Changing the Wiper Blades.....................282 Service Position.................................................. 282
Checking MyKey System Status................61
Checking the Wiper Blades......................282
Child Restraint and Seatbelt Maintenance.................................................39

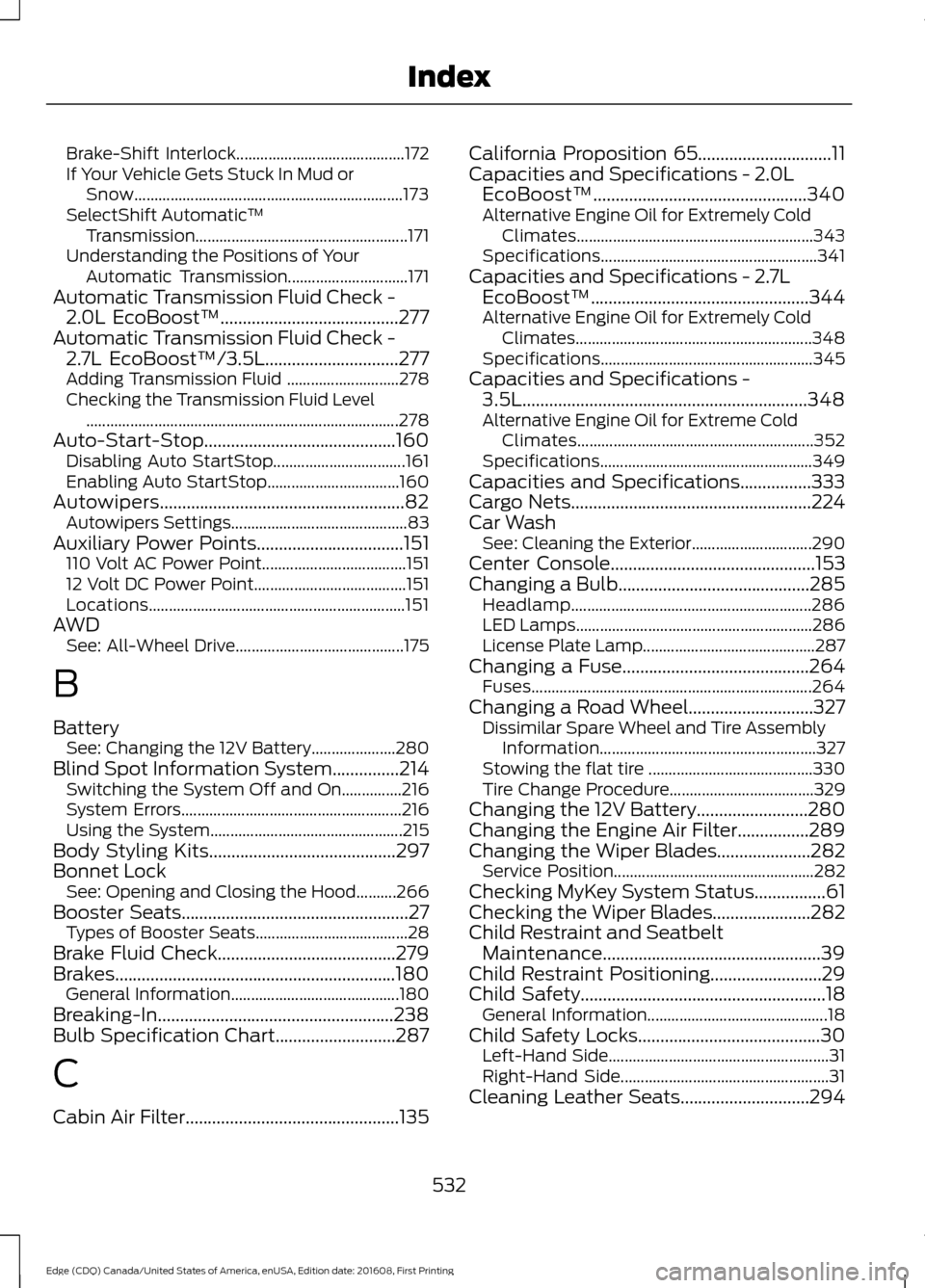

Child Restraint Positioning.........................29
Child Safety
.......................................................18
General Information............................................. 18
Child Safety Locks.........................................30 Left-Hand Side....................................................... 31
Right-Hand Side.................................................... 31
Cleaning Leather Seats.............................294
532
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index

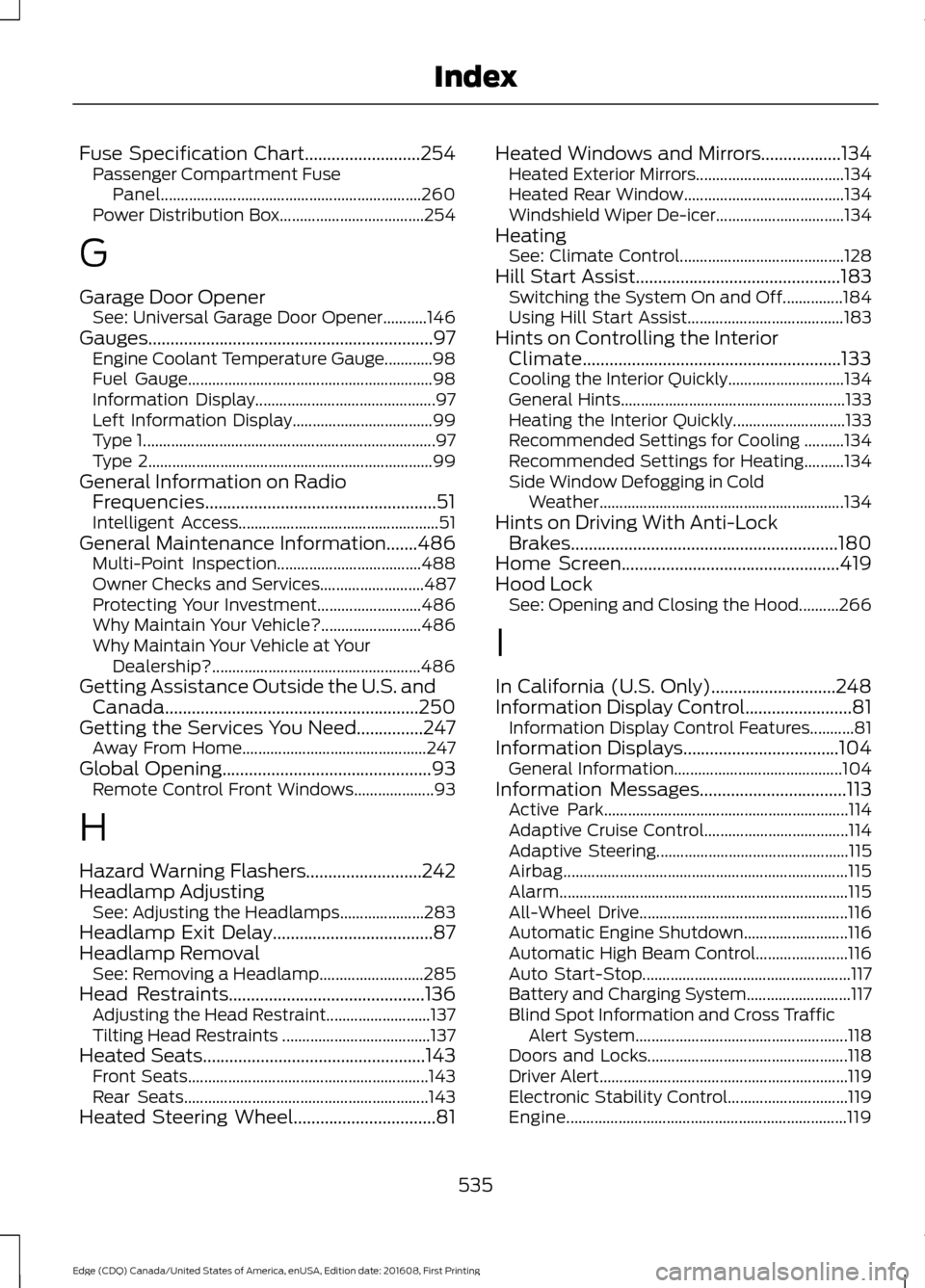

Fuse Specification Chart..........................254
Passenger Compartment Fuse
Panel................................................................. 260
Power Distribution Box.................................... 254
G
Garage Door Opener See: Universal Garage Door Opener...........146
Gauges................................................................97 Engine Coolant Temperature Gauge............98
Fuel Gauge............................................................. 98
Information Display............................................. 97
Left Information Display................................... 99
Type 1........................................................................\
. 97
Type 2....................................................................... 99
General Information on Radio Frequencies....................................................51
Intelligent Access.................................................. 51
General Maintenance Information
.......486
Multi-Point Inspection.................................... 488
Owner Checks and Services.......................... 487
Protecting Your Investment.......................... 486
Why Maintain Your Vehicle?......................... 486
Why Maintain Your Vehicle at Your Dealership?.................................................... 486
Getting Assistance Outside the U.S. and Canada.........................................................250
Getting the Services You Need...............247 Away From Home.............................................. 247
Global Opening
...............................................93
Remote Control Front Windows.................... 93
H
Hazard Warning Flashers..........................242
Headlamp Adjusting See: Adjusting the Headlamps..................... 283
Headlamp Exit Delay....................................87
Headlamp Removal See: Removing a Headlamp.......................... 285
Head Restraints
............................................136
Adjusting the Head Restraint..........................137
Tilting Head Restraints ..................................... 137
Heated Seats
..................................................143
Front Seats............................................................ 143
Rear Seats............................................................. 143
Heated Steering Wheel
................................81 Heated Windows and Mirrors..................134
Heated Exterior Mirrors..................................... 134
Heated Rear Window........................................ 134
Windshield Wiper De-icer................................ 134
Heating See: Climate Control......................................... 128
Hill Start Assist..............................................183 Switching the System On and Off...............184
Using Hill Start Assist....................................... 183
Hints on Controlling the Interior Climate..........................................................133
Cooling the Interior Quickly............................. 134
General Hints........................................................ 133
Heating the Interior Quickly............................ 133
Recommended Settings for Cooling ..........134
Recommended Settings for Heating..........134
Side Window Defogging in Cold Weather............................................................. 134
Hints on Driving With Anti-Lock Brakes............................................................180
Home Screen.................................................419
Hood Lock See: Opening and Closing the Hood..........266
I
In California (U.S. Only)............................248
Information Display Control........................81 Information Display Control Features...........81
Information Displays
...................................104
General Information.......................................... 104
Information Messages
.................................113
Active Park............................................................. 114
Adaptive Cruise Control.................................... 114
Adaptive Steering................................................ 115
Airbag....................................................................... 115
Alarm........................................................................\
115
All-Wheel Drive.................................................... 116
Automatic Engine Shutdown.......................... 116
Automatic High Beam Control....................... 116
Auto Start-Stop.................................................... 117
Battery and Charging System.......................... 117
Blind Spot Information and Cross Traffic Alert System..................................................... 118
Doors and Locks.................................................. 118
Driver Alert.............................................................. 119
Electronic Stability Control.............................. 119
Engine...................................................................... 119
535
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index

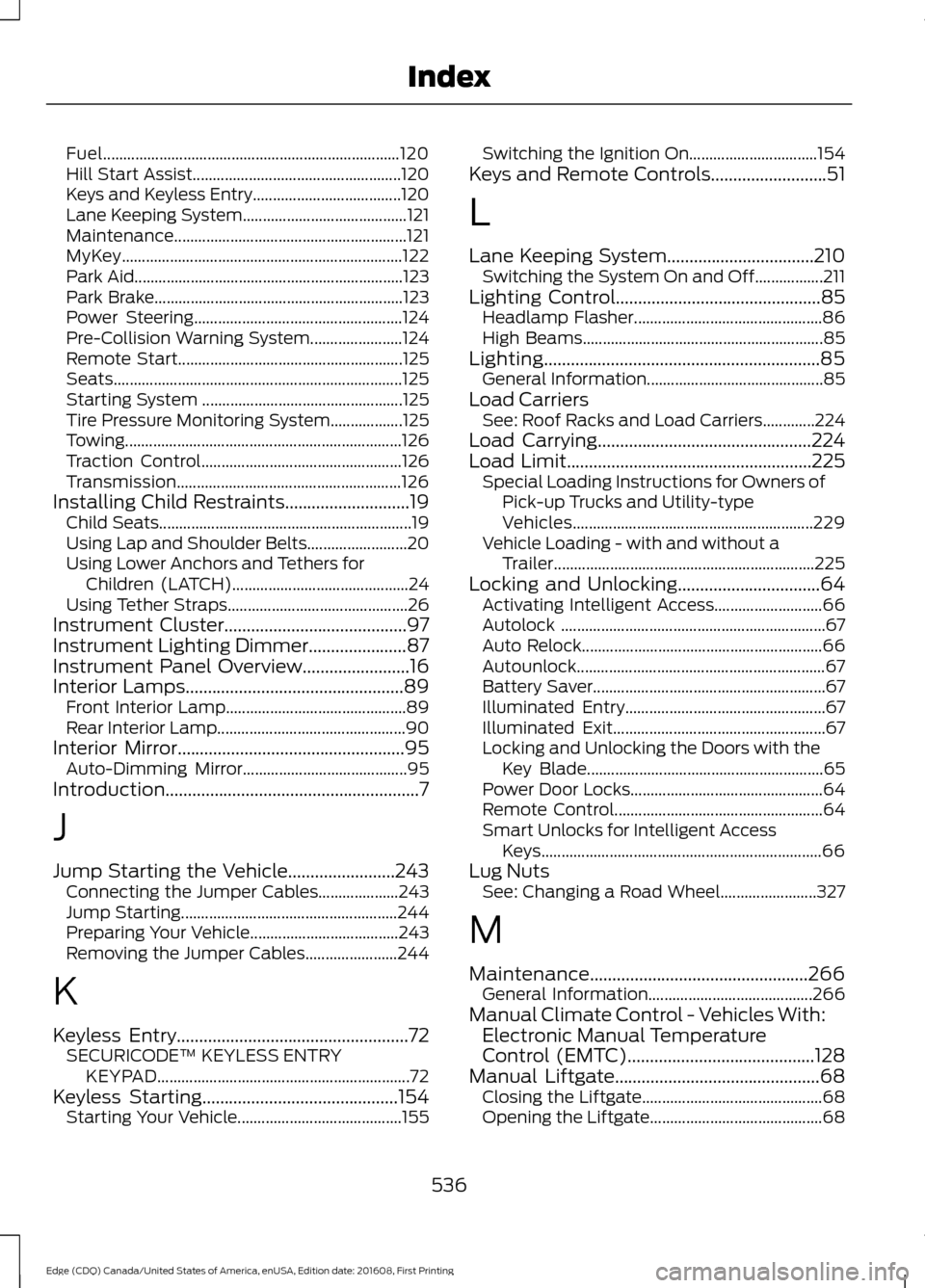

Fuel........................................................................\
..
120
Hill Start Assist.................................................... 120
Keys and Keyless Entry..................................... 120
Lane Keeping System......................................... 121
Maintenance.......................................................... 121
MyKey...................................................................... 122
Park Aid................................................................... 123
Park Brake.............................................................. 123
Power Steering.................................................... 124
Pre-Collision Warning System....................... 124
Remote Start........................................................ 125
Seats........................................................................\
125
Starting System .................................................. 125
Tire Pressure Monitoring System.................. 125
Towing..................................................................... 126
Traction Control.................................................. 126
Transmission........................................................ 126
Installing Child Restraints............................19 Child Seats............................................................... 19
Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for Children (LATCH)............................................ 24
Using Tether Straps............................................. 26
Instrument Cluster.........................................97
Instrument Lighting Dimmer......................87
Instrument Panel Overview........................16
Interior Lamps
.................................................89
Front Interior Lamp............................................. 89
Rear Interior Lamp............................................... 90
Interior Mirror
...................................................95
Auto-Dimming Mirror......................................... 95
Introduction.........................................................7
J
Jump Starting the Vehicle........................243 Connecting the Jumper Cables.................... 243
Jump Starting...................................................... 244
Preparing Your Vehicle..................................... 243
Removing the Jumper Cables....................... 244
K
Keyless Entry
....................................................72
SECURICODE™ KEYLESS ENTRY
KEYPAD............................................................... 72
Keyless Starting
............................................154
Starting Your Vehicle......................................... 155Switching the Ignition On................................
154
Keys and Remote Controls..........................51
L
Lane Keeping System.................................210 Switching the System On and Off.................211
Lighting Control
..............................................85
Headlamp Flasher............................................... 86
High Beams............................................................ 85
Lighting..............................................................85 General Information............................................ 85
Load Carriers See: Roof Racks and Load Carriers.............224
Load Carrying
................................................224
Load Limit.......................................................225
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................ 229
Vehicle Loading - with and without a Trailer................................................................. 225
Locking and Unlocking
................................64
Activating Intelligent Access........................... 66
Autolock .................................................................. 67
Auto Relock............................................................ 66
Autounlock.............................................................. 67
Battery Saver.......................................................... 67
Illuminated Entry.................................................. 67
Illuminated Exit..................................................... 67
Locking and Unlocking the Doors with the Key Blade........................................................... 65
Power Door Locks................................................ 64
Remote Control.................................................... 64
Smart Unlocks for Intelligent Access Keys...................................................................... 66
Lug Nuts See: Changing a Road Wheel........................ 327
M
Maintenance.................................................266 General Information......................................... 266
Manual Climate Control - Vehicles With: Electronic Manual Temperature
Control (EMTC)
..........................................128
Manual Liftgate..............................................68
Closing the Liftgate............................................. 68
Opening the Liftgate........................................... 68
536
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index

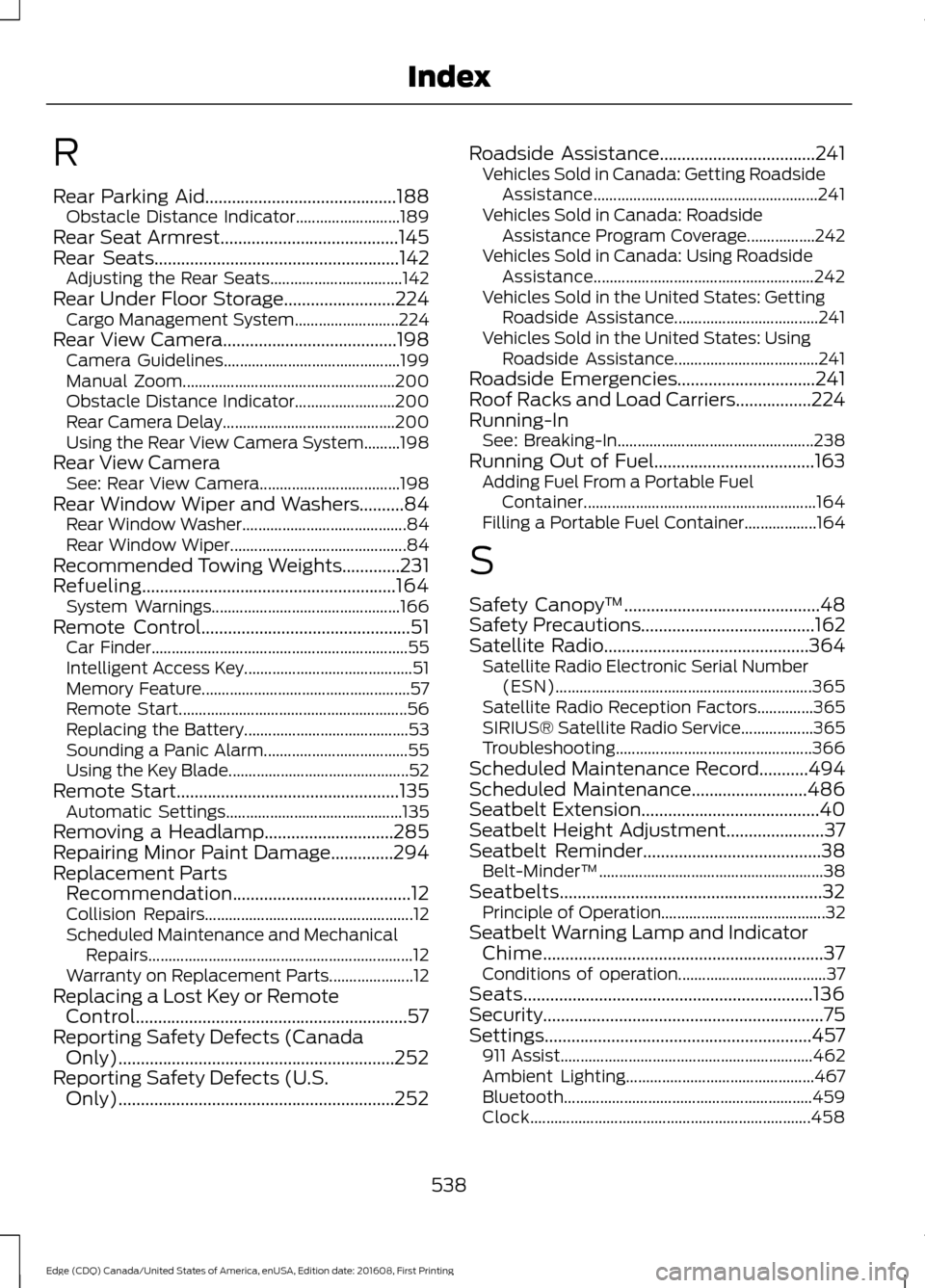

R
Rear Parking Aid...........................................188
Obstacle Distance Indicator.......................... 189
Rear Seat Armrest........................................145
Rear Seats
.......................................................142
Adjusting the Rear Seats................................. 142
Rear Under Floor Storage.........................224 Cargo Management System.......................... 224
Rear View Camera
.......................................198
Camera Guidelines............................................ 199
Manual Zoom..................................................... 200
Obstacle Distance Indicator......................... 200
Rear Camera Delay........................................... 200
Using the Rear View Camera System.........198
Rear View Camera See: Rear View Camera................................... 198
Rear Window Wiper and Washers..........84 Rear Window Washer......................................... 84
Rear Window Wiper............................................ 84
Recommended Towing Weights.............231
Refueling.........................................................164 System Warnings............................................... 166
Remote Control
...............................................51
Car Finder................................................................ 55
Intelligent Access Key.......................................... 51
Memory Feature.................................................... 57
Remote Start......................................................... 56
Replacing the Battery......................................... 53
Sounding a Panic Alarm.................................... 55
Using the Key Blade............................................. 52
Remote Start
..................................................135
Automatic Settings............................................ 135
Removing a Headlamp.............................285
Repairing Minor Paint Damage
..............294
Replacement Parts Recommendation........................................12
Collision Repairs.................................................... 12
Scheduled Maintenance and Mechanical Repairs.................................................................. 12
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control.............................................................57
Reporting Safety Defects (Canada Only)..............................................................252
Reporting Safety Defects (U.S. Only)..............................................................252 Roadside Assistance...................................241
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 241
Vehicles Sold in Canada: Roadside Assistance Program Coverage.................242
Vehicles Sold in Canada: Using Roadside Assistance....................................................... 242
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 241
Vehicles Sold in the United States: Using Roadside Assistance.................................... 241
Roadside Emergencies
...............................241
Roof Racks and Load Carriers.................224
Running-In See: Breaking-In................................................. 238
Running Out of Fuel....................................163 Adding Fuel From a Portable Fuel
Container.......................................................... 164
Filling a Portable Fuel Container.................. 164
S
Safety Canopy ™
............................................48
Safety Precautions.......................................162
Satellite Radio..............................................364 Satellite Radio Electronic Serial Number
(ESN)................................................................ 365
Satellite Radio Reception Factors..............365
SIRIUS® Satellite Radio Service.................. 365
Troubleshooting................................................. 366
Scheduled Maintenance Record...........494
Scheduled Maintenance
..........................486
Seatbelt Extension........................................40
Seatbelt Height Adjustment......................37
Seatbelt Reminder........................................38
Belt-Minder™........................................................ 38
Seatbelts...........................................................32 Principle of Operation......................................... 32
Seatbelt Warning Lamp and Indicator Chime...............................................................37
Conditions of operation..................................... 37
Seats.................................................................136
Security...............................................................75
Settings............................................................457 911 Assist............................................................... 462
Ambient Lighting............................................... 467
Bluetooth.............................................................. 459
Clock...................................................................... 458
538
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index
