Engine specification FORD EDGE 2019 Owner's Manual

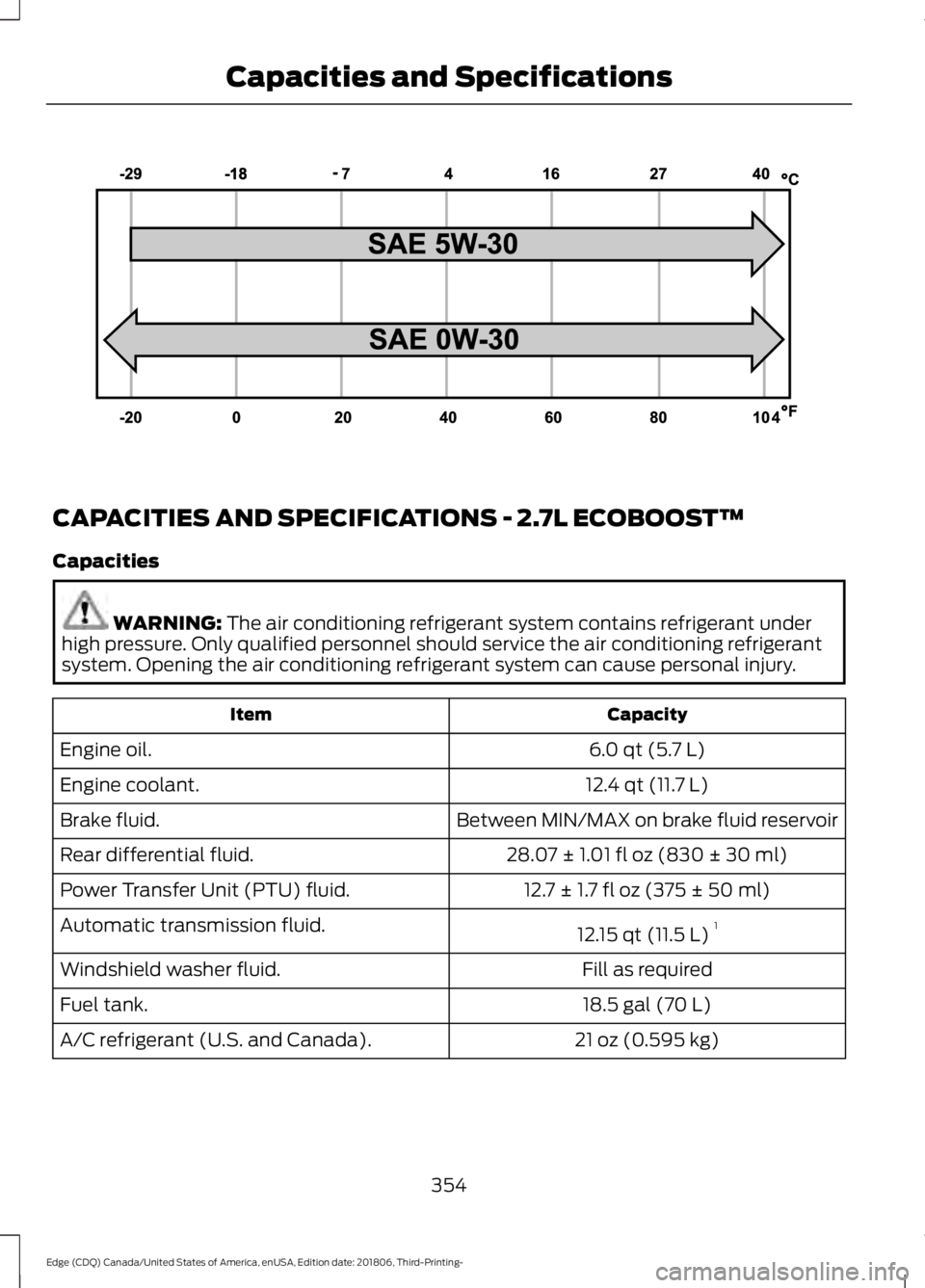

CAPACITIES AND SPECIFICATIONS - 2.7L ECOBOOST™
Capacities
WARNING: The air conditioning refrigerant system contains refrigerant under
high pressure. Only qualified personnel should service the air conditioning refrigerant
system. Opening the air conditioning refrigerant system can cause personal injury. Capacity
Item
6.0 qt (5.7 L)
Engine oil.
12.4 qt (11.7 L)
Engine coolant.
Between MIN/MAX on brake fluid reservoir
Brake fluid.
28.07 ± 1.01 fl oz (830 ± 30 ml)
Rear differential fluid.
12.7 ± 1.7 fl oz (375 ± 50 ml)
Power Transfer Unit (PTU) fluid.
12.15 qt (11.5 L)1
Automatic transmission fluid.
Fill as required
Windshield washer fluid.
18.5 gal (70 L)
Fuel tank.
21 oz (0.595 kg)
A/C refrigerant (U.S. and Canada).
354
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Capacities and SpecificationsE240523

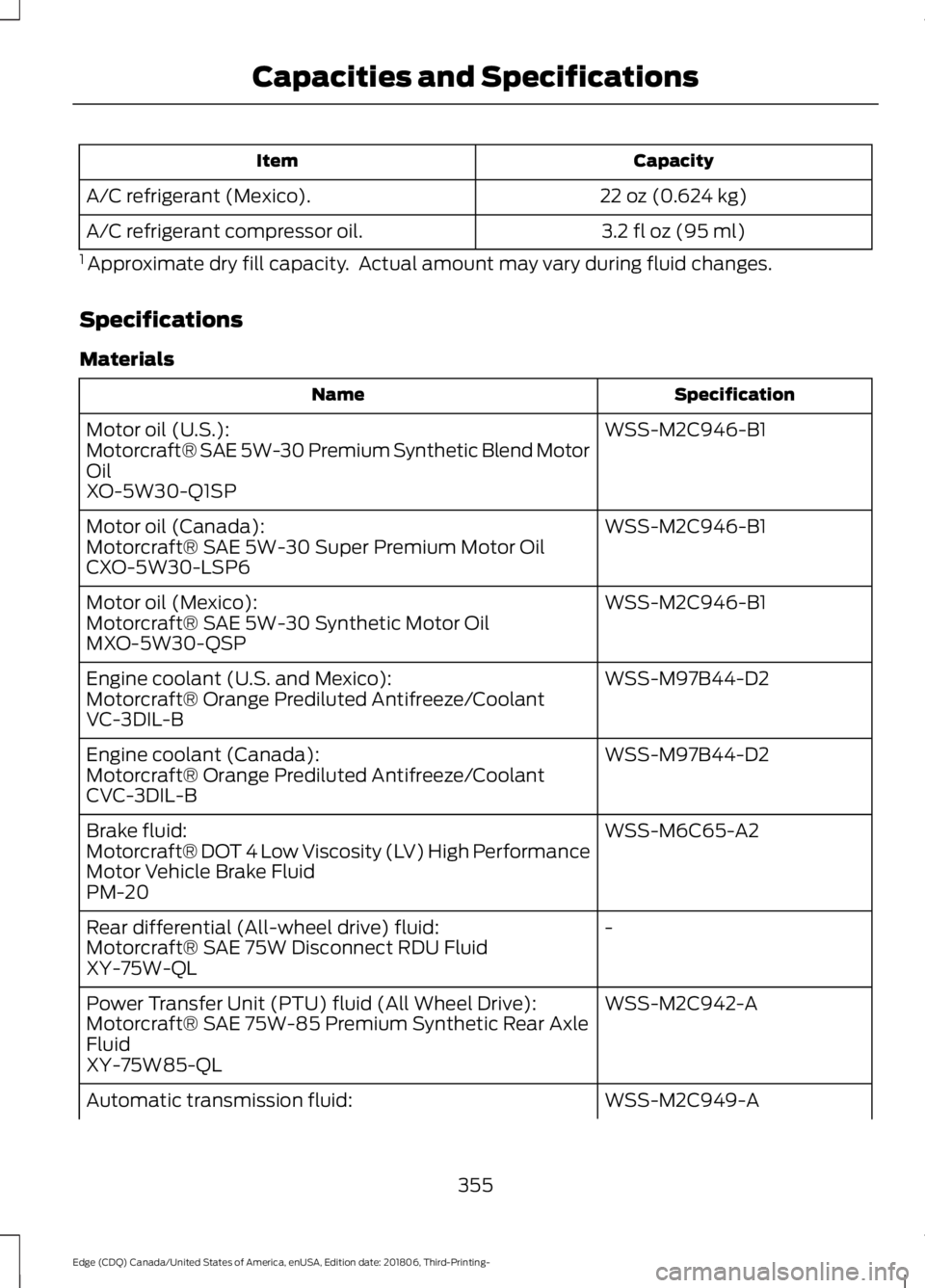

Capacity
Item
22 oz (0.624 kg)
A/C refrigerant (Mexico).
3.2 fl oz (95 ml)
A/C refrigerant compressor oil.
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials Specification
Name
WSS-M2C946-B1
Motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor
Oil
XO-5W30-Q1SP
WSS-M2C946-B1
Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP6
WSS-M2C946-B1
Motor oil (Mexico):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
MXO-5W30-QSP
WSS-M97B44-D2
Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B
WSS-M97B44-D2
Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B
WSS-M6C65-A2
Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20
-
Rear differential (All-wheel drive) fluid:
Motorcraft® SAE 75W Disconnect RDU Fluid
XY-75W-QL
WSS-M2C942-A
Power Transfer Unit (PTU) fluid (All Wheel Drive):
Motorcraft® SAE 75W-85 Premium Synthetic Rear Axle
Fluid
XY-75W85-QL
WSS-M2C949-A
Automatic transmission fluid:
355
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Capacities and Specifications

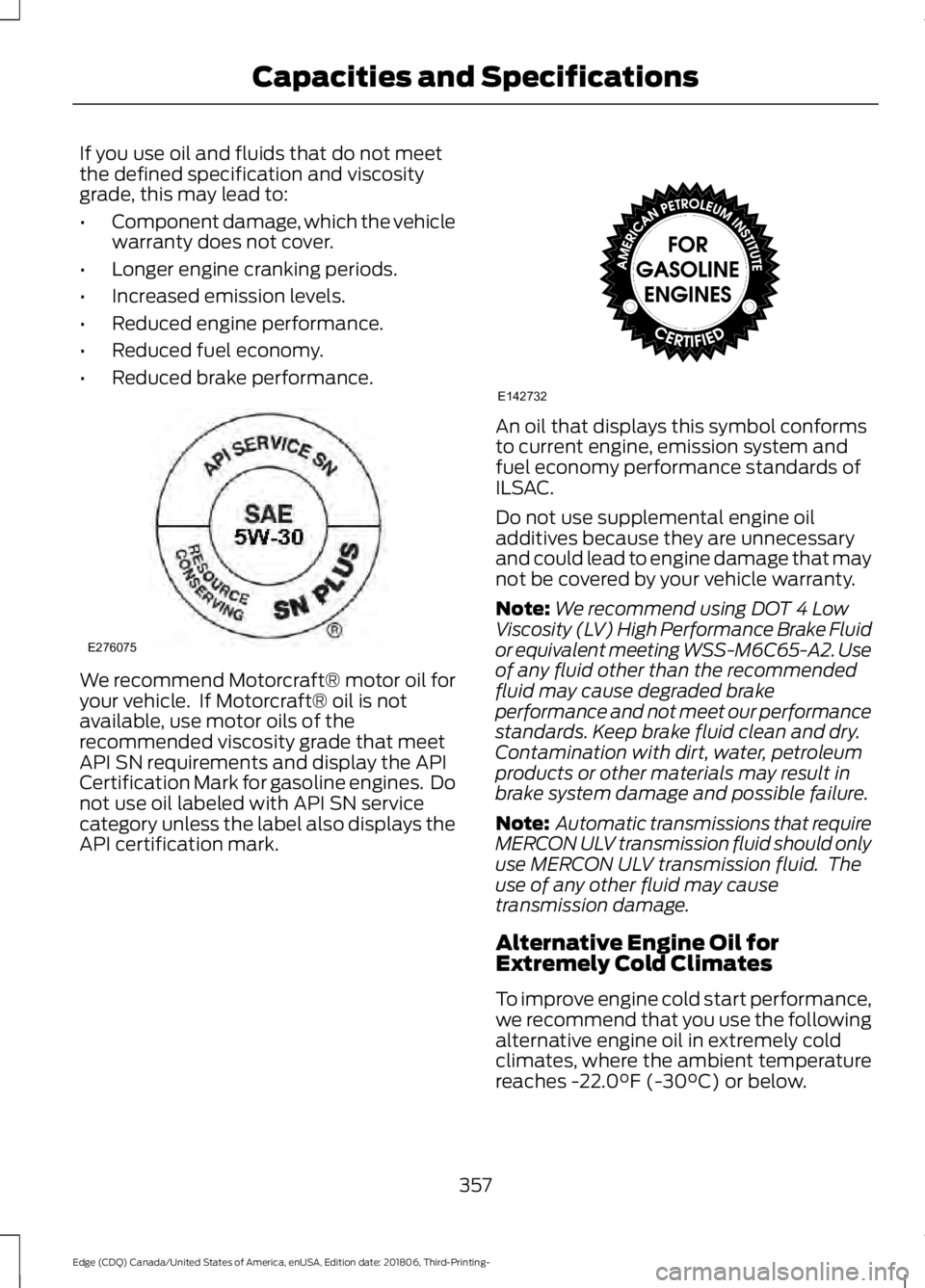

If you use oil and fluids that do not meet
the defined specification and viscosity
grade, this may lead to:
•
Component damage, which the vehicle
warranty does not cover.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Reduced brake performance. We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet
API SN requirements and display the API
Certification Mark for gasoline engines. Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark. An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.
Note:
We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.
Note: Automatic transmissions that require
MERCON ULV transmission fluid should only
use MERCON ULV transmission fluid. The
use of any other fluid may cause
transmission damage.
Alternative Engine Oil for
Extremely Cold Climates
To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.
357
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Capacities and SpecificationsE276075 E142732

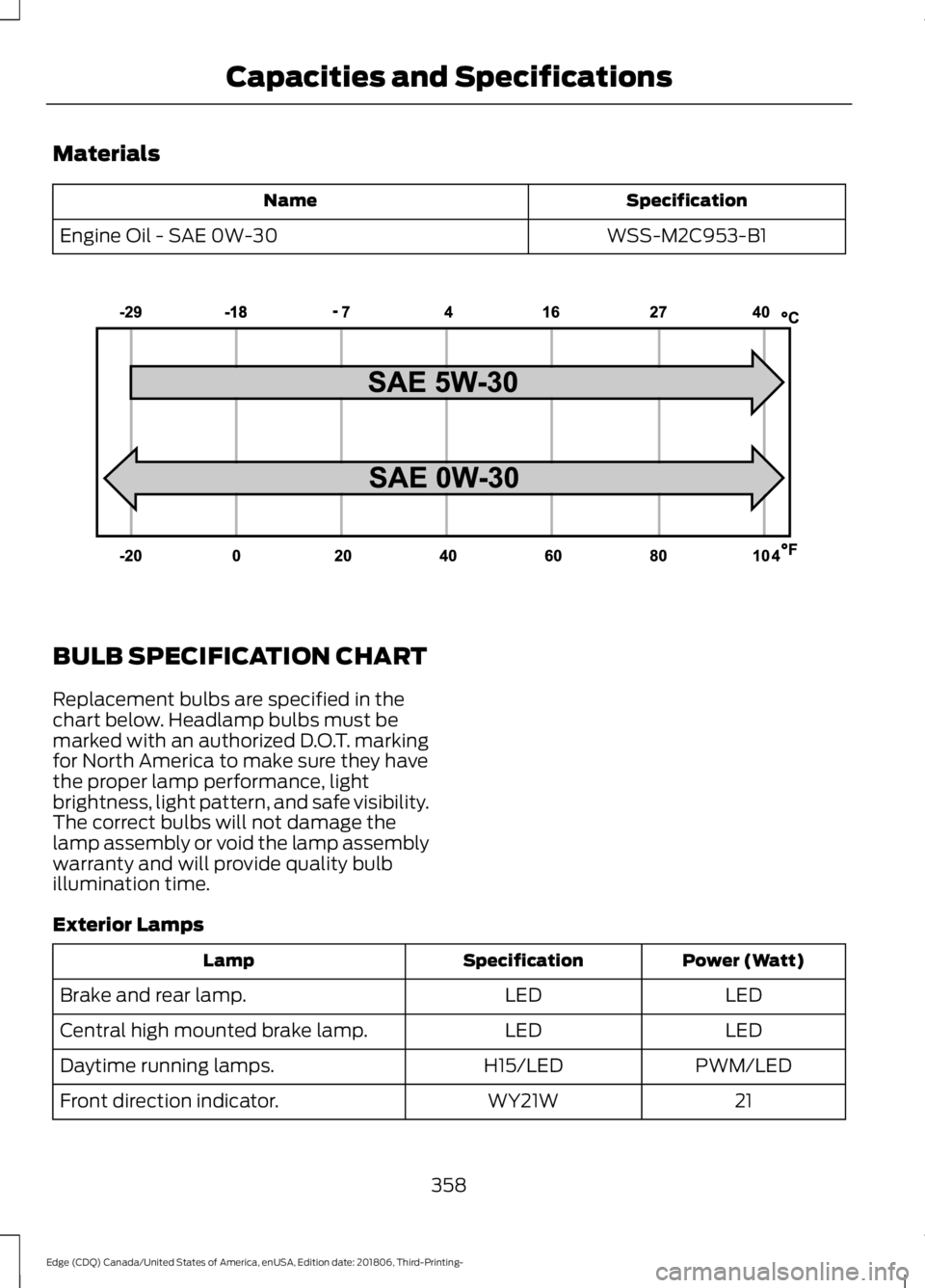

Materials
Specification
Name
WSS-M2C953-B1
Engine Oil - SAE 0W-30 BULB SPECIFICATION CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern, and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.
Exterior Lamps
Power (Watt)
Specification
Lamp
LED
LED
Brake and rear lamp.
LED
LED
Central high mounted brake lamp.
PWM/LED
H15/LED
Daytime running lamps.
21
WY21W
Front direction indicator.
358
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Capacities and SpecificationsE240523

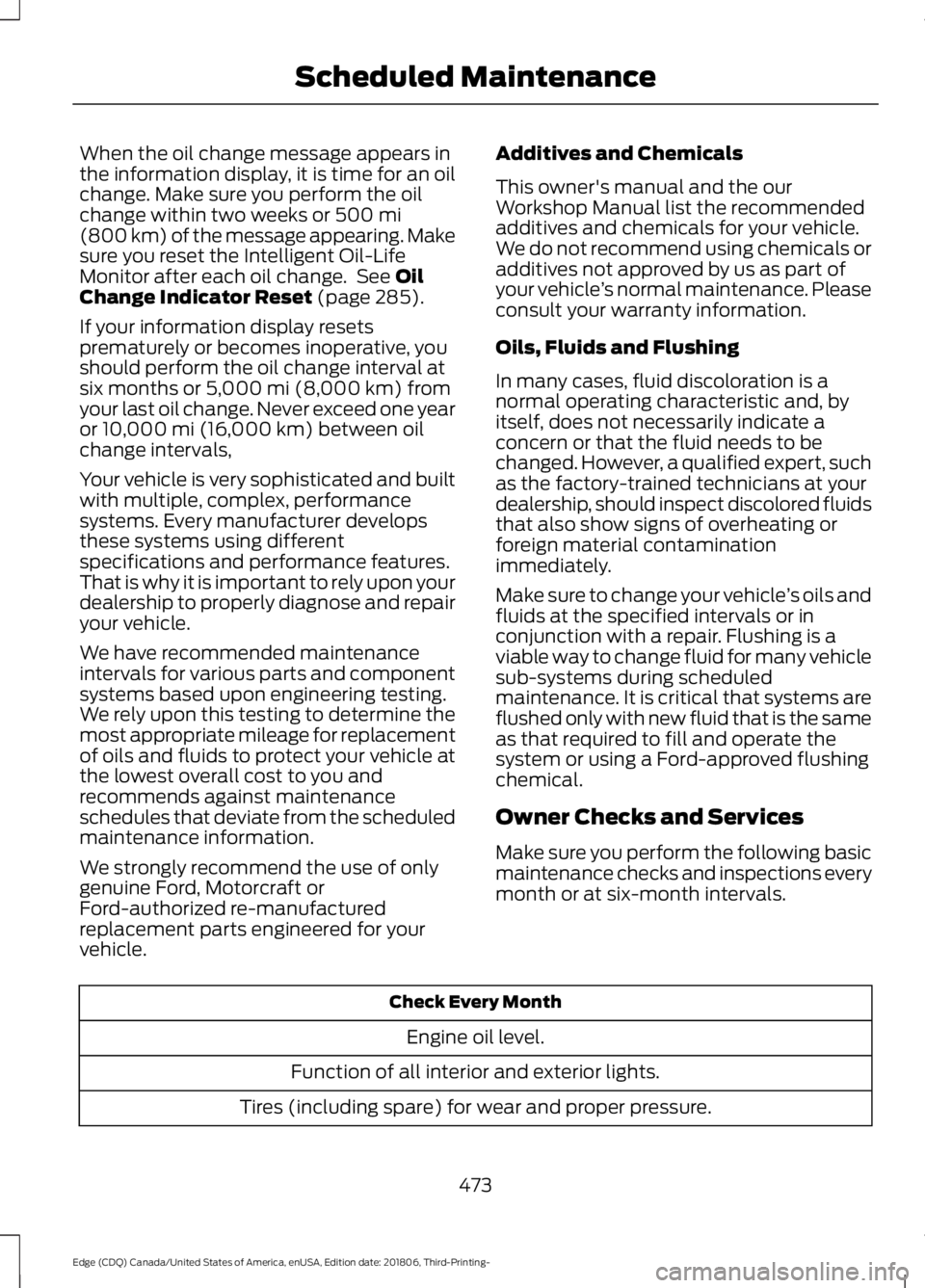

When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 mi
(800 km) of the message appearing. Make
sure you reset the Intelligent Oil-Life
Monitor after each oil change. See
Oil
Change Indicator Reset (page 285).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals,
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.
We have recommended maintenance
intervals for various parts and component
systems based upon engineering testing.
We rely upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle. Additives and Chemicals
This owner's manual and the our
Workshop Manual list the recommended
additives and chemicals for your vehicle.
We do not recommend using chemicals or
additives not approved by us as part of
your vehicle
’s normal maintenance. Please
consult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals. Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
473
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Scheduled Maintenance

SelectShift Automatic
™ Transmission (If
Equipped)......................................................... 175
Understanding the Positions of Your Rotary Shift Transmission......................................... 173
Automatic Transmission Fluid Check - 2.0L EcoBoost™/2.7L
EcoBoost™................................................290
Auto-Start-Stop...........................................160 Disabling Auto-Start-Stop............................... 161
Enabling Auto-Start-Stop.............................. 160
Autowipers........................................................77 Autowipers Settings............................................. 77
Auxiliary Power Points.................................151 110 Volt AC Power Point.................................... 151
12 Volt DC Power Point...................................... 151
USB Port and Power Point Locations..........151
AWD See: All-Wheel Drive.......................................... 179
B
Battery See: Changing the 12V Battery..................... 292
Blind Spot Information System...............231 ........................................................................\
............ 231
Switching the System On and Off...............232
System Errors...................................................... 232
Using the Blind Spot Information System............................................................... 231
BLIS See: Blind Spot Information System...........231
Body Styling Kits.........................................306
Bonnet Lock See: Opening and Closing the Hood..........280
Booster Seats..................................................26 Types of Booster Seats....................................... 27
Brake Fluid Check.......................................290
Brakes...............................................................184 General Information.......................................... 184
Breaking-In.....................................................254
Bulb Specification Chart..........................358
C
Cabin Air Filter................................................133 Capacities and Specifications - 2.0L
EcoBoost™ .................................................
350
Alternative Engine Oil for Extremely Cold
Climates........................................................... 353
Specifications...................................................... 351
Capacities and Specifications - 2.7L EcoBoost™.................................................354
Alternative Engine Oil for Extremely Cold Climates............................................................ 357
Specifications..................................................... 355
Capacities and Specifications
................345
Cargo Nets.......................................................241
Car Wash See: Cleaning the Exterior.............................. 299
Catalytic Converter
......................................170
On-Board Diagnostics (OBD-II)..................... 171
Readiness for Inspection and Maintenance (I/M) Testing..................................................... 171
Center Console
..............................................154
Changing a Bulb..........................................296 Headlamp............................................................. 297
LED Lamps........................................................... 297
License Plate Lamp.......................................... 298
Changing a Fuse
...........................................278
Fuses....................................................................... 278
Changing a Road Wheel...........................338 Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 338
Stowing the flat tire ......................................... 343
Tire Change Procedure.................................... 339
Changing the 12V Battery
.........................292
Changing the Engine Air Filter................298
Changing the Wi-Fi Hotspot Name or Password.....................................................360
Changing the Wiper Blades.....................293 Front Wiper Blades........................................... 294
Rear Window Wiper Blade............................. 294
Checking MyKey System Status
...............57
MyKey Distance..................................................... 57
Number of Admin Keys....................................... 57
Number of MyKeys............................................... 57
Checking the Wiper Blades......................293
Child Restraint and Seatbelt Maintenance.................................................38
Child Restraint Positioning.........................28
Child Safety
.......................................................19
General Information............................................. 19
533
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

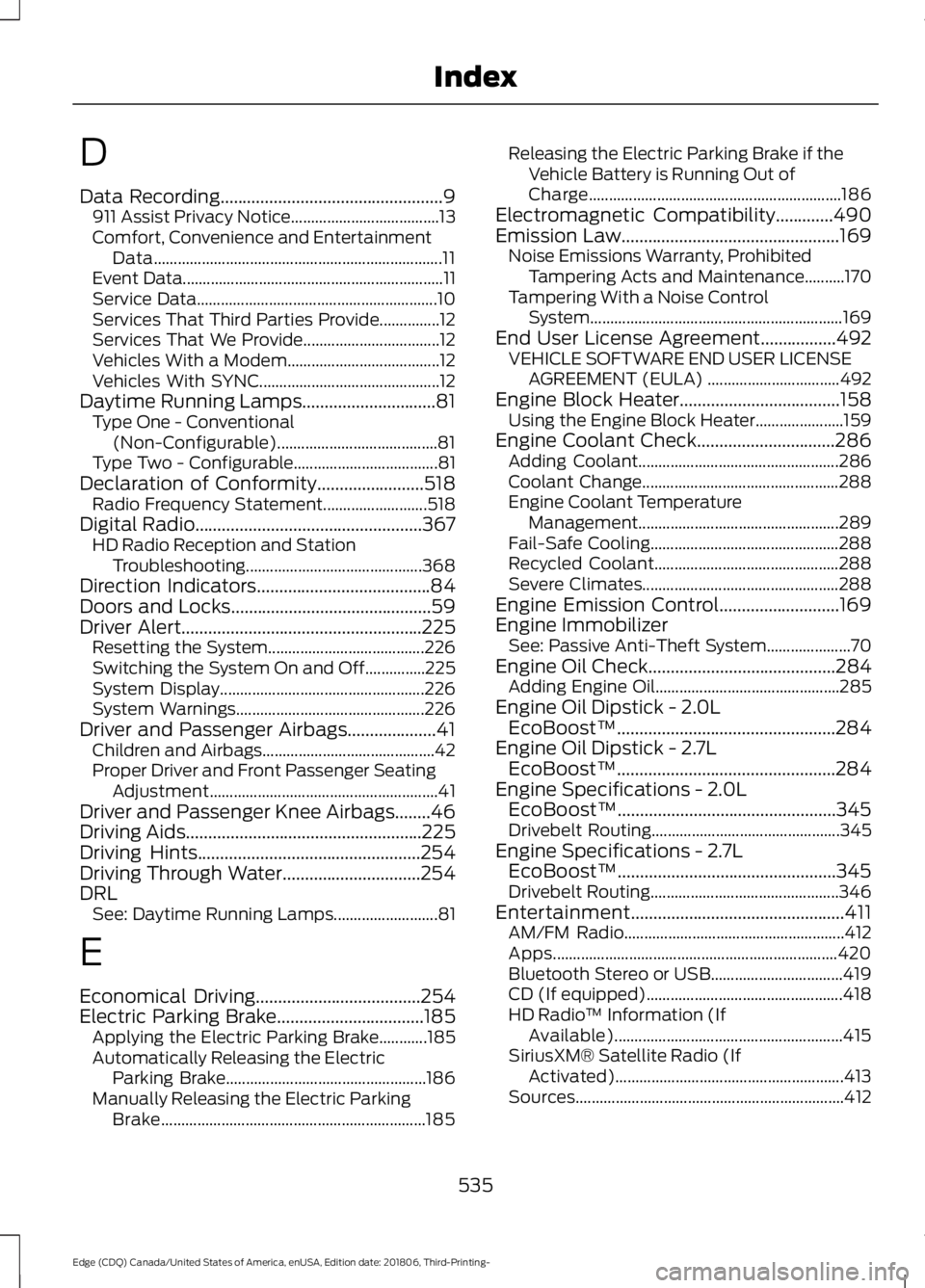

D
Data Recording..................................................9
911 Assist Privacy Notice..................................... 13
Comfort, Convenience and Entertainment Data........................................................................\
11
Event Data................................................................. 11
Service Data............................................................ 10
Services That Third Parties Provide...............12
Services That We Provide.................................. 12
Vehicles With a Modem...................................... 12
Vehicles With SYNC............................................. 12
Daytime Running Lamps..............................81 Type One - Conventional
(Non-Configurable)........................................ 81
Type Two - Configurable.................................... 81
Declaration of Conformity
........................518
Radio Frequency Statement.......................... 518
Digital Radio...................................................367 HD Radio Reception and Station
Troubleshooting............................................ 368
Direction Indicators.......................................84
Doors and Locks
.............................................59
Driver Alert......................................................225
Resetting the System....................................... 226
Switching the System On and Off...............225
System Display................................................... 226
System Warnings............................................... 226
Driver and Passenger Airbags....................41 Children and Airbags........................................... 42
Proper Driver and Front Passenger Seating Adjustment......................................................... 41
Driver and Passenger Knee Airbags........46
Driving Aids
.....................................................225
Driving Hints..................................................254
Driving Through Water...............................254
DRL See: Daytime Running Lamps.......................... 81
E
Economical Driving
.....................................254
Electric Parking Brake.................................185 Applying the Electric Parking Brake............185
Automatically Releasing the Electric
Parking Brake.................................................. 186
Manually Releasing the Electric Parking Brake.................................................................. 185Releasing the Electric Parking Brake if the
Vehicle Battery is Running Out of
Charge............................................................... 186
Electromagnetic Compatibility
.............490
Emission Law.................................................169
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........170
Tampering With a Noise Control System............................................................... 169
End User License Agreement.................492 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 492
Engine Block Heater....................................158 Using the Engine Block Heater...................... 159
Engine Coolant Check
...............................286
Adding Coolant.................................................. 286
Coolant Change................................................. 288
Engine Coolant Temperature Management.................................................. 289
Fail-Safe Cooling............................................... 288
Recycled Coolant.............................................. 288
Severe Climates................................................. 288
Engine Emission Control...........................169
Engine Immobilizer See: Passive Anti-Theft System..................... 70
Engine Oil Check..........................................284 Adding Engine Oil.............................................. 285
Engine Oil Dipstick - 2.0L EcoBoost™.................................................284
Engine Oil Dipstick - 2.7L EcoBoost™.................................................284
Engine Specifications - 2.0L EcoBoost™.................................................345
Drivebelt Routing............................................... 345
Engine Specifications - 2.7L EcoBoost™.................................................345
Drivebelt Routing............................................... 346
Entertainment................................................411 AM/FM Radio....................................................... 412
Apps....................................................................... 420
Bluetooth Stereo or USB................................. 419
CD (If equipped)................................................. 418
HD Radio ™ Information (If
Available)......................................................... 415
SiriusXM® Satellite Radio (If Activated)......................................................... 413
Sources................................................................... 412
535
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

Supported Media Players, Formats and
Metadata Information................................ 420
USB Ports............................................................. 420
Environment.....................................................16
EPB See: Electric Parking Brake............................. 185
Essential Towing Checks..........................250
Before Towing a Trailer..................................... 251
Hitches.................................................................. 250
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 251
Safety Chains...................................................... 250
Trailer Brakes....................................................... 250
Trailer Lamps...................................................... 250
When Towing a Trailer...................................... 251
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options.................................15
Exterior Mirrors
................................................87
Auto-dimming Feature...................................... 88
Blind Spot Information System...................... 88
Direction Indicator Mirrors ............................... 88
Fold-Away Exterior Mirrors............................... 87
Heated Exterior Mirrors ......................................87
Integrated Blind Spot Mirror............................ 88
Memory Mirrors ................................................... 88
Power Exterior Mirrors........................................ 87
Puddle Lamps....................................................... 88
F
Fastening the Seatbelts...............................33 Seatbelt Locking Modes.................................... 34
Using a Sliding Clip.............................................. 33
Using Seatbelts During Pregnancy................34
Flat Tire See: Changing a Road Wheel....................... 338
Flat Tire Inflation See: Tire Sealant and Inflator Kit................308
Floor Mats
.......................................................255
Fog Lamps - Front See: Front Fog Lamps........................................ 83
Ford Credit
.........................................................13
US Only..................................................................... 13
Ford Protect...................................................470 Ford Protect Extended Service Plan
(CANADA ONLY)............................................ 471Ford Protect Extended Service Plans (U.S.
Only).................................................................. 470
Front Fog Lamps............................................83
Front Parking Aid..........................................193 Obstacle Distance Indicator........................... 194
Front Passenger Sensing System............42
Fuel and Refueling
.......................................162
Fuel Consumption........................................167 Advertised Capacity........................................... 167
Filling the Fuel Tank........................................... 167
Fuel Economy...................................................... 168
Fuel Filler Funnel Location
........................163
Fuel Filter.........................................................291
Fuel Quality.....................................................162
Choosing the Right Fuel................................... 162
Fuel Shutoff
...................................................257
Fuses................................................................268
Fuse Specification Chart..........................268 Passenger Compartment Fuse Panel........274
Power Distribution Box................................... 268
G
Garage Door Opener...................................146
Garage Door Opener See: Universal Garage Door Opener...........146
Gauges................................................................91 Engine Coolant Temperature Gauge............92
Fuel Gauge.............................................................. 92
Information Display.............................................. 91
Left Information Display.................................... 93
Type 1........................................................................\
. 91
Type 2....................................................................... 93
Gearbox See: Transmission............................................... 173
General Information on Radio Frequencies...................................................49
Intelligent Access................................................. 49
General Maintenance Information........472 Multi-Point Inspection..................................... 474
Owner Checks and Services.......................... 473
Protecting Your Investment........................... 472
Why Maintain Your Vehicle?.......................... 472
Why Maintain Your Vehicle at Your Dealership?...................................................... 472
Getting Assistance Outside the U.S. and Canada.........................................................264
536
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

Display...................................................................
453
General.................................................................. 450
Media Player......................................................... 441
Mobile Apps........................................................ 449
Navigation............................................................. 447
Phone..................................................................... 442
Radio...................................................................... 446
SiriusXM................................................................ 447
Sound.................................................................... 440
Valet Mode........................................................... 454
Vehicle................................................................... 452
Voice Control....................................................... 453
Wi-Fi & Hotspot.................................................. 451
Side Airbags
.....................................................45
Side Sensing System..................................194
Obstacle Distance Indicator........................... 195
Sitting in the Correct Position..................135
Snow Chains See: Using Snow Chains.................................. 331
Spare Wheel See: Changing a Road Wheel....................... 338
Special Notices
................................................14
New Vehicle Limited Warranty......................... 14
On Board Diagnostics Data Link Connector............................................................ 15
Special Instructions.............................................. 14
Special Operating Conditions Scheduled Maintenance...............................................478
Exceptions............................................................ 479
Speed Control See: Cruise Control............................................ 207
Stability Control
............................................189
Principle of Operation...................................... 189
Starting a Gasoline Engine
.......................156
Automatic Engine Shutdown......................... 157
Failure to Start...................................................... 157
Guarding Against Exhaust Fumes................158
Important Ventilating Information..............158
Stopping the Engine When Your Vehicle is Moving............................................................... 158
Stopping the Engine When Your Vehicle is Stationary......................................................... 158
Starting and Stopping the Engine..........155 General Information.......................................... 155
Steering...........................................................235 Adaptive Learning............................................. 236
Electric Power Steering................................... 235
Steering Wheel................................................73 Storage Compartments
.............................154
Sunroof See: Moonroof...................................................... 89
Sun Visors.........................................................89 Illuminated Vanity Mirror................................... 89
Supplementary Restraints System.........40 Principle of Operation........................................ 40
Symbols Glossary
.............................................7
SYNC™ 3.........................................................391 General Information.......................................... 391
SYNC™ 3 Troubleshooting......................454
SYNC™ Applications and Services........................................................378
911 Assist............................................................... 378
SYNC Mobile Apps........................................... 380
SYNC™............................................................374 General Information.......................................... 374
SYNC™ Troubleshooting
.........................382
T
Technical Specifications See: Capacities and Specifications............345
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................263
Tire Care
...........................................................315
Glossary of Tire Terminology......................... 318
Important Information About Low-Profile Tires..................................................................... 315
Important Information About Sport Tires and Wheels...................................................... 315
Information About Uniform Tire Quality Grading.............................................................. 316
Information Contained on the Tire Sidewall............................................................ 319
Notice to Crossover Vehicle Owners...........316
Temperature A B C.............................................. 317
Tire Rotation........................................................ 330
Traction AA A B C................................................ 317
Treadwear.............................................................. 317
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit................308
Tire Pressure Monitoring System...........332 Changing Tires With a Tire Pressure
Monitoring System....................................... 333
Understanding Your Tire Pressure Monitoring System ...................................... 333
541
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

W
Warning Lamps and Indicators................94
Adaptive Cruise Control.................................... 94
Anti-Lock Braking System................................ 94
Automatic Headlamp High Beam Indicator .............................................................. 94
Auto Start-stop.................................................... 94
Battery ...................................................................... 94
Blind Spot Monitor.............................................. 94
Brake System......................................................... 94
Cruise Control........................................................ 95
Direction Indicator............................................... 95
Door Ajar.................................................................. 95
Electric Park Brake............................................... 95
Engine Coolant Temperature.......................... 95
Engine Oil................................................................ 95
Fasten Seatbelt.................................................... 95
Front Airbag........................................................... 95
Front Fog Lamps Indicator............................... 95
High Beam.............................................................. 96
Hill Start Assist Indicator.................................. 96
Hood Ajar................................................................ 96
Lane Keeping Aid................................................. 96
Liftgate Ajar............................................................ 96
Low Fuel Level...................................................... 96
Low Tire Pressure Warning.............................. 96
Low Washer Fluid................................................ 96
Parking Lamps...................................................... 96
Powertrain Fault................................................... 96
Service Engine Soon........................................... 96
Stability Control.................................................... 97
Stability Control Off............................................ 97
Washer Fluid Check.....................................291
Washers See: Cleaning the Exterior.............................. 299
See: Wipers and Washers.................................. 77
Waxing..............................................................301
Wheel Nuts See: Changing a Road Wheel....................... 338
Wheels and Tires.........................................307 General Information......................................... 307
Technical Specifications................................. 344
Wi-Fi Hotspot...............................................360
Windows and Mirrors
...................................86
Windshield Washers......................................77
Front Camera Washer........................................ 78Wiper Blades
See: Checking the Wiper Blades.................. 293
Wipers and Washers......................................77
Wireless Accessory Charging
...................152
544
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index
