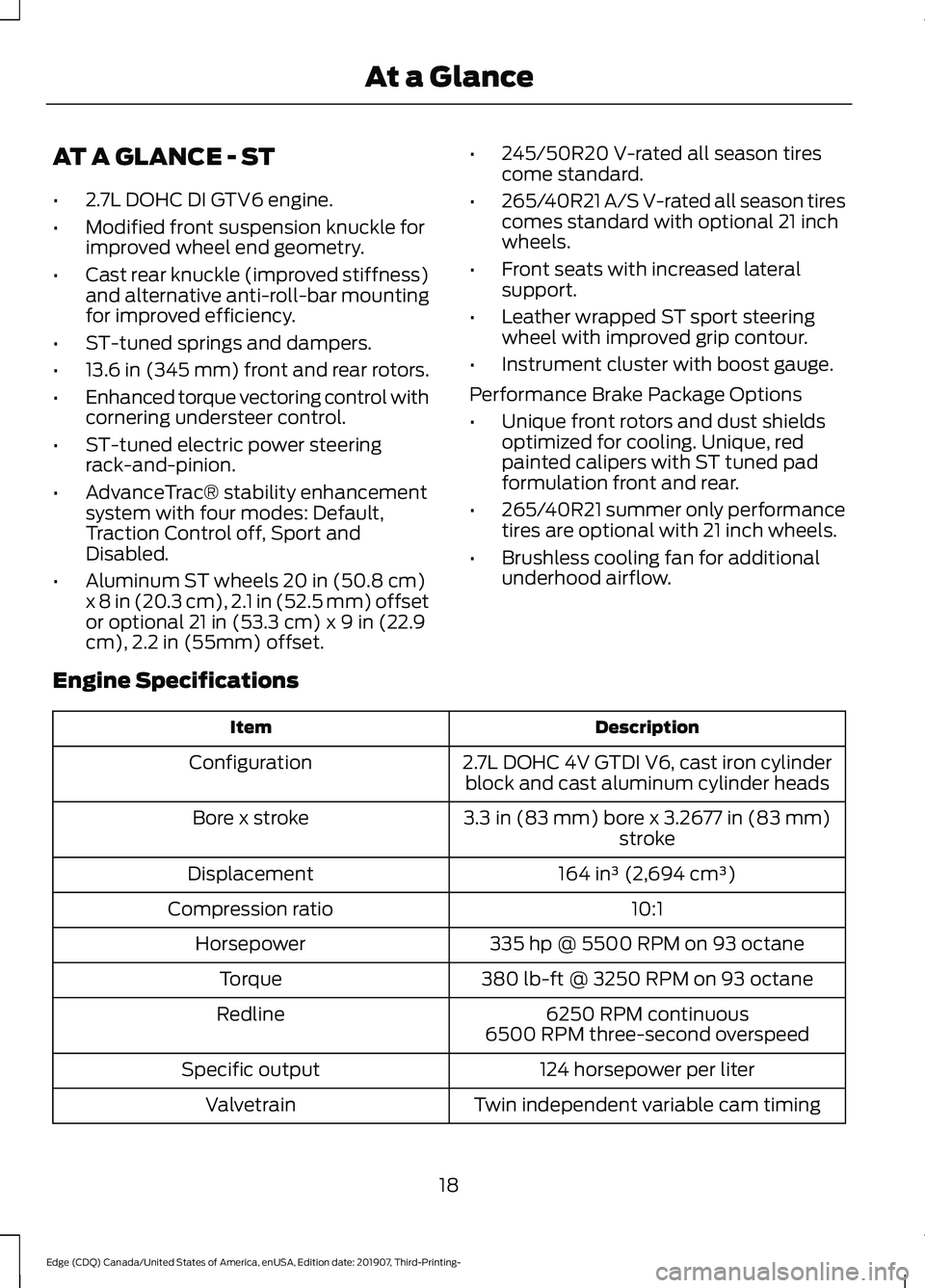

AT A GLANCE - ST
•
2.7L DOHC DI GTV6 engine.
• Modified front suspension knuckle for
improved wheel end geometry.
• Cast rear knuckle (improved stiffness)
and alternative anti-roll-bar mounting
for improved efficiency.
• ST-tuned springs and dampers.
• 13.6 in (345 mm) front and rear rotors.
• Enhanced torque vectoring control with
cornering understeer control.
• ST-tuned electric power steering
rack-and-pinion.
• AdvanceTrac® stability enhancement
system with four modes: Default,
Traction Control off, Sport and
Disabled.
• Aluminum ST wheels 20 in (50.8 cm)
x 8 in (20.3 cm), 2.1 in (52.5 mm) offset
or optional 21 in (53.3 cm) x 9 in (22.9
cm), 2.2 in (55mm) offset. •
245/50R20 V-rated all season tires
come standard.
• 265/40R21 A/S V-rated all season tires
comes standard with optional 21 inch
wheels.
• Front seats with increased lateral
support.
• Leather wrapped ST sport steering
wheel with improved grip contour.
• Instrument cluster with boost gauge.
Performance Brake Package Options
• Unique front rotors and dust shields
optimized for cooling. Unique, red
painted calipers with ST tuned pad
formulation front and rear.
• 265/40R21 summer only performance
tires are optional with 21 inch wheels.
• Brushless cooling fan for additional
underhood airflow.
Engine Specifications Description
Item
2.7L DOHC 4V GTDI V6, cast iron cylinderblock and cast aluminum cylinder heads
Configuration
3.3 in (83 mm) bore x 3.2677 in (83 mm)
stroke
Bore x stroke
164 in³ (2,694 cm³)
Displacement
10:1
Compression ratio
335 hp @ 5500 RPM on 93 octane
Horsepower
380 lb-ft @ 3250 RPM on 93 octane
Torque
6250 RPM continuous
Redline
6500 RPM three-second overspeed
124 horsepower per liter
Specific output
Twin independent variable cam timing
Valvetrain
18
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- At a Glance

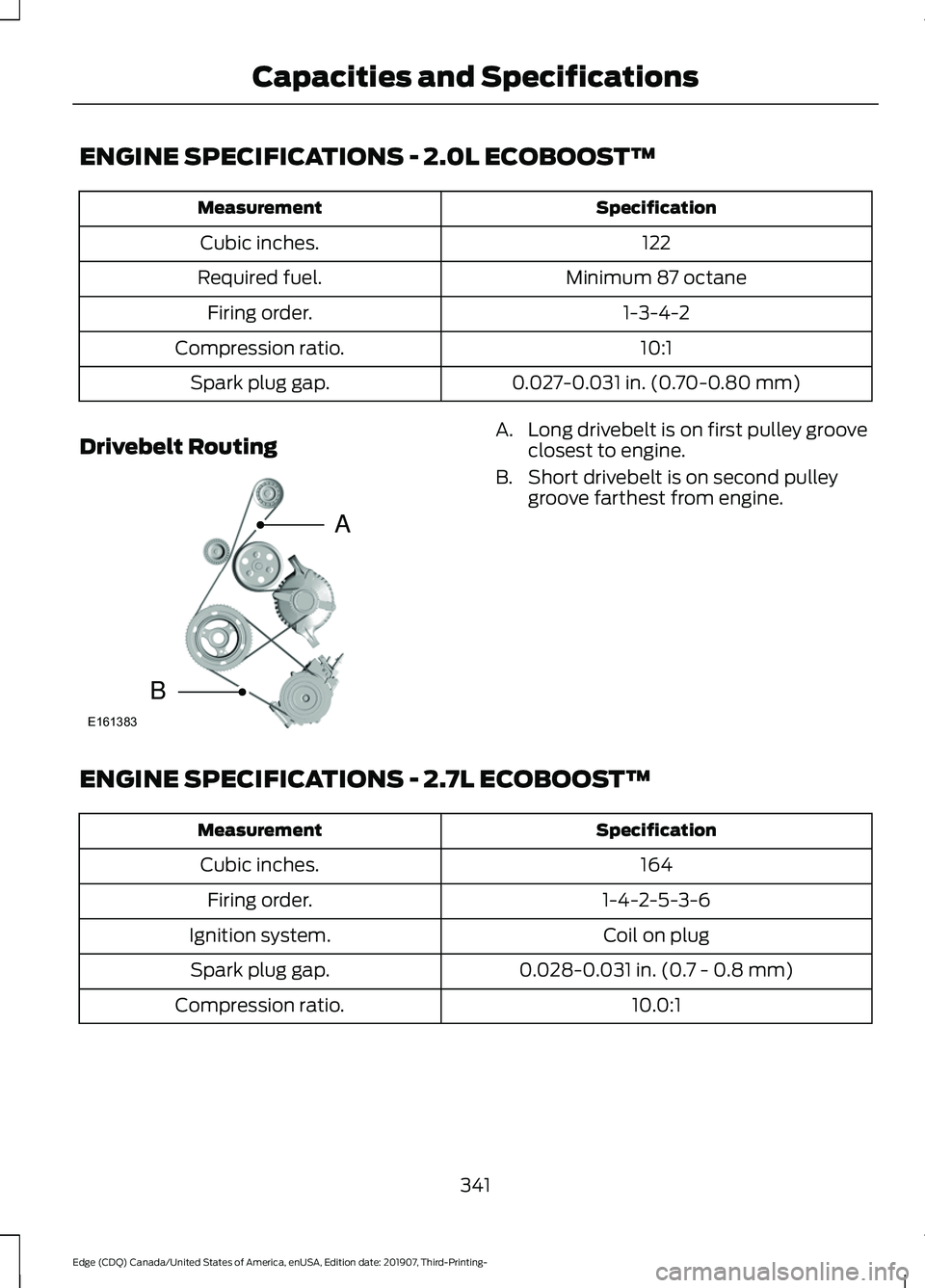

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
Specification
Measurement
122
Cubic inches.
Minimum 87 octane
Required fuel.
1-3-4-2
Firing order.
10:1
Compression ratio.
0.027-0.031 in. (0.70-0.80 mm)
Spark plug gap.
Drivebelt Routing A. Long drivebelt is on first pulley groove
closest to engine.
B. Short drivebelt is on second pulley groove farthest from engine.
ENGINE SPECIFICATIONS - 2.7L ECOBOOST™ Specification
Measurement
164
Cubic inches.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
0.028-0.031 in. (0.7 - 0.8 mm)
Spark plug gap.
10.0:1
Compression ratio.
341
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Capacities and SpecificationsE161383
A
B
