USB FORD EDGE 2023 User Guide

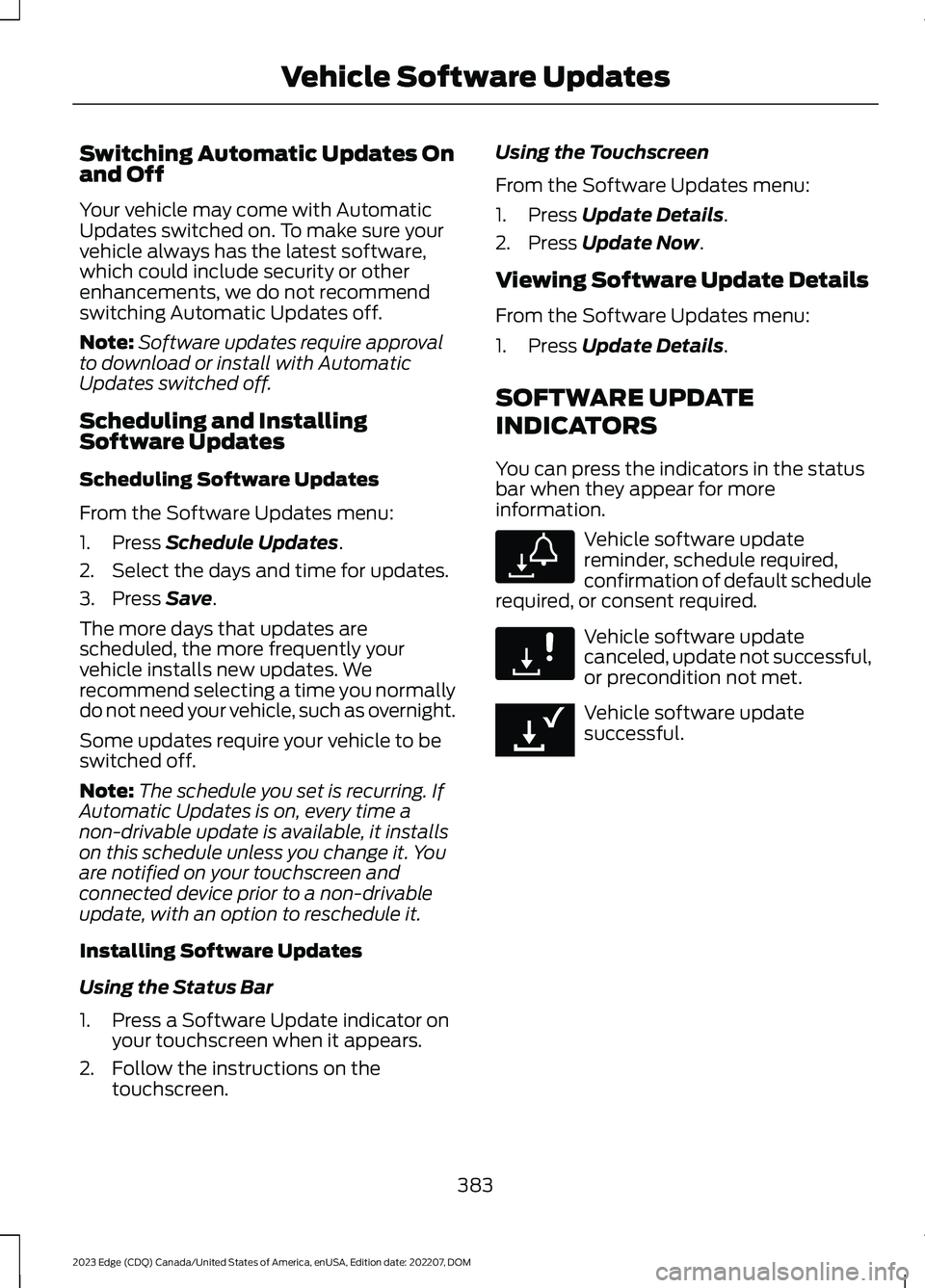

Switching Automatic Updates Onand Off
Your vehicle may come with AutomaticUpdates switched on. To make sure yourvehicle always has the latest software,which could include security or otherenhancements, we do not recommendswitching Automatic Updates off.
Note:Software updates require approvalto download or install with AutomaticUpdates switched off.
Scheduling and InstallingSoftware Updates
Scheduling Software Updates
From the Software Updates menu:
1.Press Schedule Updates.
2.Select the days and time for updates.
3.Press Save.
The more days that updates arescheduled, the more frequently yourvehicle installs new updates. Werecommend selecting a time you normallydo not need your vehicle, such as overnight.
Some updates require your vehicle to beswitched off.
Note:The schedule you set is recurring. IfAutomatic Updates is on, every time anon-drivable update is available, it installson this schedule unless you change it. Youare notified on your touchscreen andconnected device prior to a non-drivableupdate, with an option to reschedule it.
Installing Software Updates
Using the Status Bar
1.Press a Software Update indicator onyour touchscreen when it appears.
2.Follow the instructions on thetouchscreen.
Using the Touchscreen
From the Software Updates menu:
1.Press Update Details.
2.Press Update Now.
Viewing Software Update Details
From the Software Updates menu:
1.Press Update Details.
SOFTWARE UPDATE
INDICATORS
You can press the indicators in the statusbar when they appear for moreinformation.
Vehicle software updatereminder, schedule required,confirmation of default schedulerequired, or consent required.
Vehicle software updatecanceled, update not successful,or precondition not met.
Vehicle software updatesuccessful.
383
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMVehicle Software UpdatesE327787 E327788 E353218

Lane Keeping System –Troubleshooting........................................225Lane Keeping System – Frequently AskedQuestions.........................................................226Lane Keeping System – InformationMessages.........................................................225Launching or Retrieving a Boat orPersonal Watercraft................................255Liftgate...............................................................79Closing the Liftgate..............................................79Liftgate – Troubleshooting...............................86Opening the Liftgate...........................................79Liftgate Obstacle Detection......................86Liftgate Precautions.......................................81Liftgate – Troubleshooting........................86Liftgate – Frequently AskedQuestions...........................................................87Liftgate – Information Messages...................86Liftgate – Warning Lamps................................86Live Traffic......................................................379Switching Live Traffic On and Off................379What Is Live Traffic............................................379Load Carrying................................................243Roof Rack..............................................................247Load Carrying Precautions.......................243Loading Your Trailer....................................254Locating the 180 Degree Cameras........202Locating the Blind Spot InformationSystem Sensors.........................................229Locating the Brake Fluid Reservoir.........181Locating the Cross Traffic AlertSensors.........................................................232Locating the Fuel Filler Funnel................168Locating the Keyless Entry Keypad..........75Locating the Memory FunctionButtons..........................................................145Locating the Power Outlets......................153Locating the Pre-Collision AssistSensors.........................................................236Locating the Rear View Camera.............199Locating the Safety ComplianceCertification Labels..................................244Locating the Tire label................................310Locating the Tire Sealant and InflatorKit....................................................................325Locating the USB Ports...............................151Locating the Wireless AccessoryCharger..........................................................155
Locating Your Vehicle...................................60Locking the Rear WindowControls........................................................108Luggage Compartment.............................249
M
Maintenance..................................................282Engine Air Filter..................................................290Engine Oil..............................................................285Exterior Bulbs......................................................297Interior Bulbs......................................................300Maintenance Precautions........................282Making and Receiving a PhoneCall..................................................................372Manually Dimming the InteriorMirror..............................................................109Manually Releasing the Electric ParkingBrake..............................................................184Manually Shifting Gears.............................175Shifting Using the Paddle Shifters...............175Manual Park Release....................................177Manual Park Release Precautions................177Using Manual Park Release............................178What Is Manual Park Release.........................177Manual Seats.................................................133Adjusting the Head Restraint.........................133Adjusting the Lumbar Support......................135Adjusting the Seat Backrest...........................135Adjusting the Seat Height...............................135Folding the Seat Backrest...............................140Head Restraint Components.........................133Installing the Head Restraint.........................134Moving the Seat Backward andForward.............................................................134Removing the Head Restraint........................134Unfolding the Seat Backrest...........................141Memory Function.........................................145Memory Function Precautions................145Mislock.................................................................71Mislock Limitations...............................................71Switching Mislock On and Off..........................71What Is Mislock......................................................71Mobile CommunicationsEquipment..................................................448Mobile Device Data........................................23Moonroof Bounce-Back..............................112Overriding Moonroof Bounce-Back..............112
490
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

Changing the Tire Pressure Unit....................123Switching the Instrument Cluster DisplayAudible Warnings On and Off...................124Personal Safety SystemComponents..................................................47Personal Safety System™..........................47Phone Menu....................................................371Phone................................................................371Phone Precautions.......................................371Playing Media Using Bluetooth®...........375Playing Media Using the USB Port..........151Playing or Pausing the AudioSource...........................................................359Post-Crash Alert System..........................266How Does the Post-Crash Alert SystemWork..................................................................266Post-Crash Alert SystemLimitations......................................................266Switching the Post-Crash Alert SystemOff......................................................................266What Is the Post-Crash AlertSystem..............................................................266Power Outlet Indicators.............................153Power Outlet Limitations..........................154Power Outlet..................................................153Power Outlet Precautions.........................153Power Seats...................................................136Adjusting the Head Restraint.........................136Adjusting the Lumbar Support......................138Adjusting the Seat Backrest...........................138Adjusting the Seat Cushion.............................137Adjusting the Seat Height...............................138Folding the Seat Backrest................................141Head Restraint Components.........................136Installing the Head Restraint..........................137Moving the Seat Backward andForward..............................................................137Removing the Head Restraint........................137Unfolding the Seat Backrest...........................141Pre-Collision Assist Limitations.............235Pre-Collision Assist Precautions............234Pre-Collision Assist.....................................234Automatic Emergency Braking.....................237Distance Alert......................................................237Distance Indication...........................................236Evasive Steering Assist....................................238Pre-Collision Assist –Troubleshooting............................................239
Pre-Collision Assist –Troubleshooting........................................239Pre-Collision Assist – Frequently AskedQuestions........................................................240Pre-Collision Assist – InformationMessages.........................................................239Preparing Your Vehicle forStorage.........................................................308Programming a MyKey................................66Programming the Garage DoorOpener...........................................................148Programming the Remote Control..........62Properly Adjusting the Driver and FrontPassenger Seats...........................................51PunctureSee: Changing a Flat Tire................................335Push Button Ignition Switch.....................157
R
Radio Frequency CertificationLabels...........................................................400Blind Spot Information SystemSensors............................................................400Body Control Module......................................406Cruise Control Module....................................409Garage Door Opener.........................................412Keys and Remote Controls.............................413Radio Transceiver Module...............................418SYNC.......................................................................421Telematics Control Unit...................................427Tire Pressure Monitoring SystemSensors.............................................................429Wireless Accessory ChargingModule..............................................................442Rear Exterior.....................................................28Rear Occupant Alert System AudibleWarnings.......................................................144Rear Occupant Alert SystemIndicators......................................................144Rear Occupant Alert SystemLimitations...................................................143Rear Occupant Alert SystemPrecautions..................................................143Rear Occupant Alert System...................143Rear Parking Aid............................................195Locating the Rear Parking AidSensors..............................................................195
492
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

Switching Traction Control On andOff...................................................................190Switching Trailer Sway Control On andOff..................................................................258Symbols Glossary............................................17Symbols Used on Your Vehicle...................17System UpdateSee: Software Update Settings...................382See: Vehicle Software Updates...................382
T
Tachometer......................................................113Technical SpecificationsSee: Capacities and Specifications.............341Temporary Neutral Mode...........................176Entering Temporary Neutral Mode...............176Exiting Temporary Neutral Mode...................177How Does Temporary Neutral ModeWork....................................................................176Temporary Neutral Mode Limitations.........176What Is Temporary Neutral Mode................176The Better Business Bureau Auto LineProgram - United States ofAmerica........................................................397The Mediation and Arbitration Program- Canada......................................................398Tire Care...........................................................321Tire Pressure Monitoring SystemLimitations...................................................332Tire Pressure Monitoring SystemOverview.......................................................331Tire Pressure Monitoring SystemPrecautions.................................................332Tire Pressure Monitoring System............331Tire Pressure Monitoring System –Troubleshooting............................................333Tire Pressure Monitoring System –Troubleshooting........................................333Tire Pressure Monitoring System –Information Messages................................334Tire Pressure Monitoring System – WarningLamps...............................................................333Tire Replacement Requirements............317Tire Rotation..................................................323Tire Sealant and Inflator KitComponents...............................................326
Tire Sealant and Inflator KitPrecautions.................................................325Tire Sealant and Inflator Kit.....................325Towing a Trailer Limitations....................254Towing a Trailer Precautions...................253Towing a Trailer.............................................253Towing Weights and Dimensions................256Towing Weights and Dimensions..........256Calculating the Maximum Loaded TrailerWeight for Your Vehicle...............................257Recommended Towing Weights.................256What Is the Maximum Loaded TrailerWeight...............................................................257Towing Your Vehicle Precautions..........269Towing Your Vehicle...................................269Traction Control Indicator.........................190Traction Control............................................190Traction Control – Troubleshooting............190Traction Control –Troubleshooting........................................190Traction Control – Warning Lamps.............190Trailer Brake Precautions..........................253Trailer Sway Control Precautions..........258Trailer Sway Control...................................258Trailer Towing Hints....................................254Transporting the Vehicle...........................267Trip Computer.................................................118Accessing the Trip Computer..........................118Resetting the Individual Trip Values............120Resetting the Trip Computer...........................119Turbo Boost Gauge.......................................114
U
Under Floor Storage....................................156Locating the Rear Under FloorStorage..............................................................156Under Hood Fuse Box..................................271Accessing the Under Hood Fuse Box...........271Identifying the Fuses in the Under HoodFuse Box............................................................272Locating the Under Hood Fuse Box.............271Under Hood Overview - 2.0LEcoBoost™.................................................283Under Hood Overview - 2.7LEcoBoost™.................................................284USB Ports.........................................................151Using Alexa Built-In....................................369
496
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
