fuse FORD EDGE 2023 Owners Manual

What Is the Maximum Loaded TrailerWeight........................................................244
What Is the Gross Combined WeightRating..........................................................245
Calculating Payload...................................245
Calculating the Load Limit......................246
Roof Rack.......................................................247
Luggage Compartment
Installing and Removing the LuggageCompartment Cargo Net....................249
Installing and Removing the LuggageCompartment Cover.............................249
Connecting a Trailer
Connecting a Trailer Precautions...........251
Connecting a Trailer....................................251
Towing a Trailer
Towing a Trailer Precautions..................253
Trailer Brake Precautions.........................253
Towing a Trailer Limitations...................254
Loading Your Trailer...................................254
Trailer Towing Hints...................................254
Launching or Retrieving a Boat orPersonal Watercraft..............................255
Towing Weights and Dimensions.........256
Trailer Sway Control
How Does Trailer Sway Control Work........................................................................258
Trailer Sway Control Precautions.........258
Switching Trailer Sway Control On andOff................................................................258
Driving Hints
Cold Weather Precautions......................259
Breaking-In....................................................259
Driving Economically.................................259
Driving in Special Conditions.................259
Driving Through Shallow Water.............261
Floor Mats.......................................................261
Crash and BreakdownInformation
Roadside Assistance.................................263
Switching the Hazard Flashers On andOff................................................................264
Jump Starting the Vehicle.......................264
Post-Crash Alert System.........................266
Automatic Crash Shutoff........................266
Transporting the Vehicle..........................267
Towing Your Vehicle
Towing Your Vehicle Precautions.........269
Recreationally Towing Your Vehicle -2.0L EcoBoost™, AWD........................269
Recreationally Towing Your Vehicle -2.0L EcoBoost™, FWD........................269
Recreationally Towing Your Vehicle -2.7L EcoBoost™.....................................269
Emergency Towing.....................................270
Fuses
Fuse Precautions..........................................271
Under Hood Fuse Box.................................271
Body Control Module Fuse Box.............278
Identifying Fuse Types...............................281
Fuses – Troubleshooting..........................281
Maintenance
Maintenance Precautions.......................282
Opening and Closing the Hood.............282
Under Hood Overview - 2.0L EcoBoost™........................................................................283
Under Hood Overview - 2.7L EcoBoost™........................................................................284
Engine Oil......................................................285
Checking the Coolant................................287
Engine Air Filter...........................................290
Drive Belt Routing Overview - 2.0LEcoBoost™...............................................292
9
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMTable of Contents

Fuel pump reset
Fuse compartment
Hazard flashers
Headlamp high beams
Headlamps on
Heated rear window
Hill descent control
Horn control
Interior luggage compartmentrelease
Jack
Keep out of reach of children
Lighting control
Low fuel level
Low tire pressure warning
Maintain correct fluid level
Malfunction Indicator Lamp(MIL)
Note operating instructions
Panic alarm
Parking aid
Parking lamps
Passenger airbag activated
Passenger airbag deactivated
Power steering fluid
Power windows front/rear
Power window lockout
Requires registered technician
Safety alert
See Owner's Manual
See Service Manual
Side airbag
18
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMSymbols Glossary E139214 E75790 E67019 E270968 E163171 E270945 E139231 E161353 E139232 E139229 E67028 E72343 E139213 E71341 E270849 E270850 E139216 E139225 E231159 E65963 E72021 E231158

INSTRUMENT PANEL
See Exterior Lighting Control (page 98).A
See Instrument Cluster Overview (page 113).B
See Status Bar (page 365).C
See Replacing the Cabin Air Filter (page 131).D
See Selecting a Radio Station (page 361).E
See Front Passenger Sensing System Indicators (page 54).F
See Push Button Ignition Switch (page 157).G
See Locating the Body Control Module Fuse Box (page 278).H
25
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMVisual SearchABCDEFGHE332331

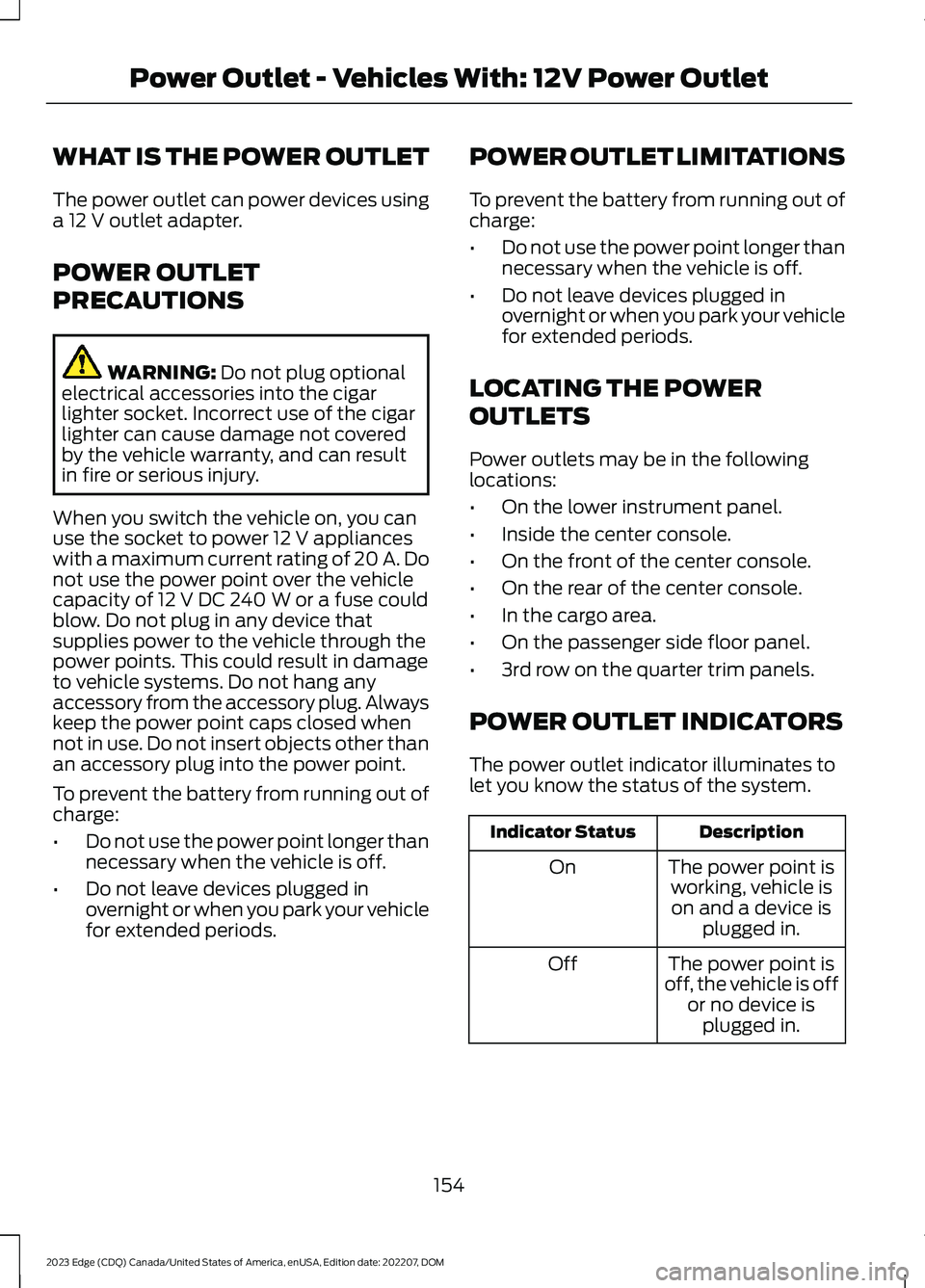

WHAT IS THE POWER OUTLET
The power outlet can power devices usinga 12 V outlet adapter.
POWER OUTLET
PRECAUTIONS
WARNING: Do not plug optionalelectrical accessories into the cigarlighter socket. Incorrect use of the cigarlighter can cause damage not coveredby the vehicle warranty, and can resultin fire or serious injury.
When you switch the vehicle on, you canuse the socket to power 12 V applianceswith a maximum current rating of 20 A. Donot use the power point over the vehiclecapacity of 12 V DC 240 W or a fuse couldblow. Do not plug in any device thatsupplies power to the vehicle through thepower points. This could result in damageto vehicle systems. Do not hang anyaccessory from the accessory plug. Alwayskeep the power point caps closed whennot in use. Do not insert objects other thanan accessory plug into the power point.
To prevent the battery from running out ofcharge:
•Do not use the power point longer thannecessary when the vehicle is off.
•Do not leave devices plugged inovernight or when you park your vehiclefor extended periods.
POWER OUTLET LIMITATIONS
To prevent the battery from running out ofcharge:
•Do not use the power point longer thannecessary when the vehicle is off.
•Do not leave devices plugged inovernight or when you park your vehiclefor extended periods.
LOCATING THE POWER
OUTLETS
Power outlets may be in the followinglocations:
•On the lower instrument panel.
•Inside the center console.
•On the front of the center console.
•On the rear of the center console.
•In the cargo area.
•On the passenger side floor panel.
•3rd row on the quarter trim panels.
POWER OUTLET INDICATORS
The power outlet indicator illuminates tolet you know the status of the system.
DescriptionIndicator Status
The power point isworking, vehicle ison and a device isplugged in.
On
The power point isoff, the vehicle is offor no device isplugged in.
Off
154
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMPower Outlet - Vehicles With: 12V Power Outlet

Use the following guidelines to avoidelectrostatic charge build-up, which canproduce a spark, when filling anungrounded fuel container:
•Only use an approved fuel container totransfer fuel to your vehicle. Place thecontainer on the ground when filling it.
•Do not fill a fuel container when it isinside your vehicle (including the cargoarea).
•Keep the fuel pump nozzle in contactwith the fuel container when filling it.
•Do not use a device that holds the fuelpump nozzle lever in the fill position.
ADDING FUEL FROM A PORTABLEFUEL CONTAINER
WARNING: Do not insert the nozzleof a fuel container or an aftermarketfunnel into the fuel filler neck. This maydamage the fuel system filler neck or itsseal and cause fuel to run onto theground.
WARNING: Do not pry open thefuel tank filler valve. This could damagethe fuel system. Failure to follow thisinstruction could result in fire, personalinjury or death.
WARNING: Do not dispose of fuelin the household refuse or the publicsewage system. Use an authorized wastedisposal facility.
When refueling the vehicle fuel tank froma fuel container, use the fuel filler funnelincluded with your vehicle. See Locatingthe Fuel Filler Funnel (page 168).
Note:Do not use aftermarket funnels asthey may not work with the capless fuelsystem and can damage it.
When refueling the vehicle fuel tank froma fuel container, do the following:
1.Fully open the fuel filler door.
2.Fully insert the fuel filler funnel into thefuel filler inlet.
3.Add fuel to your vehicle from the fuelcontainer.
4.Remove the fuel filler funnel.
5.Fully close the fuel filler door.
6.Clean the fuel filler funnel and place itback in your vehicle or correctly disposeof it.
Note:If your vehicle runs out of fuel add aminimum of 1.3 gal (5 L) of fuel to restartthe engine.
Note:You may need to switch the ignitionfrom off to on several times after refuelingto allow the fuel system to pump the fuelfrom the tank to the engine. Whenrestarting, cranking time takes a fewseconds longer than normal.
Note:Extra funnels can be purchased froman authorized dealer if you choose todispose of the funnel.
169
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuel and RefuelingE157452

AUTOMATIC TRANSMISSION
PRECAUTIONS
WARNING: When your vehicle isstationary, keep the brake pedal fullypressed when shifting gears. Failure tofollow this instruction could result inpersonal injury, death or propertydamage.
WARNING: Do not apply the brakepedal and accelerator pedalsimultaneously. Applying both pedalssimultaneously for more than a fewseconds will limit power, which mayresult in difficulty maintaining speed intraffic and could lead to serious injury.
WARNING: Apply the parkingbrake, shift into park (P), switch thevehicle off and remove the key or remotecontrol before you leave your vehicle.Failure to follow this instruction couldresult in personal injury or death.
AUTOMATIC TRANSMISSION
POSITIONS
PARK (P)
WARNING: Shift into park (P) onlywhen your vehicle is stationary.
In park (P) power is not transmitted to thedriven wheels.
Note:A tone sounds if you attempt to exityour vehicle without the vehicle in park (P).
Note:Your vehicle may not shift out of park(P) if the 12V battery has run out of charge.
Note:Your vehicle may not shift out of park(P) if a fuse is blown.
Note:Your vehicle may not shift out of park(P) unless the key or remote control is insideyour vehicle.
Note:The electronic parking brake couldapply when you power your vehicle on withthe selector in park (P).
Note:The electronic parking brake couldapply if you shift to park (P) without fullypressing the brake pedal.
Note:The electronic parking brake couldapply if you shift to park (P) on a slope.
Note:Do not manually release the parkingbrake when the selector is in park (P). SeeAutomatically Releasing the ElectricParking Brake (page 185).
Note:Your vehicle could shift into park (P)if you attempt to exit your vehicle withoutthe transmission in park (P). See How DoesAutomatic Return to Park (P) Work (page177).
Note:A tone could sound when you selectpark (P).
REVERSE (R)
WARNING: Shift into reverse (R)only when your vehicle is stationary.
In reverse (R) power is transmitted to thedriven wheels.
NEUTRAL (N)
WARNING: In neutral (N) yourvehicle is free to roll.
In neutral (N) power is not transmitted tothe driven wheels.
174
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMAutomatic Transmission

FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOODFUSE BOX
ACCESSING THE UNDER HOODFUSE BOX
Accessing the Under Hood FuseBox - Top
Accessing the Under Hood FuseBox - Bottom
1.Release the latches on both sides ofthe fuse box.
2.Raise the inboard side of the fuse boxfrom the cradle.
271
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE327062 E330178 E145983

3.Move the fuse box toward the centerof the engine compartment.4.Pivot the outboard side of the fuse boxto access the bottom side.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Under Hood Fuse Box - Top
Protected ComponentFuseRatingFuse orRelayNumber
Not used.—1
Starter relay.—2
Rear wiper.15 A3Rain sensor.Rear washer pump relay coil.
Blower motor relay.—4
272
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE190797

Protected ComponentFuseRatingFuse orRelayNumber
Power point 3 - back of console.20 A5
Not used.—6
Powertrain control module - vehicle power 1.20 A7
Powertrain control module - vehicle power 2.20 A8Canister vent.Vapor blocking valve.Heated oxygen post.
Powertrain control module relay.—9
Power point 1 - driver front.20 A10
Powertrain control module - vehicle power 4.15 A11
Powertrain control module - vehicle power 3.15 A12All-wheel drive module relay coil.Active grille shutters.Active transmission warm up.Auxiliary cooling pump.Electric compressor bypass.Vacuum on demand valve.A/C compressor.
Not used.—13
Not used.—14
Run-start relay.—15
Power point 2 - console bin.20 A16
Power point 4 - luggage compartment.20 A17
Not used.—18
Run-start electronic power assist steering.10 A19
Headlamp leveling.10 A20
Not used.—21
Air conditioner clutch solenoid.10 A22
Blind spot information system.15 A23Rear view camera.Forward looking radar.
273
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Protected ComponentFuseRatingFuse orRelayNumber
Voltage quality module (start/stop).Front split view camera.Front split view camera module.
Not used.—24
Run-start anti-lock brake system.10 A25
Run-start powertrain control module.10 A26
Not used.—27
Rear window washer pump.10 A28
Not used.—29
Not used.—30
Not used.—31
Electronic fan 1 relay.—32
A/C clutch relay.—33
Not used.—34
Not used.—35
Not used.—36
Not used.—37
Electronic fan 2 relay.—38
Electronic fan 3 relay.—39
Horn relay.—40
Steering column lock relay.—41
Fuel pump relay.—42
2nd row easy fold seat release.10 A43
Not used.—44
Not used.—45
Not used.—46
274
