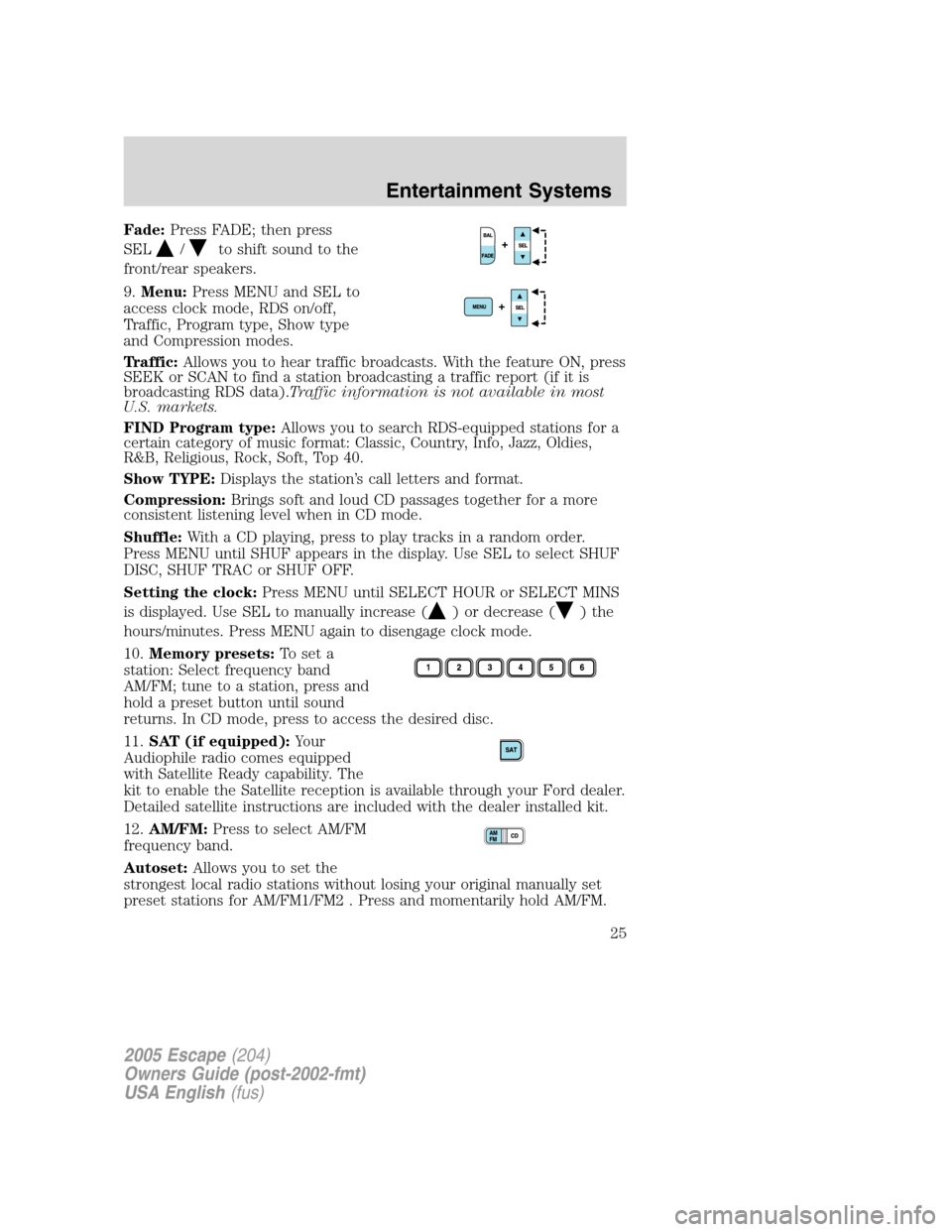

Page 25 of 272
Fade:Press FADE; then press
SEL
/to shift sound to the
front/rear speakers.
9.Menu:Press MENU and SEL to
access clock mode, RDS on/off,
Traffic, Program type, Show type
and Compression modes.
Traffic:Allows you to hear traffic broadcasts. With the feature ON, press
SEEK or SCAN to find a station broadcasting a traffic report (if it is
broadcasting RDS data).Traffic information is not available in most
U.S. markets.
FIND Program type:Allows you to search RDS-equipped stations for a
certain category of music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE:Displays the station’s call letters and format.
Compression:Brings soft and loud CD passages together for a more
consistent listening level when in CD mode.
Shuffle:With a CD playing, press to play tracks in a random order.
Press MENU until SHUF appears in the display. Use SEL to select SHUF
DISC, SHUF TRAC or SHUF OFF.
Setting the clock:Press MENU until SELECT HOUR or SELECT MINS
is displayed. Use SEL to manually increase (
) or decrease () the
hours/minutes. Press MENU again to disengage clock mode.
10.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound
returns. In CD mode, press to access the desired disc.
11.SAT (if equipped):Your
Audiophile radio comes equipped
with Satellite Ready capability. The
kit to enable the Satellite reception is available through your Ford dealer.
Detailed satellite instructions are included with the dealer installed kit.
12.AM/FM:Press to select AM/FM
frequency band.
Autoset:Allows you to set the
strongest local radio stations without losing your original manually set
preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
25

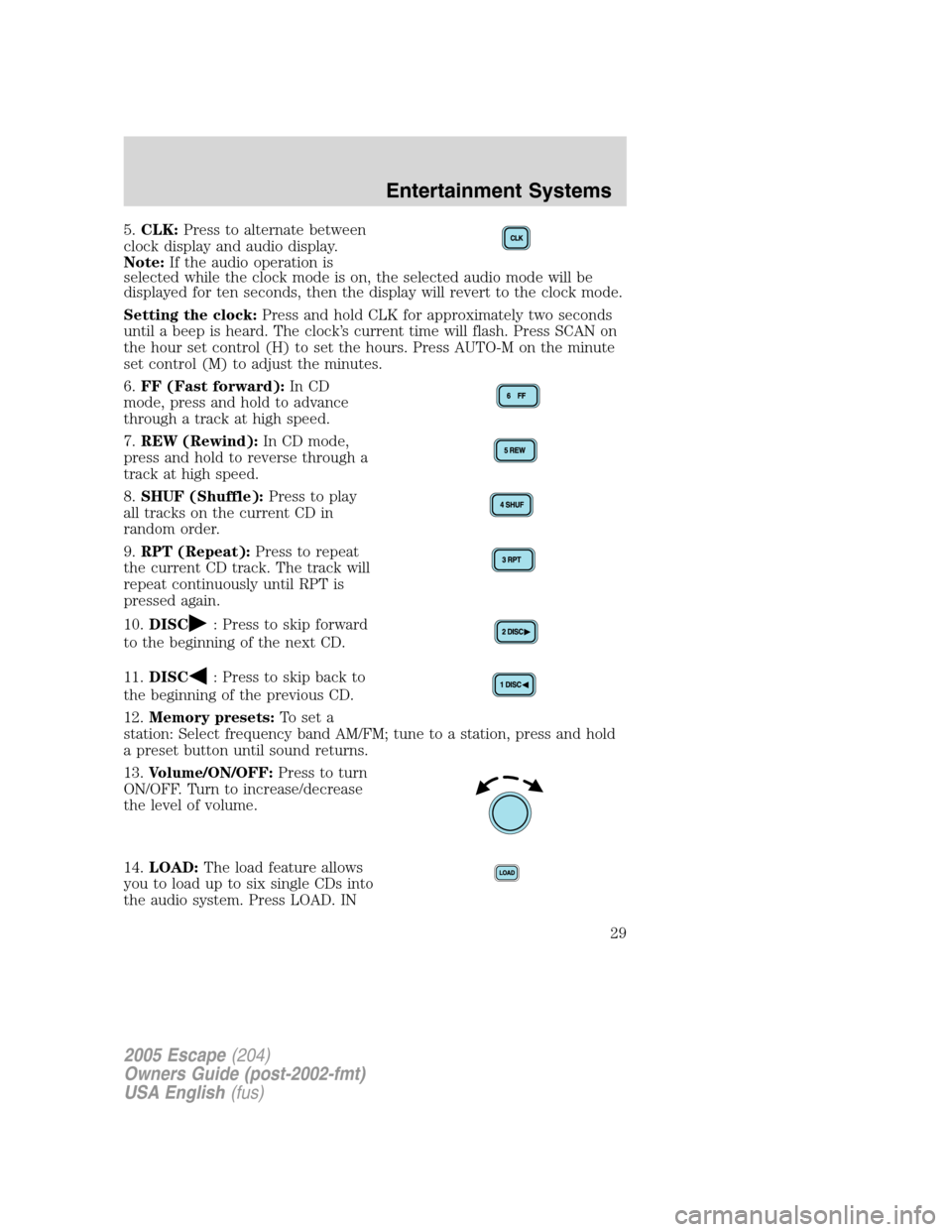

Page 29 of 272
5.CLK:Press to alternate between
clock display and audio display.
Note:If the audio operation is
selected while the clock mode is on, the selected audio mode will be
displayed for ten seconds, then the display will revert to the clock mode.
Setting the clock:Press and hold CLK for approximately two seconds
until a beep is heard. The clock’s current time will flash. Press SCAN on
the hour set control (H) to set the hours. Press AUTO-M on the minute
set control (M) to adjust the minutes.
6.FF (Fast forward):In CD
mode, press and hold to advance
through a track at high speed.
7.REW (Rewind):In CD mode,
press and hold to reverse through a
track at high speed.
8.SHUF (Shuffle):Press to play
all tracks on the current CD in
random order.
9.RPT (Repeat):Press to repeat
the current CD track. The track will
repeat continuously until RPT is
pressed again.
10.DISC
: Press to skip forward
to the beginning of the next CD.
11.DISC
: Press to skip back to
the beginning of the previous CD.
12.Memory presets:To set a
station: Select frequency band AM/FM; tune to a station, press and hold
a preset button until sound returns.
13.Volume/ON/OFF:Press to turn
ON/OFF. Turn to increase/decrease
the level of volume.
14.LOAD:The load feature allows
you to load up to six single CDs into
the audio system. Press LOAD. IN
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
29
Page 271 of 272
Power distribution box
(see Fuses) ...............................175
Power Point
Cigar lighter ..............................52
Power steering ..........................136
fluid, checking and adding ....234
fluid, refill capacity ................254
fluid, specifications .........257, 259
Power Windows ...........................53
Preparing to drive
your vehicle ...............................137
R
Radio ................................16, 19, 23
Rear window defroster ...............35
Relays ........................................170
Remote entry system
illuminated entry ................42, 84
locking/unlocking doors ...........77
Reverse sensing system ...........154
Roadside assistance ..................168
Roof rack .....................................68
S
Safety Belt Maintenance ..........109
Safety belts (see
Safety restraints) ..........96, 99–103
Safety Canopy ...........................116
Safety defects, reporting ..........202
Safety restraints ............96, 99–103
belt minder .............................105
extension assembly ................104
for adults .........................100–102
for children .............................119Occupant Classification
Sensor ........................................97
safety belt maintenance .........109
warning light and chime ........104
Safety seats for children ..........122
Seat belts
(see Safety restraints) ...............96
Seats ............................................89
child safety seats ....................122
heated ........................................91
Servicing your vehicle ..............209
Setting the clock
AM/FM/CD .................................16
AM/FM/In-dash 6 CD ..........25, 29
AM/FM/Tape/CD .......................21
Snowplowing .................................7
Spark plugs, specifications ......253,
259
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................257, 259
Speed control ..............................55
Starting your vehicle .......130–131,
133
jump starting ..........................186
Steering wheel
tilting .........................................50
T
Temperature control
(see Climate control) .................33
Tilt steering wheel ......................50
Tires ...........................177, 239–241
alignment ................................248
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
271
