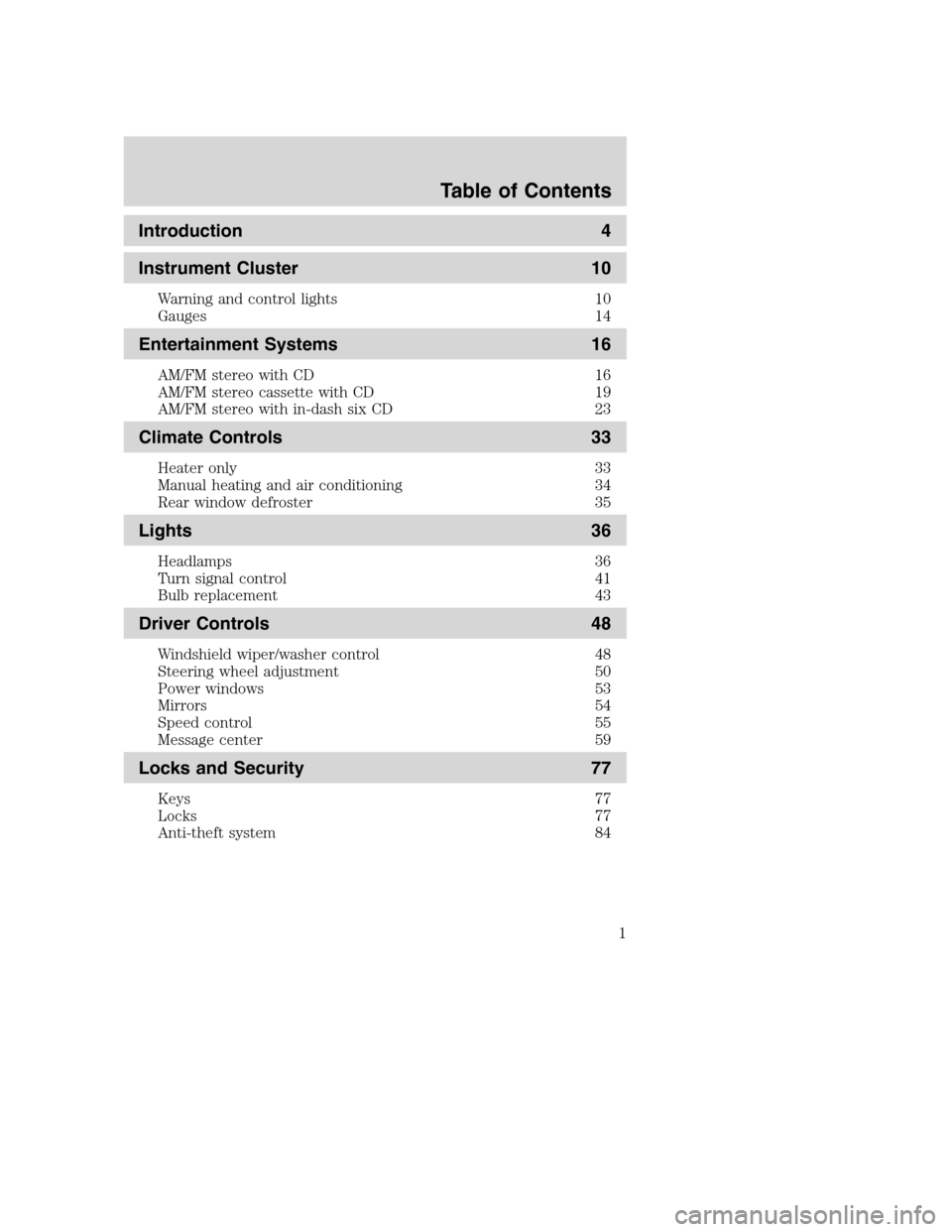

Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 14
Entertainment Systems 16
AM/FM stereo with CD 16
AM/FM stereo cassette with CD 19
AM/FM stereo with in-dash six CD 23
Climate Controls 33
Heater only 33
Manual heating and air conditioning 34
Rear window defroster 35
Lights 36
Headlamps 36
Turn signal control 41
Bulb replacement 43
Driver Controls 48
Windshield wiper/washer control 48
Steering wheel adjustment 50
Power windows 53
Mirrors 54
Speed control 55
Message center 59
Locks and Security 77
Keys 77
Locks 77
Anti-theft system 84
Table of Contents
1

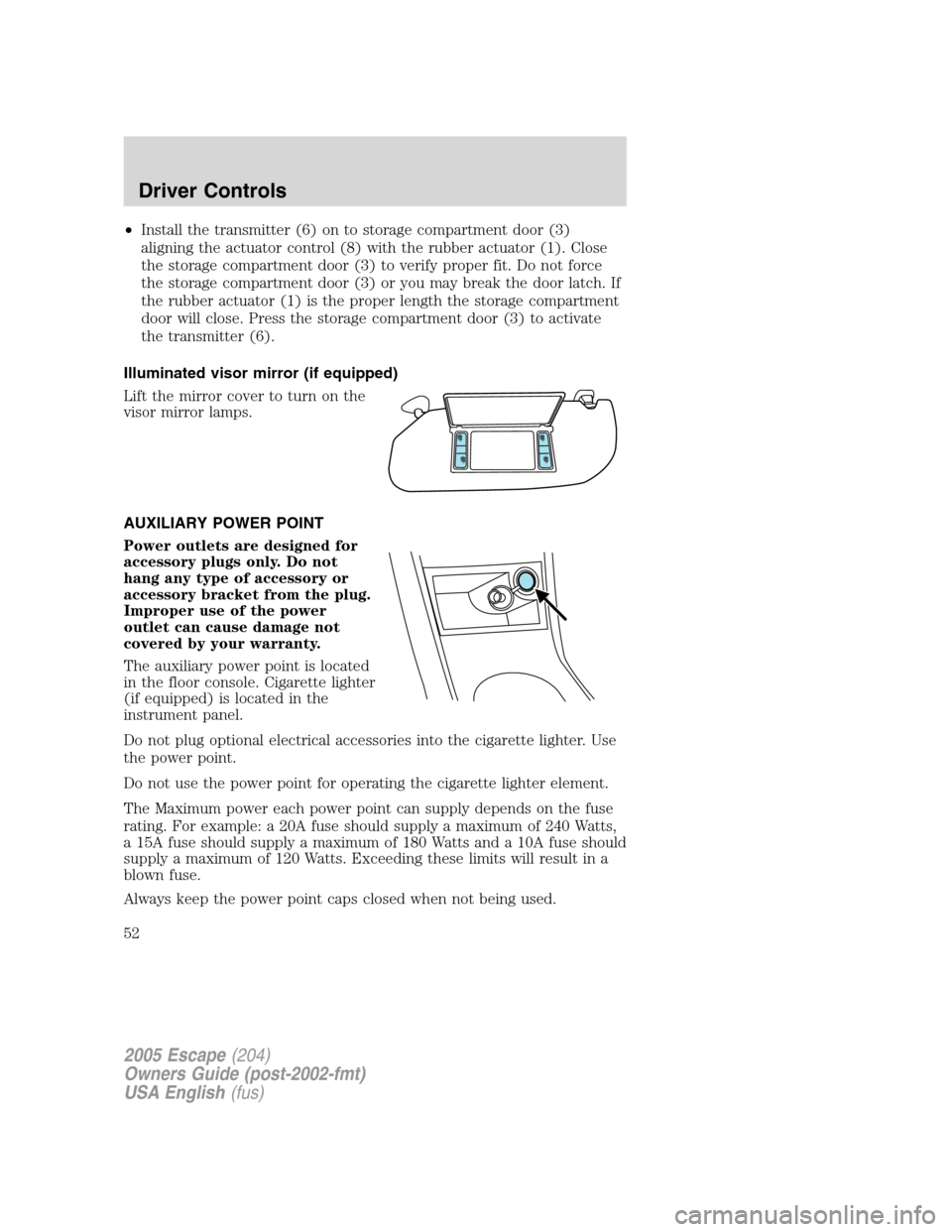

•Install the transmitter (6) on to storage compartment door (3)
aligning the actuator control (8) with the rubber actuator (1). Close
the storage compartment door (3) to verify proper fit. Do not force
the storage compartment door (3) or you may break the door latch. If
the rubber actuator (1) is the proper length the storage compartment
door will close. Press the storage compartment door (3) to activate
the transmitter (6).
Illuminated visor mirror (if equipped)
Lift the mirror cover to turn on the
visor mirror lamps.
AUXILIARY POWER POINT
Power outlets are designed for
accessory plugs only. Do not
hang any type of accessory or
accessory bracket from the plug.
Improper use of the power
outlet can cause damage not
covered by your warranty.
The auxiliary power point is located
in the floor console. Cigarette lighter
(if equipped) is located in the
instrument panel.
Do not plug optional electrical accessories into the cigarette lighter. Use
the power point.
Do not use the power point for operating the cigarette lighter element.
The Maximum power each power point can supply depends on the fuse
rating. For example: a 20A fuse should supply a maximum of 240 Watts,
a 15A fuse should supply a maximum of 180 Watts and a 10A fuse should
supply a maximum of 120 Watts. Exceeding these limits will result in a
blown fuse.
Always keep the power point caps closed when not being used.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
52

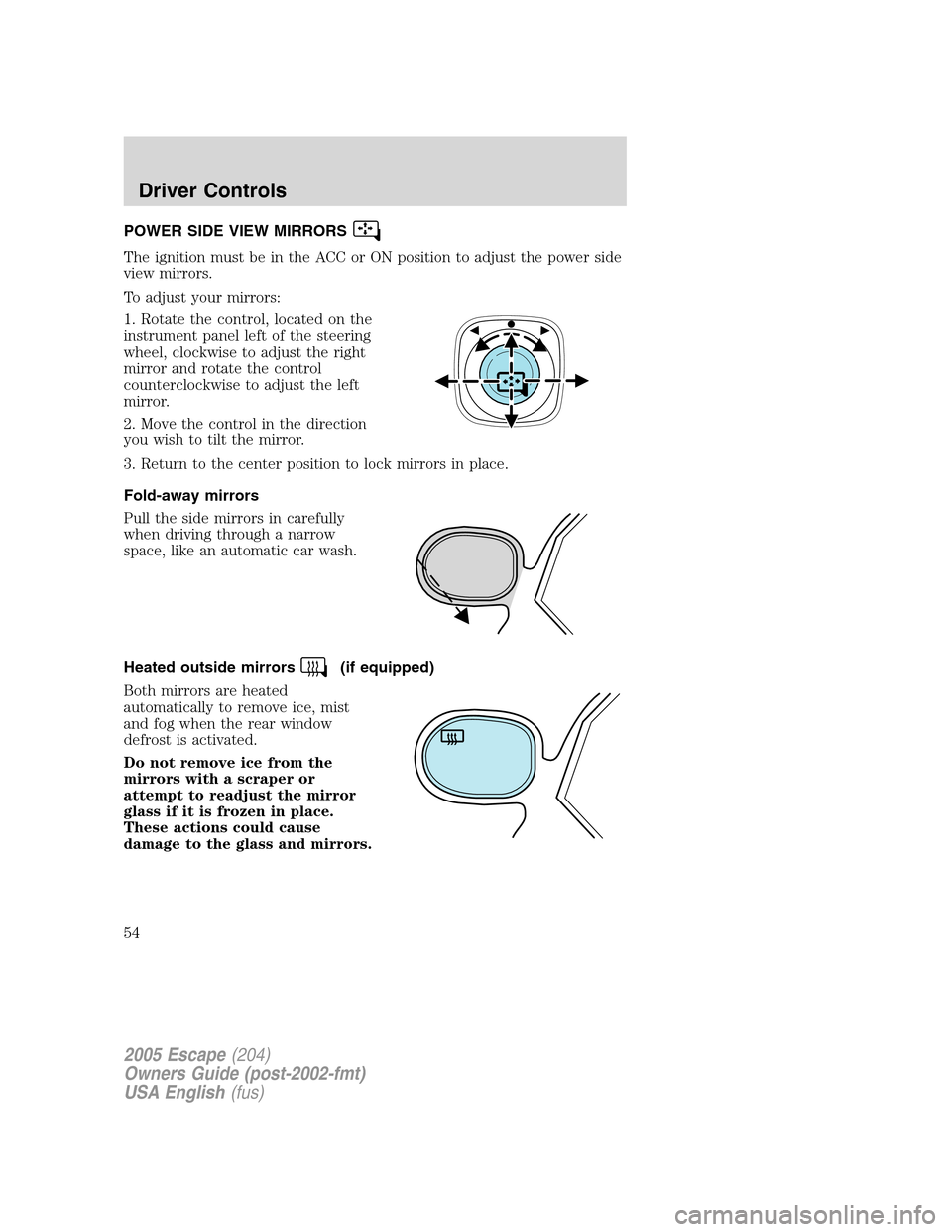

POWER SIDE VIEW MIRRORS
The ignition must be in the ACC or ON position to adjust the power side
view mirrors.
To adjust your mirrors:
1. Rotate the control, located on the
instrument panel left of the steering
wheel, clockwise to adjust the right
mirror and rotate the control
counterclockwise to adjust the left
mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Fold-away mirrors
Pull the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause
damage to the glass and mirrors.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
54

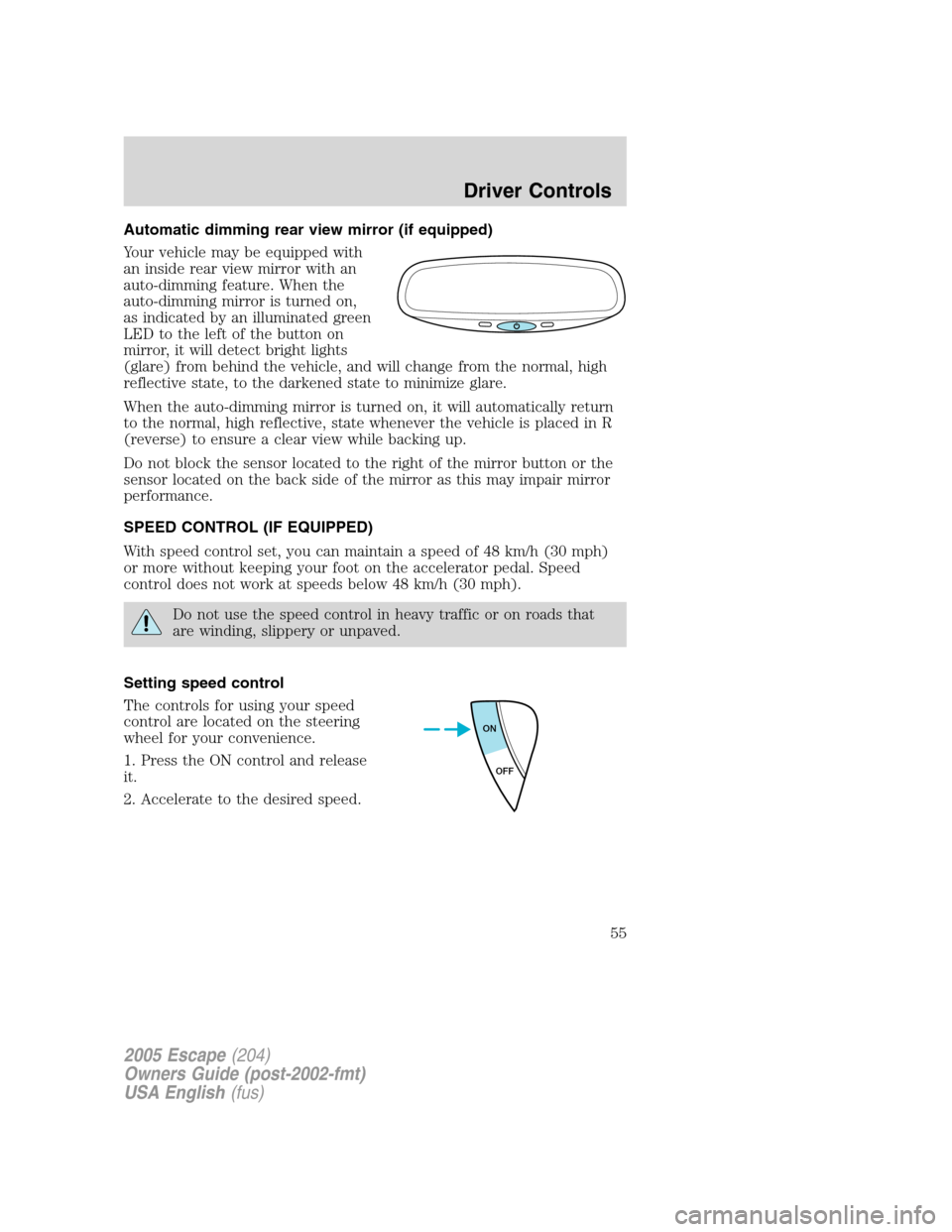

Automatic dimming rear view mirror (if equipped)
Your vehicle may be equipped with
an inside rear view mirror with an
auto-dimming feature. When the
auto-dimming mirror is turned on,
as indicated by an illuminated green
LED to the left of the button on
mirror, it will detect bright lights
(glare) from behind the vehicle, and will change from the normal, high
reflective state, to the darkened state to minimize glare.
When the auto-dimming mirror is turned on, it will automatically return
to the normal, high reflective, state whenever the vehicle is placed in R
(reverse) to ensure a clear view while backing up.
Do not block the sensor located to the right of the mirror button or the
sensor located on the back side of the mirror as this may impair mirror
performance.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a speed of 48 km/h (30 mph)
or more without keeping your foot on the accelerator pedal. Speed
control does not work at speeds below 48 km/h (30 mph).
Do not use the speed control in heavy traffic or on roads that
are winding, slippery or unpaved.
Setting speed control
The controls for using your speed
control are located on the steering
wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed.
ON
OFF
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
55

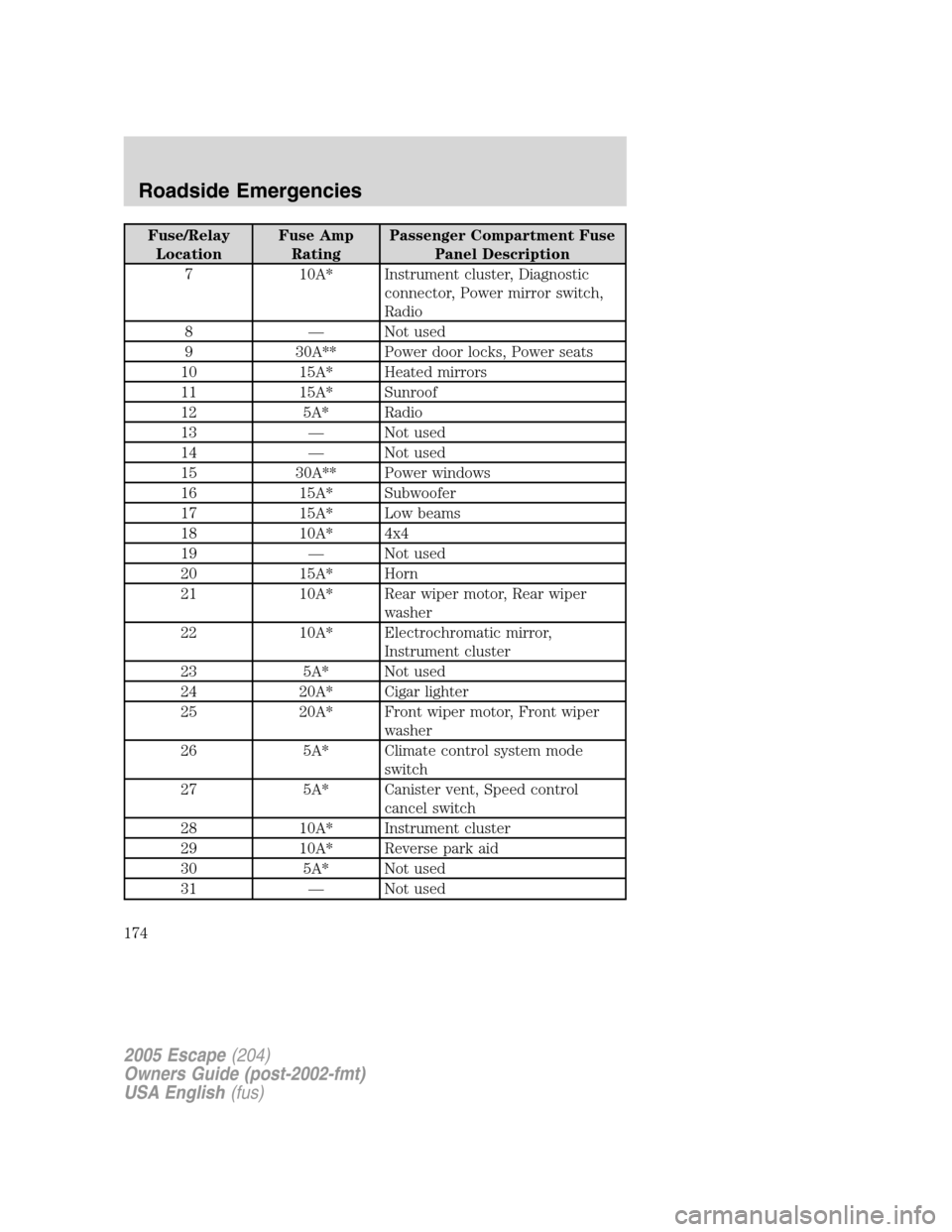

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
7 10A* Instrument cluster, Diagnostic
connector, Power mirror switch,
Radio
8—Not used
9 30A** Power door locks, Power seats
10 15A* Heated mirrors
11 15A* Sunroof
12 5A* Radio
13—Not used
14—Not used
15 30A** Power windows
16 15A* Subwoofer
17 15A* Low beams
18 10A* 4x4
19—Not used
20 15A* Horn
21 10A* Rear wiper motor, Rear wiper
washer
22 10A* Electrochromatic mirror,
Instrument cluster
23 5A* Not used
24 20A* Cigar lighter
25 20A* Front wiper motor, Front wiper
washer
26 5A* Climate control system mode
switch
27 5A* Canister vent, Speed control
cancel switch
28 10A* Instrument cluster
29 10A* Reverse park aid
30 5A* Not used
31—Not used
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
174

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 25A* I/P fuse panel (RUN/START)
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay -
Electrochromatic mirror, Cigar
lighter, Front and rear wipers
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
11 10A* PCM
12 20A* Power point #1
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
1530A* Anti-lock Brake System (ABS)
solenoid
17 50A** Ignition (main)
18 40A** Blower motor
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
176

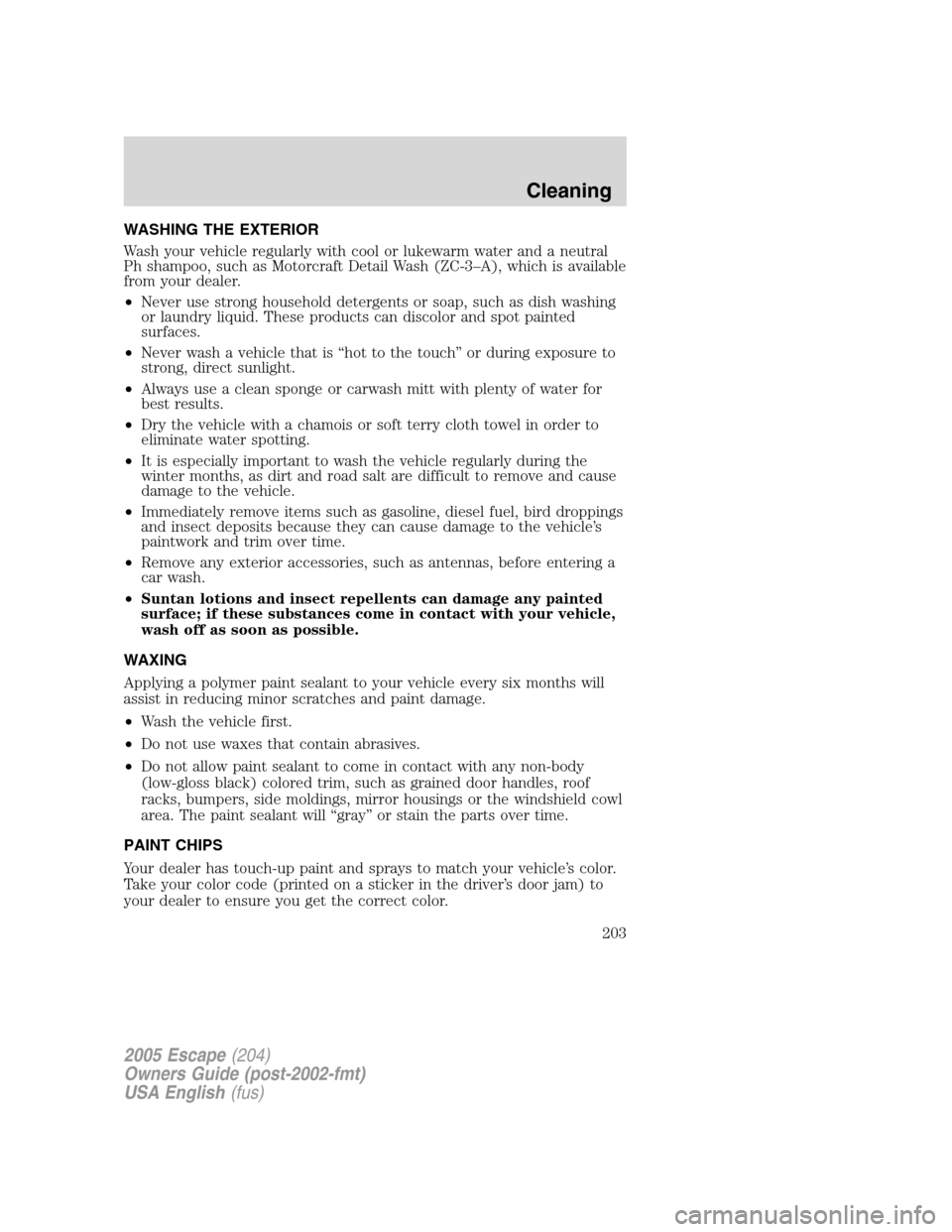

WASHING THE EXTERIOR
Wash your vehicle regularly with cool or lukewarm water and a neutral
Ph shampoo, such as Motorcraft Detail Wash (ZC-3–A), which is available
from your dealer.
•Never use strong household detergents or soap, such as dish washing
or laundry liquid. These products can discolor and spot painted
surfaces.
•Never wash a vehicle that is“hot to the touch”or during exposure to
strong, direct sunlight.
•Always use a clean sponge or carwash mitt with plenty of water for
best results.
•Dry the vehicle with a chamois or soft terry cloth towel in order to
eliminate water spotting.
•It is especially important to wash the vehicle regularly during the
winter months, as dirt and road salt are difficult to remove and cause
damage to the vehicle.
•Immediately remove items such as gasoline, diesel fuel, bird droppings
and insect deposits because they can cause damage to the vehicle’s
paintwork and trim over time.
•Remove any exterior accessories, such as antennas, before entering a
car wash.
•Suntan lotions and insect repellents can damage any painted
surface; if these substances come in contact with your vehicle,
wash off as soon as possible.
WAXING
Applying a polymer paint sealant to your vehicle every six months will
assist in reducing minor scratches and paint damage.
•Wash the vehicle first.
•Do not use waxes that contain abrasives.
•Do not allow paint sealant to come in contact with any non-body
(low-gloss black) colored trim, such as grained door handles, roof
racks, bumpers, side moldings, mirror housings or the windshield cowl
area. The paint sealant will“gray”or stain the parts over time.
PAINT CHIPS
Your dealer has touch-up paint and sprays to match your vehicle’s color.
Take your color code (printed on a sticker in the driver’s door jam) to
your dealer to ensure you get the correct color.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Cleaning
Cleaning
203

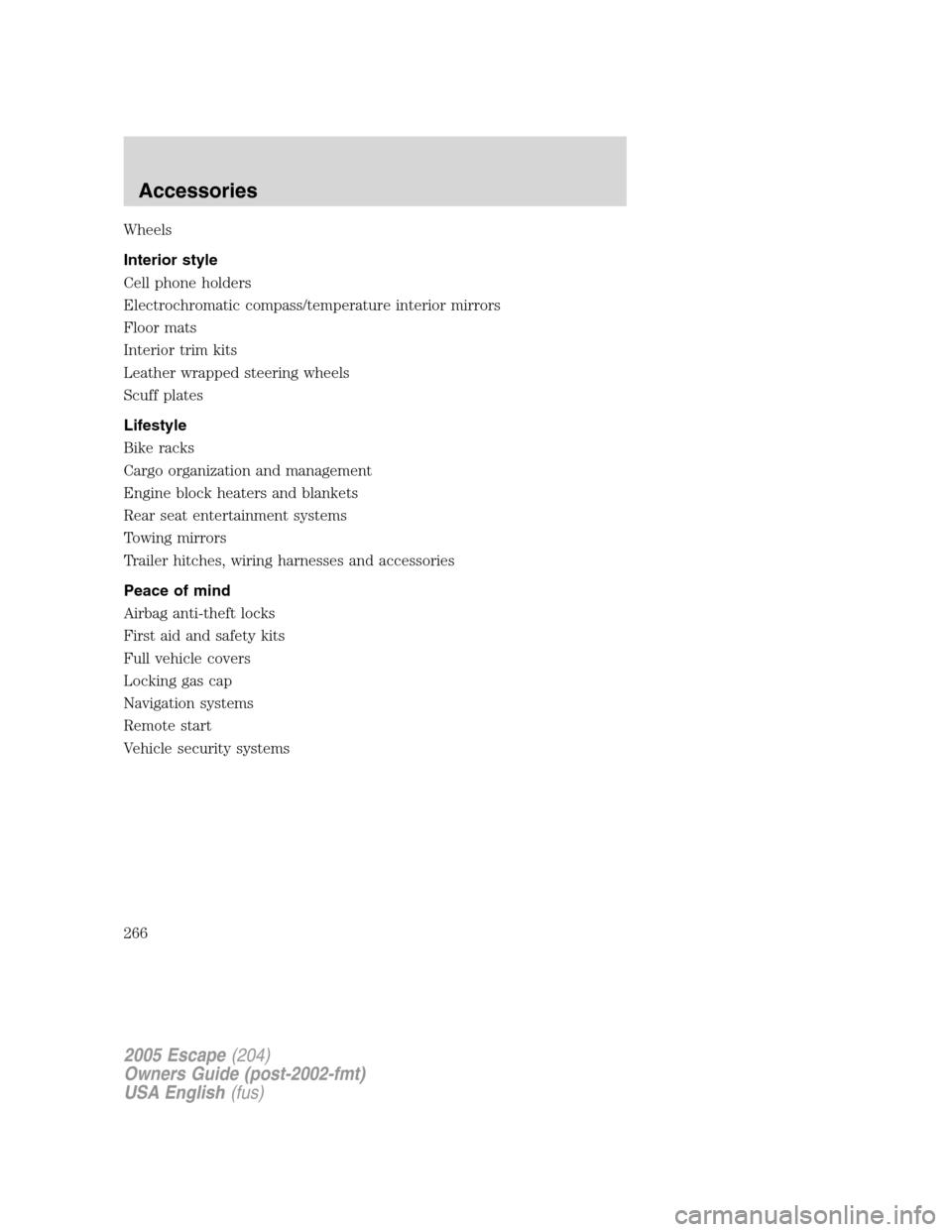

Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Rear seat entertainment systems
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
266

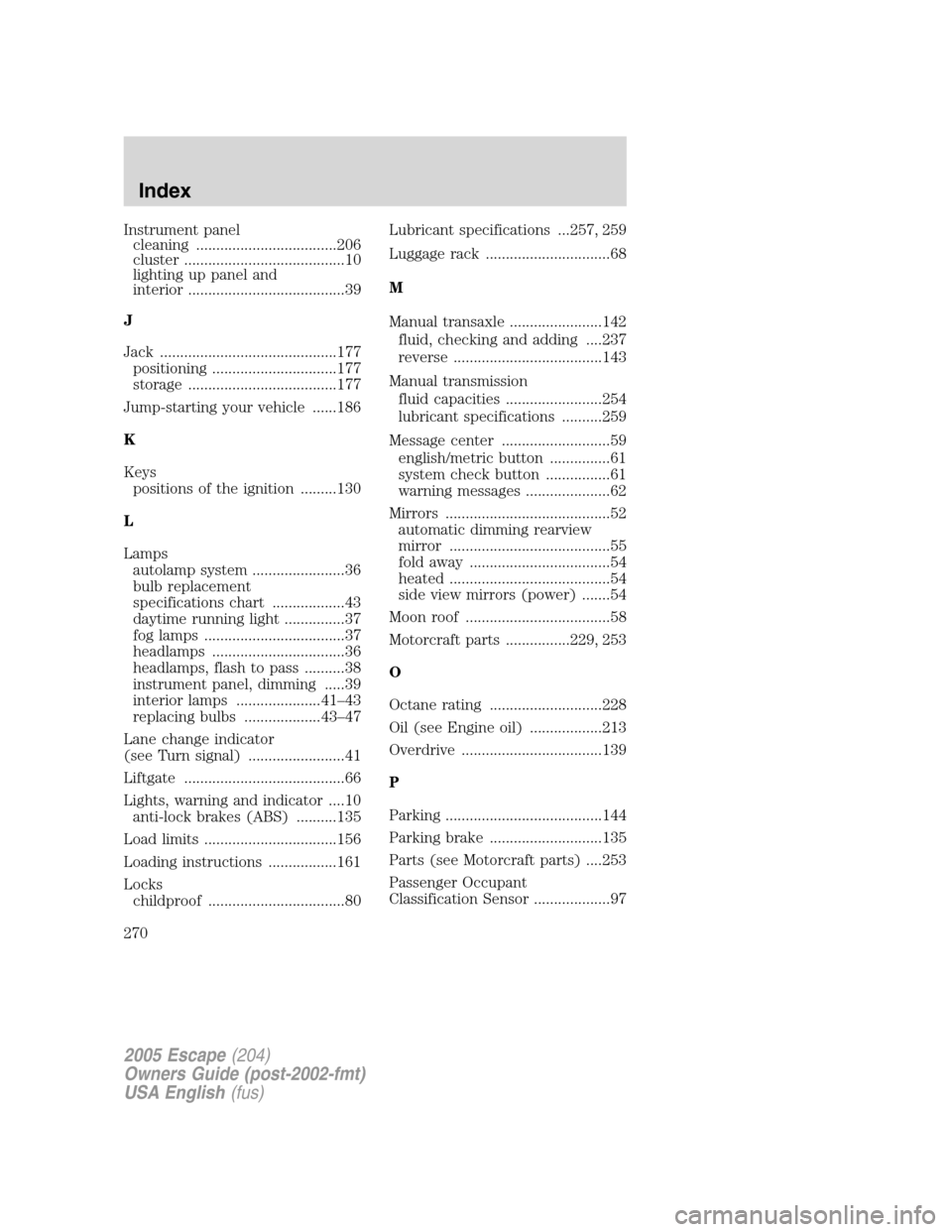

Instrument panel
cleaning ...................................206
cluster ........................................10
lighting up panel and
interior .......................................39
J
Jack ............................................177
positioning ...............................177
storage .....................................177
Jump-starting your vehicle ......186
K
Keys
positions of the ignition .........130
L
Lamps
autolamp system .......................36
bulb replacement
specifications chart ..................43
daytime running light ...............37
fog lamps ...................................37
headlamps .................................36
headlamps, flash to pass ..........38
instrument panel, dimming .....39
interior lamps .....................41–43
replacing bulbs ...................43–47
Lane change indicator
(see Turn signal) ........................41
Liftgate ........................................66
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........135
Load limits .................................156
Loading instructions .................161
Locks
childproof ..................................80Lubricant specifications ...257, 259
Luggage rack ...............................68
M
Manual transaxle .......................142
fluid, checking and adding ....237
reverse .....................................143
Manual transmission
fluid capacities ........................254
lubricant specifications ..........259
Message center ...........................59
english/metric button ...............61
system check button ................61
warning messages .....................62
Mirrors .........................................52
automatic dimming rearview
mirror ........................................55
fold away ...................................54
heated ........................................54
side view mirrors (power) .......54
Moon roof ....................................58
Motorcraft parts ................229, 253
O
Octane rating ............................228
Oil (see Engine oil) ..................213
Overdrive ...................................139
P
Parking .......................................144
Parking brake ............................135
Parts (see Motorcraft parts) ....253
Passenger Occupant
Classification Sensor ...................97
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
270
