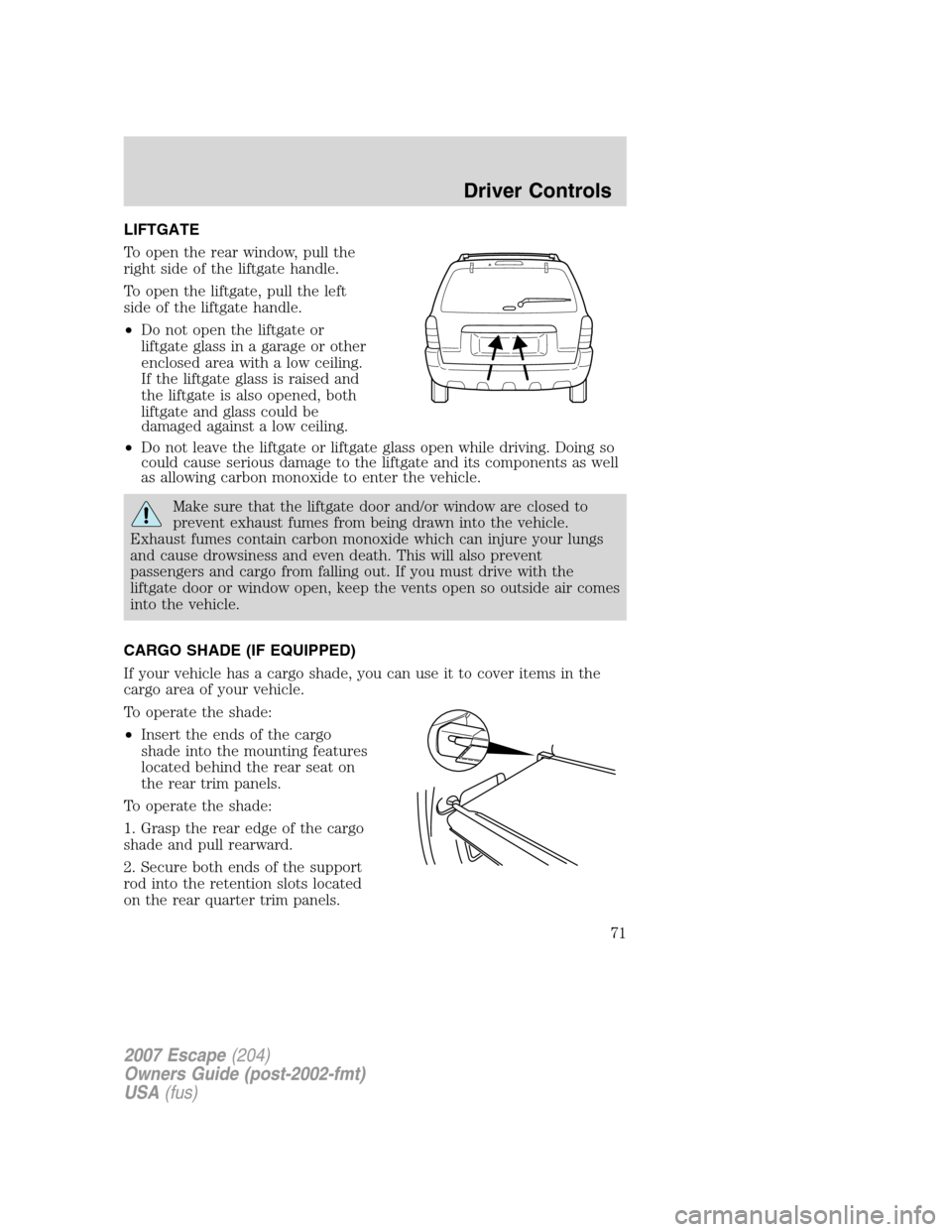

LIFTGATE
To open the rear window, pull the
right side of the liftgate handle.
To open the liftgate, pull the left
side of the liftgate handle.
•Do not open the liftgate or
liftgate glass in a garage or other
enclosed area with a low ceiling.
If the liftgate glass is raised and
the liftgate is also opened, both
liftgate and glass could be
damaged against a low ceiling.
•Do not leave the liftgate or liftgate glass open while driving. Doing so
could cause serious damage to the liftgate and its components as well
as allowing carbon monoxide to enter the vehicle.
Make sure that the liftgate door and/or window are closed to
prevent exhaust fumes from being drawn into the vehicle.
Exhaust fumes contain carbon monoxide which can injure your lungs
and cause drowsiness and even death. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door or window open, keep the vents open so outside air comes
into the vehicle.
CARGO SHADE (IF EQUIPPED)
If your vehicle has a cargo shade, you can use it to cover items in the
cargo area of your vehicle.
To operate the shade:
•Insert the ends of the cargo
shade into the mounting features
located behind the rear seat on
the rear trim panels.
To operate the shade:
1. Grasp the rear edge of the cargo
shade and pull rearward.
2. Secure both ends of the support
rod into the retention slots located
on the rear quarter trim panels.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
71

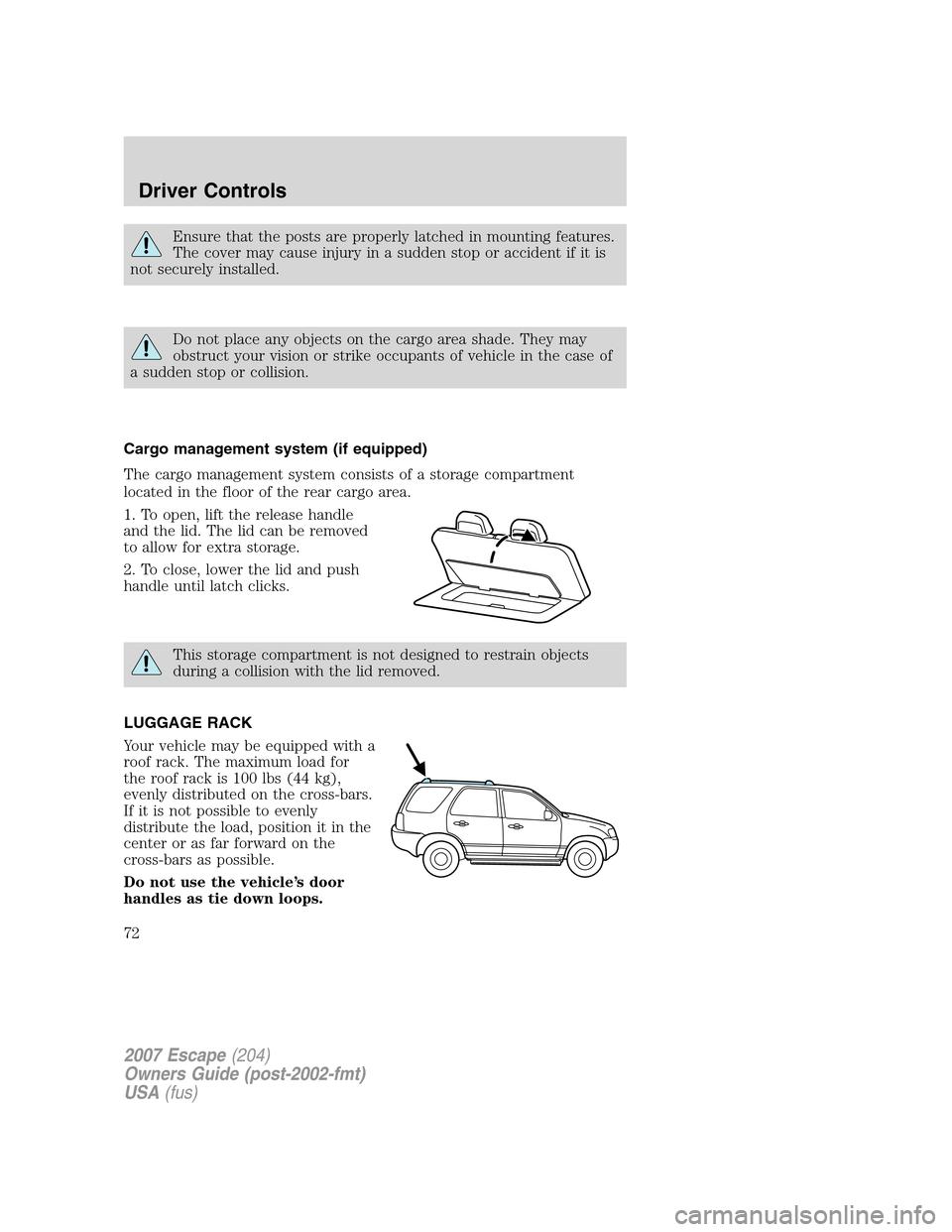

Ensure that the posts are properly latched in mounting features.
The cover may cause injury in a sudden stop or accident if it is
not securely installed.
Do not place any objects on the cargo area shade. They may
obstruct your vision or strike occupants of vehicle in the case of
a sudden stop or collision.
Cargo management system (if equipped)
The cargo management system consists of a storage compartment
located in the floor of the rear cargo area.
1. To open, lift the release handle
and the lid. The lid can be removed
to allow for extra storage.
2. To close, lower the lid and push
handle until latch clicks.
This storage compartment is not designed to restrain objects
during a collision with the lid removed.
LUGGAGE RACK
Your vehicle may be equipped with a
roof rack. The maximum load for
the roof rack is 100 lbs (44 kg),
evenly distributed on the cross-bars.
If it is not possible to evenly
distribute the load, position it in the
center or as far forward on the
cross-bars as possible.
Do not use the vehicle’s door
handles as tie down loops.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
72

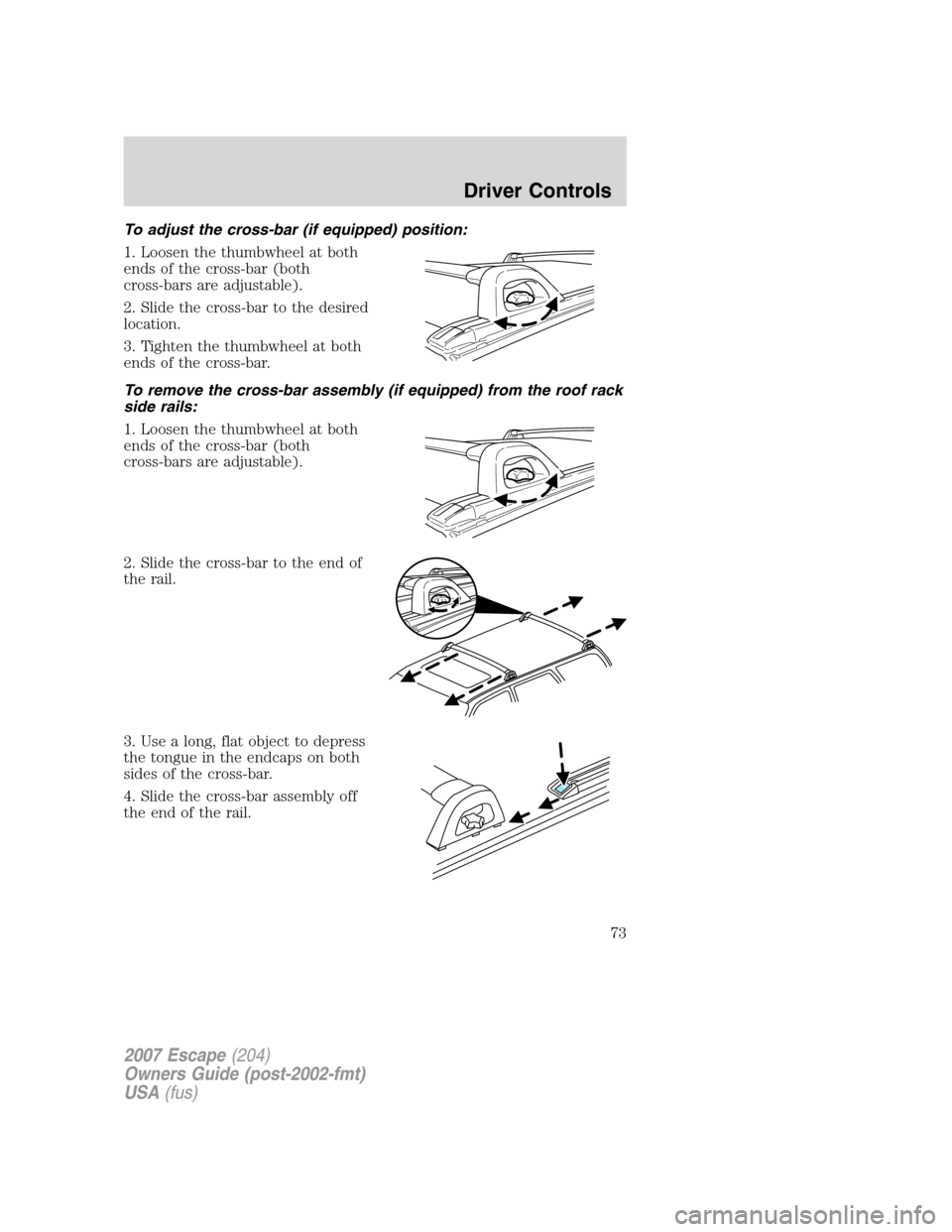

To adjust the cross-bar (if equipped) position:
1. Loosen the thumbwheel at both
ends of the cross-bar (both
cross-bars are adjustable).
2. Slide the cross-bar to the desired
location.
3. Tighten the thumbwheel at both
ends of the cross-bar.
To remove the cross-bar assembly (if equipped) from the roof rack
side rails:
1. Loosen the thumbwheel at both
ends of the cross-bar (both
cross-bars are adjustable).
2. Slide the cross-bar to the end of
the rail.
3. Use a long, flat object to depress
the tongue in the endcaps on both
sides of the cross-bar.
4. Slide the cross-bar assembly off
the end of the rail.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
73

To reinstall the cross-bar assembly (if equipped) to the roof rack
side rails:
1. Ensure that both cross-bar
assemblies are installed with the F
(front) arrow facing towards the
front of the vehicle.
2. Use a long, flat object to depress
the tongue in the endcaps on both
sides of the cross-bar.
3. Slide the cross-bar assemblies
over the end cap tongue and into
the side rails.
4. Tighten thumbwheel at both ends
of the cross-bar.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
74

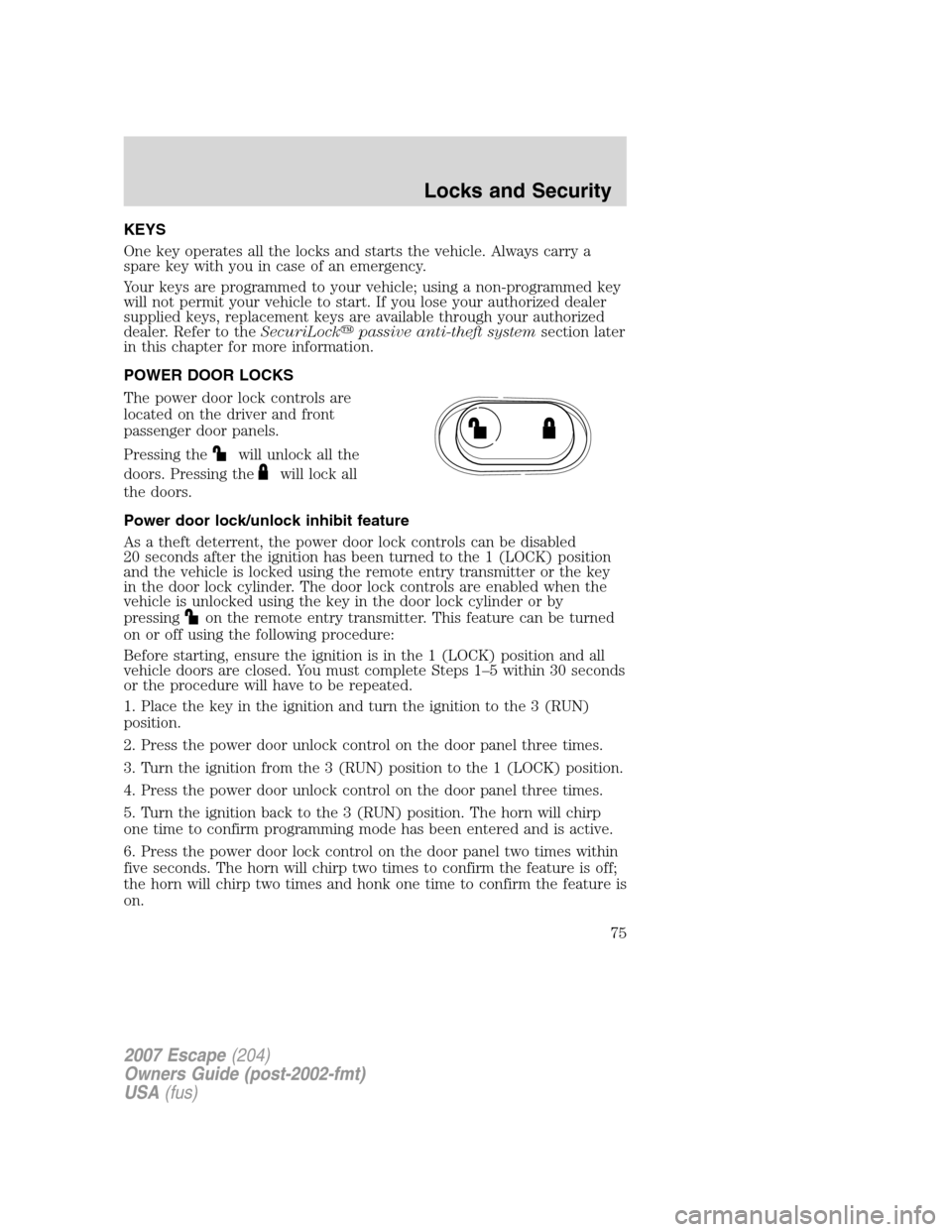

KEYS
One key operates all the locks and starts the vehicle. Always carry a
spare key with you in case of an emergency.
Your keys are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your authorized dealer
supplied keys, replacement keys are available through your authorized
dealer. Refer to theSecuriLockpassive anti-theft systemsection later
in this chapter for more information.
POWER DOOR LOCKS
The power door lock controls are
located on the driver and front
passenger door panels.
Pressing the
will unlock all the
doors. Pressing the
will lock all
the doors.
Power door lock/unlock inhibit feature
As a theft deterrent, the power door lock controls can be disabled
20 seconds after the ignition has been turned to the 1 (LOCK) position
and the vehicle is locked using the remote entry transmitter or the key
in the door lock cylinder. The door lock controls are enabled when the
vehicle is unlocked using the key in the door lock cylinder or by
pressing
on the remote entry transmitter. This feature can be turned
on or off using the following procedure:
Before starting, ensure the ignition is in the 1 (LOCK) position and all
vehicle doors are closed. You must complete Steps 1–5 within 30 seconds
or the procedure will have to be repeated.
1. Place the key in the ignition and turn the ignition to the 3 (RUN)
position.
2. Press the power door unlock control on the door panel three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the 3 (RUN) position. The horn will chirp
one time to confirm programming mode has been entered and is active.
6. Press the power door lock control on the door panel two times within
five seconds. The horn will chirp two times to confirm the feature is off;
the horn will chirp two times and honk one time to confirm the feature is
on.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
75

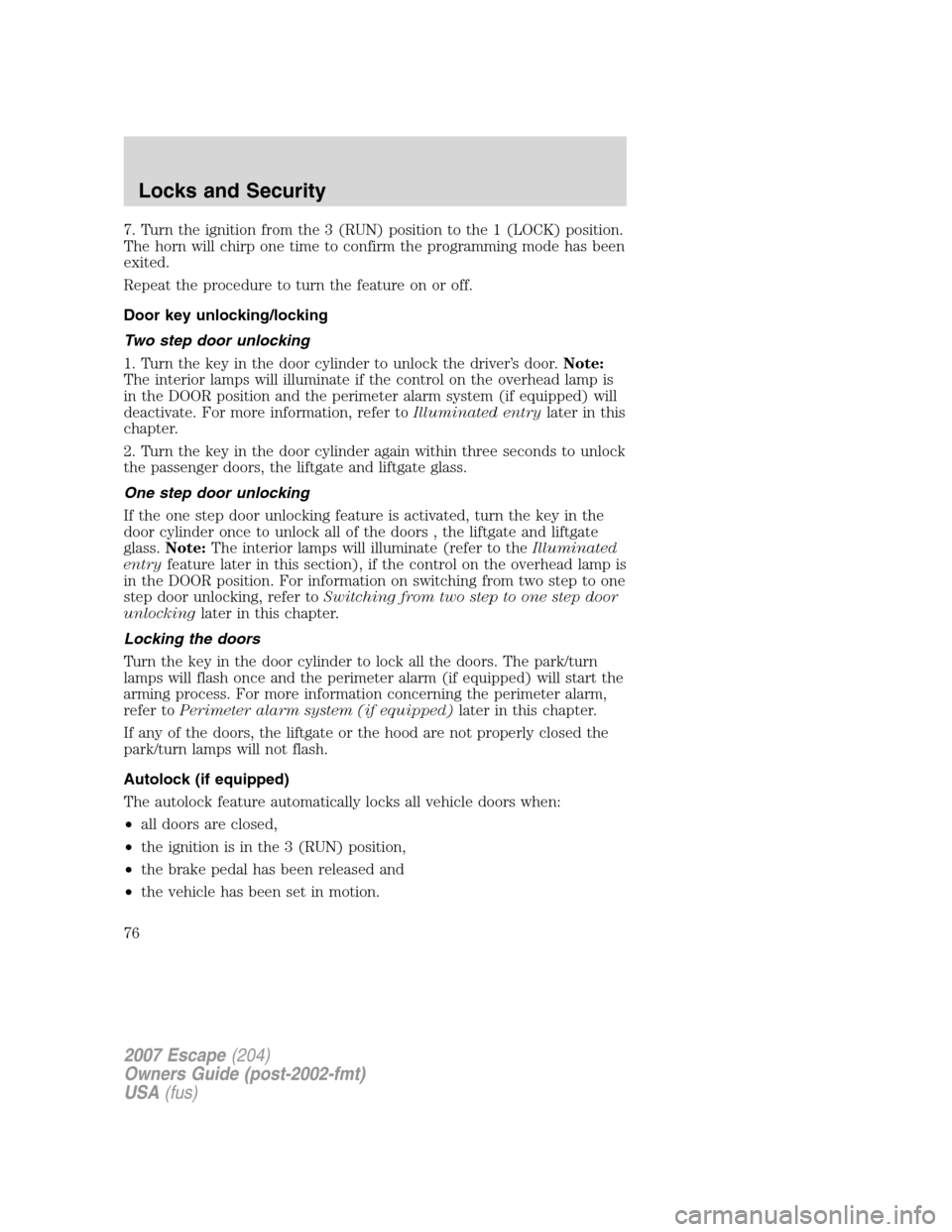

7. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
The horn will chirp one time to confirm the programming mode has been
exited.
Repeat the procedure to turn the feature on or off.
Door key unlocking/locking
Two step door unlocking
1. Turn the key in the door cylinder to unlock the driver’s door.Note:
The interior lamps will illuminate if the control on the overhead lamp is
in the DOOR position and the perimeter alarm system (if equipped) will
deactivate. For more information, refer toIlluminated entrylater in this
chapter.
2. Turn the key in the door cylinder again within three seconds to unlock
the passenger doors, the liftgate and liftgate glass.
One step door unlocking
If the one step door unlocking feature is activated, turn the key in the
door cylinder once to unlock all of the doors , the liftgate and liftgate
glass.Note:The interior lamps will illuminate (refer to theIlluminated
entryfeature later in this section), if the control on the overhead lamp is
in the DOOR position. For information on switching from two step to one
step door unlocking, refer toSwitching from two step to one step door
unlockinglater in this chapter.
Locking the doors
Turn the key in the door cylinder to lock all the doors. The park/turn
lamps will flash once and the perimeter alarm (if equipped) will start the
arming process. For more information concerning the perimeter alarm,
refer toPerimeter alarm system (if equipped)later in this chapter.
If any of the doors, the liftgate or the hood are not properly closed the
park/turn lamps will not flash.
Autolock (if equipped)
The autolock feature automatically locks all vehicle doors when:
•all doors are closed,
•the ignition is in the 3 (RUN) position,
•the brake pedal has been released and
•the vehicle has been set in motion.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
76

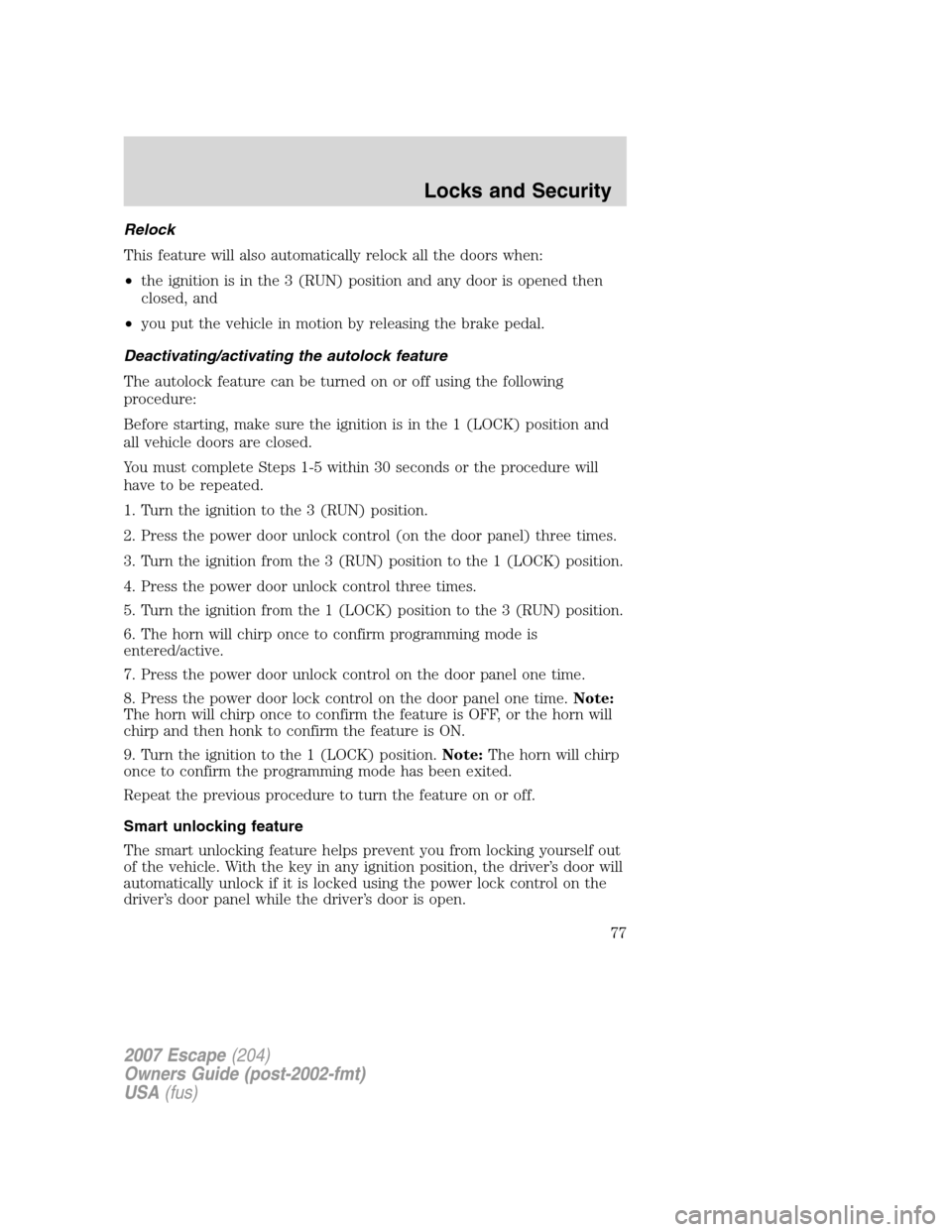

Relock
This feature will also automatically relock all the doors when:
•the ignition is in the 3 (RUN) position and any door is opened then
closed, and
•you put the vehicle in motion by releasing the brake pedal.
Deactivating/activating the autolock feature
The autolock feature can be turned on or off using the following
procedure:
Before starting, make sure the ignition is in the 1 (LOCK) position and
all vehicle doors are closed.
You must complete Steps 1-5 within 30 seconds or the procedure will
have to be repeated.
1. Turn the ignition to the 3 (RUN) position.
2. Press the power door unlock control (on the door panel) three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
4. Press the power door unlock control three times.
5. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position.
6. The horn will chirp once to confirm programming mode is
entered/active.
7. Press the power door unlock control on the door panel one time.
8. Press the power door lock control on the door panel one time.Note:
The horn will chirp once to confirm the feature is OFF, or the horn will
chirp and then honk to confirm the feature is ON.
9. Turn the ignition to the 1 (LOCK) position.Note:The horn will chirp
once to confirm the programming mode has been exited.
Repeat the previous procedure to turn the feature on or off.
Smart unlocking feature
The smart unlocking feature helps prevent you from locking yourself out
of the vehicle. With the key in any ignition position, the driver’s door will
automatically unlock if it is locked using the power lock control on the
driver’s door panel while the driver’s door is open.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
77

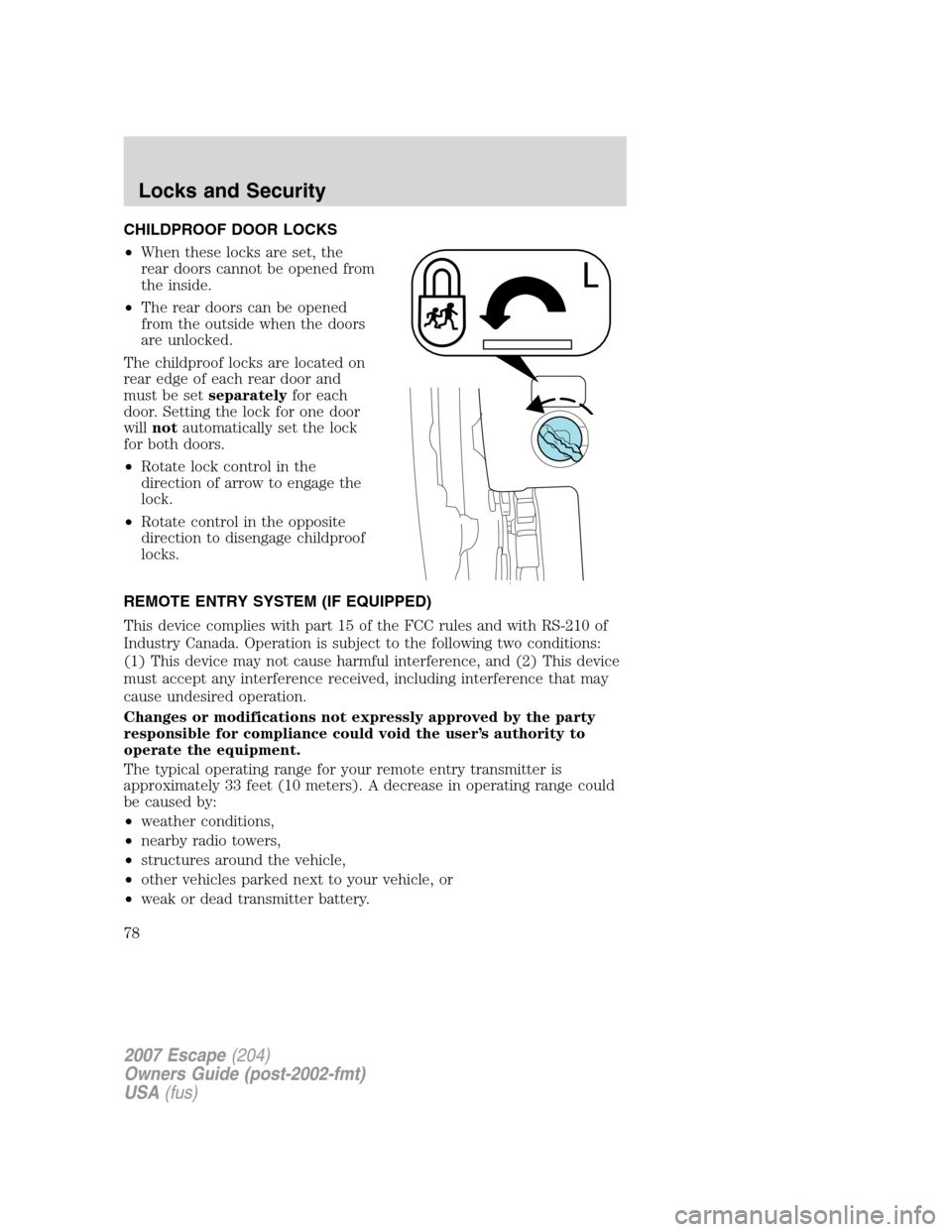

CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the doors
are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be setseparatelyfor each
door. Setting the lock for one door
willnotautomatically set the lock
for both doors.
•Rotate lock control in the
direction of arrow to engage the
lock.
•Rotate control in the opposite
direction to disengage childproof
locks.
REMOTE ENTRY SYSTEM (IF EQUIPPED)
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle,
•other vehicles parked next to your vehicle, or
•weak or dead transmitter battery.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
78

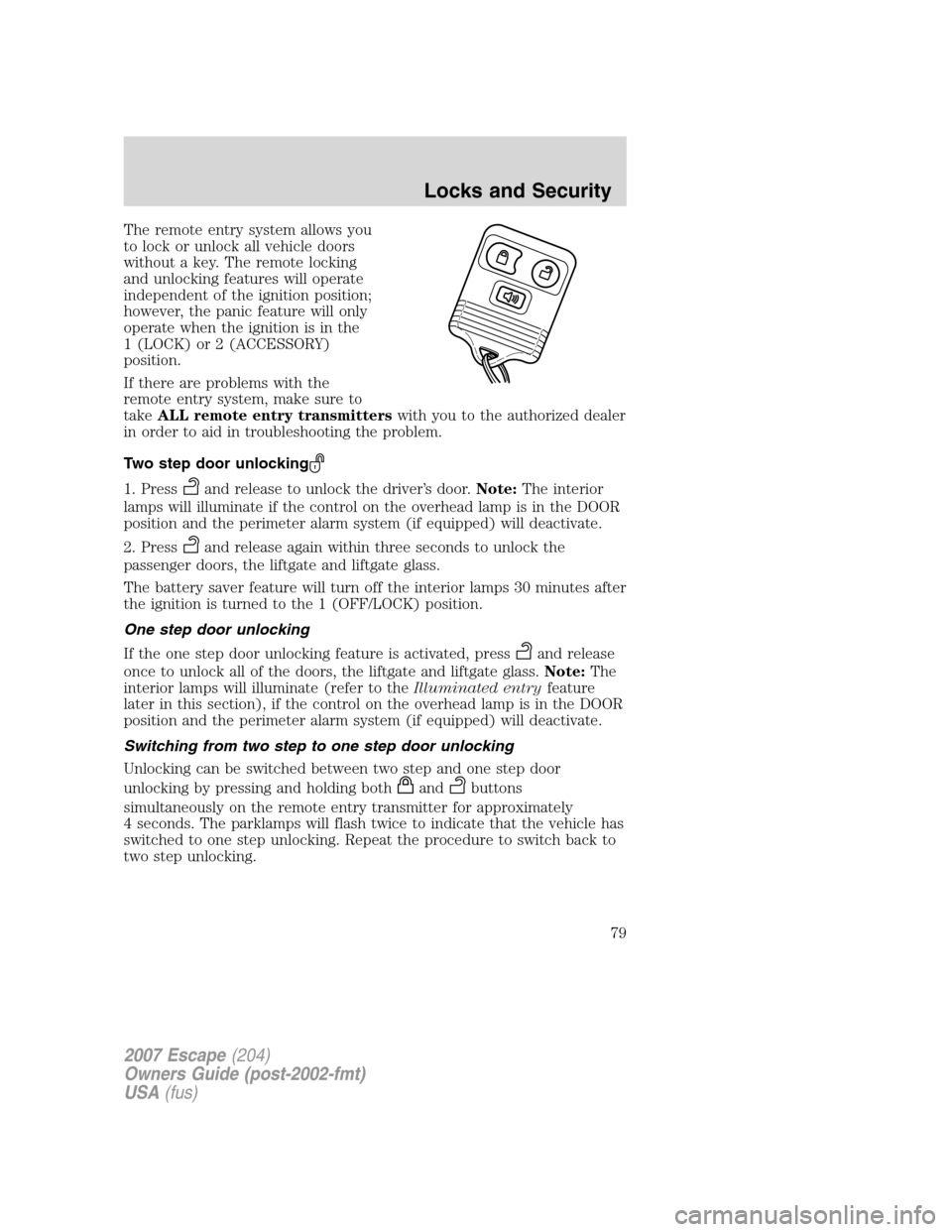

The remote entry system allows you
to lock or unlock all vehicle doors
without a key. The remote locking
and unlocking features will operate
independent of the ignition position;
however, the panic feature will only
operate when the ignition is in the
1 (LOCK) or 2 (ACCESSORY)
position.
If there are problems with the
remote entry system, make sure to
takeALL remote entry transmitterswith you to the authorized dealer
in order to aid in troubleshooting the problem.
Two step door unlocking
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate if the control on the overhead lamp is in the DOOR
position and the perimeter alarm system (if equipped) will deactivate.
2. Press
and release again within three seconds to unlock the
passenger doors, the liftgate and liftgate glass.
The battery saver feature will turn off the interior lamps 30 minutes after
the ignition is turned to the 1 (OFF/LOCK) position.
One step door unlocking
If the one step door unlocking feature is activated, press
and release
once to unlock all of the doors, the liftgate and liftgate glass.Note:The
interior lamps will illuminate (refer to theIlluminated entryfeature
later in this section), if the control on the overhead lamp is in the DOOR
position and the perimeter alarm system (if equipped) will deactivate.
Switching from two step to one step door unlocking
Unlocking can be switched between two step and one step door
unlocking by pressing and holding both
andbuttons
simultaneously on the remote entry transmitter for approximately
4 seconds. The parklamps will flash twice to indicate that the vehicle has
switched to one step unlocking. Repeat the procedure to switch back to
two step unlocking.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
79

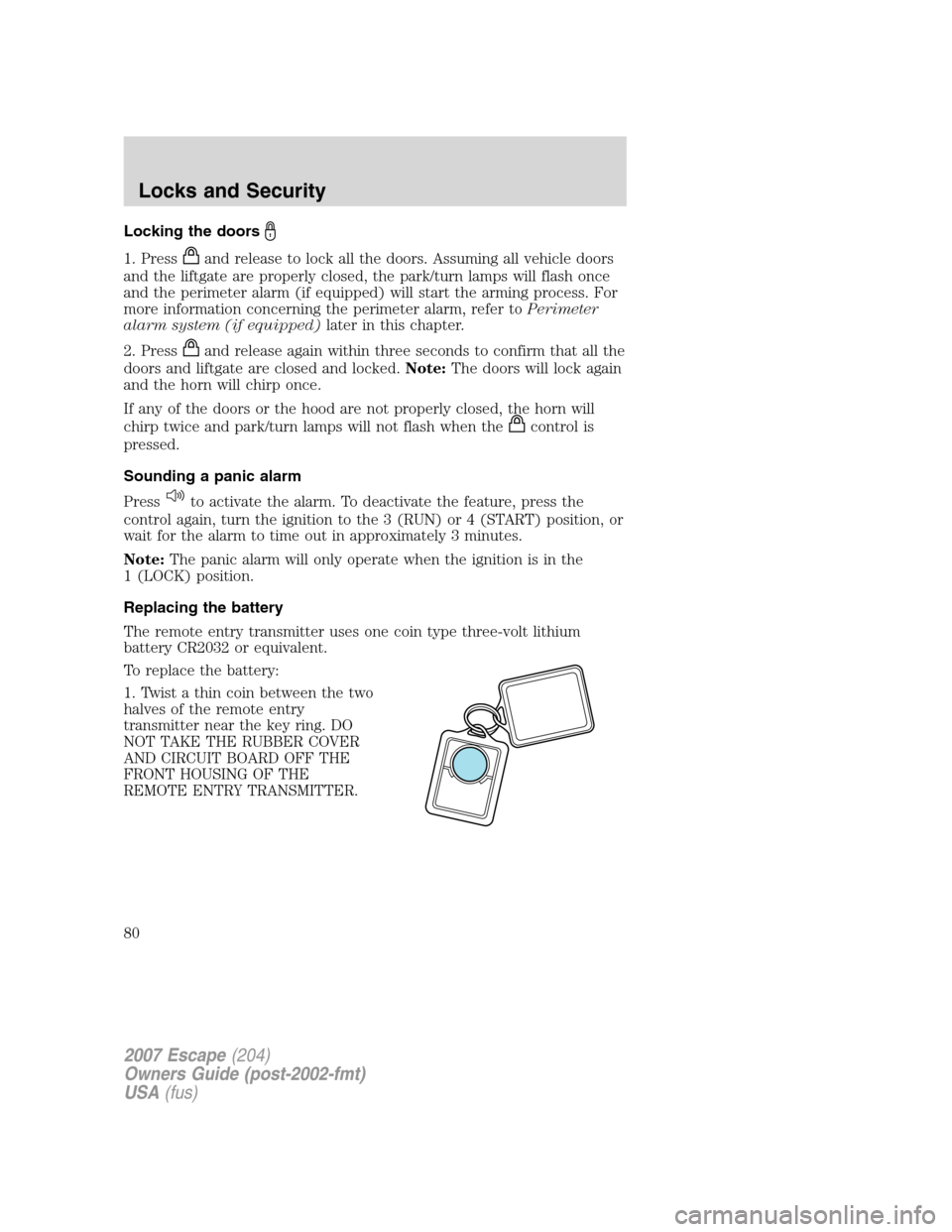

Locking the doors
1. Pressand release to lock all the doors. Assuming all vehicle doors
and the liftgate are properly closed, the park/turn lamps will flash once
and the perimeter alarm (if equipped) will start the arming process. For
more information concerning the perimeter alarm, refer toPerimeter
alarm system (if equipped)later in this chapter.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:The doors will lock again
and the horn will chirp once.
If any of the doors or the hood are not properly closed, the horn will
chirp twice and park/turn lamps will not flash when the
control is
pressed.
Sounding a panic alarm
Press
to activate the alarm. To deactivate the feature, press the
control again, turn the ignition to the 3 (RUN) or 4 (START) position, or
wait for the alarm to time out in approximately 3 minutes.
Note:The panic alarm will only operate when the ignition is in the
1 (LOCK) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
80
