Parking brake
To set the parking brake (1), pull
the parking brake handle up as far
as possible.
The BRAKE warning lamp will
illuminate and will remain
illuminated until the parking brake
is released.
To release, press and hold the button (2), pull the handle up slightly,
then push the handle down.
Always set the parking brake fully and make sure that the
gearshift is securely latched in P (Park) (automatic
transmission) or in 1 (First) (manual transmission).
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your authorized dealer as soon as possible.
STEERING
To help prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
!
BRAKE
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
177

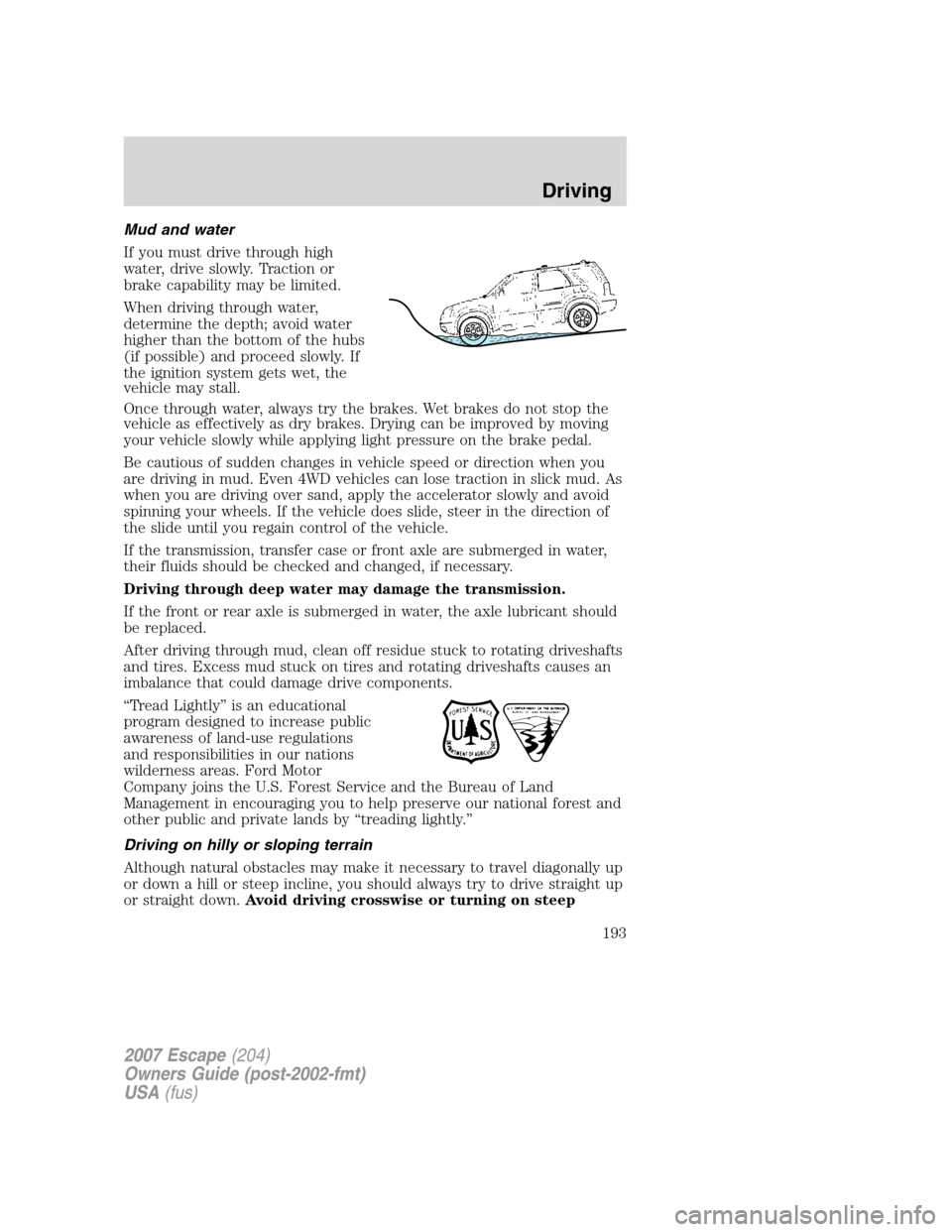

Mud and water
If you must drive through high
water, drive slowly. Traction or
brake capability may be limited.
When driving through water,
determine the depth; avoid water
higher than the bottom of the hubs
(if possible) and proceed slowly. If
the ignition system gets wet, the
vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even 4WD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
If the transmission, transfer case or front axle are submerged in water,
their fluids should be checked and changed, if necessary.
Driving through deep water may damage the transmission.
If the front or rear axle is submerged in water, the axle lubricant should
be replaced.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nations
wilderness areas. Ford Motor
Company joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
Driving on hilly or sloping terrain
Although natural obstacles may make it necessary to travel diagonally up
or down a hill or steep incline, you should always try to drive straight up
or straight down.Avoid driving crosswise or turning on steep
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
193

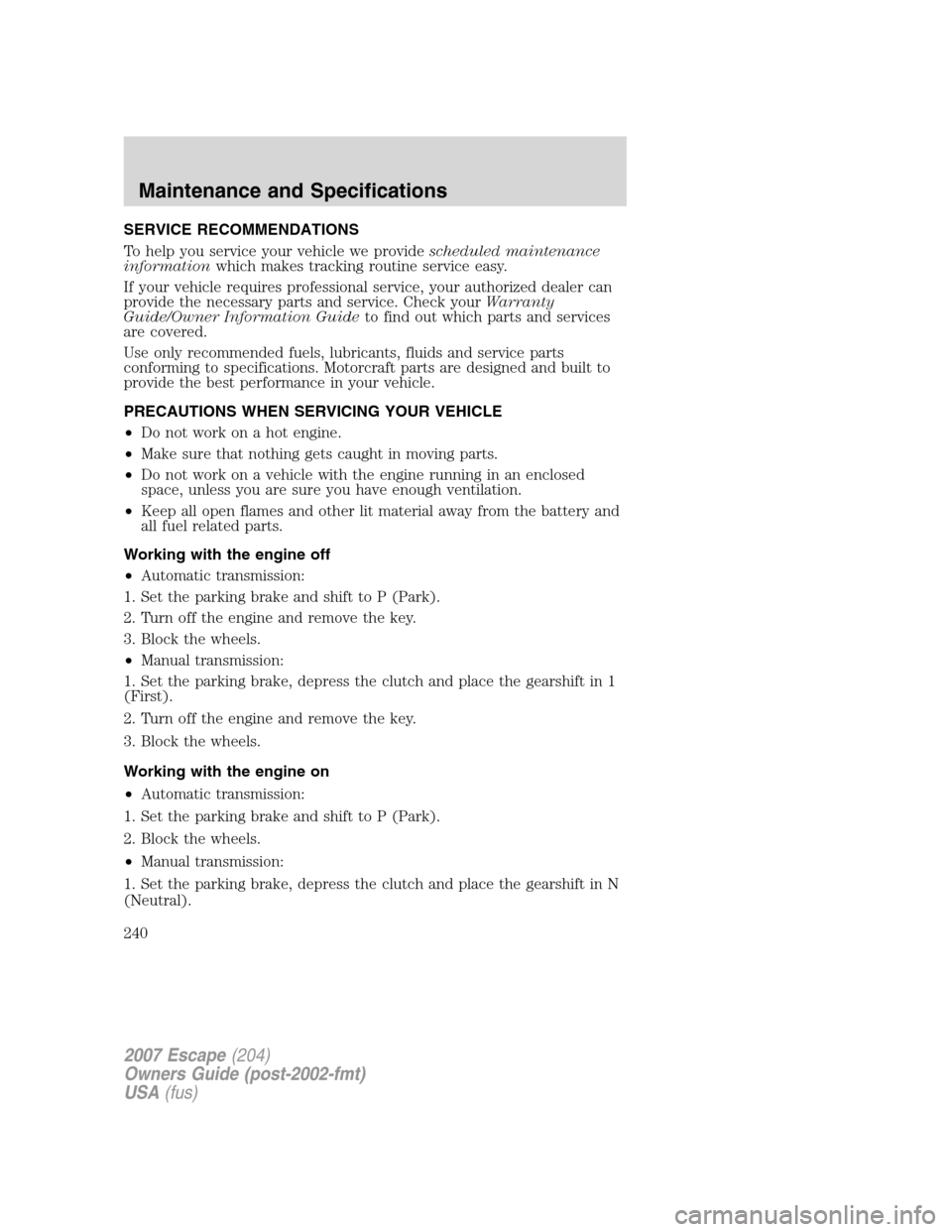

SERVICE RECOMMENDATIONS
To help you service your vehicle we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check yourWarranty
Guide/Owner Information Guideto find out which parts and services
are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraft parts are designed and built to
provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
Working with the engine off
•Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Turn off the engine and remove the key.
3. Block the wheels.
•Manual transmission:
1. Set the parking brake, depress the clutch and place the gearshift in 1
(First).
2. Turn off the engine and remove the key.
3. Block the wheels.
Working with the engine on
•Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Block the wheels.
•Manual transmission:
1. Set the parking brake, depress the clutch and place the gearshift in N
(Neutral).
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
240

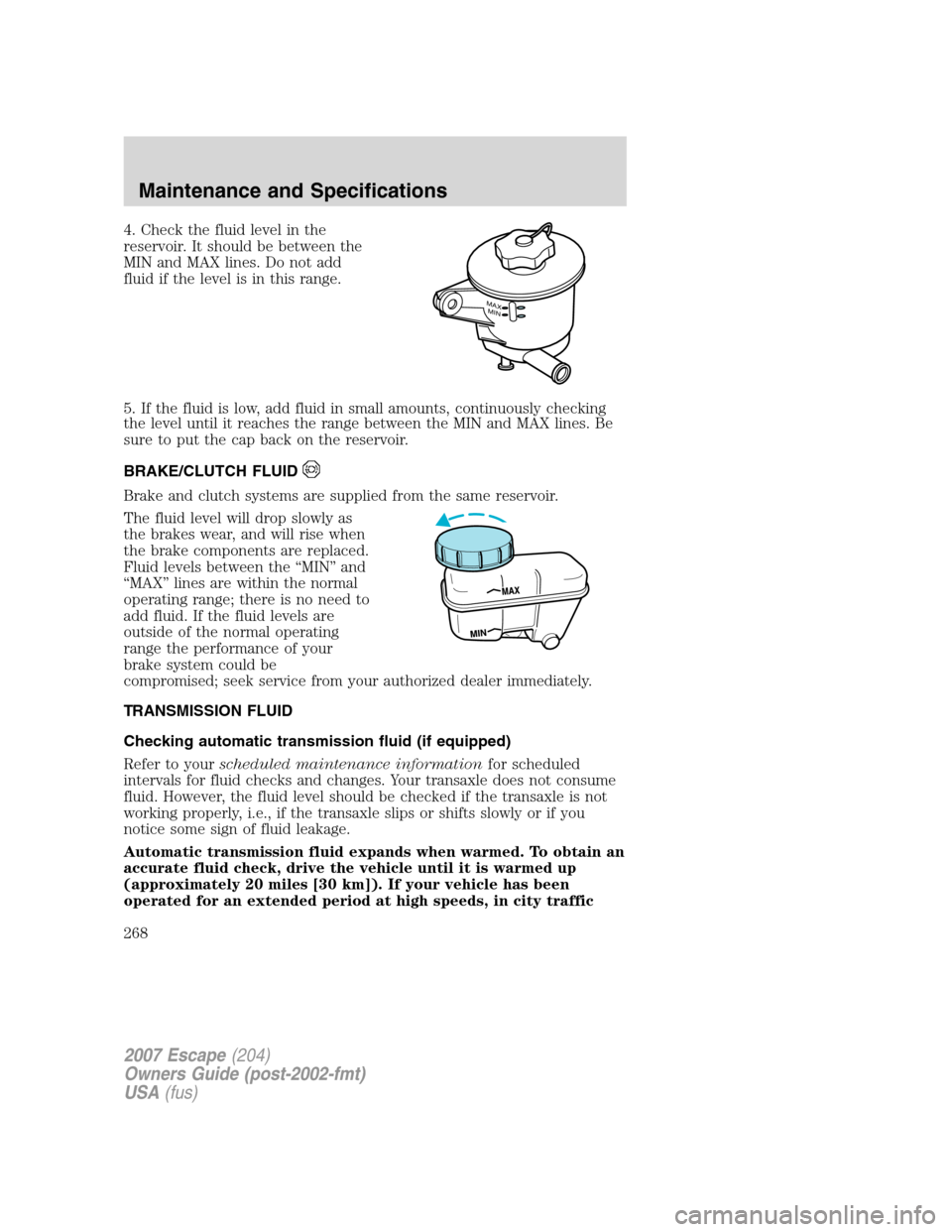

4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
BRAKE/CLUTCH FLUID
Brake and clutch systems are supplied from the same reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of your
brake system could be
compromised; seek service from your authorized dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transaxle does not consume
fluid. However, the fluid level should be checked if the transaxle is not
working properly, i.e., if the transaxle slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
MAXMIN
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
268

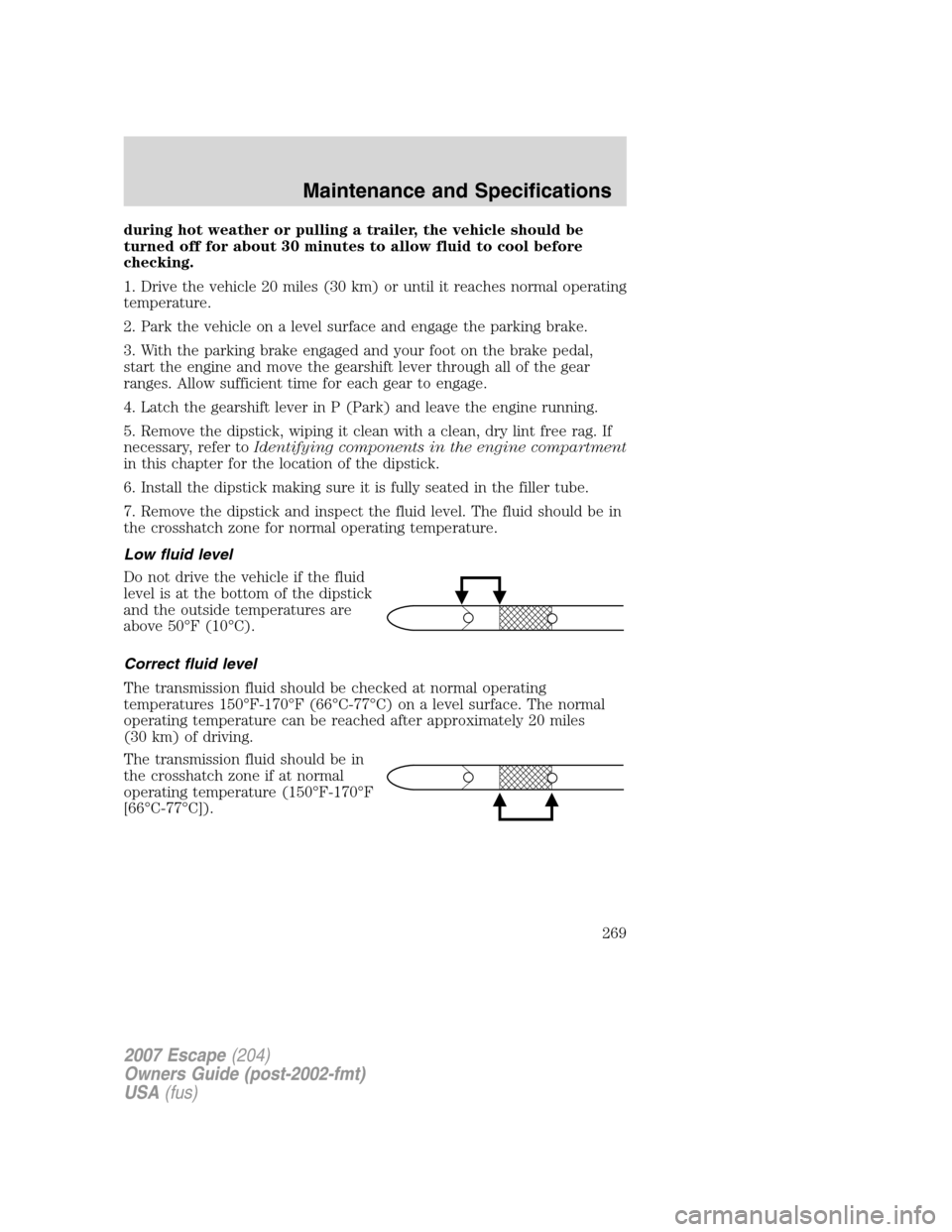

during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the crosshatch zone for normal operating temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the outside temperatures are
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperatures 150°F-170°F (66°C-77°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
The transmission fluid should be in
the crosshatch zone if at normal
operating temperature (150°F-170°F
[66°C-77°C]).
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
269

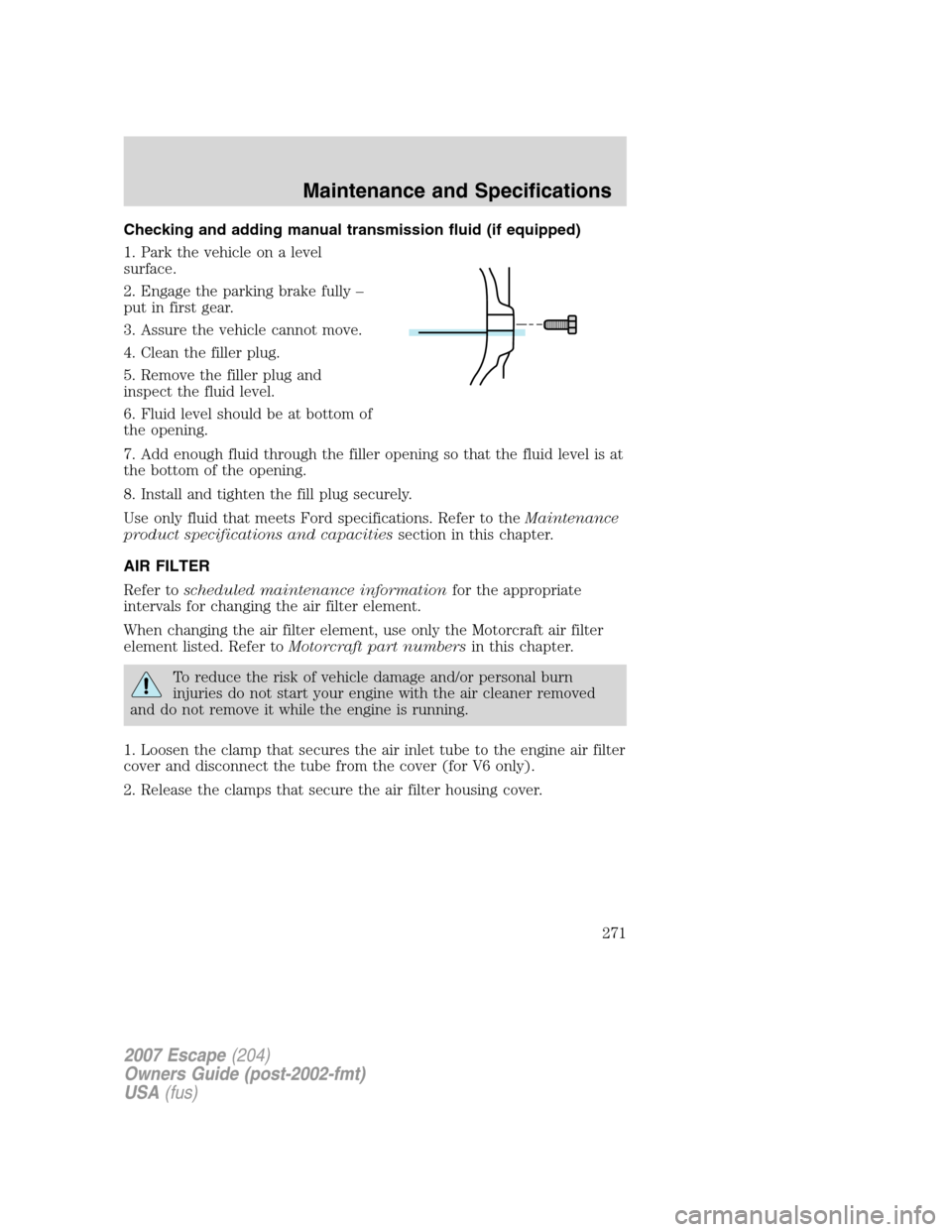

Checking and adding manual transmission fluid (if equipped)
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully –
put in first gear.
3. Assure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at bottom of
the opening.
7. Add enough fluid through the filler opening so that the fluid level is at
the bottom of the opening.
8. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer to theMaintenance
product specifications and capacitiessection in this chapter.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
To reduce the risk of vehicle damage and/or personal burn
injuries do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
1. Loosen the clamp that secures the air inlet tube to the engine air filter
cover and disconnect the tube from the cover (for V6 only).
2. Release the clamps that secure the air filter housing cover.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
271

1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3The Power Transfer Unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace Power Transfer Unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.4Fill to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.54X4 vehicles exposed for prolonged periods to temperatures less than -40° F (-40° C) should
change out the rear axle fluid to Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant, Ford part
number XY-75W140-QL meeting Ford specification WSL-M2C192-A.6Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.7Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick or on the dipstick handle. Refer toscheduled maintenance information
to determine the correct service interval.8Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
276

A
Accessory delay ..........................58
Air cleaner filter ...............271, 273
Airbag supplemental
restraint system ........112, 121, 124
and child safety seats ............114
description ..............112, 121, 124
disposal ....................................127
driver airbag ............114, 122, 125
indicator light .........120, 123, 126
operation .................114, 122, 125
passenger airbag .....114, 122, 125
side airbag ...............................121
All Wheel Drive (AWD),
driving off road .........................189
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................251
Anti-lock brake system
(see Brakes) ..............................176
Anti-theft system ..................84, 87
arming the system ....................87
disarming a triggered
system .......................................88
triggering ...................................88
Audio system
(see Radio) ......................19, 28, 32
Automatic transaxle
fluid, adding ............................268
fluid, checking ........................268
Automatic transmission ............178
driving an automatic
overdrive .................................181
fluid, refill capacities ..............274
fluid, specification ..................274
Auxiliary power point .................56Axle
lubricant specifications ..........274
refill capacities ........................274
B
Battery .......................................249
acid, treating emergencies .....249
battery saver .............................48
jumping a disabled battery ....218
maintenance-free ....................249
replacement, specifications ...273
servicing ..................................249
BeltMinder
...............................107
Brakes ................................175–176
anti-lock ...................................176
anti-lock brake system
(ABS) warning light ...............176
fluid, checking and adding ....268
fluid, refill capacities ..............274
fluid, specifications .................274
lubricant specifications ..........274
parking ....................................177
shift interlock ..........................178
Bulbs ............................................48
C
Capacities for refilling fluids ....274
Cargo area shade ........................71
Cargo management system ........72
Cell phone use ..............................8
Child safety restraints ..............127
child safety belts ....................127
Child safety seats ......................131
attaching with tether straps ..135
in front seat ............................132
in rear seat ..............................132
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
282

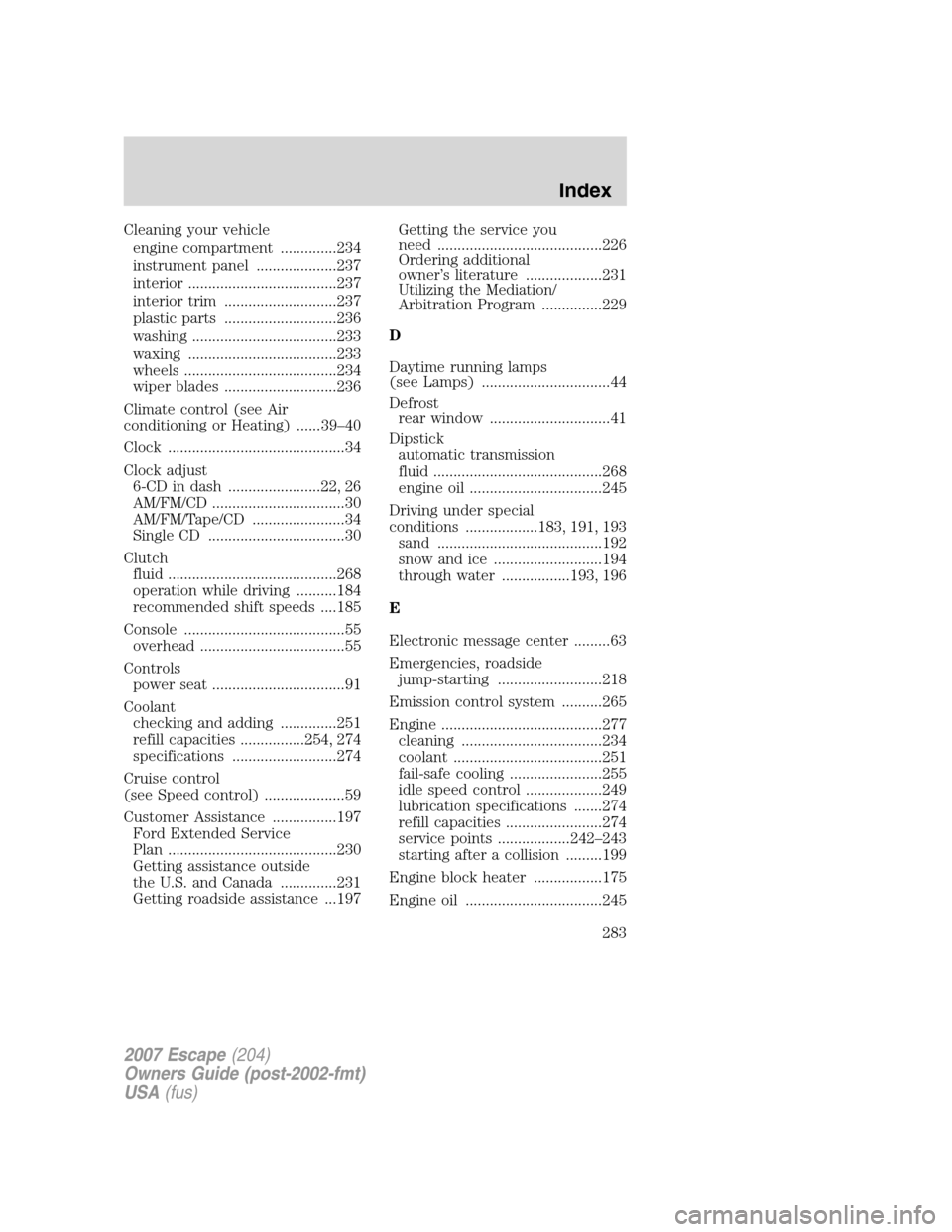

Cleaning your vehicle
engine compartment ..............234
instrument panel ....................237
interior .....................................237
interior trim ............................237
plastic parts ............................236
washing ....................................233
waxing .....................................233
wheels ......................................234
wiper blades ............................236
Climate control (see Air
conditioning or Heating) ......39–40
Clock ............................................34
Clock adjust
6-CD in dash .......................22, 26
AM/FM/CD .................................30
AM/FM/Tape/CD .......................34
Single CD ..................................30
Clutch
fluid ..........................................268
operation while driving ..........184
recommended shift speeds ....185
Console ........................................55
overhead ....................................55
Controls
power seat .................................91
Coolant
checking and adding ..............251
refill capacities ................254, 274
specifications ..........................274
Cruise control
(see Speed control) ....................59
Customer Assistance ................197
Ford Extended Service
Plan ..........................................230
Getting assistance outside
the U.S. and Canada ..............231
Getting roadside assistance ...197Getting the service you
need .........................................226
Ordering additional
owner’s literature ...................231
Utilizing the Mediation/
Arbitration Program ...............229
D
Daytime running lamps
(see Lamps) ................................44
Defrost
rear window ..............................41
Dipstick
automatic transmission
fluid ..........................................268
engine oil .................................245
Driving under special
conditions ..................183, 191, 193
sand .........................................192
snow and ice ...........................194
through water .................193, 196
E
Electronic message center .........63
Emergencies, roadside
jump-starting ..........................218
Emission control system ..........265
Engine ........................................277
cleaning ...................................234
coolant .....................................251
fail-safe cooling .......................255
idle speed control ...................249
lubrication specifications .......274
refill capacities ........................274
service points ..................242–243
starting after a collision .........199
Engine block heater .................175
Engine oil ..................................245
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283

autolock .....................................76
keypad .......................................83
locking and unlocking doors ....84
programming entry code .........83
Keys .............................................85
positions of the ignition .........172
L
Lamps
autolamp system .......................42
bulb replacement
specifications chart ..................48
daytime running light ...............44
fog lamps ...................................45
headlamps .................................42
headlamps, flash to pass ..........44
instrument panel, dimming .....45
interior lamps .....................47–49
replacing bulbs .........................49
Lane change indicator
(see Turn signal) ........................47
Liftgate ........................................71
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........176
Load limits .................................160
Loading instructions .................166
Locks
autolock .....................................76
childproof ..................................78
Lubricant specifications ...........274
Lug nuts ....................................218
Luggage rack ...............................72
M
Manual transaxle .......................184
fluid, checking and adding ....271
reverse .....................................185Manual transmission
fluid capacities ........................274
lubricant specifications ..........274
Message center ...........................63
english/metric button ...............65
system check button ................65
warning messages .....................66
Mirrors .........................................58
automatic dimming rearview
mirror ........................................58
fold away ...................................59
heated ........................................59
side view mirrors (power) .......58
Moon roof ....................................62
Motorcraft parts ........238, 257, 273
O
Octane rating ............................261
Oil (see Engine oil) ..................245
Overdrive ...................................180
P
Parking .......................................186
Parking brake ............................177
Parts (see Motorcraft parts) ....273
Passenger Occupant
Classification Sensor ...................99
Power distribution box
(see Fuses) ...............................203
Power door locks ........................75
Power mirrors .............................58
Power point .................................56
Power steering ..........................177
fluid, checking and adding ....267
fluid, refill capacity ................274
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
285
