Page 2 of 288

FORD ESCAPE 2007 2.G Owners Manual Seating and Safety Restraints 89
Seating 89
Safety restraints 97
Airbags 112
Child restraints 127
Tires, Wheels and Loading 139
Tire Information 141
Tire Inflation 143
Tire Pressure Monitoring System

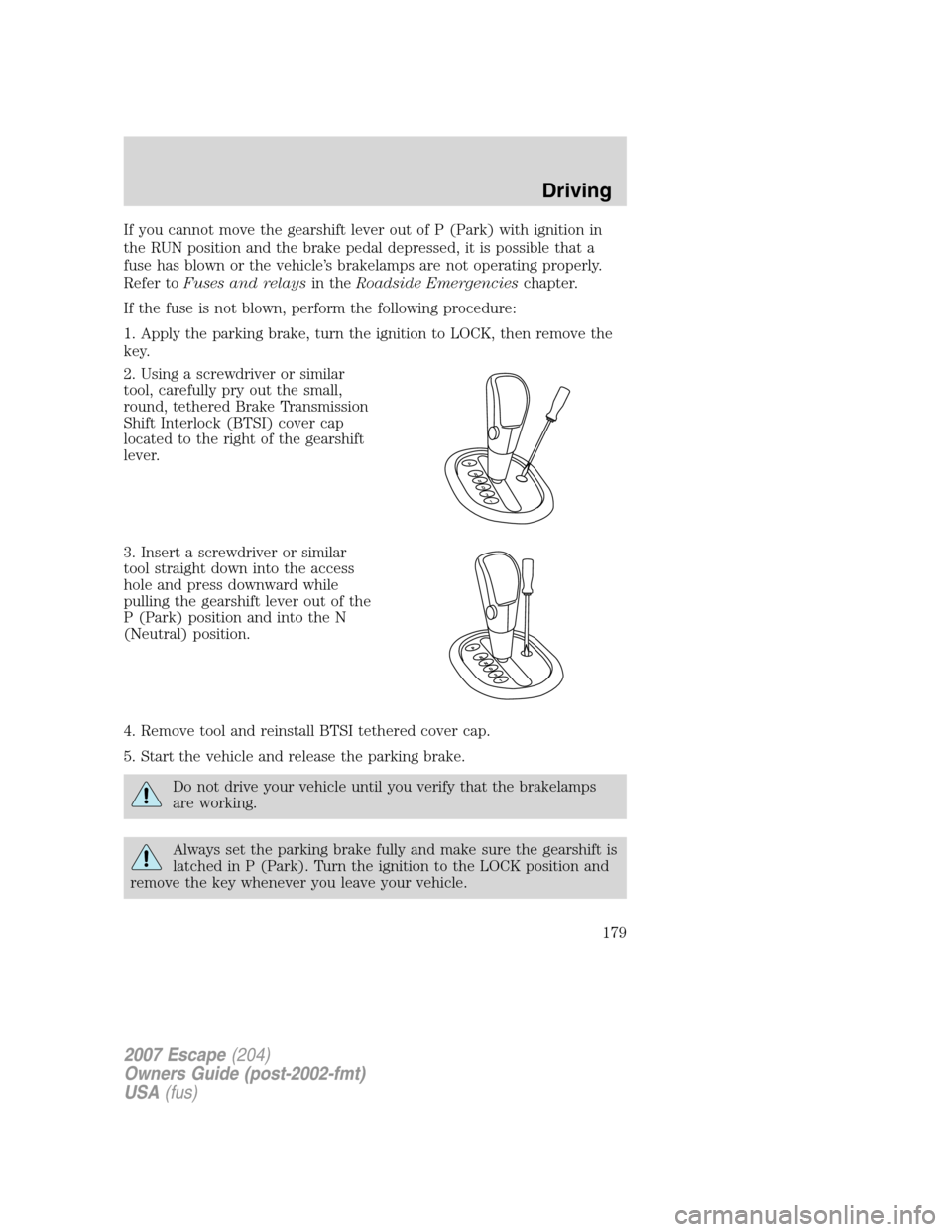

Page 179 of 288

FORD ESCAPE 2007 2.G Owners Manual If you cannot move the gearshift lever out of P (Park) with ignition in
the RUN position and the brake pedal depressed, it is possible that a
fuse has blown or the vehicle’s brakelamps are not opera

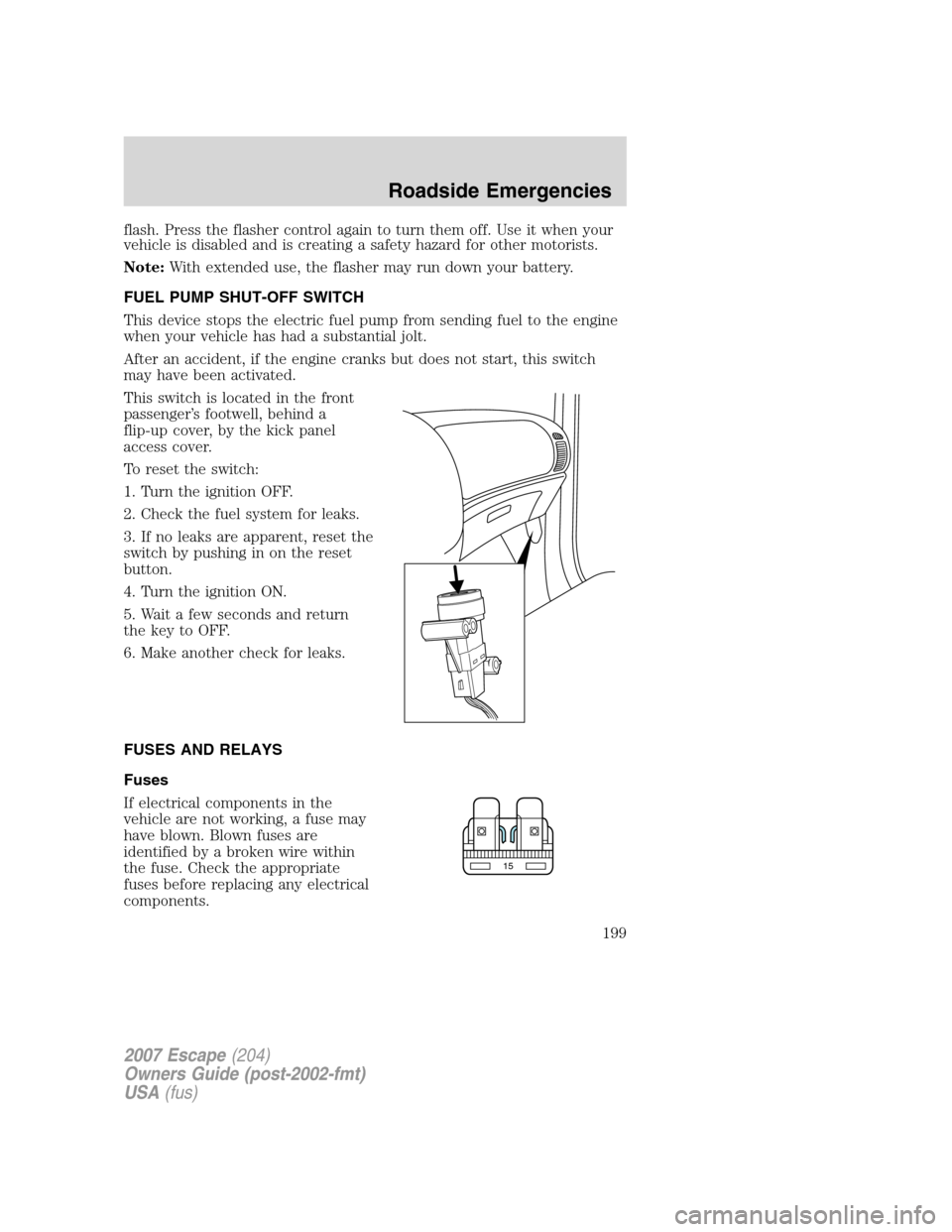

Page 199 of 288

FORD ESCAPE 2007 2.G Owners Manual flash. Press the flasher control again to turn them off. Use it when your
vehicle is disabled and is creating a safety hazard for other motorists.
Note:With extended use, the flasher may run down your

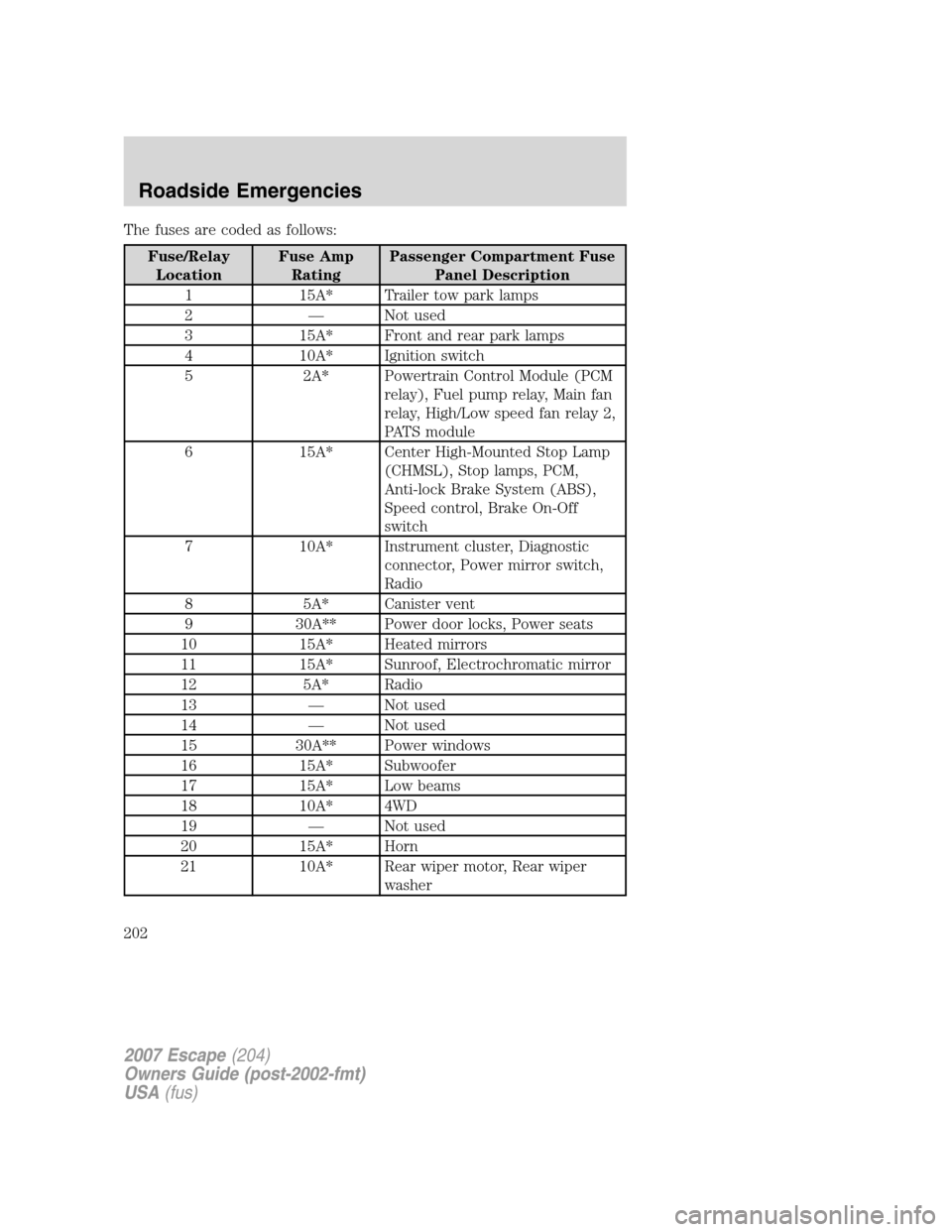

Page 202 of 288

FORD ESCAPE 2007 2.G Owners Manual The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 15A* Trailer tow park lamps
2 — Not used
3 15A* Front and rear park lamps
4 10A* Igni

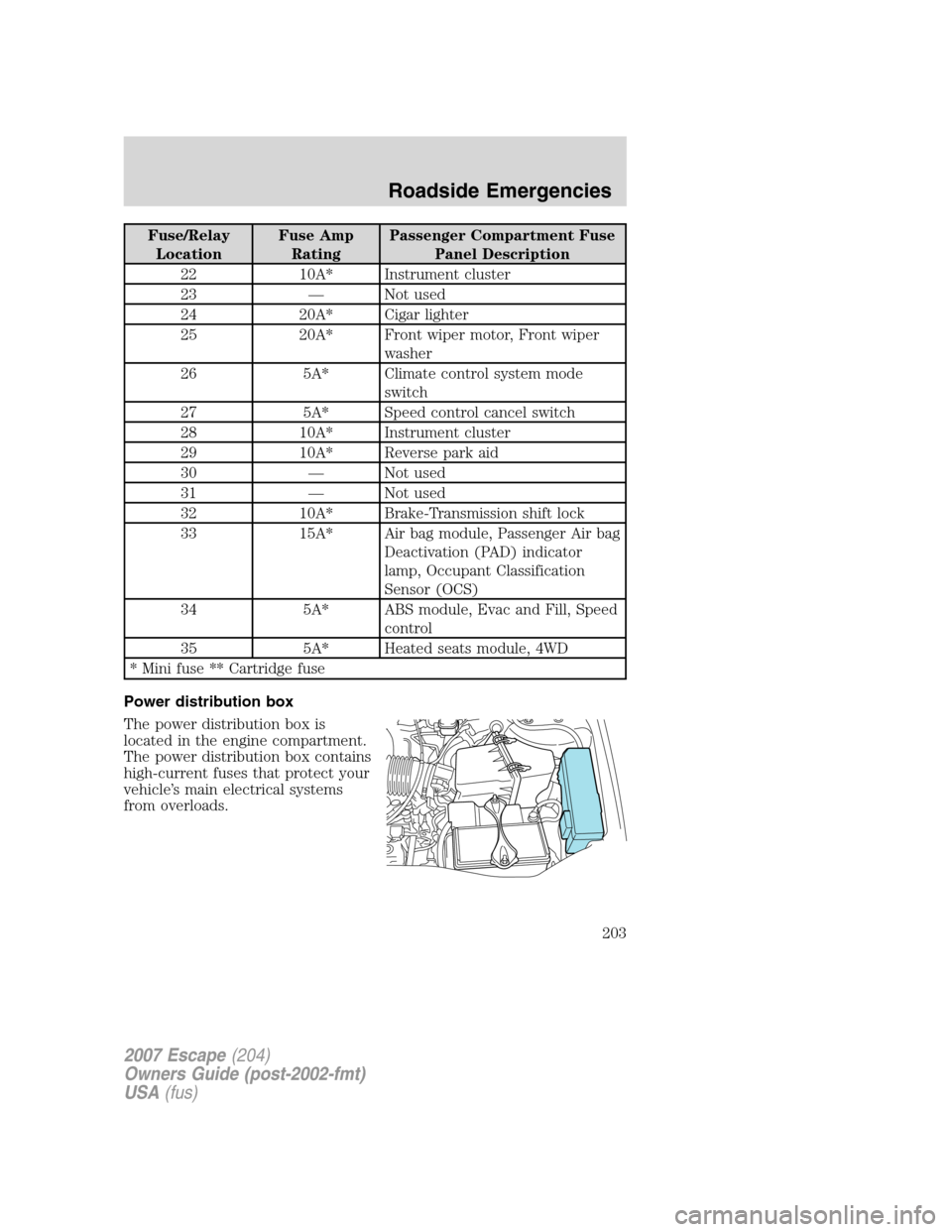

Page 203 of 288

FORD ESCAPE 2007 2.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
22 10A* Instrument cluster
23 — Not used
24 20A* Cigar lighter
25 20A* Front wiper motor, Front wiper
washer
26 5A* Cli

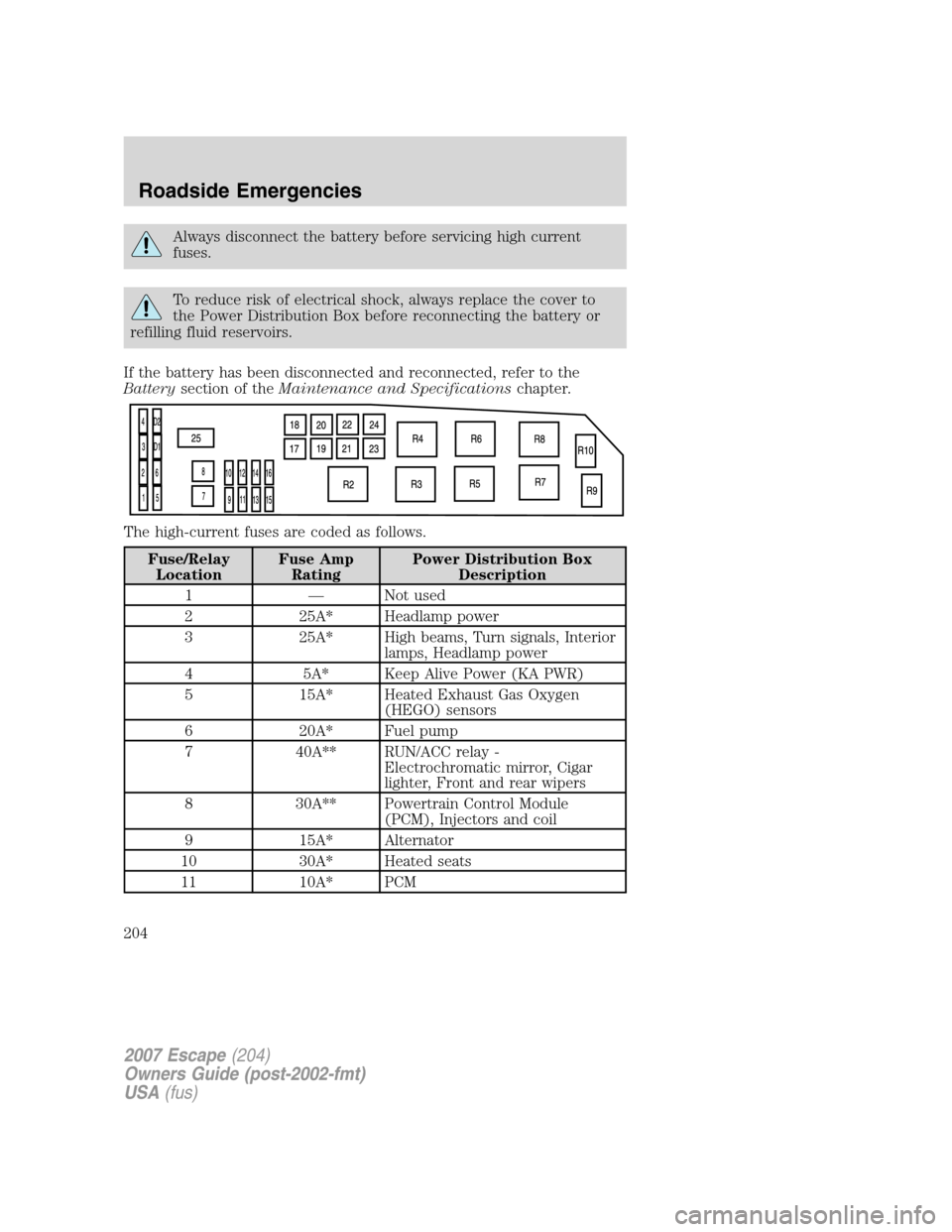

Page 204 of 288

FORD ESCAPE 2007 2.G Owners Manual Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilli

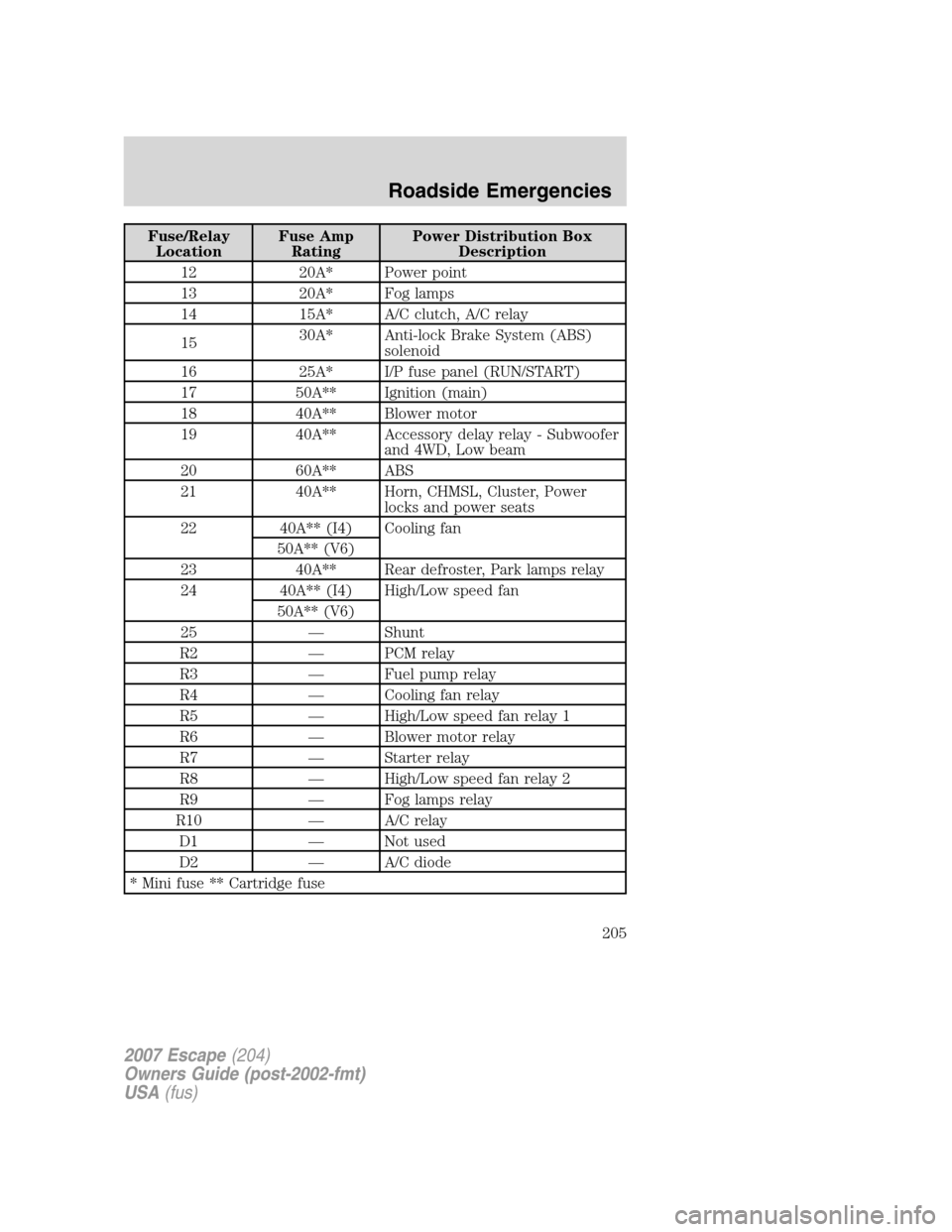

Page 205 of 288

FORD ESCAPE 2007 2.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
12 20A* Power point
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
1530A* Anti-lock Brake System (ABS)
solenoid
16 25A* I/P fuse p

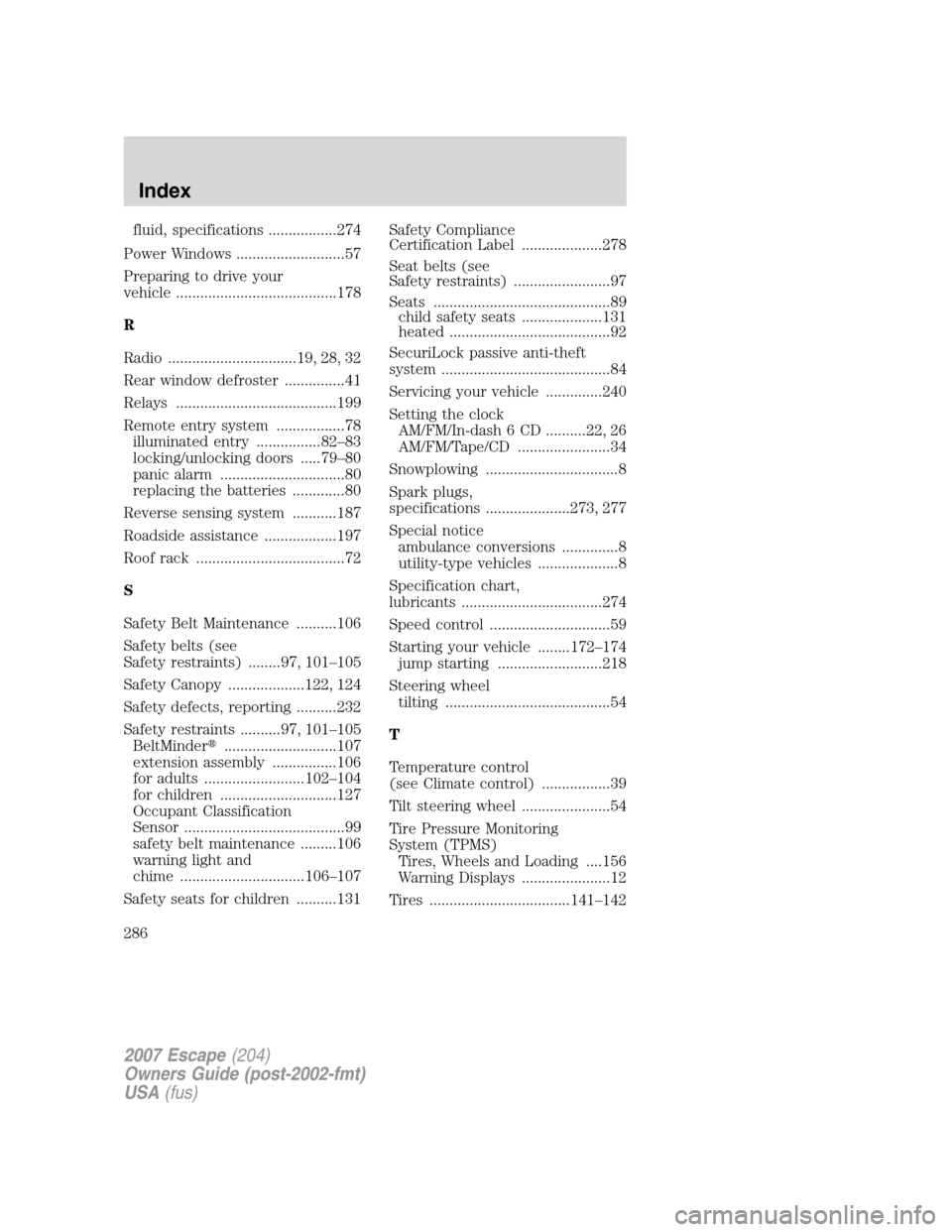

Page 286 of 288

FORD ESCAPE 2007 2.G Owners Manual fluid, specifications .................274
Power Windows ...........................57
Preparing to drive your
vehicle ........................................178
R
Radio .............................
