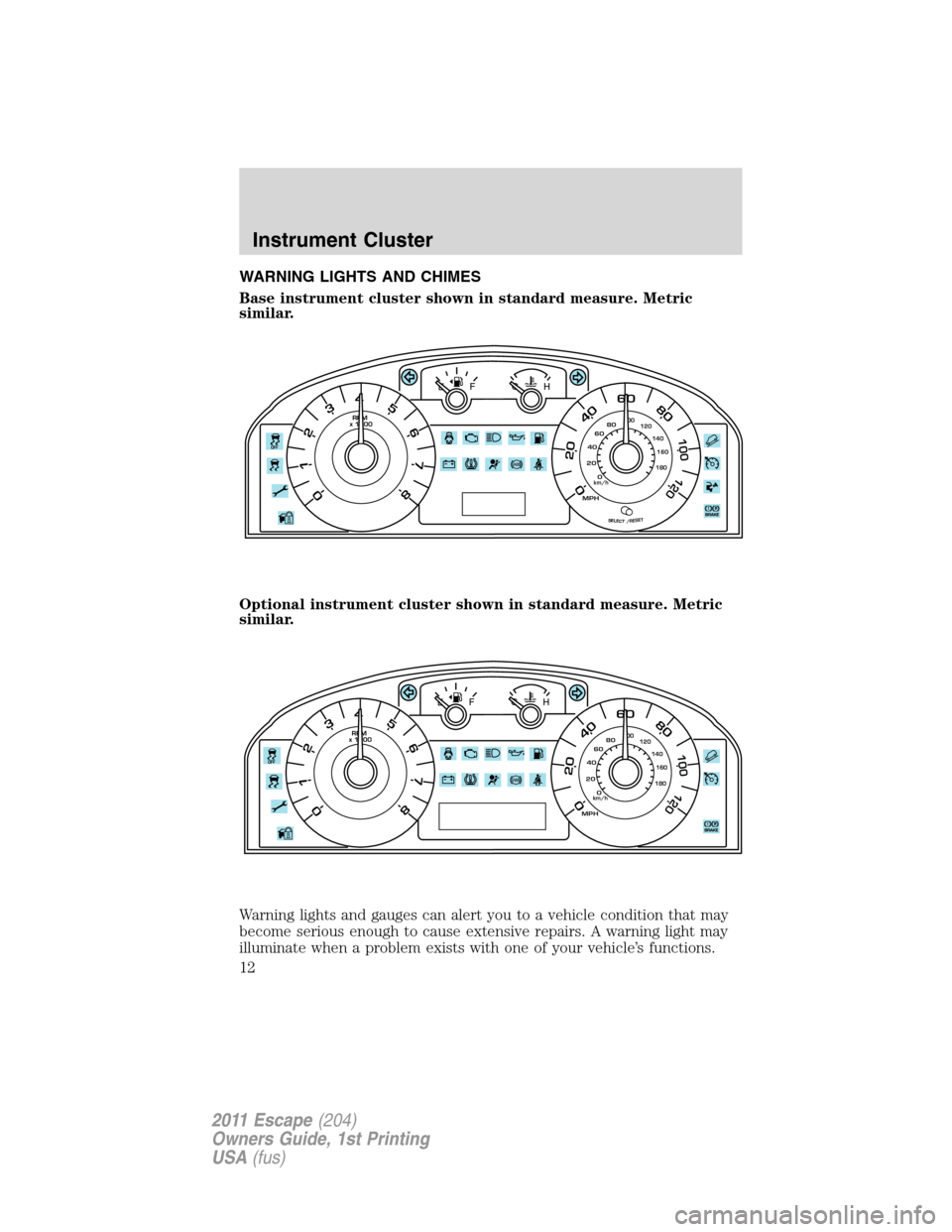

WARNING LIGHTS AND CHIMES
Base instrument cluster shown in standard measure. Metric
similar.
Optional instrument cluster shown in standard measure. Metric
similar.
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
100
60EFC
H
MPH
6
7
534
2
1
0
RPM
x 1000
80
20
4080
100
120km/h0 20406080
120
140
160
180
S
E
L
E
C
T/RESET
100
60EFC
H
MPH
6
7
534
2
1
0
RPM
x 1000
80
20
4080
100
120km/h0 20406080
120
140
160
180
Instrument Cluster
12
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:Theservice
engine soonindicator light
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
inspection/maintenance (I/M) testing. Normally, the service engine soon
light will stay on until the engine is cranked, then turn itself off if no
malfunctions are present. However, if after 15 seconds the service engine
soon light blinks eight times, it means that the vehicle is not ready for
I/M testing. See theReadiness for Inspection/Maintenance (I/M)
testingin theMaintenance and Specificationschapter.
Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Check fuel cap fill inlet (if
equipped):Illuminates when the
fuel fill inlet may not be properly
closed. Continued driving with this
light on may cause the Service
engine soon warning light to come
on, refer toEasy Fuel “no cap” fuel systemin theMaintenance and
Specificationchapter.
If CHECK FUEL FILL INLET is displayed in the message center, refer to
Message centerin theInstrument clusterchapter for more information.
Instrument Cluster
13
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the on position
when the engine is not running, or in a position between on and start, or
by applying the parking brake when the ignition is turned to the on
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level or a
brake system malfunction and the brake system should be inspected
immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
Airbag readiness:If this light fails
to illuminate when the ignition is
turned to on, continues to flash or
remains on, have the system
serviced immediately by your authorized dealer. A chime will sound
when there is a malfunction in the indicator light.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and Safety Restraints
chapter to activate/deactivate the Belt-Minderchime feature.
P!
BRAKE
ABS
Instrument Cluster
14
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Charging system:Illuminates when
the battery is not charging properly.
If it stays on while the engine is
running, there may be a malfunction
with the charging system. Contact your authorized dealer as soon as
possible. This indicates a problem with the electrical system or a related
component.
Engine oil pressure:Illuminates
when the oil pressure falls below the
normal range, refer toEngine oilin
theMaintenance and
Specificationschapter.
AdvanceTrac:Flashes
momentarily when the
AdvanceTrac/traction control is
active. If the light remains on, have
the system serviced immediately, refer to theDrivingchapter for more
information.
AdvanceTracoff:Illuminates solid
when the traction control has been
disabled by the driver. Flashes for
3 seconds and turns solid when
trailer sway is disabled by driver.
Refer to theDrivingchapter for more information.
Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTires, Wheels and Loadingchapter. When
the ignition is first turned to on, the light will illuminate for three
seconds to ensure the bulb is working. If the light does not turn on or
begins to flash, have the system inspected by your authorized dealer. For
more information on this system, refer toTire pressure monitoring
system (TPMS)in theTires, Wheels and Loadingchapter.
Low fuel:Illuminates when the fuel
level in the fuel tank is at or near
empty (refer toFuel gaugein this
chapter).
OFF
Instrument Cluster
15
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Speed control:Illuminates when
the speed control is engaged. Turns
off when the speed control system
is disengaged.
Overdrive cancel and grade
assist:Illuminates when the
overdrive function of the
transmission has been turned off
and the grade assist function has
been turned on, refer to theDrivingchapter.
Anti-theft system:Flashes when
the SecuriLockPassive Anti-theft
System has been activated.
Throttle control/Powertrain:
Illuminates when a powertrain fault
has been detected. Contact your
authorized dealer as soon as
possible.
Door ajar:Illuminates when the
ignition is in the on position and any
door is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on chime:Sounds when the parking brake is left on and
the vehicle is driven. If the warning stays on after the park brake is off,
contact your authorized dealer as soon as possible.
Instrument Cluster
16
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

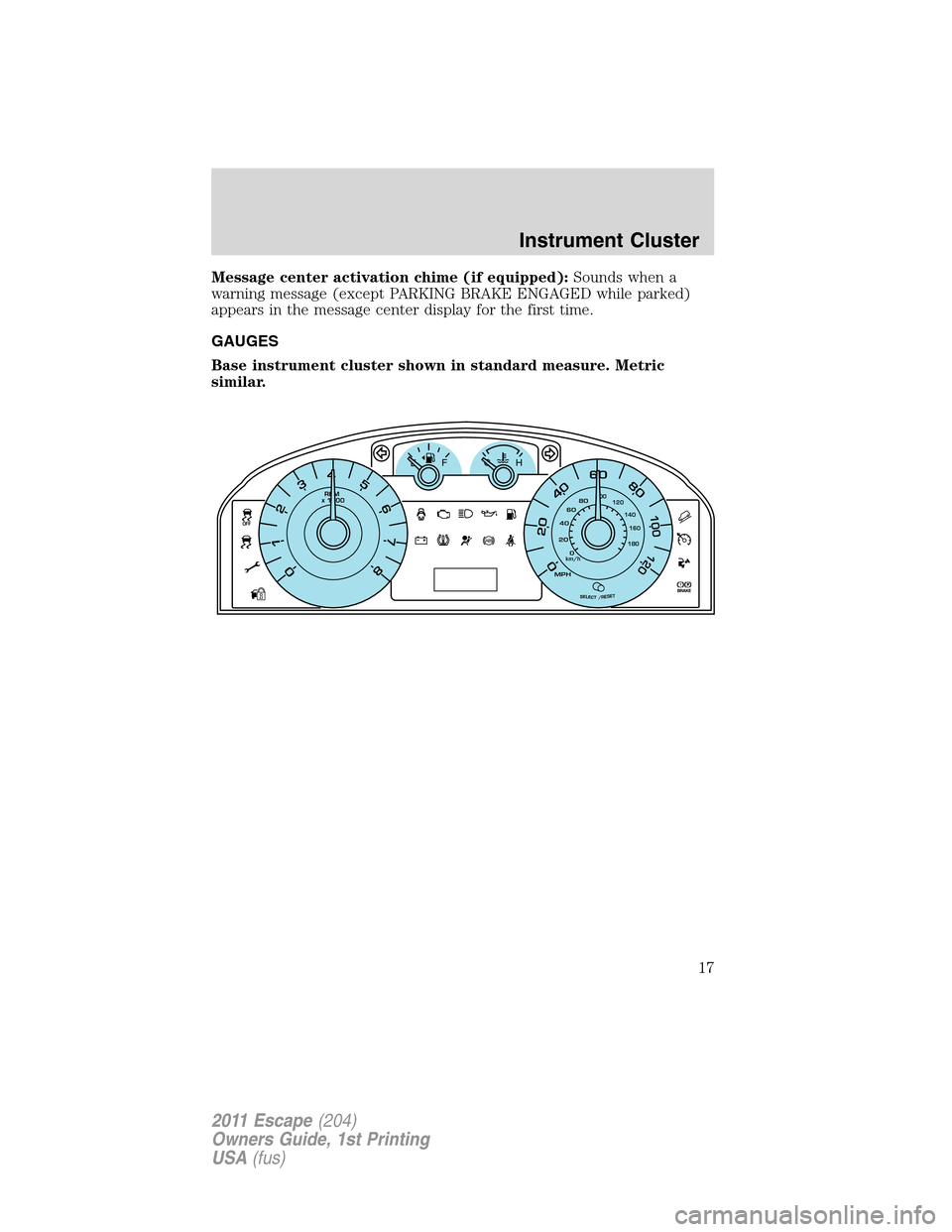

Message center activation chime (if equipped):Sounds when a
warning message (except PARKING BRAKE ENGAGED while parked)
appears in the message center display for the first time.
GAUGES
Base instrument cluster shown in standard measure. Metric
similar.
100
60EFC
H
MPH
6
7
534
2
1
0
RPM
x 1000
80
20
4080
100
120km/h0 20406080
120
140
160
180
S
E
L
E
C
T/RESET
Instrument Cluster
17
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

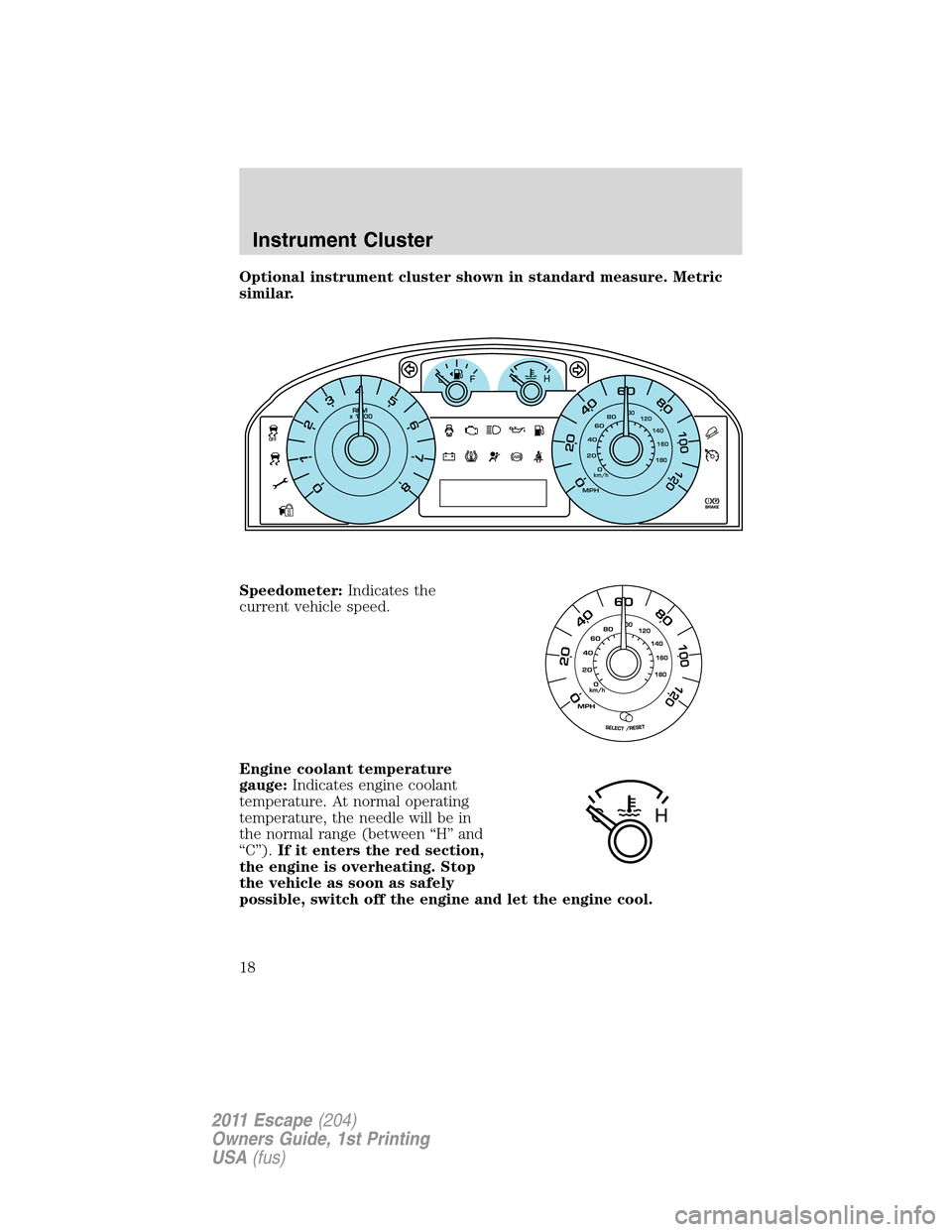

Optional instrument cluster shown in standard measure. Metric
similar.
Speedometer:Indicates the
current vehicle speed.
Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”).If it enters the red section,
the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
100
60EFC
H
MPH
6
7
534
2
1
0
RPM
x 1000
80
20
4080
100
120km/h0 20406080
120
140
160
180
Instrument Cluster
18
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

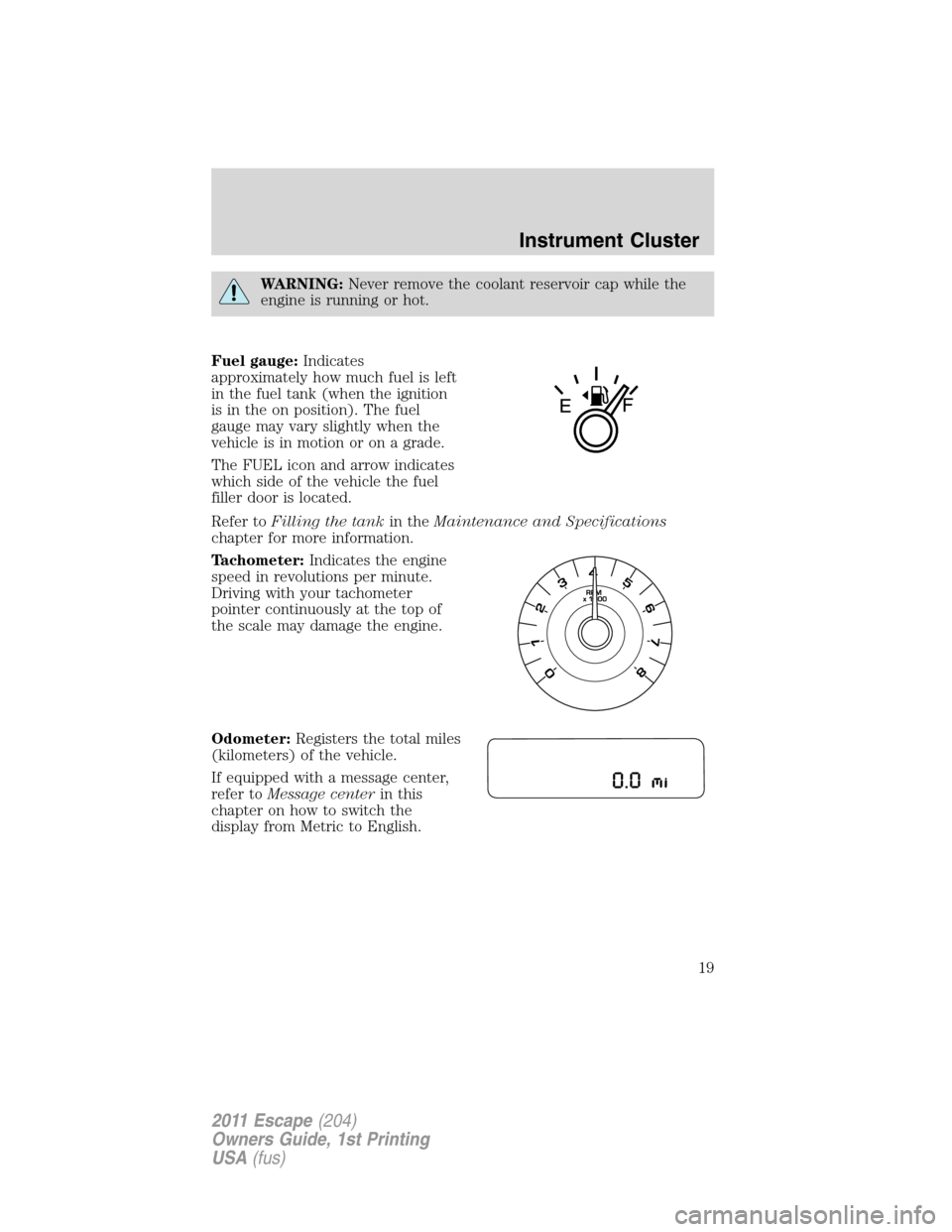

WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Fuel gauge:Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the on position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
The FUEL icon and arrow indicates
which side of the vehicle the fuel
filler door is located.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
Tachometer:Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Odometer:Registers the total miles
(kilometers) of the vehicle.
If equipped with a message center,
refer toMessage centerin this
chapter on how to switch the
display from Metric to English.
Instrument Cluster
19
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

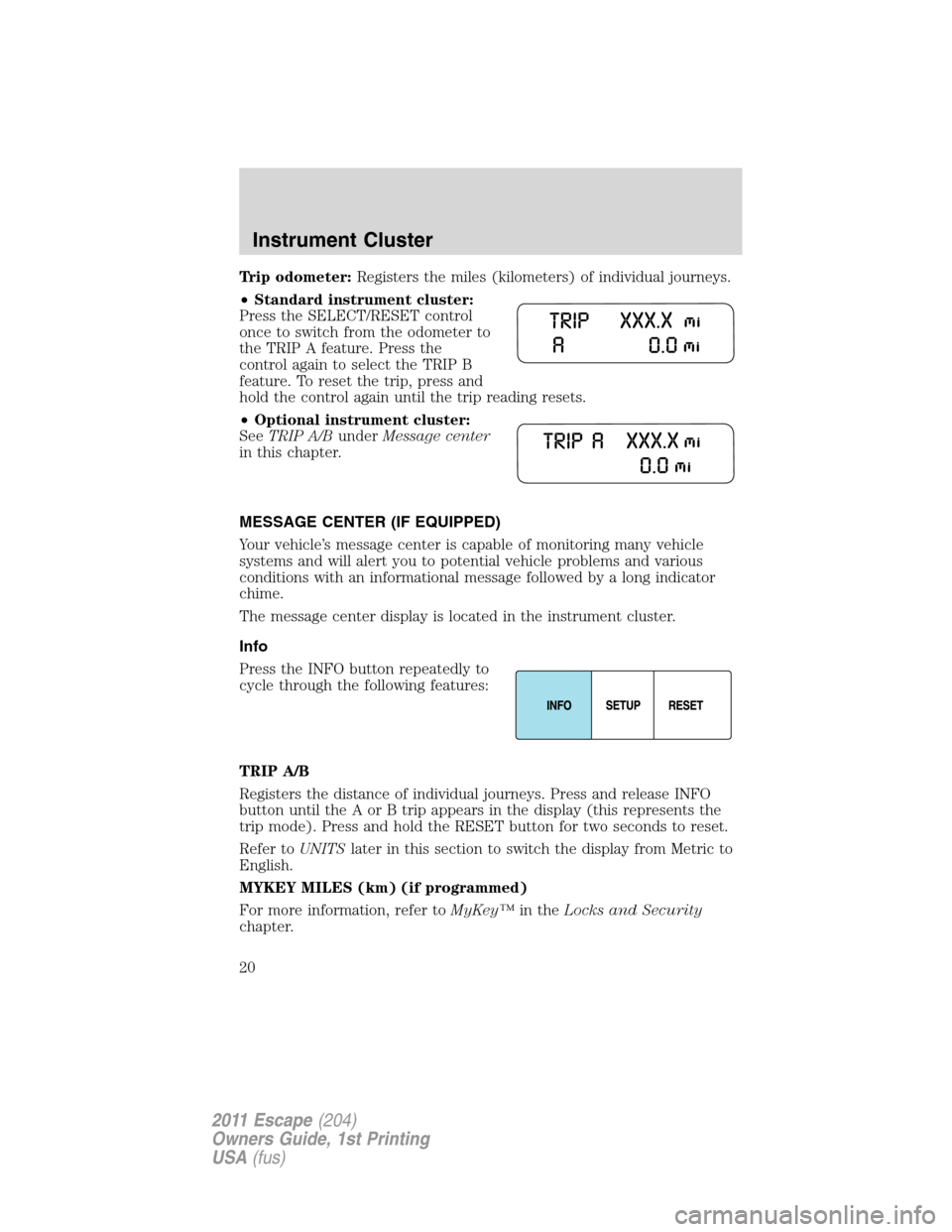

Trip odometer:Registers the miles (kilometers) of individual journeys.
•Standard instrument cluster:
Press the SELECT/RESET control
once to switch from the odometer to
the TRIP A feature. Press the
control again to select the TRIP B
feature. To reset the trip, press and
hold the control again until the trip reading resets.
•Optional instrument cluster:
SeeTRIP A/BunderMessage center
in this chapter.
MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with an informational message followed by a long indicator
chime.
The message center display is located in the instrument cluster.
Info
Press the INFO button repeatedly to
cycle through the following features:
TRIP A/B
Registers the distance of individual journeys. Press and release INFO
button until the A or B trip appears in the display (this represents the
trip mode). Press and hold the RESET button for two seconds to reset.
Refer toUNITSlater in this section to switch the display from Metric to
English.
MYKEY MILES (km) (if programmed)
For more information, refer toMyKey™in theLocks and Security
chapter.
Instrument Cluster
20
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)
