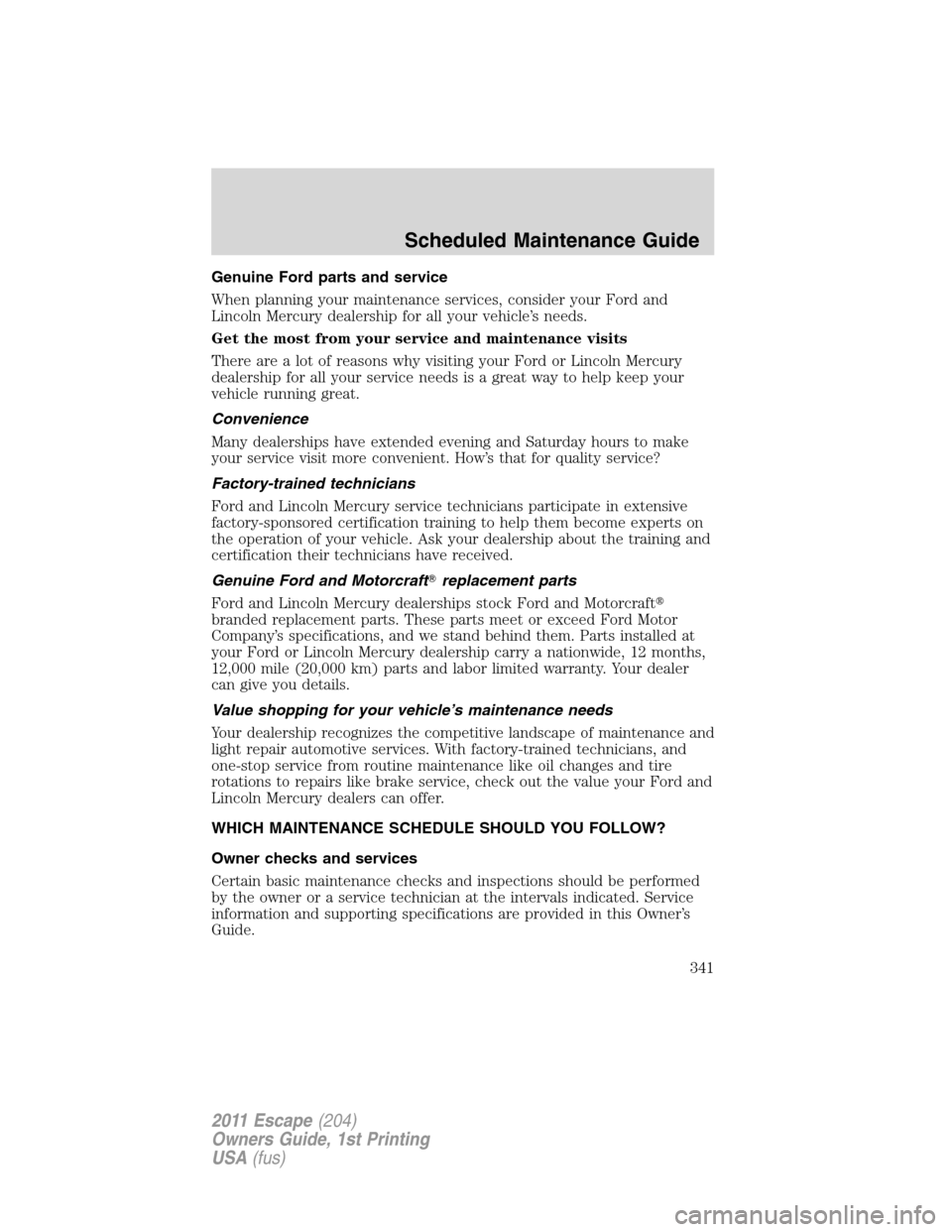

Genuine Ford parts and service
When planning your maintenance services, consider your Ford and
Lincoln Mercury dealership for all your vehicle’s needs.
Get the most from your service and maintenance visits
There are a lot of reasons why visiting your Ford or Lincoln Mercury
dealership for all your service needs is a great way to help keep your
vehicle running great.
Convenience
Many dealerships have extended evening and Saturday hours to make
your service visit more convenient. How’s that for quality service?
Factory-trained technicians
Ford and Lincoln Mercury service technicians participate in extensive
factory-sponsored certification training to help them become experts on
the operation of your vehicle. Ask your dealership about the training and
certification their technicians have received.
Genuine Ford and Motorcraftreplacement parts
Ford and Lincoln Mercury dealerships stock Ford and Motorcraft
branded replacement parts. These parts meet or exceed Ford Motor
Company’s specifications, and we stand behind them. Parts installed at
your Ford or Lincoln Mercury dealership carry a nationwide, 12 months,
12,000 mile (20,000 km) parts and labor limited warranty. Your dealer
can give you details.
Value shopping for your vehicle’s maintenance needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your Ford and
Lincoln Mercury dealers can offer.
WHICH MAINTENANCE SCHEDULE SHOULD YOU FOLLOW?
Owner checks and services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this Owner’s
Guide.
Scheduled Maintenance Guide
341
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help ensure your vehicle keeps
running great.
Maximum oil change interval
❑As indicated by the instrument cluster message center (can be up to one year or 10,000 miles [16,000 km])
Engine coolant change interval
❑6 years or 100,000 miles (160,000 km) - change engine coolant (whichever comes first)❑After initial change - change engine coolant every 3 years or 50,000 miles (80,000 km).
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, airbag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
Scheduled Maintenance Guide
342
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

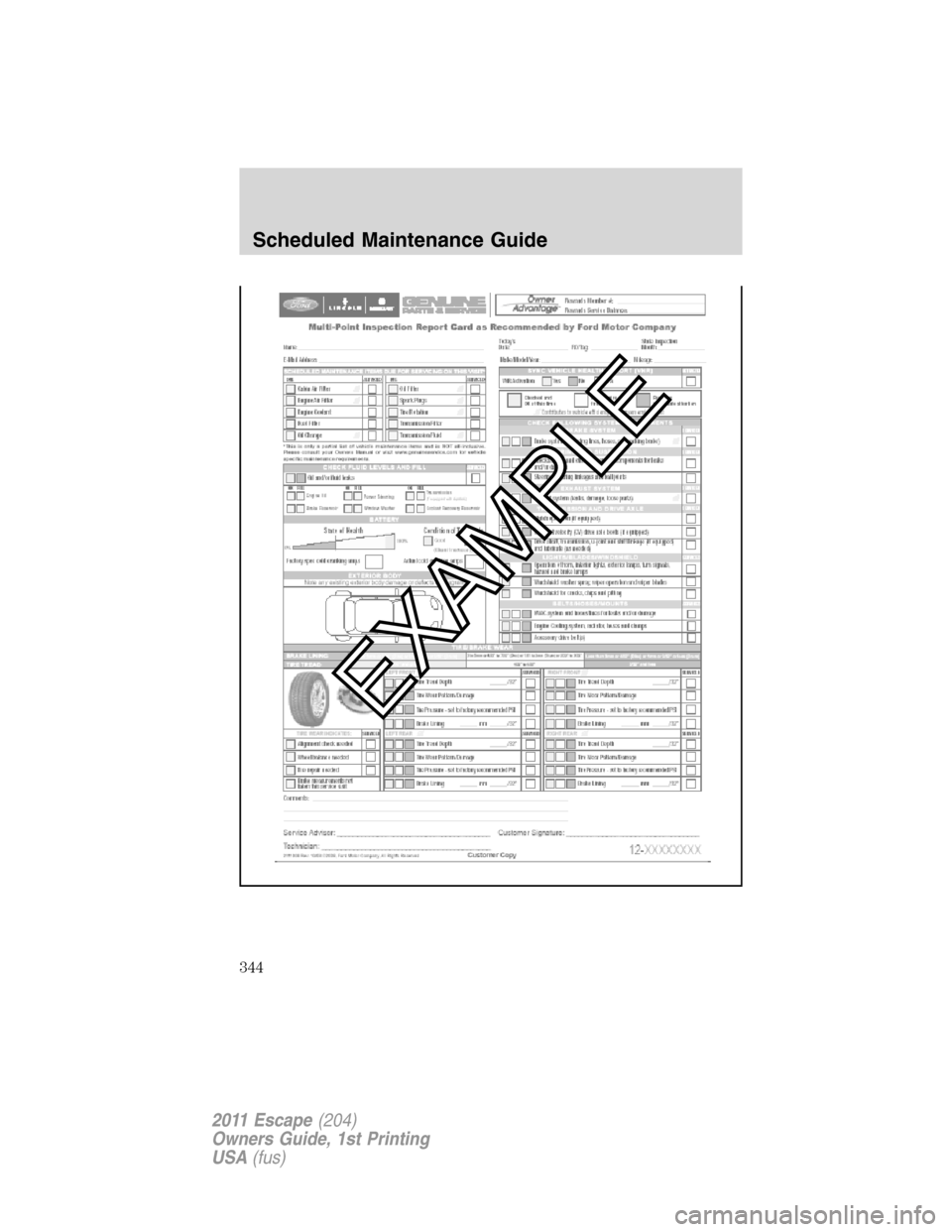

Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehicle. It’s
your checklist that gives you immediate feedback on the overall
condition of your vehicle. You’ll know what’s been checked, what’s okay,
as well as those things that may require future or immediate attention.
The multi-point vehicle inspection is one more way to keep your vehicle
running great!
Multi-point inspection - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
343
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Scheduled Maintenance Guide
344
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

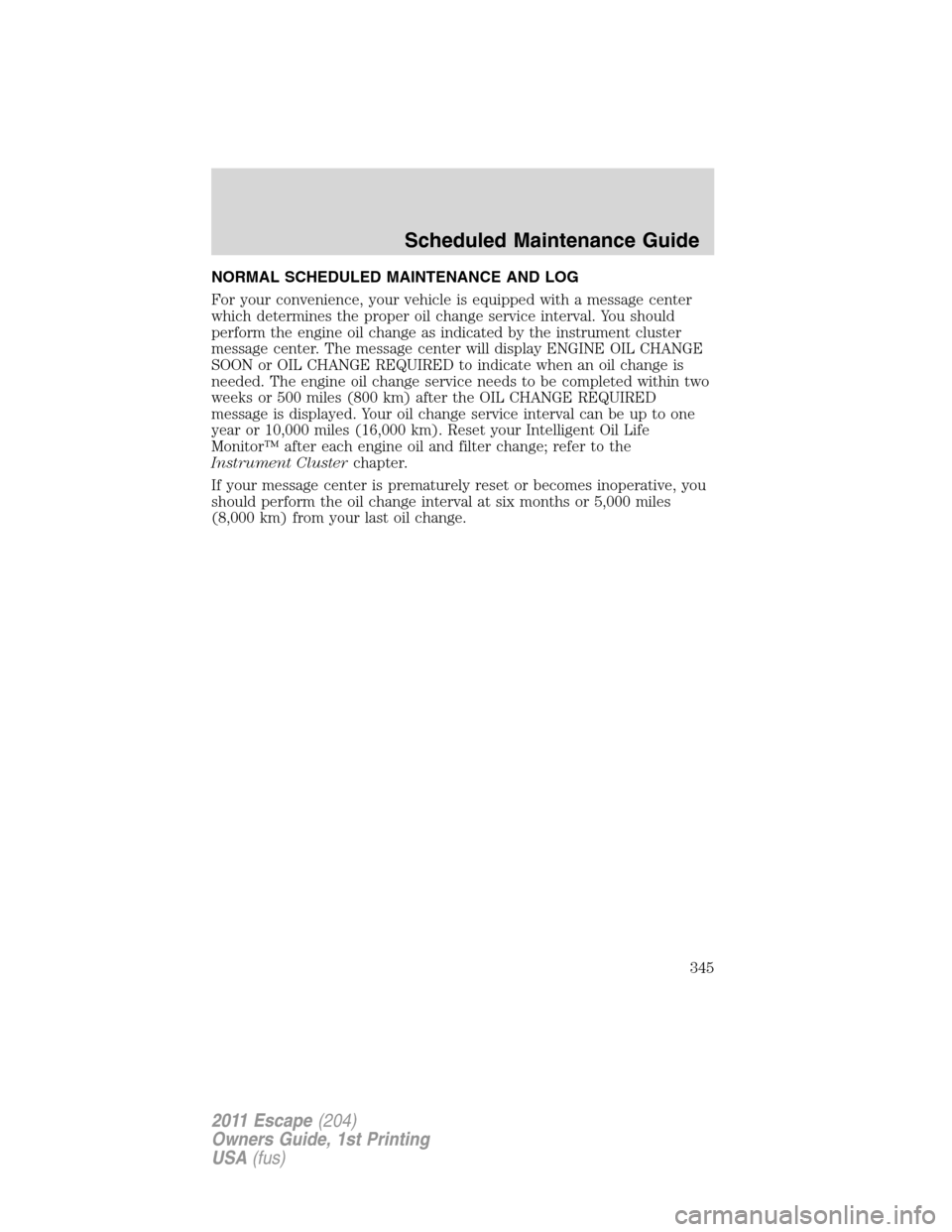

NORMAL SCHEDULED MAINTENANCE AND LOG
For your convenience, your vehicle is equipped with a message center
which determines the proper oil change service interval. You should
perform the engine oil change as indicated by the instrument cluster
message center. The message center will display ENGINE OIL CHANGE
SOON or OIL CHANGE REQUIRED to indicate when an oil change is
needed. The engine oil change service needs to be completed within two
weeks or 500 miles (800 km) after the OIL CHANGE REQUIRED
message is displayed. Your oil change service interval can be up to one
year or 10,000 miles (16,000 km). Reset your Intelligent Oil Life
Monitor™ after each engine oil and filter change; refer to the
Instrument Clusterchapter.
If your message center is prematurely reset or becomes inoperative, you
should perform the oil change interval at six months or 5,000 miles
(8,000 km) from your last oil change.
Scheduled Maintenance Guide
345
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

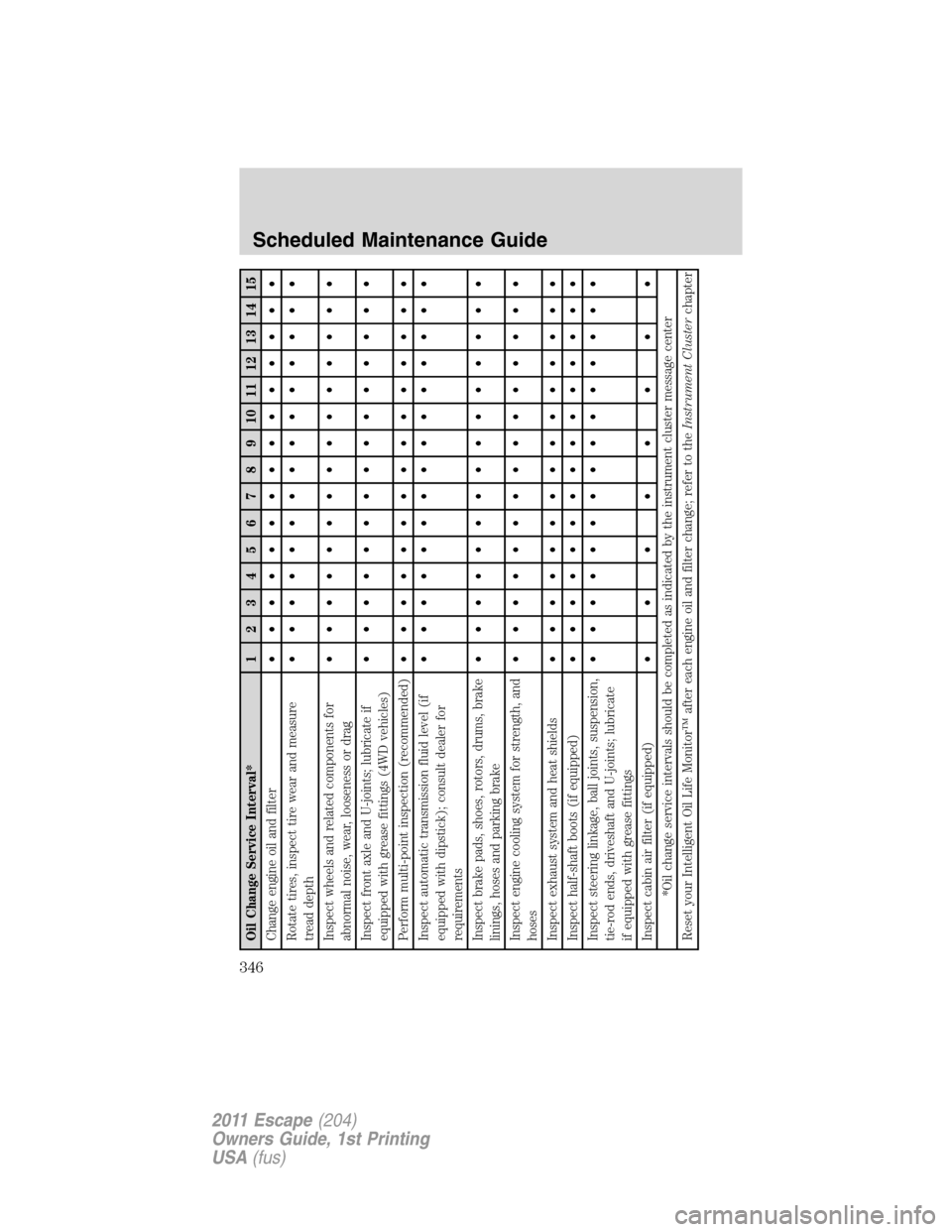

Oil Change Service Interval* 123456789101112131415
Change engine oil and filter• ••••••••••••••
Rotate tires, inspect tire wear and measure
tread depth• ••••••••••••••
Inspect wheels and related components for
abnormal noise, wear, looseness or drag• ••••••••••••••
Inspect front axle and U-joints; lubricate if
equipped with grease fittings (4WD vehicles)• ••••••••••••••
Perform multi-point inspection (recommended)• ••••••••••••••
Inspect automatic transmission fluid level (if
equipped with dipstick); consult dealer for
requirements• ••••••••••••••
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake• ••••••••••••••
Inspect engine cooling system for strength, and
hoses• ••••••••••••••
Inspect exhaust system and heat shields• ••••••••••••••
Inspect half-shaft boots (if equipped)• ••••••••••••••
Inspect steering linkage, ball joints, suspension,
tie-rod ends, driveshaft and U-joints; lubricate
if equipped with grease fittings• ••••••••••••••
Inspect cabin air filter (if equipped)• •••••••
*Oil change service intervals should be completed as indicated by the instrument cluster message center
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter change; refer to theInstrument Clusterchapter
Scheduled Maintenance Guide
346
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Perform the services noted in the following table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Every 20,000 miles
(32,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace climate-controlled seat filter
(if equipped)
Replace engine air filter
Every 60,000 miles
(96,000 km)Change automatic transmission fluid and filter on
5–speed TorqShifttransmission; consult dealer
for requirements
Replace front wheel bearing grease/grease seal if
non-sealed bearings are used (2WD vehicles)
Every 100,000 miles
(160,000 km)Change engine coolant
1
Change manual transmission fluid
(except Escape)
Change rear axle fluid (Dana axles only)
Replace spark plugs
Inspect accessory drive belt(s)
2
Scheduled Maintenance Guide
347
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

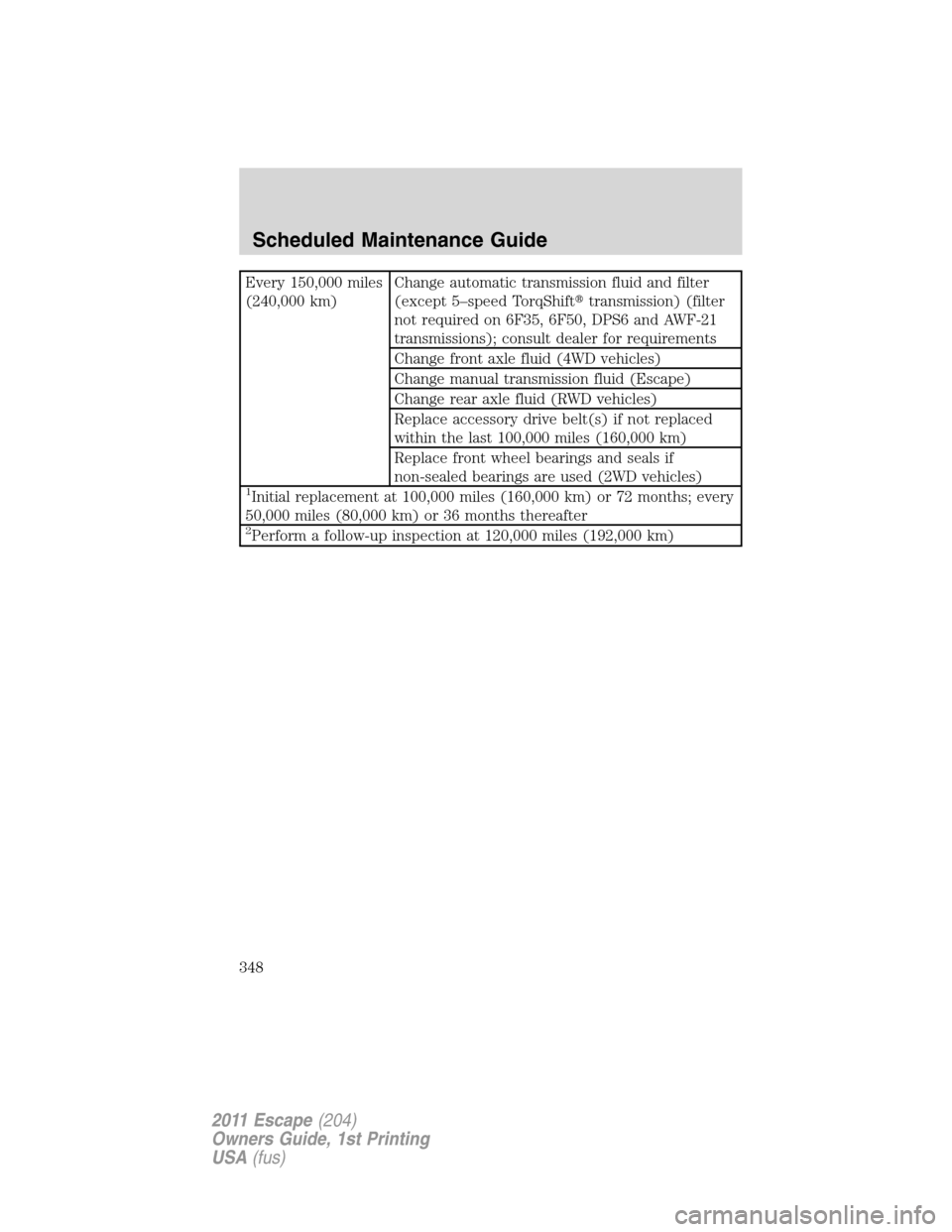

Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(except 5–speed TorqShifttransmission) (filter
not required on 6F35, 6F50, DPS6 and AWF-21
transmissions); consult dealer for requirements
Change front axle fluid (4WD vehicles)
Change manual transmission fluid (Escape)
Change rear axle fluid (RWD vehicles)
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace front wheel bearings and seals if
non-sealed bearings are used (2WD vehicles)
1Initial replacement at 100,000 miles (160,000 km) or 72 months; every
50,000 miles (80,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance Guide
348
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

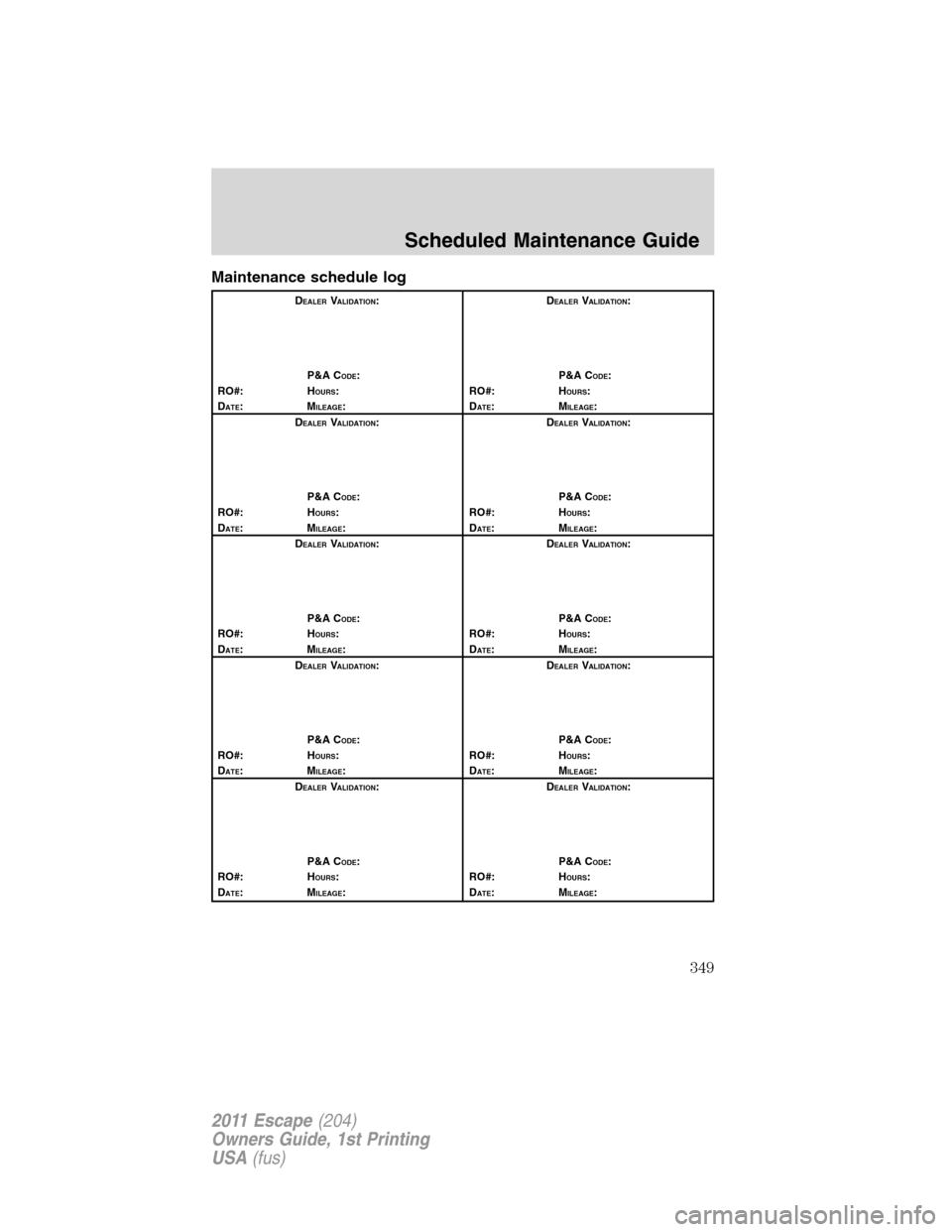

Maintenance schedule log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
349
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

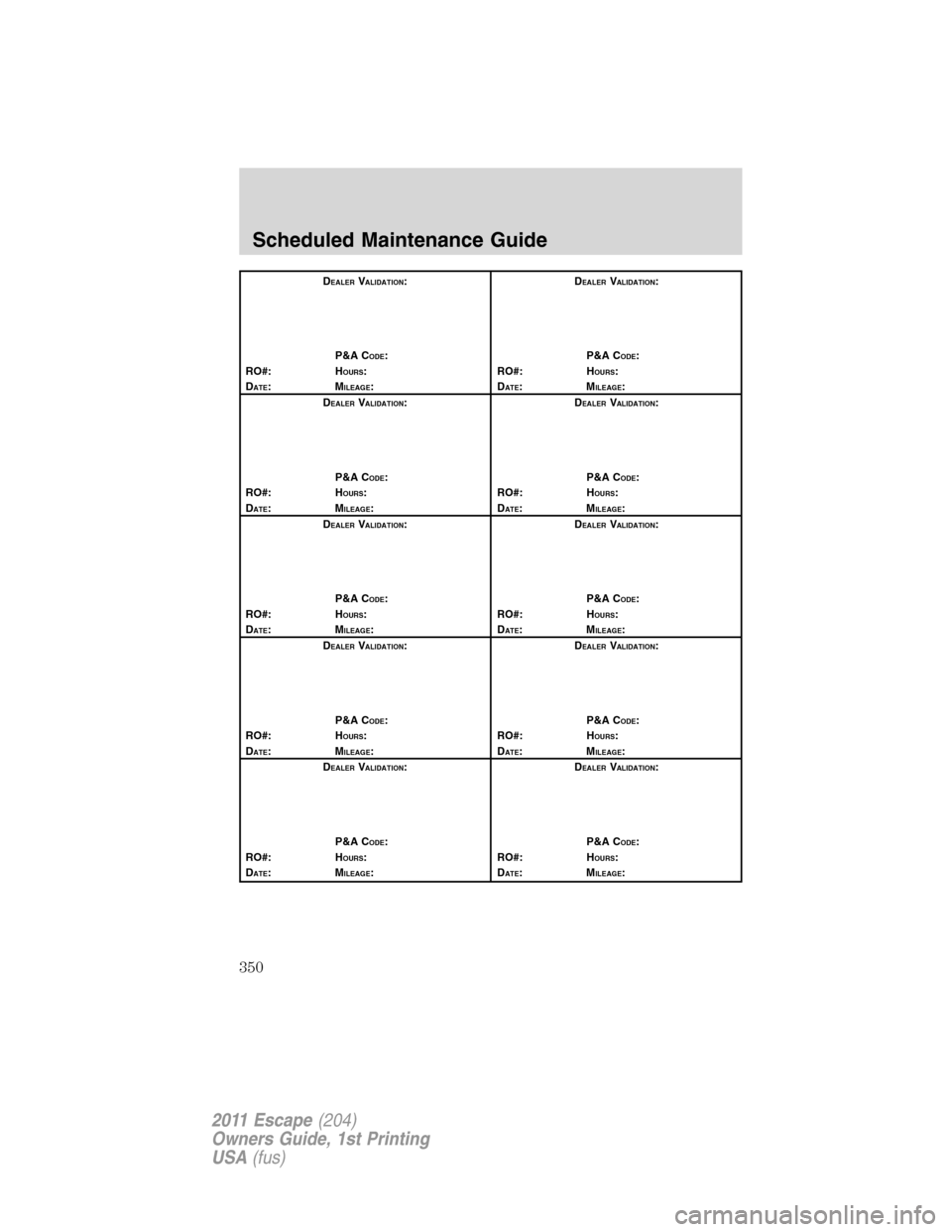

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
350
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)
