Page 231 of 486

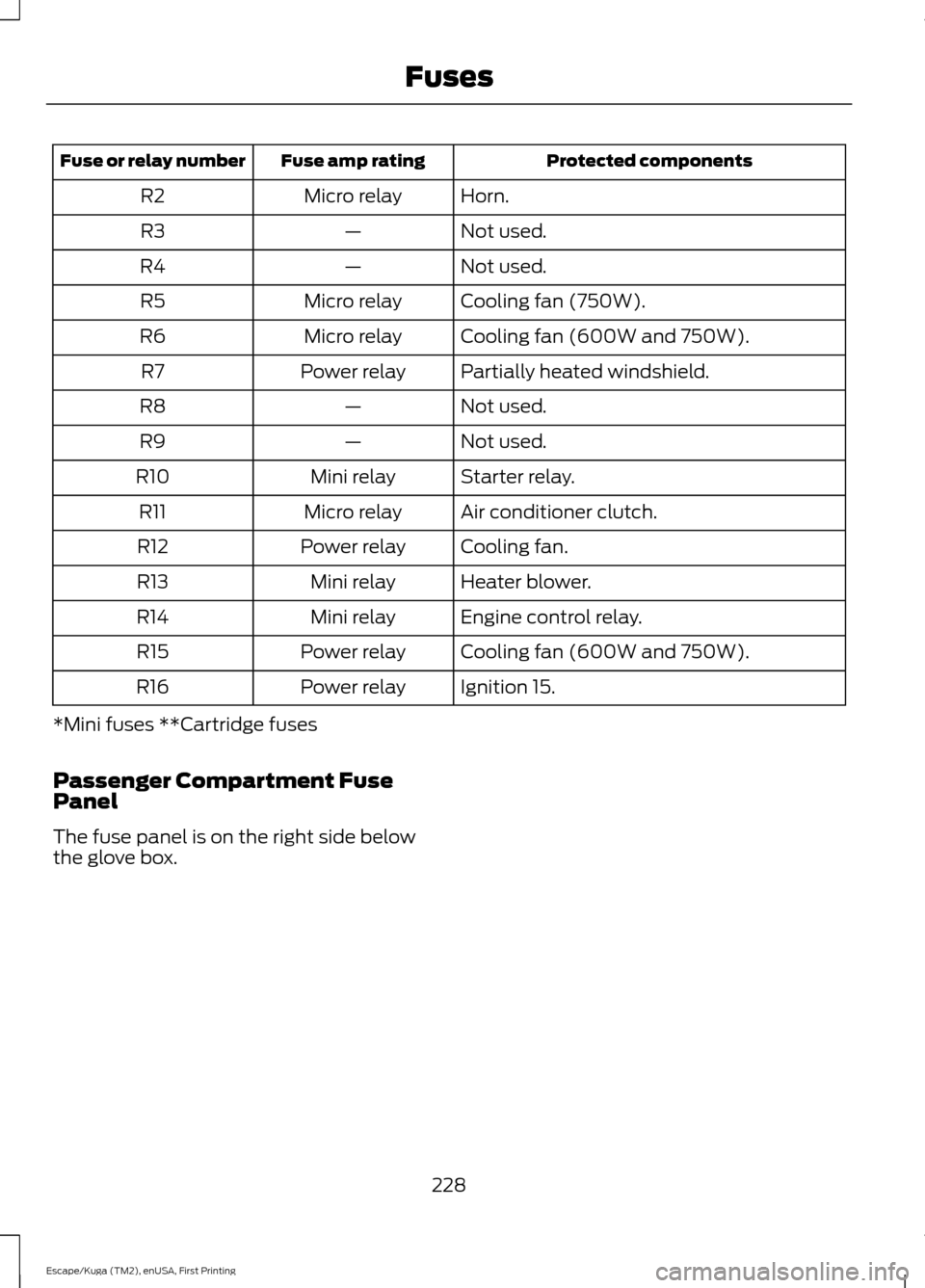

FORD ESCAPE 2017 3.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Horn.
Micro relay
R2
Not used.
—
R3
Not used.
—
R4
Cooling fan (750W).
Micro relay
R5
Cooling fan (600W and 750W).
Micro relay
R6
Partiall

Page 232 of 486

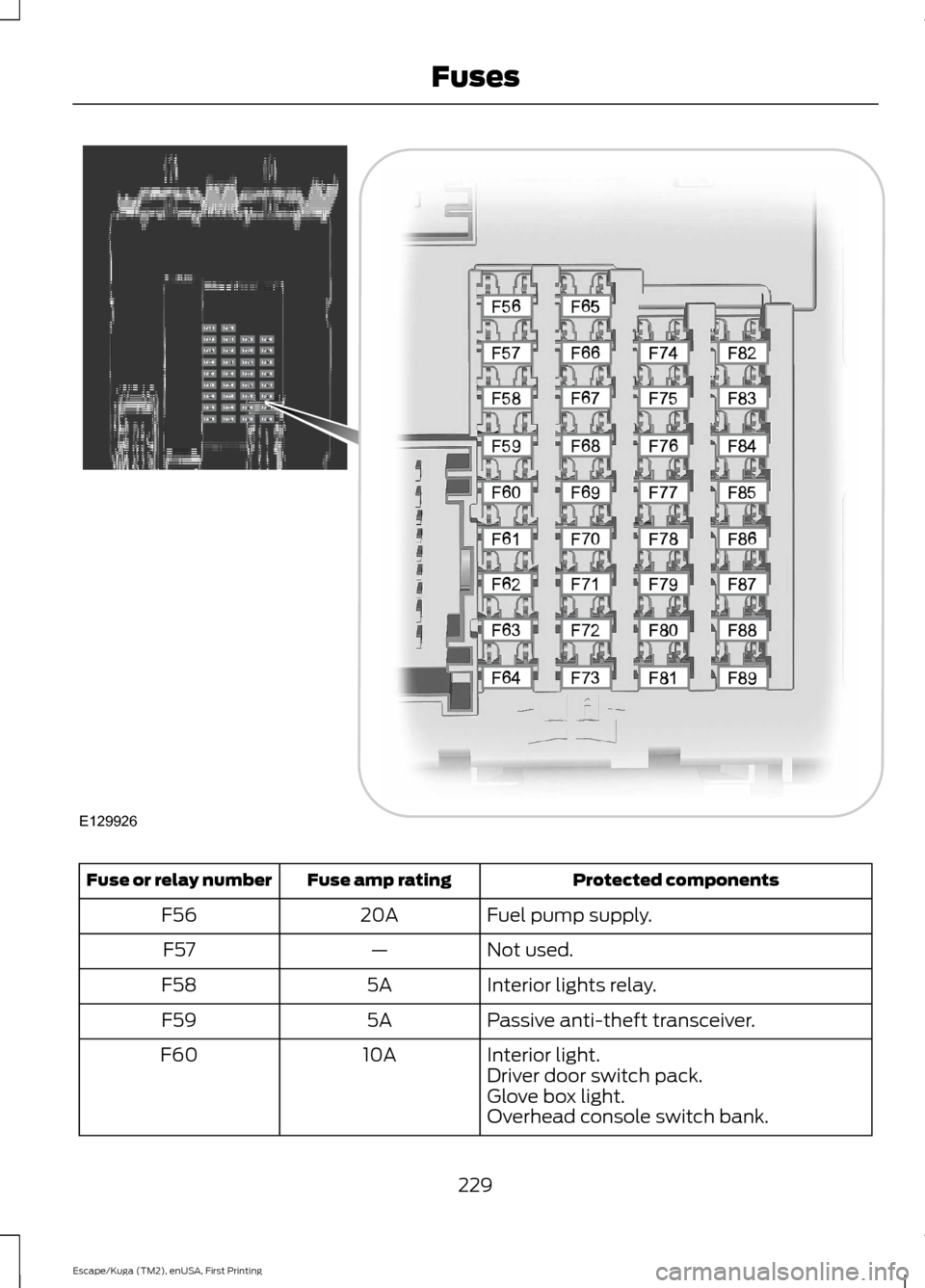

FORD ESCAPE 2017 3.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Fuel pump supply.
20A
F56
Not used.
—
F57
Interior lights relay.
5A
F58
Passive anti-theft transceiver.
5A
F59
Interior light.
10A
F60
Drive

Page 233 of 486

FORD ESCAPE 2017 3.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Cigar lighter.
20A
F61
Power point.
Rain sensor module.
5A
F62
Light sensor module.
Front sensing module.
10A
F63
Forward looking radar.
Not u

Page 234 of 486

FORD ESCAPE 2017 3.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Moonroof supply.
20A
F80
Interior motion sensor supply.
—
F81
Radio frequency receiver supply.
Panorama roof power/open.
Washer pump.
20A
F8

Page 235 of 486

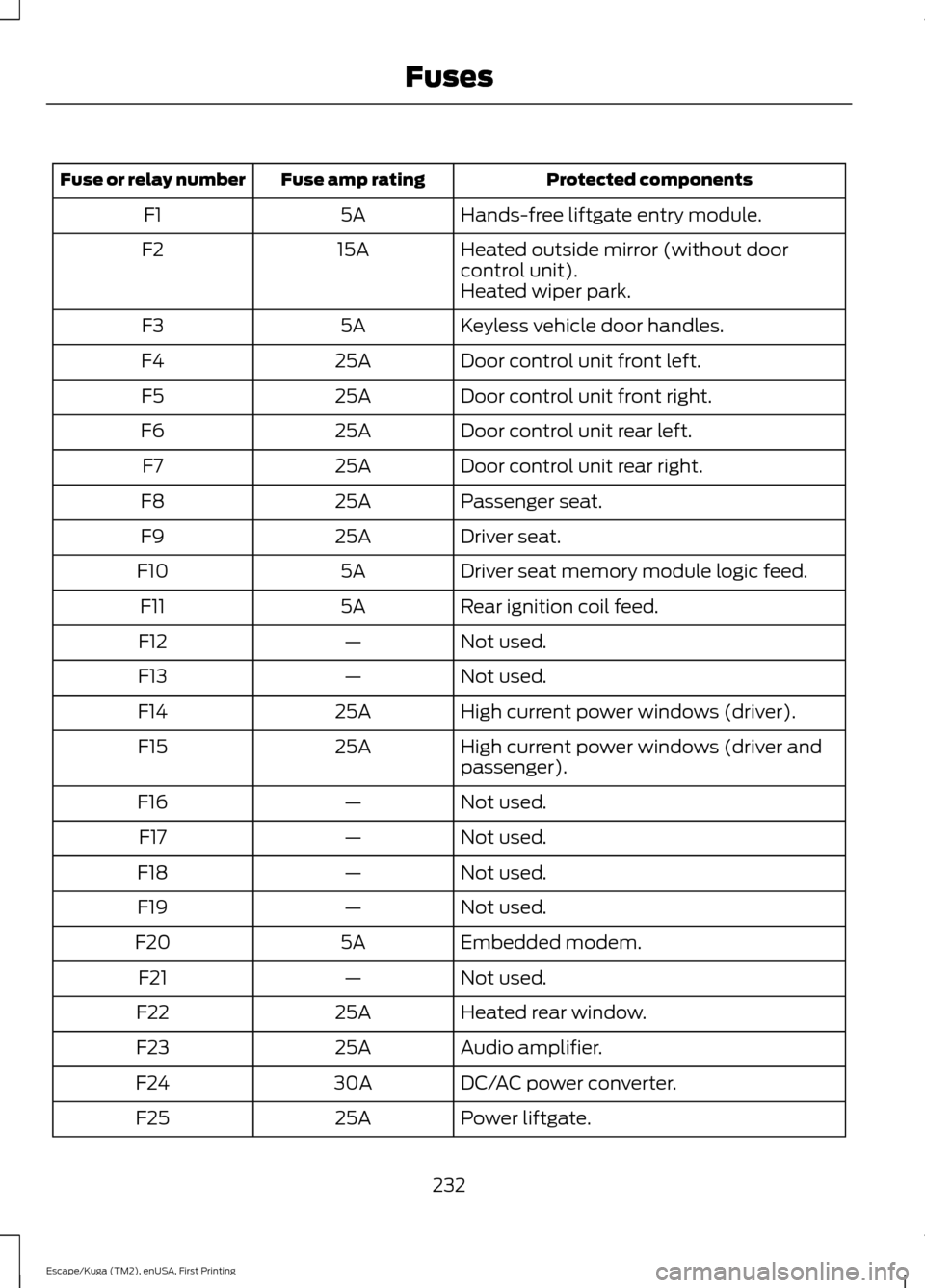

FORD ESCAPE 2017 3.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Hands-free liftgate entry module.
5A
F1
Heated outside mirror (without door
control unit).
15A
F2
Heated wiper park.
Keyless vehicle door hand

Page 236 of 486

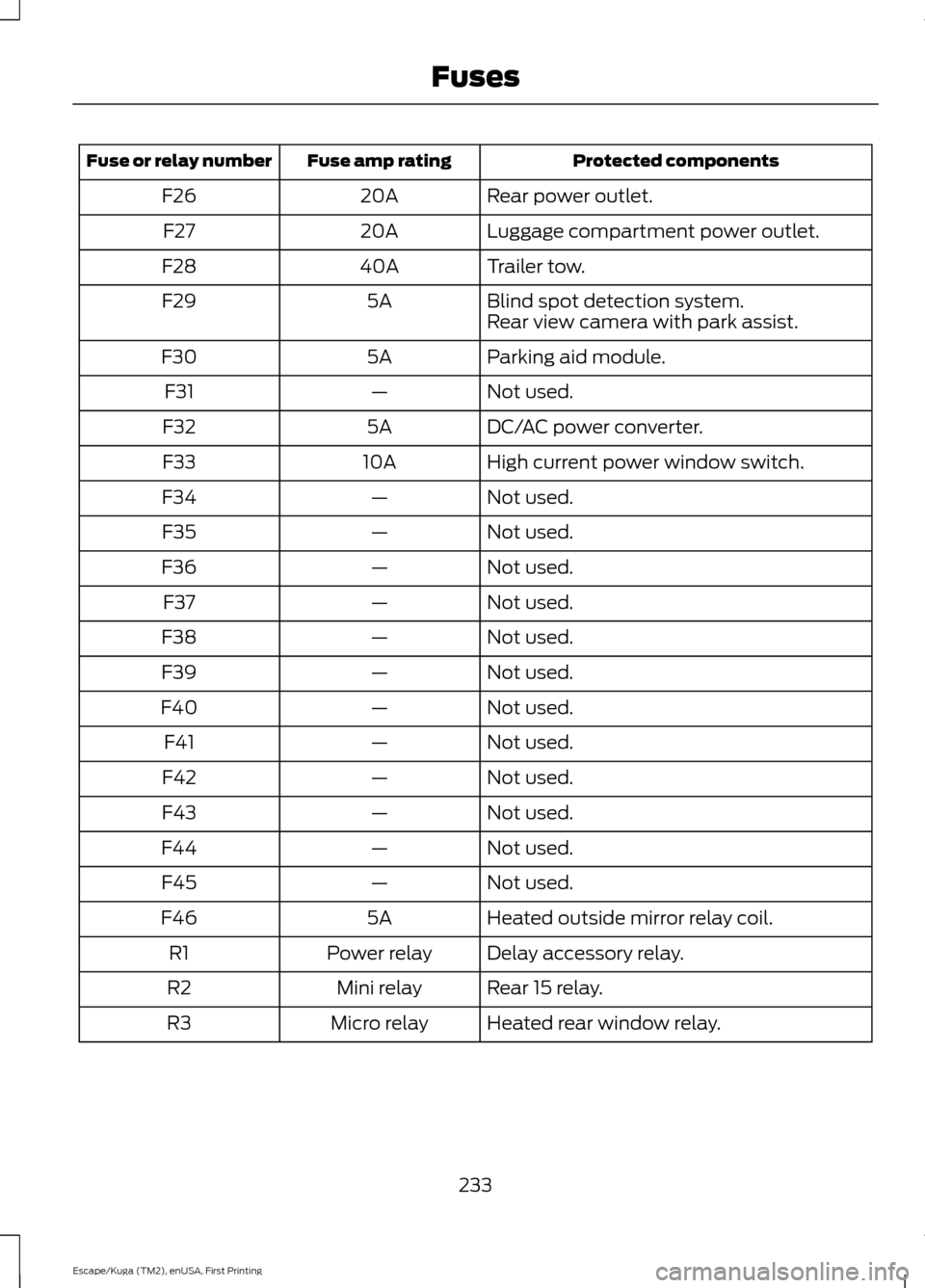

FORD ESCAPE 2017 3.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Rear power outlet.
20A
F26
Luggage compartment power outlet.
20A
F27
Trailer tow.
40A
F28
Blind spot detection system.
5A
F29
Rear view camera

Page 237 of 486

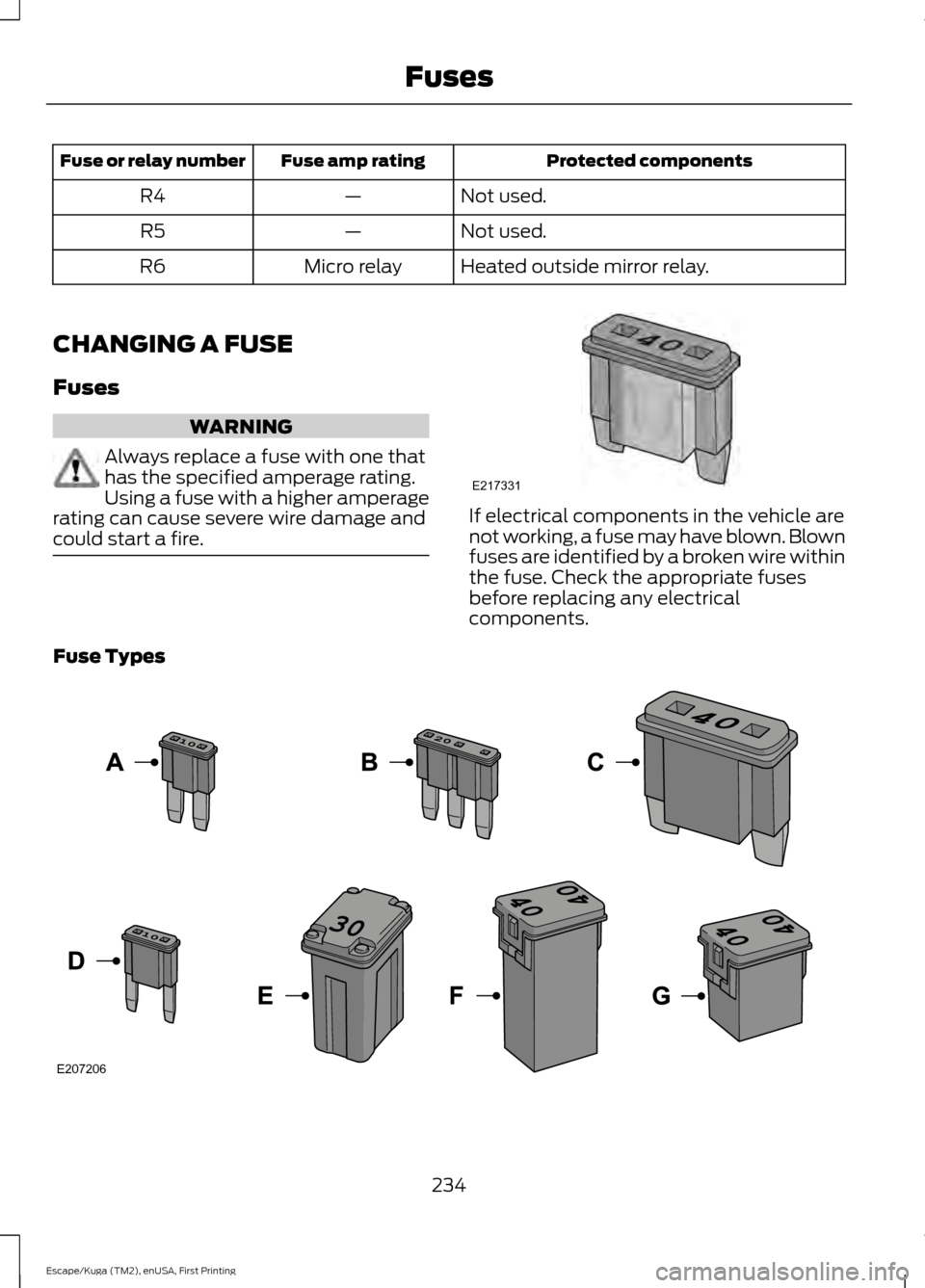

FORD ESCAPE 2017 3.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
R4
Not used.
—
R5
Heated outside mirror relay.
Micro relay
R6
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one tha

Page 238 of 486

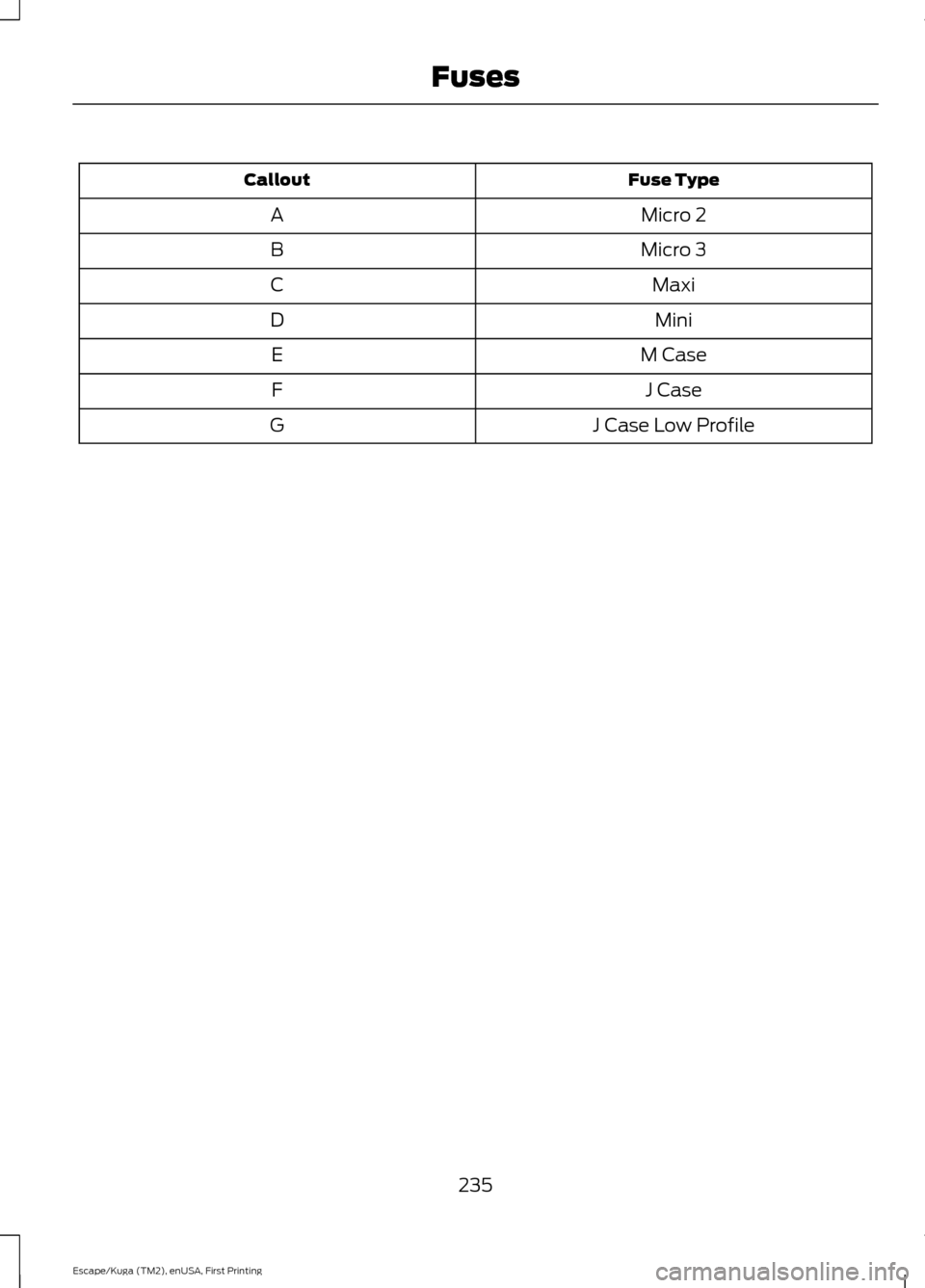

FORD ESCAPE 2017 3.G Owners Manual Fuse Type
Callout
Micro 2
A
Micro 3
B
Maxi
C
Mini
D
M Case
E
J Case
F
J Case Low Profile
G
235
Escape/Kuga (TM2), enUSA, First Printing Fuses

Page 239 of 486

FORD ESCAPE 2017 3.G Owners Manual GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their prof

Page 240 of 486

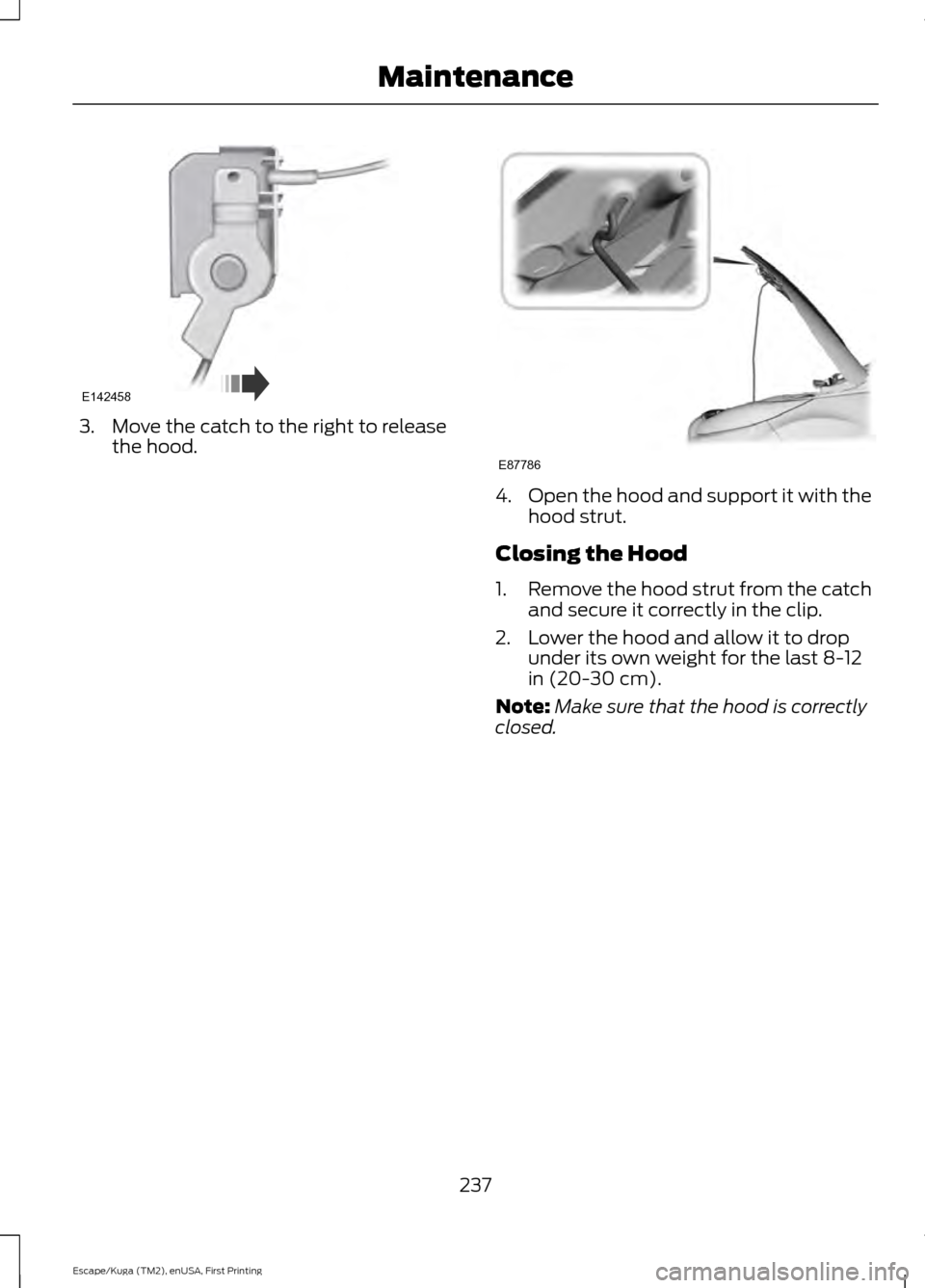

FORD ESCAPE 2017 3.G Owners Manual 3. Move the catch to the right to release
the hood. 4.
Open the hood and support it with the
hood strut.
Closing the Hood
1. Remove the hood strut from the catch
and secure it correctly in the clip.
2
