Page 271 of 486

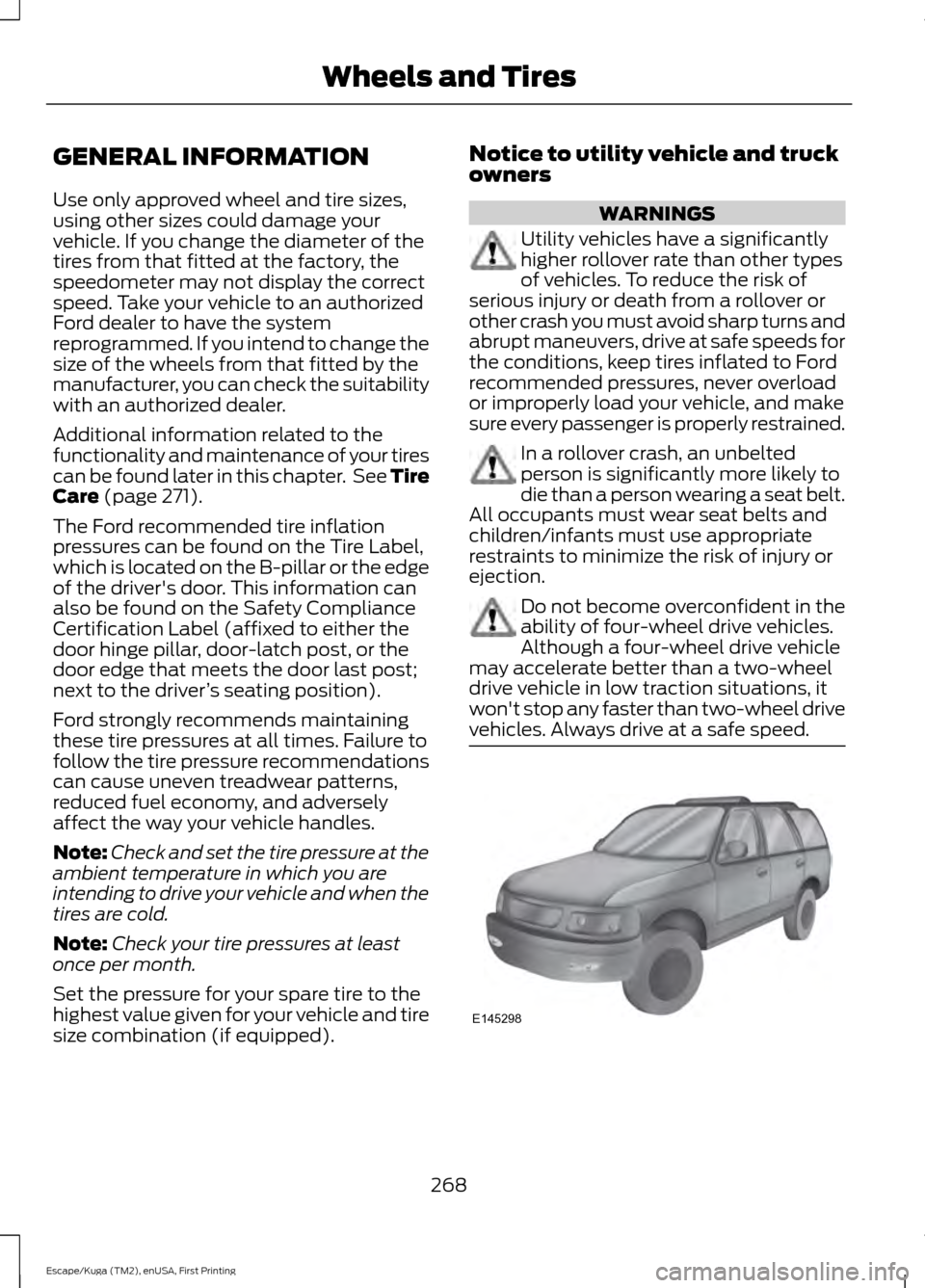

FORD ESCAPE 2017 3.G Owners Manual GENERAL INFORMATION
Use only approved wheel and tire sizes,
using other sizes could damage your
vehicle. If you change the diameter of the
tires from that fitted at the factory, the
speedometer may no

Page 272 of 486

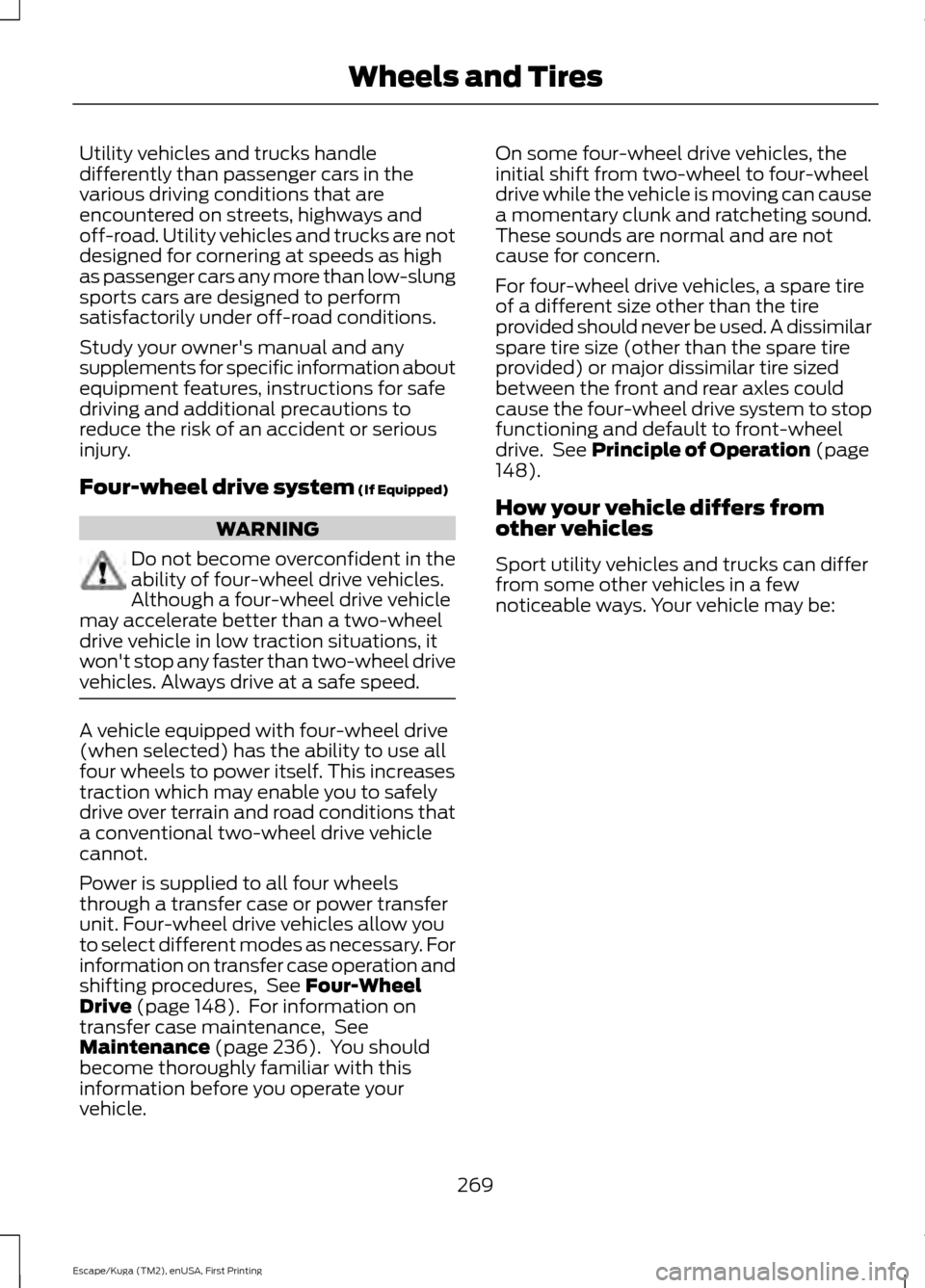

FORD ESCAPE 2017 3.G Owners Manual Utility vehicles and trucks handle
differently than passenger cars in the
various driving conditions that are
encountered on streets, highways and
off-road. Utility vehicles and trucks are not
designe

Page 273 of 486

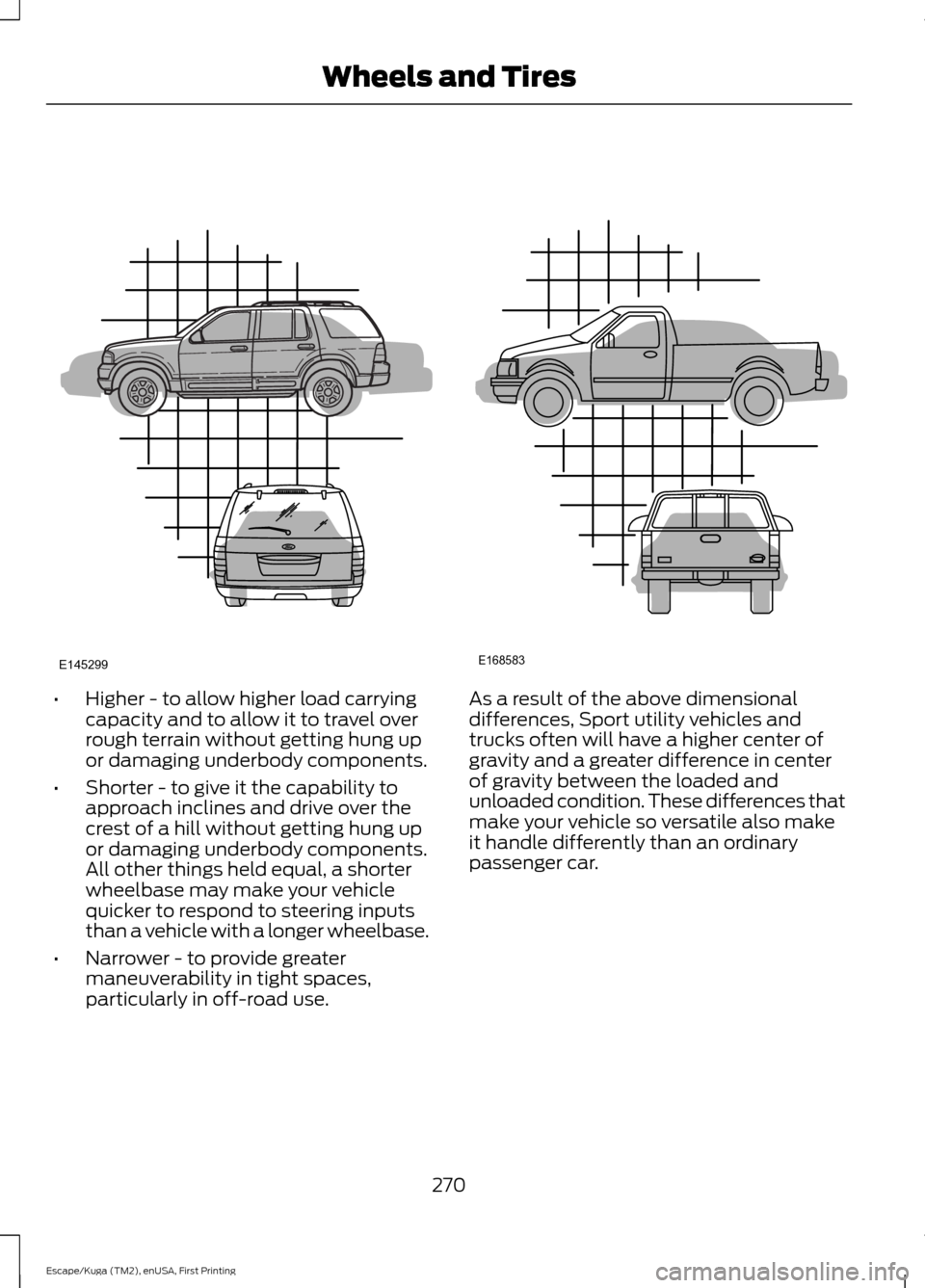

FORD ESCAPE 2017 3.G Owners Manual •
Higher - to allow higher load carrying
capacity and to allow it to travel over
rough terrain without getting hung up
or damaging underbody components.
• Shorter - to give it the capability to
ap

Page 274 of 486

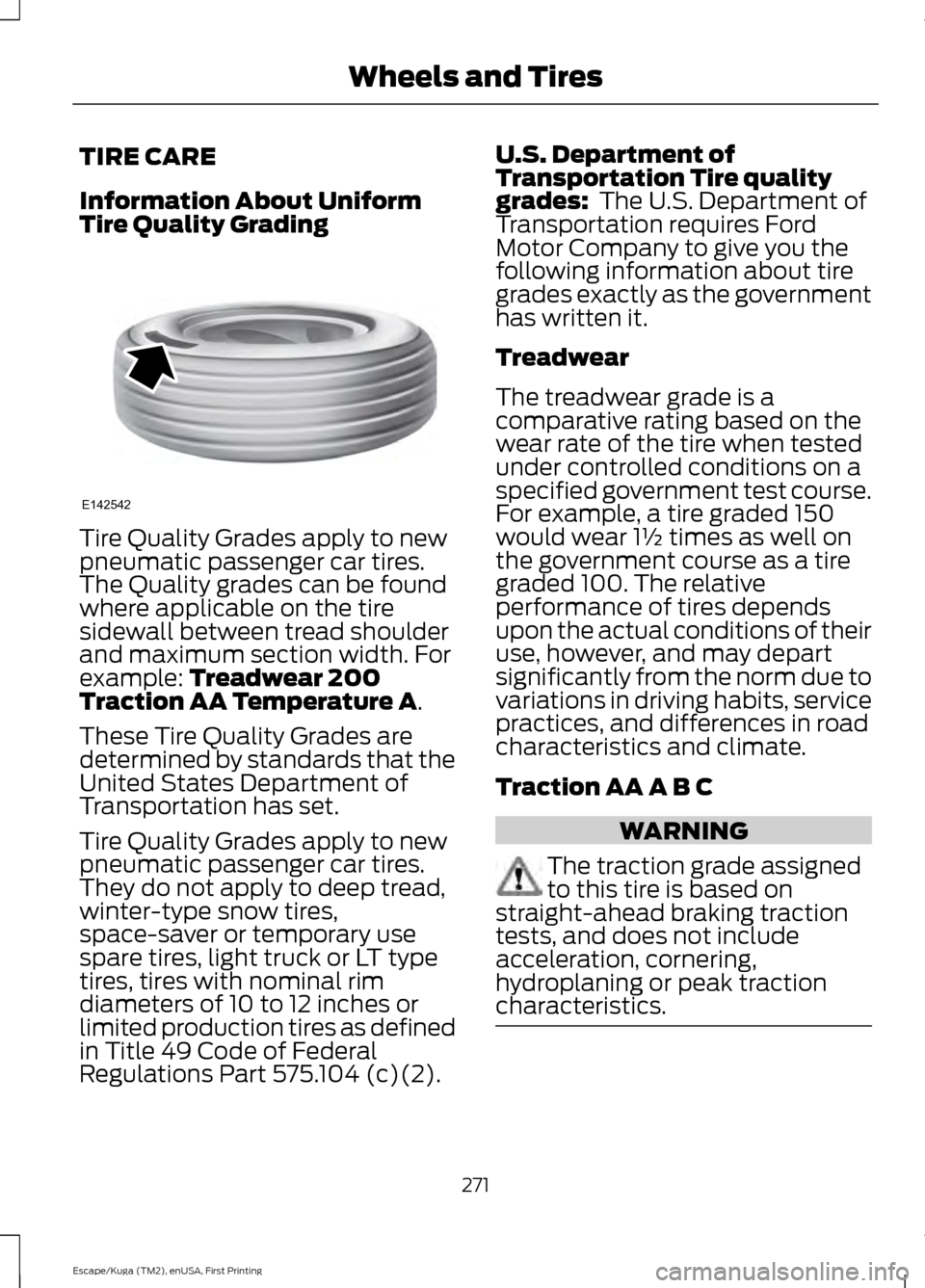

FORD ESCAPE 2017 3.G Owners Manual TIRE CARE
Information About Uniform
Tire Quality Grading
Tire Quality Grades apply to new
pneumatic passenger car tires.
The Quality grades can be found
where applicable on the tire
sidewall between t

Page 275 of 486

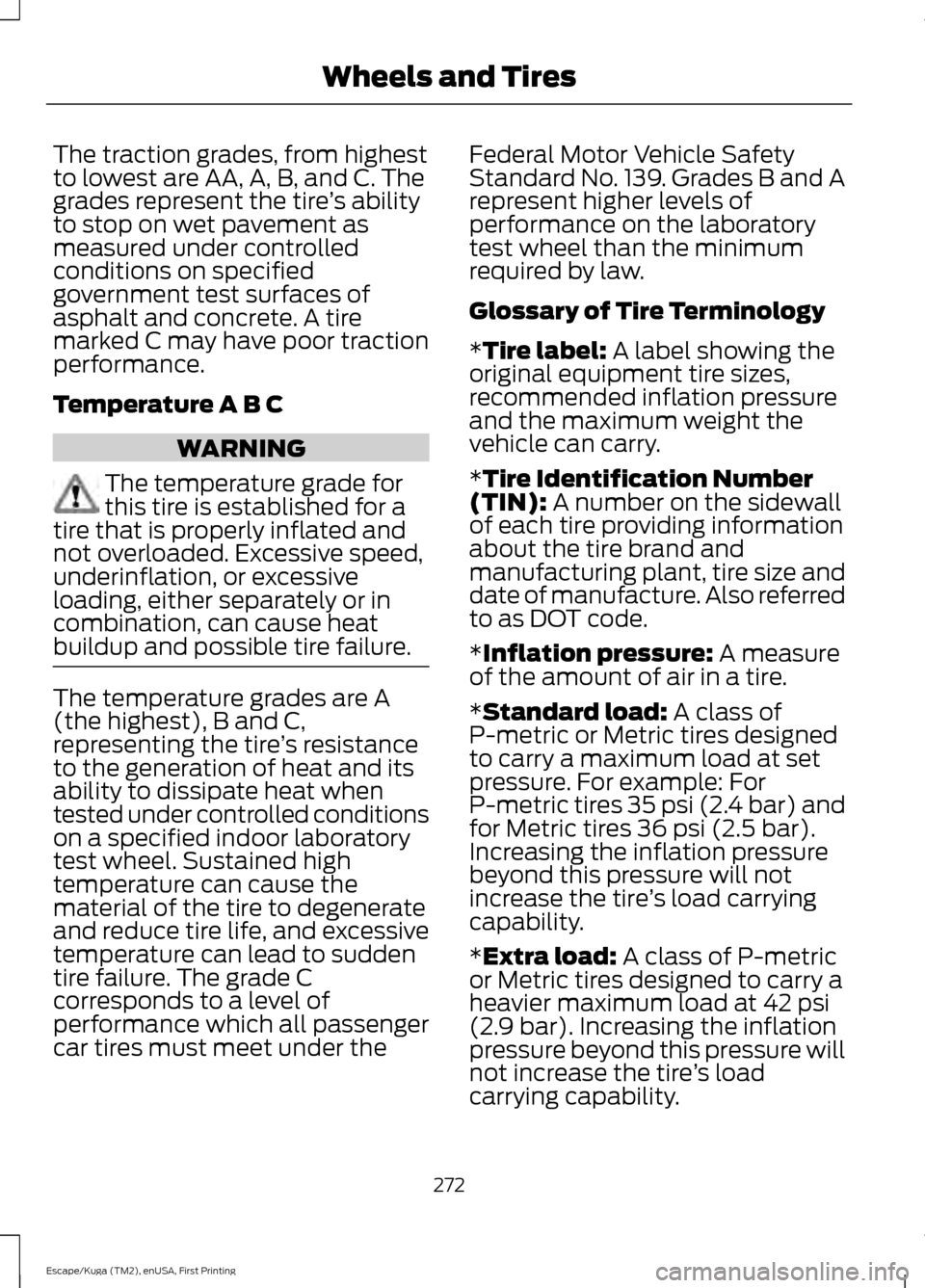

FORD ESCAPE 2017 3.G Owners Manual The traction grades, from highest
to lowest are AA, A, B, and C. The
grades represent the tire
’s ability
to stop on wet pavement as
measured under controlled
conditions on specified
government test

Page 276 of 486

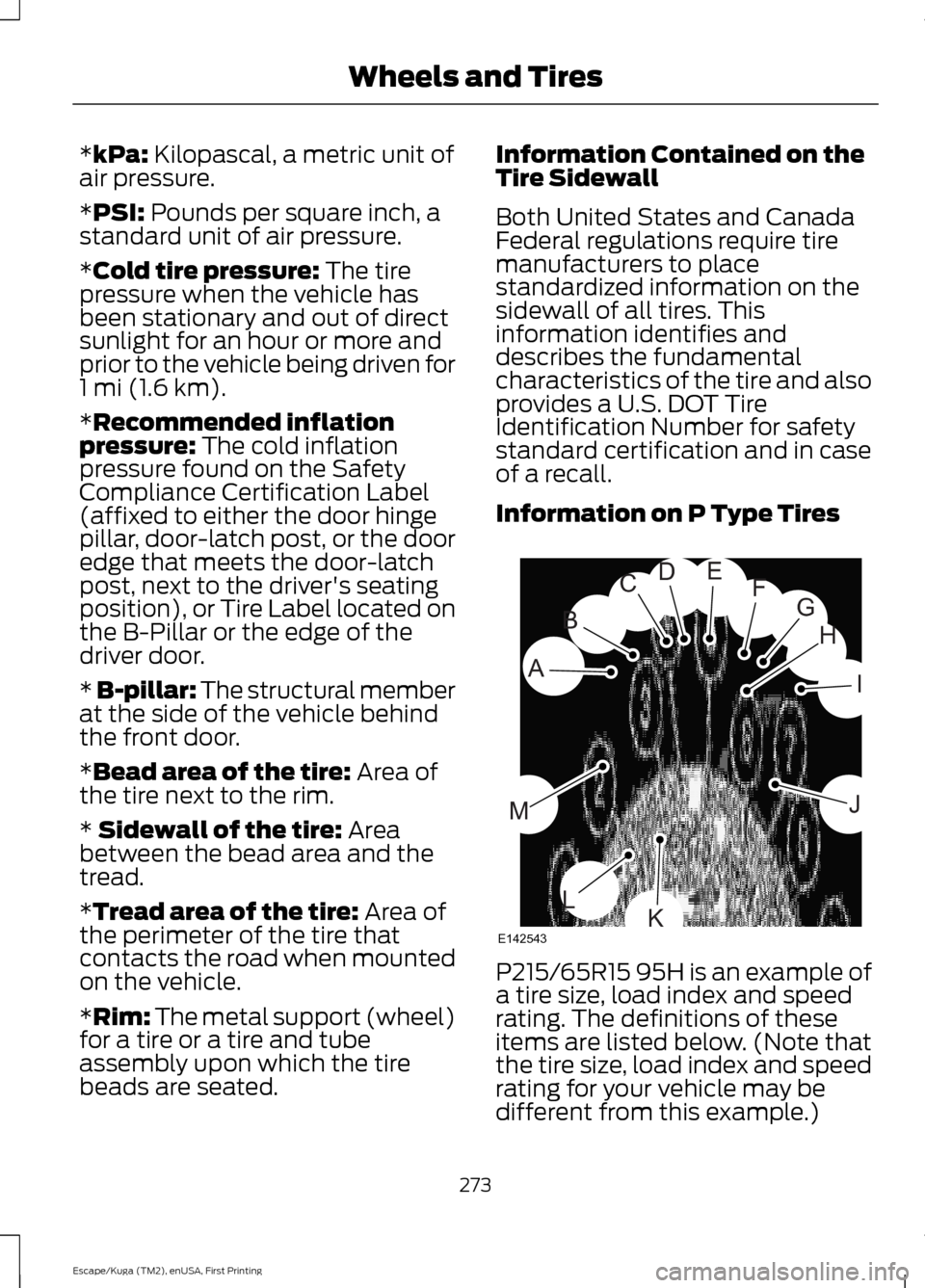

FORD ESCAPE 2017 3.G Owners Manual *kPa: Kilopascal, a metric unit of
air pressure.
*
PSI: Pounds per square inch, a
standard unit of air pressure.
*
Cold tire pressure: The tire
pressure when the vehicle has
been stationary and out of

Page 277 of 486

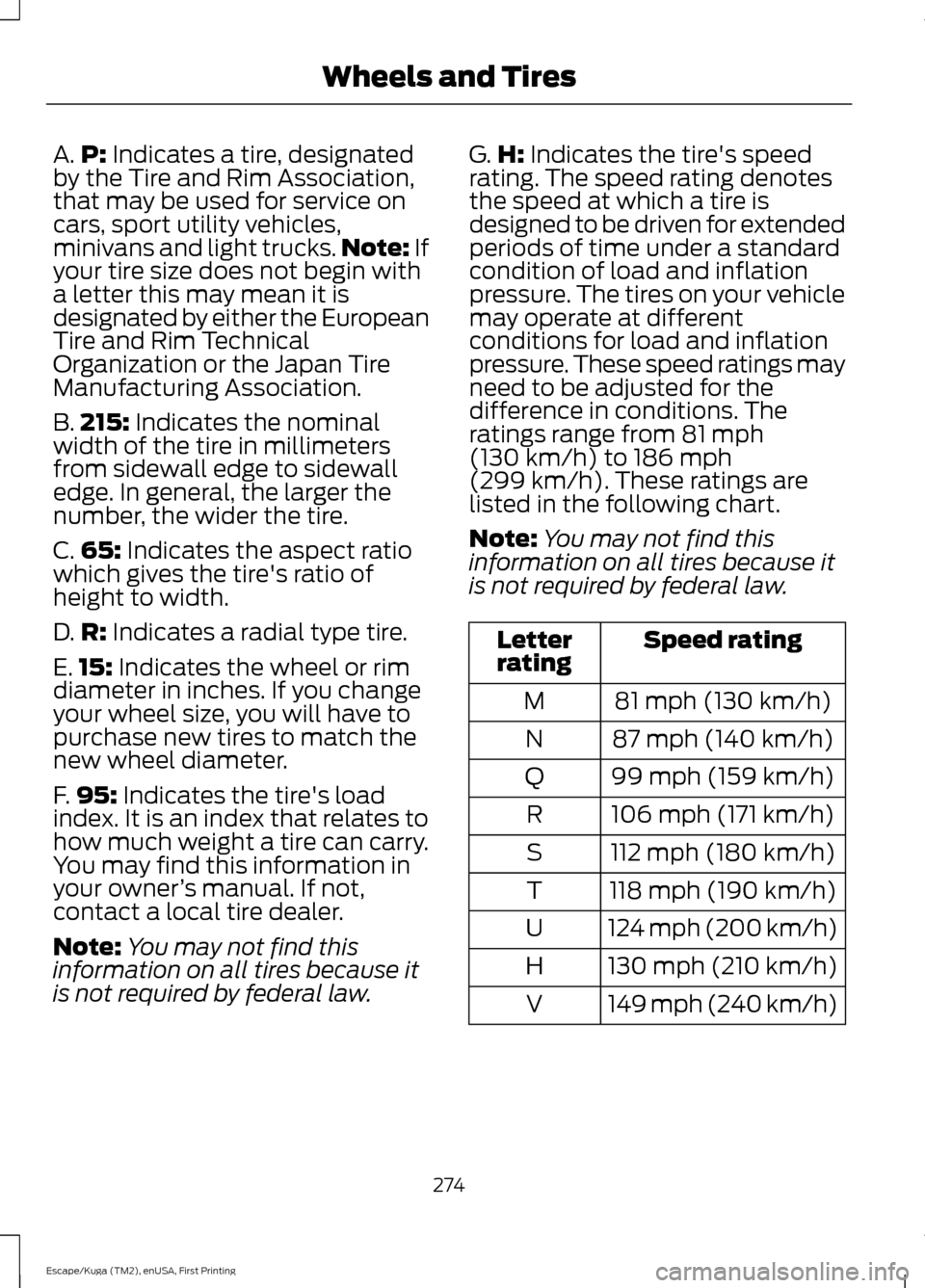

FORD ESCAPE 2017 3.G Owners Manual A.
P: Indicates a tire, designated
by the Tire and Rim Association,
that may be used for service on
cars, sport utility vehicles,
minivans and light trucks. Note:
 If
your tire size does not begin wit

Page 278 of 486

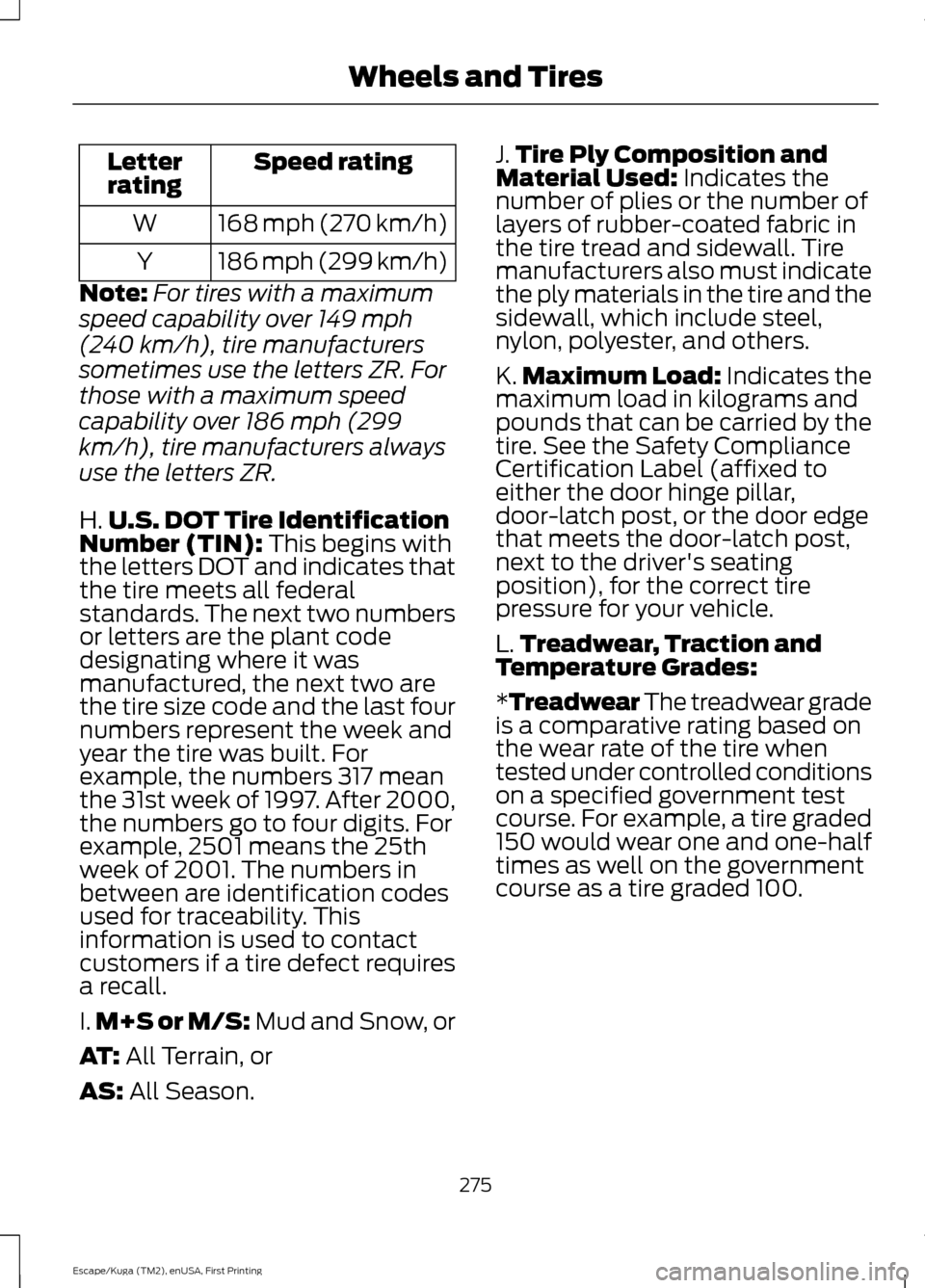

FORD ESCAPE 2017 3.G Owners Manual Speed rating
Letter
rating
168 mph (270 km/h)
W
186 mph (299 km/h)
Y
Note: For tires with a maximum
speed capability over 149 mph
(240 km/h), tire manufacturers
sometimes use the letters ZR. For
those

Page 279 of 486

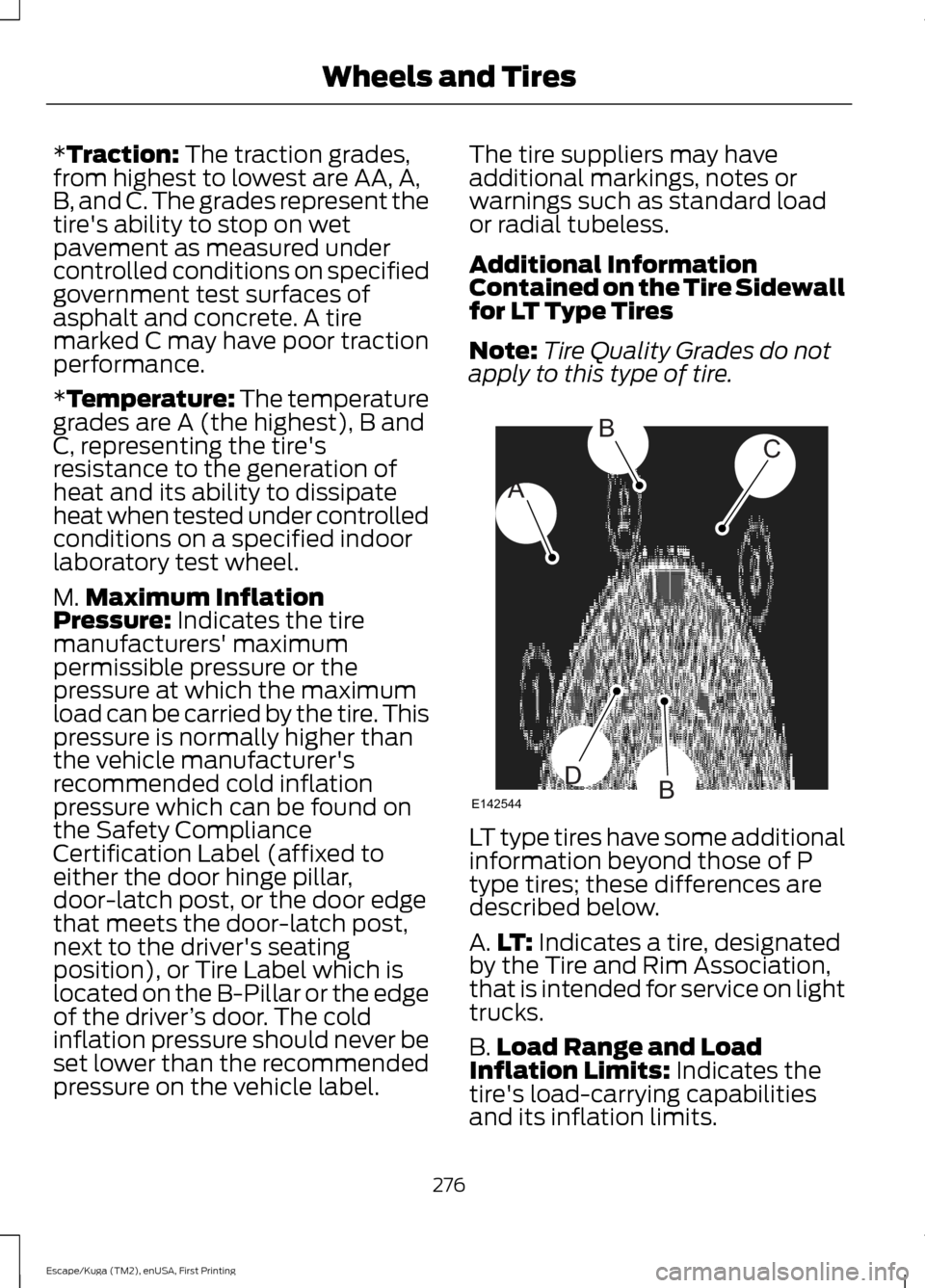

FORD ESCAPE 2017 3.G Owners Manual *Traction: The traction grades,
from highest to lowest are AA, A,
B, and C. The grades represent the
tires ability to stop on wet
pavement as measured under
controlled conditions on specified
governm

Page 280 of 486

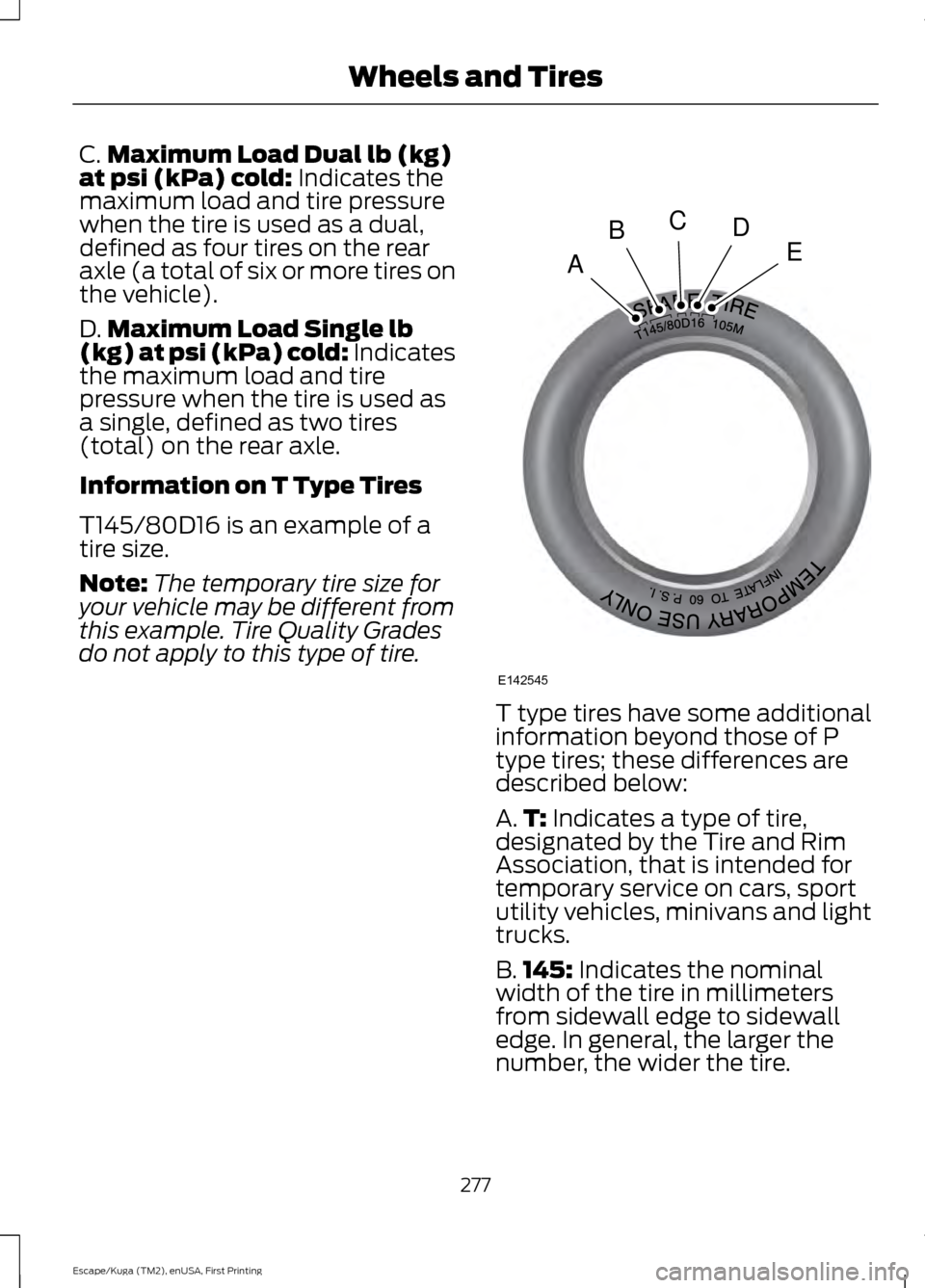

FORD ESCAPE 2017 3.G Owners Manual C.
Maximum Load Dual lb (kg)
at psi (kPa) cold: Indicates the
maximum load and tire pressure
when the tire is used as a dual,
defined as four tires on the rear
axle (a total of six or more tires on
th
