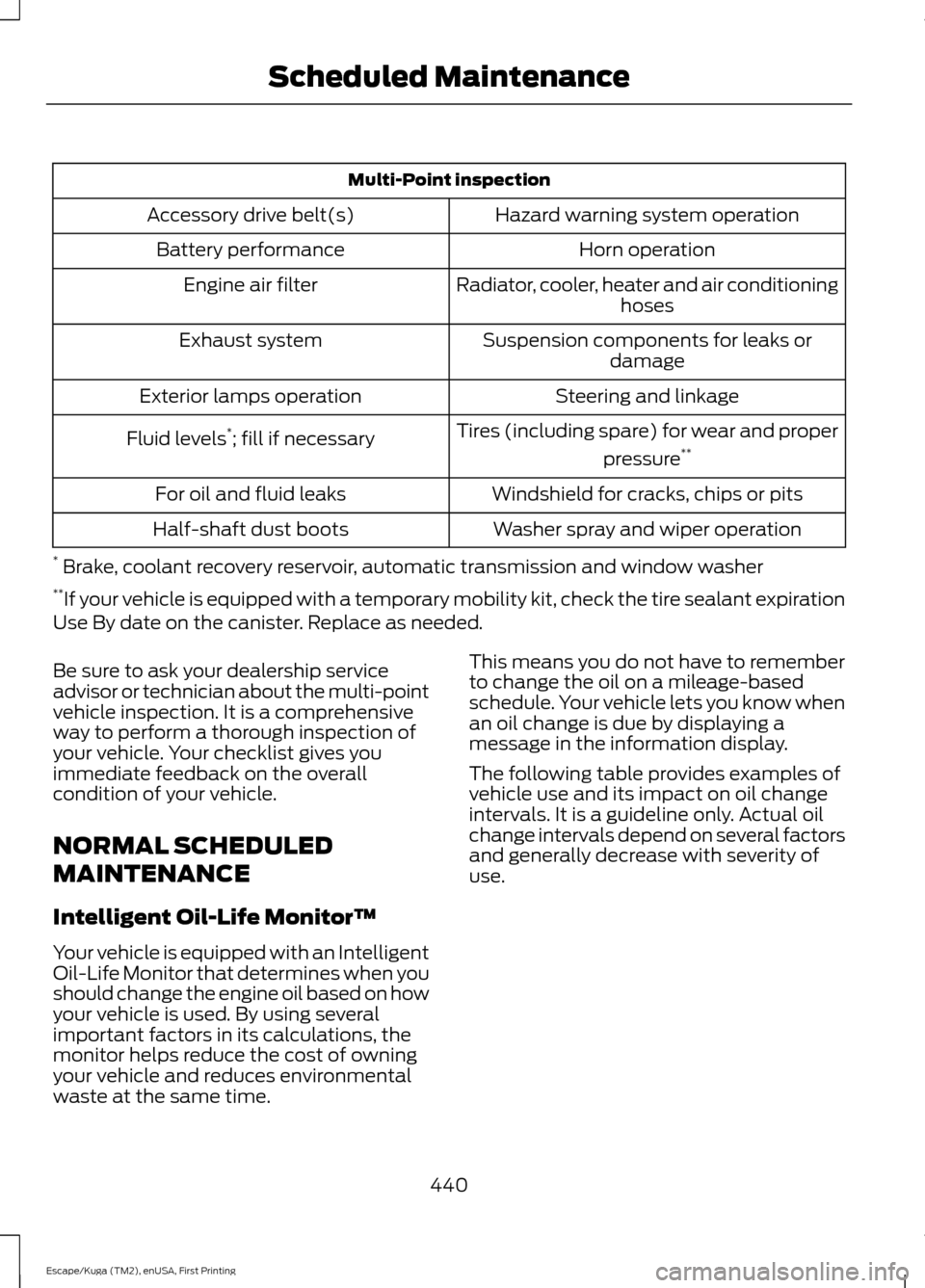

Multi-Point inspection
Hazard warning system operation
Accessory drive belt(s)
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and properpressure**
Fluid levels *
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
* Brake, coolant recovery reservoir, automatic transmission and window washer
** If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle is equipped with an Intelligent
Oil-Life Monitor that determines when you
should change the engine oil based on how
your vehicle is used. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time. This means you do not have to remember
to change the oil on a mileage-based
schedule. Your vehicle lets you know when
an oil change is due by displaying a
message in the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of
use.
440
Escape/Kuga (TM2), enUSA, First Printing Scheduled Maintenance

At every oil change interval as indicated by the information display
*
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or
drag.
* Do not exceed one year or 10000 miles (16000 kilometers) between service intervals.
** Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. See Engine
Oil Check (page 241). Other maintenance items
1
Replace cabin air filter.
Every 20000 miles (32000
km)
Replace engine air filter.
Every 30000 miles (48000
km)
Change engine coolant.2
At 100000 miles (160000
km)
Replace spark plugs.
Every 100000 miles
(160000 km) Inspect accessory drive belt(s). 3
Change automatic transmission fluid.
Every 150000 miles
(240000 km) Replace accessory drive belt(s).
4
Replace timing belt (1.6L engine).
Change the PTU and rear axle fluid. See
Special Oper-
ating Conditions Scheduled Maintenance (page 443).
1 Perform these maintenance items within 3000 miles (4800 kilometers) of the last
engine oil and filter change. Do not exceed the designated distance for the interval.
2 Initial replacement at six years or 100000 miles (160000 kilometers), then every three
years or 50000 miles (80000 kilometers).
3 After initial inspection, inspect every other oil change until replaced.
4 If not replaced within the last 100000 miles (160000 kilometers).
442
Escape/Kuga (TM2), enUSA, First Printing Scheduled Maintenance

Extensive idling or low-speed driving for long distances, as in heavy commercial use
Change the PTU and rear axle fluid (AWD). See Axle and
PTU Maintenance under Exceptions.
Replace spark plugs.
Every 60000 miles (96000
km)
* This is an optional feature. Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Replace cabin air filter. *
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5000 miles (8000
km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter.**
Every 5000 miles (8000
km) or six months
Perform multi-point inspection.
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Change the PTU and rear axle fluid (AWD). See Axle and
PTU Maintenance under
Exceptions.
* This is an optional feature.
** Reset your Intelligent Oil-Life Monitor after engine oil and filter changes. See
Engine
Oil Check (page 241). Exclusive use of E85 (flex fuel vehicles only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change
Exceptions
There are several exceptions to the Normal
Schedule:
444
Escape/Kuga (TM2), enUSA, First Printing Scheduled Maintenance

Rear Axle and PTU Maintenance: The
Power Transfer Unit (PTU) and rear axle
(AWD only) in your vehicle does not require
any normal scheduled maintenance unless
the vehicle has experienced extended
periods of extreme/severe duty cycle
driving or the PTU and/or the axle has been
submerged in water. Checking the PTU and
rear axle fluid is not necessary unless the
unit shows signs of leakage. Contact an
authorized dealer for service.
California fuel filter replacement: If you
register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service. Hot climate oil change intervals:
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5000 miles (8000
kilometers).
If the available API SM or SN oils are not
available, then the oil change interval is
3000 miles (4800 kilometers).
Engine air filter and cabin air filter
replacement
: The life of the engine air
filter and cabin air filter is dependent on
exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter and
cabin air filter.
SCHEDULED MAINTENANCE RECORD 445
Escape/Kuga (TM2), enUSA, First Printing Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

4
4WD
See: Four-Wheel Drive..................................... 148
A
A/C See: Climate Control......................................... 104
About This Manual...........................................7
ABS See: Brakes............................................................ 153
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 153
Accessories....................................................433 Exterior Style....................................................... 433
Interior Style........................................................ 433
Lifestyle................................................................. 433
Peace of Mind..................................................... 433
Accessories See: Replacement Parts
Recommendation............................................. 11
ACC See: Using Adaptive Cruise Control.............175
Active Park Assist.........................................165 Deactivating the Active Park Assist
Feature.............................................................. 169
Parallel Parking, Perpendicular Parking, Parallel Park Out Assist............................... 165
Troubleshooting the System.......................... 169
Adjusting the Headlamps
..........................251
Horizontal Aim Adjustment........................... 253
Vertical Aim Adjustment.................................. 251
Adjusting the Steering Wheel...................66
Airbag Disposal
...............................................43
Air Conditioning See: Climate Control......................................... 104
Air Filter See: Changing the Engine Air Filter.............259
Alarm See: Anti-Theft Alarm........................................ 65
Ambient Lighting.............................................77
Anti-Theft Alarm
............................................65
Arming the Alarm................................................. 65
Disarming the Alarm........................................... 65
Appendices....................................................456 Apps.................................................................406
........................................................................\
......... 406
SiriusXM Traffic and Travel Link................... 407
Audible Warnings and Indicators.............87 Automatic Transmission Warning
Chime.................................................................. 88
Engine On Warning Chime................................ 87
Headlamps On Warning Chime..................... 88
Key in Ignition Warning Chime......................... 87
Keyless Warning Alert ........................................ 87
Parking Brake On Warning Chime.................88
Audio Control
..................................................66
Type One.................................................................. 67
Type Two................................................................. 67
Audio System
.................................................312
General Information........................................... 312
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio
..............................318
Audio Unit - Vehicles With: AM/FM/CD/ SYNC..............................................................315
Audio Unit - Vehicles With: AM/FM/ CD....................................................................313
Audio Unit - Vehicles With: Premium AM/FM/CD...................................................319
Audio Unit - Vehicles With: Sony AM/ FM/CD...........................................................320
Autolamps.........................................................73 Windshield Wiper Activated
Headlamps......................................................... 73
Automatic Climate Control......................105 Temperature Control......................................... 107
Automatic High Beam Control
..................75
Activating the System......................................... 75
Manually Overriding the System.................... 76
Automatic Transmission
...........................144
Brake-Shift Interlock Override....................... 146
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 147
SelectShift Automatic ™
Transmission................................................... 145
Transmission Selector Positions.................. 144
Automatic Transmission Fluid Check.............................................................247
Auto-Start-Stop............................................133 Disabling Auto StartStop................................ 134
Enabling Auto StartStop.................................. 133
Autowipers.......................................................69
473
Escape/Kuga (TM2), enUSA, First Printing Index

Auxiliary Power Points................................125
110 Volt AC Power Point................................... 125
12 Volt DC Power Point..................................... 125
Locations................................................................ 125
B
Battery See: Changing the 12V Battery..................... 248
Blind Spot Information System..............185 Switching the System Off and On................187
System Errors....................................................... 187
Using the System............................................... 185
Bonnet Lock See: Opening and Closing the Hood..........236
Booster Seats
..................................................22
Types of Booster Seats...................................... 23
Brake Fluid Check.........................................247
Brakes
...............................................................153
General Information.......................................... 153
Breaking-In....................................................209
Bulb Specification Chart...........................257
C
Cabin Air Filter
................................................110
California Proposition 65..............................11
Capacities and Specifications - 1.5L EcoBoost™..................................................301
Specifications...................................................... 301
Capacities and Specifications - 2.0L EcoBoost™................................................304
Specifications..................................................... 305
Capacities and Specifications - 2.5L................................................................308
Specifications..................................................... 309
Capacities and Specifications................294
Car Wash See: Cleaning the Exterior............................... 261
Center Console
...............................................127
Changing a Bulb...........................................253 Lamp Assembly Condensation.................... 253
Replacing Fog, Park and Turn Signal Bulbs.................................................................. 255
Replacing Headlamp Bulbs........................... 254
Replacing HID Headlamp Bulbs................... 255
Replacing High-Mount Brake Lamp Bulb.................................................................... 257Replacing License Plate Lamp Bulb...........257
Replacing Reverse Lamp Assembly...........256
Replacing Side Marker Bulbs........................
255
Replacing Tail, Brake and Turn Signal Bulbs.................................................................. 256
Changing a Fuse
...........................................234
Fuses...................................................................... 234
Changing a Road Wheel
...........................288
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 288
Tire Change Procedure.................................... 289
Changing the 12V Battery.........................248 Battery Management System....................... 249
Changing the Engine Air Filter................259 Duratec Engines................................................. 260
EcoBoost Engines............................................. 259
Changing the Wiper Blades.....................250 Front Wiper Blades........................................... 250
Rear Window Wiper Blade.............................. 251
Checking MyKey System Status................51 MyKey Distance...................................................... 51
Number of Admin Keys....................................... 51
Number of MyKeys............................................... 51
Checking the Wiper Blades.....................250
Child Restraint and Seatbelt Maintenance.................................................33
Child Restraint Positioning.........................24
Child Safety
.......................................................15
General Information............................................. 15
Child Safety Locks
..........................................25
Left-Hand Side...................................................... 26
Right-Hand Side................................................... 26
Cleaning Leather Seats.............................265
Cleaning Products........................................261
Cleaning the Alloy Wheels.......................265
Cleaning the Engine....................................263
Cleaning the Exterior...................................261 Exterior Chrome Parts...................................... 262
Exterior Plastic Parts........................................ 262
Stripes or Graphics............................................ 262
Underbody........................................................... 262
Under Hood.......................................................... 262
Cleaning the Instrument Panel and Instrument Cluster Lens........................264
Cleaning the Interior...................................264
Cleaning the Windows and Wiper Blades...........................................................263
Clearing All MyKeys
........................................51
474
Escape/Kuga (TM2), enUSA, First Printing Index

Climate Control............................................104
Collision Warning System.........................192
PRINCIPLE OF OPERATION........................... 192
Coolant Check See: Engine Coolant Check............................ 243
Crash Sensors and Airbag Indicator........42
Creating a MyKey
...........................................50
Programming or Changing Configurable
Settings................................................................ 51
Cross Traffic Alert.........................................187 False Alerts........................................................... 190
Switching the System Off and On...............190
System Errors...................................................... 190
System Lights, Messages and Audible Alerts.................................................................. 189
System Limitations........................................... 190
Using the System................................................ 187
Cruise Control.................................................68 Principle of Operation....................................... 174
Type One................................................................. 68
Type Two................................................................. 68
Cruise control See: Using Cruise Control................................. 174
Customer Assistance
..................................218
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps.............................74 Type 1 - Conventional
(Non-Configurable)........................................ 74
Type 2 - Configurable.......................................... 74
Digital Radio
...................................................321
HD Radio Reception and Station
Troubleshooting............................................ 322
Direction Indicators
........................................76
Driver Alert......................................................180
Using Driver Alert............................................... 180
Driver and Passenger Airbags...................36 Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 36
Driver Knee Airbag.........................................40
Driving Aids
.....................................................180
Driving Hints..................................................209
Driving Through Water................................210 DRL
See: Daytime Running Lamps......................... 74
E
Eco Mode
..........................................................191
Resetting Eco Mode............................................ 191
Type 1........................................................................\
191
Type 2 and 3.......................................................... 191
Economical Driving
.....................................209
Electric Parking Brake.................................154 Applying the Electric Parking brake.............154
Battery With No Charge................................... 156
Parking On a Hill (Vehicles With a Manual Transmission) ................................................ 154
Releasing the Electric Parking Brake...........155
Emission Control System...........................141 On-Board Diagnostics (OBD-II).................... 142
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 142
End User License Agreement.................456 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 456
Engine Block Heater.....................................131 Using the Engine Block Heater...................... 132
Engine Coolant Check................................243 Adding Coolant................................................... 243
Coolant Change................................................. 245
Engine Coolant Temperature Management.................................................. 246
Fail-Safe Cooling............................................... 245
Recycled Coolant............................................... 244
Severe Climates................................................. 245
Engine Immobilizer See: Passive Anti-Theft System..................... 63
Engine Oil Check
...........................................241
Adding Engine Oil............................................... 241
Engine Oil Dipstick - 1.5L EcoBoost™..................................................241
Engine Oil Dipstick - 2.0L EcoBoost™/ 2.5L..................................................................241
Engine Specifications - 1.5L EcoBoost™.................................................294
Drivebelt Routing............................................... 294
Engine Specifications - 2.0L EcoBoost™.................................................294
Drivebelt Routing............................................... 295
475
Escape/Kuga (TM2), enUSA, First Printing Index

Engine Specifications - 2.5L....................295
Drivebelt Routing............................................... 296
Entertainment..............................................383 AM/FM Radio...................................................... 384
Apps........................................................................\
392
Bluetooth Stereo or USB................................. 391
CD........................................................................\
... 390
HD Radio ™ Information (If
Available)......................................................... 387
SIRIUS® Satellite Radio (If Activated)........................................................ 385
Sources................................................................. 384
Supported Media Players, Formats and Metadata Information................................ 392
USB Ports............................................................. 392
Environment......................................................14
EPB See: Electric Parking Brake............................. 154
Essential Towing Checks..........................206 Before Towing a Trailer.................................... 207
Hitches.................................................................. 206
Launching or Retrieving a Boat or Personal Watercraft (PWC)........................................ 207
Safety Chains...................................................... 206
Trailer Brakes...................................................... 206
Trailer Lamps...................................................... 206
When Towing a Trailer...................................... 207
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP).................435 EXTENDED SERVICE PLAN (CANADA
ONLY)............................................................... 436
Ford Protect (U.S. Only)................................. 435
Exterior Mirrors................................................79
Blind Spot Monitor.............................................. 80
Fold-Away Exterior Mirrors.............................. 80
Heated Exterior Mirrors...................................... 80
Integrated Blind Spot Mirrors.......................... 80
Memory Mirrors.................................................... 80
Power Exterior Mirrors........................................ 79
F
Fastening the Seatbelts..............................28 How to Extract Seatbelts in the Rear
Outboard Positions........................................ 30
Seatbelt Locking Modes.................................... 29Using Seatbelts During Pregnancy................28
Floor Mats
.......................................................210
Fog Lamps - Front See: Front Fog Lamps......................................... 76
Ford Credit
..........................................................11
US Only...................................................................... 11
Four-Wheel Drive
.........................................148
Principle of Operation....................................... 148

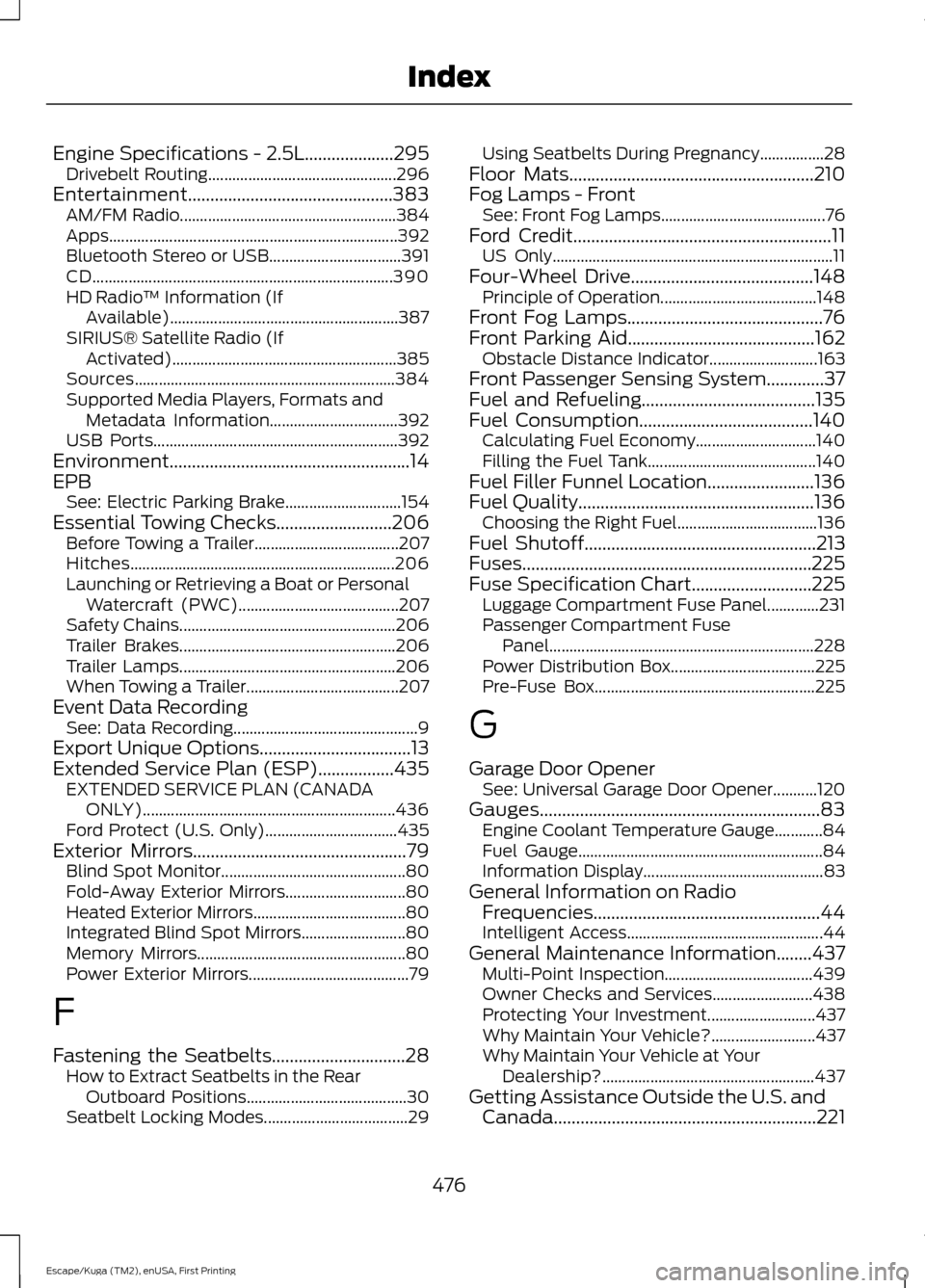

Front Fog Lamps............................................76
Front Parking Aid
..........................................162
Obstacle Distance Indicator........................... 163
Front Passenger Sensing System.............37
Fuel and Refueling.......................................135
Fuel Consumption
.......................................140
Calculating Fuel Economy.............................. 140
Filling the Fuel Tank.......................................... 140
Fuel Filler Funnel Location........................136
Fuel Quality.....................................................136 Choosing the Right Fuel................................... 136
Fuel Shutoff
....................................................213
Fuses.................................................................225
Fuse Specification Chart
...........................225
Luggage Compartment Fuse Panel.............231
Passenger Compartment Fuse
Panel
.................................................................. 228
Power Distribution Box.................................... 225
Pre-Fuse Box....................................................... 225
G
Garage Door Opener See: Universal Garage Door Opener...........120
Gauges...............................................................83 Engine Coolant Temperature Gauge............84
Fuel Gauge............................................................. 84
Information Display............................................. 83
General Information on Radio Frequencies...................................................44
Intelligent Access................................................. 44
General Maintenance Information........437 Multi-Point Inspection..................................... 439
Owner Checks and Services......................... 438
Protecting Your Investment........................... 437
Why Maintain Your Vehicle?.......................... 437
Why Maintain Your Vehicle at Your Dealership?..................................................... 437
Getting Assistance Outside the U.S. and Canada...........................................................221
476
Escape/Kuga (TM2), enUSA, First Printing Index

Normal Scheduled Maintenance..........440
Intelligent Oil-Life Monitor™........................ 440
Normal Maintenance Intervals...................... 441
O
Oil Change Indicator Reset......................242
Oil Check See: Engine Oil Check....................................... 241
Opening and Closing the Hood..............236
Closing the Hood................................................ 237
Opening the Hood............................................. 236
Ordering Additional Owner's Literature......................................................222
Obtaining a French Owner ’s Manual..........223
Overhead Console
........................................127
P
Parking Aids
.....................................................161
Principle of Operation........................................ 161
Passive Anti-Theft System
.........................63
SecuriLock®........................................................... 63
PATS See: Passive Anti-Theft System..................... 63
Perchlorate.........................................................11
Personal Safety System ™
..........................34
How Does the Personal Safety System
Work?.................................................................. 34
Phone...............................................................393 During a Phone Call.......................................... 396
Making Calls........................................................ 395
Pairing Your Cell Phone for the First Time................................................................... 393
Phone Menu........................................................ 394
Receiving Calls................................................... 396
Smartphone Connectivity.............................. 397
Text Messaging................................................... 397
Post-Crash Alert System...........................216
Power Door Locks See: Locking and Unlocking............................. 53
Power Liftgate
.................................................58
Hands-Free Feature........................................... 60
Obstacle Detection............................................. 60
Opening and Closing the Liftgate.................. 58
Setting the Liftgate Open Height.................. 60
Stopping the Liftgate Movement.................. 60Power Seats
.....................................................115
Power Lumbar....................................................... 117
Power Steering Fluid Check.....................247
Power Windows
..............................................78
Accessory Delay.................................................... 79
Bounce-Back......................................................... 78
One-Touch Down................................................. 78
One-Touch Up....................................................... 78
Window Lock......................................................... 78
Protecting the Environment........................14
R
Rear Parking Aid
.............................................161
Obstacle Distance Indicator........................... 162
Rear Seat Armrest.........................................119
Rear Seats........................................................118 Folding the Seatback......................................... 118
Recline Adjustment............................................ 118
Unfolding the Seatback.................................... 118
Rear Under Floor Storage.........................196 Adjustable Load Floor...................................... 196
Cargo Management System.......................... 196
Rear View Camera.........................................171 Using the Rear View Camera System...........171
Rear View Camera See: Rear View Camera..................................... 171
Rear Window Wiper and Washers............71 Rear Window Washer.......................................... 71
Rear Window Wiper.............................................. 71
Recommended Towing Weights...........204
Refueling..........................................................137 System Warnings................................................ 139
Remote Control..............................................45 Car Finder................................................................ 47
Integrated Keyhead Transmitter.................... 45
Intelligent Access Key......................................... 45
Memory Feature................................................... 48
Remote Start.......................................................... 47
Replacing the Battery......................................... 46
Sounding the Panic Alarm................................ 47
Remote Start..................................................110 Automatic Settings.............................................. 111
Removing a Headlamp
..............................253
Repairing Minor Paint Damage..............265
Replacement Parts Recommendation.........................................11
Collision Repairs..................................................... 11
479
Escape/Kuga (TM2), enUSA, First Printing Index

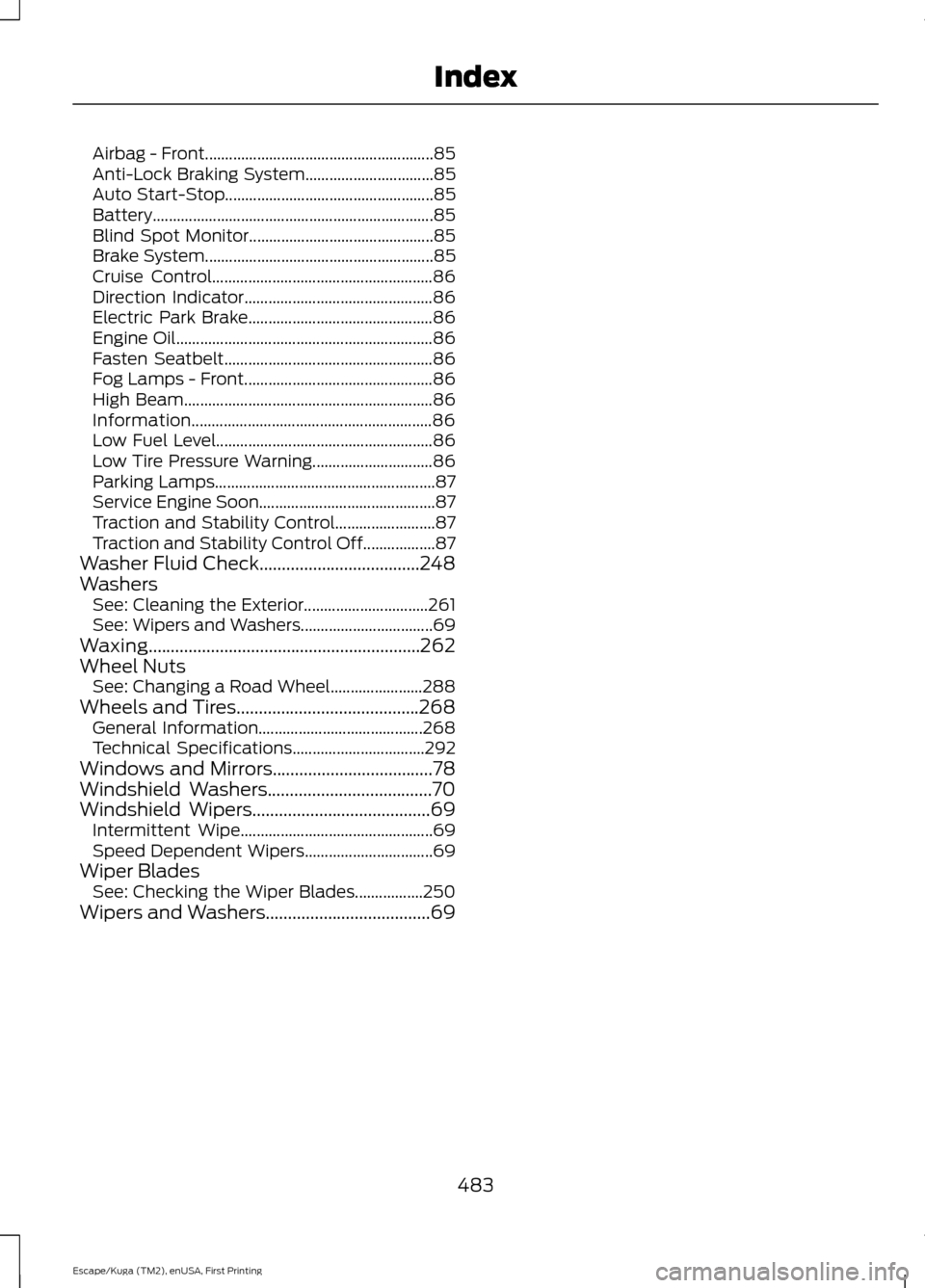

Airbag - Front.........................................................
85
Anti-Lock Braking System................................ 85
Auto Start-Stop.................................................... 85
Battery...................................................................... 85
Blind Spot Monitor.............................................. 85
Brake System......................................................... 85
Cruise Control....................................................... 86
Direction Indicator............................................... 86
Electric Park Brake.............................................. 86
Engine Oil................................................................ 86
Fasten Seatbelt.................................................... 86
Fog Lamps - Front............................................... 86
High Beam.............................................................. 86
Information............................................................ 86
Low Fuel Level...................................................... 86
Low Tire Pressure Warning.............................. 86
Parking Lamps....................................................... 87
Service Engine Soon............................................ 87
Traction and Stability Control......................... 87
Traction and Stability Control Off.................. 87
Washer Fluid Check....................................248
Washers See: Cleaning the Exterior............................... 261
See: Wipers and Washers................................. 69
Waxing.............................................................262
Wheel Nuts See: Changing a Road Wheel....................... 288
Wheels and Tires.........................................268 General Information......................................... 268
Technical Specifications................................. 292
Windows and Mirrors....................................78
Windshield Washers.....................................70
Windshield Wipers........................................69 Intermittent Wipe................................................ 69
Speed Dependent Wipers................................ 69
Wiper Blades See: Checking the Wiper Blades.................250
Wipers and Washers.....................................69
483
Escape/Kuga (TM2), enUSA, First Printing Index
