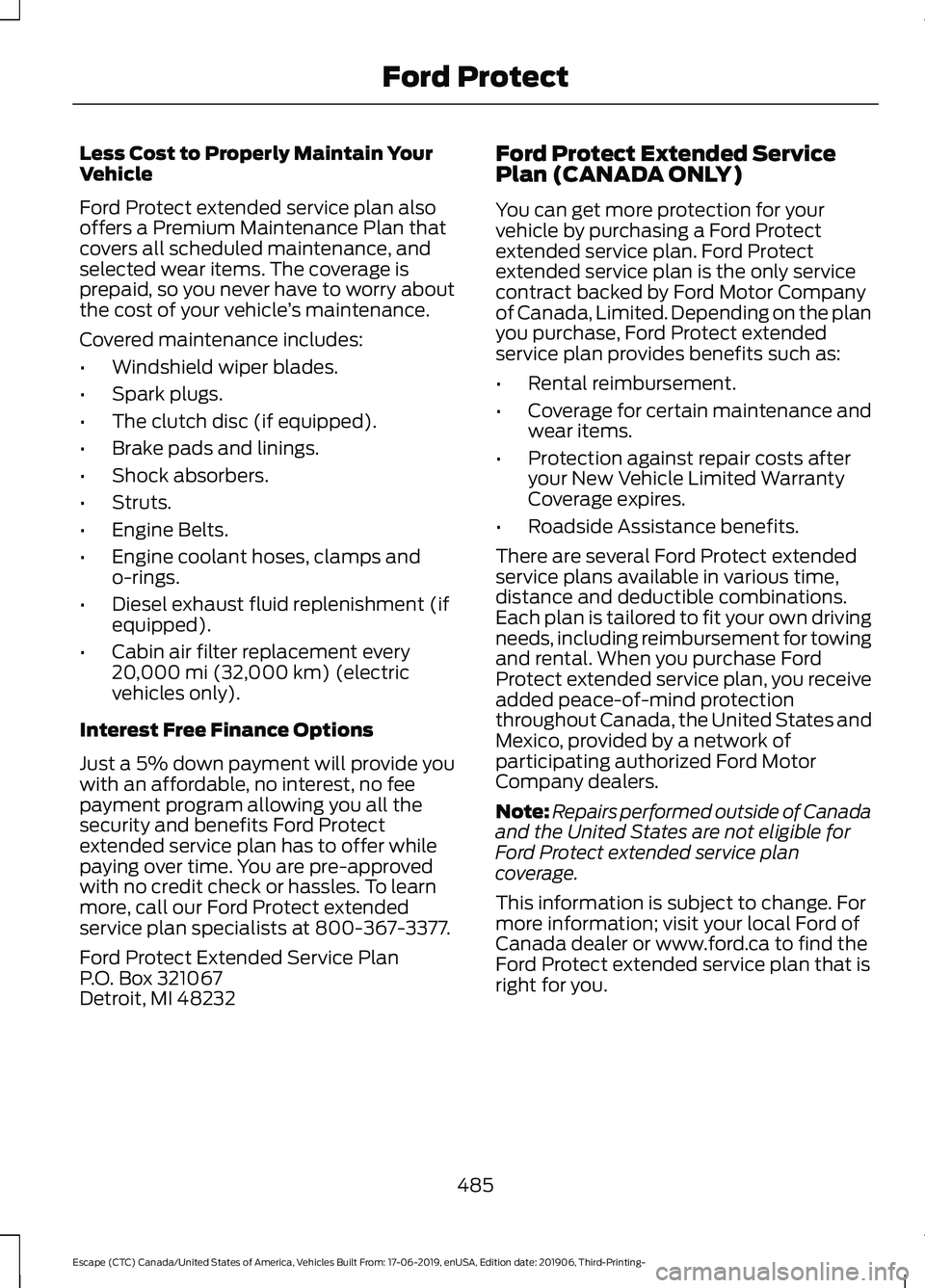

Less Cost to Properly Maintain Your
Vehicle
Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle
’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• The clutch disc (if equipped).
• Brake pads and linings.
• Shock absorbers.
• Struts.
• Engine Belts.
• Engine coolant hoses, clamps and
o-rings.
• Diesel exhaust fluid replenishment (if
equipped).
• Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).
Interest Free Finance Options
Just a 5% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.
Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232 Ford Protect Extended Service
Plan (CANADA ONLY)
You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:
•
Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.
• Roadside Assistance benefits.
There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.
Note: Repairs performed outside of Canada
and the United States are not eligible for
Ford Protect extended service plan
coverage.
This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.
485
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Ford Protect

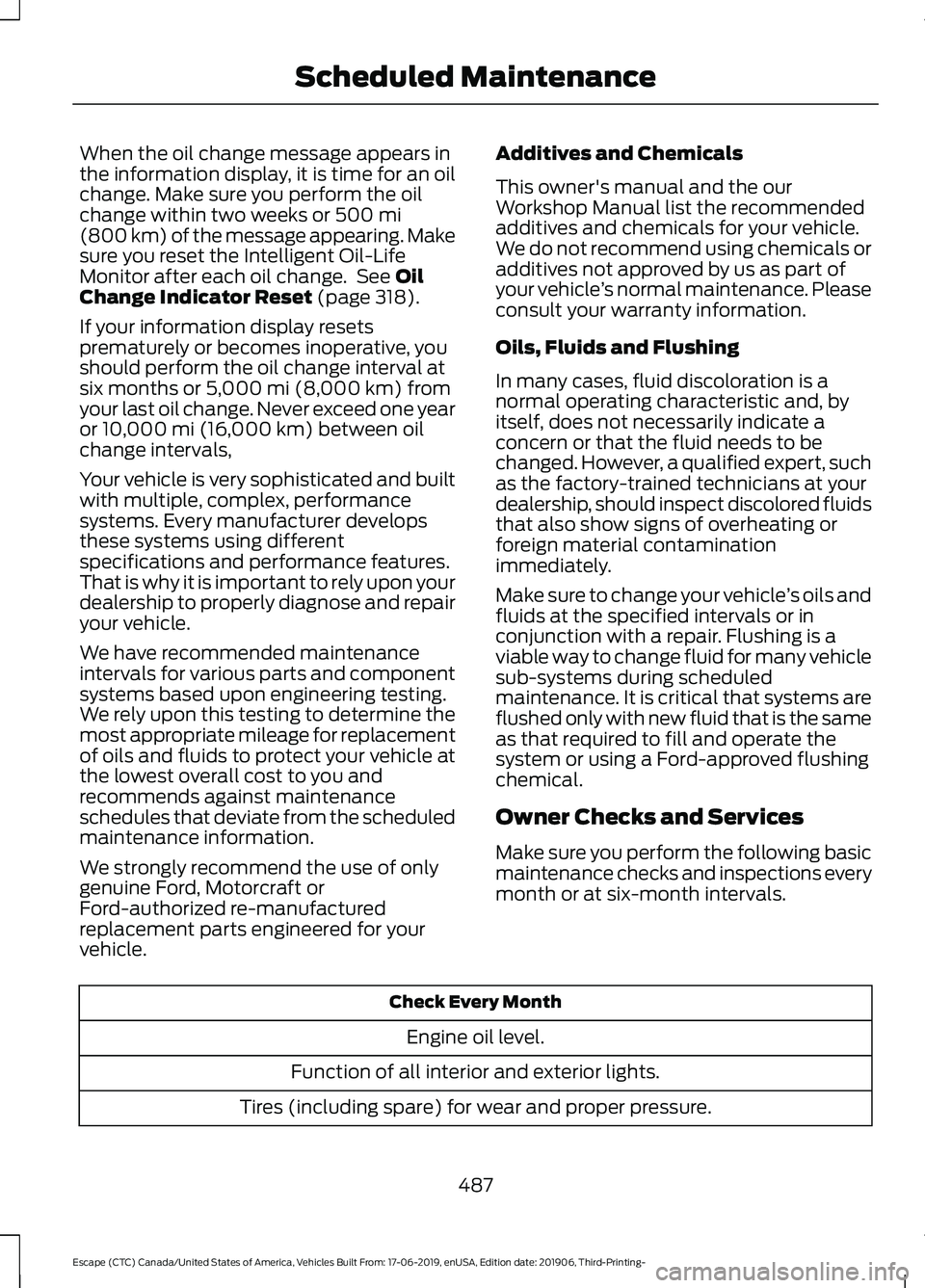

When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 mi
(800 km) of the message appearing. Make
sure you reset the Intelligent Oil-Life
Monitor after each oil change. See
Oil
Change Indicator Reset (page 318).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals,
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.
We have recommended maintenance
intervals for various parts and component
systems based upon engineering testing.
We rely upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle. Additives and Chemicals
This owner's manual and the our
Workshop Manual list the recommended
additives and chemicals for your vehicle.
We do not recommend using chemicals or
additives not approved by us as part of
your vehicle
’s normal maintenance. Please
consult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals. Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
487
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Scheduled Maintenance

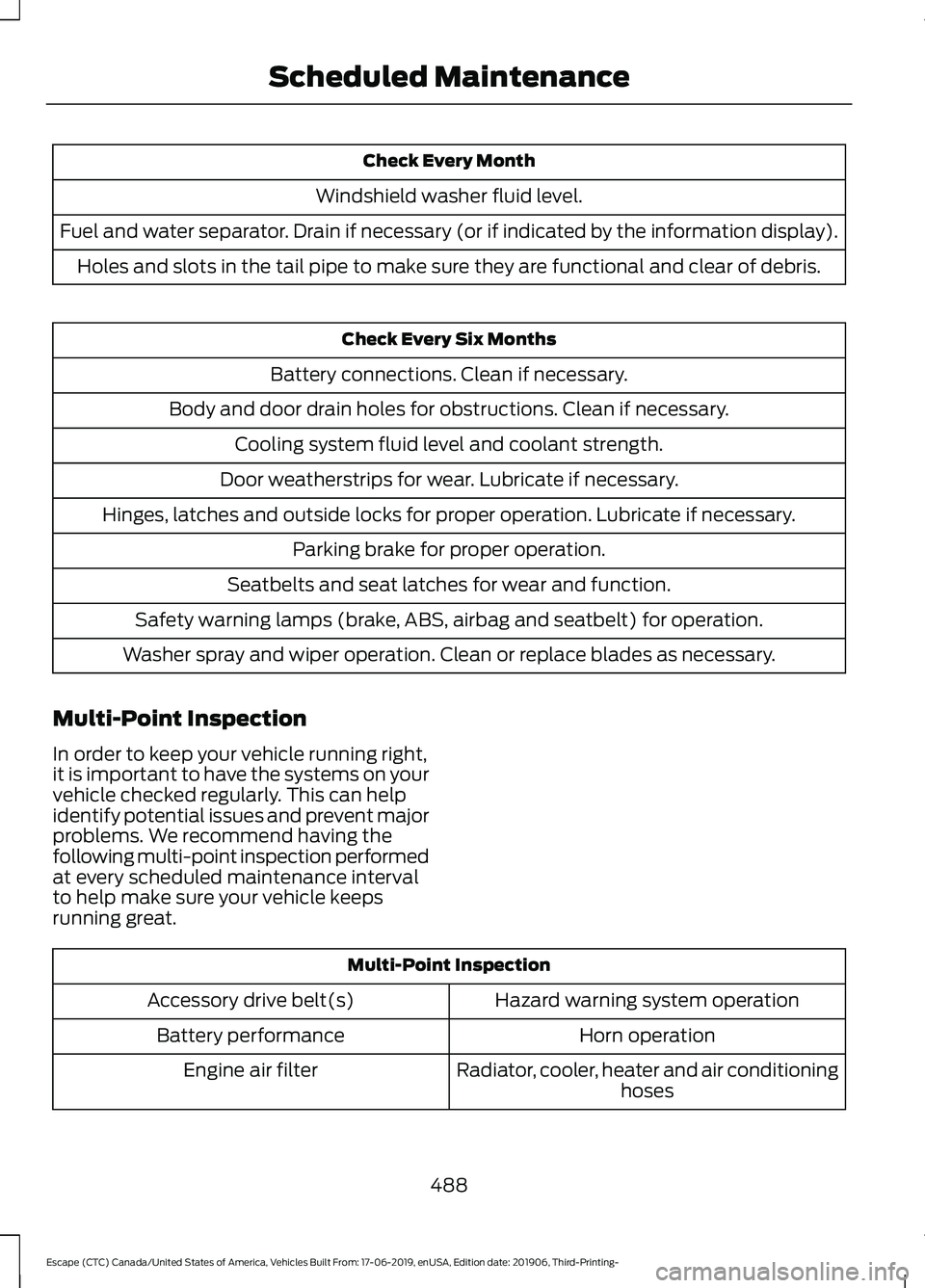

Check Every Month
Windshield washer fluid level.
Fuel and water separator. Drain if necessary (or if indicated by the information display). Holes and slots in the tail pipe to make sure they are functional and clear of debris. Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Seatbelts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and seatbelt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great. Multi-Point Inspection
Hazard warning system operation
Accessory drive belt(s)
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
488
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Scheduled Maintenance

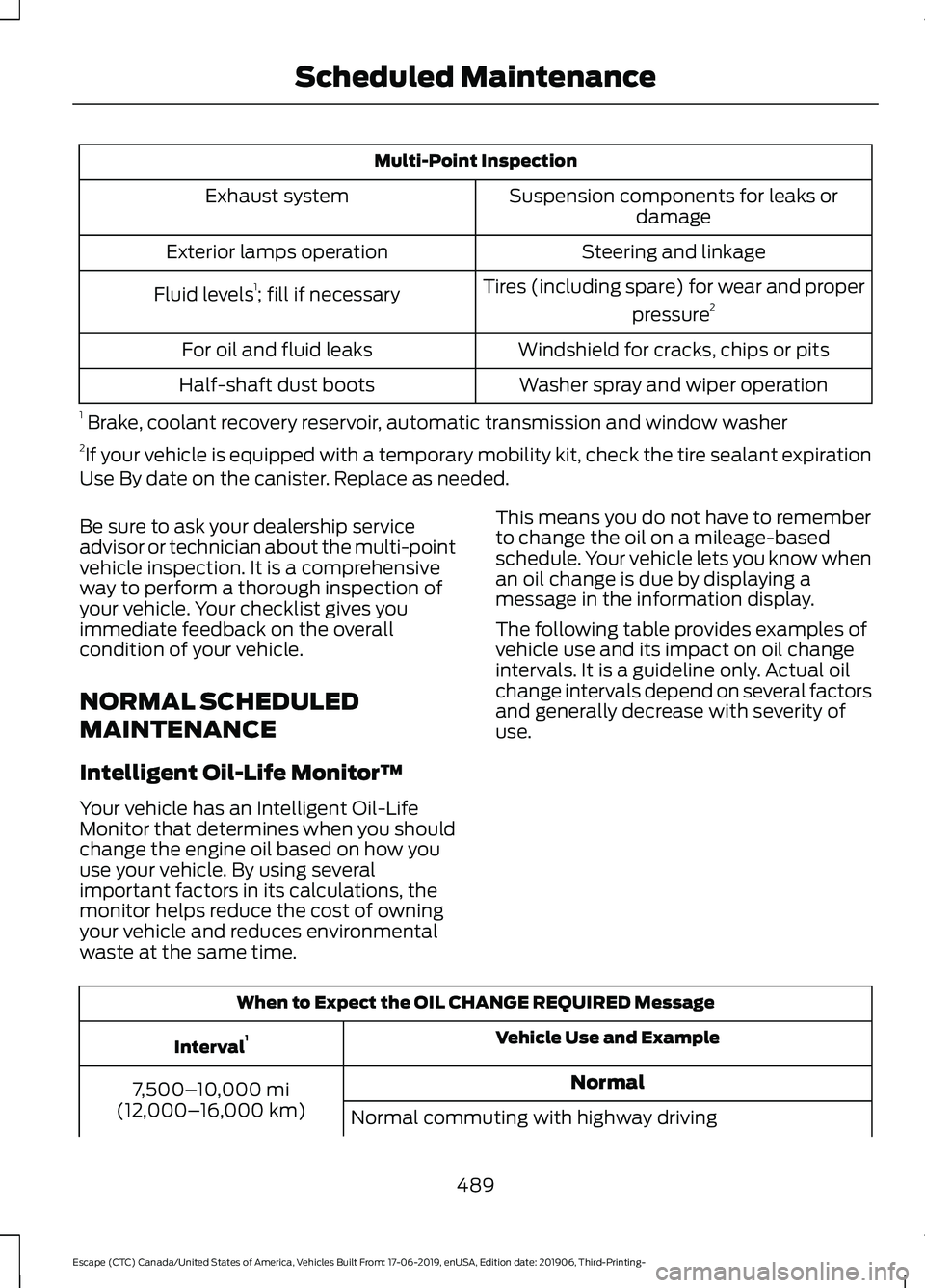

Multi-Point Inspection
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and properpressure2
Fluid levels 1
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer
2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you
use your vehicle. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time. This means you do not have to remember
to change the oil on a mileage-based
schedule. Your vehicle lets you know when
an oil change is due by displaying a
message in the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of
use.
When to Expect the OIL CHANGE REQUIRED Message
Vehicle Use and Example
Interval 1
Normal
7,500– 10,000 mi
(12,000– 16,000 km)
Normal commuting with highway driving
489
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Scheduled Maintenance

Auto-Start-Stop............................................175
Disabling Auto-Start-Stop.............................. 176
Enabling Auto-Start-Stop............................... 175
Autowipers.......................................................83 Autowipers Settings........................................... 84
Auxiliary Power Points................................163 110 Volt AC Power Point................................... 163
12 Volt DC Power Point..................................... 163
Locations............................................................... 163
AWD See: All-Wheel Drive.......................................... 212
B
Battery See: Changing the 12V Battery..................... 326
Blind Spot Information System..............255
Switching the System On and Off...............257
System Errors....................................................... 257
Using the Blind Spot Information System.............................................................. 256
BLIS See: Blind Spot Information System..........255
Body Styling Kits
..........................................342
Bonnet Lock See: Opening and Closing the Hood...........312
Booster Seats
..................................................29
Types of Booster Seats...................................... 30
Brake Fluid Check........................................325 Brake Fluid Service Interval............................ 326
Brakes................................................................217 General Information........................................... 217
Breaking-In....................................................284
Bulb Specification Chart..........................402
C
Cabin Air Filter...............................................146
Canceling the Set Speed..........................238
Capacities and Specifications - 1.5L EcoBoost™.................................................383
Air Conditioning System................................. 383
Alternative Engine Oil for Extremely Cold Climates........................................................... 386
Automatic Transmission................................. 383
Engine Coolant................................................... 384
Engine Oil............................................................. 385
Fuel Tank.............................................................. 386Grease....................................................................386
Hydraulic Brake System..................................
387
Locks....................................................................... 387
Power Transfer Unit.......................................... 388
Rear Axle.............................................................. 388
Washer Reservoir...............................................389
Capacities and Specifications - 2.0L EcoBoost™
.................................................389
Air Conditioning System................................. 389
Alternative Engine Oil for Extremely Cold Climates........................................................... 392
Automatic Transmission................................ 390
Engine Coolant.................................................... 391
Engine Oil............................................................... 391
Fuel Tank............................................................... 393
Grease.................................................................... 393
Hydraulic Brake System.................................. 393
Locks...................................................................... 394
Power Transfer Unit.......................................... 394
Rear Axle............................................................... 395
Washer Reservoir............................................... 395
Capacities and Specifications - 2.5L, Hybrid Electric Vehicle (HEV)/Plug-In
Hybrid Electric Vehicle (PHEV)...........396
Air Conditioning System................................. 396
Automatic Transmission................................. 397
Engine Coolant................................................... 398
Engine Oil............................................................. 398
Fuel Tank.............................................................. 399
Grease.................................................................... 399
Hydraulic Brake System.................................. 399
Locks..................................................................... 400
Power Transfer Unit......................................... 400
Rear Axle............................................................... 401
Washer Reservoir............................................... 401
Capacities and Specifications
................376
Car Wash See: Cleaning the Exterior.............................. 336
Catalytic Converter......................................193 On-Board Diagnostics (OBD-II)................... 194
Readiness for Inspection and Maintenance (I/M) Testing................................................... 194
Changing a Bulb
............................................331
LED Bulbs (If Equipped)................................. 332
Replacing Direction Indicator Bulbs...........333
Replacing Fog Lamp Bulbs............................ 332
Replacing Headlamp Bulbs............................ 331
537
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index

Replacing High-Mount Brake Lamp
Bulbs.................................................................. 334
Replacing License Plate Lamp Bulbs.........333
Replacing Reverse Lamp Assembly Bulbs.................................................................. 333
Changing a Fuse...........................................310 Engine Compartment Fuse Box.................... 310
Fuse Types.............................................................. 311
General Information.......................................... 310
Changing a Road Wheel...........................369 Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 369
Tire Change Procedure.................................... 370
Changing the 12V Battery.........................326 Remove and Reinstall the Battery...............327
Changing the Engine Air Filter - 2.5L, Hybrid Electric Vehicle (HEV)/Plug-In
Hybrid Electric Vehicle (PHEV)...........320
Changing the Engine Air Filter - Excluding: Hybrid Electric Vehicle
(HEV)/Plug-In Hybrid Electric Vehicle
(PHEV)..........................................................319
Changing the Vehicle Wi-Fi Hotspot Name or Password
...................................407
Changing the Wiper Blades.....................330
Front Wiper Blades........................................... 330
Rear Window Wiper Blade............................. 330
Charging the High Voltage Battery........196 IMPORTANT SAFETY
INSTRUCTIONS............................................. 196
Checking MyKey System Status...............63 MyKey Distance.................................................... 63
Number of Admin Keys...................................... 64
Number of MyKeys.............................................. 64
Checking the Wiper Blades.....................330
Child Restraint and Seatbelt Maintenance..................................................41
Child Restraint Positioning
..........................31
Child Safety......................................................22
General Information............................................ 22
Child Safety Locks..........................................33 Left-Hand Side...................................................... 34
Right-Hand Side................................................... 34
Cleaning Leather Seats.............................339
Cleaning Products
.......................................335
Materials............................................................... 335
Cleaning the Engine....................................337 Cleaning the Exterior..................................336
Cleaning the Headlamps................................ 336
Exterior Chrome Parts..................................... 336
Exterior Plastic Parts........................................ 336
Stripes or Graphics............................................ 336
Underbody............................................................ 337
Under Hood.......................................................... 337
Cleaning the Instrument Panel and Instrument Cluster Lens........................338
Cleaning Discolored Area(s) on the Instrument Panel Surface......................... 339
Cleaning the Interior...................................338 Mirrors.................................................................... 338
Cleaning the Wheels..................................340
Cleaning the Windows and Wiper Blades............................................................337
Clearing All MyKeys.......................................63
Climate Control
..............................................137
Collision, Damage or Fire Event.............294 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped
With High Voltage Batteries..................... 294
Connected Vehicle.....................................404 Connecting the Vehicle to a Mobile
Network........................................................... 404
Connected Vehicle Limitations.............404
Connected Vehicle Requirements
........404
Connected Vehicle – Troubleshooting.......................................
405
Connecting the Vehicle to a Mobile Network.......................................................404
Connecting FordPass to the Modem........404
Enabling and Disabling the Modem..........404
What Is the Modem......................................... 404
Connecting the Vehicle to a Wi-Fi Network.......................................................404
Coolant Check See: Engine Coolant Check............................. 321
Crash Sensors and Airbag Indicator.........51
Creating a MyKey
............................................62
Programming and Changing Configurable
Settings............................................................... 63
Creating a Vehicle Wi-Fi Hotspot..........407 Connecting a Device to the Wi-Fi
Hotspot............................................................ 407
Finding the Wi-Fi Hotspot Name and Password......................................................... 407
538
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index

Power Flow...........................................................
461
Vehicle Operational States............................. 461
Electromagnetic Compatibility..............505
Emission Law.................................................192 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........193
Tampering With a Noise Control System............................................................... 192
End User License Agreement
.................508
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 508
Engine Block Heater.....................................173 Using the Engine Block Heater....................... 174
Engine Coolant Check.................................321 Adding Coolant.................................................... 321
Coolant Change.................................................. 323
Engine Coolant Temperature Management.................................................. 324
Fail-Safe Cooling................................................ 323
Recycled Coolant............................................... 322
Severe Climates.................................................. 323
Engine Emission Control............................192
Engine Immobilizer See: Passive Anti-Theft System..................... 76
Engine Oil Check............................................317 Adding Engine Oil................................................ 317
Engine Oil Dipstick
........................................317
Engine Specifications - 1.5L EcoBoost™.................................................376
Drivebelt Routing............................................... 376
Engine Specifications - 2.0L EcoBoost™.................................................376
Drivebelt Routing................................................ 377
Engine Specifications - 2.5L, Hybrid Electric Vehicle (HEV)/Plug-In Hybrid
Electric Vehicle (PHEV)..........................377
Entertainment..............................................444 AM/FM Radio...................................................... 445
Apps........................................................................\
453
Bluetooth Stereo or USB................................ 452
CD (If equipped)................................................. 451
HD Radio ™ Information (If
Available)........................................................ 448
SiriusXM® Satellite Radio (If Activated)........................................................ 445
Sources................................................................. 444
Supported Media Players, Formats and Metadata Information................................ 453USB Ports.............................................................
453
Environment.....................................................19
EPB See: Electric Parking Brake............................. 218
Essential Towing Checks
..........................279
Before Towing a Trailer................................... 280
Hitches................................................................... 279
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 281
Safety Chains...................................................... 279
Trailer Brakes...................................................... 280
Trailer Lamps...................................................... 280
Trailer Towing Connector................................ 279
When Towing a Trailer..................................... 280
Event Data Recording See: Data Recording.............................................. 11
Export Unique Options
.................................18
Exterior Mirrors................................................94 Auto-Folding Mirrors........................................... 95
Blind Spot Monitor.............................................. 95
Fold-Away Exterior Mirrors............................... 94
Heated Exterior Mirrors...................................... 95
Memory Mirrors..................................................... 95
Power Exterior Mirrors........................................ 94
Puddle Lamps ...................................................... 95
Signal Indicator Mirrors...................................... 95
F
Fastening the Seatbelts..............................36 How to Extract Seatbelts in the Rear
Outermost Positions...................................... 38
Seatbelt Locking Modes.................................... 37
Using Seatbelts During Pregnancy................36
Flat Tire See: Changing a Road Wheel....................... 369
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................345
Floor Mats......................................................285
Fog Lamps - Front See: Front Fog Lamps........................................ 88
Ford Credit
.........................................................15
US Only..................................................................... 15
Ford Protect..................................................484 Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 485
Ford Protect Extended Service Plans (U.S. Only)................................................................. 484
540
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index

Front Fog Lamps............................................88
Front Fog Lamp Indicator................................. 89
Switching the Front Fog Lamps On or Off........................................................................\
. 88
Front Parking Aid..........................................227 Object Distance Indicator............................... 228
Front Passenger Sensing System............46
Fuel and Refueling.......................................182
Fuel Consumption.......................................190 Advertised Capacity.......................................... 190
Calculating Fuel Economy.............................. 190
Filling the Fuel Tank.......................................... 190
Fuel Filler Funnel Location........................183
Fuel Filter
........................................................329
Fuel Quality.....................................................182
Choosing the Right Fuel................................... 182
Fuel Shutoff..................................................288
Fuses................................................................304
Fuse Specification Chart..........................304 Engine Compartment Fuse Box.................. 304
Passenger Compartment Fuse Box...........308
G
Garage Door Opener...................................159
Garage Door Opener See: Universal Garage Door Opener...........159
Gauges - Plug-In Hybrid Electric Vehicle (PHEV), Vehicles With: 12.3 Inch
Instrument Cluster Display
Screen............................................................102
Battery Gauge...................................................... 103
Engine Coolant Temperature Gauge..........103
Fuel Gauge............................................................ 103
Information Bar................................................... 102
Information Display........................................... 102
Low Fuel Reminder............................................ 103
Power Gauge........................................................ 104
Vehicle Driving Range....................................... 103
Gauges - Plug-In Hybrid Electric Vehicle (PHEV), Vehicles With: 6.5 Inch
Instrument Cluster Display
Screen.............................................................99
Battery Gauge....................................................... 101
Engine Coolant Temperature Gauge...........101
Fuel Gauge........................................................... 100
Information Bar.................................................. 100
Information Display............................................ 101Low Fuel Reminder.............................................
101
Power Gauge....................................................... 100
Vehicle Driving Range........................................ 101
Gauges - Vehicles With: 12.3 Inch Instrument Cluster Display
Screen.............................................................98
Distance to Empty............................................... 99
Engine Coolant Temperature Gauge............99
Fuel Gauge............................................................. 98
Information Bar.................................................... 98
Information Display............................................. 98
Low Fuel Reminder............................................. 99
Gauges - Vehicles With: 4.2 Inch Instrument Cluster Display
Screen...........................................................104
Engine Coolant Temperature Gauge..........105
Fuel Gauge............................................................ 105
Information Display........................................... 105
Gearbox See: Transmission............................................. 204
General Information on Radio Frequencies...................................................54
Intelligent Access................................................. 54
General Maintenance Information
.......486
Multi-Point Inspection.................................... 488
Owner Checks and Services.......................... 487
Protecting Your Investment.......................... 486
Why Maintain Your Vehicle?......................... 486
Why Maintain Your Vehicle at Your Dealership?.................................................... 486
Getting Assistance Outside the U.S. and Canada........................................................300
Getting the Services You Need...............297 Away From Home.............................................. 297
H
Hazard Flashers
...........................................288
Headlamp Adjusting See: Adjusting the Headlamps..................... 328
Headlamp Exit Delay....................................87
Headrest See: Head Restraints........................................ 148
Head Restraints
............................................148
Folding the Head Restraint............................. 150
Front Seat Head Restraints............................ 149
Installing the Head Restraint......................... 150
Lowering the Head Restraint......................... 149
541
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index

Power Door Locks................................................
66
Remote Control.................................................... 66
Smart Unlocks for Integrated Keyhead Transmitter........................................................ 68
Smart Unlocks for Intelligent Access Keys...................................................................... 68
Luggage Covers............................................268 Installing the Luggage Cover......................... 269
Removing the Luggage Cover....................... 268
Stowing the Luggage Cover.......................... 269
Lug Nuts See: Changing a Road Wheel....................... 369
M
Maintenance...................................................312 General Information........................................... 312
Manual Climate Control.............................137 Directing the Airflow.......................................... 137
Setting the Blower Motor Speed................... 137
Setting the Temperature.................................. 137
Switching Maximum Air Conditioning On and Off............................................................... 138
Switching Maximum Defrost On and Off....................................................................... 138
Switching Recirculated Air On and Off....................................................................... 138
Switching the Air Conditioning On and Off........................................................................\
137
Switching the Climate Control On and Off....................................................................... 138
Manual Liftgate................................................71
Closing the Liftgate............................................... 71
Opening with the Outside Control Button................................................................... 71
Opening with the Remote Control.................. 71
Manual Seats
..................................................151
Adjusting the Seat Backrest............................ 151
Adjusting the Seat Height................................ 151
Moving the Seat Backward and Forward.............................................................. 151
Memory Function..........................................153 Saving a PreSet Position.................................. 153
Message Center See: Information Displays................................ 110
Mirrors See: Windows and Mirrors................................ 93
Mobile Communications Equipment.......17 Moonroof
..........................................................96
Bounce-Back.......................................................... 97
Opening and Closing the Moonroof..............97
Motorcraft Parts - 1.5L EcoBoost™.................................................378
Motorcraft Parts - 2.0L EcoBoost™
.................................................379
Motorcraft Parts - 2.5L, Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric
Vehicle (PHEV)
.........................................380
MyKey – Troubleshooting...........................64
MyKey ™..............................................................61
Principle of Operation......................................... 61
N
Navigation......................................................455 Changing the Format of the Map................457
cityseeker............................................................. 459
Michelin Travel Guide...................................... 460
Navigation Map Accuracy and Updates............................................................. 461
Route Guidance................................................. 458
Setting a Destination....................................... 456
SiriusXM Traffic and Travel Link.................. 460
Zoom...................................................................... 457
Normal Scheduled Maintenance
..........489
Intelligent Oil-Life Monitor™........................ 489
Normal Maintenance Intervals.................... 490
O
Oil Change Indicator Reset
.......................318
Oil Check See: Engine Oil Check........................................ 317
Opening and Closing the Hood...............312 Closing the Hood................................................ 313
Information Messages...................................... 313
Opening the Hood.............................................. 312
Warning Lamps and Indicators..................... 313
Ordering Additional Owner's Literature
.....................................................302
Obtaining a French Owner ’s Manual.........302
Overriding Automatic High Beam Control.............................................................92
Overriding the Set Speed.........................245
544
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index

P
Parking Aids...................................................225
Principle of Operation...................................... 225
Passive Anti-Theft System.........................76
SecuriLock®........................................................... 76
PATS See: Passive Anti-Theft System..................... 76
Pedestrian Alert System..............................53
Pedestrian Protection
...................................53
Perchlorate........................................................15
Personalized Settings
..................................115
Fuel Economy....................................................... 116
Hybrid Information.............................................. 116
Trip 1 and 2.............................................................. 116
Personal Safety System ™
..........................43
How Does the Personal Safety System
Work?.................................................................. 43
Phone...............................................................454 Android Auto....................................................... 455
Apple CarPlay..................................................... 455
Pairing Your Cell Phone for the First Time................................................................... 454
Text Messaging................................................... 454
Using Your Cell Phone..................................... 454
Plug-In Hybrid Vehicle Operation
...........178
Electric Vehicle (EV) Modes........................... 178
Low Engine Use.................................................. 180
Post-Crash Alert System..........................295
Power Door Locks See: Locking and Unlocking............................. 66
Power Liftgate
..................................................72
Hands-Free Feature............................................. 74
Obstacle Detection.............................................. 74
Opening and Closing the Liftgate................... 72
Setting the Liftgate Open Height................... 73
Stopping the Liftgate Movement................... 73
Switching the Power Liftgate On or Off........................................................................\
.. 74
Power Seats
....................................................152
Adjusting the Lumbar Support...................... 153
Adjusting the Seat Backrest........................... 152
Adjusting the Seat Cushion............................. 152
Adjusting the Seat Height................................ 152
Moving the Seat Backward and Forward............................................................. 152
Power Steering Fluid Check
.....................326 Power Windows..............................................93
Accessory Delay................................................... 94
Bounce-Back......................................................... 93
One-Touch Down................................................. 93
One-Touch Up....................................................... 93
Rear Window Lock............................................... 93
Pre-Collision Assist......................................261 Adjusting the Pre-Collision Assist
Settings............................................................ 263
Blocked Sensors................................................ 264
Distance Indication and Alert........................ 262
Evasive Steering Assist.................................... 263
Using the Pre-Collision Assist System............................................................... 261
Protecting the Environment
........................19
Puncture See: Changing a Road Wheel....................... 369
R
Rear Occupant Alert System Audible Warnings.......................................................158
Rear Occupant Alert System Indicators - Vehicles With: SYNC 3..........................158
Rear Occupant Alert System Indicators - Vehicles With: SYNC.............................158
Rear Occupant Alert System Limitations....................................................157
Rear Occupant Alert System Precautions..................................................157
Rear Occupant Alert System....................157
Rear Parking Aid
...........................................226
Object Distance Indicator............................... 227
Rear Seat Armrest.......................................166
Rear Seats
.......................................................154
Adjusting the Seat Backrest........................... 155
Folding the Seat Backrest............................... 155
Moving the Seats Backward and Forward............................................................. 154
Unfolding the Seat Backrest.......................... 155
Rear Under Floor Storage
.........................268
Adjustable Load Floor..................................... 268
Cargo Management System......................... 268
Rear View Camera.......................................233 Using the Rear View Camera System........234
Rear View Camera See: Rear View Camera................................... 233
545
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index
