Page 14 of 589

High Voltage Battery Vehicle Precautions
- Hybrid Electric Vehicle (HEV) ..........314
Switching the Hazard Flashers On and Off .................................................................
315
Jump Starting the Vehicle ........................
315
Post-Crash Alert System ..........................
318
Automatic Crash Shutoff .........................
319
Transporting the Vehicle ...........................
319
Towing Your Vehicle
Towing Your Vehicle Precautions ...........
321
Recreationally Towing Your Vehicle - Gasoline, AWD ..........................................
321
Recreationally Towing Your Vehicle - Gasoline, FWD ..........................................
321
Recreationally Towing Your Vehicle - Hybrid Electric Vehicle (HEV)/Plug-In
Hybrid Electric Vehicle (PHEV) ..........
321
Emergency Towing - Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric
Vehicle (PHEV) ........................................
322
Emergency Towing - 8-Speed Automatic Transmission – 8F24 .............................
322
Emergency Towing - 8-Speed Automatic Transmission – 8F35 .............................
322
Towing Your Vehicle – Troubleshooting ........................................................................\
323
Fuses
Fuse Precautions ........................................
324
Under Hood Fuse Box ...............................
324
Body Control Module Fuse Box ............
330
Identifying Fuse Types ..............................
332
Fuses – Troubleshooting .........................
332
Maintenance
Maintenance Precautions .......................
333
Opening and Closing the Hood .............
333
Under Hood Overview - 1.5L EcoBoost™ ........................................................................\
335
Under Hood Overview - 2.0L EcoBoost™ ........................................................................\
336 Under Hood Overview - 2.5L, Hybrid
Electric Vehicle (HEV)/Plug-In Hybrid
Electric Vehicle (PHEV) ........................
337
Engine Oil ......................................................
338
Checking the Coolant ...............................
339
Changing the Engine Air Filter - 1.5L EcoBoost™/2.0L EcoBoost™ ...........
343
Changing the Engine Air Filter - 2.5L, Hybrid Electric Vehicle (HEV)/Plug-In
Hybrid Electric Vehicle (PHEV) .........
344
Changing the Fuel Filter - Gasoline, Hybrid Electric Vehicle (HEV) ............
344
Drive Belt Routing Overview - 1.5L EcoBoost™ ...............................................
345
Drive Belt Routing Overview - 2.0L EcoBoost™ ...............................................
345
Changing the 12V Battery ........................
345
Adjusting the Headlamps .......................
348
Exterior Bulbs ...............................................
349
Interior Bulbs .................................................
351
Vehicle Care
Cleaning Products ......................................
352
Cleaning the Exterior .................................
352
Cleaning the Interior ..................................
354
Repairing Minor Paint Damage .............
356
Waxing Your Vehicle ..................................
356
Body Styling Kits
Body Styling Kit Precautions ..................
357
Storing Your Vehicle
Preparing Your Vehicle for Storage ......
358
Removing Your Vehicle From Storage ........................................................................\
359
Wheel and Tire Information
Locating the Tire label .............................
360
Department of Transportation Uniform Tire Quality Grades ...............................
360
Information on the Tire Sidewall ...........
361
Glossary of Tire Terminology .................
366
11
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Table of Contents

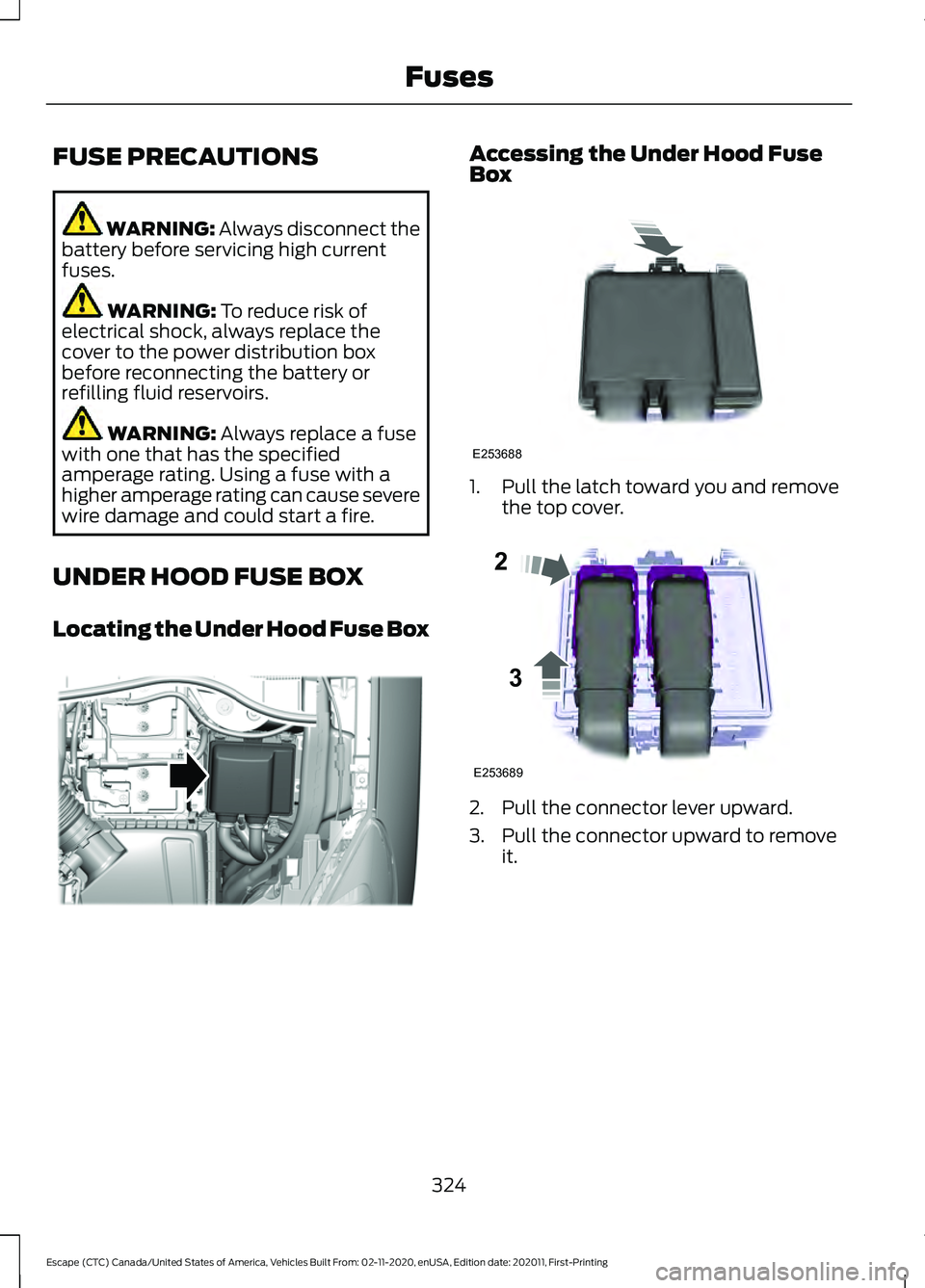

Page 327 of 589

FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.
UNDER HOOD FUSE BOX
Locating the Under Hood Fuse Box Accessing the Under Hood Fuse
Box
1. Pull the latch toward you and remove
the top cover. 2. Pull the connector lever upward.
3. Pull the connector upward to remove
it.
324
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing FusesE334436 E253688 E253689
2
3

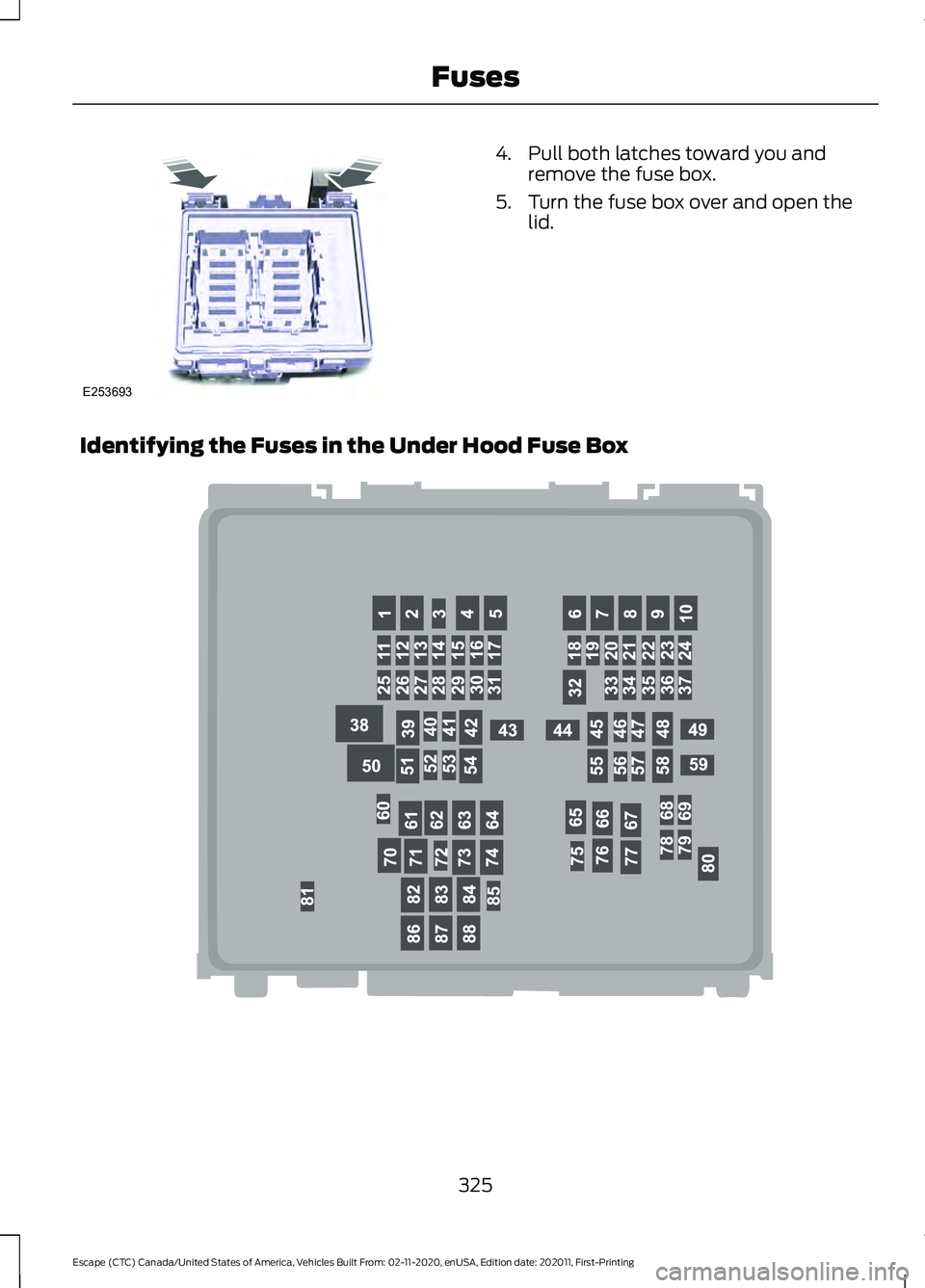

Page 328 of 589

4. Pull both latches toward you and
remove the fuse box.
5. Turn the fuse box over and open the lid.
Identifying the Fuses in the Under Hood Fuse Box 325
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing FusesE253693 E292669

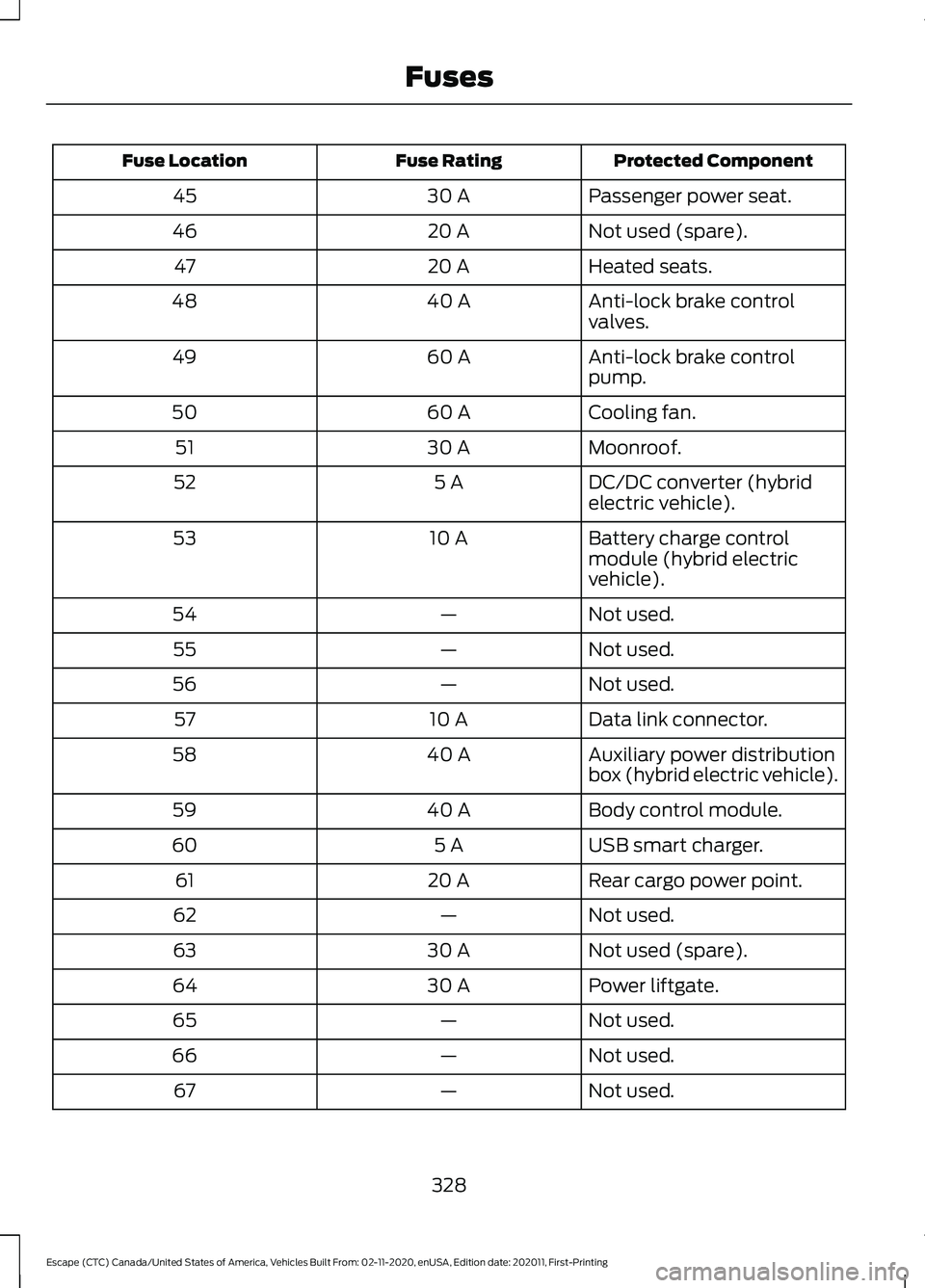

Page 331 of 589

Protected Component
Fuse Rating
Fuse Location
Passenger power seat.
30 A
45
Not used (spare).
20 A
46
Heated seats.
20 A
47
Anti-lock brake control
valves.
40 A
48
Anti-lock brake control
pump.
60 A
49
Cooling fan.
60 A
50
Moonroof.
30 A
51
DC/DC converter (hybrid
electric vehicle).
5 A
52
Battery charge control
module (hybrid electric
vehicle).
10 A
53
Not used.
—
54
Not used.
—
55
Not used.
—
56
Data link connector.
10 A
57
Auxiliary power distribution
box (hybrid electric vehicle).
40 A
58
Body control module.
40 A
59
USB smart charger.
5 A
60
Rear cargo power point.
20 A
61
Not used.
—
62
Not used (spare).
30 A
63
Power liftgate.
30 A
64
Not used.
—
65
Not used.
—
66
Not used.
—
67
328
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Fuses

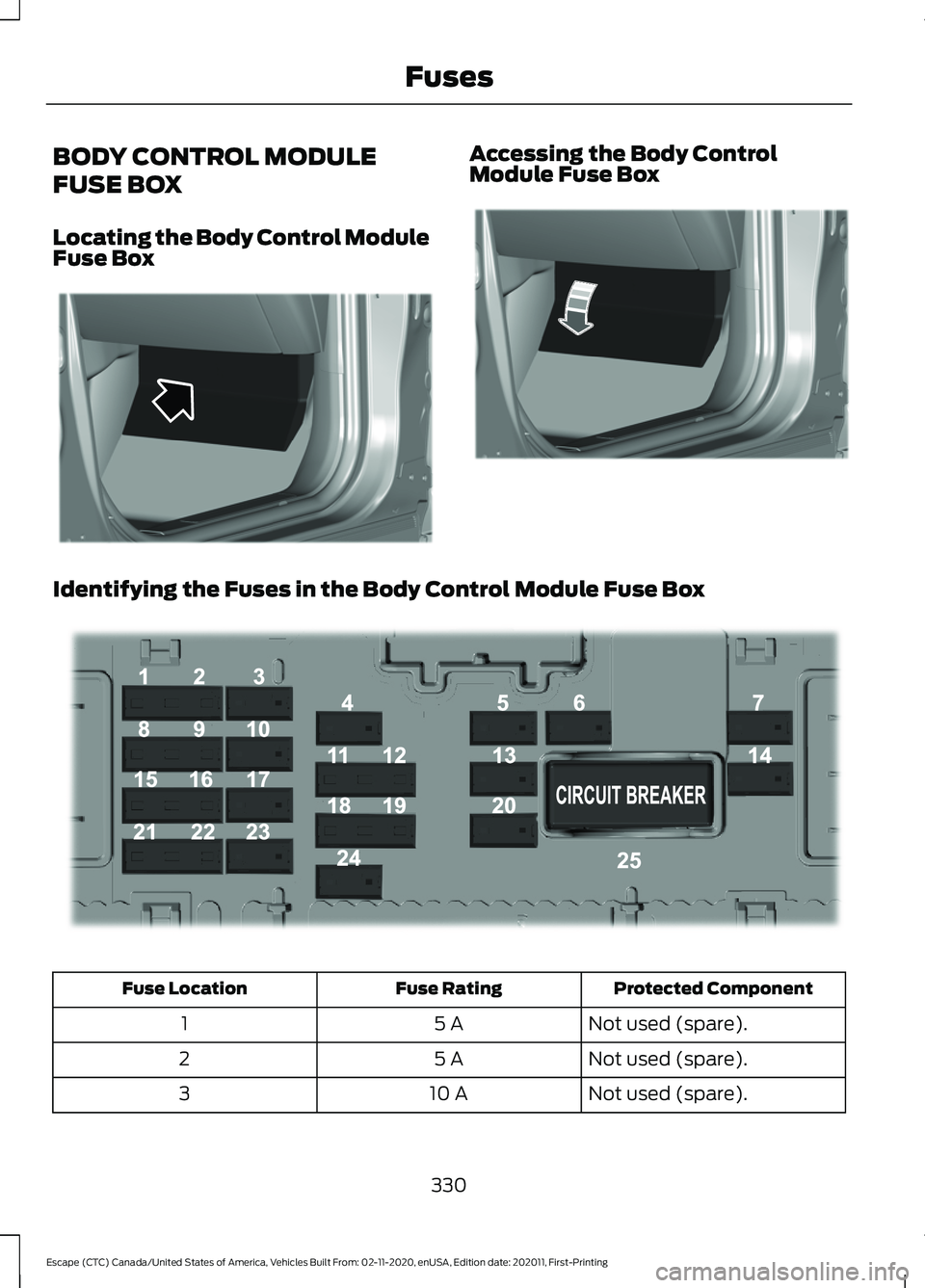

Page 333 of 589

BODY CONTROL MODULE
FUSE BOX
Locating the Body Control Module
Fuse Box Accessing the Body Control
Module Fuse Box
Identifying the Fuses in the Body Control Module Fuse Box
Protected Component
Fuse Rating
Fuse Location
Not used (spare).
5 A
1
Not used (spare).
5 A
2
Not used (spare).
10 A
3
330
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing FusesE329070 E329071 E293328
Page 338 of 589

UNDER HOOD OVERVIEW - 1.5L ECOBOOST™
Windshield washer fluid. See Adding Washer Fluid (page 96).
A
Engine coolant reservoir.
See Checking the Coolant (page 339).
B
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 338).
C
Engine oil filler cap.
See Adding Engine Oil (page 338).
D
Brake fluid reservoir.
See Locating the Brake Fluid Reservoir (page 222).
E
Battery.
See Changing the 12V Battery (page 345).
F
Engine compartment fuse box.
See Fuses (page 324).
G
Air filter.
See Changing the Engine Air Filter (page 343).
H
335
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing MaintenanceE308193
Page 339 of 589

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Windshield washer fluid reservoir. See Adding Washer Fluid (page 96).
A
Engine coolant reservoir.
See Checking the Coolant (page 339).
B
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 338).
C
Engine oil filler cap.
See Adding Engine Oil (page 338).
D
Brake fluid reservoir.
See Locating the Brake Fluid Reservoir (page 222).
E
Battery.
See Changing the 12V Battery (page 345).
F
Engine compartment fuse box.
See Fuses (page 324).
G
Air filter assembly. See
Changing the Engine Air Filter (page 343).
H
336
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing MaintenanceE307705
Page 340 of 589

UNDER HOOD OVERVIEW - 2.5L, HYBRID ELECTRIC VEHICLE
(HEV)/PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Windshield washer fluid reservoir: See Adding Washer Fluid (page 96).
A
Low temp coolant cap:
See Checking the Coolant (page 339).
B
High temp coolant cap:
See Checking the Coolant (page 339).
C
Engine oil filler cap:
See Adding Engine Oil (page 338).
D
Engine oil dipstick:
See Engine Oil Dipstick Overview (page 338).
E
Brake fluid reservoir:
See Checking the Brake Fluid (page 222).
F
Power distribution box:
See Fuses (page 324).
G
Air filter assembly:
See Changing the Engine Air Filter (page 344).
H
337
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing MaintenanceE337414
Page 569 of 589

Automatic Transmission –
Troubleshooting.........................................215
Automatic Transmission – Information Messages.......................................................... 215
Auto-Start-Stop...........................................185 Auto-Start-Stop – Troubleshooting...........186
Auto-Start-Stop Indicators......................185
Auto-Start-Stop Precautions..................185
Auto-Start-Stop – Troubleshooting........................................186
Auto-Start-Stop – Frequently Asked Questions.......................................................... 187
Auto-Start-Stop – Information Messages.......................................................... 186
Autounlock.......................................................70 Autounlock Requirements................................ 70
Switching Autounlock On and Off.................70
What Is Autounlock............................................. 70
Autowipers
........................................................92
Adjusting the Sensitivity of the Rain
Sensor................................................................. 93
Autowipers Settings............................................ 92
What Are Autowipers......................................... 92
AWD See: All-Wheel Drive.......................................... 217
B
Battery See: Changing the 12V Battery..................... 345
Blind Spot Information System
..............273
Blind Spot Information System –
Troubleshooting............................................. 275
Blind Spot Information System Indicators......................................................274
Blind Spot Information System Limitations...................................................273
Blind Spot Information System Precautions.................................................273
Blind Spot Information System Requirements.............................................273
Blind Spot Information System – Troubleshooting........................................275
Blind Spot Information System – Information Messages................................. 275
Body Control Module Fuse Box.............330 Accessing the Body Control Module Fuse
Box..................................................................... 330Identifying the Fuses in the Body Control
Module Fuse Box.......................................... 330
Locating the Body Control Module Fuse Box..................................................................... 330
Body Styling Kit Precautions...................357
Body Styling Kits..........................................357
Bonnet Lock See: Opening and Closing the Hood..........333
Booster Seats
..................................................36
Types of Booster Seats...................................... 36
Brake Fluid Specification..........................222
Brake Over Accelerator...............................221
Brake Precautions.........................................221
Brakes................................................................221 Anti-Lock Braking System............................... 221
Brakes – Troubleshooting............................... 223
Brakes – Troubleshooting.........................223 Brakes – Frequently Asked
Questions......................................................... 223
Brakes – Warning Lamps................................ 223
Breaking-In.......................................................311
C
Calculating Payload....................................295
Calculating the Load Limit.......................295 Helpful examples for calculating the
available amount of cargo and luggage
load capacity.................................................. 296
California Proposition 65
...........................531
Canceling the Set Speed..........................248
Capacities and Specifications.................391
Catalytic Converter
......................................199
Catalytic Converter –
Troubleshooting ............................................. 199
Catalytic Converter Precautions............199
Catalytic Converter – Troubleshooting........................................199
Catalytic Converter – Warning Lamps................................................................ 199
Changing a Flat Tire...................................386 Stowing the flat tire.......................................... 388
Changing a Road Wheel
...........................386
Changing the 12V Battery.........................345
Remove and Reinstall the Battery..............346
Changing the Engine Air Filter - 1.5L EcoBoost™/2.0L EcoBoost™
.............343
566
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Index
Page 574 of 589

Exterior Bulbs................................................349
Changing a Front Fog Lamp Bulb.................351
Changing a Front Turn Signal Lamp
Bulb................................................................... 350
Changing a Headlamp Bulb.......................... 349
Changing a Reversing Lamp Bulb................351
Exterior Bulb Specification Chart................349
Exterior Lamps................................................99 Exterior Lamp Audible Warning................... 100
Exterior Lamp Indicators................................. 100
Switching the Daytime Running Lamps On and Off................................................................ 99
Switching the Front Fog Lamps On and Off........................................................................\
. 99
Switching the Turn Signal Lamps On and Off........................................................................\
. 99
Exterior Lighting Control..............................97
Exterior Lighting..............................................97
Autolamps.............................................................. 98
Automatic High Beam Control..................... 100
Automatic High Beam Control – Troubleshooting............................................. 102
Exterior Lamps...................................................... 99
Headlamps............................................................. 97
Headlamps – Troubleshooting...................... 98
Exterior Mirrors
..............................................108
F
Fastening the Seatbelts..............................40
Federal Highway Administration Regulation...................................................533
Flat Tire See: Changing a Flat Tire............................... 386
Floor Mats
........................................................312
Folding the Exterior Mirrors......................108
Ford Protect..................................................485
Front Parking Aid
.........................................236
Front Parking Aid Audible Warnings...........237
Front Parking Aid Limitations........................ 236
Locating the Front Parking Aid Sensors.............................................................. 237
What is the Front Parking Aid....................... 236
Front Passenger Sensing System
.............51
Front Passenger Sensing System
Indicators............................................................ 53
Front Passenger Sensing System Precautions........................................................ 53How Does the Front Passenger Sensing
System Work...................................................... 51
What Is the Front Passenger Sensing System.................................................................. 51
Front Seat Precautions..............................148
Front Seats
.....................................................148
Heated Seats........................................................ 153
Manual Seats....................................................... 149
Power Seats........................................................... 151
Fuel and Refueling.......................................188 Fuel and Refueling –
Troubleshooting............................................. 197
Fuel Quality.......................................................... 189
Refueling................................................................ 192
Running Out of Fuel.......................................... 190
Fuel and Refueling Precautions
.............188
Fuel and Refueling – Troubleshooting.........................................197
Fuel and Refueling – Information Messages.......................................................... 197
Fuel and Refueling – Warning Lamps.........197
Fuel Economy Display - Gasoline...........126
Fuel Economy Display - Hybrid Electric Vehicle (HEV).............................................126
Fuel Economy Display - Plug-In Hybrid Electric Vehicle (PHEV)...........................127
Fuel Gauge.......................................................118 Fuel Gauge Limitations..................................... 118
Locating the Fuel Filler Door........................... 118
What Is Distance to Empty.............................. 118
What Is the Fuel Gauge..................................... 118
What Is the Low Fuel Reminder..................... 118
Fuel Quality
....................................................189
Selecting the Correct Fuel.............................. 189
Fuel Tank Capacity - Excluding: Hybrid Electric Vehicle (HEV)/Plug-In Hybrid
Electric Vehicle (PHEV).........................402
Fuel Tank Capacity
......................................196
Advertised Capacity.......................................... 196
Fuel Tank Capacity - Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric
Vehicle (PHEV)
.........................................403
Fuse Precautions.........................................324
Fuses................................................................324
Body Control Module Fuse Box.................... 330
Fuses – Troubleshooting................................. 332
Under Hood Fuse Box...................................... 324
571
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Index
