FORD ESCAPE 2022 Owners Manual

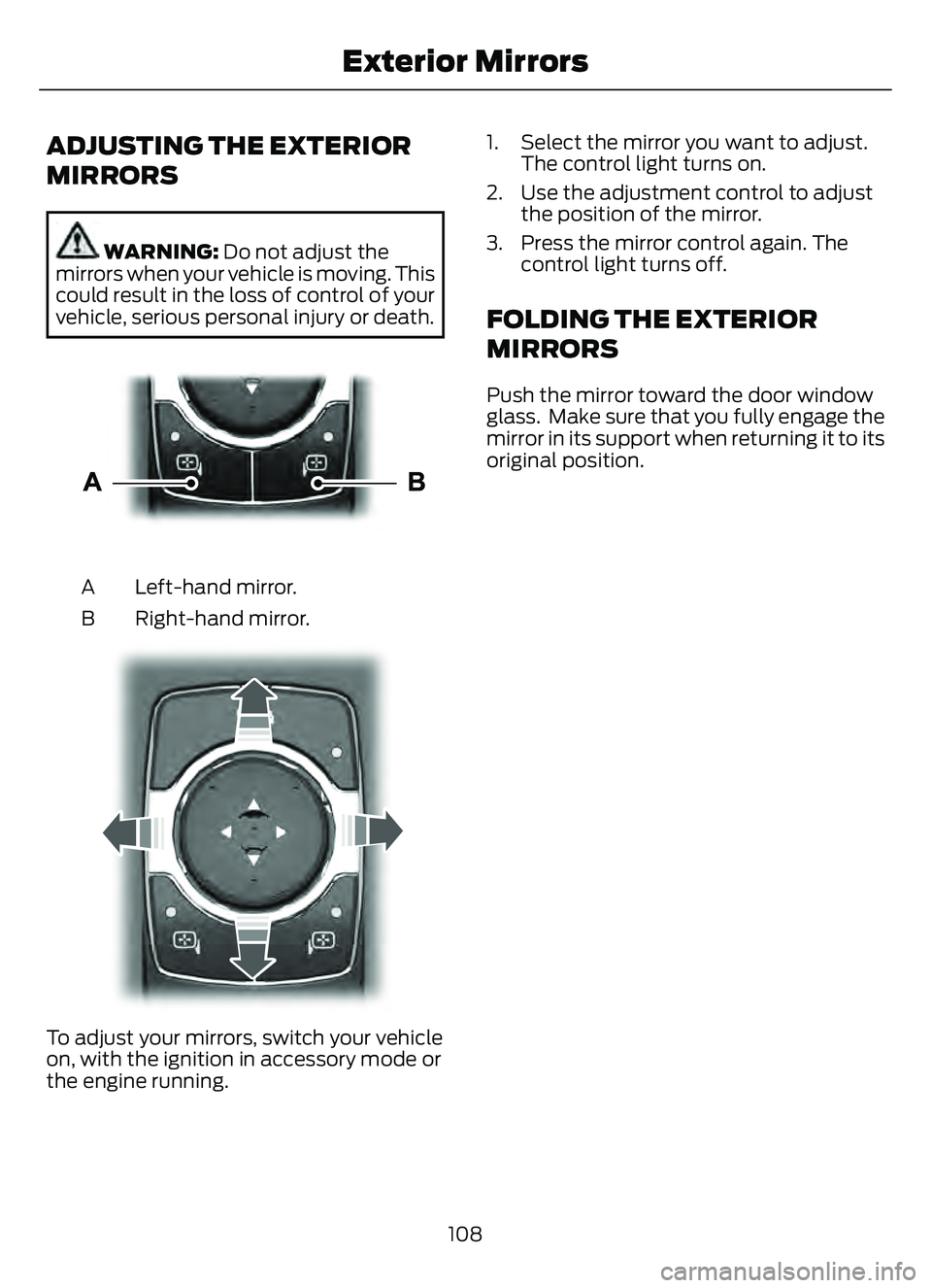

ADJUSTING THE EXTERIOR
MIRRORS
WARNING: Do not adjust the
mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.
E303926E303926
Left-hand mirror.
A
Right-hand mirror.
B
E30392E30392
To adjust your mirrors, switch your vehicle
on, with the ignition in accessory mode or
the engine running. 1. Select the mirror you want to adjust.
The control light turns on.
2. Use the adjustment control to adjust the position of the mirror.
3. Press the mirror control again. The control light turns off.
FOLDING THE EXTERIOR
MIRRORS
Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.
108
Exterior Mirrors

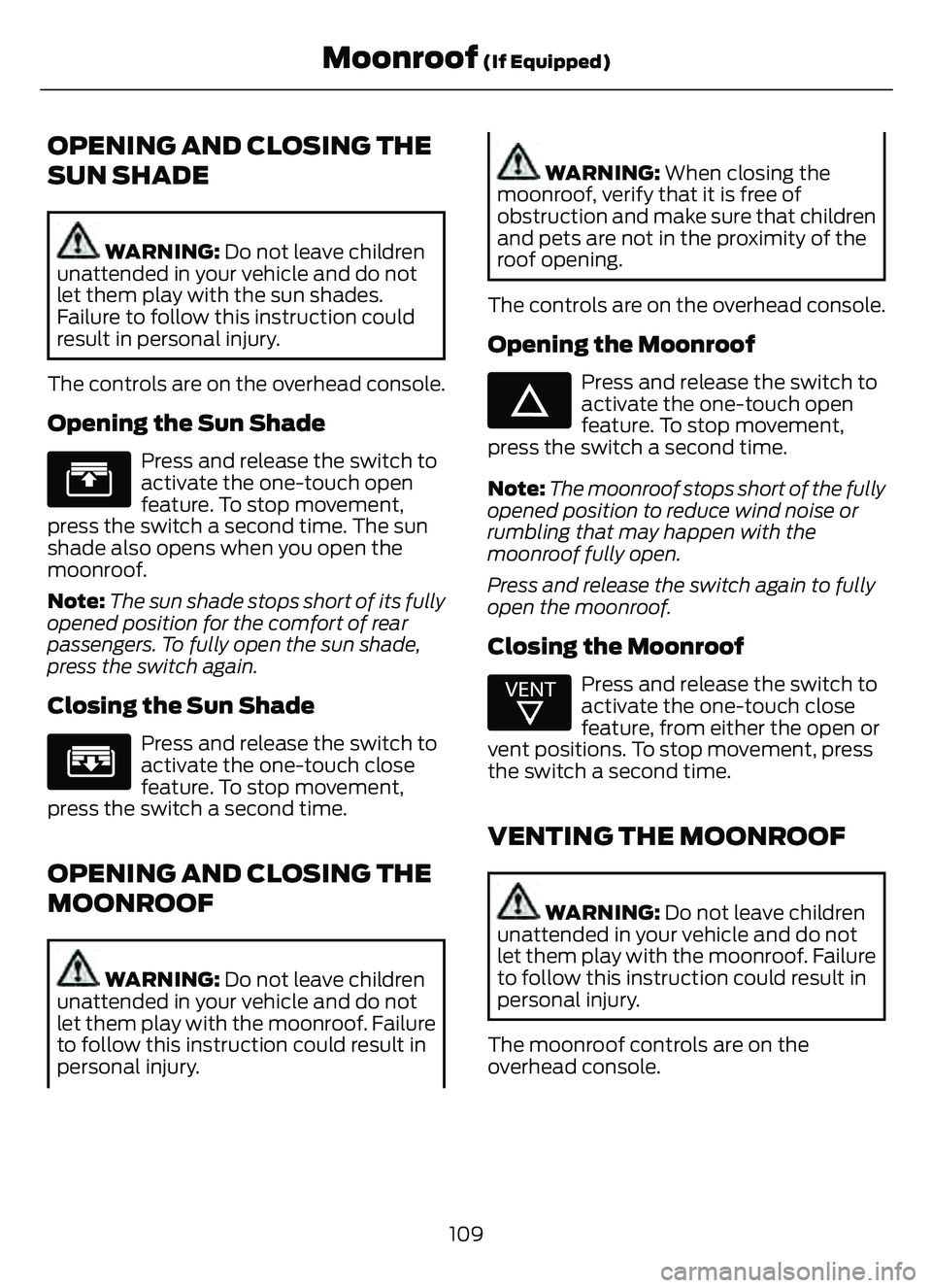

OPENING AND CLOSING THE
SUN SHADE
WARNING: Do not leave children
unattended in your vehicle and do not
let them play with the sun shades.
Failure to follow this instruction could
result in personal injury.
The controls are on the overhead console.
Opening the Sun Shade
E312249
Press and release the switch to
activate the one-touch open
feature. To stop movement,
press the switch a second time. The sun
shade also opens when you open the
moonroof.
Note: The sun shade stops short of its fully
opened position for the comfort of rear
passengers. To fully open the sun shade,
press the switch again.
Closing the Sun Shade
E312250E312250
Press and release the switch to
activate the one-touch close
feature. To stop movement,
press the switch a second time.
OPENING AND CLOSING THE
MOONROOF
WARNING: Do not leave children
unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.
WARNING: When closing the
moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the
roof opening.
The controls are on the overhead console.
Opening the Moonroof
E312251E312251
Press and release the switch to
activate the one-touch open
feature. To stop movement,
press the switch a second time.
Note: The moonroof stops short of the fully
opened position to reduce wind noise or
rumbling that may happen with the
moonroof fully open.
Press and release the switch again to fully
open the moonroof.
Closing the Moonroof
E312252E31225225
Press and release the switch to
activate the one-touch close
feature, from either the open or
vent positions. To stop movement, press
the switch a second time.
VENTING THE MOONROOF
WARNING: Do not leave children
unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.
The moonroof controls are on the
overhead console.
109
Moonroof (If Equipped)

E312252E31225225

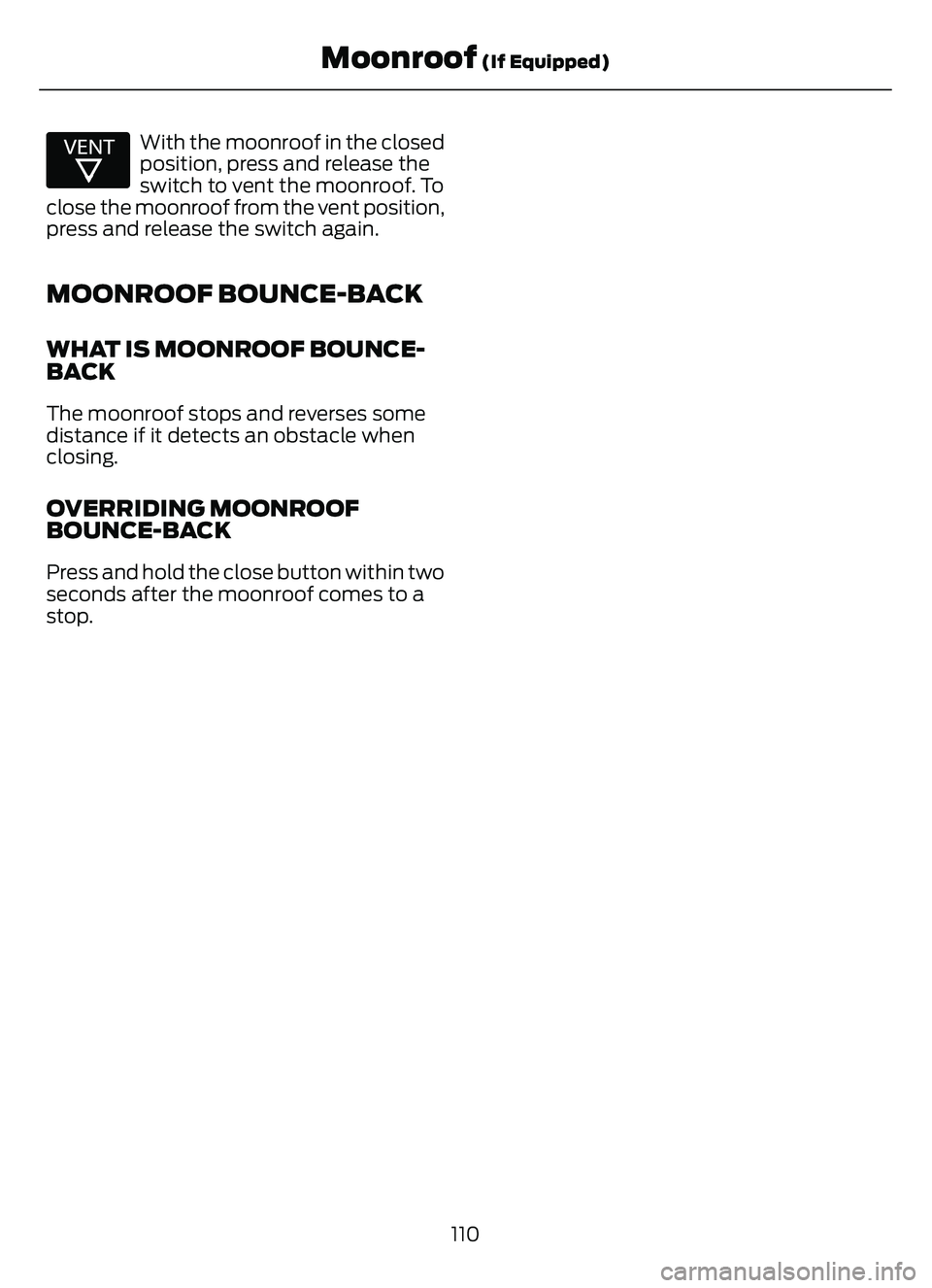

With the moonroof in the closed
position, press and release the
switch to vent the moonroof. To
close the moonroof from the vent position,
press and release the switch again.
MOONROOF BOUNCE-BACK
WHAT IS MOONROOF BOUNCE-
BACK
The moonroof stops and reverses some
distance if it detects an obstacle when
closing.
OVERRIDING MOONROOF
BOUNCE-BACK
Press and hold the close button within two
seconds after the moonroof comes to a
stop.
110
Moonroof (If Equipped)

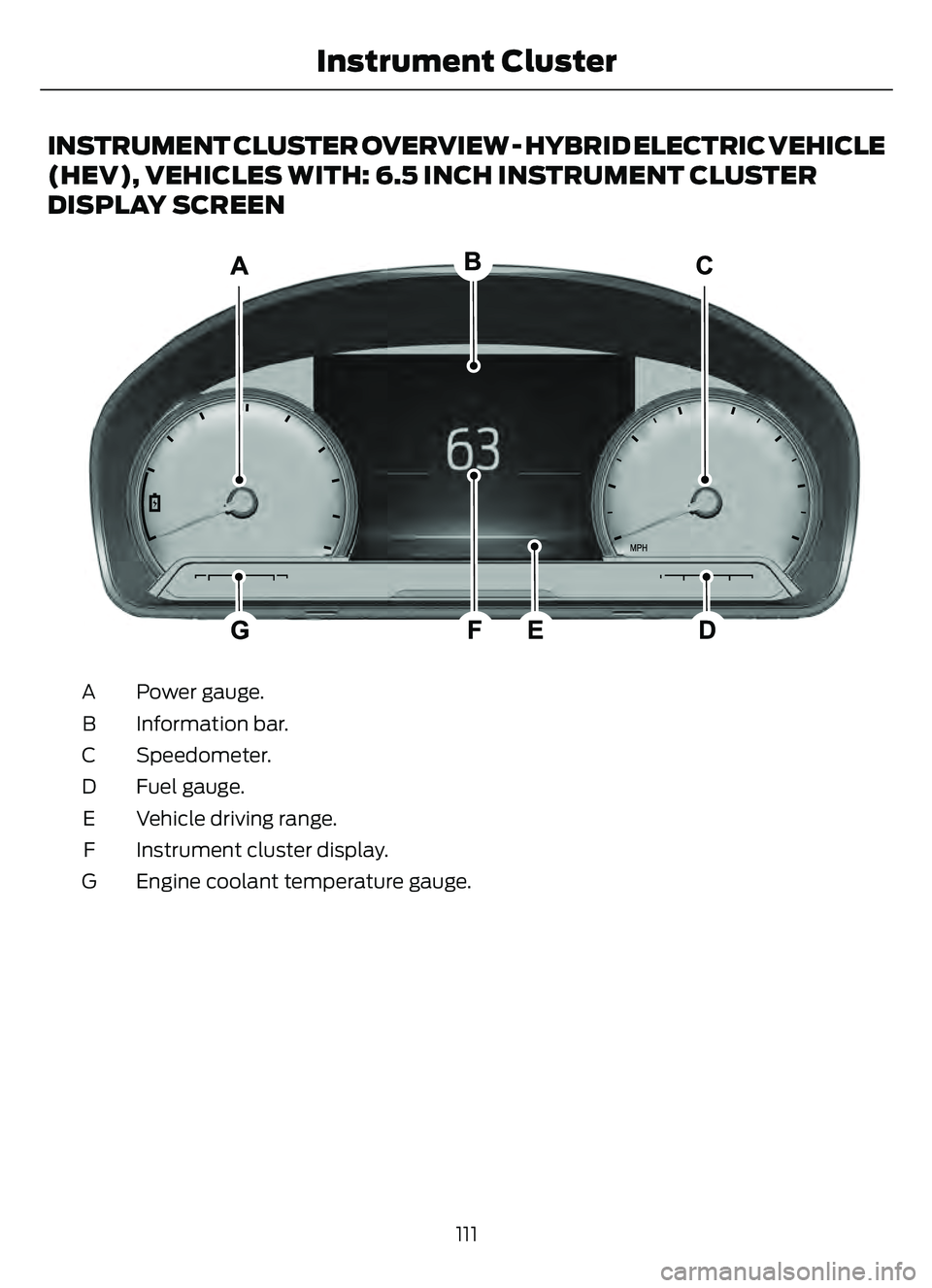

INSTRUMENT CLUSTER OVERVIEW - HYBRID ELECTRIC VEHICLE
(HEV), VEHICLES WITH: 6.5 INCH INSTRUMENT CLUSTER
DISPLAY SCREEN
E307890E307890
Power gauge.
A
Information bar.
B
Speedometer.
C
Fuel gauge.
D
Vehicle driving range.
E
Instrument cluster display.
F
Engine coolant temperature gauge.
G
111
Instrument Cluster

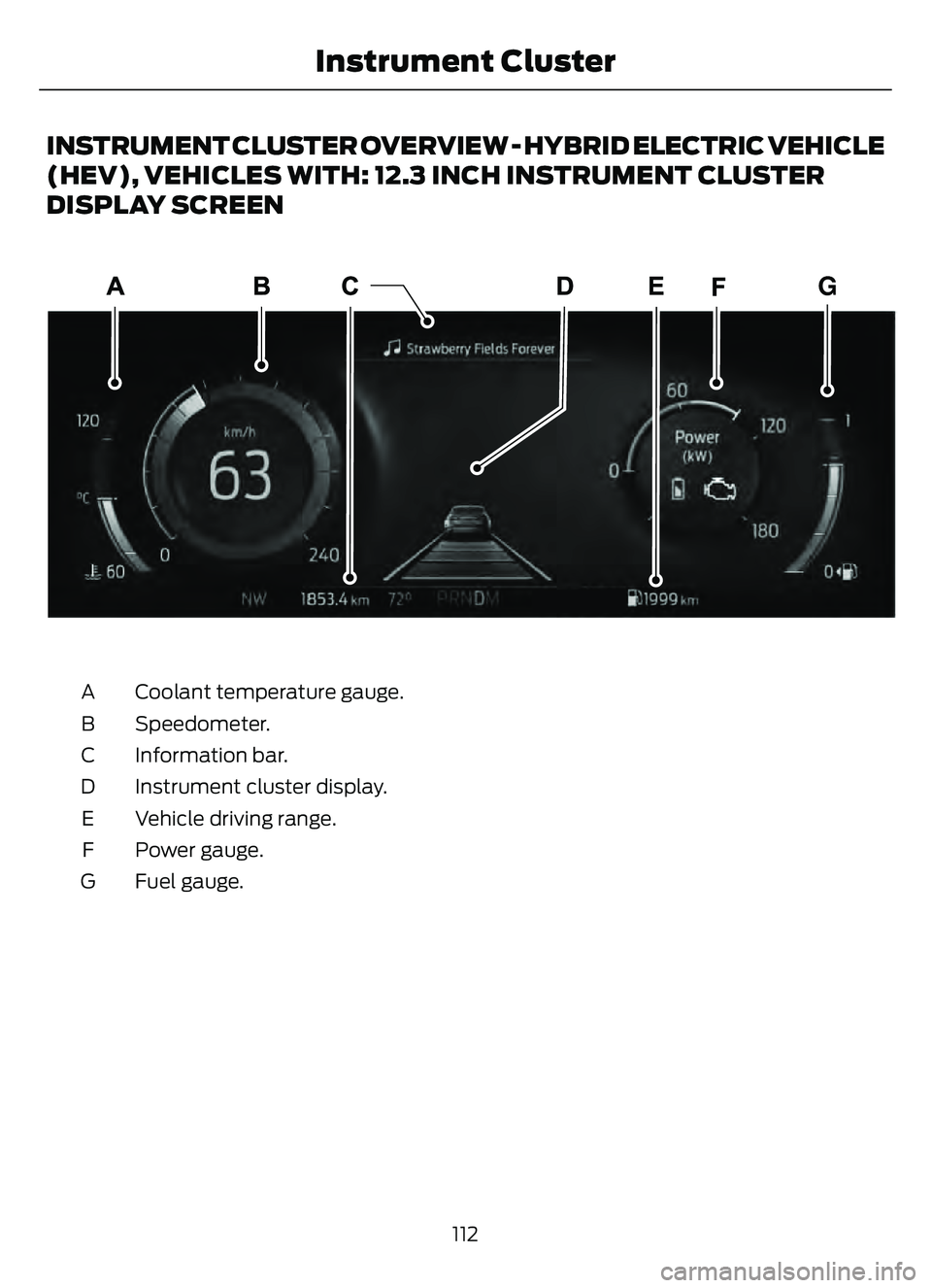

INSTRUMENT CLUSTER OVERVIEW - HYBRID ELECTRIC VEHICLE
(HEV), VEHICLES WITH: 12.3 INCH INSTRUMENT CLUSTER
DISPLAY SCREEN
G
E340894
Coolant temperature gauge.
A
Speedometer.
B
Information bar.
C
Instrument cluster display.
D
Vehicle driving range.
E
Power gauge.
F
Fuel gauge.
G
112
Instrument Cluster

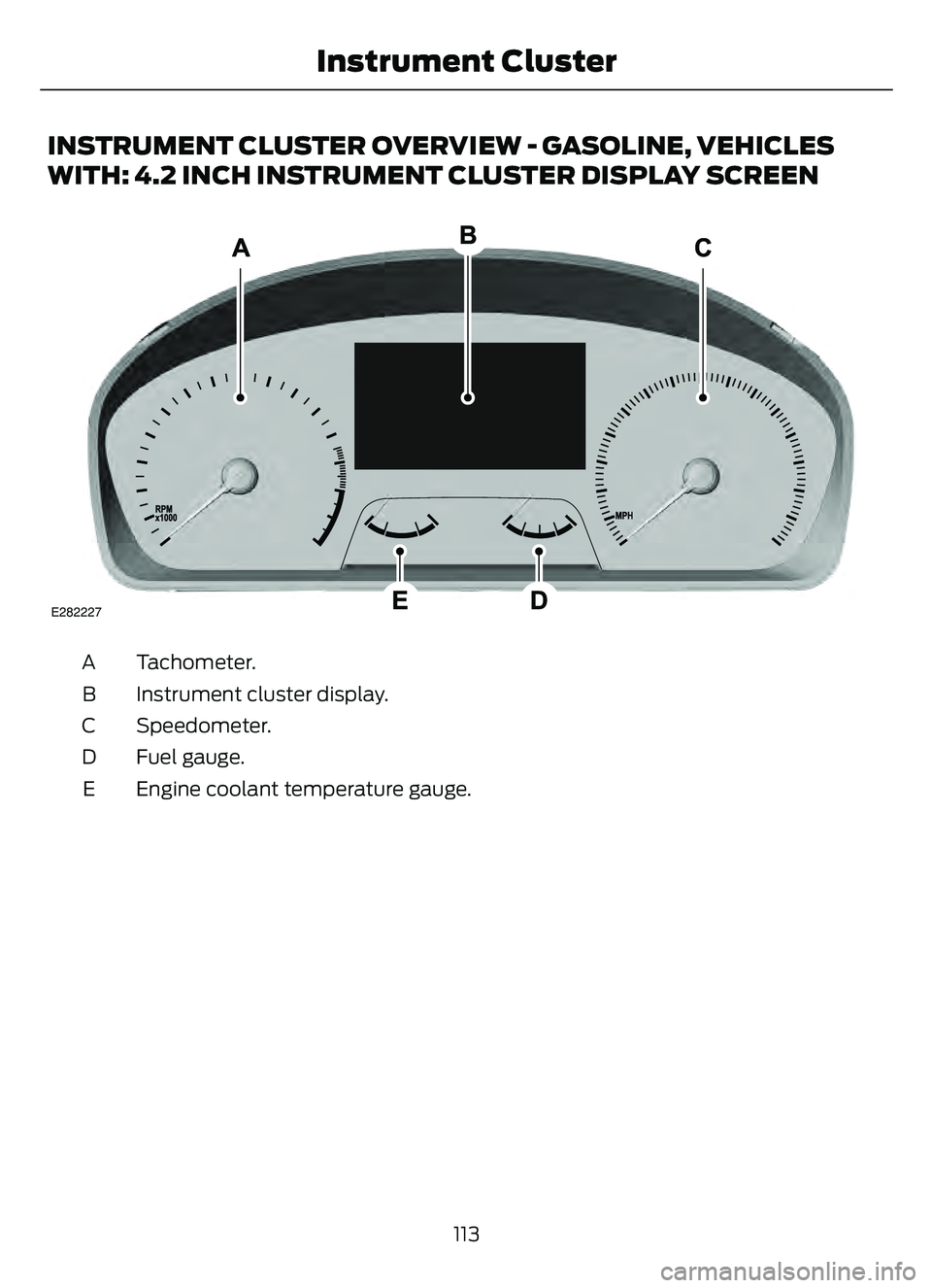

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 4.2 INCH INSTRUMENT CLUSTER DISPLAY SCREEN
E282227
Tachometer.
A
Instrument cluster display.
B
Speedometer.
C
Fuel gauge.
D
Engine coolant temperature gauge.
E
113
Instrument Cluster

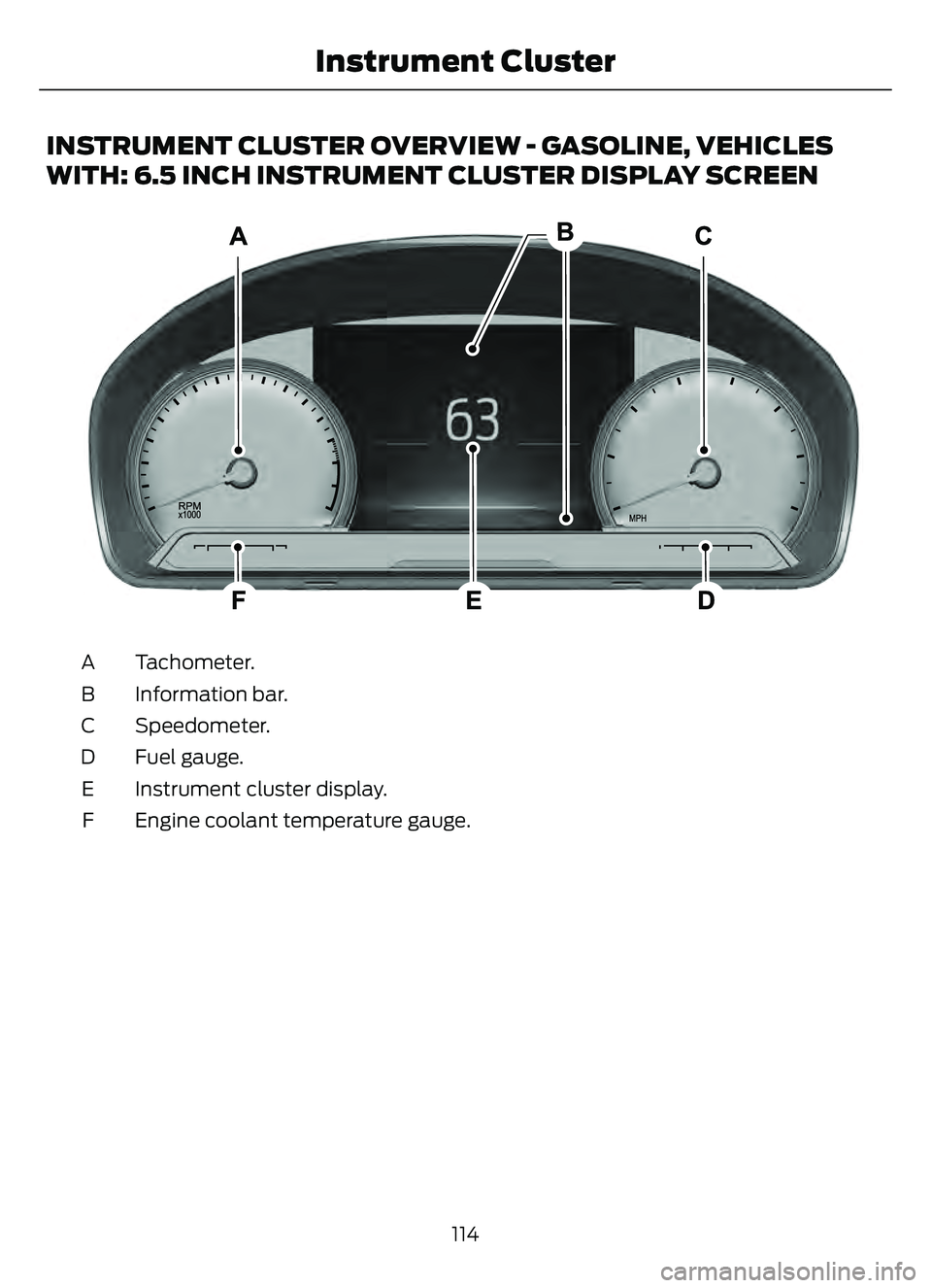

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 6.5 INCH INSTRUMENT CLUSTER DISPLAY SCREEN
E282067E282067
Tachometer.
A
Information bar.
B
Speedometer.
C
Fuel gauge.
D
Instrument cluster display.
E
Engine coolant temperature gauge.
F
114
Instrument Cluster

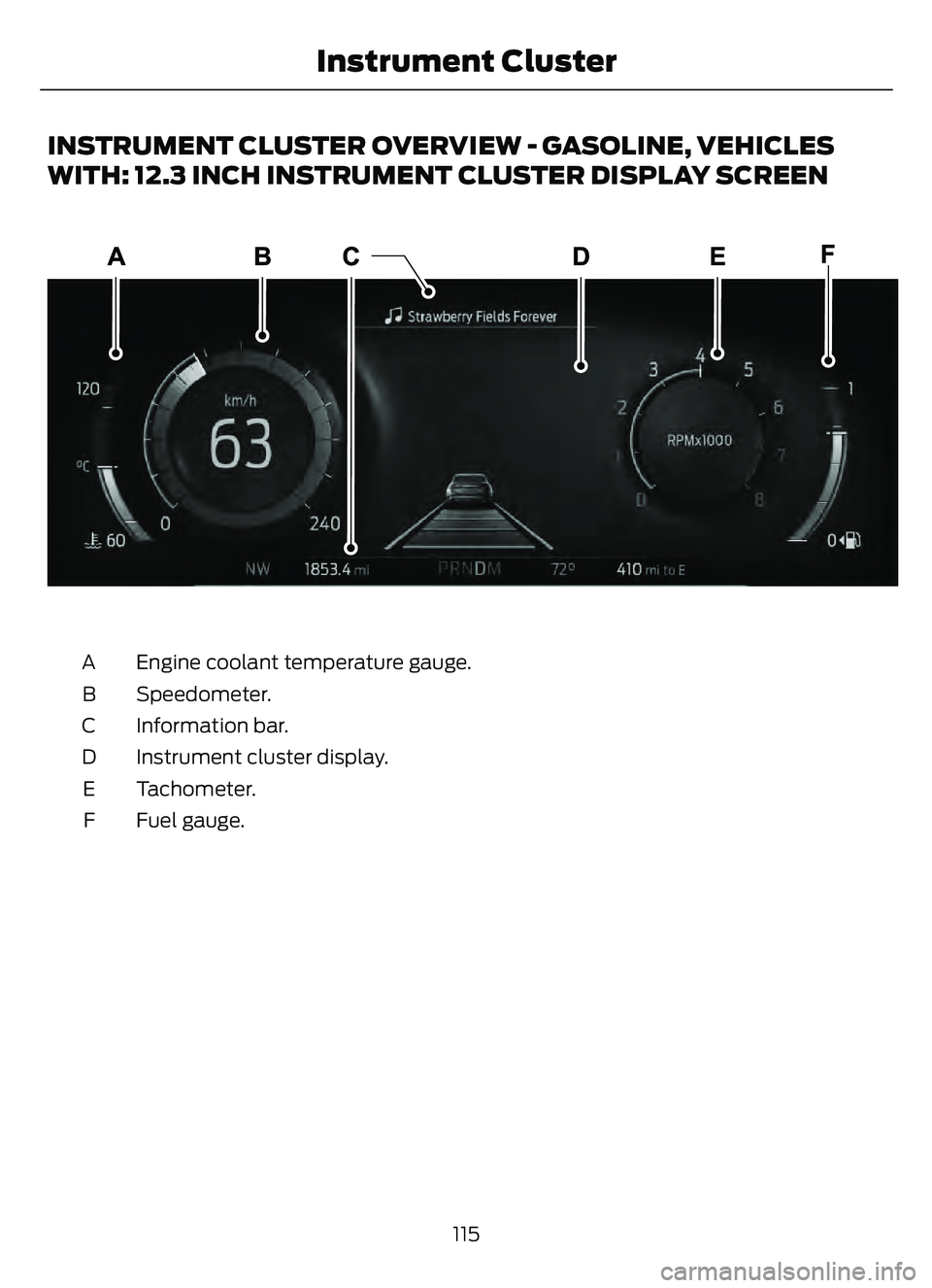

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 12.3 INCH INSTRUMENT CLUSTER DISPLAY SCREEN
E320077
Engine coolant temperature gauge.
A
Speedometer.
B
Information bar.
C
Instrument cluster display.
D
Tachometer.
E
Fuel gauge.
F
115
Instrument Cluster

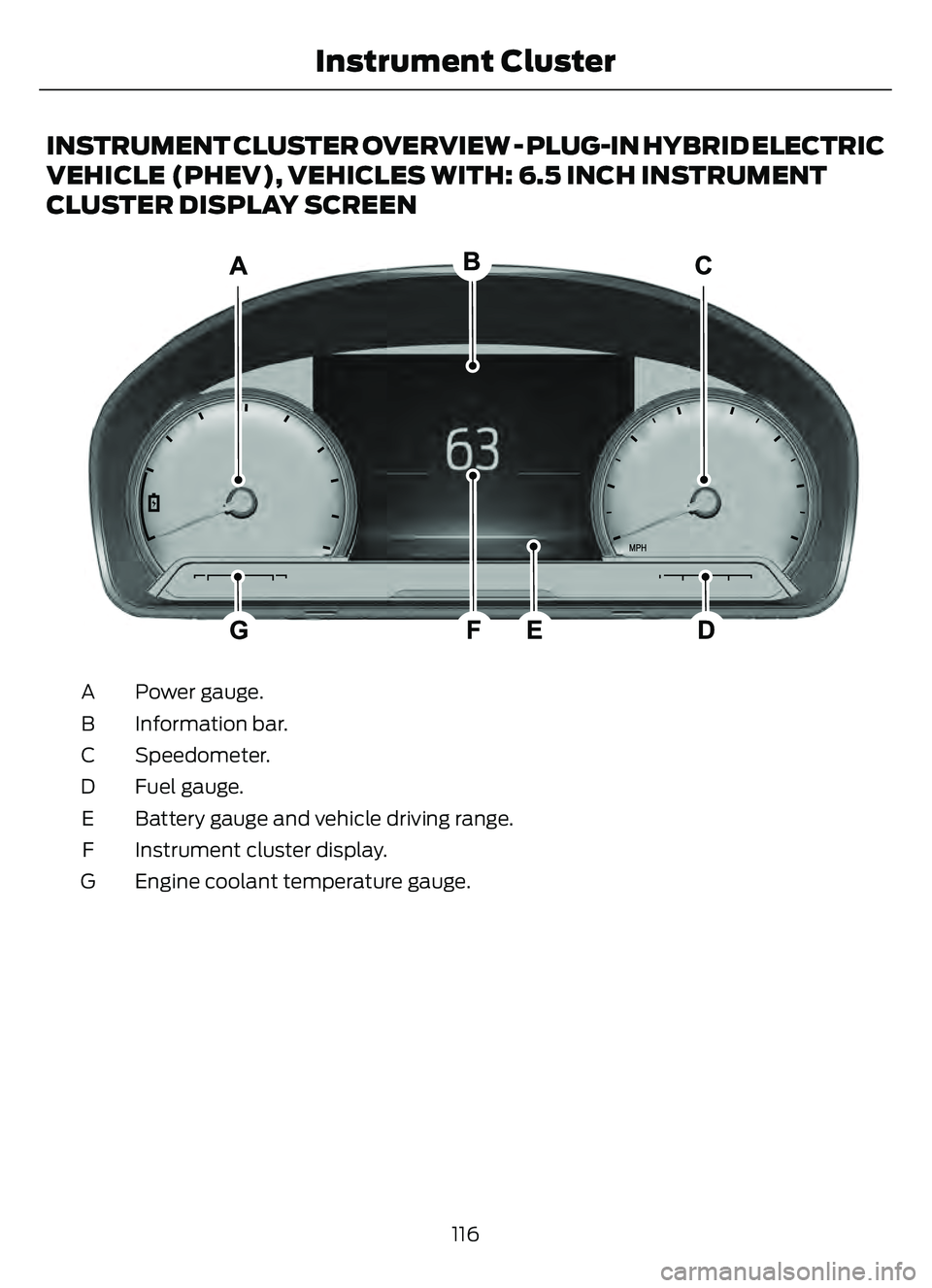

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV), VEHICLES WITH: 6.5 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN
E307890E307890
Power gauge.
A
Information bar.
B
Speedometer.
C
Fuel gauge.
D
Battery gauge and vehicle driving range.
E
Instrument cluster display.
F
Engine coolant temperature gauge.
G
116
Instrument Cluster

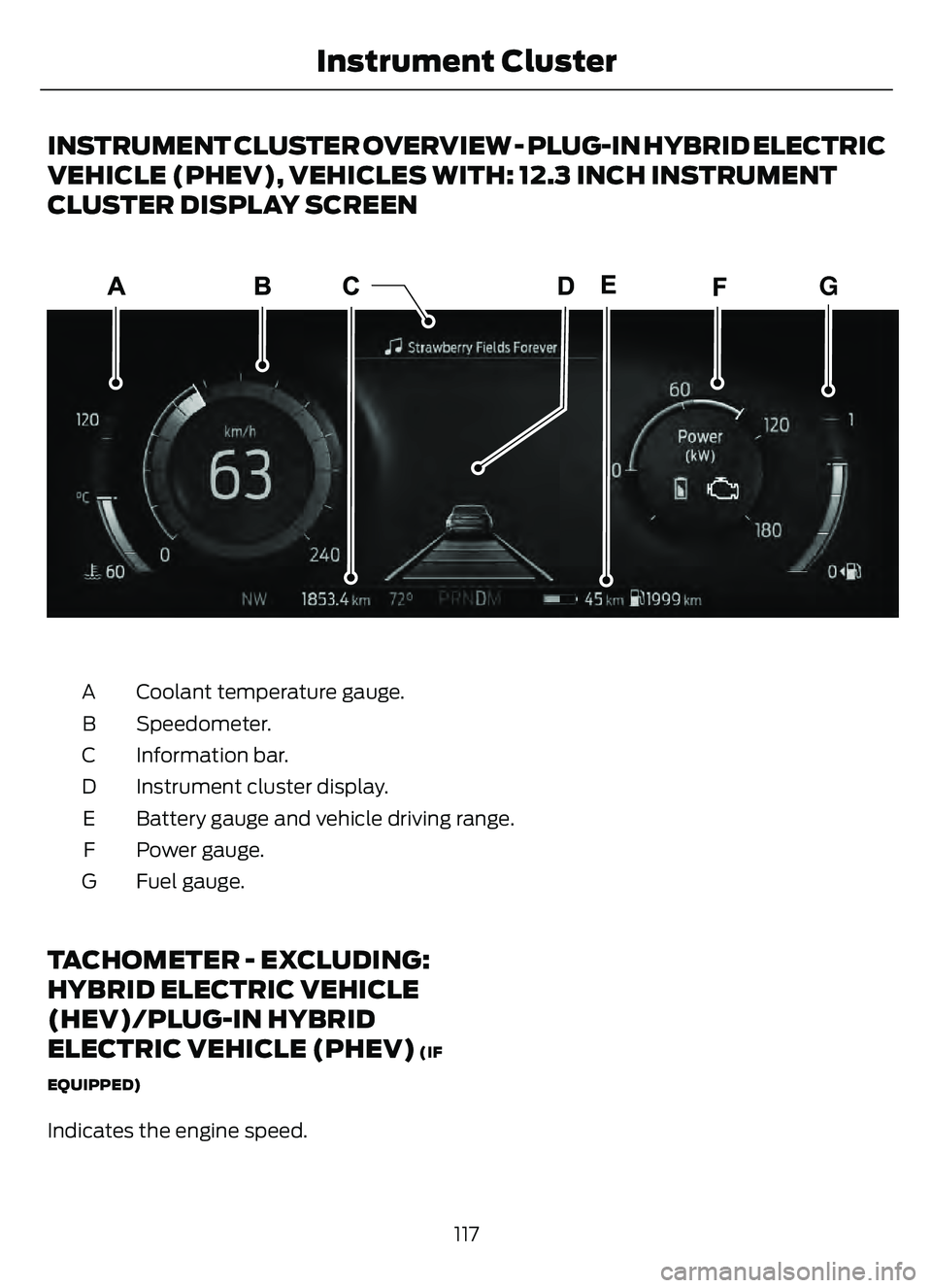

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV), VEHICLES WITH: 12.3 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN
G
E320093E320093
Coolant temperature gauge.
A
Speedometer.
B
Information bar.
C
Instrument cluster display.
D
Battery gauge and vehicle driving range.
E
Power gauge.
F
Fuel gauge.
G
TACHOMETER - EXCLUDING:
HYBRID ELECTRIC VEHICLE
(HEV)/PLUG-IN HYBRID
ELECTRIC VEHICLE (PHEV)
(IF
EQUIPPED)
Indicates the engine speed.
117
