79
*
[SR17200(E )08/95]
8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See
Figure 8.
*
[SR17205(E )06/95]
half page art:0011245-B

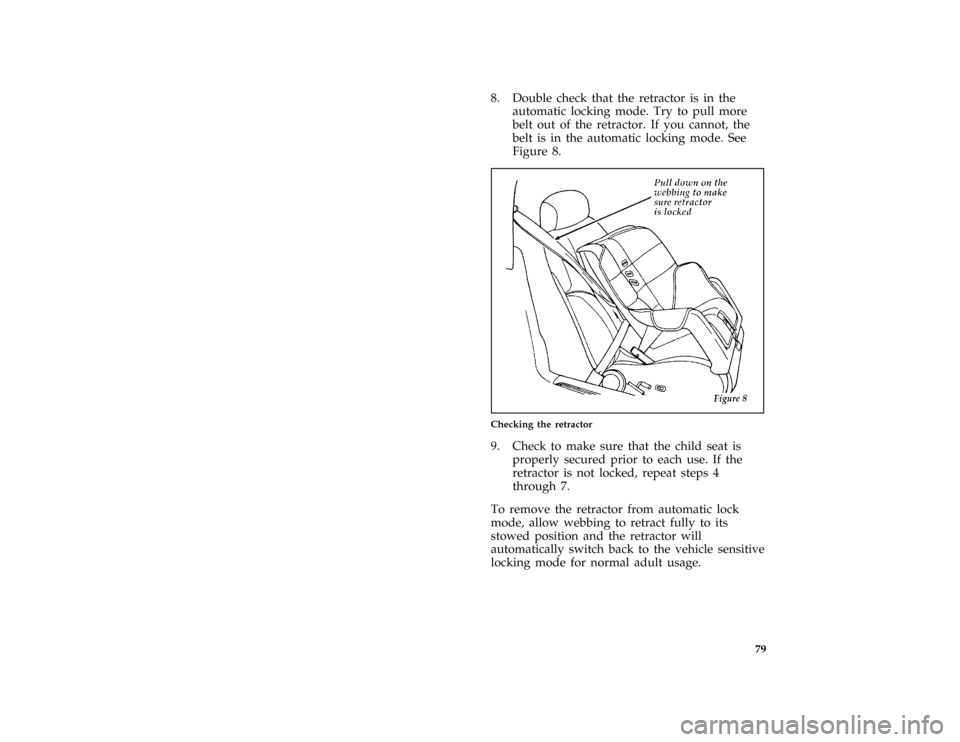

Checking the retractor
*
[SR17210(E )06/95]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
*
[SR17215(E )06/95]
To remove the retractor from automatic lock
mode, allow webbing to retract fully to its
stowed position and the retractor will
automatically switch back to the vehicle sensitive
locking mode for normal adult usage.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 82 of 387
80 [SR17220(ALL)06/95]Installing Child Safety Seats at the Rear
Outboard Seating Positions (For lap and
shoulder belts with cinch tongues)
[SR17225(ALL)06/95]
If you install a child safety seat in a rear
outboard seating position with a combination lap
and shoulder belt with cinch tongue, use the
following procedure:
*
[SR17230(ALL)06/95]
1. Grasp the belt webbing below the tongue
and pull as much of the belt out of the
retractor as possible. Hold the belt out. See
Figure 1.
[SR17235(ALL)08/95]
half page art:0070240-B
Pulling out belt webbing
[SR17240(ALL)06/95]
NOTE: The belt webbing below the tongue is
the lap belt portion of the combination
lap and shoulder belt, and the belt
webbing above the tongue is the
shoulder belt portion of the
combination lap and shoulder belt.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 83 of 387
81 [SR17245(ALL)06/95]
2. With your other hand, grasp the tip (metal
portion) of the tongue (not the cover) and
slide the tongue up the webbing as far as it
will go. See Figure 1. Release the tongue, but
do not let go of the lap belt webbing.
[SR17250(ALL)06/95]
3. While holding the lap belt webbing in one
hand, use your other hand to pinch the tip
(metal portion) of the tongue and belt
webbing together and again pull out as
much of the belt as possible. Then, let go of
the lap belt webbing.
[SR17255(ALL)06/95]
4. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted. If
so, remove the twist. (For instructions on
how to remove a twist, see theProcedure to
Correct a Rotated Tongue on the Safety Belt
section in this chapter.)
[SR17260(ALL)08/95]
half page art:0070241-B

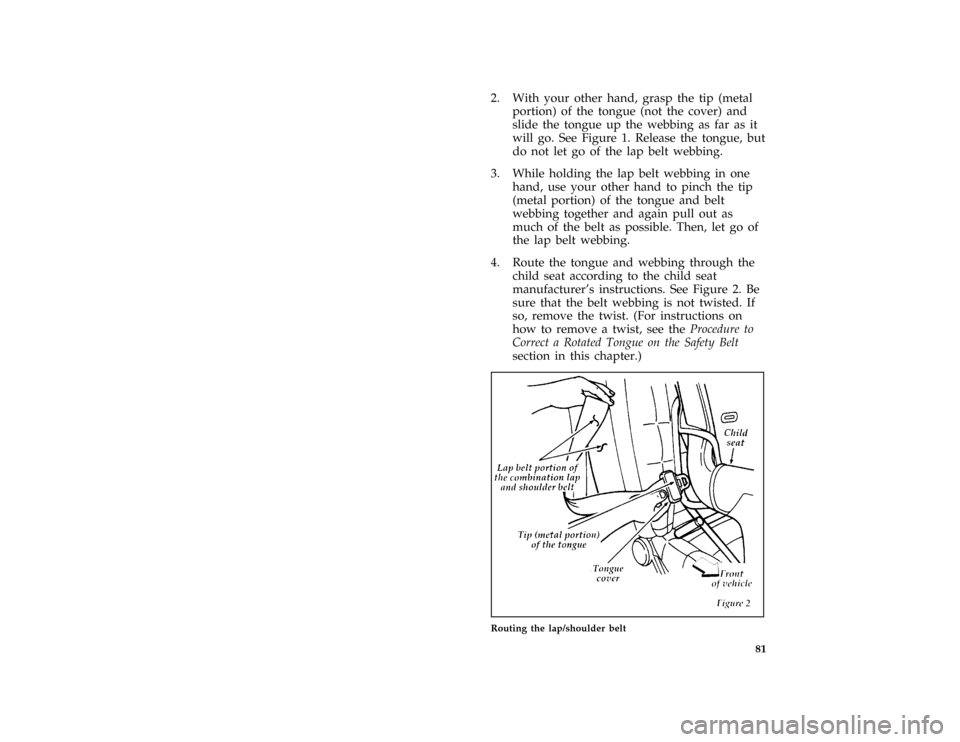

Routing the lap/shoulder belt
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 84 of 387
82 [SR17265(ALL)08/95]5. Insert the belt tongue into the proper buckle
for the seating position until you hear a snap
and feel it latch. Make sure the tongue is
securely fastened to the buckle. Let go of the
belt webbing. See Figure 3.
[SR17270(ALL)08/95]
half page art:0070242-B

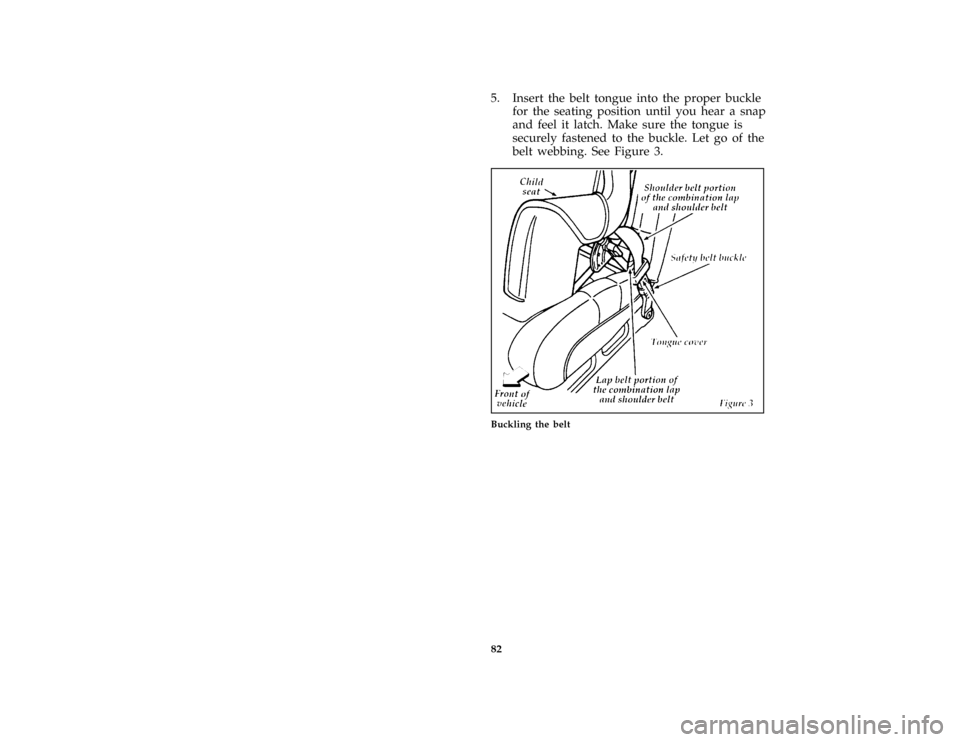

Buckling the belt
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 85 of 387
83 [SR17275(ALL)06/95]
6. Push down on the child seat and, at the
buckle, pull up on the shoulder belt to
tighten the lap belt portion of the
combination lap and shoulder belt. See
Figure 4.
[SR17280(ALL)08/95]
half page art:0070243-B

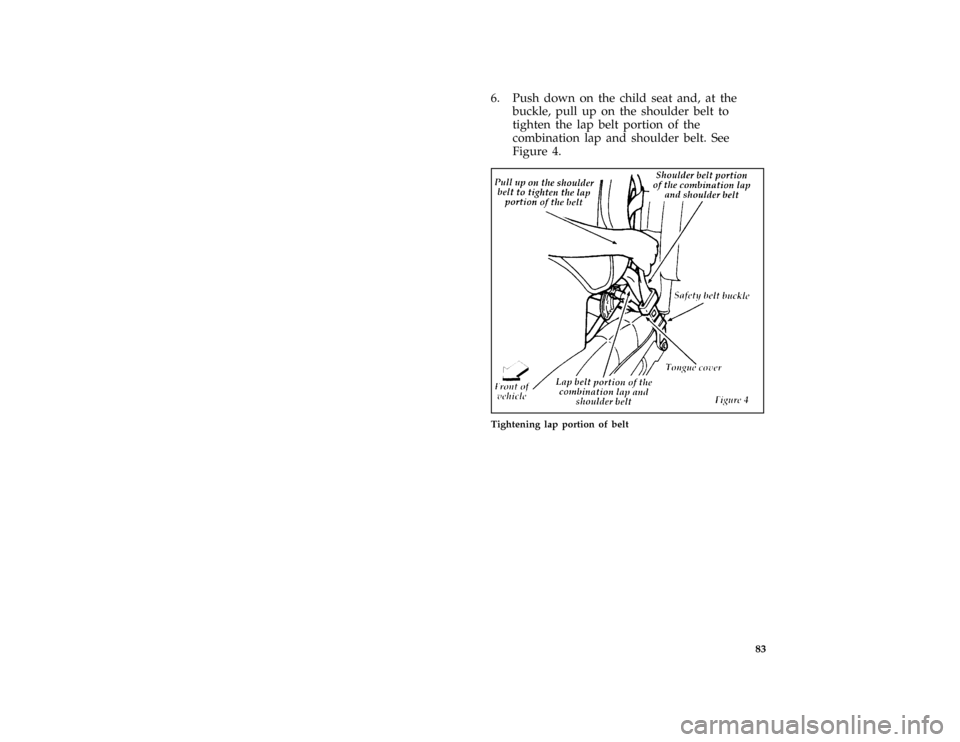

Tightening lap portion of belt
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 86 of 387
84 [SR17285(ALL)06/95]7. From outside the vehicle, grasp and pull on
the shoulder belt portion of the combination
lap and shoulder belt that secures the child
safety seat in the vehicle. See Figure 5.
[SR17290(ALL)08/95]
half page art:0070244-B

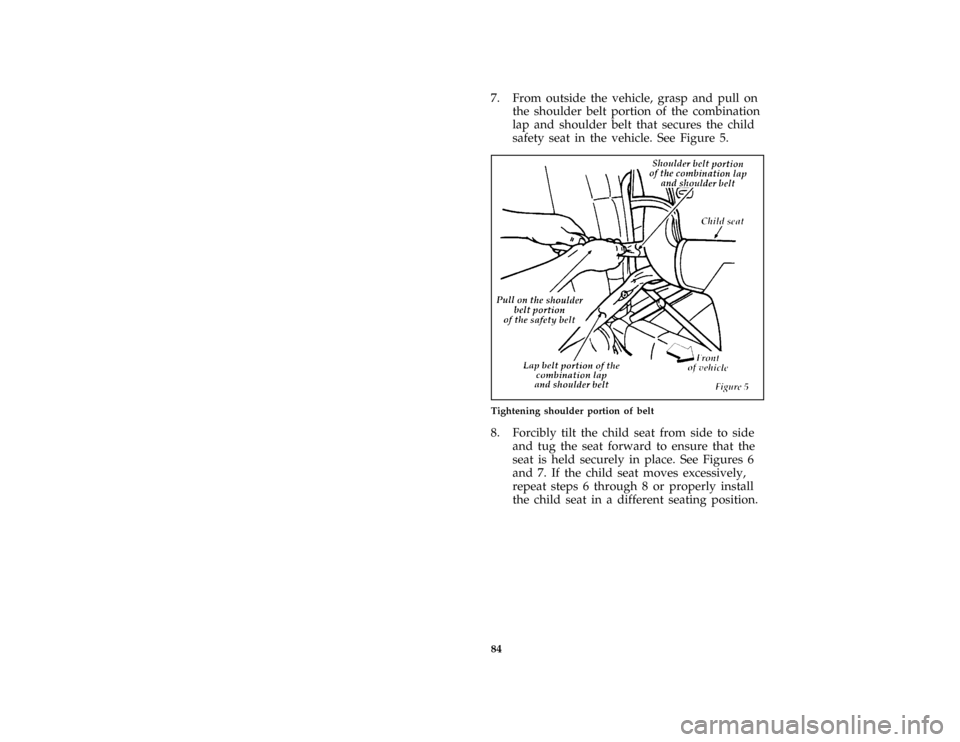

Tightening shoulder portion of belt
[SR17295(ALL)08/95]
8. Forcibly tilt the child seat from side to side
and tug the seat forward to ensure that the
seat is held securely in place. See Figures 6
and 7. If the child seat moves excessively,
repeat steps 6 through 8 or properly install
the child seat in a different seating position.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 87 of 387
85 [SR17300(ALL)08/95]
half page art:0070245-B

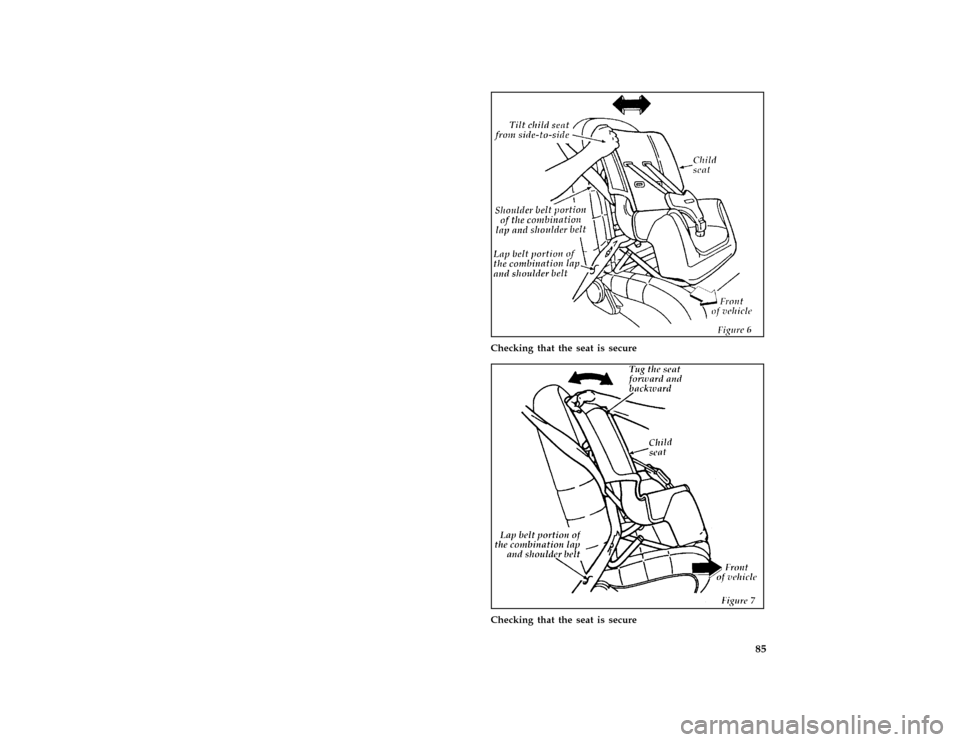

Checking that the seat is secure
[SR17305(ALL)08/95]
half page art:0070246-B
Checking that the seat is secure
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 88 of 387
86
*
[SR17310(ALL)06/95]
9. Check from time to time to be sure that
there is no slack in the lap/shoulder belt.
The shoulder belt must be snug to keep the
lap belt tight during a collision.
[SR17610(ALL)01/95]
Installing a Child Safety Seat at the Rear
Center Seating Position (For all vehicles)
[SR17615(ALL)01/95]
1. Lengthen the lap belt. To lengthen the belt,
hold the belt tongue at a right angle to the
belt webbing. Slide the tongue up the
webbing.
*
[SR17620(ALL)01/95]
2. Place the child safety seat in the center
seating position.
*
[SR17622(ALL)01/95]
3. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions.
[SR17624(ALL)01/95]
4. Insert the belt tongue into the proper buckle
for the center seating position until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle.
*
[SR17626(ALL)01/95]
5. Push down on the child seat while pulling
on the loose end of the lap belt webbing to
tighten the belt.
[SR17630(ALL)08/95]
6. Forcibly tilt the child seat from side to side
and tug the seat forward to ensure that the
seat is held securely in place. If the child
seat moves excessively, repeat steps 5
through 6 or properly install the child seat
in a different seating position.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 89 of 387
87 [SR18600(ALL)01/95]
Attaching Child Safety Seats with Tether
Straps (For all vehicles)
*
[SR18700(ALL)06/95]
Some manufacturers make safety seats that
include a tether strap that goes over the back of
the vehicle seat and attaches to an anchoring
point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of
your child safety seat for information about
ordering a tether strap.
*
[SR19100(E )07/95]
If you use a tethered safety seat on one of the
rear seats, you can anchor the strap to the
appropriate tether anchor directly behind that
seat position.
*
[SR19110(ALL)08/95]
Front Seats
*
[SR19120(ALL)08/95]
To install a tether from a child safety seat in the
front seat:
*
[SR19130(ALL)08/95]
1. Buckle the lap/shoulder belt (in the seat
directly behind the front passenger seat in
which the child safety seat will be installed).
[SR19140(ALL)08/95]
2. Pull at the stored belt out of the rear seat
retractor to switch the retractor to automatic
locking mode.
*
[SR19150(ALL)08/95]
3. Let the retractor wind up the slack from the
lap/shoulder belt.
*
[SR19160(ALL)08/95]
4. Install the child safety seat in the front seat.
Refer to the previous section onInstalling
Safety Seats. Hook the tether strap hook
around the webbing near the center of the
shoulder portion of the locked lap/shoulder
belt.
*
[SR19170(ALL)08/95]
5. Tighten the tether strap.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
Page 90 of 387
88 [SR19180(ALL)08/95]Rear Seats
[SR19190(ALL)08/95]
If you use a tethered safety seat on one of the
rear seats, you can anchor the strap to the
appropriate tether anchor directly behind that
seat position.
*
[SR19200(ALL)08/95]
Tether anchorage hardware (Canadian
vehicles only)
[SR19300(ALL)10/89]
All vehicles built for sale in Canada include a
tether anchor hardware kit for use with
Canadian child safety seats. Attachment holes (at
each rear seating position) have been provided
in your vehicle to attach the anchor hardware, if
required. Additional kits can be obtained at no
charge from any Ford or Lincoln-Mercury dealer.
*
[SR19400(ALL)08/95]
Tether anchorage hardware (U.S. vehicles
only)
[SR19500(ALL)10/91]
Vehicles built for sale in the USA do not include
a tether anchor hardware kit for use with child
safety seats. However, attachment holes (at each
rear seating position) have been provided in
your vehicle to attach the tether anchor
hardware. Tether anchor hardware kits can be
obtained at no charge from any Ford or
Lincoln-Mercury dealer.
[SR19550(ALL)08/95]
Be sure to follow the child safety seat
manufacturer's instructions.
[SR19600(ALL)06/95]
RWARNING
Tighten the anchor according to
specifications. Otherwise the safety seat
may not be properly secured and the child
may be injured in a sudden stop or
collision.
File:03ctsre.ex
