Charging system
Momentarily illuminates when the
ignition is turned ON and the
engine is off. The light also
illuminates when the battery is not
charging properly, requiring
electrical system service.
Engine oil pressure
Illuminates when the oil pressure
falls below the normal range.
Switch off the engine immediately.
Check the oil level and add oil if
needed. Refer toEngine oilin the
Maintenance and Carechapter.
This lamp also illuminates when
the ignition is turned to ON and
the engine is off.
Check coolant
Illuminates when the coolant level
in the coolant reservoir is low and
more needs to be added. This lamp
will also illuminate when the
ignition is turned to ON and the
engine is off. For more information
on adding engine coolant, refer to
Engine coolantin the
Maintenance and carechapter.
Liftgate ajar (if equipped)
Illuminates when the ignition is in
the ON position and the liftgate is
open.
Safety belt warning chime
Chimes to remind you to fasten
your safety belts.
CHECK
COOLANT
Instrumentation
11
Page 12 of 191
For information on the safety belt
warning chime, refer to the
Seating and safety restraints
chapter.
Supplemental restraint system
(SRS) warning chime
For information on the SRS
warning chime, refer to the
Seating and safety restraints
chapter.
Key-in-ignition warning chime
Sounds when the key is left in the
ignition in the OFF/LOCK or ACC
position and either front door is
opened.
Headlamps on warning chime
Sounds when the headlamps or
parking lamps are on, the ignition
is off (and the key is not in the
ignition) and either front door is
opened.
Instrumentation
12
Page 13 of 191
GAUGES
Base instrument cluster gauges
Sport instrument cluster gauges
ZX2 coupe instrument cluster
gauges
!THEFTCHECK
COOLANT SERVICE
ENGINE
SOONPBRAKEABS+ –MPH
205060
70FUEL FILL
EF
CH1
2 /304080
90
100
110
120 10
20406080100
120
140
160
180200km/h
0
000000
00 0
!THEFTCHECK
COOLANT SERVICE
ENGINE
SOONPBRAKEABS+ –MPH
205060
70FUEL FILL
EF1
2 /304080
90
100
110
120 10
20406080100
120
140
160
180200km/h
0
000000
00 0
CHRPMx1000
1234
5
6
7
8
LOW
FUEL
THEFT
LOW
FUEL
CHECK
COOLANTSERVICE
ENGINE
SOON
ABS+ –MPH
205060 70FUEL
FILLEF
CH1
2 /RPMx1000
1234
5
6
7
8
304080
90
100
110
120
10
20 406080100120
140
160
180km/h
0
000000
000! PBRAKE
Instrumentation
13
Page 14 of 191

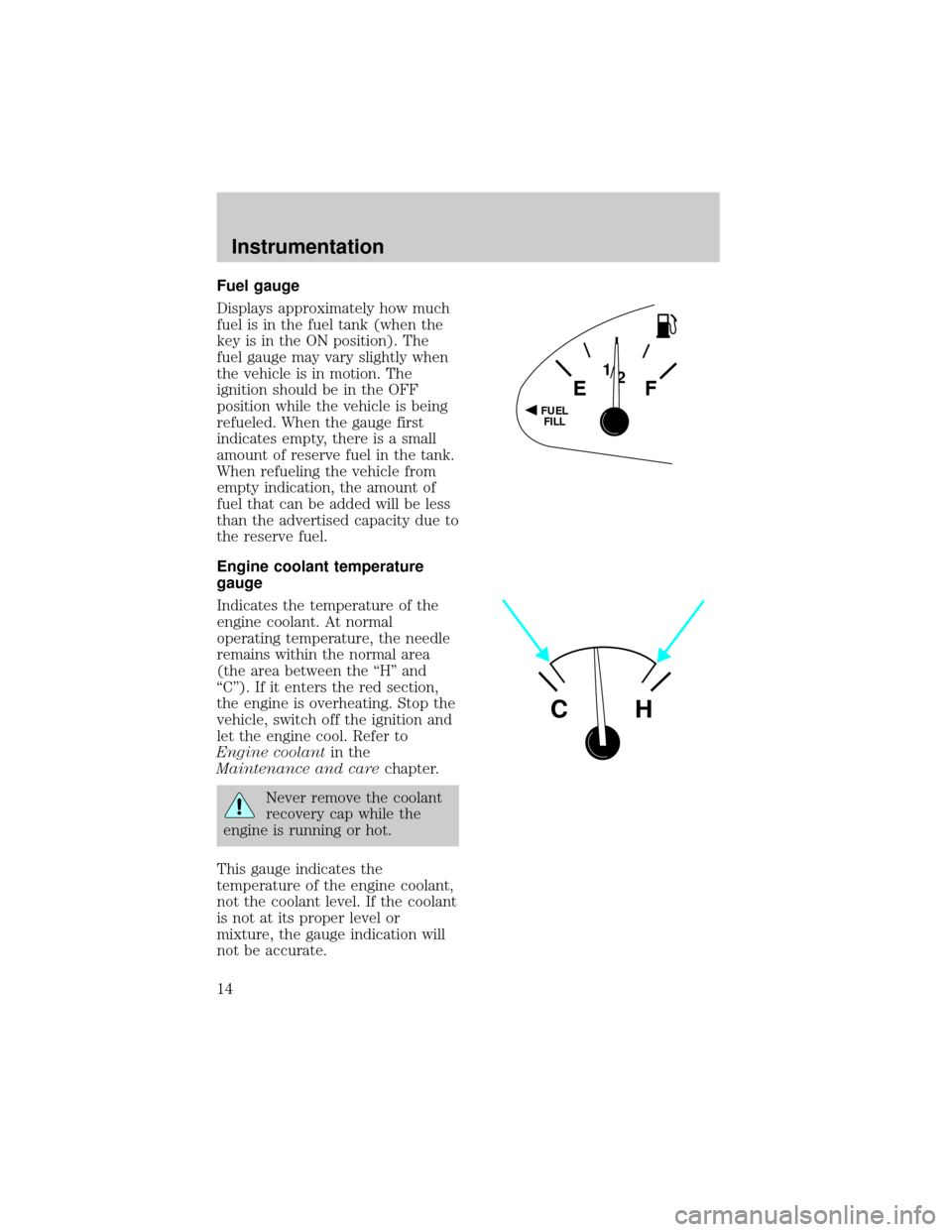

Fuel gauge
Displays approximately how much
fuel is in the fuel tank (when the
key is in the ON position). The
fuel gauge may vary slightly when
the vehicle is in motion. The
ignition should be in the OFF
position while the vehicle is being
refueled. When the gauge first
indicates empty, there is a small
amount of reserve fuel in the tank.
When refueling the vehicle from
empty indication, the amount of
fuel that can be added will be less
than the advertised capacity due to
the reserve fuel.
Engine coolant temperature
gauge
Indicates the temperature of the
engine coolant. At normal
operating temperature, the needle
remains within the normal area
(the area between the ªHº and
ªCº). If it enters the red section,
the engine is overheating. Stop the
vehicle, switch off the ignition and
let the engine cool. Refer to
Engine coolantin the
Maintenance and carechapter.
Never remove the coolant
recovery cap while the
engine is running or hot.
This gauge indicates the
temperature of the engine coolant,
not the coolant level. If the coolant
is not at its proper level or
mixture, the gauge indication will
not be accurate.
FUEL
FILL
EF
1
2 /
CH
Instrumentation
14
Page 15 of 191

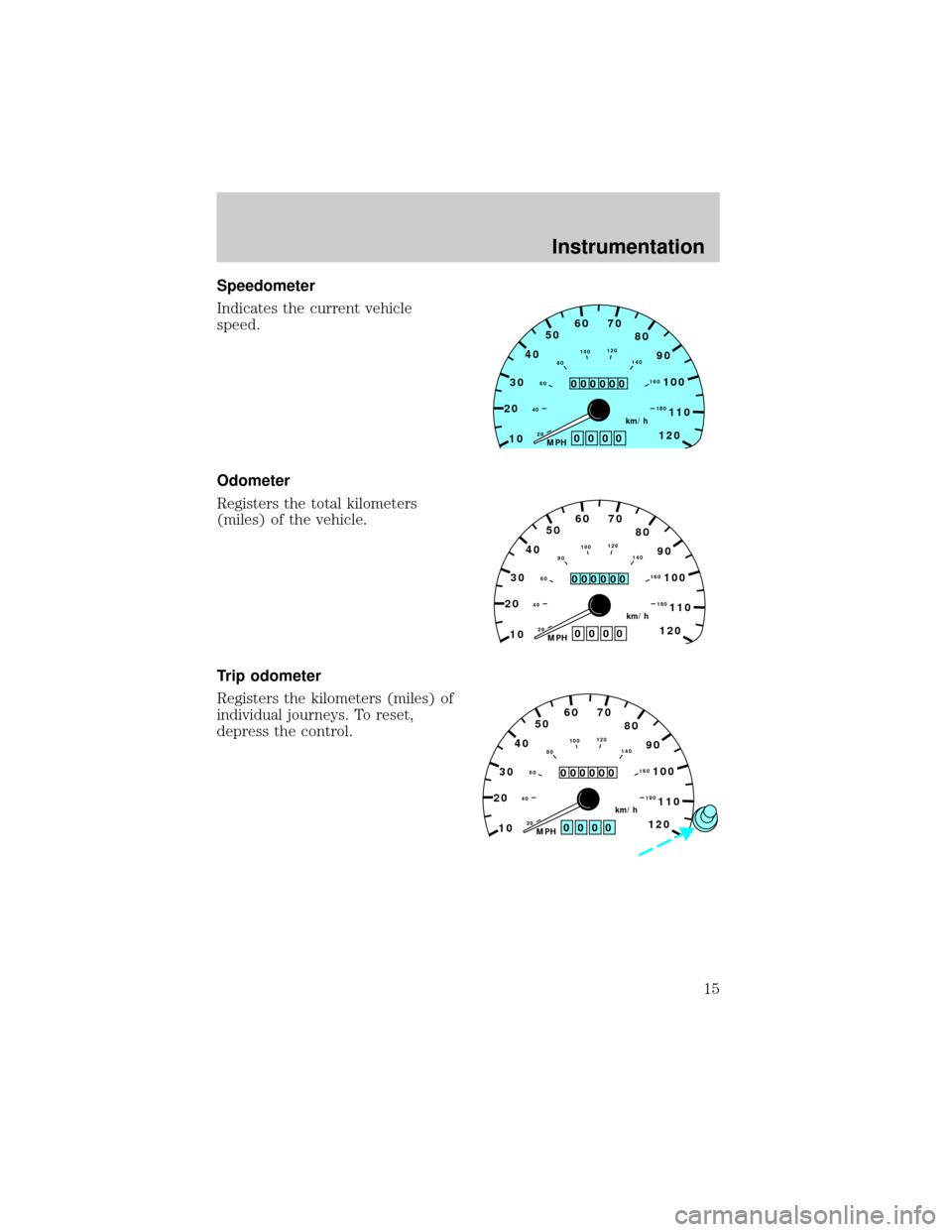

Speedometer
Indicates the current vehicle
speed.
Odometer
Registers the total kilometers
(miles) of the vehicle.
Trip odometer
Registers the kilometers (miles) of
individual journeys. To reset,
depress the control.
2030405060 70
80
90
100
110
120
10
20 406080100120
140
160
180MPHkm/h
0
000000
000
2030405060 70
80
90
100
110
120
10
20 406080100120
140
160
180MPHkm/h0
000000
000
0000
2030405060 70
80
90
100
110
120
10
20 406080100120
140
160
180MPHkm/h
000000
Instrumentation
15
Page 16 of 191

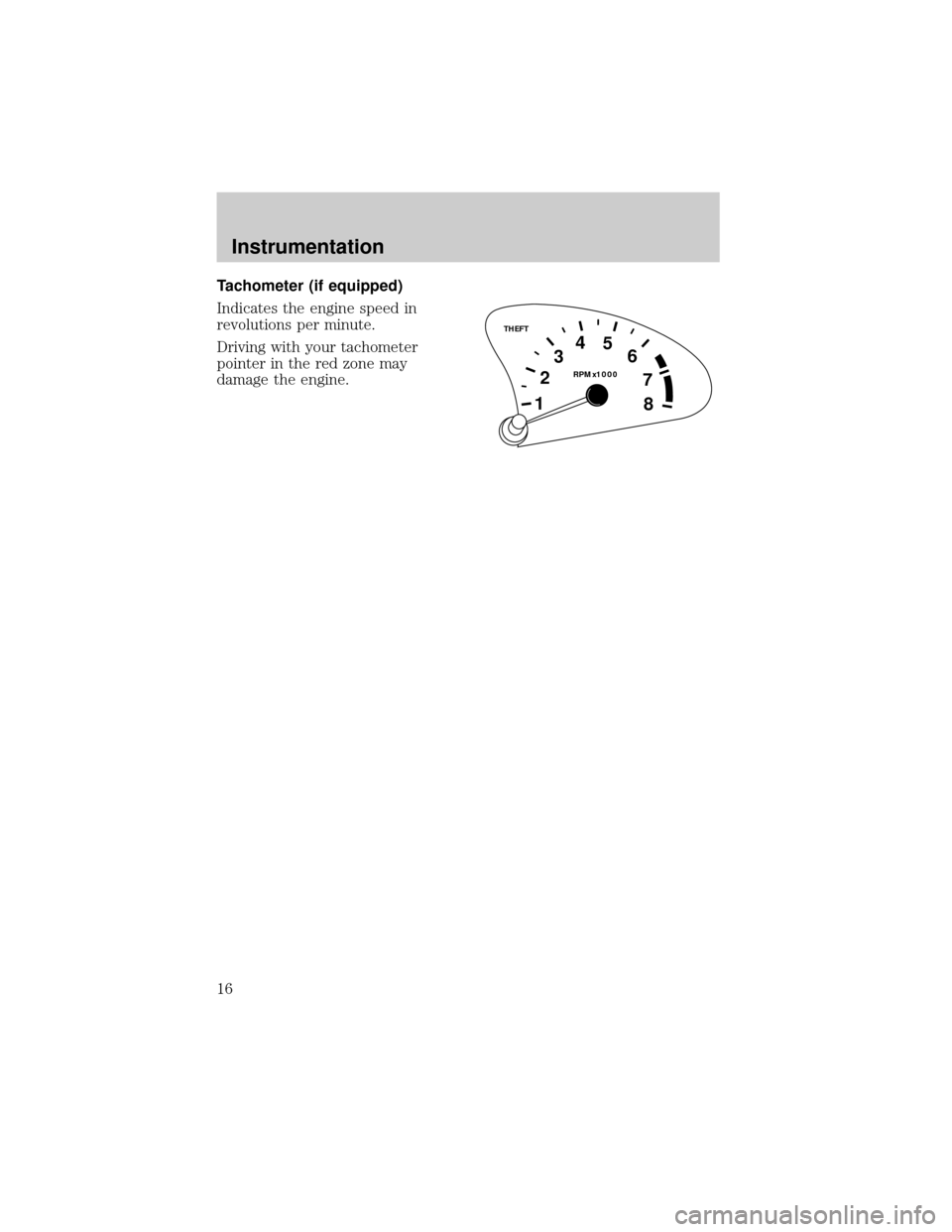

Tachometer (if equipped)
Indicates the engine speed in
revolutions per minute.
Driving with your tachometer
pointer in the red zone may
damage the engine.
THEFT
RPMx1000
1234
5
6
7
8
Instrumentation
16
Page 17 of 191
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel.
²Rotate left to brighten.
²Rotate right to dim.

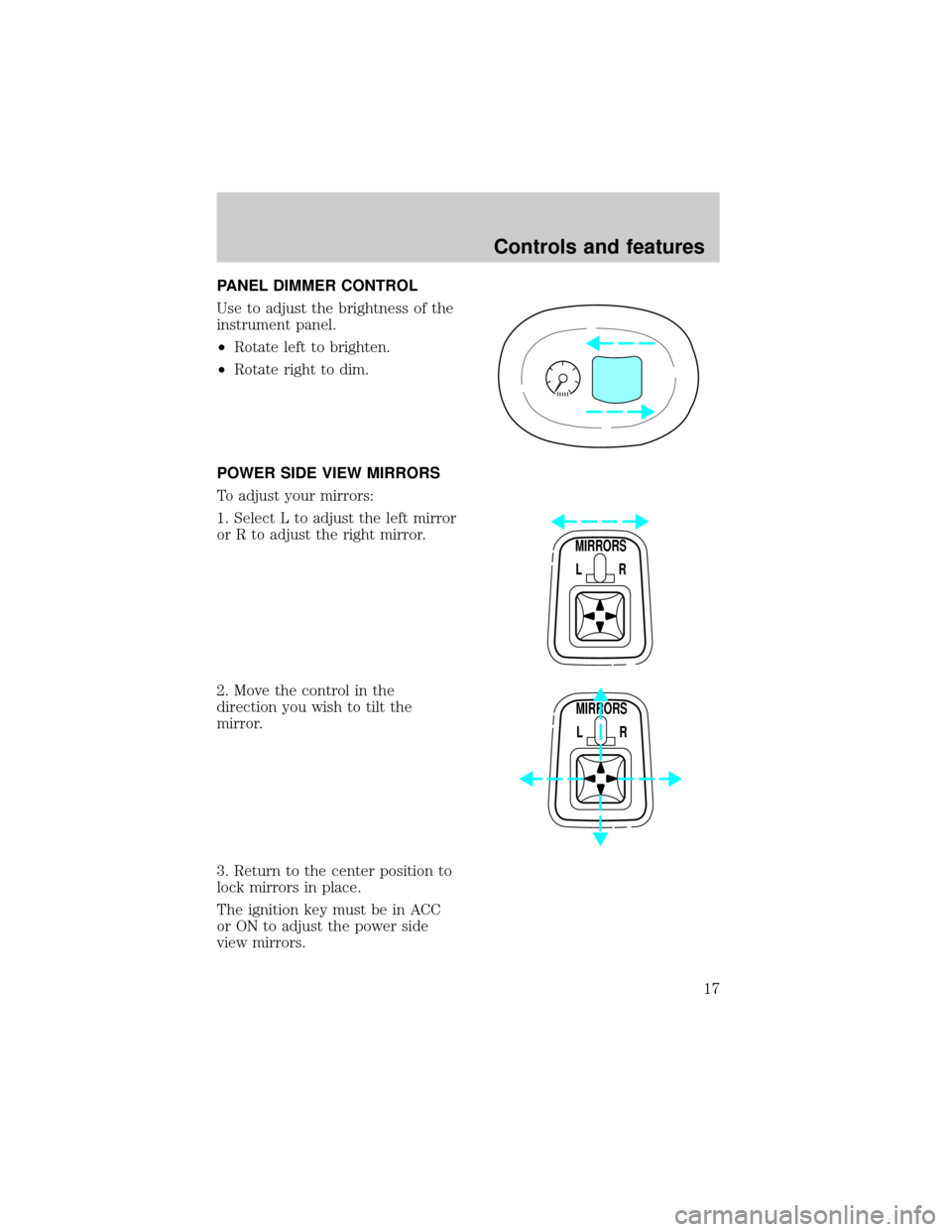

POWER SIDE VIEW MIRRORS
To adjust your mirrors:
1. Select L to adjust the left mirror
or R to adjust the right mirror.
2. Move the control in the
direction you wish to tilt the
mirror.
3. Return to the center position to
lock mirrors in place.
The ignition key must be in ACC
or ON to adjust the power side
view mirrors.
MIRRORS
L R
MIRRORS
L R
Controls and features
17
Page 18 of 191
AUDIO SYSTEM
Refer to the ªAudio Guideº for
instructions on how to operate the
audio system.
CLIMATE CONTROL SYSTEM
Heater only system
(if equipped)
OFF
HI
LO
Controls and features
18
Page 19 of 191

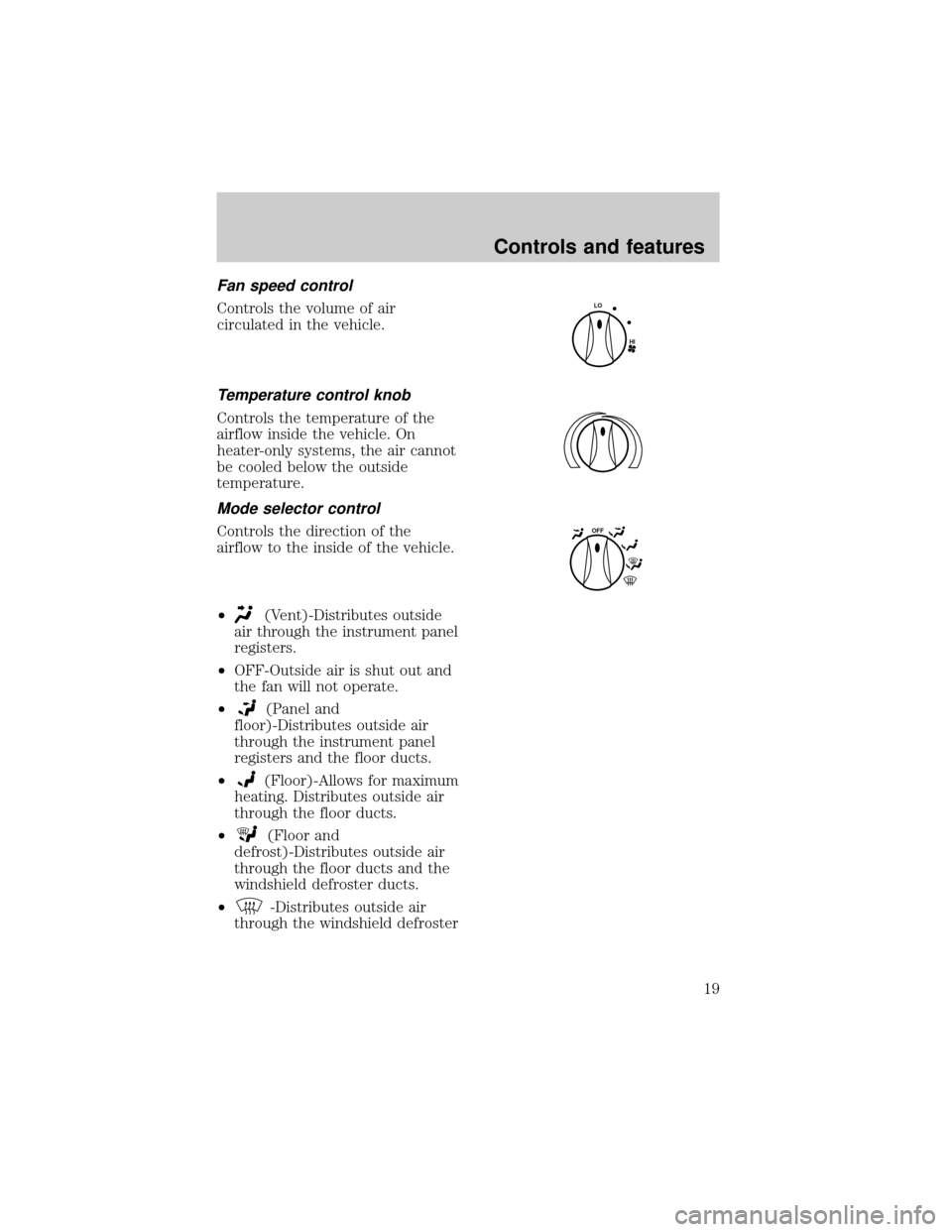

Fan speed control
Controls the volume of air
circulated in the vehicle.
Temperature control knob
Controls the temperature of the
airflow inside the vehicle. On
heater-only systems, the air cannot
be cooled below the outside
temperature.
Mode selector control
Controls the direction of the
airflow to the inside of the vehicle.
²
(Vent)-Distributes outside
air through the instrument panel
registers.
²OFF-Outside air is shut out and
the fan will not operate.
²
(Panel and
floor)-Distributes outside air
through the instrument panel
registers and the floor ducts.
²
(Floor)-Allows for maximum
heating. Distributes outside air
through the floor ducts.
²
(Floor and
defrost)-Distributes outside air
through the floor ducts and the
windshield defroster ducts.
²
-Distributes outside air
through the windshield defroster
HI
LO
OFF
Controls and features
19
Page 20 of 191

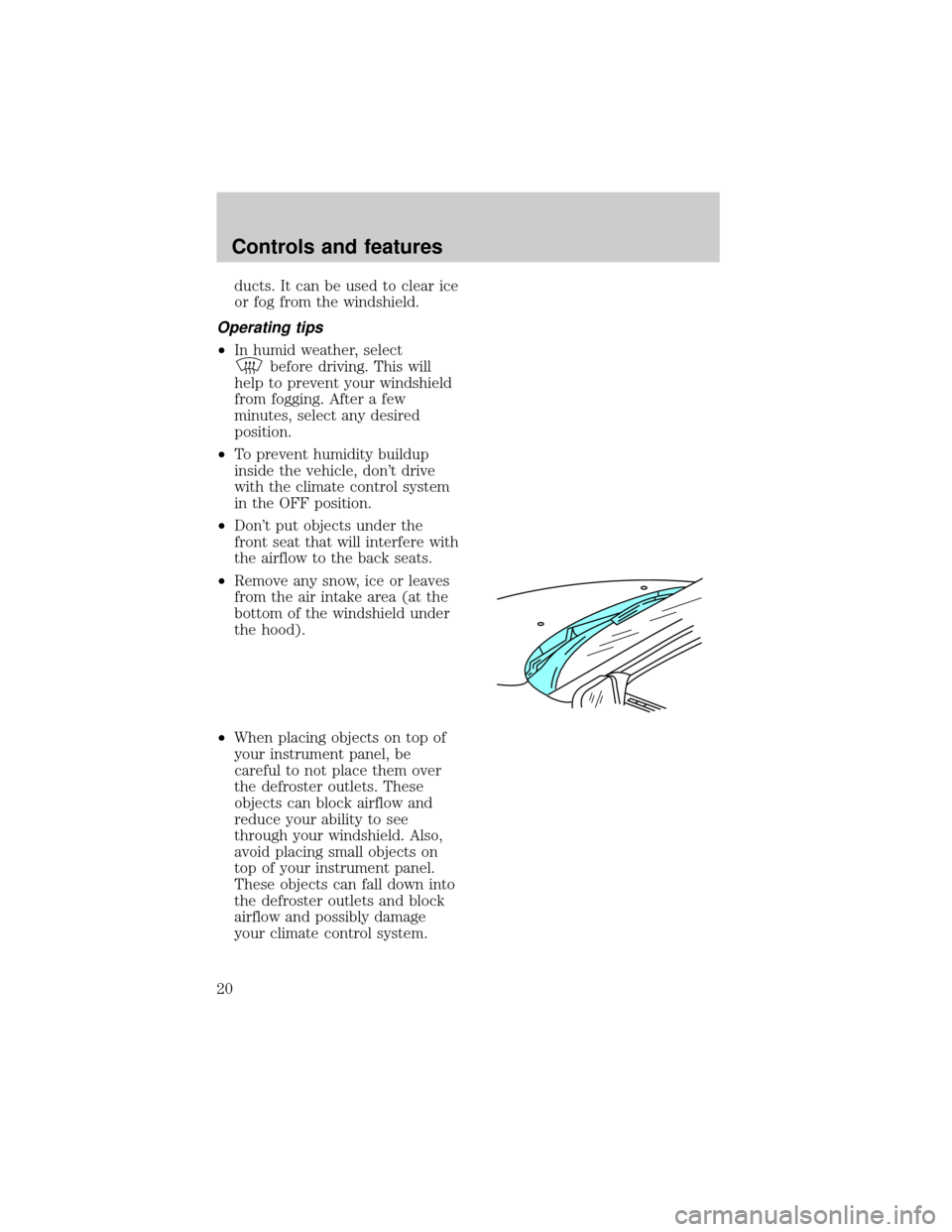

ducts. It can be used to clear ice
or fog from the windshield.
Operating tips
²In humid weather, select
before driving. This will
help to prevent your windshield
from fogging. After a few
minutes, select any desired
position.
²To prevent humidity buildup
inside the vehicle, don't drive
with the climate control system
in the OFF position.
²Don't put objects under the
front seat that will interfere with
the airflow to the back seats.
²Remove any snow, ice or leaves
from the air intake area (at the
bottom of the windshield under
the hood).
²When placing objects on top of
your instrument panel, be
careful to not place them over
the defroster outlets. These
objects can block airflow and
reduce your ability to see
through your windshield. Also,
avoid placing small objects on
top of your instrument panel.
These objects can fall down into
the defroster outlets and block
airflow and possibly damage
your climate control system.
Controls and features
20
