If you cannot move the gearshift lever out of P (Park) with ignition in
the ON position and the brake pedal depressed:
1. Apply the parking brake, turn ignition to the LOCK position, then
remove the key.
2. Reinsert the key and turn the ignition to the OFF position.
3. Press and hold down the brake pedal and shift into N (Neutral).
4. Start the vehicle.

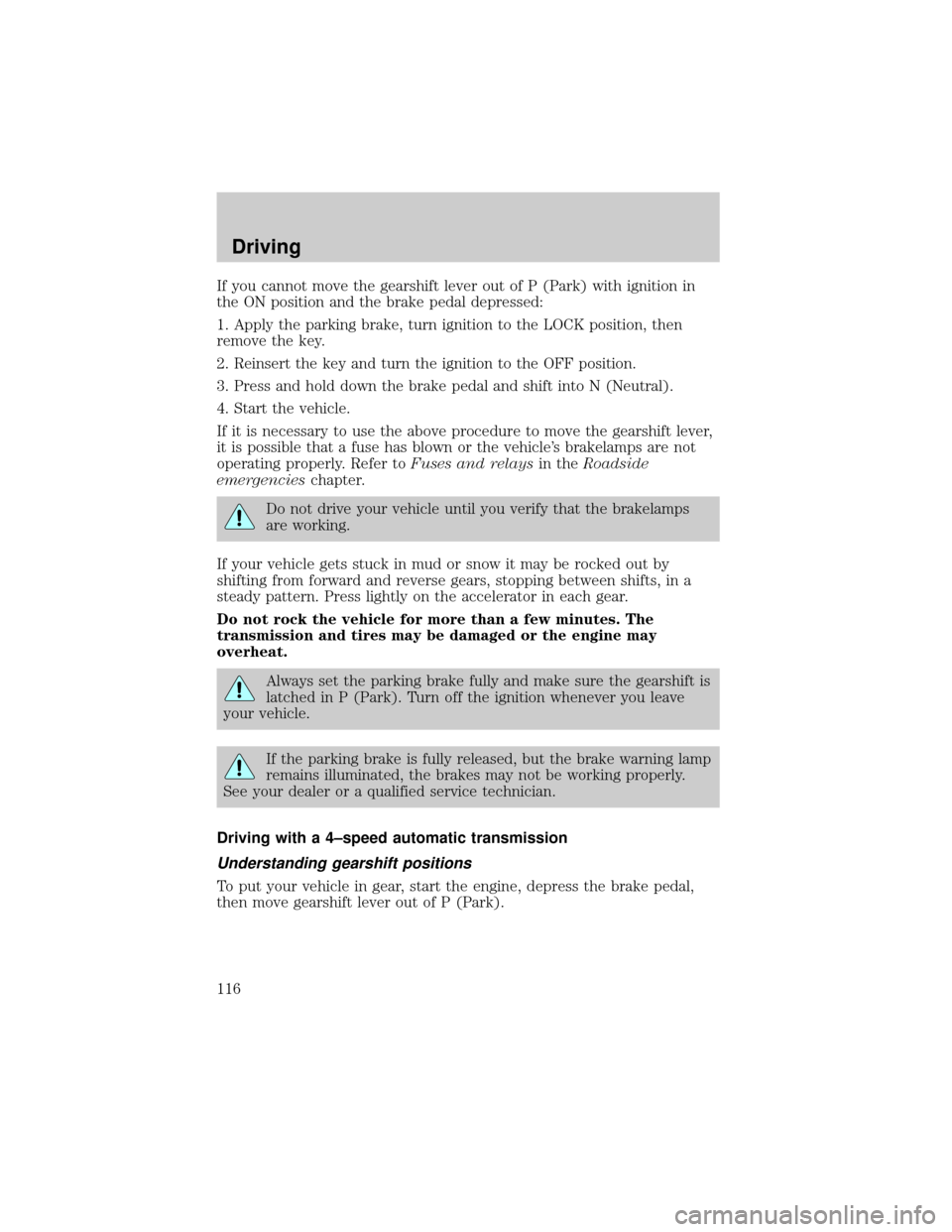

If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle's brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
emergencieschapter.
Do not drive your vehicle until you verify that the brakelamps
are working.
If your vehicle gets stuck in mud or snow it may be rocked out by
shifting from forward and reverse gears, stopping between shifts, in a
steady pattern. Press lightly on the accelerator in each gear.
Do not rock the vehicle for more than a few minutes. The
transmission and tires may be damaged or the engine may
overheat.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn off the ignition whenever you leave
your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your dealer or a qualified service technician.
Driving with a 4±speed automatic transmission
Understanding gearshift positions
To put your vehicle in gear, start the engine, depress the brake pedal,
then move gearshift lever out of P (Park).
Driving
116

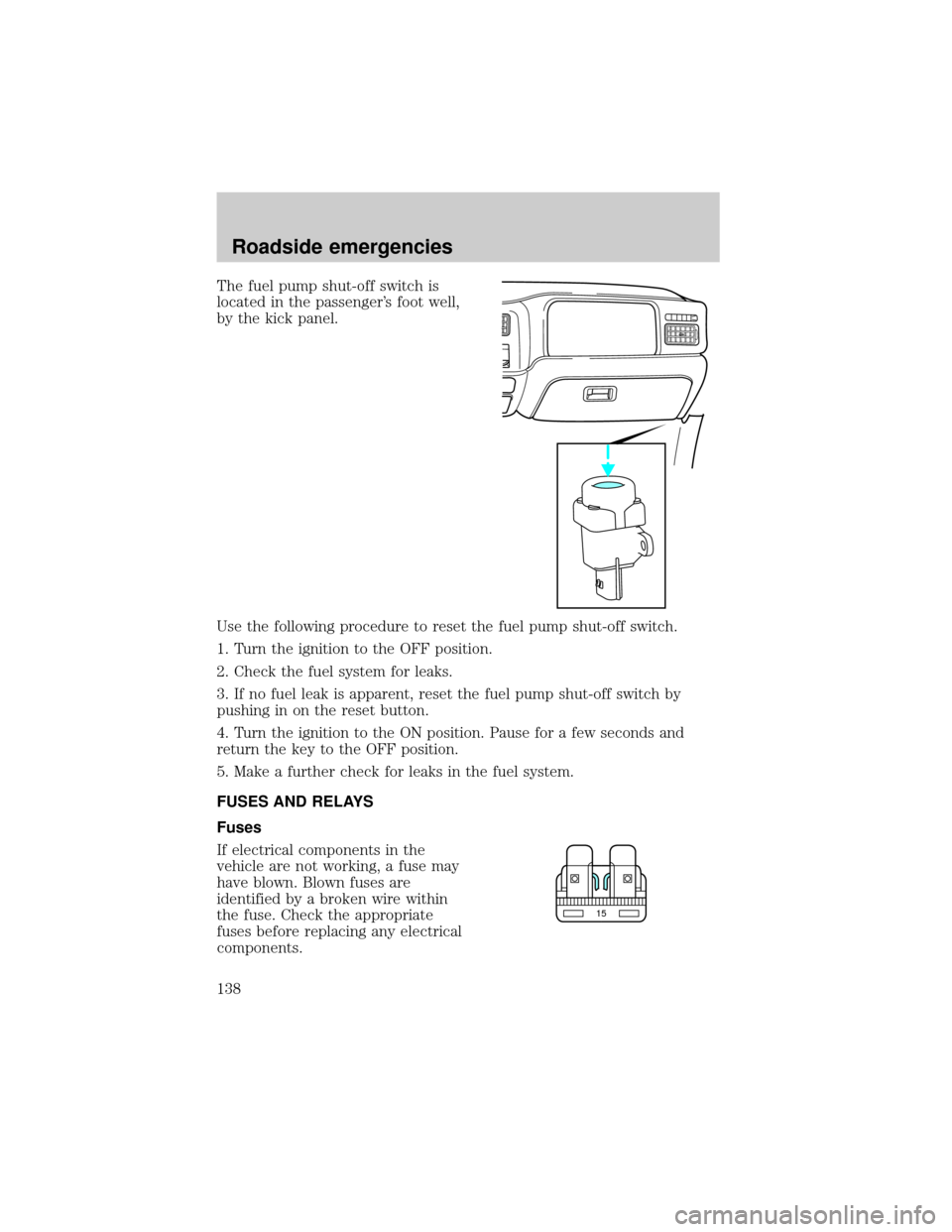

The fuel pump shut-off switch is
located in the passenger's foot well,
by the kick panel.
Use the following procedure to reset the fuel pump shut-off switch.
1. Turn the ignition to the OFF position.
2. Check the fuel system for leaks.
3. If no fuel leak is apparent, reset the fuel pump shut-off switch by
pushing in on the reset button.
4. Turn the ignition to the ON position. Pause for a few seconds and
return the key to the OFF position.
5. Make a further check for leaks in the fuel system.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
15
Roadside emergencies
138

To remove the fuse panel cover,
turn the panel fasteners
counterclockwise.
To remove a fuse use the fuse puller
tool provided on the fuse panel
cover.
FUSE1 RELAY
1
RELAY
2
RELAY
3
RELAY
4
RELAY
512 22
21323
31424
4
16 15
25
526
61727
71828
81929
11 21 31930
10 20
Roadside emergencies
140

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment
Fuse Panel Description
1 20A Radio, Secondary Fusing for Audio Options
2 5A Instrument Cluster, Powertrain Control
Module (PCM) Keep Alive Memory, PATS
LED
3 20A Cigar Lighter, Data Link Connector
4 Ð Not Used
5 10A Ignition Run Power Feed (Customer
Access)
6 15A DRL, Brake Shift Interlock (BSI), ECM,
Overhead Trip Computer (OTC), AUX A/C
Components, Hazard Flasher, Speed
Control, Vacuum Pump, Backup Lamps,
Electronic Shift On The Fly Hublock
Solenoid, Heated Seat
7 5A Power Window/Lock Switch Illumination
8 5A Headlamp Switch, LED/Radio
9 Ð Not Used
10 Ð Not Used
11 30A Wiper Run/Park Relay Coil, Wiper Hi/LO
Relay Coil, Washer Pump Relay Coils, Front
Wiper Motor, Rear Wiper Motor Relay Coils
12 Ð Not Used
13 20A Stop Lamps, Center High-mount Stop
Lamp/Hazard, Trailer Tow Stop Lamp,
Speed Control
14 15A Dome Lamp, Cargo Lamp, Courtesy Lamps,
Running Boards, Power Mirrors, Vanity
Mirrors, Map Lamps, Underhood Lamps,
Glove Box Lamp, Power Windows (Delayed
Accessory)
15 5A Stop Lamp Switch (Logic), PATS, GEM
16 15A Hi-beam Headlamps, Instrument Cluster
(Hi-beam Indicator)
Roadside emergencies
141

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment
Fuse Panel Description
17 15A Heated Mirrors, Rear Defroster9ON9
indicator
18 10A Rear Integrated Control Panel (RICP), CD
Changer
19 10A Instrument Cluster, GEM Module, Overdrive
Cancel Switch, PATS/PATS Transiever, Idle
Validation Switch (Diesel only)
20 15A Starter Motor Relay, GEM, Radio (w/
Secondary)
21 5A Radio Start Feed
22 10A Air Bag Module, Blower Motor Relay Coil
23 Ð Not Used
24 10A A/C Clutch, Blend Door Actuator, Trailer
Tow Battery Charge Relay Coil
25 5A 4-Wheel Anti-Lock Brake System (4WABS)
26 Ð Not Used
27 Ð Not Used
28 Ð Not Used
29 5A Instrument Cluster (Charge and Airbag
Warning Lamps)
30 30A PCM Relay Coil, Ignition Coil (Gasoline
only), Fuel Heater (Diesel only), Wastegate
Solenoid (Diesel only), Injector Driver
Module Relay Coil (Diesel only)
31 Ð Not Used
Relay 1 Ð Interior Lamp Relay
Relay 2 Ð Battery Saver Relay
Relay 3 Ð Rear Defroster
Relay 4 Ð Power Window One Touch Down Relay
Relay 5 Ð Accessory Delay Relay
Roadside emergencies
142

Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle's main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the Power Distribution Box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and carechapter.
MAXI
FUSE
115MAXI
FUSE
116MAXI
FUSE
117
MAXI
FUSE
118
MAXI
FUSE
111MAXI
FUSE
112MAXI
FUSE
113
MAXI
FUSE
114
MAXI
FUSE
107MAXI
FUSE
108MAXI
FUSE
109
MAXI
FUSE
110
MAXI
FUSE
103MAXI
FUSE
104MAXI
FUSE
105
MAXI
FUSE
106
MAXI
FUSE
101MAXI
FUSE
102 CB601 CB602 FUSE 17 FUSE 18FUSE 21 FUSE 22
FUSE 19 FUSE 20FUSE 23
FULL
RELAY 302R 401
D 501 FUSE 24
FUSE 15 FUSE 16
FUSE 13 FUSE 14
FUSE 11 FUSE 12
FUSE 9 FUSE 10
FUSE 7 FUSE 8
FUSE 5 FUSE 6
FUSE 3 FUSE 4
FUSE 1 FUSE 2
D 503 D 502
FULL
RELAY 301HALF
RELAY
207
FULL
RELAY 303
FULL
RELAY 304
HALF
RELAY
201
HALF
RELAY
202HALF
RELAY 208
HALF
RELAY 209
HALF
RELAY 205
HALF
RELAY 206
HALF
RELAY
203
HALF
RELAY
204
Roadside emergencies
143

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 20A* Rear Wiper
2 10A* Air Bag
3 15A* Quarter Flip Window Motor
4 20A* Trailer Tow Backup Lamps, Trailer Tow
Park Lamps
5 20A* Instrument Panel Auxiliary Power Point
6 10A* Gasoline only-A/C (CASS)
Diesel only-Alternator9A9Field
7 20A* Floor Console Auxiliary Power Point
8 15A* Park Lamps
9 20A* Left Rear Quarter Auxiliary Power
Point
10 30A* Head Lamps
11 20A* Cargo Auxiliary Power Point
12 15A* DRL
13 10A* Washer
14 15A* Horn
15 Ð Not Used
16 Ð Not Used
17 Ð Not Used
18 Ð Not Used
19 20A* (Gasoline
only) Ð
(Diesel only)Gasoline only-E40D/HEGO
Diesel only-Not Used
20 7.5A* Trailer Tow Stop /Turn LH
21 10A* Left Headlamp
22 7.5A* Trailer Tow Stop /Turn RH
23 10A* Right Headlamp
24 20A* (Gasoline
only) Ð
(Diesel only)Gasoline only-Engine Control
Diesel only-Not Used
Roadside emergencies
144

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
101 50A** Ignition Switch (B1 & B3)
102 30A** Power Door Locks
103 40A** Auxiliary Blower
104 30A** Electronic Shift On The Fly (Transfer
Case Motor)
105 50A** Junction Box Battery Feed
106 Ð (Gasoline
only)
30A**
(Diesel only)Gasoline only-Not Used
Diesel only-Injector Driver Module
107 30A** Heated Seats
108 30A** Power Seats
109 40A** Front Blower Motor
110 30A** Trailer Tow Electronic Brake
111 Ð Not Used
112 20A** Fuel Pump
113 30A** (Gasoline
only)
20A**
(Diesel only)PCM Power
114 Ð Not Used
115 30A** Trailer Tow Battery Charge
116 50A** Ignition Switch (B4 & B5)
117 Ð Not Used
118 40A** Rear Defroster
201 Ð Park Lamp
202 Ð Fuel Pump
203 Ð Not Used
204 Ð Quarter Flip Window Motor
205 Ð Rear Wiper
206 Ð Rear Washer
207 Ð Wiper Run/Park
Roadside emergencies
145

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
208 Ð Wiper HI/LOW
209 Ð Front Washer
301 Ð Horn Relay
302 Ð Gasoline only-A/C (CASS)
Diesel only-Injector Driver Module
Power Relay
303 Ð Blower Motor
304 Ð EEC Power
401 Ð Not Used
501 Ð Powertrain Control Module Diode
502 Ð A/C Clutch Diode
503 Ð Not Used
601 30A CB Power Windows
602 60A** Four Wheel Anti-Lock Brake Module
*Mini fuses **Maxi fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Spare tire information
Your vehicle may be equipped with a spare tire that can be used as
either a spare or a regular tire. The spare tire is not equipped with wheel
trim. The wheel trim from the original wheel/tire may be used on the
spare.
Your vehicle is equipped with 4WD, a spare tire of a different size
than the road tires should not be used. Such a tire could result in
damage to driveline components and make the vehicle difficult to
control.
Roadside emergencies
146

Locks
childproof ..................................53
doors ..........................................53
Lubricant specifications ...207, 209
Lumbar support, seats .........76±77
M
Manual transmission
fluid capacities ........................204
lubricant specifications ..........209
Message center ...........................58
english/metric button ...............58
menu button .............................59
Mirrors .........................................58
automatic dimming rearview
mirror ........................................57
fold away ...................................55
heated ........................................55
side view mirrors (power) .......54
Motorcraft parts ................189, 204
O
Octane rating ............................187
Odometer .....................................16
Oil (see Engine oil) ..................160
Overdrive .....................................51
P
Panic alarm feature, remote
entry system ................................66
Parking brake ............................113
Parts (see Motorcraft parts) ....204
Power distribution box
(see Fuses) ...............................143Power door locks ........................53
Power steering ..........................114
fluid, checking and adding ....171
fluid, refill capacity ................204
fluid, specifications .........207, 209
Preparing to
drive your vehicle .....................115
R
Radio ............................................27
Relays ........................................138
Remote entry system ...........64, 66
illuminated entry ......................67
locking/unlocking doors ...........65
panic alarm ...............................66
replacement/additional
transmitters ...............................68
replacing the batteries .............66
Roof rack ...................................133
S
Safety belts (see Safety
restraints) ..................14, 84±87, 89
Safety defects, reporting ..........224
Safety restraints ..............84±87, 89
belt minder ...............................91
cleaning the safety belts ..94, 203
extension assembly ..................90
for adults .............................85±87
for children .......................99±100
lap belt ......................................89
warning light
and chime ......................11, 14, 91
Safety seats for children ..........101
Seat belts
(see Safety restraints) ...............84
Index
229
