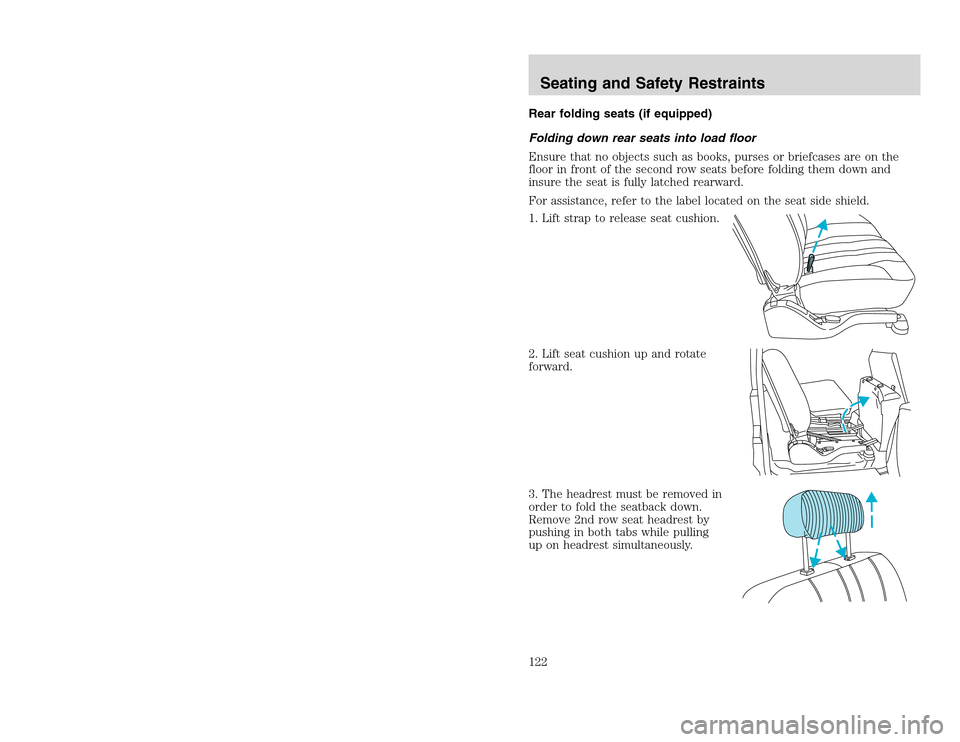

Rear folding seats (if equipped)
Folding down rear seats into load floor
Ensure that no objects such as books, purses or briefcases are on the
floor in front of the second row seats before folding them down and
insure the seat is fully latched rearward.
For assistance, refer to the label located on the seat side shield.
1. Lift strap to release seat cushion.
2. Lift seat cushion up and rotate
forward.
3. The headrest must be removed in
order to fold the seatback down.
Remove 2nd row seat headrest by
pushing in both tabs while pulling
up on headrest simultaneously.Seating and Safety Restraints122
Rear folding seats (if equipped)
Folding down rear seats into load floor
Ensure that no objects such as books, purses or briefcases are on the
floor in front of the second row seats before folding them down and
insure the seat is fully latched rearward.
For assistance, refer to the label located on the seat side shield.
1. Lift strap to release seat cushion.
2. Lift seat cushion up and rotate
forward.
3. The headrest must be removed in
order to fold the seatback down.
Remove 2nd row seat headrest by
pushing in both tabs while pulling
up on headrest simultaneously.Seating and Safety Restraints122

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 62 A

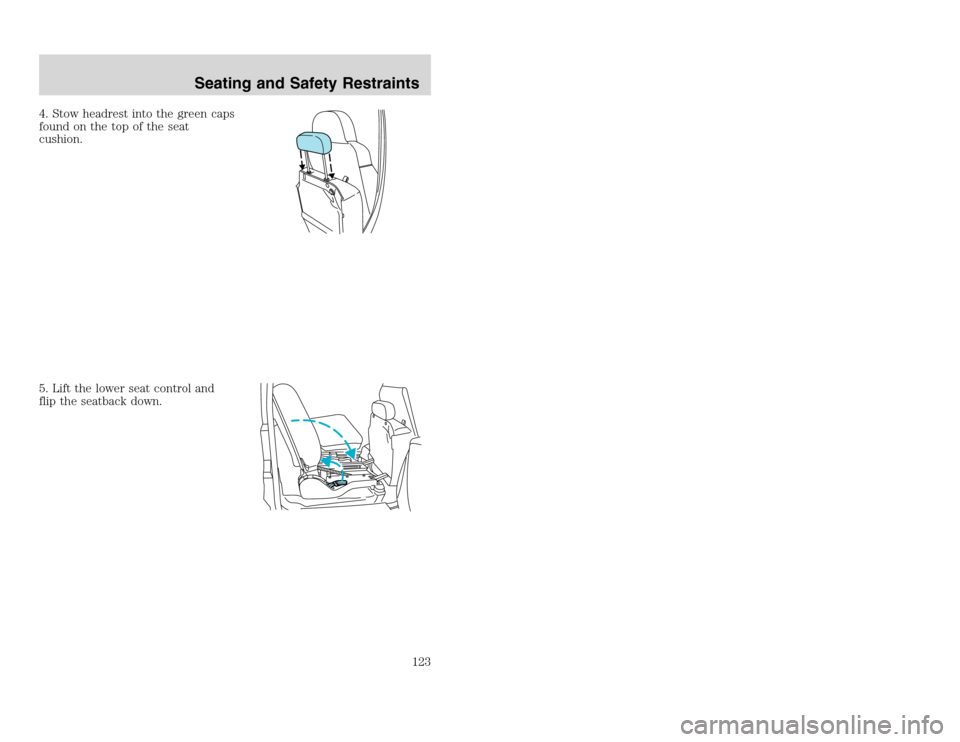

4. Stow headrest into the green caps
found on the top of the seat
cushion.
5. Lift the lower seat control and
flip the seatback down.
Seating and Safety Restraints
123
4. Stow headrest into the green caps
found on the top of the seat
cushion.
5. Lift the lower seat control and
flip the seatback down.
Seating and Safety Restraints
123

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 63 A
4. Remove headrest from storage position and return to 2nd row
seatback. Push down headrest completely to secure.
Reclining the second row seatback
Locate the release handle located on
the outboard side of the seat
cushion and lift gently to allow the
seatback to be adjusted to the
desired location.
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Third row seat (if equipped)
The third row seat is equipped with combination lap and shoulder belts
in the outboard seating positions and a manual adjust tongue lap belt in
the center seating position. For information on the proper operation of
the safety restraints, refer toSafety Restraintsin this chapter.
The third row seat may be removed from the vehicle for additional cargo
space.
Accessing the third row seat
Your vehicle is equipped with an easy entry second row seat feature
which allows ready access to the third row seat. You may enter the third
row seat through either rear side door.To reduce the risk of personal injury, the second row seat should
not be left in the forward, E-Z entry position while the vehicle is
in motion. Please ensure that the seat is in the upright, fully latched
rearward position before putting the vehicle in motion. Refer to the
warning label on the seat side shield.
Seating and Safety Restraints
125

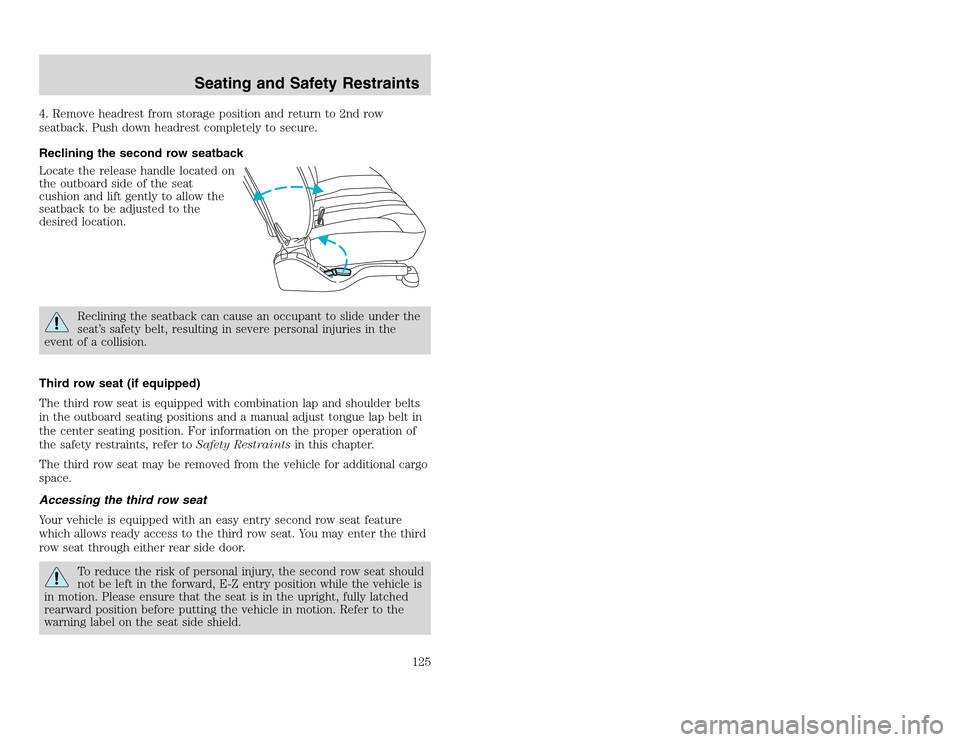

4. Remove headrest from storage position and return to 2nd row
seatback. Push down headrest completely to secure.
Reclining the second row seatback
Locate the release handle located on
the outboard side of the seat
cushion and lift gently to allow the
seatback to be adjusted to the
desired location.
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Third row seat (if equipped)
The third row seat is equipped with combination lap and shoulder belts
in the outboard seating positions and a manual adjust tongue lap belt in
the center seating position. For information on the proper operation of
the safety restraints, refer toSafety Restraintsin this chapter.
The third row seat may be removed from the vehicle for additional cargo
space.
Accessing the third row seat
Your vehicle is equipped with an easy entry second row seat feature
which allows ready access to the third row seat. You may enter the third
row seat through either rear side door.To reduce the risk of personal injury, the second row seat should
not be left in the forward, E-Z entry position while the vehicle is
in motion. Please ensure that the seat is in the upright, fully latched
rearward position before putting the vehicle in motion. Refer to the
warning label on the seat side shield.
Seating and Safety Restraints
125
